Hyundai i10 (2016 year). Instruction - part 8
Features of your vehicle
OBA043028L
OBA043201L

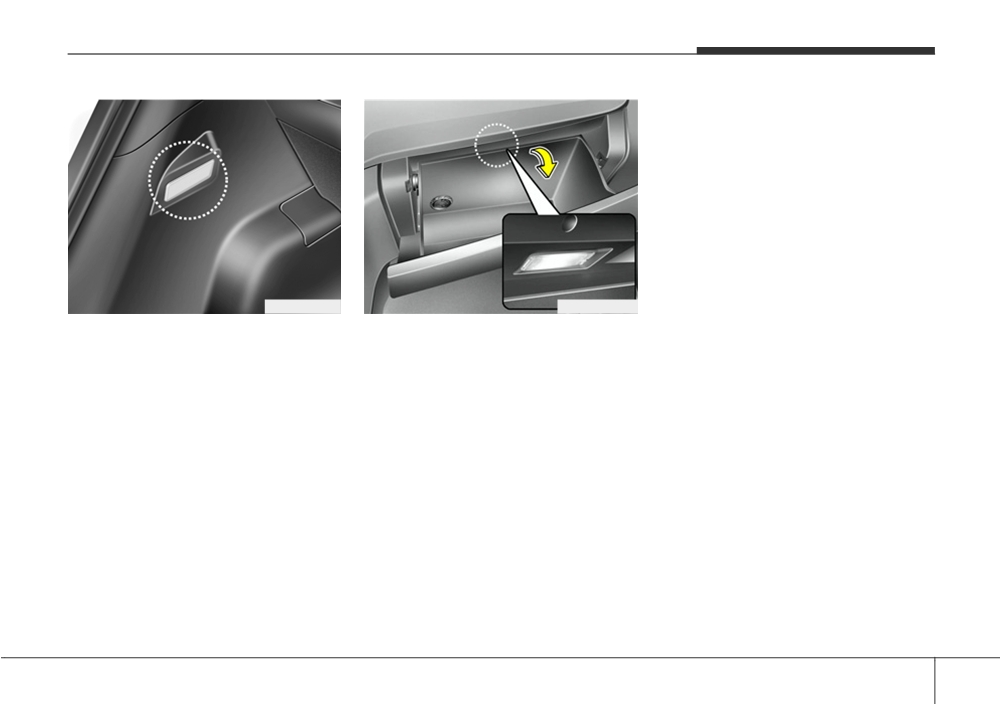

Luggage room lamp (if equipped)
Glove box lamp (if equipped)
The luggage room lamp comes on when
The glove box lamp comes on when the
the tailgate is opened.
glove box is opened.
The parking lights or headlights must be
ON for the glove box lamp to function.
4 69
Features of your vehicle
DEFROSTER
■ Left-hand drive
To activate the rear window defroster,
CAUTION
press the rear window defroster button
To prevent damage to the conduc-
located in the center facia switch panel.
tors bonded to the inside surface of
The indicator on the rear window
the rear window, never use sharp
defroster button illuminates when the
instruments or window cleaners
defroster is ON.
containing abrasives to clean the
If there is heavy accumulation of snow on
window.
the rear window, brush it off before oper-
To prevent the battery from being
ating the rear defroster.
discharged, operate the defroster
The rear window defroster automatically
only while the engine is running.
turns off after approximately 20 minutes
OBA043150L
or when the ignition switch is turned off.
■ Right-hand drive
To turn off the defroster, press the rear
✽ NOTICE
window defroster button again.
If you want to defrost and defog the
front windshield, refer to “Windshield
defrosting and defogging” in this chap-
ter.
OBA043150
Rear window defroster
(if equipped)
The defroster heats the window to
remove frost, fog and thin ice from the
interior and exterior of the rear window,
while the engine is running.
4 70
Features of your vehicle
MANUAL CLIMATE CONTROL SYSTEM (IF EQUIPPED)
■ Left-hand drive
1. Mode selection knob
2. Fan speed control knob
3. Temperature control knob
4. Air conditioning button*
5. Air intake control button
(recirculated air position)
■ Right-hand drive
6. Air intake control button
(outside (fresh) air position)
7. Rear window defroster button*
* : if equipped
OBA043151L/OBA043151
4 71
Features of your vehicle
Heating and air conditioning
■ Left-hand drive
■ Right-hand drive
1. Start the engine.
2. Set the mode to the desired position.
To improve the effectiveness of heat-
ing and cooling :
- Heating:
- Cooling:
3. Set the temperature control to the
desired position.
4. Set the air intake control to the outside
(fresh) air or recirculated air position.
5. Set the fan speed control to the
desired speed.
6. If air conditioning is desired, turn the air
conditioning system (if equipped) on.
OBA043152L/OBA043152
4 72
Features of your vehicle
■ Front - Left-hand drive
Bi-Level (B, D, C, E)
Air flow is discharged towards the face
and floor.
Floor-Level (C, A, D)
Most of the air flow is directed to the
OBA043154L
floor, with a small amount of the air
■ Front - Right-hand drive
OBA043153
directed to the windshield and side win-
dow defrosters.
Mode selection
The mode selection knob controls the
direction of the air flow through the venti-
lation system.
Floor/Defrost-Level (A, C, D)
Air can be directed to the floor, dashboard
outlets, or windshield. Five symbols are
Most of the air flow is directed to the floor
used to represent Face, Bi-Level, Floor,
and the windshield with a small amount
Floor-Defrost and Defrost air position.
directed to the side window defrosters.
OBA043154
Instrument panel vents
Face-Level (B, C, E)
Defrost-Level (A, C, E)
The outlet vents can be opened or closed
by using the vent control lever.
Air flow is directed toward the upper body
Most of the air flow is directed to the
Also, you can adjust the direction of air
and face. Additionally, each outlet can be
windshield with a small amount of air
delivered from these vents using the vent
controlled to direct the air discharged
directed to the side window defrosters.
control lever as shown.
from the outlet.
4 73
Features of your vehicle
■ Rear
■ Left-hand drive
OBA043156L
■ Right-hand drive
OBA043227IN
OBA043155
The outlet vents can be opened or closed
Temperature control
separately using the thumbwheel.
The temperature control knob allows you
Also, you can adjust the direction of air
to control the temperature of the air flow-
delivery from these vents using the vent
ing from the ventilation system. To
control lever as shown.
change the air temperature in the pas-
senger compartment, turn the knob to
the right for warm air or left for cooler air.
OBA043156
Air intake control
This is used to select outside (fresh) air
position or recirculated air position.
To change the air intake control position,
push the control button.
4 74
Features of your vehicle
Recirculated air position
The indicator light on the
WARNING
button illuminates when the
•
Continuous operation of the cli-
recirculated air position is
mate control system in the recir-
selected.
culated air position may allow
With the recirculated air
humidity to increase inside the
position selected, air from
vehicle which may fog the glass
the passenger compart-
and obscure visibility.
ment will be drawn through
•
Do not sleep in a vehicle with the
the heating system and
air conditioning or heating system
heated or cooled according
on. It may cause serious harm or
to the function selected.
death due to a drop in the oxygen
OBA043157
level and/or body temperature.
Outside (fresh) air position
•
Continuous operation of the cli-
Fan speed control
With the outside (fresh) air
mate control system in the recir-
The ignition switch must be in the ON
position selected, air enters
culated air position can cause
position for fan operation.
the vehicle from outside and
drowsiness or sleepiness, and
The fan speed control knob allows you to
is heated or cooled accord-
loss of vehicle control. Set the air
control the fan speed of the air flowing
ing to the function selected.
intake control to the outside
from the ventilation system. To change
(fresh) air position as much as
the fan speed, turn the knob to the right
possible while driving.
for higher speed or left for lower speed.
✽ NOTICE
Setting the fan speed control knob to the
Prolonged operation of the heater in the
“0” position turns off the fan.
recirculated air position
(without air
conditioning selected) may cause fog-
ging of the windshield and side windows
and the air within the passenger com-
partment may become stale.
In addition, prolonged use of the air con-
ditioning with the recirculated air posi-
tion selected will result in excessively dry
air in the passenger compartment.
4 75
Features of your vehicle
■ Left-hand drive
System operation
Operation Tips
Ventilation
•
To prevent dust or unpleasant fumes
from entering the vehicle through the
1. Set the mode to the
position.
ventilation system, temporarily set the
2. Set the air intake control to the outside
air intake control to the recirculated air
(fresh) air position.
position. Be sure to return the control
3. Set the temperature control to the
to the fresh air position when the irri-
desired position.
tation has passed to keep fresh air in
4. Set the fan speed control to the
the vehicle. This will help keep the driv-
desired speed.
er alert and comfortable.
•
Air for the heating/cooling system is
OBA043158L
Heating
drawn in through the grilles just ahead
■ Right-hand drive
1. Set the mode to the
position.
of the windshield. Care should be
2. Set the air intake control to the outside
taken that these are not blocked by
(fresh) air position.
leaves, snow, ice or other obstructions.
3. Set the temperature control to the
•
To prevent interior fog on the wind-
desired position.
shield, set the air intake control to the
fresh air position and fan speed to the
4. Set the fan speed control to the
desired position, turn on the air condi-
desired speed.
tioning system, and adjust the temper-
5. If dehumidified heating is desired, turn
ature control to a desired temperature.
the air conditioning system (if equipped)
on.
OBA043158
• If the windshield fogs up, set the mode
Air conditioning (if equipped)
to the
,
position.
Press the A/C button to turn the air con-
ditioning system on (indicator light will
illuminate). To turn the air conditioning
system off, press the button again.
4 76
Features of your vehicle
Air conditioning (if equipped)
✽ NOTICE
Air conditioning system operation tips
All HYUNDAI Air Conditioning Systems
•
While using the air conditioning sys-
•
If the vehicle has been parked in direct
are filled with environmentally friendly
tem, monitor the temperature gauge
sunlight during hot weather, open the
R-134a refrigerant.
windows for a short time to let the hot
closely while driving up hills or in
1. Start the engine. Push the air condi-
heavy traffic when outside tempera-
air inside the vehicle escape.
tioning button.
tures are high. Air conditioning sys-
•
To help reduce moisture inside of the
2. Set the mode to the
position.
tem operation may cause engine over-
windows on rainy or humid days,
heating. Continue to use the blower
decrease the humidity inside the vehicle
3. Set the air intake control to the recircu-
fan but turn the air conditioning sys-
by operating the air conditioning system.
lated air position. However, prolonged
tem off if the temperature gauge indi-
•
During air conditioning system opera-
operation of the recirculated air posi-
tion will excessively dry the air. In this
cates engine overheating.
tion, you may occasionally notice a slight
case, change the air position.
•
While opening the windows in humid
change in engine speed as the air con-
weather air conditioning may create
ditioning compressor cycles. This is a
4. Adjust the fan speed control and tem-
water droplets inside the vehicle.
normal system operation characteristic.
perature control to maintain maximum
Since excessive water droplets may
•
Use the air conditioning system every
comfort.
cause damage to electrical equipment,
month only for a few minutes to ensure
When maximum cooling is desired, set
air conditioning should only be used
maximum system performance.
the temperature control to the extreme
with the windows closed.
left, set the air intake control to the
•
When using the air conditioning system,
recirculated air position, then set the
you may notice clear water dripping (or
fan speed control to the highest speed.
even puddling) on the ground under the
passenger side of the vehicle. This is a
normal system operation characteristic.
•
Operating the air conditioning system
in the recirculated air position provides
maximum cooling, however, continual
operation in this mode may cause the
air inside the vehicle to become stale.
•
During cooling operation, you may
occasionally notice a misty air flow
because of rapid cooling and humid air
intake. This is a normal system opera-
tion characteristics.
4 77
Features of your vehicle
✽ NOTICE
Checking the amount of air con-
Outside air
•
Check the filter according to the
ditioner refrigerant and compres-
Maintenance Schedule in chapter 7.
sor lubricant
Recirculated
If the vehicle is being driven in severe
When the amount of refrigerant is low,
air
conditions such as dusty, rough roads,
the performance of the air conditioning is
more frequent climate control air filter
reduced. Overfilling also has a negative
inspections and changes are required.
impact on the air conditioning system.
•
When the air flow rate suddenly
Therefore, if abnormal operation is
decreases, we recommend that the
found, we recommend that the system be
Climate control
system be checked by an authorized
inspected by an authorized HYUNDAI
air filter
Heater core
HYUNDAI dealer.
dealer.
Evaporator
Blower
core
OPB049140L
✽ NOTICE
Climate control air filter
It is important that the correct type and
The climate control air filter installed in
amount of oil and refrigerant is used.
your vehicle filters the dust or other pol-
Otherwise, damage to the compressor and
lutants that come into the vehicle from
abnormal system operation may occur.
the outside through the heating and air
conditioning system. If dust or other pol-
lutants accumulate in the filter over a
WARNING
period of time, the air flow from the air
Improper service may cause seri-
vents may decrease, resulting in mois-
ous injury to the person performing
ture accumulation inside of the wind-
the service. For more detailed infor-
shield even when the outside (fresh) air
mation, we recommend that you
position is selected. If this happens, we
contact an authorized HYUNDAI
recommend that the climate control air
dealer. Improper service may cause
filter be checked by an authorized
serious injury to the person per-
HYUNDAI dealer.
forming the service.
4 78
Features of your vehicle
WINDSHIELD DEFROSTING AND DEFOGGING
•
For maximum defrosting, set the tem-
■ Left-hand drive
WARNING - Windshield
perature control to the extreme
heating
right/hot position and the fan speed
control to the highest speed.
Do not use the
or
position
during cooling operation in extreme-
•
If warm air to the floor is desired while
ly humid weather. The difference
defrosting or defogging, set the mode
between the temperature of the out-
to the floor-defrost position.
side air and the windshield could
•
Before driving, clear all snow and ice
cause the outer surface of the wind-
from the windshield, rear window, out-
shield to fog up, causing loss of vis-
side rear view mirrors, and all side win-
ibility. In this case, set the mode
dows.
selection knob or button to the
•
Clear all snow and ice from the hood
position and fan speed control knob
OBA043169L
and air inlet in the cowl grill to improve
or button to the lower speed.
■ Right-hand drive
heater and defroster efficiency and to
reduce the probability of fogging up
inside of the windshield.
OBA043169
To defog inside windshield
1. Select any fan speed except “0” position.
2. Select desired temperature.
4 79
Features of your vehicle
■ Left-hand drive
3. Select the
position.
3. Select the
position.
4. The outside (fresh) air and air condi-
4. The outside (fresh) air and air condi-
tioning
(if equipped) will be selected
tioning will be selected automatically.
automatically.
If the air-conditioning (if equipped) and
outside (fresh) air position are not select-
ed automatically, press the correspon-
ding button manually.
OBA043170L
■ Right-hand drive
OBA043170
To defrost outside windshield
1. Set the fan speed to the highest
(extreme right) position.
2. Set the temperature to the extreme hot
position.
4 80
Features of your vehicle
STORAGE COMPARTMENT
■ Left-hand drive
■ Left-hand drive
CAUTION
• To avoid possible theft, do not
leave valuables in the storage
compartment.
• Always keep the storage com-
partment covers closed while
driving. Do not attempt to place
so many items in the storage
compartment that the storage
compartment cover can not close
OBA043200L
OBA043202L
securely.
■ Right-hand drive
■ Right-hand drive
WARNING - Flammable
materials
Do not store cigarette lighters,
propane cylinders, or other flamma-
ble/explosive materials in the vehi-
cle. These items may catch fire
and/or explode if the vehicle is
exposed to hot temperatures for
OBA043200
OBA043202
extended periods.
Center console storage
Glove box
(if equipped)
To open the glove box, pull the handle
These compartments can be used to
and the glove box will automatically
store small items.
open. Close the glove box after use.
4 81
Features of your vehicle
■ Left-hand drive
1. Turn on the air conditioning.
WARNING
2. Slide the open/close lever (1) of the
To reduce the risk of injury in an
vent installed in the glove box to the
accident or sudden stop, always
open position.
keep the glove box door closed
3. When the cool box is not used, slide
while driving.
the lever (1) to the closed position.
✽ NOTICE
If some items in the cool box block the
vent, the cooling effectiveness of the cool
OBA043203L
box is reduced.
■ Right-hand drive
WARNING
Do not put perishable food in the
cool box because it may not main-
tain the necessary consistent tem-
perature to keep the food fresh.
✽ NOTICE
OBA043203
If the temperature control knob is in the
Cool box (if equipped)
warm or hot position, warm or hot air
You can keep beverage cans or other
will flow into the glove box.
items cool in the glove box.
4 82
Features of your vehicle
INTERIOR FEATURES
■ Left-hand drive
■ Left-hand drive
WARNING
• Do not hold the lighter in after it
is already heated because it will
overheat.
• If the lighter does not pop out
within 30 seconds, remove it to
prevent overheating.
OBA043207L
OBA043204L
CAUTION
■ Right-hand drive
■ Right-hand drive
We recommend that you use parts
for replacement from an authorized
HYUNDAI dealer. The use of plug-in
accessories
(shavers, hand-held
vacuums, and coffee pots, for
example) may damage the socket or
cause electrical failure.
OBA043207
OBA043204
Cigarette lighter (if equipped)
Ashtray (if equipped)
For the cigarette lighter to work, the igni-
To use the ashtray, open the cover.
tion switch must be in the ACC or ON
To clean or empty the ashtray, pull it out.
position.
To use the cigarette lighter, push it all the
way into its socket. When the element is
heated, the lighter will pop out to the
"ready" position.
4 83
Features of your vehicle
Cup holder
■ Left-hand drive
WARNING - Ashtray use
•
Do not use the vehicle’s ashtray
WARNING - Hot liquids
as waste receptacles.
•
Do not place uncovered cups of
•
Putting lit cigarettes or matches
hot liquid in the cup holder while
in an ashtray with other com-
the vehicle is in motion. If the hot
bustible materials may cause fire.
liquid spills, you may burn your-
self. Such a burn to the driver
could lead to loss of control of
the vehicle.
OBA043205L
•
To reduce the risk of personal
■ Right-hand drive
injury in the event of a sudden
stop or collision, do not place
uncovered or unsecured bottles,
glasses, cans, etc., in the cup
holder while the vehicle is in
motion.
OBA043205
Cups or small beverage cans may be
placed in the cup holders.
4 84
Features of your vehicle
■ Driver’s side
■ Front-Left-hand drive
■ Rear
OBA043229IN
OBA043209L
■ Passenger’s side
■ Front-Right-hand drive
OBA043225IN

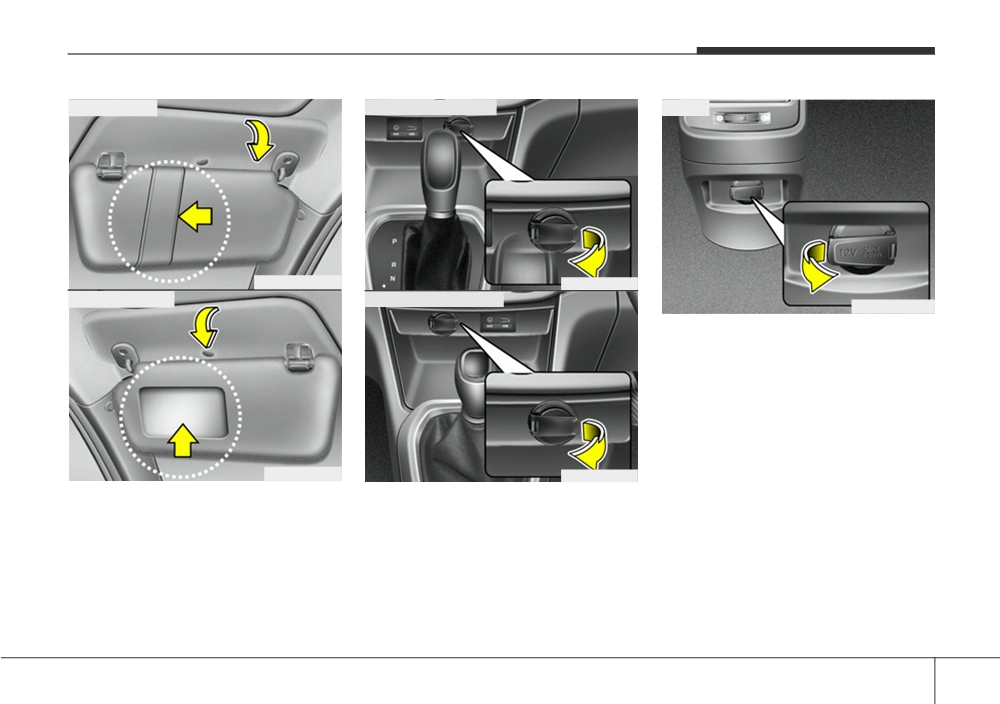

Power outlet
The power outlet is designed to provide
power for mobile telephones or other
devices designed to operate with vehicle
electrical systems. The devices should
draw less than 15 amps with the engine
running.
OBA043031R
OBA043209
Sunvisor
Use the sunvisor to shield direct light
through the front or side windows.
A mirror (if equipped) and ticket holder (if
equipped) is provided on the sunvisor.
4 85
