Features of your vehicle
Searching Radio Frequencies
Using Radio Mode
Auto Store
Press the
A.store
button to automati-
cally save receivable frequencies to
Using Seek
Selecting /Saving Presets
Preset buttons.
SEEK
Press the
TRACK
key to play the
Press the
Preset
button to display
previous/next frequency.
the broadcast information for the fre-
Scan
quency saved to each button.
Press the
SCAN
key to preview fre-
Using TUNE
quencies with superior reception for
Turn the TUNE knob to select the
5 seconds each.
desired frequency.
Press and hold the
SCAN
key (over
• FM : Increases/decreased by 100kHz
0.8 seconds) to preview presets for 5
seconds each.
• AM : Increases/decreased by 9kHz
✽ NOTICE
• Once scan is complete, the previous
Press the
1
~
6
buttons to play
frequency will be restored.
the desired preset.
• While Scan is operating, pressing
the
SCAN
key will cancel the
scan operation.
✽ NOTICE
While listening to a frequency you
want to save as a preset, press and
hold one of the [1] ~ [6] preset but-
tons (over 0.8 seconds) to save the
current frequency to the selected
preset.
4 273
Features of your vehicle
✽ NOTICE - USING THE DISCS
(Continued)
(Continued)
•
Clean fingerprints and dust off the
• Do not use abnormally shaped
•
This device has been manufac-
disc surface (coated side) with a
discs (8cm, heart-shaped, octagon-
tured to be compatible with soft-
soft cloth.
shaped) as such discs could lead to
ware bearing the following logo
•
The use of CD-R/CD-RW discs
malfunctions.
marks.
attached with labels may result in
• If the disc is straddled on the disc
•
Do not clean discs with chemical
disc slot jams or difficulties in disc
slot without removal for 10 sec-
solutions, such as record sprays,
removal. Such discs may also
onds, the disc will automatically
antistatic sprays, antistatic liq-
result in noise while playing.
be re-inserted into the disc player.
uids, benzene, or thinners.
•
Some CD-R/CD-RW discs may
• Only genuine audio CDs are sup-
•
After using a disc, put the disc
not properly operate depending on
ported. Other discs may result in
back in its original case to prevent
the disc manufacturer, production
recognition failure (e.g. copy CD-
disc scratches.
method and the record method as
R, CDs with labels)
•
Hold discs by their edges or within
used by the user. If problems per-
the center hole to prevent damages
sist, trying using a different CD as
to disc surfaces.
continued use may result in mal-
•
Do not introduce foreign sub-
functions.
stances into the disc insert/eject
•
The performance of this product
slot. Introducing foreign sub-
may differ depending on the CD-
stances could damage the device
RW Drive Software.
interior.
•
Copy-protected CDs such as S-
•
Do not insert two discs simultane-
type CDs may not function in the
ously.
device. DATA discs cannot be
•
When using CD-R/CD-RW discs,
played. (However, such discs may
differences in disc reading and
still operate but will do so abnor-
playing times may occur depend-
mally.)
ing on the disc manufacturer, pro-
(Continued)
duction method and the recording
method as used by the user.
(Continued)
4 274
Features of your vehicle
MP3 File Information
• Support for Compressed Files
• For MP3/WMA compression files,
differences in sound quality will
1. Supported Bitrates (Kbps)
occur depending on the bitrate.
• Supported Audio Formats
(Higher sound quality can be expe-
MPEG1
MPEG2
MPEG2.5
WMA
rienced with higher bitrates.)
ISO 9660 Level 1
Layer3
Layer3
Layer3
High Range
• This device only recognizes files
32
8
8
48
ISO 9660 Level 2
File System
with MP3/WMA extensions. Other
40
16
16
64
Romeo / Juliet (128 characters)
file extensions may not be properly
48
24
24
80
MPEG1 Audio Layer3
recognized.
56
32
32
96
MPEG2 Audio Layer3
64
40
40
128
MPEG2.5 Audio Layer3
3. Maximum number of recognized
Audio
80
48
48
160
Windows Media Audio Ver 7.X
folders and files
Compression
96
56
56
192
& 8.X
- Folder : 255 folders for CD, 2,000
112
64
64
folders for USB
128
80
80
❈ File formats that do not comply
- File : 999 files for CD, 6,000 files for
160
96
96
with the above formats may not be
USB
properly recognized or play with-
192
112
112
❈ There are no limitations to the
out properly displaying file names
224
128
128
number of recognized folder levels
or other information.
256
144
144
320
160
160
2. Sampling Frequencies (Hz)
MPEG1
MPEG2
MPEG2.5
WMA
44100
22050
11025
32000
48000
24000
12000
44100
3000
16000
8000
48000
4 275
Features of your vehicle
• Language Support
• Compatibility by Disc Type
• Precautions upon Writing CDs
(Unicode Support)
1. Playing MIXED CDs: First plays
1. In all cases except when creating
1. English: 94 characters
the audio CD, then plays the com-
multisession discs, check the
pressed file(s).
close session option before creat-
2. Special characters and Symbols :
ing the disc. Though product mal-
986 characters
2. Playing EXTRA CDs: First plays
functions will not occur, some time
the audio CD, then plays the com-
❈ Languages other than Korean and
may be required for the device to
pressed file(s).
English
(including Chinese) are
check whether the session state is
not included.
3. Playing multisession CDs: Plays in
closed
(approximately
25 sec-
3. Text Display (Based on Unicode)
order of sessions
onds). (Additional time may also
- MIXED CD : CD type in which
- File name: Maximum 64 English
be required depending on the
both MP3 and audio CD files are
characters
number of folders or files.)
recognized in one disc.
- Folder name: Max
32 English
2. Changing the MP3/WMA file
- Multisession CD CD type that
characters
extensions or changing files of
includes more than two sessions.
other extensions to MP3/WMA
❈ Using the scroll feature allows you
Different from Extra CDs, multi-
may result in product malfunction.
to see the entire name of files with
session CDs are recorded by
names that are too long to be dis-
3. When naming files with MP3/WMA
sessions and have no media limi-
played at once.
file extensions, write using only
tation.
Korean and English. (Languages
other than Korean and English are
not supported and are displayed
as blank.)
4. Unauthorized use or duplication of
music files are prohibited by law.
4 276
Features of your vehicle
5. Prolonged use of CD-R/CD-RW
discs that do not satisfy related
standards and/or specifications
could result in product malfunc-
tion.
6. Unauthorized use or duplication of
MP3/WMA files is prohibited by
law.
4 277
Features of your vehicle
MEDIA MODE
MEDIA MODE
✽ NOTICE
- AM910DMMG, AM911DMMG,
- AM900DMMG, AM901DMMG,
The media mode pop up screen can
AM912DMEE, AM910DMMN,
AM910DMEE, AM911DMEE,
be displayed only when there are two
AM914DMEE
AM910DMGL, AM900DMMN,
or more media modes turned on.
AM904DMEE
Switching to Media Mode
(for Bluetooth® Wireless
Switching to Media Mode
Title Icon
Technology equipped model)
When a Bluetooth® Wireless
Technology, iPod®, USB, or AUX
Pressing the
MEDIA
key will change
Pressing the
MEDIA
key will change
device is connected or a CD is
the operating mode in order of
the operating mode in order of CD ➟
inserted, the corresponding mode
CD➟USB(iPod®)➟AUX➟My Music.
USB (iPod®) ➟ AUX ➟ My Music ➟
icon will be displayed.
BT Audio.
Icon
Title
Bluetooth® Wireless Technology
CD
iPod®
USB
If
[Pop-up Mode] / [Mode Pop-up] is
turned on within
SETUP
[Display],
AUX
If
[Pop-up Mode] / [Mode Pop-up] is
then pressing the
MEDIA
key will
turned on within
SETUP
[Display],
display the Media Pop-up Mode
then pressing the
MEDIA
key will dis-
screen.
play the Media Pop-up Mode screen.
Turn the TUNE knob to move the
Turn the TUNE knob to move the
focus. Press the knob to select.
focus. Press the knob to select.
4 278
Features of your vehicle
AUDIO CD MODE
1. Mode
7. Random(Shuffle)
Displays currently operating mode
Turns the Random(Shuffle) feature
on/off

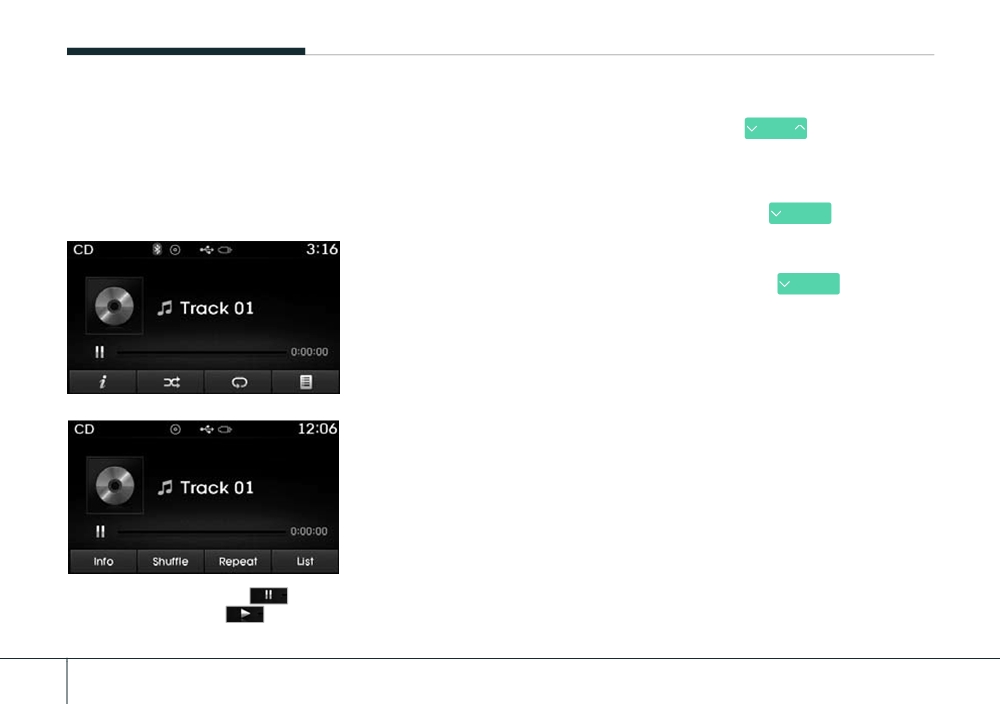

Basic Mode Screen
2. Operation State
8. Repeat
From Repeat/Random(Shuffle)/ Scan,
displays the currently operating func-
Turns the Repeat feature on/off
tion
9. List
3. Track Info
Moves to the list screen
Displays information about the cur-
rent track
4. Play/Pause
<for RDS model>
Changes the play/pause state
5. Play Time
Displays the current play time
6. Info
Shows detailed information about
the current track
4 279
Features of your vehicle
Using Audio CD Mode
✽ NOTICE
Changing Tracks
SEEK
• Only genuine audio CDs are sup-
Press the
TRACK
key to move to
ported. Other discs may result in
the previous or next track.
Playing/Pausing CD Tracks
recognition failure (e.g. copy CD-
Once an audio CD is inserted, the
R, CDs with labels)
✽ NOTICE
mode will automatically start and
• The artist and title information are
SEEK
begin playing.
displayed on the screen if track
• Pressing the
TRACK
key after the
information is included within the
track has been playing for 2 seconds
audio CD.
will start the current track from the
beginning.
SEEK
• Pressing the
TRACK
key before
the track has been playing for 1 sec-
onds will start the previous track.
<for RDS model>
While playing, press the
button
to pause and press
button to
play.
4 280
Features of your vehicle

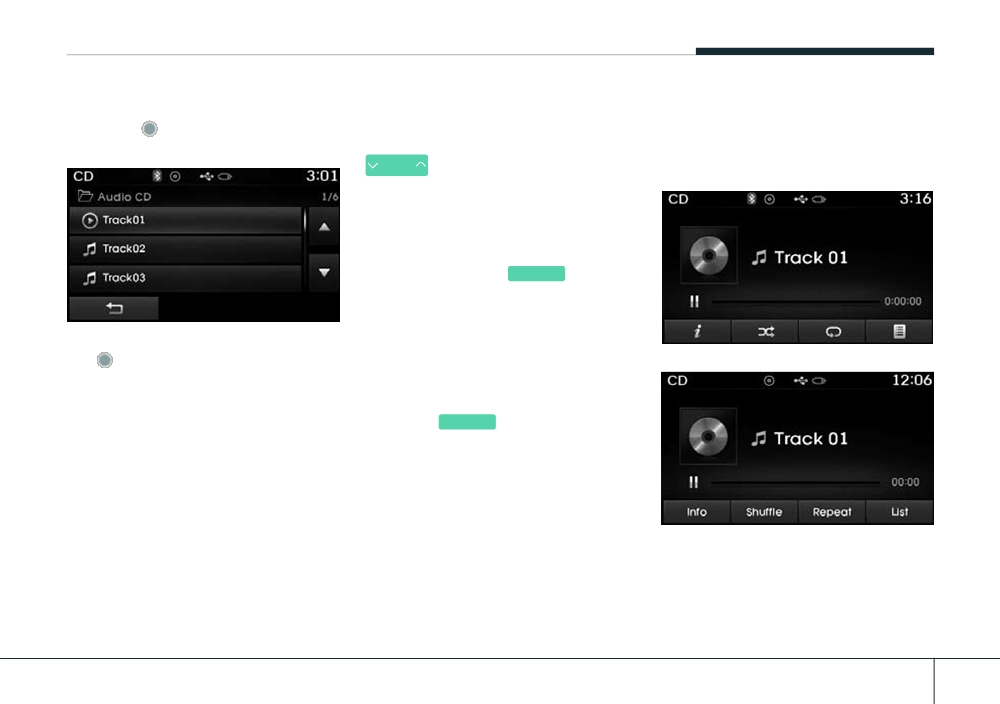

Selecting from the List
Rewinding / Fast-forwarding
Audio CD Mode Menu
Tracks
Turn the TUNE knob left/right to
Within this mode, you will have
search for the desired track.
While playing, press and hold the
access to the Info, Random(Shuffle),
SEEK
TRACK
key (over 0.8 seconds) to
Repeat and List features.
rewind or fast-forward the current
track.
Scan(for RDS model)
Press and hold the
TA/SCAN
key (over
0.8 seconds) to play the first 10 sec-
onds of each file.
Pressing and holding the key again
Once you find the desired track, press
to turn off.
<for RDS model>
the TUNE knob to start playing.
Scan
Press the
SCAN
key to play the first
10 seconds of each file.
Press the key again to turn off.
4 281
Features of your vehicle
Info
List
Press the
(
Info
)button to dis-
Press the
(
List
)button to dis-
play details about the current disc.

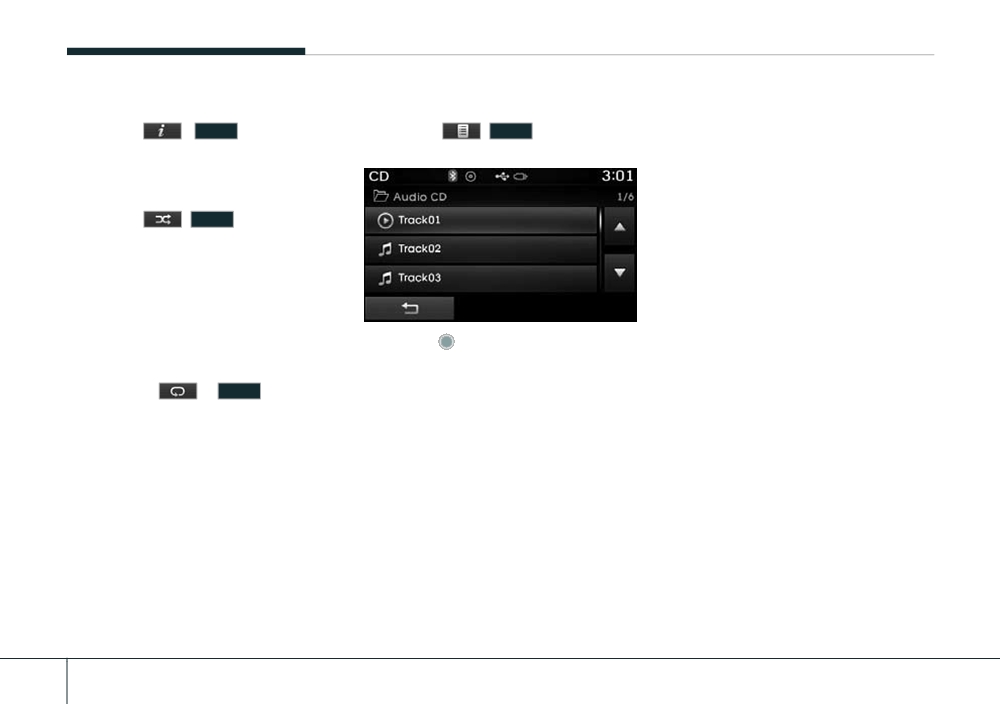

play the track list screen.
Random(Shuffle)
Press the
(
Shuffle
)button to play
tracks in random(Shuffle) order.
Press the button again to turn the
Random(Shuffle) feature off.
• Random(Shuffle): Plays all tracks in
random(Shuffle) order.
Turn the TUNE knob left/right to
search for tracks. Once the desired
Repeat
track is displayed, press the knob to
Press the
(
Repeat
)button to
select and play.
repeat the current track. Press the
button again to turn the repeat fea-
ture off.
• Repeat: Repeats the current track.
4 282
Features of your vehicle

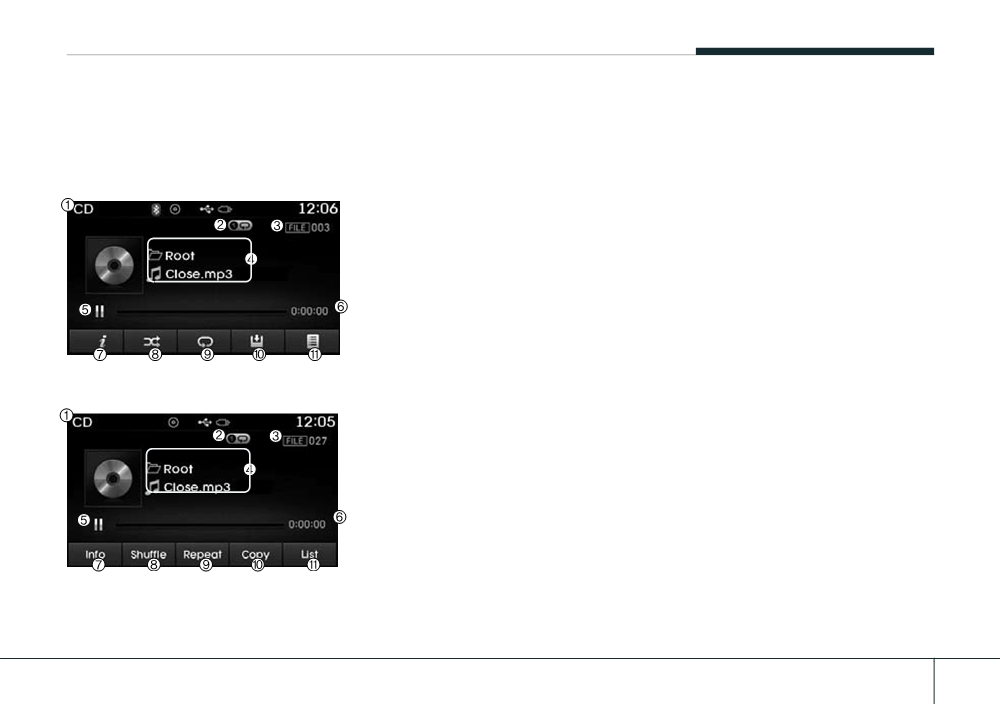

MP3 CD MODE
1. Mode
8. Random(Shuffle)
Displays currently operating mode.
Turns the Random(Shuffle) feature
on/off
Basic Mode Screen
2. Operation State
9. Repeat
From Repeat/Random(Shuffle)/ Scan,
displays the currently operating func-
Turns the Repeat feature on/off
tion
10. Copy
3. File Index
Copies the current file into My Music
Displays the current file number
11. List
4. File Info
Moves to the list screen
<for RDS model>
Displays information about the cur-
rent file
5. Play/Pause
Changes the play/pause state
6. Play Time
Displays the current play time
7. Info
Shows detailed information about
the current file
4 283
Features of your vehicle

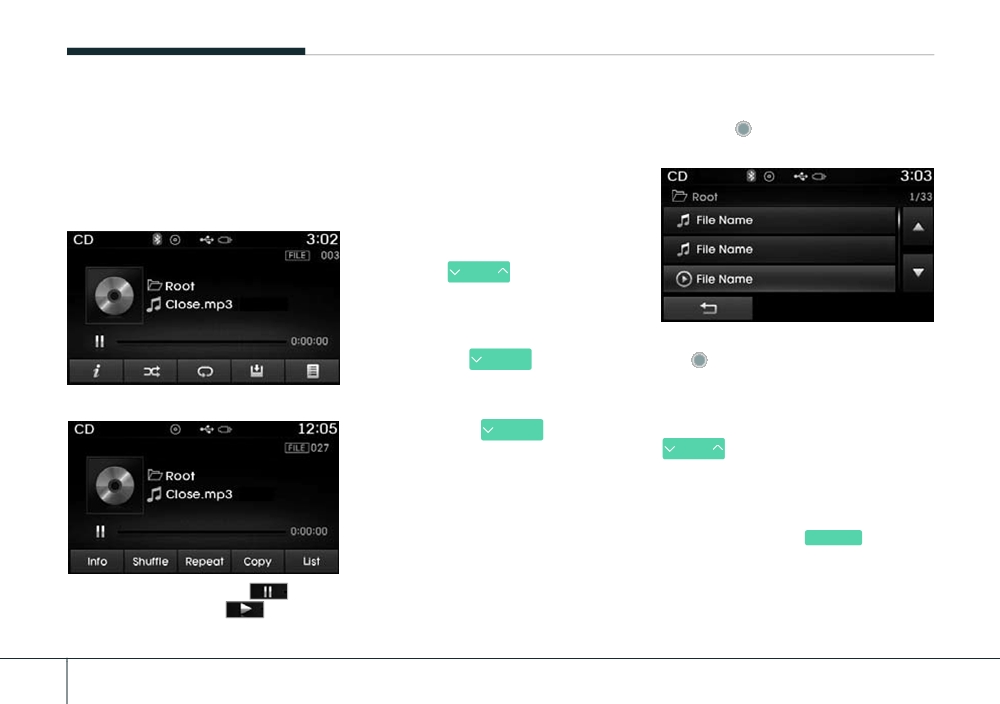

Using MP3 CD Mode
✽ NOTICE
Selecting from the List
If there are numerous files and fold-
Turn the TUNE knob left/right to
Playing/Pausing MP3 Files
ers within the disc, reading time
search for the desired file.
could take more than 10 seconds
Once an MP3 disc is inserted the
and the list may not be displayed or
mode will automatically start and
song searches may not operate.
being playing.
Once loading is complete, try again.
Changing Files
SEEK
Press the
TRACK
key to move to
the previous or next file.
✽ NOTICE
Once you find the desired file, press
SEEK
• Pressing the
TRACK
key after the
the TUNE knob to start playing.
file has been playing for 2 seconds
will start the current file from the
<for RDS model>
Rewinding / Fast-forwarding Files
beginning.
SEEK
• Pressing the
TRACK
key before
While playing, press and hold the
SEEK
the file has been playing for 1 sec-
TRACK
key (over 0.8 seconds) to
onds will start the previous file.
rewind or fast-forward the current file.
Scan(for RDS model)
Press and hold the
TA/SCAN
key (over
0.8 seconds) to play the first 10 sec-
onds of each file.
While playing, press the
button
Pressing and holding the key again
to pause and press
button to
to turn off.
play.
4 284
Features of your vehicle

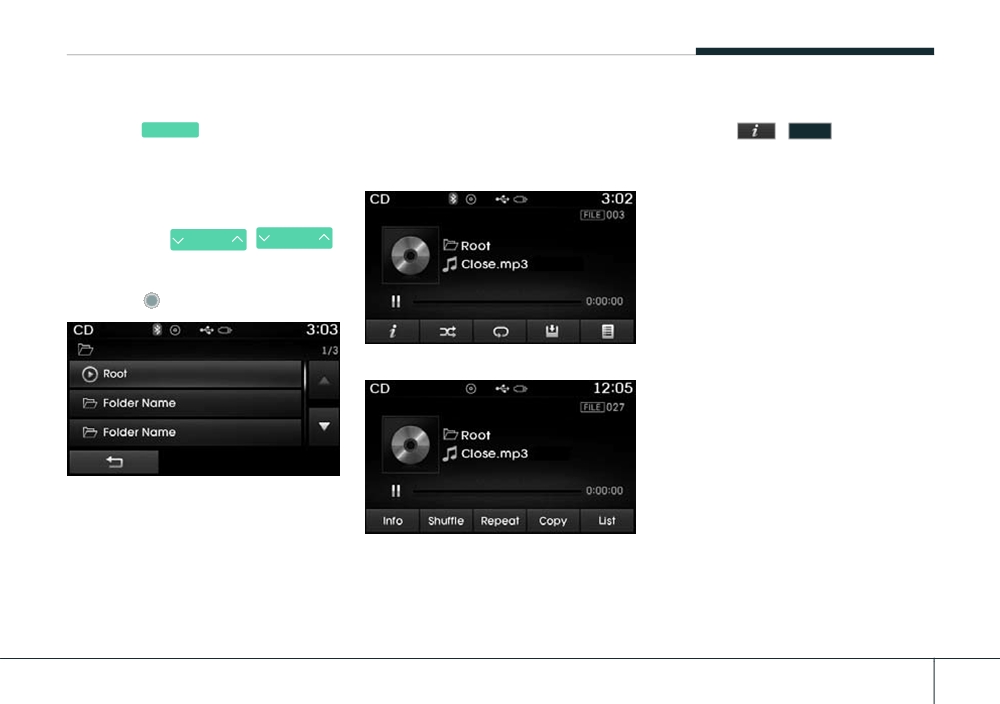

Scan
MP3 CD Mode Menu
Info
Press the
SCAN
key to play the first
Press the
(
Info
)button to dis-
Within this mode, you will have
10 seconds of each file.
access to the Info, Random(Shuffle),
play details about the current file.
Press the key again to turn off.
Repeat, Copy and List features.
✽ NOTICE
Searching Folders
• When the ‘Folder File’ option is
PTY
FOLDER
set as the default display within
Press the
FOLDER
(
)
Display setup, the album/artist/file
key to select and search folders.
information are displayed as
Once the desired folder is displayed,
detailed file information.
press the TUNE knob to select.
• When the ‘Album Artist Song’
option is set as the default display,
the folder name/file name are dis-
<for RDS model>
played as detailed file information.
• The title, artist and album info are
displayed only when such infor-
mation are recorded within the
MP3 file ID3 tag.
The first file within the selected fold-
er will begin playing.
4 285
Features of your vehicle

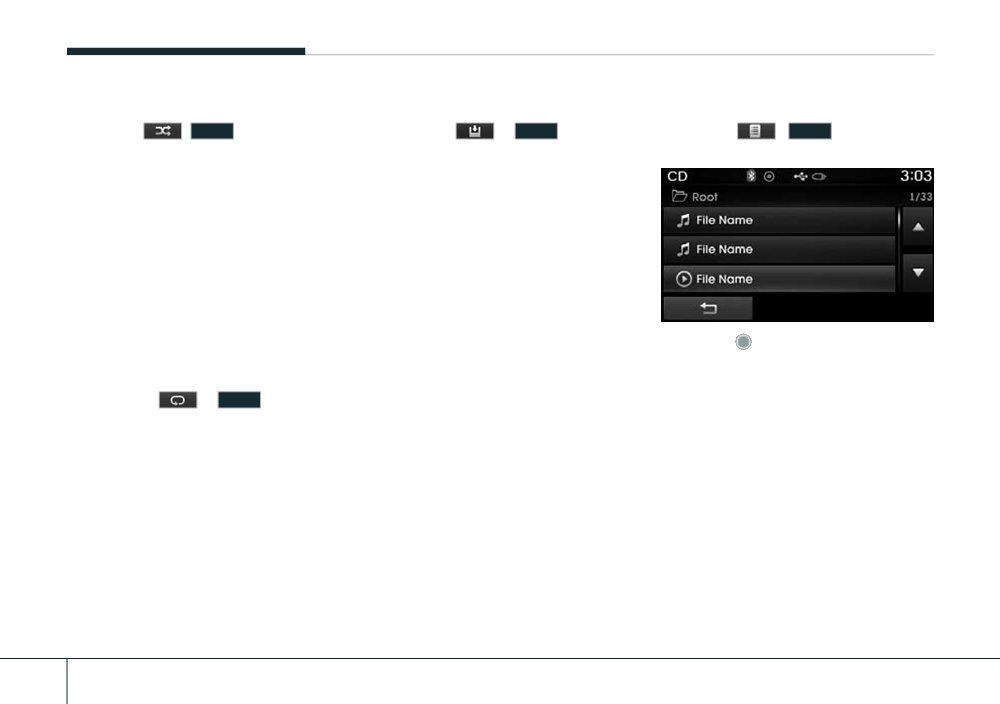

Random(Shuffle)
Copying Files
List
Press the
(
Shuffle
)button to play
Press the
(
Copy
)button to
Press the
(
List
)button to dis-
files in random(Shuffle) order.
copy the current file into My Music.
play the file list screen.
Each time the button is pressed, the
feature changes in order of Random
✽ NOTICE
(Shuffle) Folder ➟ Random (Shuffle)
Selecting another feature during
All➟ Off.
copying will display a pop-up asking
• Random(Shuffle) Folder : Plays all
whether you wish to cancel copying.
files within the current folder in
To cancel, select 'Yes’.
Random (Shuffle) order.
• Random(Shuffle) All : Plays all files
in Random(Shuffle) order.
Turn the TUNE knob left/right to
search for files. Once the desired file
Repeat
is displayed, press the knob to select
Press the
(
Repeat
)button to
and play.
repeat the current file or folder.
Each time the button is pressed, the
feature changes in order of Repeat
➟Repeat Folder➟Off.
• Repeat: Repeats the current file.
• Repeat Folder: Repeats all files
within the current Folder.
4 286
Features of your vehicle

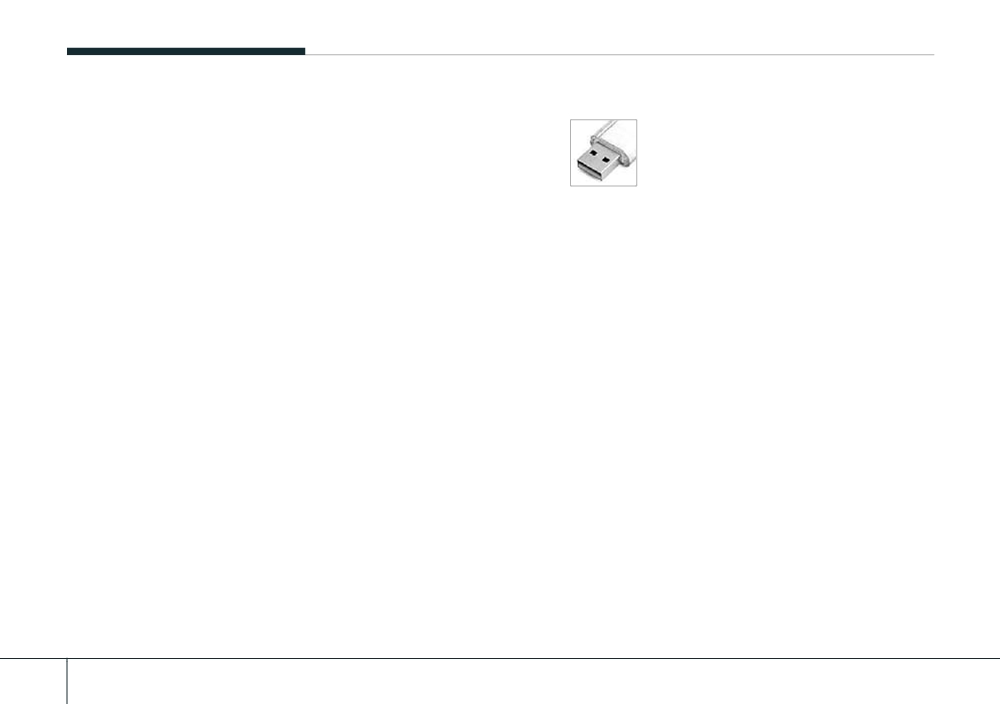

✽ NOTICE - USING THE USB
(Continued)
(Continued)
DEVICE
•
Some USB devices may not be sup-
•
Do not use the USB I/F to charge
ported due to compatibility issues.
batteries or USB accessories that
•
Connect the USB device after
•
Avoid contact between the USB
generate heat. Such acts may lead
turning on the engine. The USB
connector with bodily parts or for-
to worsened performance or dam-
device may become damaged if it
eign objects.
age to the device.
is already connected when the
•
Repeated connecting/disconnect-
•
The device may not recognize the
ignition is turned on.The USB
ing of USB devices within short
USB device if separately pur-
device may not operate properly if
periods of time may result in prod-
chased USB hubs and extension
the car ignition is turned on or off
uct malfunction.
cables are being used. Connect the
with the USB device connected.
•
A strange noise may occur when
USB directly with the multimedia
•
Heed caution to static electricity
disconnecting the USB.
terminal of the vehicle.
when connecting/disconnecting
•
Make sure to connect/disconnect
•
When using mass storage USB
USB devices.
external USB devices with the
devices with separate logical
•
Encoded MP3 Players will not be
audio power turned off.
drives, only files saved to the root
recognized when connected as an
•
The amount of time required to
drive can be played.
external device.
recognize the USB device may dif-
•
Files may not properly operate if
•
When connecting an external USB
fer depending on the type, size or
application programs are installed
device, the device may not proper-
file formats stored in the USB.
to the USBs.
ly recognize the USB is in some
Such differences in time are not
•
The device may not operate nor-
states.
indications of malfunctions.
mally if MP3 Players, cellular
•
Only products formatted with
•
The device only supports USB
phones, digital cameras, or other
byte/sectors under 64Kbyte will be
devices used to play music files.
electronic devices
(USB devices
recognized.
•
USB images and videos are not
not recognized as portable disk
•
This device recognizes USB
supported.
drives) are connected with the
devices formatted in FAT 12/16/32
(Continued)
device.
file formats. This device does not
(Continued)
recognize files in NTFS file for-
mat.
(Continued)
4 287
Features of your vehicle
(Continued)
(Continued)
•
Charging through the USB may
•
Avoid use of USB
not work for some mobile devices.
memory products that
•
The device may not support nor-
can also be used as key
mal operation when using a USB
chains or mobile phone
memory type besides
(Metal
accessories. Use of such products
Cover Type) USB Memory.
may cause damage to the USB
•
The device may not support nor-
jack.
mal operation when using formats
•
Connecting an MP3 device or
such as HDD Type, CF, or SD
phone through various channels,
Memory.
such as AUX/BT or Audio/USB
•
The device will not support files
mode may result in pop noises or
locked by DRM (Digital Rights
abnormal operation.
Management.)
•
USB memory sticks used by con-
necting an Adaptor (SD Type or
CF Type) may not be properly rec-
ognized.
•
The device may not operate prop-
erly when using USB HDDs or
USBs subject to connection fail-
ures caused by vehicle vibrations.
(e.g. i-stick type)
(Continued)
4 288
Features of your vehicle

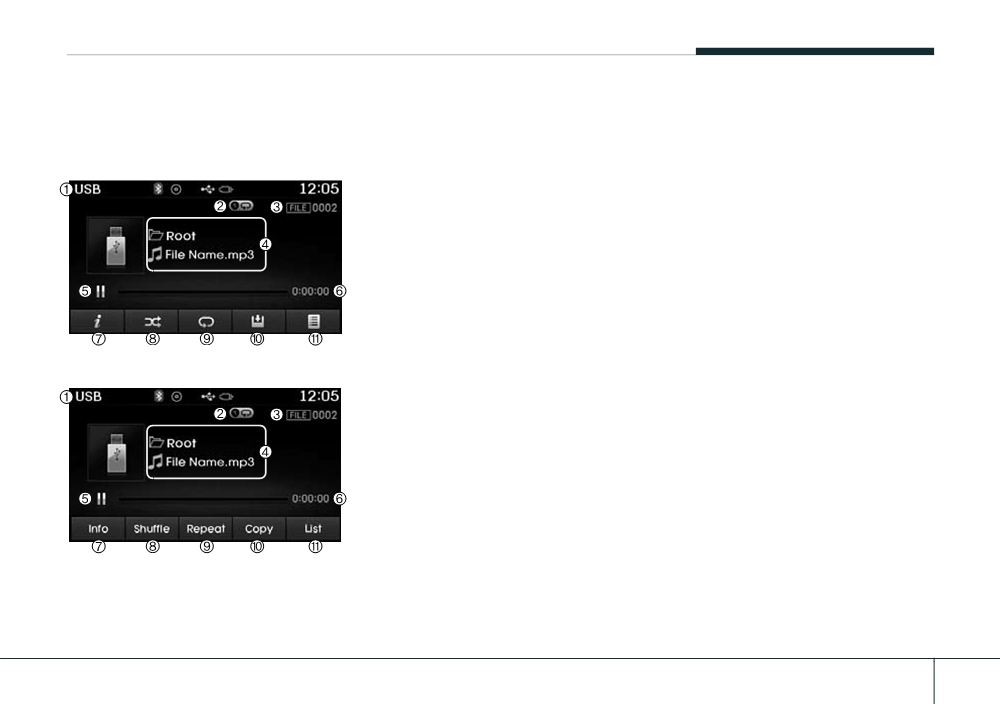

USB MODE
1. Mode
7. Info
Displays currently operating mode
Displays detailed information for the
current file
Basic Mode Screen
2. Operation State
8. Random(Shuffle)
From Repeat/Random(Shuffle)/ Scan,
displays the currently operating func-
Turns the Random(Shuffle) feature
tion
on/off
3. File Index
9. Repeat
Displays the current file number
Turns the Repeat feature on/off
4. File Info
10. Copy
<for RDS model>
Displays information about the cur-
Copies the current file into My Music
rent file
11. List
5. Play/Pause
Moves to the list screen
Changes the play/pause state
6. Play Time
Displays the current play time
4 289
