Features of your vehicle
■ Type A
■ Type B
■ Type A
■ Type B
■ Type A
■ Type B
OBK042036N
OBK042037N
OBK042039N

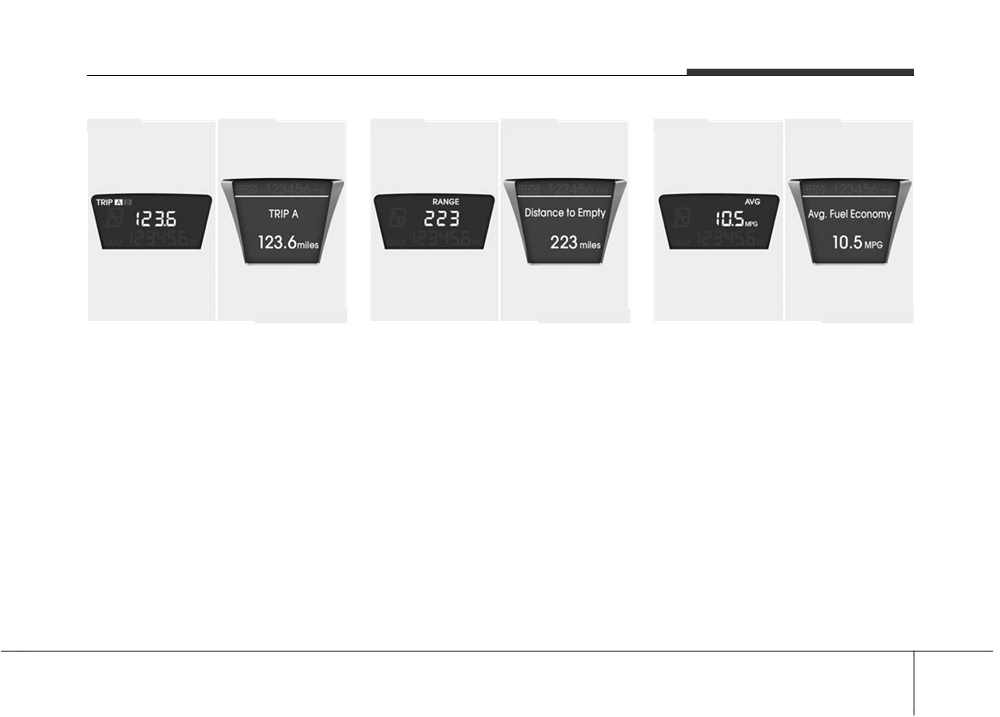

Tripmeter
Distance to empty
Average fuel consumption (if equipped)
TRIP A : Tripmeter A
This mode indicates the estimated
This mode calculates the average fuel
distance to empty based on the cur-
consumption from the total fuel used
TRIP B : Tripmeter B
rent fuel in the fuel tank and the
and the distance since the last aver-
This mode indicates the distance of
amount of fuel delivered to the
age consumption reset. The total fuel
individual trips selected since the
engine. When the remaining distance
used is calculated from the fuel con-
last tripmeter reset.
sumption input. For an accurate cal-
is below 30 miles (50 km), “---” will be
The meter's working range is from
culation, drive more than 0.03 miles
displayed and the distance to empty
0.0 to 999.9 miles (0.0 to 999.9 km).
(50 m).
indicator will blink.
Pressing the RESET button for more
Pressing the RESET button for more
The meter’s working range is from 30
than 1 second, when the tripmeter
than 1 second, when the average fuel
to 999 miles (50 to 999 km).
(TRIP A or TRIP B) is being dis-
consumption is being displayed,
played, clears the tripmeter to zero
clears the average fuel consumption
to zero (----).
(0.0).
If the vehicle speed exceeds 1.6 MPH
(1 km/h) after refueled more than 1.6
gallons (6 l), the average fuel con-
sumption will be cleared to zero (---).
4 51
Features of your vehicle
■ Type A
■ Type B
■ Type A
■ Type B
✽ NOTICE
•
If the vehicle is not on level ground
or the battery power has been
interrupted, the
“Distance to
empty” function may not operate
correctly.
The trip computer may not register
additional fuel if less than 1.6 gal-
lons (6 liters) of fuel are added to
the vehicle.
•
The fuel consumption and dis-
tance to empty values may vary
OBK042041N
OBK042042N
significantly based on driving con-
Average speed
Elapsed time
ditions, driving habits, and condi-
This mode calculates the average
This mode indicates the total time
tion of the vehicle.
speed of the vehicle since the last
traveled since the last driving time
•
The distance to empty value is an
average speed reset.
reset.
estimate of the available driving
Even if the vehicle is not in motion,
Even if the vehicle is not in motion,
distance. This value may differ
the average speed is calculated
the driving time keeps increasing
from the actual driving distance
while the engine is running.
while the engine is running.
available.
Pressing the RESET button for more
The meter’s working range is from
than 1 second, when the average
00:00~99:59.
speed is being displayed, clears the
Pressing the RESET button for more
average speed to zero (---).
than 1 second, when the driving time
is being displayed, clears the driving
time to zero (00:00).
4 52
Features of your vehicle
Speed or Shift Lever -
All doors will be automatically locked if
One or more of the above two condi-
tions are satisfied. (for automatic trans-
mission)
OBK042201L
OBK042203L

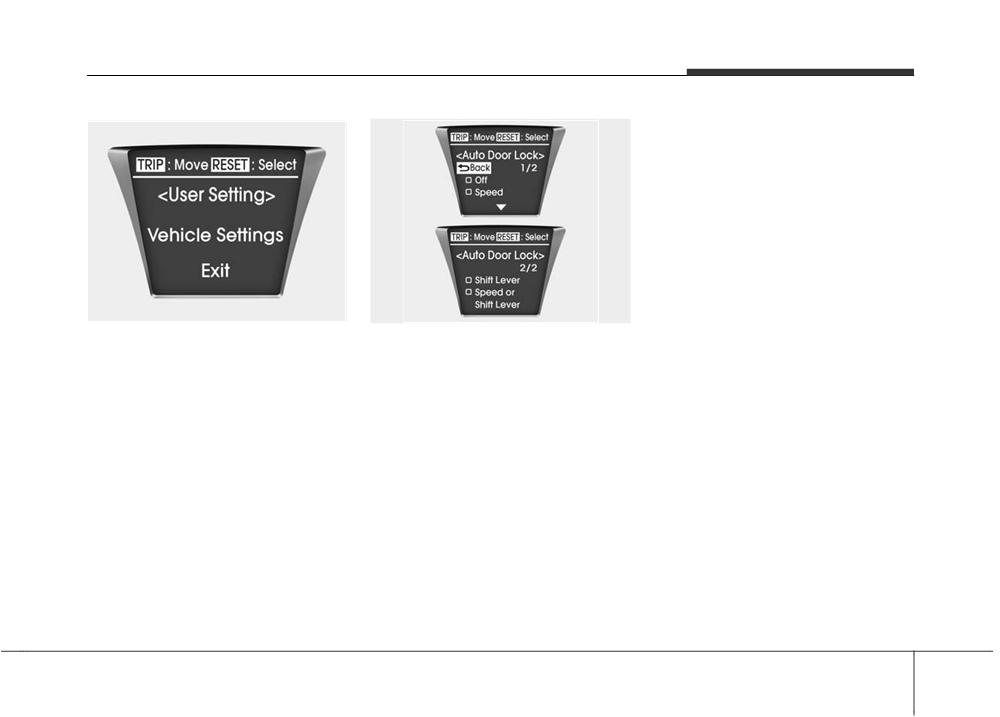

User Settings Mode (Only for
• Auto Door Lock
Type B cluster, if equipped)
Off - The auto door lock operation will
1. Stop the vehicle with the ignition
be canceled.
switch in the ON position or engine
Speed - All doors will be automatically
running.
locked when the vehicle
2. Press the TRIP button until the
speed exceeds
15km/h
User setting is displayed.
(9.3mph).
3. With the User setting displayed,
Shift Lever -
press the TRIP button for 2 sec-
All doors will be automatically locked if
onds.
the shift lever is shifted from the P
4. You can change the item by press-
(Park) position to the R (Reverse), N
ing the TRIP button and select an
(Neutral) or D
(Drive) position.
(for
item by pressing the RESET but-
automatic transmission)
:
ton.
4 53
Features of your vehicle
• Auto Door Unlock
Off - The auto door unlock operation
will be canceled.
Key out or Power off *1 -
All doors will be automatically
unlocked when the ignition key is
removed from ignition switch
(or
smart key is in the OFF position).
Shift Lever -
All doors will be automatically
OBKR042255N
OBK042205L
unlocked if the shift lever is shifted to

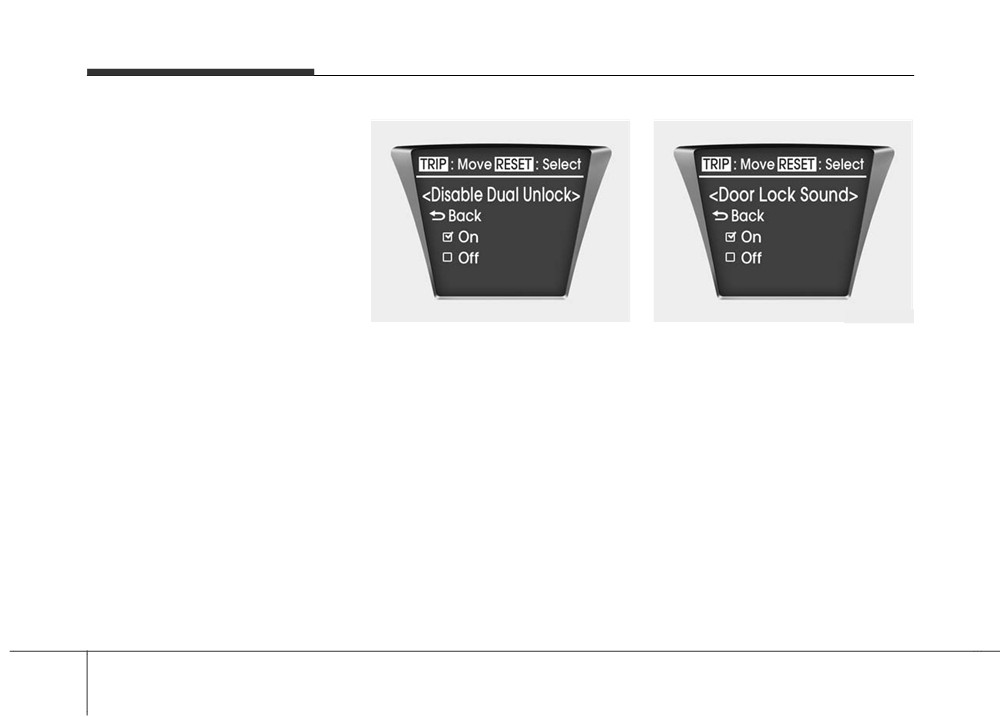

• Disable Dual Unlock
• Door lock sound
the P (Park) position. (for automatic
On - If you press the unlock button
(only for normal key type)
transmission)
on the transmitter or smart key,
On - The Alarm function on the
only the driver’s door is
transmitter will be activated.
Key out (Power Off) or Shift lever -
unlocked. If you are press the
Off - The Alarm function on the
All doors will be automatically
unlock button once more with-
transmitter will be deactivated.
unlocked if One or more of the above
in 4seconds on the transmitter
two conditions are satisfied.
(for
or smart key, all door is
automatic transmission)
unlocked.
Off - If you press the unlock button
*1 :Key out - For Normal Key
on the transmitter or smart key,
all door is unlocked.
Power off - For Smart Key
4 54
Features of your vehicle
OBK042206L
OBK044207L
OBK042208L

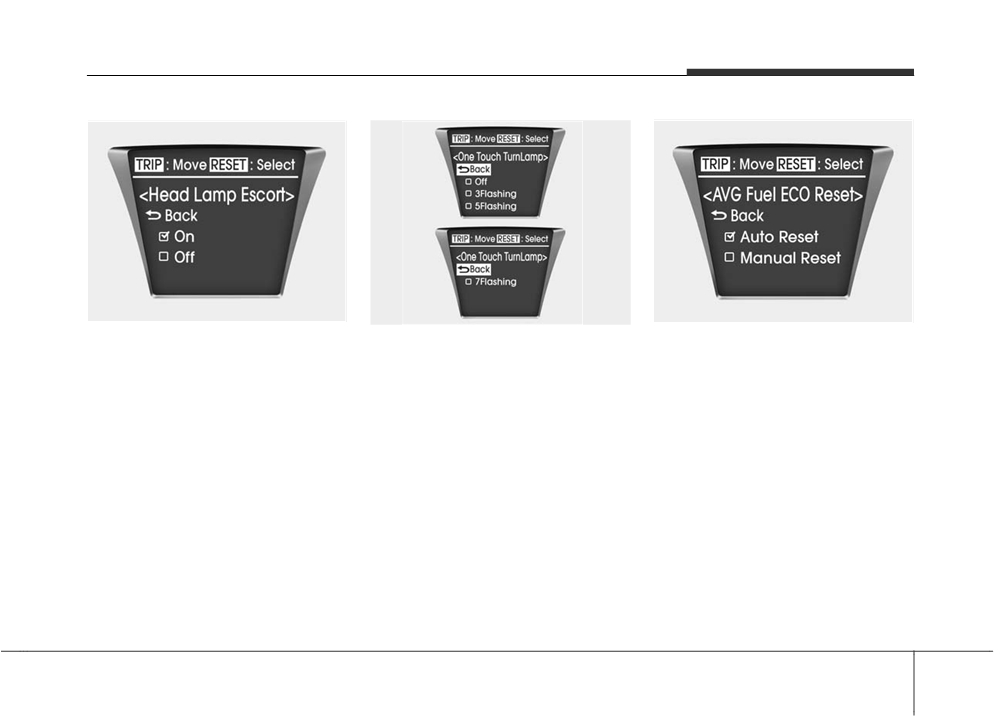

• Headlamp Escort
• One touch turn lamp
• AVG fuel economy Reset
On - The Headlamp Escort and
On - The lane change signals will
Auto Reset - The average fuel econ-
Escort Welcome function will be
blink 3, 5 o 7 times when the turn
omy will reset automat-
activated
signal lever is moved slightly.
ically when you drive
after refueling.
Off - The Headlamp Escort and
Off - The Auto Triple Turn function
Escort Welcome function will be
will be deactivated.
Manual Reset - The average fuel
deactivated
economy will not
reset automatically
For details, refer to “Lighting” in sec-
tion 4.
when you drive after
refueling.
4 55
Features of your vehicle
LCD display warning (for Type B cluster, if equipped)
❈ For vehicle’s equipped with smart key system
OBK042209L
OBK042210L
OBK042211L

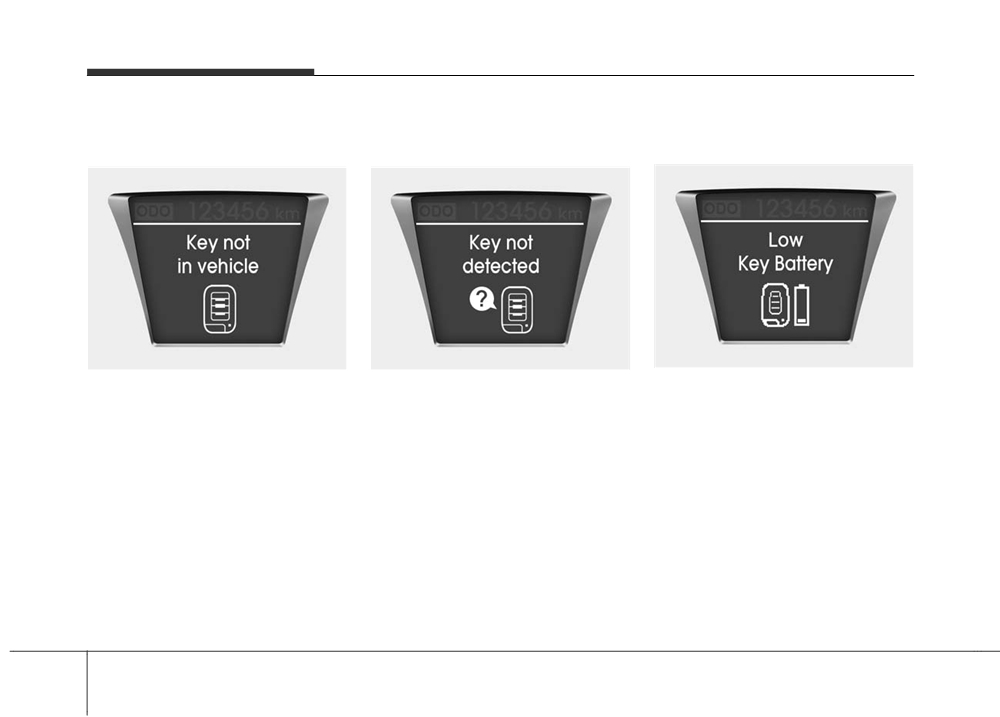

• Key is not in vehicle
• Key is not detected
• Low key battery
If the smart key is not in the vehicle
If the smart key is not in the vehicle
If
the engine start/stop button
and if any door is opened or closed
or is not detected and you press the
changes to the OFF position when
with the ENGINE START/STOP but-
ENGINE START/STOP button, the
the smart key in the vehicle dis-
ton in the ACC, ON, or START posi-
warning illuminates on the LCD dis-
charges, the warning illuminates on
tion, the warning illuminates on the
play for 10 seconds. Also, the immo-
the LCD display for about 10 sec-
LCD display. Also, the chime sounds
bilizer indicator and the key holder
onds. Also, the warning chime
for 5 seconds when the smart key is
light blinks for 10 seconds.
sounds once.
not in the vehicle and the door is
Replace the battery with a new one.
closed.
Always have the smart key with you.
4 56
Features of your vehicle
❈ For vehicle’s equipped with smart key system
OBK042214L
OBK042215L
OBK042216L

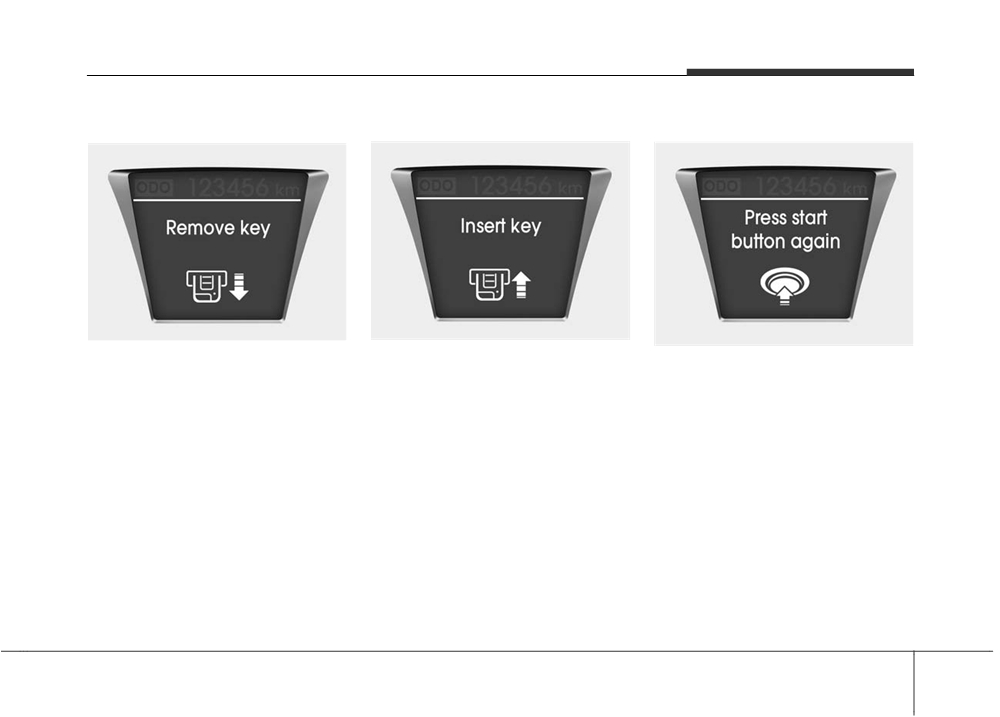

• Remove key
• Insert key
• Press start button again
When you turn off the engine with
If you press the ENGINE START/
If you can not operate the engine
the smart key in the smart key hold-
STOP button while "Key is not
start/stop button when there is a prob-
er, the warning illuminates on the
detected" illuminates on the LCD dis-
lem with the engine start/stop button
LCD display for about 10 seconds.
play, the warning “Insert key” illumi-
system, the warning illuminates for 10
Also, the smart key holder light blinks
nates for about 10 seconds. Also, the
seconds and the chime sounds con-
for about 10 seconds.
immobilizer indicator and the key
tinuously to indicate that you could
To remove the smart key push the
holder light blinks for about 10 sec-
start the engine by pressing the
onds.
engine start/stop button once more.
smart key once and pull it out from
the smart key holder.
The chime will stop if the engine
start/stop button system works nor-
mally or the theft alarm system is
armed.
If the warning illuminates each time
you press the engine start/stop button,
we recommend that you contact an
authorized HYUNDAI dealer.
4 57
Features of your vehicle
❈ For vehicle’s equipped with smart key system
OBK042212L
OBK042236L
OBK042217L

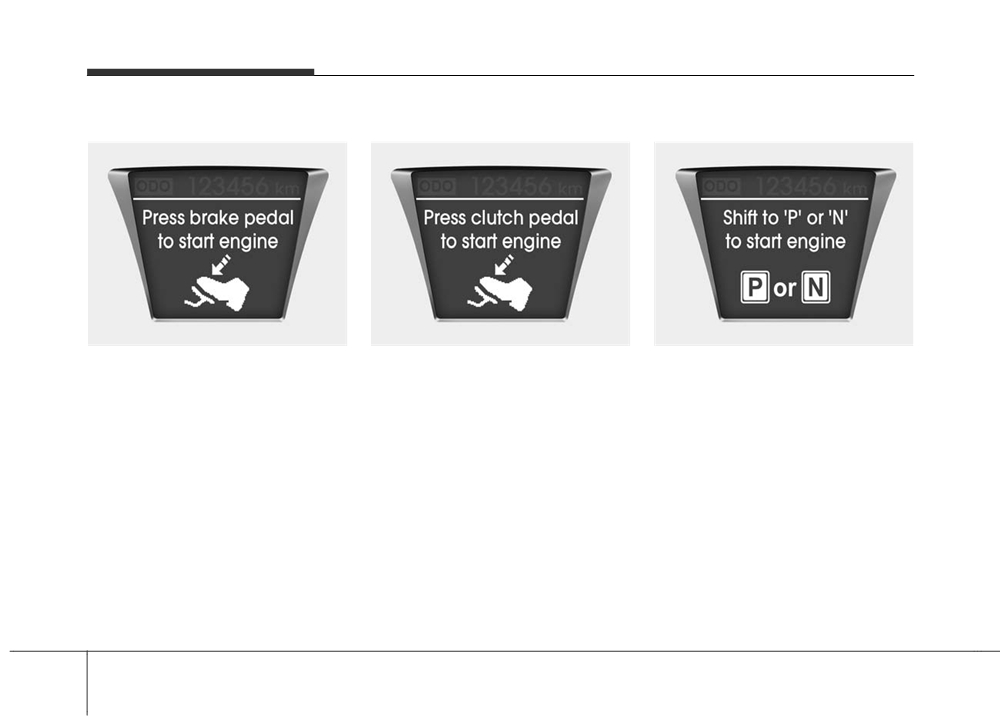

• Press brake pedal to start engine
• Press clutch pedal to start
• Shift to "P" or "N" to start the
(for automatic transmission)
engine (for manual transmission)
engine
If
the engine start/stop button
If the engine start/stop button turns
If you try to start the engine with the
changes to the ACC position twice
to the ACC position twice by press-
shift lever not in the P(Park) or
by pressing the button repeatedly
ing the button repeatedly without
N(Neutral) position, the warning illu-
without depressing the brake pedal,
depressing the clutch pedal, the
minates for about 10 seconds on the
the warning illuminates on the LCD
warning illuminates on the LCD dis-
LCD display.
display for about 10 seconds to indi-
play for about 10 seconds to indicate
You can also start the engine with
cate that you should depress the
that you should depress the clutch
the shift lever in the N(Neutral) posi-
brake pedal to start the engine.
pedal to start the engine.
tion, but for your safety start the
engine with the shift lever in the
P(Park) position.
4 58
Features of your vehicle
■ Type A
OBK042220L
OBK042222L
■ Type B
OBK042240L

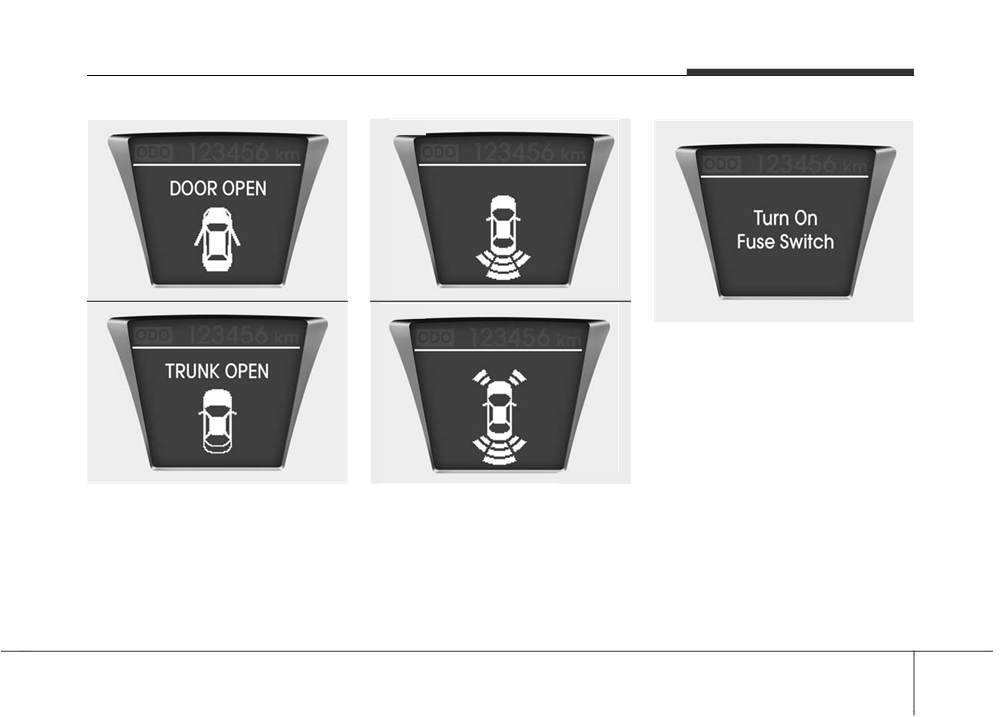

• Turn on fuse switch
The notice appears to inform the
driver to turn on the fuse switch in
the instrument panel under the steer-
ing wheel.
For more details, refer to “Fuses” in
section 7.
OBK042221L
OBK042237L
• Door/Trunk open
• Parking assist warning
The indicator appears to inform the
(if equipped)
driver which door or trunk is opened.
Displays the area an obstacle is
detected while moving forward or
rearward.
For more details, refer to “Parking
assist system” in section 4.
4 59
Features of your vehicle
OBK042217L
OBK042239L
OBK042238L

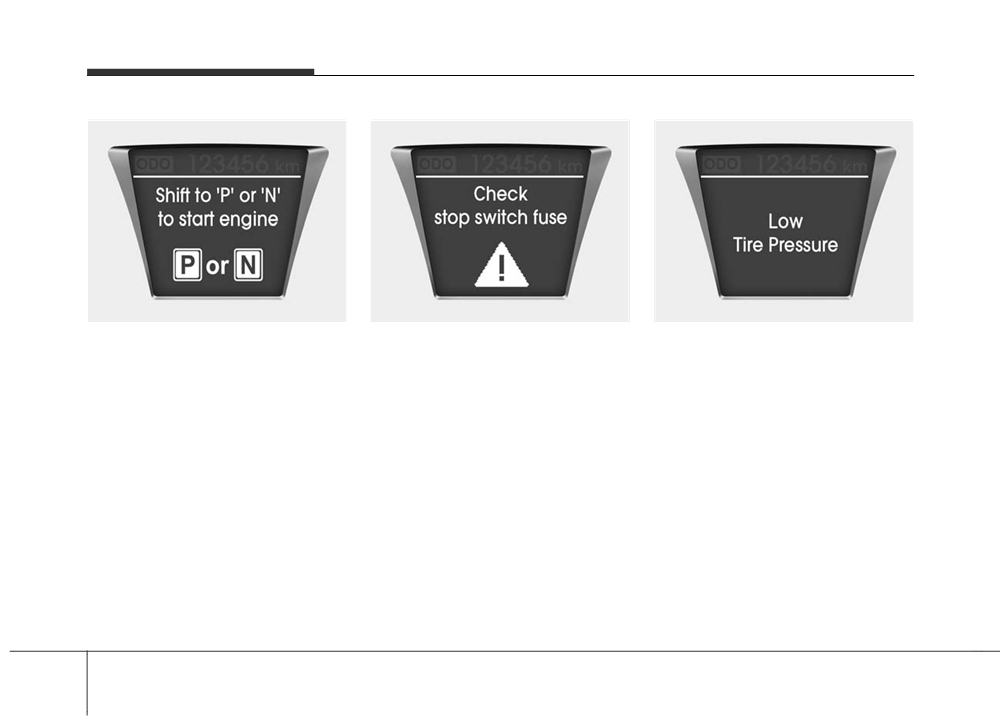

• Shift to "P" or "N" to start the
• Check stop lamp switch
• Low tire pressure (if equipped)
engine (for auto transmission)
When the stop lamp switch fuse is
The low tire pressure position telltale
If you try to start the engine with the
disconnected, the warning illumi-
will appear when one or more of your
shift lever not in the P(Park) or
nates for 10 seconds on the LCD dis-
tires are under-inflated. It will indicate
N(Neutral) position, the warning illu-
play.
the corresponding under-inflated tire.
minates for about 10 seconds on the
Replace the fuse with a new one. If
For more details, refer to “TPMS” in
LCD display.
that is not possible you can start the
section 6.
You can also start the engine with
engine by pressing the engine
the shift lever in the N(Neutral) posi-
start/stop button for 10 seconds in
tion, but for your safety start the
ACC.
engine with the shift lever in the
P(Park) position.
4 60
Features of your vehicle
Warnings and indicators
Air bag warning light
Anti-lock brake system
(ABS) warning light
All warning lights are checked by
turning the ignition switch ON (do not
start the engine). Any light that does
This warning light will illuminate for
This light illuminates if the ignition
not illuminate should be checked by
approximately 6 seconds each time
switch is turned ON and goes off in
an authorized HYUNDAI dealer.
you turn the ignition switch to the ON
approximately 3 seconds if the sys-
After starting the engine, check to
position.
tem is operating normally.
make sure that all warning lights are
This light also comes on when the
If the ABS warning light remains on,
off. If any are still on, this indicates a
Supplemental Restraint System
comes on while driving, or does not
situation that needs attention. When
(SRS) is not working properly. If the
come on when the ignition switch is
releasing the parking brake, the
SRS air bag warning light
does
turned to the ON position, this indi-
brake system warning light should go
not come on, or continuously remains
cates that there may be a malfunc-
off. The fuel warning light will stay on
on after operating for about 6 sec-
tion with the ABS.
if the fuel level is low.
onds when you turned the ignition
If this occurs, have your vehicle
switch to the ON position or started
checked by an authorized HYUNDAI
the engine, or if it comes on while
dealer as soon as possible. The nor-
driving, have the SRS inspected by
mal braking system will still be oper-
an authorized HYUNDAI dealer.
ational, but without the assistance of
the anti-lock brake system.
4 61
Features of your vehicle
Electronic brake force dis-
✽ NOTICE
Seat belt warning
tribution (EBD) system
If the ABS warning light or EBD
warning light
warning light is on and stays on, the
If these two warning lights
speedometer or odometer/tripmeter
As a reminder to the driver, the seat belt
shown illuminate at the
may not work. In this case, have
warning light will blink for approximate-
same time while driving,
your vehicle checked by an author-
ly 6 seconds each time you turn the
your vehicle may have a
ized HYUNDAI dealer as soon as
ignition switch to ON or START, regard-
malfunction with the ABS
possible.
less of belt fastening.
and EBD system.
If the driver's seat belt is not fastened
In this case, your ABS and regular
when the ignition switch is turned to ON
brake system may not work normally.
or START, the seat belt warning light
Have the vehicle checked by an
and the seat belt warning chime will
authorized HYUNDAI dealer as soon
operate for approximately 6 seconds.
as possible.
But if it is fastened within the 6 seconds,
the warning light will blink for approxi-
mately the 6 seconds and the warning
WARNING
chime will turn off immediately.
If the both ABS and brake warn-
If the driver's seat belt is disconnected
ing lights are on and stay on,
after the ignition switch is turned to the
your vehicle’s brake system will
ON position, the seat belt warning light
not work normally during sudden
will blink for approximately 6 seconds
braking. In this case, avoid high
until the belt is fastened. If the driver's
speed driving and abrupt brak-
seat belt is not fastened when the vehi-
ing. Have your vehicle checked
cle speed exceeds 6 mph (10 km/h),
by an authorized HYUNDAI deal-
the seat belt warning light and chime
er as soon as possible.
will operate approximately
10 times
with a pattern of 6 seconds on and 24
seconds off until the belt is fastened
or the vehicle speed decreases
below 3 mph (5 km/h).
4 62
Features of your vehicle
Turn signal indicator
High beam indicator
Engine oil pressure
warning light
The blinking green arrows on the
This indicator illuminates when the
This warning light indicates the
instrument panel show the direction
headlights are on and in the high
engine oil pressure is low.
indicated by the turn signals. If the
beam position or when the turn sig-
If the warning light illuminates while
arrow comes on but does not blink,
nal lever is pulled into the Flash-to-
driving:
blinks more rapidly than normal, or
Pass position.
1. Drive safely to the side of the road
does not illuminate at all, a malfunc-
and stop.
tion in the turn signal system is indi-
Tail light indicator
2. With the engine off, check the
cated. Your dealer should be consult-
(if equipped)
engine oil level. If the level is low,
ed for repairs.
add oil as required.
This indicator also blinks when the
hazard warning switch is turned on.
This indicator illuminates when the
If the warning light remains on after
tail lights are on.
adding oil or if oil is not available, call
an authorized HYUNDAI dealer.
CAUTION
If the engine is not stopped
immediately after the engine oil
pressure warning light is illumi-
nated, severe damage could
result.
4 63
Features of your vehicle
Parking brake & brake
Low brake fluid level warning
CAUTION
fluid warning light
If the warning light remains on, it may
If the oil pressure warning light
indicate that the brake fluid level in the
stays on while the engine is run-
Parking brake warning
reservoir is low.
ning, serious engine damage may
This light is illuminated when the
If the warning light remains on:
result. The oil pressure warning
parking brake is applied with the igni-
1. Drive carefully to the nearest safe
light comes on whenever there is
tion switch in the START or ON posi-
location and stop your vehicle.
insufficient oil pressure. In nor-
tion. The warning light should go off
mal operation, it should come on
2. With the engine stopped, check the
when the parking brake is released
when the ignition switch is turned
brake fluid level immediately and
while an engine is running.
on, then go out when the engine
add fluid as required. Then check all
The parking brake warning chime will
is started. If the oil pressure warn-
brake components for fluid leaks.
ing light stays on while the
sound to remind you that the parking
3. Do not drive the vehicle if leaks
brake is applied when you are driving
engine is running, there is a seri-
are found, the warning light
ous malfunction.
above
6 mph (10 km/h). Always
remains on or the brakes do not
release the parking brake before you
If this happens, stop the car as
operate properly. Have the vehicle
drive.
soon as it is safe to do so, turn off
towed to any authorized HYUNDAI
the engine and check the oil level.
dealer for a brake system inspec-
If the oil level is low, fill the engine
tion and necessary repairs.
oil to the proper level and start
the engine again. If the light stays
on with the engine running, turn
the engine off immediately. In any
instance where the oil light stays
on when the engine is running,
the engine should be checked by
an authorized HYUNDAI dealer
before the car is driven again.
4 64
Features of your vehicle
Your vehicle is equipped with dual-
Low tire pressure
diagonal braking systems. This
telltale
WARNING - Low tire pres-
means you still have braking on two
sure
wheels even if one of the brake cir-
Significantly low tire pressure
cuits is damaged or malfunctions.
makes the vehicle unstable and
With only one of the circuits working,
The low tire pressure telltale illumi-
can contribute to loss of vehicle
more than normal pedal travel and
nates when one or more of your tires
control and increased braking
is significantly underinflated.
greater pedal pressure are required
distances.
to stop the car. Also, the car will not
Inflate your tires to the correct infla-
Continued driving on tires with
stop in as short a distance with only
tion pressure.
low pressure will cause the tires
a portion of the brake system work-
The low tire pressure telltale will illu-
to overheat and fail.
ing. If the brakes fail while you are
minate after it blinks for approximate-
driving, shift to a lower gear for addi-
ly one minute when there is a prob-
tional engine braking and stop the
lem with the Tire Pressure
car as soon as it is safe to do so.
Monitoring System.
If this occurs, have the system
To check bulb operation, check
checked by an authorized HYUNDAI
whether the parking brake and brake
dealer as soon as possible.
fluid warning light illuminates when the
For details, refer to the TPMS on chap-
ignition switch is in the ON position.
ter 6.
WARNING
Driving the vehicle with a warn-
ing light on is dangerous. If the
brake warning light remains on,
have the brakes checked and
repaired immediately by an
authorized HYUNDAI dealer.
4 65
Features of your vehicle
Shift pattern indicator
Front fog light indicator
Immobilizer indicator
(if equipped)
The indicator displays which auto-
This light comes on when the front
Without smart key system
matic transmission shift position is
fog lights are ON.
This light illuminates when the immo-
selected.
bilizer key is inserted and turned to
the ON position to start the engine.
Trunk lid open warning
Charging system warn-
At this time, you can start the engine.
light
ing light
The light goes out after the engine is
running.
This warning light illuminates when
If this light blinks when the ignition
This warning light indicates a mal-
the trunk lid is not closed securely
switch is in the ON position before
function of either the generator or
with the ignition in any position.
starting the engine, have the system
electrical charging system.
checked by an authorized HYUNDAI
If the warning light comes on while
Door ajar warning light
dealer.
the vehicle is in motion:
1. Drive to the nearest safe location.
With smart key system (if equipped)
2. With the engine off, check the gen-
This warning light illuminates when a
If any of the following occurs in a
erator drive belt for looseness or
door is not closed securely with the
vehicle equipped with the smart key,
breakage.
ignition switch in any position.
the immobilizer indicator illuminates,
3. If the belt is adjusted properly, a
blinks or the light goes off.
problem exists somewhere in the
electrical charging system. Have
an authorized HYUNDAI dealer
correct the problem as soon as
possible.
4 66
Features of your vehicle
•
When the smart key is in the vehi-
Low fuel level warning
Engine coolant tempera-
cle, if the engine start/stop button
light
ture warning light
is turned to the ON position, the
indicator will illuminate until the
This warning light indicates the fuel
engine is started. However, when
tank is nearly empty. When it comes
the smart key is not in the vehicle,
The warning light shows the temper-
on, you should add fuel as soon as
if the engine start/stop button is
ature of the engine coolant when the
possible. Driving with the fuel level
depressed, the indicator will blink
ignition switch is ON.
warning light on or with the fuel level
for a few minutes to indicate that
The warning light illuminates if the
below “E” can cause the engine to
you will not be able to start the
temperature of the engine coolant is
misfire and damage the catalytic
engine.
above 248±5.5°F (120±3°C).
converter.
•
When the ignition switch is turned
Do not continue driving with an over-
to the ON position and the indica-
heated engine. If your vehicle over-
tor turns off after 2 seconds, the
heats, refer to “Overheating” in the
system may have a problem. Have
section 6.
the vehicle checked by an author-
ized HYUNDAI dealer.
✽ NOTICE
•
When the battery is weak, if the
engine start/stop button is
If the engine coolant temperature
depressed, the indicator will blink
warning light illuminates, it indi-
and you will not be able to start the
cates overheating that may damage
engine. However, you may still be
the engine.
able to start the engine by inserting
the smart key in the smart key
holder. If smart key system related
parts have a problem, the indicator
blinks.
4 67
