Antenna
NOTICE
NOTICE
•
Do not clean the inside of the
•
To prevent damage to the rear
rear window glass with a cleaner
glass antenna, never use sharp
or use a scraper to remove for-
instruments or window cleaner
eign deposits as this may cause
containing abrasives to clean
damage to the antenna elements.
the window. Clean the inside
surface of the rear glass window
•
Avoid adding metallic coatings
with a piece of soft cloth.
such as Ni, Cd, and so on. These
can degrade the receiving AM
•
When putting a sticker on the
and FM broadcast signals.
inside surface of the rear win-
4
dow, be careful not to damage to
the rear glass antenna.
OAD045424
•
Do not put sharp instruments
nearby the rear glass antenna.
Shark fin antenna (1, if equipped)
•
Tinted rear window may affect the
The shark fin antenna will receive the
proper functioning of the antenna.
transmit data.
(for example : GPS)
Glass antenna (2)
Your vehicle uses a glass antenna to
receive both AM and FM signals.
4-3
Multimedia System
Steering wheel audio control
NOTICE
If the SEEK/PRESET lever is moved
(if equipped)
up or down, it will function in the fol-
Do not operate audio remote con-
lowing modes.
■ Type A
trol buttons simultaneously.
RADIO mode
It will function as the PRESET STA-
VOLUME (VOL + / - ) (1)
TION UP/DOWN button.
• Move the VOLUME lever up to
MEDIA mode
increase volume.
It will function as the TRACK UP/
• Move the VOLUME lever down to
DOWN button.
decrease volume.
MODE (
) (3)
OAD045425
SEEK/PRESET (
/
) (2)
■ Type B
Press the MODE button to select
If the SEEK/PRESET lever is moved
Radio, Disc, or AUX.
up or down and held for 0.8 second
or more, it will function in the follow-
ing modes.
MUTE (
) (4)
RADIO mode
• Press the button to mute the
sound.
It will function as the AUTO SEEK
select button. It will SEEK until you
• Press the button again to activate
release the button.
the sound.
MEDIA mode
OAD045444L
i
Information
It will function as the FF/REW button.
The steering wheel audio control but-
Detailed information for audio control
ton is installed for your convenience.
buttons are described in the following
pages in this chapter.
4-4

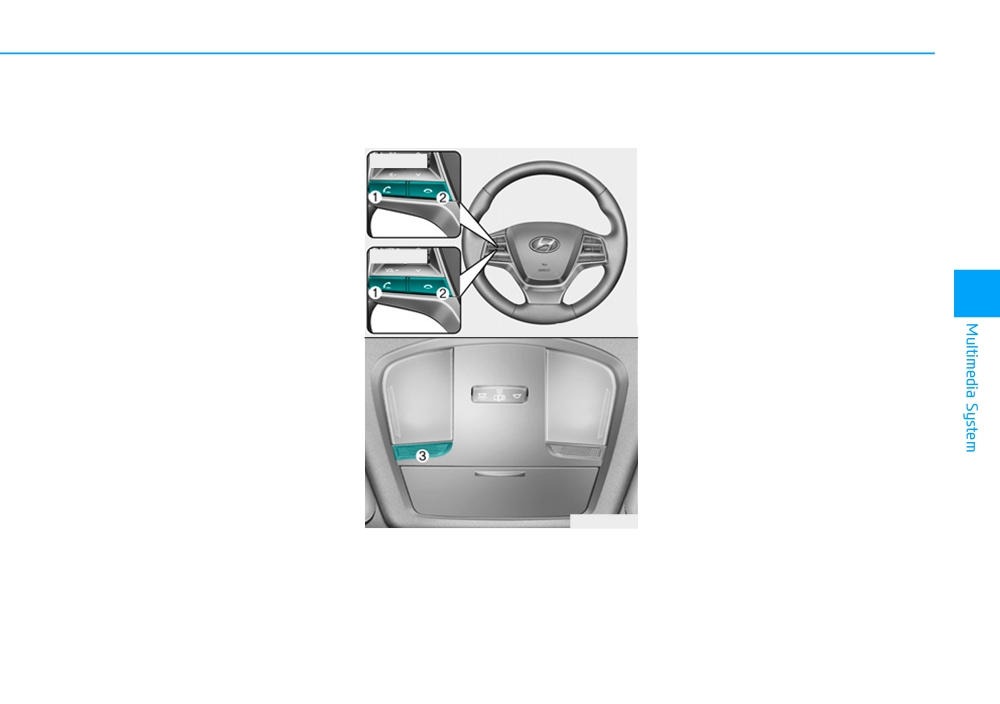

Audio / Video / Navigation sys-
Bluetooth® Wireless Technology
(1) Call / Answer button
tem (AVN) (if equipped)
hands-free (if equipped)
(2) Call end button
Detailed information for the AVN sys-
(3) Microphone
■ Type A
tem is described in a separately sup-
plied manual.
• Audio
: For detailed information,
refer to “AUDIO” in this chapter.
• AVN : Detailed information for the
■ Type B
Bluetooth® Wireless Technology
hands-free is described in the man-
ual supplied separately.
4
OAD045445L
OAD045430
You can use the phone wirelessly by
using the Bluetooth® Wireless
Technology.
4-5
Multimedia System
How vehicle radio works
This can be due to factors, such as
AM (MW, LW) reception
the distance from the radio station,
FM reception
closeness of other strong radio sta-
tions or the presence of buildings,
bridges or other large obstructions in
the area.
OJF045309L
OJF045308L
AM broadcasts can be received at
greater distances than FM broad-
AM and FM radio signals are broad-
casts. This is because AM radio
cast from transmitter towers located
waves are transmitted at low fre-
around your city. They are intercept-
quencies. These long, low frequency
ed by the radio antenna on your vehi-
radio waves can follow the curvature
cle. This signal is then received by
of the earth rather than travelling
the radio and sent to your vehicle
straight out into the atmosphere. In
speakers.
addition, they curve around obstruc-
When a strong radio signal has
tions so that they can provide better
reached your vehicle, the precise
signal coverage.
engineering of your audio system
ensures the best possible quality
reproduction. However, in some
cases the signal coming to your vehi-
cle may not be strong and clear.
4-6
FM radio station
4
JBM004
OJF045311L
OJF045310L
•

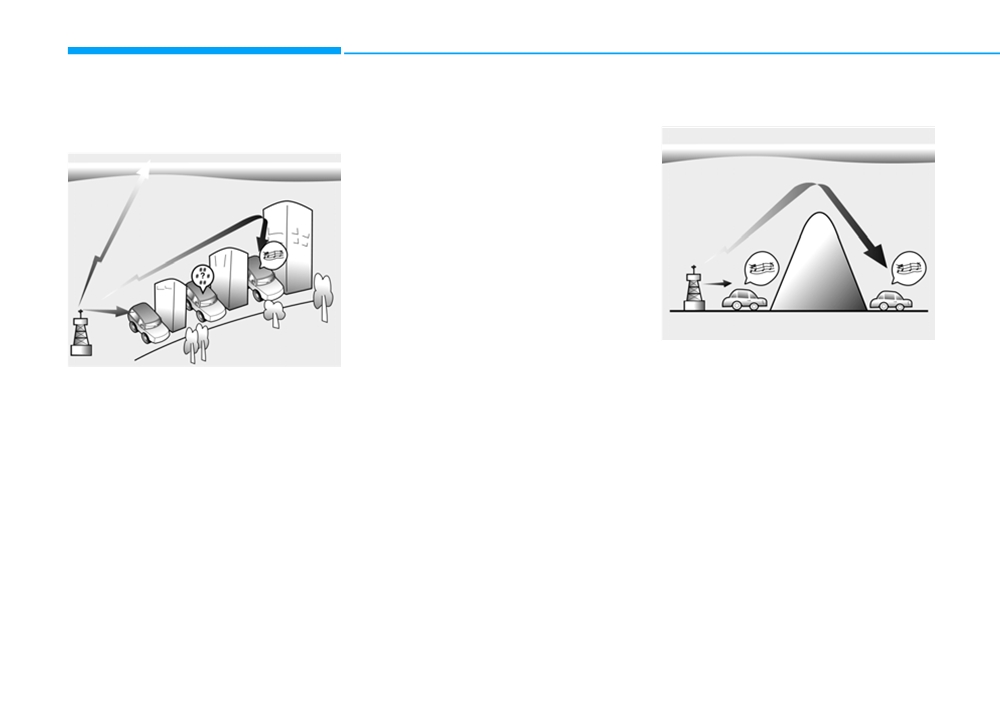

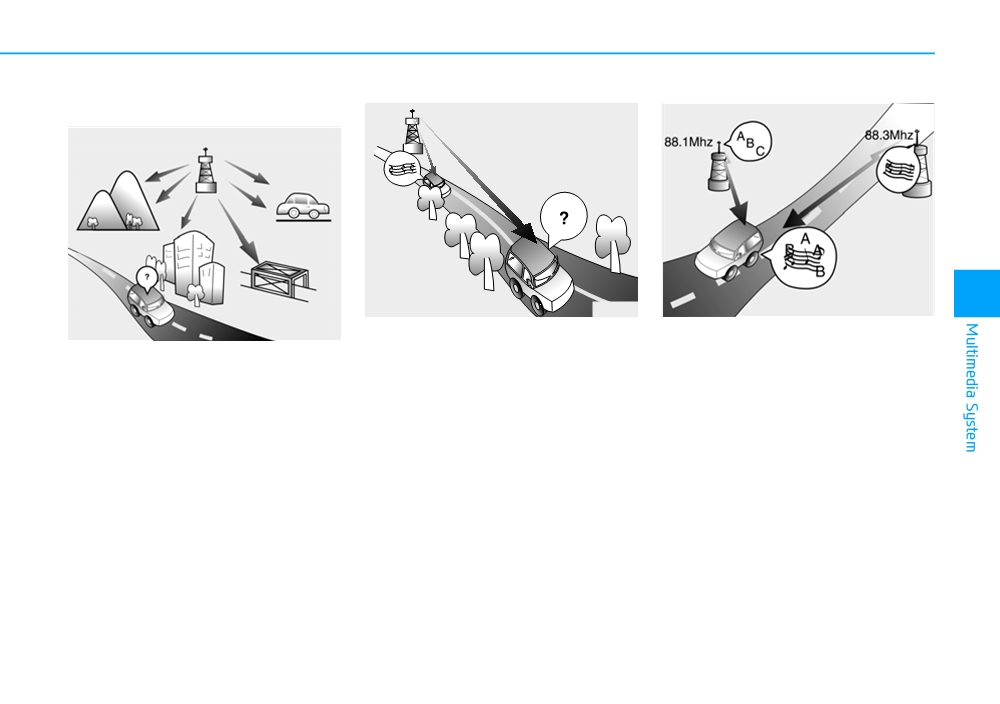

Fading - As your vehicle moves
•
Station Swapping - As a FM signal
FM broadcasts are transmitted at
away from the radio station, the
weakens, another more powerful
high frequencies and do not bend to
signal will weaken and sound will
signal near the same frequency
follow the earth's surface. Because
begin to fade. When this occurs,
may begin to play. This is because
of this, FM broadcasts generally
we suggest that you select another
your radio is designed to lock onto
begin to fade at short distances from
stronger station.
the clearest signal. If this occurs,
the station. Also, FM signals are eas-
•
Flutter/Static - Weak FM signals or
select another station with a
ily affected by buildings, mountains,
large obstructions between the
stronger signal.
or other obstructions. These can
transmitter and your radio can dis-
•
Multi-Path Cancellation
- Radio
result in certain listening conditions
turb the signal causing static or
signals being received from sever-
which might lead you to believe a
fluttering noises to occur. Reducing
al directions can cause distortion
problem exists with your radio. The
the treble level may lessen this
or fluttering. This can be caused by
following conditions are normal and
effect until the disturbance clears.
a direct and reflected signal from
do not indicate radio trouble :
the same station, or by signals
from two stations with close fre-
quencies. If this occurs, select
another station until the condition
has passed.
4-7
Multimedia System
Using a cellular phone or a two-
way radio
When a cellular phone is used inside
the vehicle, noise may be produced
from the audio system. This does not
mean that something is wrong with the
audio equipment. In such a case, use
the cellular phone at a place as far as
possible from the audio equipment.
NOTICE
When using a communication
system such as a cellular phone
or a radio set inside the vehicle, a
separate external antenna must be
fitted. When a cellular phone or a
radio set is used with an internal
antenna alone, it may interfere
with the vehicle's electrical sys-
tem and adversely affect safe
operation of the vehicle.
WARNING
Do not use a cellular phone
while driving. Stop at a safe
location to use a cellular phone.
4-8

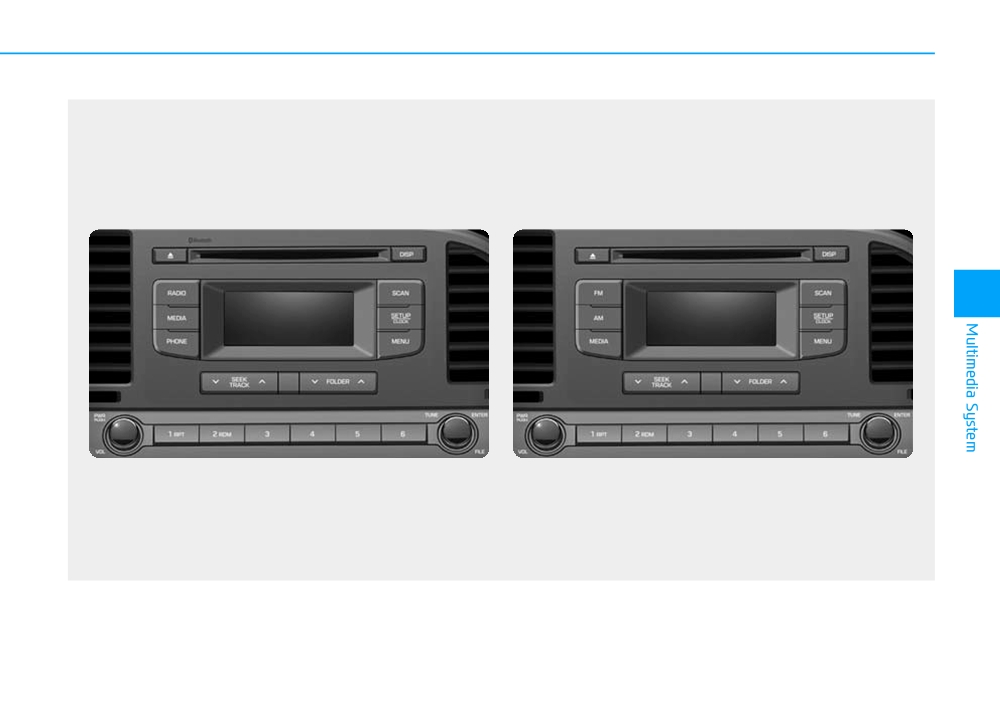

AUDIO (Without Touch Screen)
■ Type A-1
■ Type A-2
4
(With Bluetooth® Wireless Technology)
ADA50000EE/ADA50001EE
4-9
Multimedia System

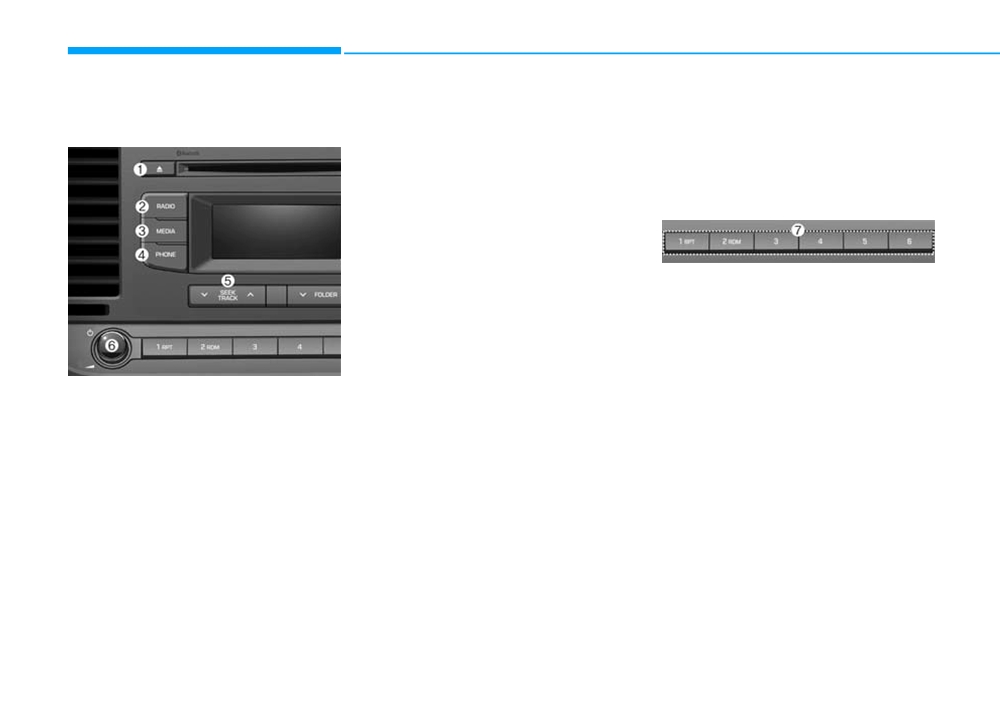

Feature of Your Audio
(3) MEDIA
(6) POWER/VOLUME knob
• Changes to CD, USB(iPod®), AUX,
• Power knob : Turns power On/Off
My Music*, BT Audio* mode.
by pressing the knob.
• Each time the button is pressed,
• Volume knob
: Sets volume by
the mode is changed in order of
turning the knob left/right.
CD, USB(iPod®), AUX, My Music*,
BT Audio*.
*if equipped
(4) PHONE (Type A-1)
(7) [1] ~ [6] (Preset)
• Operates Phone Screen.
• Radio mode : Saves frequencies
(channels) or receives saved fre-
• When a phone is not connected,
quencies (channels).
the connection screen is displayed.
• CD, USB, iPod®, My Music* mode
(5) SEEK TRACK
-
[RPT] : Repeat
(1) EJECT
• Radio mode : Automatically search-
-
[RDM] : Random
es for broadcast frequencies.
In the Radio, Media, Setup, and
• Ejects the disc.
• CD, USB, iPod®, My Music* mode
Menu pop up screen, the number
menu is selected.
(2) RADIO (Type A-1)
- Shortly press the button : Moves
to next or previous song (file).
*if equipped
• Changes to FM/AM mode.
- Press and hold the button
:
• Each time the button is pressed,
Rewinds or fast-forwards the cur-
the mode is changed in order of
rent song.
FM1 ➟ FM2 ➟ FMA ➟ AM ➟ AMA.
*if equipped
4-10

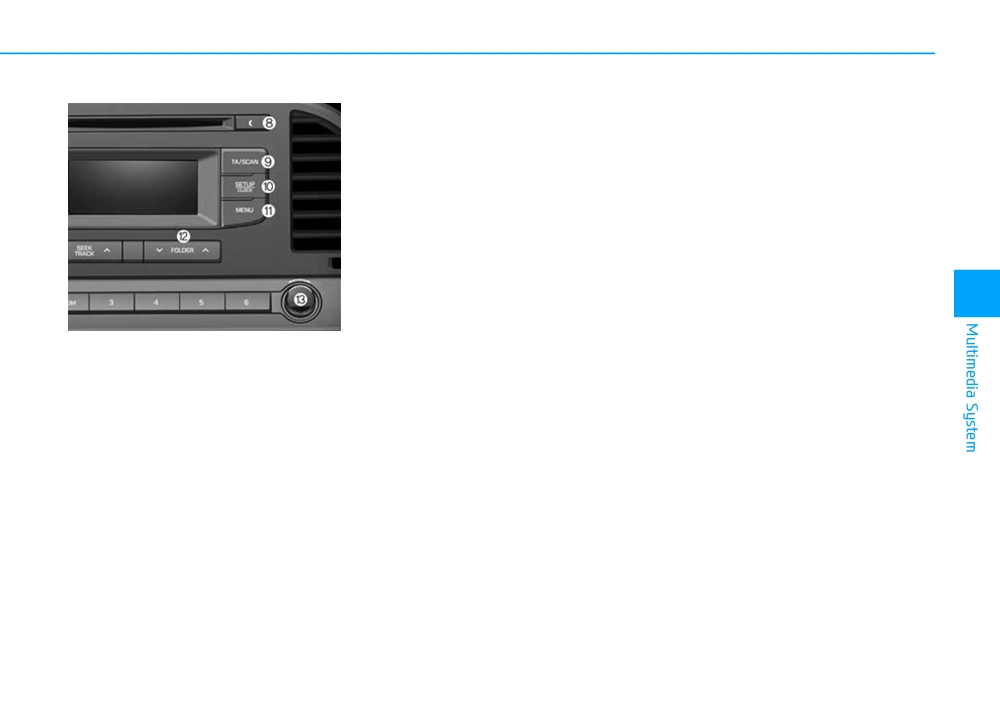

(9) TA/SCAN
(11) MENU
• Radio mode
• Displays menus for the current
- Shortly press the button
:
mode.
TA On/Off.
• iPod® List : Move to parent category.
- Press and hold the button
:
Previews each broadcast for 5
(12) FOLDER
seconds each.
• MP3 CD / USB mode : Folder
• CD, USB, My Music* mode
Search.
- Press and hold the button
:
Previews each song (file) for 10
(13) TUNE knob
4
seconds each.
• Radio mode : Changes frequency
- Press and hold the button again
by turning the knob left/right.
to continue listening to the cur-
• CD, USB, iPod®, My Music* mode :
rent song (file).
(8) DISP
Searches songs (files) by turning
*if equipped
• Each time the button
is shortly
the knob left/right.
pressed, sets Screen Off ➟ Screen
When the desired song is dis-
(10) SETUP/CLOCK
On ➟ Screen Off.
played, press the knob to play the
• Shortly press the button : Moves to
• Audio operation is maintained and
song.
the Display, Sound, Clock, Phone,
only the screen will be turned Off.
• Moves focus in all selection menus
System setting modes.
• In the Screen Off state, press any
and selects menus.
• Press and hold the button : Move to
button to turn the Screen On again.
*if equipped
the Time setting screen.
4-11
Multimedia System

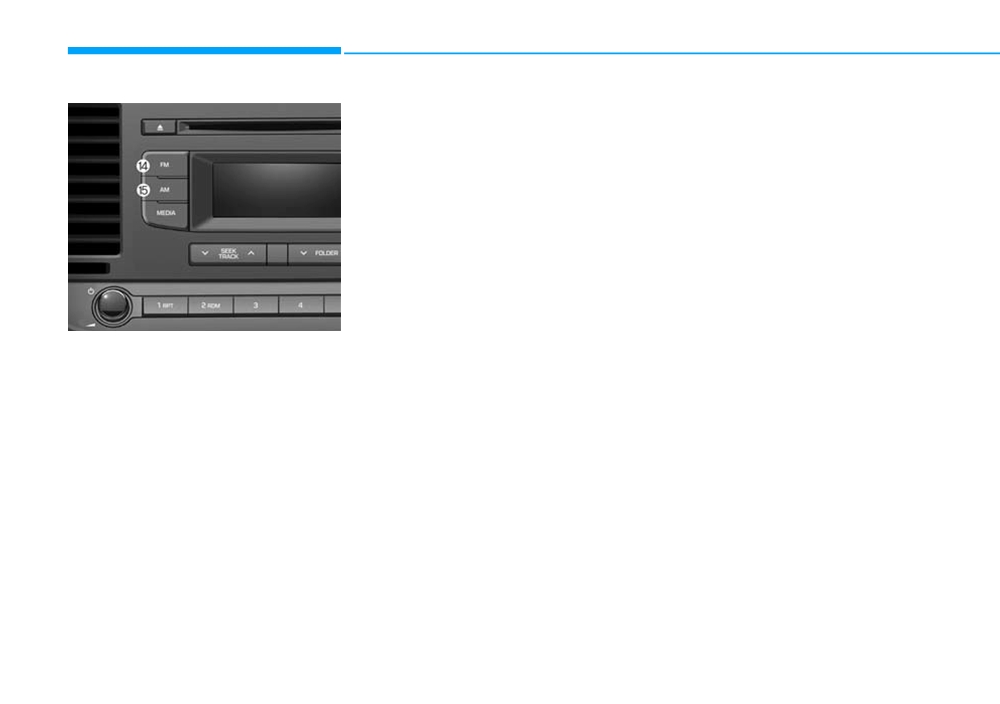

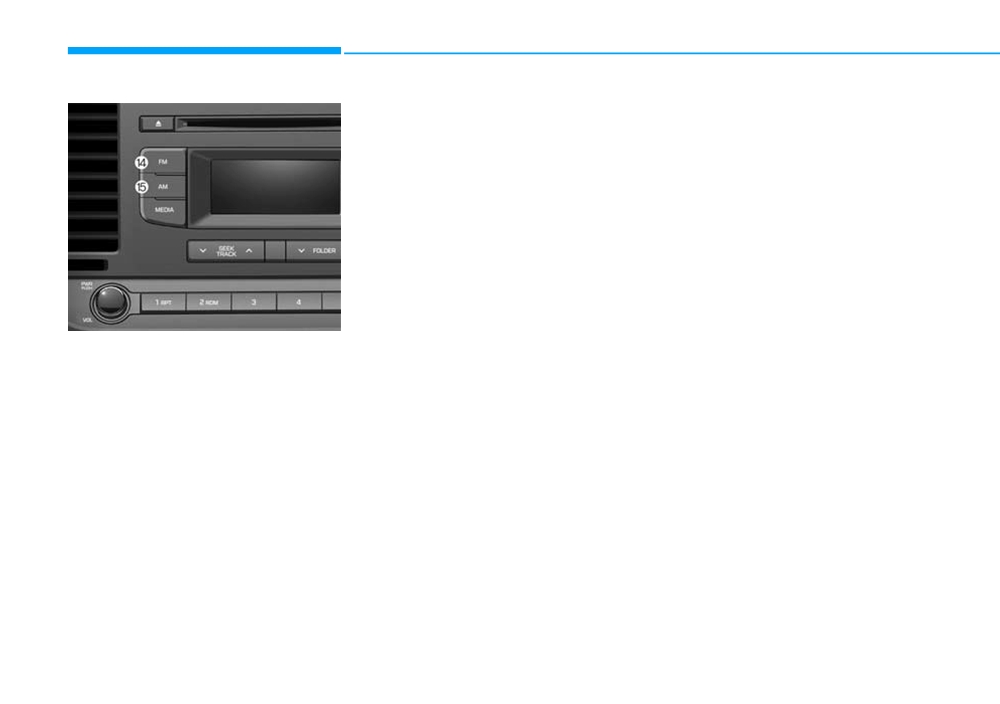

(14) FM (Type A-2)
• Changes to FM mode.
• Each time the button is pressed,
the mode changed in order of FM1
➟ FM2 ➟ FMA.
(15) AM (Type A-2)
• Changes to AM ➟ AMA mode.
4-12
■ Type A-3
■ Type A-4
4
(With Bluetooth® Wireless Technology)
ADA50002EE/ADA50003EE
4-13
Multimedia System
Feature of Your Audio
(3) MEDIA
(6) PWR/VOL knob
• Changes to CD, USB(iPod®), AUX,
• Power knob : Turns power On/Off
My Music*, BT Audio* mode.
by pressing the knob.
• Each time the button is pressed,
• Volume knob
: Sets volume by
the mode is changed in order of
turning the knob left/right.
CD, USB(iPod®), AUX, My Music*,
BT Audio*.
*if equipped
(4) PHONE (Type A-3)
(7) [1] ~ [6] (Preset)
• Operates Phone Screen.
• Radio mode : Saves frequencies
(channels) or receives saved fre-
• When a phone is not connected,
quencies (channels).
the connection screen is displayed.
• CD, USB, iPod®, My Music* mode
(5) SEEK TRACK
-
[RPT] : Repeat
• Radio mode : Automatically search-
-
[RDM] : Random
(1) EJECT
es for broadcast frequencies.
In the Radio, Media, Setup, and
• Ejects the disc.
• CD, USB, iPod®, My Music* mode
Menu pop up screen, the number
menu is selected.
- Shortly press the button : Moves
(2) RADIO (Type A-3)
to next or previous song (file).
*if equipped
• Changes to FM/AM mode.
- Press and hold the button
:
• Each time the button is pressed,
Rewinds or fast-forwards the cur-
the mode is changed in order of
rent song.
FM1 ➟ FM2 ➟ FMA ➟ AM ➟ AMA.
*if equipped
4-14
(9) TA/SCAN
(11) MENU
• Radio mode
• Displays menus for the current
- Shortly press the button
: TA
mode.
On/Off.
• iPod® List : Move to parent category.
- Press and hold the button
:
Previews each broadcast for 5
(12) FOLDER
seconds each.
• MP3 CD / USB mode : Folder
• CD, USB, My Music* mode
Search.
- Press and hold the button
:
Previews each song (file) for 10
(13) TUNE knob
4
seconds each.
• Radio mode : Changes frequency
- Press and hold the button again
by turning the knob left/right.
to continue listening to the cur-
• CD, USB, iPod®, My Music* mode :
rent song (file).
(8) DISP
Searches songs (files) by turning
*if equipped
• Each time the button is shortly
the knob left/right.
pressed, sets Screen Off ➟ Screen
When the desired song is dis-
(10) SETUP/CLOCK
On ➟ Screen Off.
played, press the knob to play the
• Shortly press the button : Moves to
• Audio operation is maintained and
song.
the Display, Sound, Clock, Phone,
only the screen will be turned Off.
• Moves focus in all selection menus
System setting modes.
• In the Screen Off state, press any
and selects menus.
• Press and hold the button : Move to
button to turn the Screen On again.
*if equipped
the Time setting screen.
4-15
Multimedia System
(14) FM (Type A-4)
• Changes to FM mode.
• Each time the button is pressed,
the mode changed in order of FM1
➟ FM2 ➟ FMA.
(15) AM (Type A-4)
• Changes to AM mode.
• Each time the button is pressed,
the mode changed in order of AM
➟ AMA.
4-16
■ Type A-5
■ Type A-6
4
(With Bluetooth® Wireless Technology)
ADA50004EE/ADA50005EE
4-17
Multimedia System
Feature of Your Audio
(3) MEDIA
(6) PWR/VOL knob
• Changes to CD, USB(iPod®), AUX,
• Power knob : Turns power On/Off
My Music*, BT Audio* mode.
by pressing the knob.
• Each time the button is pressed,
• Volume knob
: Sets volume by
the mode is changed in order of
turning the knob left/right.
CD, USB(iPod®), AUX, My Music*,
BT Audio*.
*if equipped
(4) PHONE (Type A-5)
(7) [1] ~ [6] (Preset)
• Operates Phone Screen.
• Radio mode : Saves frequencies
(channels) or receives saved fre-
• When a phone is not connected,
quencies (channels).
the connection screen is displayed.
• CD, USB, iPod®, My Music* mode
(5) SEEK TRACK
-
[RPT] : Repeat
• Radio mode : Automatically search-
-
[RDM] : Random
(1) EJECT
es for broadcast frequencies.
In the Radio, Media, Setup, and
• Ejects the disc.
• CD, USB, iPod®, My Music* mode
Menu pop up screen, the number
menu is selected.
- Shortly press the button : Moves
(2) RADIO (Type A-5)
to next or previous song (file).
*if equipped
• Changes to FM/AM mode.
- Press and hold the button
:
• Each time the button is pressed,
Rewinds or fast-forwards the cur-
the mode is changed in order of
rent song.
FM1 ➟ FM2 ➟ AM.
*if equipped
4-18
(9) SCAN
(12) FOLDER
• Radio mode
• MP3 CD / USB mode : Folder
- Press the button : Previews each
Search.
broadcast for 5 seconds each.
• CD, USB, My Music* mode
(13) TUNE knob
- Press the button : Previews each
• Radio mode : Changes frequency
song (file) for 10 seconds each.
by turning the knob left/right.
- Press the button again to contin-
• CD, USB, iPod®, My Music* mode :
ue listening to the current song
Searches songs (files) by turning
(file).
the knob left/right.
4
*if equipped
When the desired song is dis-
played, press the knob to play the
(10) SETUP/CLOCK
song.
(8) DISP
• Shortly press the button : Moves to
• Moves focus in all selection menus
the Display, Sound, Clock, Phone,
and selects menus.
• Each time the button is shortly
pressed, sets Screen Off ➟ Screen
System setting modes.
*if equipped
On ➟ Screen Off.
• Press and hold the button : Move to
the Time setting screen.
• Audio operation is maintained and
only the screen will be turned Off.
(11) MENU
• In the Screen Off state, press any
button to turn the Screen On again.
• Displays menus for the current
mode.
• iPod® List : Move to parent category.
4-19
