Hyundai Azera (2017 year). Instruction

Features of your vehicle

The high beam switches to low beam

If an indicator stays on and does not

in the below conditions.

flash or if it flashes abnormally, one of

When the Smart High Beam is off.

the turn signal bulbs may be burned

out and will require replacement.

When the light switch is not in the

AUTO position.

When the headlamp is detected

from the on-coming vehicle.

When the tail lamp is detected

from the front vehicle.

When the surrounding is bright

enough high beams are not need-

OHG041116A

ed.

When streetlights or other lights

Turn signals and lane change

are detected.

signals

When vehicle speed is below 22

The ignition switch must be on for the

mph (35 km/h).

turn signals to function. To turn on

the turn signals, move the lever up or

down (A). Green arrow indicators on

the instrument panel indicate which

turn signal is operating. They will

self-cancel after a turn is completed.

If the indicator continues to flash

after a turn, manually return the lever

to the OFF position.

To signal a lane change, move the

turn signal lever slightly and hold it in

position (B). The lever will return to

the OFF position when released.

4 105

Features of your vehicle

One-touch turn signal

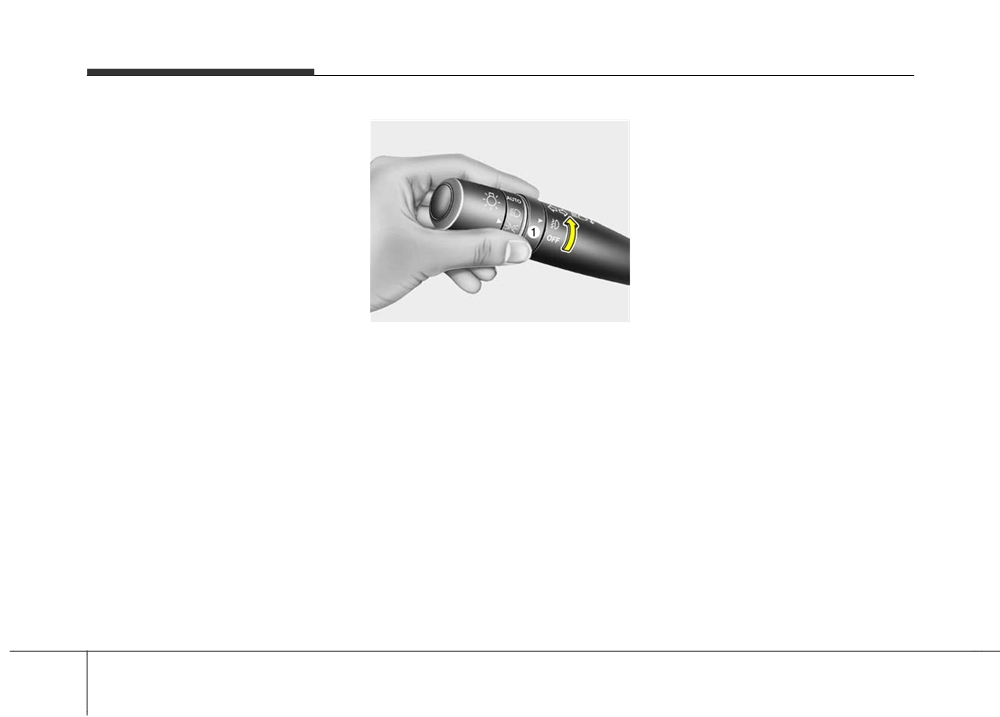

To turn off the fog lights, turn the fog

To activate the one-touch turn signal

light switch (1) to the OFF position or

move the turn signal lever slightly

turn off the head lights.

and then release it. The lane change

signals will blink 3, 5 or 7 times.

When in operation, the fog lights

consume large amounts of vehicle

You can activate or deactivate the

electrical power. Only use the fog

One-touch turn signal function or

lights when visibility is poor.

choose the number of blinking (3, 5,

or 7) from the User Settings Mode on

the LCD display.

OHG040117

✽ NOTICE

Front fog light

If an indicator flash is abnormally

Fog lights are used to provide

quick or slow, a bulb may be burned

improved visibility and avoid acci-

out or have a poor electrical connec-

dents when visibility is poor due to

tion in the circuit.

fog, rain or snow etc.

The fog lights will turn on when :

1. The headlight is turned on.

2. The fog light switch is turned to the

ON position.

4 106

Features of your vehicle

WIPERS AND WASHERS

Windshield wipers

Operates as follows when the igni-

tion switch is turned ON.

MIST : For a single wiping cycle,

move the lever to the MIST

position and release it with

the lever in the OFF position.

The wipers will operate con-

tinuously if the lever is held in

this position.

OFF : Wiper is not in operation.

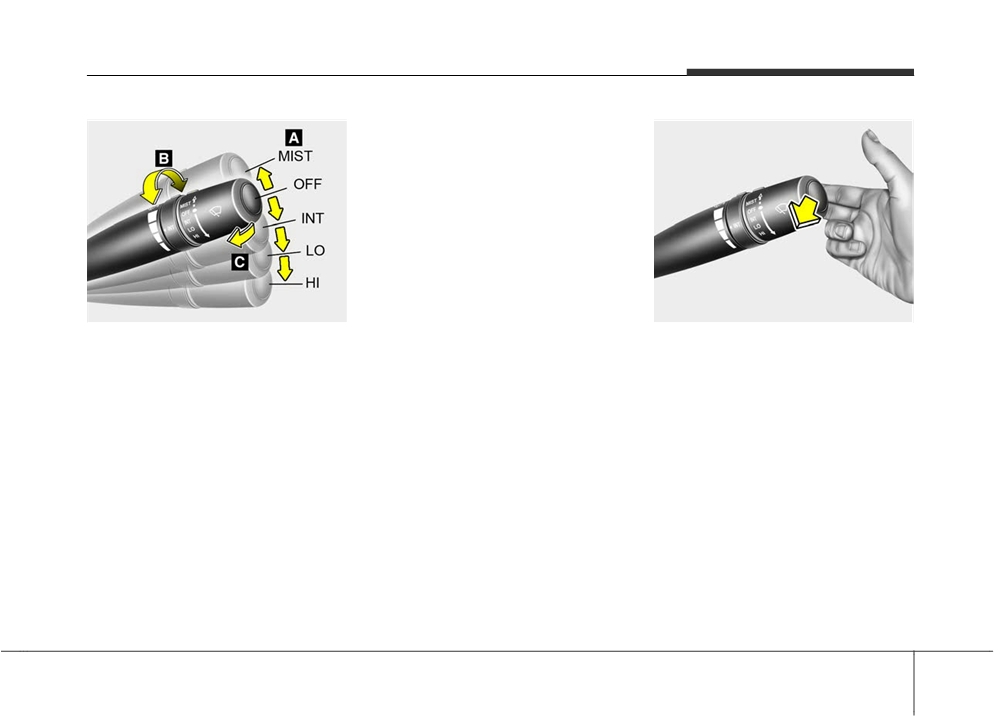

OHG042118

OHG042121

INT : Wiper operates intermittently at

Windshield wiper/washer

the same wiping intervals. Use

Windshield washers

A : Wiper speed control

this mode in a light rain or mist.

In the OFF position, pull the lever

To vary the speed setting, turn

gently toward you to spray washer

· MIST - Single wipe

the speed control knob.

fluid on the windshield and to run the

· OFF - Off

LO : Normal wiper speed

wipers 1-3 cycles.

· INT - Intermittent wipe

HI : Fast wiper speed

Use this function when the wind-

· LO - Normal wiper speed

shield is dirty.

· HI - Fast wiper speed

The spray and wiper operation will

continue until you release the lever.

B : Intermittent wipe time adjust-

If the washer does not work, check

ment

the washer fluid level. If the fluid level

is not sufficient, you will need to add

C : Wash with brief wipes

appropriate non-abrasive windshield

washer fluid to the washer reservoir.

The reservoir filler neck is located in

the front of the engine compartment

on the passenger side.

4 107

Features of your vehicle

CAUTION - Washer pump

CAUTION - Wipers &

To prevent possible damage to

Windshields

the washer pump, do not oper-

•

To prevent possible damage

ate the washer when the fluid

to the wipers or windshield,

reservoir is empty.

do not operate the wipers

when the windshield is dry.

•

To prevent damage to the

wiper blades, do not use gaso-

WARNING - Obscured

line, kerosene, paint thinner,

visibility

or other solvents on or near

Do not use the washer in freez-

them.

ing temperatures without first

•

To prevent damage to the

warming the windshield with

wiper arms and other compo-

the defrosters; the washer solu-

nents, do not attempt to move

tion could freeze on contact

the wipers manually.

with the windshield and

obscure your vision.

4 108

Features of your vehicle

INTERIOR LIGHT

•

When the door switch is

CAUTION

pushed:

Do not use the interior lights for

- The map lamp and room lamp

extended periods when the

comes on when a door is opened

engine is not running.

and closed. The lamps go out

It may cause battery discharge.

after approximately 30 seconds.

- The map lamp and room lamp

comes on for approximately 30

WARNING - Interior light

seconds when doors are

Do not use the interior lights

unlocked with a smart key as long

when driving in the dark. The

as the doors are not opened.

OHG045122

glare from the interior lights

- The map lamp and room lamp will

may obstruct your view and

Map lamp

stay on for approximately 20 min-

cause an accident.

•

: Push the switch (1) to

utes if a door is opened with the

turn the map lamp on or

ignition switch in the ACC or OFF

off. This light produces a

position.

Automatic turn off function

spot beam for conven-

- The map lamp and room lamp will

(if equipped)

ient use as a map lamp

stay on continuously if the door is

The interior lights automatically turn

at night or as a personal

opened with the ignition switch in

off approximately

20 minutes after

lamp for the driver and

the ON position.

the ignition switch is turned off.

the front passenger.

- The map lamp and room lamp will

With the theft alarm system, the inte-

go out immediately if the ignition

rior lights automatically turns off

switch is changed to the ON posi-

approximately 5 seconds after the

tion or all doors are locked.

system is in the armed stage.

- Push the switch once more to

turn off the door switch.

4 109

Features of your vehicle

■ Type A

•

: Press this button to turn

the front and rear room

lamps on and off.

Mood lamp (2, if equipped)

- The mood lamp turns on when

the ENGINE START/STOP but-

ton is in the ACC or above posi-

tion.

OHG040123

- The mood lamp will turn off when

■ Type B

the ENGINE START/STOP but-

OHG045125

ton is in the OFF position.

Trunk room lamp

The trunk room lamp comes on for 20

minutes when the trunk is opened.

OHG040124

Room lamp

Press the button to turn the light on

or off.

CAUTION

Do not leave the lamp switches

on for an extended period of time

when the vehicle is not running.

4 110

Features of your vehicle

OHG040126

OHG040127

OHG040128

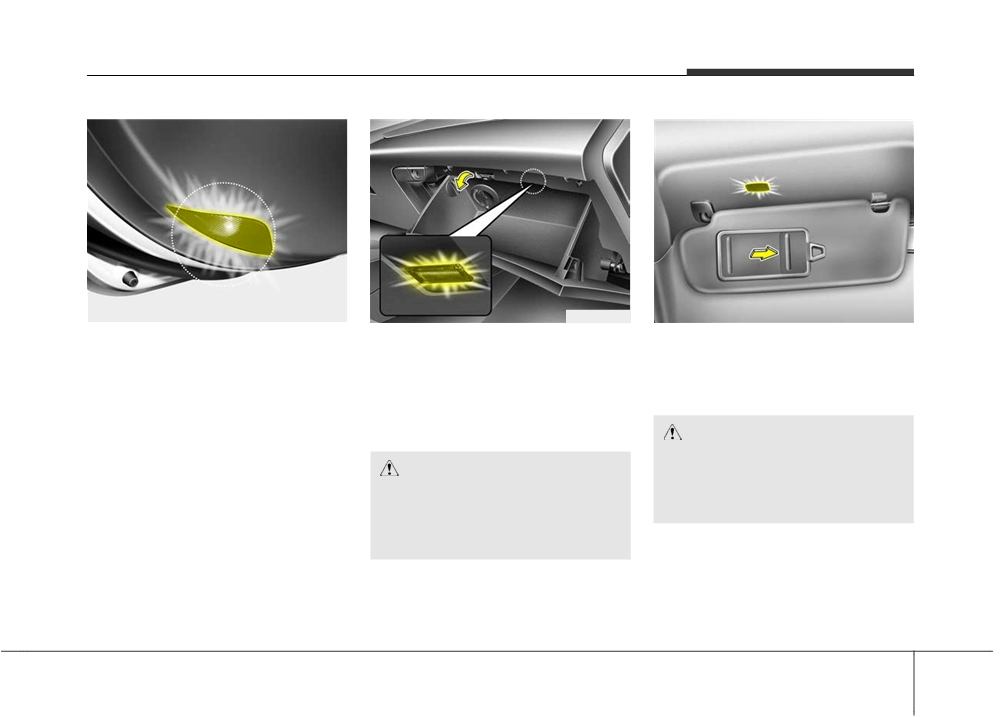

Door courtesy lamp

Glove box lamp

Vanity mirror lamp

The door courtesy lamp comes ON

The glove box lamp comes on when

Opening the lid of the vanity mirror

when the door is opened to assist

the glove box is opened.

will automatically turn on the mirror

entering or exiting the vehicle. It also

The parking lights or headlights must

light.

serves as a warning to passing vehi-

be ON for the glove box lamp to func-

cles that the vehicle door is opened.

tion.

CAUTION

To prevent unnecessary charg-

CAUTION

ing system drain, close the van-

To prevent unnecessary charg-

ity mirror cover after using the

ing system drain, close the

mirror.

glove box securely after using

the glove box.

4 111

Features of your vehicle

DEFROSTER

• To turn off the defroster, press the

CAUTION - Conductors

rear window defroster button

To prevent damage to the con-

again.

ductors bonded to the inside

If there is heavy accumulation of

surface of the rear window,

snow on the rear window, brush it off

never use sharp instruments or

before operating the rear defroster.

window cleaners containing

abrasives to clean the window.

Side view mirror defroster

(if equipped)

✽ NOTICE

If your vehicle is equipped with the

If you want to defrost and defog

side view mirror defrosters, they will

OHG045223

the front windshield, refer to

operate at the same time you turn on

“Windshield defrosting and defog-

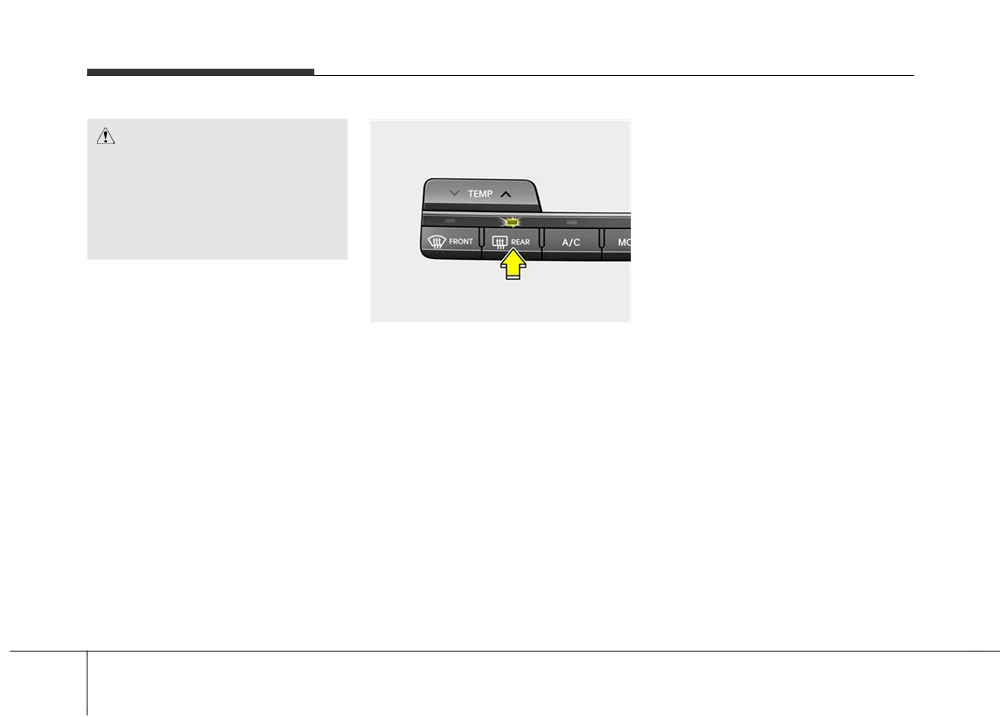

Rear window defroster

the rear window defroster.

ging” in this section.

The defroster heats the window to

remove frost, fog and thin ice from

the rear window, while the engine is

running.

• To activate the rear window

defroster, press the rear window

defroster button located in the cen-

ter facia switch panel.

• The indicator on the rear window

defroster button illuminates when

the defroster is ON.

• The rear window defroster auto-

matically turns off after approxi-

mately

20 minutes or when the

ignition switch is turned off.

4 112

Features of your vehicle

AUTOMATIC CLIMATE CONTROL SYSTEM (TYPE A)

1. Fan speed control knob

2. AUTO (automatic control) button

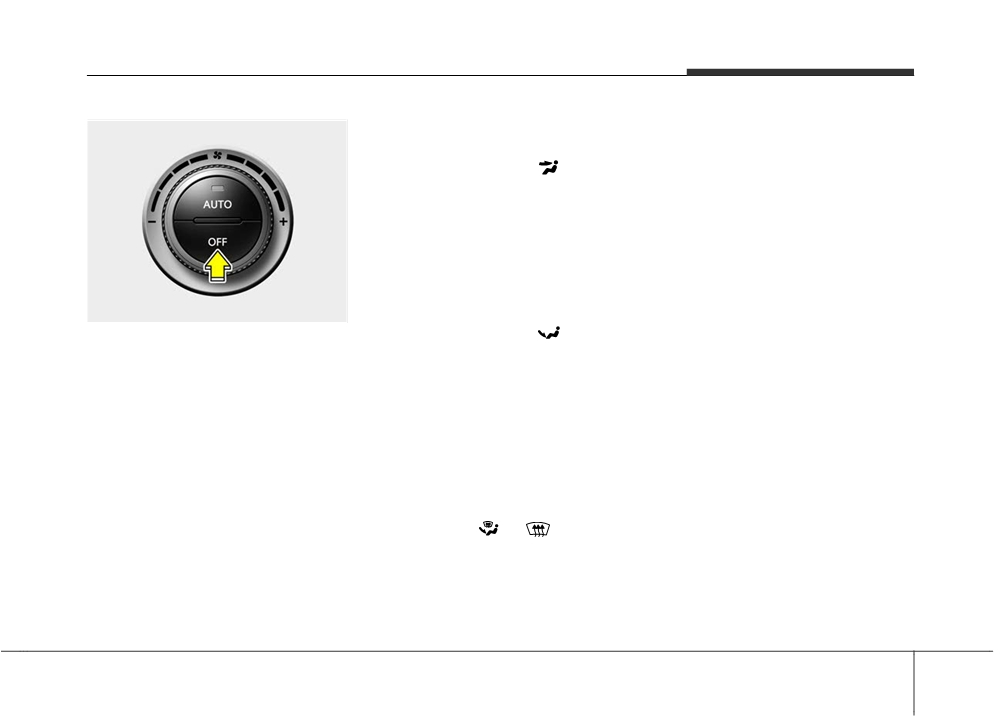

3. OFF button

4. Driver’s temperature control switch

5. Passenger's temperature control switch

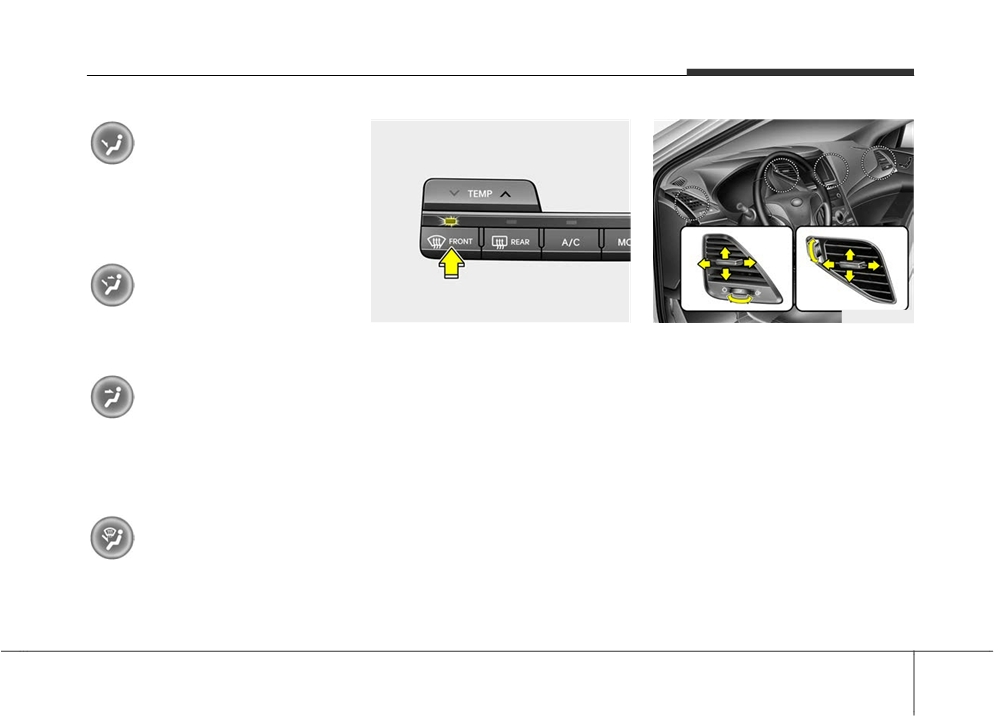

6. Front windshield defroster button

7. Rear window defroster button

8. Air conditioning button

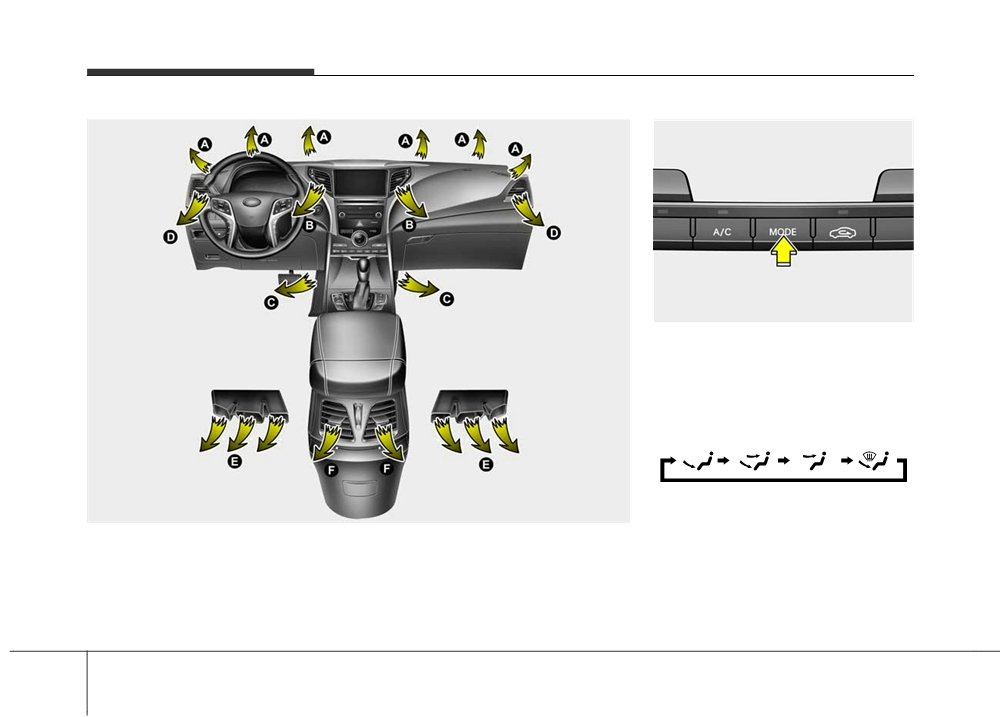

9. Mode selection button

10. Air intake control button

11. SYNC button

OHG045516L

4 113

Features of your vehicle

■ Driver’s side

■ Passenger’s side

✽ NOTICE

•

To turn the automatic operation

off, select any button or switch of

the following:

- Mode selection switch

- Air conditioning button

- Front windshield defroster but-

ton (Press the button one more

time to deselect the front wind-

shield defroster function. The

'AUTO' sign will illuminate on

OHG045216

OHG045212

the information display once

Automatic heating and air condi-

2. Set the temperature to the desired

again.)

tioning

temperature.

- Air intake control button

1. Push the AUTO button.

- Fan speed control knob

The modes, fan speeds, air intake

The selected function will be con-

and air-conditioning will be controlled

trolled manually while other func-

automatically by setting the tempera-

tions operate automatically.

ture.

•

For your convenience and to

improve the effectiveness of the

climate control, use the AUTO

button and set the temperature to

73°F (23°C).

4 114

Features of your vehicle

Manual heating and air condi-

1. Start the engine.

tioning

2. Set the mode to the desired posi-

The heating and cooling system can

tion.

be controlled manually by pushing

To improve the effectiveness of

buttons other than the AUTO button.

heating and cooling:

In this case, the system works

- Heating:

sequentially according to the order of

- Cooling:

buttons selected.

3. Set the temperature control to the

When pressing any button except the

desired position.

AUTO button while using automatic

4. Set the air intake control to the

OHG040143

operation, the functions not selected

outside (fresh) air position.

will be controlled automatically.

Never place anything over the sensor

5. Set the fan speed control to the

located on the instrument panel to

desired speed.

ensure better control of the heating

6. If air conditioning is desired, turn

and cooling system.

the air conditioning system on.

Press the AUTO button in order to

convert to full automatic control of

the system.

4 115

Features of your vehicle

Floor-Level (A, C, D, E)

Most of the air flow is directed to the

floor, with a small amount of air

directed to the windshield and side

window defrosters.

Bi-Level (B, C, D, E, F)

OHG045211

OHG045135

Air flow is directed towards the face

and the floor.

Defrost-Level

Instrument panel vents

Most of the air flow is directed to the

The outlet vents can be opened or

windshield with a small amount of air

closed separately using the thumb-

directed to the side window defrosters.

wheel.

Face-Level (B, C, D, E, F)

Also, you can adjust the direction of

✽ NOTICE

air delivery from these vents using

Air flow is directed toward the upper

body and face. Additionally, each

The defrost mode is more effective

the vent control lever as shown.

outlet can be controlled to direct the

when a warmer air temperature set-

air discharged from the outlet.

ting is selected.

Floor & Defrost (A, C, D, E)

Most of the air flow is directed to the

floor and the windshield with a small

amount directed to the side window

defrosters.

4 117

Features of your vehicle

■ Driver’s side

■ Passenger’s side

Adjusting the driver and passenger

side temperature individually

• Press the “SYNC” button again to

adjust the driver and passenger

side temperature individually. The

illumination of button turns off.

• Operate the driver side tempera-

ture control to adjust the driver side

temperature.

• Operate the passenger side tem-

perature control to adjust the pas-

OHG045212

OHG045515N

senger side temperature.

Temperature control

Adjusting the driver and passenger

The temperature will increase to the

side temperature equally

Temperature conversion

maximum (HIGH) by pressing

• Press the “SYNC” button to adjust

If the battery has been discharged or

part of the switch.

the driver and passenger side tem-

disconnected, the temperature mode

The temperature will decrease to the

perature equally.

display will reset to Centigrade.

minimum (LOW) by pressing

The passenger side temperature

This is a normal condition. You can

part of the switch.

will be set to the same temperature

switch the temperature mode

When pressing the switch, the tem-

as the driver side temperature.

between Centigrade to Fahrenheit as

perature will increase or decrease by

• Operate the driver side tempera-

follows;

1°F (0.5 °C). When set to the lowest

ture control. The driver and pas-

temperature setting, the air condi-

senger side temperature will be

While pressing the OFF button,

tioning may operate.

adjusted equally.

press the AUTO button for 3 seconds

or more. The display will change from

Centigrade to Fahrenheit, or from

Fahrenheit to Centigrade.

4 118

Features of your vehicle

Recirculated air position

WARNING

With the recirculated air

position selected, air

•

Continuous use of the climate

from the passenger

control system in the recircu-

compartment will be

lated air position can cause

drawn through the heat-

drowsiness or sleepiness, and

ing system and heated

loss of vehicle control. Set the

or cooled according to

air intake control to the outside

the function selected.

(fresh) air position as much as

possible while driving.

Outside (fresh) air position

•

Continued climate control

OHG045219

With the outside (fresh)

system operation in the recir-

culated air position may allow

Air intake control

air position selected, air

enters the vehicle from

humidity to increase inside

This is used to select the outside

vehicle which may fog the

(fresh) air position or recirculated air

outside and is heated or

cooled according to the

glass and obscure visibility.

position.

function selected.

•

Do not sleep in a vehicle with

To change the air intake control posi-

the air conditioning or heating

tion, push the control button.

system on. It may cause seri-

✽ NOTICE

ous harm or death due to a

While driving at high speed with the

drop in the oxygen level

recirculation air position mode,

and/or body temperature.

fresh air may automatically enter

the vehicle to provide ventilation of

the inside air.

4 119

Features of your vehicle

It should be noted that prolonged

operation of the heating in recirculat-

ed air position will cause fogging of

the windshield and side windows and

the air within the passenger com-

partment will become stale.

In addition, prolonged use of the air

conditioning with the recirculated air

position selected, will result in exces-

sively dry air in the passenger com-

partment.

OHG045215

OHG045217

Fan speed control

Air conditioning

The fan speed control knob allows

Press the A/C button to turn the air

you to control the fan speed of the

conditioning system on (indicator light

airflow in the vehicle.

will illuminate).

To change the fan speed:

Press the button again to turn the air

• Turn the knob to the right (+) to

conditioning system off.

increase fan speed.

• Turn the knob to the left

(-) to

decrease fan speed.

4 120

Features of your vehicle

System operation

Operation Tips

Ventilation

•

To keep dust or unpleasant fumes

from entering the vehicle through

1. Set the mode to the

position.

the ventilation system, temporarily

2. Set the air intake control to the

set the air intake control to the

outside (fresh) air position.

recirculated air position. Be sure to

3. Set the temperature control to the

return the control to the fresh air

desired position.

position when the irritation has

4. Set the fan speed control to the

passed to keep fresh air in the

desired speed.

vehicle. This will help keep the driv-

er alert and comfortable.

OHG045218

Heating

•

Air for the heating/cooling system

1. Set the mode to the

position.

is drawn in through the grilles just

OFF mode

2. Set the air intake control to the

ahead of the windshield. Care

Press the OFF button to turn off the

outside (fresh) air position.

should be taken that these are not

air climate control system. However,

blocked by leaves, snow, ice or

you can still operate the mode and

3. Set the temperature control to the

other obstructions.

air intake buttons as long as the igni-

desired position.

•

To prevent interior fog on the wind-

tion switch is in the ON position.

4. Set the fan speed control to the

shield, set the air intake control to

desired speed.

the fresh air position and fan speed

5. If dehumidified heating is desired,

to the desired position, turn on the

turn the air conditioning system (if

air conditioning system, and adjust

equipped) on.

the temperature control to desired

• If the windshield fogs up, set the

temperature.

mode to the

position.

4 121

Hyundai Azera (2017 year). Instruction - part 11
