Features of your vehicle

KEYS

Record your key number

Key operations

The key code number

• Used to start the engine.

is stamped or printed

• Used to lock and unlock the doors.

on the key code tag

• Used to lock and unlock the glove

attached to the key

box.

set. Should you lose your keys, con-

tact an authorized HYUNDAI dealer.

WARNING - Aftermarket

Remove the key code tag and store it

keys

in a safe place. Also, record the key

Use only HYUNDAI original

code number and keep it in a safe

parts for the ignition key in your

and handy place, but not in the vehi-

vehicle. If an aftermarket key is

cle.

OHG045004

used, the ignition switch may

To remove the mechanical key, press

not return to ON after START. If

WARNING - Smart key

and hold the release button(1) and

this happens, the starter will

Leaving children unattended in a

remove the mechanical key(2).

continue to operate causing

vehicle with the smart key is dan-

To reinstall the mechanical key, put

possible fire due to excessive

gerous even if the ENGINE

the key into the hole and push it until

current in the wiring.

START/STOP button is in the

a click sound is heard.

ACC or ON position. Children

copy adults and they could press

the ENGINE START/STOP button.

The smart key would enable chil-

dren to operate power windows

or other controls, or even make

the vehicle move, which could

result in serious bodily injury or

even death. Never leave the keys

in your vehicle with unsuper-

vised children, when the Engine

is running.

4 3

Features of your vehicle

When leaving your keys with a park-

Immobilizer system

ing lot attendant or valet, perform

Your vehicle is equipped with an

above steps

1 to

4, remove the

electronic engine immobilizer system

mechanical key from the smart key

to reduce the risk of unauthorized

and leave the smart key with the

vehicle use.

attendant. In this manner the smart

key can only be used to start the

Whenever the ENGINE START/STOP

engine and operate door locks.

button is changed to the ON position,

the immobilizer system checks and

Lock release

verifies if the key is valid or not.

To release the trunk lock feature,

If the key is valid, the engine will start.

OHG040005

open the glove box with the mechan-

If the key is invalid, the engine will

Restrictions in handling keys

ical key and set the trunk lid control

not start.

button to the ON position (pressed).

To activate the trunk lock system so

In this position the trunk will open

that the trunk can only be opened

with the trunk lid button or smart key.

with the mechanical key, perform the

following:

1. Press and hold the release button

and remove the mechanical key.

2. Unlock the glove box by using the

mechanical key then open it.

3. Set the trunk lid control button to

the OFF position (unpressed).

4. Close and lock the glove box using

the mechanical key.

4 4

Features of your vehicle

To deactivate the immobilizer

This device complies with Part 15

system

CAUTION

of the FCC rules.

Change the ENGINE START/STOP

Do not put metal accessories

Operation is subject to the following

button to the ON position.

near the smart key.

two conditions:

The engine may not start because

1. This device may not cause harm-

To activate the immobilizer system

the metal accessories may inter-

ful interference, and

rupt the transponder signal from

Change the ENGINE START/STOP

2. This device must accept any inter-

transmitting normally.

button to the OFF position. The immo-

ference received, including inter-

bilizer system activates automatically.

ference that may cause undesired

Without a valid smart key for your

operation.

If you need additional keys or lose

vehicle, the engine will not start.

your keys, consult an authorized

HYUNDAI dealer.

CAUTION

✽ NOTICE

Changes or modifications not

Your immobilizer password is a cus-

expressly approved by the party

CAUTION - Immobilizer

tomer unique password and should

responsible for compliance

damage

be kept confidential. Do not leave this

could void the user's authority

Do not expose your immobilizer

number anywhere in your vehicle.

to operate the equipment.

system to moisture, static elec-

tricity and rough handling. This

CAUTION

may damage your immobilizer.

Keep each key separate in order

to avoid a starting malfunction.

CAUTION - Immobilizer

alterations

Do not change, alter or adjust

the immobilizer system because

it could cause the immobilizer

system to malfunction.

4 5

Features of your vehicle

SMART KEY

You can activate or deactivate the

Lock Sound (chime sound) function

in the vehicle. Refer to "User Settings

Mode" in this section.

✽ NOTICE

•

The switch will only operate when

the smart key is within 28~40 in.

(0.7~1 m) from the outside door

handle.

•

Even though you press the outside

OHG045007

OHG041011A

door handle switch, the doors will

Smart key functions

Using the door and trunk handle

not lock and the chime will sound

for 3 seconds if any of following

switch

1. Door lock

occur:

Locking

2. Door unlock

- The smart key is in the vehicle.

1. Carry the smart key.

3. Trunk open

- The ENGINE START/STOP

2. Close all doors, engine hood and

4. Alarm

button is in ACC or ON position.

trunk.

- Any door except the trunk is

3. Press the switch of the outside

open.

With a smart key, you can lock or

door handle.

unlock a door (and trunk) and even

4. All doors and trunk will lock. The

start the engine without inserting the

hazard warning lights will blink and

key. Refer to the following, for more

the chime will sound once.

details.

5. Make sure that doors are locked

by checking the door lock button

inside the vehicle or pulling the

outside door handle.

4 6

Features of your vehicle

If any door, trunk or engine hood

✽ NOTICE

remains open, the hazard warning

• The button will only operate when

lights will not operate. If all doors,

the smart key is within 28~40 in.

trunk and engine hood are closed

(0.7~1 m) from the outside door

after the lock button is pressed, the

handle.

hazard warning lights will blink once.

• After unlocking the driver’s door

or all doors, the door(s) will lock

You can activate or deactivate the

automatically unless a door is

Lock Sound (chime sound) function in

opened.

the vehicle. Refer to "User Settings

Mode" in this section.

Trunk open (3)

OHG045007

1.Press the trunk open button(3) for

Unlock (2)

more than 1 second.

Remote keyless entry system

operations

1. Press the unlock button(2).

2.The trunk will open. The hazard

warning light will blink twice to indi-

Lock (1)

2. The driver’s door will unlock. The

cate the trunk is opened.

1. Carry the smart key.

hazard warning lights will blink and

the chime will sound twice.

2. Close all doors, engine hood and

✽ NOTICE

trunk.

3. Press the unlock button(2) once

more within 4 seconds.

• Once the trunk is opened and

3. Press the lock button(1).

closed, the trunk will lock automat-

4. All doors and trunk will lock. The

4. All doors and trunk will unlock. The

ically when all doors are locked.

hazard warning lights will blink and

hazard warning lights will blink and

• The switch/button will only oper-

the chime will sound once.

the chime will sound twice.

ate when the smart key is within

5. Make sure that doors are locked by

28~40 in. (0.7~1m) from the trunk

checking the door lock button inside

You can activate or deactivate the Two

handle.

or pulling the outside door handle.

Turn Unlock and Unlock Sound (chime

sound) function in the vehicle. Refer to

"User Settings Mode" in this section.

4 8

Features of your vehicle

Alarm (4)

Smart key precautions

• If the smart key is in close proximity

1. Press the alarm button(4) for more

to your cell phone or smart phone,

•

If you lose your smart key, you will

than 1 second.

the signal from the smart key could

not be able to start the engine. Tow

be blocked by normal operation of

2. The horn sounds and hazard

the vehicle, if necessary, and con-

your cell phone or smart phone.

warning light flashes for about 30

tact an authorized HYUNDAI dealer.

This is especially important when

seconds.

•

A maximum of 2 smart keys can be

the phone is active such as making

To stop the horn and lights, press

registered to a single vehicle. If you

call, receiving calls, text messaging,

any button on the smart key.

lose a smart key, you should imme-

and/or sending/receiving emails.

diately take the vehicle and the

Avoid placing the smart key and your

second key to your authorized

cell phone or smart phone in the

HYUNDAI dealer to protect it from

same pants or jacket pocket and

potential theft.

maintain adequate distance between

•

The smart key will not work if any

the two devices.

of following occurs:

- The smart key is close to a radio

CAUTION - Smart key

transmitter such as a radio sta-

tion or an airport which can inter-

Keep the smart key away from

fere with normal operation of the

water or any liquid and fire. If

smart key.

the inside of the smart key gets

damp (due to drinks or mois-

- The smart key is near a mobile

ture), or is heated, internal cir-

two-way radio system or a cellular

cuit may malfunction, excluding

phone.

the car from the warranty.

- Another vehicle’s smart key is being

operated close to your vehicle.

When the smart key does not work

correctly, open and close the door

with the mechanical key. If you have

a problem with the smart key, con-

tact an authorized HYUNDAI dealer.

4 9

Features of your vehicle

This device complies with Part 15

Battery replacement

of the FCC rules.

A smart key battery should last for

Operation is subject to the following

several years, but if the smart key is

two conditions:

not working properly, try replacing

1. This device may not cause harm-

the battery with a new one. If you are

ful interference, and

unsure how to use your smart key or

2. This device must accept any inter-

replace the battery, contact an

ference received, including inter-

authorized HYUNDAI dealer.

ference that may cause undesired

operation.

OHG045535N

CAUTION

1. Insert a slim tool into the slot and

Changes or modifications not

gently pry open the cover.

expressly approved by the party

responsible for compliance

could void the user’s authority

to operate the equipment. If the

keyless entry system is inopera-

tive due to changes or modifica-

tions not expressly approved by

the party responsible for com-

pliance, it will not be covered by

your manufacturer’s vehicle

warranty.

4 10

Features of your vehicle

Front Cover

•

The smart key is designed to give

you years of trouble-free use, how-

ever it can malfunction if exposed

to moisture or static electricity. If

you are unsure how to use or

replace the battery, contact an

Battery

authorized HYUNDAI dealer.

•

Using the wrong battery can cause

the smart key to malfunction. Be

sure to use the correct battery.

•

If you suspect that your smart key

Rear Cover

OHG040009

might have sustained some dam-

age, or you feel your smart key is

2. Remove the old battery and insert

not working correctly, contact an

a new battery

(CR2032). Make

authorized HYUNDAI dealer.

sure the battery position is correct.

•

An inappropriately disposed bat-

3. Reinstall the rear cover of the

tery can be harmful to the environ-

smart key.

ment and human health. Dispose

the battery according to your local

law(s) or regulation.

CAUTION - Smart key

damage

Do not drop, get wet or expose

the smart key to heat or sun-

light, or it will be damaged.

4 11

Features of your vehicle

THEFT-ALARM SYSTEM (IF EQUIPPED)

Armed stage

• Lock the doors by pressing the

lock button on the smart key or

Park the vehicle and stop the engine.

with the mechanical key.

Arm the system as described below.

Armed

After completion of the steps

stage

1.Turn off the engine.

above, the hazard warning lights

2.Make sure that all doors, the

will operate once to indicate that

engine hood and trunk lid are

the system is armed.

closed and latched.

If any door, trunk lid or engine

Disarmed

Theft-alarm

3.• Lock the doors by pressing the

stage

stage

hood remains opened, the hazard

switch of the front outside door

warning lights will not operate

handle with the smart key in your

and theft-alarm will not arm. After

possession.

the doors, trunk lid and engine

After completion of the steps

hood are closed, the hazard

This system is designed to provide

above, the hazard warning lights

warning lights will blink once.

protection from unauthorized entry

operate once to indicate that the

into the car. This system is operated

system is armed.

in three stages: the first is the

If any door remains opened, the

"Armed" stage, the second is the

doors will not lock and the chime

"Theft-alarm" stage, and the third is

will sound for 3 seconds. Close the

the "Disarmed" stage. If triggered,

door and try again to lock the

the system provides an audible

doors.

alarm with blinking of the hazard

If trunk lid or engine hood remains

warning lights.

opened, the hazard warning lights

will not operate and theft-alarm

will not arm. After the trunk lid and

engine hood are closed, the haz-

ard warning lights will blink once.

4 12

Features of your vehicle

Disarmed stage

• Avoid trying to start the engine

while the alarm is activated. The

The system will be disarmed when:

vehicle starter motor is disabled

- The door unlock button is pressed

during the theft-alarm stage.

on the smart key.

• If you lose your keys, consult your

- The switch of the front outside door

authorized HYUNDAI dealer.

is pressed while carrying the smart

key.

- The door is opened with the

CAUTION - Theft-alarm

mechanical key.

system alteration

- The engine is started.

(within

3

Do not change, alter or adjust

seconds).

the theft-alarm system because

it could cause the theft-alarm

system to malfunction and

After the doors are unlocked, the

should only be serviced by an

hazard warning lights will blink twice

authorized HYUNDAI dealer.

to indicate that the system is dis-

armed.

Malfunctions caused by improp-

er alterations, adjustments or

After pressing the unlock button, if

modifications to the theft-alarm

any door (or trunk) is not opened

system are not covered by your

within 30 seconds, the system will be

vehicle manufacturer warranty.

rearmed.

4 14

Features of your vehicle

DOOR LOCKS

✽ NOTICE

•

In cold and wet climates, door

locks and door mechanisms may

Unlock

not work properly due to freezing

conditions.

•

If the door is locked/unlocked

Lock

multiple times in rapid succession

with either the vehicle key or door

lock switch, the system may stop

operating temporarily in order to

protect the circuit and prevent

OHG041011A

OHG045012N

damage to system components.

Operating door locks from

With the mechanical key

outside the vehicle

•

Turn the key toward the rear of the

vehicle to unlock and toward the

With the smart key

front of the vehicle to lock.

• Doors can be locked and unlocked

pressing the switch of the outside

•

If you lock the driver’s door with a

door handle with the smart key in

key, all doors will lock.

your possession.

•

From the driver’s door, turn the key

• Doors can be locked and unlocked

to the right once to unlock the dri-

by pressing the button on the

ver’s door and once more within 4

smart key.

seconds to unlock all doors.

• Once the doors are unlocked, they

•

Once the door is unlocked, it may

may be opened by pulling the door

be opened by pulling the door han-

handle.

dle.

• When closing the door, push the

•

When closing the door, push the

door by hand. Make sure that

door by hand. Make sure that

doors are closed securely.

doors are closed securely.

4 15

Features of your vehicle

•

If the inner door handle of the dri-

If a power door lock fails to function

ver’s or front passenger’s door is

while you are in the vehicle, try one

pulled when the door lock button is

or more of the following:

in the lock position, the door unlocks

•

Operate the door unlock feature

Lock

and opens.

repeatedly (both electronic and man-

•

A door cannot be locked if the

ual) while simultaneously pulling on

smart key is in the vehicle and a

the door handle.

Unlock

door is opened.

•

Operate the other door locks and

handles, front and rear.

•

Lower a front window and use the

key to unlock the door from outside.

OHG040013

Operating door locks from

inside the vehicle

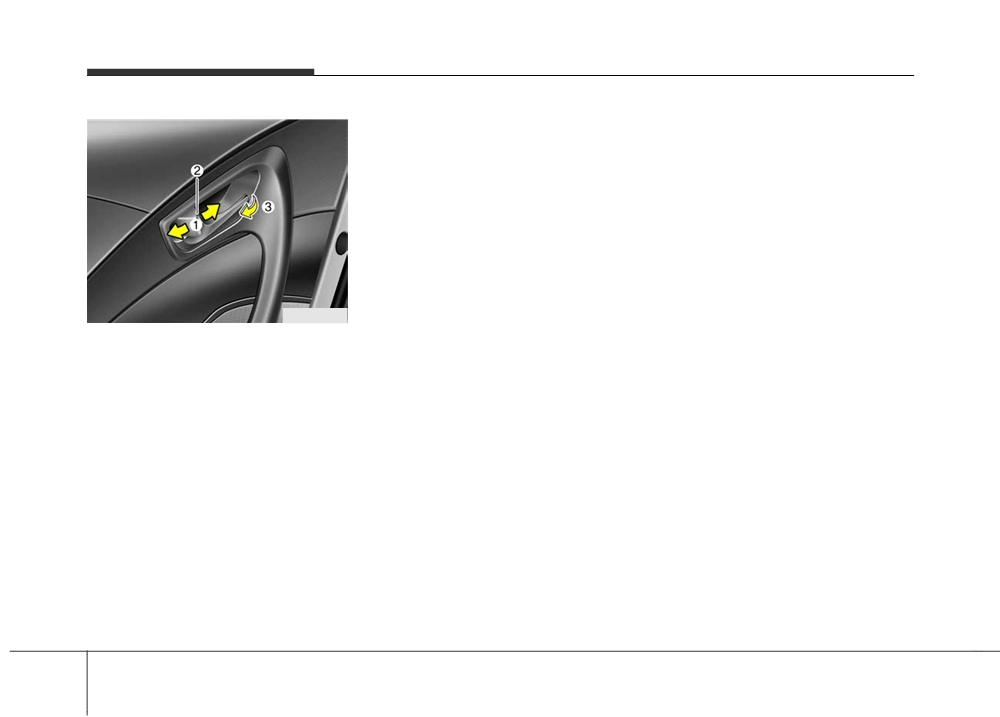

With the door lock button

• To unlock a door, push the door

lock button(1) to the “Unlock” posi-

tion. The red mark(2) on the door

lock button will be visible.

• To lock a door, push the door lock

button(1) to the “Lock” position. If

the door is locked properly, the red

mark(2) on the door lock button will

not be visible.

• To open a door, pull the door han-

dle(3) outward.

4 16

Features of your vehicle

■ Driver’s door

• When you press the front portion(1)

of the switch, all vehicle doors will

WARNING - Doors

lock.

The doors should always be

• When you press the rear portion(2)

fully closed and locked while

of the switch, all vehicle doors will

the vehicle is in motion to pre-

unlock.

vent accidental opening of the

• If the smart key is in the vehicle and

door. Opening a door when the

a door is opened, the doors will not

vehicle is moving could cause

lock even though the front portion(1)

serious harm to occupants or

of central door lock switch is pressed.

someone outside the vehicle.

OHG040014

■ Front passenger’s door

✽ NOTICE

WARNING

Once the doors are locked with the

- Unattended children/

smart key, the doors cannot be

animals

unlocked with the central door

lock/unlock switch.

Never leave children or animals

unattended in your vehicle. An

enclosed vehicle can become

extremely hot, causing death or

severe injury to unattended

children or animals who cannot

OHG040015

escape the vehicle.

With central door lock switch

Operate by pressing the central door

lock switch.

4 17

Features of your vehicle

Door lock/unlock features

3. Close the rear door.

Impact sensing door unlock sys-

To open the rear door, pull the out-

tem

side door handle (2).

All doors will automatically unlock

Even though the doors may be

when an impact causes the air bags

unlocked, the rear door will not open

to deploy.

by pulling the inner door handle until

the rear door child safety lock is

unlocked.

Shift lever door lock/unlock system

• All doors will automatically lock

when the shift lever is moved out of

WARNING - Rear door

P (Park).

locks

OHG042017

• All doors will automatically unlock

Use the rear door safety locks

Child-protector rear door lock

when the shift lever is moved into P

whenever children are in the

(Park).

The child safety lock is provided to

vehicle. If a child accidently

help prevent children from acciden-

opens the rear doors while the

You can activate or deactivate the

tally opening the rear doors from

vehicle is motion, they can fall

inside the vehicle. The rear door

out resulting in severe injury or

Auto Door Lock/Unlock features in

the vehicle. Refer to "User Settings

safety locks should be used whenev-

death.

er children are in the vehicle.

Mode" in this section.

1. Open the rear door.

2. Insert a key (or screwdriver) into

the hole (1) and turn it to the lock

(

) position. When the child

safety lock is in the lock position,

the rear door will not open even

though the inner door handle is

pulled.

4 18

Features of your vehicle

TRUNK

■ Type A

The trunk swings upward. Make sure

no objects or people are near the

rear of the vehicle when opening the

trunk.

✽ NOTICE

In cold and wet climates, trunk lock

and trunk mechanisms may not

work properly due to freezing condi-

tions.

OHG041018A

■ Type B

OHG045016

CAUTION - Trunk lift

Opening the trunk

cylinders

• Press the trunk unlock button for

Make certain that you close the

more than 1 second on the smart

trunk before driving your vehi-

key.

cle. Possible damage may occur

• Press the switch on the trunk han-

to the trunk lift cylinders and

dle with the smart key in your pos-

attached hardware if the trunk is

session (2).

not closed prior to driving.

• Insert the mechanical key of the

OHG046550N

smart key into the lock and turn it

clockwise (1).

To open the trunk from inside the

vehicle :

- Type A : Pull out the trunk lid

release lever.

- Type B : Push the trunk lid release

button.

4 19

Content   ..  3  4  5  6   ..
