Hyundai Accent (2019 year). Instruction - part 10
High beam operation
3
OHCA047378
OHCA047342
Parking lamp position (
)
Headlamp position (
)
OHCA047343
The parking lamp, license plate lamp
The headlamp, parking lamp, license
To turn on the high beam headlamp,
and instrument panel lamp are turned
plate lamp and instrument panel lamp
push the lever away from you. The
ON.
are turned ON.
lever will return to its original position.
The high beam indicator will light
i
Information
when the headlamp high beams are
The ignition switch must be in the ON
switched on.
position to turn on the headlamp.
To turn off the high beam headlamp,
pull the lever towards you. The low
beams will turn on.
WARNING
Do not use high beam when there
are other vehicles approaching
you. Using high beam could
obstruct the other driver's vision.
3-87
Convenient features of your vehicle
Front fog lamp (if equipped)
NOTICE
When in operation, the fog lamps
consume large amounts of vehicle
electrical power. Only use the fog
lamps when visibility is poor.
Turn signals and lane change
signals
OHCA047347
To flash the high beam headlamp,
OTL047258
pull the lever towards you, then
release the lever. The high beams
Fog lamps are used to provide
will remain ON as long as you hold
improved visibility when visibility is
the lever towards you.
poor due to fog, rain or snow, etc. Use
the switch next to the headlamp switch
to turn the fog lamps ON and OFF.
1. Turn on the parking lamp.
2. Turn the light switch (1) to the front
OHCA047348
fog lamp position.
To signal a turn, push down on the
3. To turn off the front fog lamp, turn
lever for a left turn or up for a right
the light switch to the front fog
turn in position (A).
lamp position again or turn off the
If an indicator stays on and does not
parking lamp.
flash or if it flashes abnormally, one of
the turn signal bulbs may be burned
out and will require replacement.
3-88
Onetouch turn signal function
If necessary, to keep the lamps on
You can activate or deactivate the
when the vehicle is turned off, perform
Headlamp Delay function from the
To activate the One Touch Turn
the following:
User Settings Mode (Light) on the
Signal function, push the turn signal
LCD display.
lever up or down to position (B) and
1) Open the driver-side door.
then release it.
For more information, refer to the
2) Turn the parking lamps OFF and
"LCD Display" section in this
The lane change signals will blink 3,
ON again using the light switch on
chapter.
5 or 7 times.
the steering column.
3
You can activate or deactivate the
NOTICE
One Touch Turn Signal function or
Headlamp delay function
choose the number of blinks (3, 5, or
(if equipped)
If the driver gets out of the vehicle
7) from the User Settings mode
through other doors (except dri-
If the key is removed from the ignition
(Light) on the LCD display.
ver's door), the battery saver func-
switch or placed in the ACC position
tion does not operate and the
or the LOCK/OFF position with the
For more information, refer to the
headlamp delay function does not
headlamps ON, the headlamps
"LCD Display" section in this
turn off automatically. Therefore, It
(and/or parking lamps) remain on for
chapter.
causes the battery to be dis-
about 5 minutes. However, if the dri-
charged. In this case, make sure
ver’s door is opened and closed, the
to turn off the lamp before getting
Battery saver function
headlights are turned off after
15
out of the vehicle.
seconds. Also, with the engine off if
The purpose of this feature is to pre-
the driver's door is opened and
vent the battery from being dis-
closed, the headlamps (and/or park-
charged. The system automatically
ing lamps) are turned off after 15
turns off the parking lamp when the
seconds.
driver turns the vehicle off and opens
the driver-side door.
The headlamps
(and/or parking
lamps) can be turned off by pressing
With this feature, the parking lamps
the lock button on the remote key or
will turn off automatically if the driver
smart key twice or turning the light
parks on the side of road at night.
switch to the OFF or AUTO position.
3-89
Convenient features of your vehicle
Interior Lights
Front lamps
Front room lamp (2)
•
:
WARNING
Press the button to turn ON the
room lamp for the front/rear seats.
Do not use the interior lights
when driving in the dark.The inte-
•
:
rior lights may obscure your view
Press the button to turn OFF the
and cause an accident.
room lamp for the front/rear seats
regardless of front or rear door open
position.
NOTICE
Front Door Lamp (3) (
):
Do not use the interior lights for
extended periods when the vehi-
OPDE046041
The front or rear room lamps come on
cle is turned off or the battery will
when the front or rear doors are
(1) Front Map Lamp
discharge.
opened if the engine is running or not.
(2) Front Room Lamp
When doors are unlocked by the
(3) Front Door Lamp
remote key or smart key, the front and
Interior lamp AUTO cut
rear lamps come on for approximate-
The interior lamps will automatically
ly 30 seconds as long as any door is
Front Map Lamp (1) :
go off approximately 20 minutes after
not opened. The front and rear room
the engine is turned off and the
Press either lenses to turn the map
lamps go out gradually after approxi-
doors are closed. If a door is opened,
lamp on or off. This light produces a
mately 30 seconds when the door is
the lamp will go off 40 minutes after
spot beam for convenient use as a
closed. However, if the ignition switch
the engine is turned off. If the doors
map lamp at night or as a personal
is in the ON position or all doors are
are locked by the remote key or
lamp for the driver and the front pas-
locked, the front and rear lamps will
smart key and the vehicle enters the
senger.
turn off. If a door is opened with the
armed stage of the theft alarm sys-
ignition switch in the ACC position or
tem, the lamps will go off five sec-
the OFF position, the front and rear
onds later.
lamps stay on for about 20 minutes.
3-90
Rear lamp
Luggage compartment lamp
Welcome System (if equipped)
Welcome light (if equipped)
Headlamp and parking lamp
When the headlamp (with the lamp
switch in the headlamp or AUTO
position) is on and all doors
(and
trunk) are locked and closed, the
3
parking lamp and headlamp will
come on for 15 seconds when the
door unlock button is pressed on the
remote key or smart key.
At this time, if you press the door lock
OAD045407
OYC046034
or unlock button on the remote key or
Rear Room Lamp (
):
The luggage compartment lamp
smart key the parking lamp and
comes on when the trunk is opened.
headlamp will turn off immediately.
Press this switch to turn the rear
room lamp on and off.
NOTICE
The luggage compartment lamp
comes on as long as the trunk is
open. To prevent unnecessary bat-
tery system drain, close the trunk
securely after using the luggage
compartment.
3-91
Convenient features of your vehicle
WIPERS AND WASHERS
Interior lamp
Windshield Wipers
When the interior lamp switch is in
Operates as follows when the igni-
the DOOR position and all doors (and
tion switch is in the ON position.
trunk) are closed and locked, the
MIST : For a single wiping cycle,
room lamp will come on for 30 sec-
push the lever upward and
onds if any of the below is performed.
release. The wipers will oper-
• When the door unlock button is
ate continuously if the lever is
pressed on the remote key or
held in this position.
smart key.
OFF : Wiper is not in operation.
• When the button of the outside
door handle is pressed.
OHCA047724
At this time, if you press the door lock
A : Wiper speed control
or unlock button on the remote key or
smart key the room lamp will turn off
· MIST - Single wipe
immediately.
· OFF - Off
· INT - Intermittent wipe
· LO - Low wiper speed
· HI - High wiper speed
B : Intermittent control wipe time
adjustment
C : Wash with brief wipes
(pull lever towards you)
3-92
INT : Wiper operates intermittently at
Windshield Washers
WARNING
the same wiping intervals. To
vary the speed setting, move
When the outside temperature
the speed control lever. The top
is below freezing, ALWAYS
most setting will run the wipers
warm the windshield using the
most frequently (for more rain).
defroster to help prevent the
The bottom setting will run the
washer fluid from freezing on
wipers the least frequently (for
3
the windshield and obscuring
less rain).
your vision which could result
LO : The wiper runs at a lower speed.
in an accident and serious
HI : The wiper runs at a higher speed.
injury or death.
i
Information
OYC046419
NOTICE
If there is heavy accumulation of snow
In the OFF position, pull the lever
•
To prevent possible damage to
or ice on the windshield, defrost the
gently toward you to spray washer
the washer pump, do not operate
windshield for about 10 minutes, or
fluid on the windshield and to run the
the washer when the fluid reser-
until the snow and/or ice is removed
wipers
1-3 cycles. The spray and
voir is empty.
before using the windshield wipers to
wiper operation will continue until you
•
To prevent possible damage to
ensure proper operation.
release the lever. If the washer does
the wipers or windshield, do not
If you do not remove the snow and/or
not work, you may need to add wash-
operate the wipers when the wind-
ice before using the wiper and washer,
er fluid to the washer fluid reservoir.
shield is dry.
it may damage the wiper and washer
system.
•
To prevent damage to the wiper
arms and other components, do
not attempt to move the wipers
manually.
•
To prevent possible damage to
the wipers and washer system,
use anti-freezing washer fluids in
the winter season or cold weather.
3-93
Convenient features of your vehicle
DRIVER ASSIST SYSTEM
Rear View Monitor
This is a supplemental system that
WARNING
helps provide a view of the area
behind the vehicle through the audio
•
Never rely solely on the Rear
display while the vehicle is in the R
(Reverse) position.
View Monitor when backing-
up.
•
ALWAYS look around your
WARNING
vehicle to make sure there are
no objects or obstacles before
The Rear View Monitor is not a
moving the vehicle in any
safety device. It only serves to
direction to prevent a collision.
assist the driver in identifying
OHCR046323
•
Always pay close attention
objects directly behind the mid-
when the vehicle is driven
dle of the vehicle. The camera
close to objects, particularly
does NOT cover the complete
pedestrians, and especially
area behind the vehicle.
children.
NOTICE
Always keep the camera lens
clean. The camera may not work
normally if the lens is covered
OHCR046324
with dirt, water or snow.
The Rear View Monitor will activate
when the engine is running and the
shift lever is in the R (Reverse) posi-
tion.
3-94
MANUAL CLIMATE CONTROL SYSTEM (IF EQUIPPED)
3
1. Temperature control knob
2. Mode selection knob
3. Fan speed control knob
4. Air intake control button
5. Rear window defroster button
6. A/C (Air conditioning) button*
* : if equipped
OHCA047303
3-95
Convenient features of your vehicle
Heating and Air Conditioning

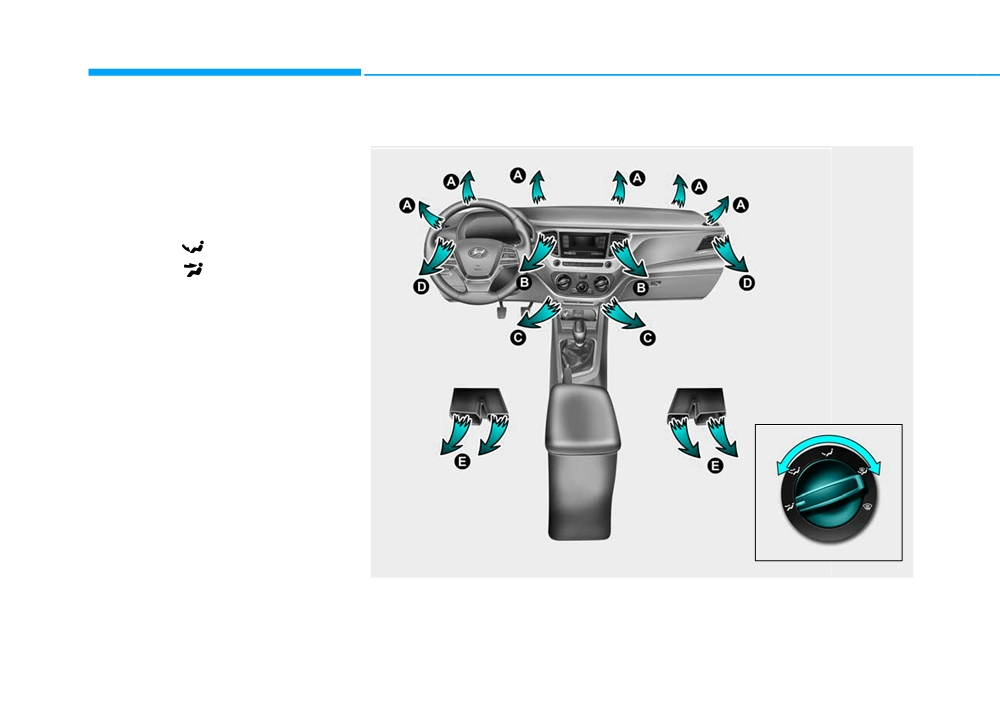

Mode selection
1. Start the engine.
2. Set the mode to the desired posi-
tion.
To improve the effectiveness of
heating and cooling, select:
- Heating:
- Cooling:
3. Set the temperature control to the
desired position.
4. Set the air intake control to the
outside (fresh) air or recirculated
air position.
5. Set the fan speed control to the
desired speed.
6. If air conditioning is desired, turn
the air conditioning system on.
OHCR046365/OYC046322
The mode selection knob controls the direction of the air flow through the
ventilation system. Air can be directed to the floor, dashboard outlets, or
windshield. Five symbols are used to represent Face, Bi-Level, Floor, Floor-
Defrost and Defrost air position.
3-96
Floor & Defrost
Face-Level (B, D)
(A, C, D, E)
Air flow is directed toward the upper
Most of the air flow is directed to the
body and face. Additionally, each
floor and the windshield with a small
outlet can be controlled to direct the
amount directed to the side window
air discharged from the outlet.
defrosters, and side vents.
3
Defrost-Level (A, D)
Bi-Level (B, C, D, E)
OHCA047302
Most of the air flow is directed to the
MAX A/C-Level (B, D)
Air flow is directed towards the face
windshield with a small amount of air
(if equipped)
and the floor.
directed to the side vents.
The MAX A/C mode is used to cool
the inside of the vehicle faster.
In this mode, the air conditioning and
Floor-Level (A, C, D, E)
the recirculated air position cannot be
selected. Turn the fan speed mode to
adjust.
Most of the air flow is directed to the
floor, with a small amount of the air
After the interior has cooled suffi-
being directed to the windshield, side
ciently, whenever possible, move the
window defrosters, and side vents.
temperature knob away from Max AC
and press the A/C button.
3-97
Convenient features of your vehicle
Instrument panel vents
Temperature control
Air intake control
OHCR046326
OYC046303
OHCA047301
You can adjust the direction of air
The temperature will increase by
This button is used to select the out-
delivered from these vents using the
turning the knob to the right.
side (fresh) air position or recirculat-
vent control lever as shown.
The temperature will decrease by
ed air position.
turning the knob to the left.
3-98
Recirculated air position
i
Information
WARNING
With the recirculated air
Using the system in the fresh air posi-
position selected, air
tion is recommended.
•
Continued use of the climate
from the passenger
control system operation in
Prolonged operation of the heater in
compartment will be
the recirculated air position
the recirculated air position (without
drawn through the heat-
can cause drowsiness or
air conditioning selected) can cause
ing system and heated
sleepiness, that may cause
fogging of the windshield and side
3
or cooled according to
loss of vehicle control result-
windows and the air within the pas-
the function selected.
ing in an accident. Set the air
senger compartment will become
intake control to the outside
stale.
(fresh) air position as much as
Outside (fresh) air position
In addition, prolonged use of the air
possible while driving.
conditioning with the recirculated air
With the outside (fresh)
•
Continued use of the climate
position selected will result in exces-
air position selected, air
control system operation in
sively dry air in the passenger com-
enters the vehicle from
the recirculated air position
partment.
outside and is heated or
(without the air conditioning
cooled according to the
selected) may allow humidity
function selected.
to increase inside the vehicle
which may fog the glass and
obscure visibility.
•
Do not sleep in a vehicle with
the air conditioning or heating
system on. It may cause seri-
ous injury or death due to a
drop in the oxygen level
and/or body temperature.
3-99
Convenient features of your vehicle
Fan speed control
Air conditioning (if equipped)
System Operation
Ventilation
1. Select the Face Level
mode.
2. Set the air intake control to the
outside (fresh) air position.
3. Set the temperature control to the
desired position.
4. Set the fan speed control to the
desired speed.
Heating
OHCA047379
OHCA047380
1. Select the Floor Level
mode.
Turn the knob to the right to increase
Push the A/C button to turn the sys-
2. Set the air intake control to the
the fan speed and airflow. Turn the
tem on (indicator light will illuminate)
outside (fresh) air position.
knob to the left to decrease fan
and off.
3. Set the temperature control to the
speed and airflow.
desired position.
Setting the fan speed control knob to
4. Set the fan speed control to the
the "0" position turns off the fan.
desired speed.
NOTICE
5. If dehumidified heating is desired,
turn the air conditioning system on.
Operating the fan speed when the
If the windshield fogs up, select the
ignition switch is in the ON posi-
Floor & Defrost
mode or press
tion could cause the battery to
the Front Defrost
mode.
discharge. Operate the fan speed
when the engine is running.
3-100
Operation Tips
Air conditioning
NOTICE
•
To keep dust or unpleasant fumes
All HYUNDAI Air Conditioning
When using the air conditioning
from entering the vehicle through
Systems are filled with environmen-
system, monitor the engine tem-
the ventilation system, temporarily
tally friendly R-1234yf refrigerant.
perature gauge closely while driv-
set the air intake control to the
1. Start the engine.
ing up hills or in heavy traffic when
recirculated air position. Return the
2. Push the air conditioning button.
outside temperatures are high. Air
control to the fresh air position
conditioning system operation can
when the irritation has passed.
3. Set the mode to the Face Level
3
cause engine overheating.
This will help keep the driver alert
mode.
and comfortable.
4. Set the air intake control to the
Continue to use the fan, but turn
the air conditioning system off if
•
To help prevent the inside of the
recirculated air position. However,
the engine temperature gauge
windshield from fogging, set the air
prolonged operation of the recircu-
indicates engine overheating.
intake control to the fresh air posi-
lated air position will excessively
tion and fan speed to the desired
dry the air. In this case, change the
position, turn on the air conditioning
air position.
system, and adjust the temperature
5. Adjust the fan speed control and
control to the desired temperature.
temperature control to maintain
maximum comfort.
When maximum cooling is desired,
set the temperature control to the
extreme left position then set the fan
speed control to the highest speed.
3-101
Convenient features of your vehicle
Air conditioning system operation tips
System Maintenance
Checking the amount of air
•
If the vehicle has been parked in
conditioner refrigerant and
Climate control air filter
direct sunlight during hot weather,
compressor lubricant
open the windows for a short time
When the amount of refrigerant is
Outside air
to let the hot air inside the vehicle
low, the performance of the air con-
escape.
ditioning is reduced. Overfilling also
Recirculated
•
After sufficient cooling has been
air
reduces the performance of the air
achieved, switch back from the
conditioning system.
recirculated air to the fresh outside
Therefore, if abnormal operation is
air position.
found, have the system inspected by
•
To help reduce moisture inside of
an authorized HYUNDAI dealer.
Blower
the windows on rainy or humid
Heater core
days, decrease the humidity inside
Climate control
Evaporator
NOTICE
air filter
core
the vehicle by operating the air con-
1LDA5047
It is important that the correct
ditioning system with the windows
This filter is installed behind the glove
type and amount of oil and refrig-
and sunroof closed.
box. It filters the dust or other pollu-
erant is used. Otherwise, damage
•
Use the air conditioning system
tants that enter the vehicle through the
to the compressor and abnormal
every month only for a few minutes
heating and air conditioning system.
system operation may occur.
to ensure maximum system per-
Have the climate control air filter be
formance.
replaced by an authorized HYUNDAI
•
If you operate air conditioner exces-
dealer according to the maintenance
sively, the difference between the
schedule. If the vehicle is being driven
temperature of the outside air and
in severe conditions such as dusty or
that of the windshield could cause
rough roads, more frequent air condi-
the outer surface of the windshield
tioner filter inspections and changes
to fog up, causing loss of visibility.
are required.
In this case, set the mode selection
If the air flow rate suddenly decreas-
knob or button to the
position
es, the system should be checked at
and fan speed control to the lower
an authorized HYUNDAI dealer.
speed.
3-102
Air Conditioning refrigerant label
WARNING
■ Example
Because refrigerant
is flammable at very
high pressure, the air
conditioning system
should only be serv-
3
iced by trained and
certified technicians.
It is important that
the correct type and amount of
oil and refrigerant is used.
Otherwise, it may cause dam-
ODH043366
age to the vehicle and personal
The actual Air Conditioning refriger-
injury.
ant label in the vehicle may differ
from the illustration.
The air conditioning system should
be serviced by an authorized
Each symbols and specification on air
HYUNDAI dealer.
conditioning refrigerant label means
as below :
1. Classification of refrigerant
2. Amount of refrigerant
3. Classification of Compressor lubri-
cant
Refer to chapter 8 for more detail
location of the air conditioning refrig-
erant label.
3-103
