Convenient features of your vehicle
Liftgate
The support rod must be insert-
WARNING
ed completely into the hole pro-
Opening the liftgate
vided whenever you inspect the
Before closing the hood,
engine compartment. This will
ensure all obstructions are
prevent the hood from becom-
removed from around the
ing dislodged and falling and
hood opening.
causing potential injury.
Always double check to be
sure that the hood is firmly
latched before driving away.
Closing the hood
Check there is no hood open
1. Before closing the hood, check in
warning light or message dis-
and around the engine compart-
played on the instrument clus-
ment to ensure the following:
ter. Driving with the hood
- Any tools or other loose objects
opened may cause a total loss
OJS048020N
are removed from the engine
of visibility, which might
room area or hood opening area
result in an accident.
Before attempting to open the lift-
gate, make sure the vehicle is in
- All glove, rags, or other com-
Do not move the vehicle with
PARK (P). To open the liftgate, per-
bustible material is removed
the hood in the raised posi-
form the following:
from the engine compartment
tion, as vision is obstructed,
1. Unlock all doors with the Door
- All filler caps are tightly and cor-
which might result in an acci-
dent, and the hood could fall
Unlock button on your remote key
rectly installed
or smart key. Press the liftgate
or be damaged.
2. Lower the hood halfway
(lifted
handle button and open the lift-
approximately 12 inches (30 cm)
gate.
from the closed position) and push
2. Press and hold the Liftgate Unlock
down to securely lock in place.
button on the remote key or smart
Then double check to be sure the
key. Press the liftgate handle but-
hood is secure. If the hood can be
raised slightly, it is not securely
ton and open the liftgate.
locked. Open it again and close it
3. With the Smart Key in your pos-
with more force.
session, press the liftgate handle
button and open the liftgate.
3-34
Closing the liftgate
NOTICE
Emergency liftgate safety
release
Make certain that you close the
liftgate before driving your vehi-
cle. Possible damage may occur
to the liftgate struts and mounting
hinges if the liftgate is not closed
prior to driving.
3
WARNING
OJS048021
OJS048022
Lower the liftgate lid and press down
until it locks. To be sure the liftgate lid
Your vehicle is equipped with an
is securely fastened, always check
emergency liftgate safety release
by trying to pull it up again without
lever located on the bottom of the lift-
pressing the liftgate handle button.
gate inside the vehicle.
i
Information
To unlock and open the liftgate man-
ually from inside the luggage com-
In cold and wet climates, door lock
partment, perform the following
and door mechanisms may not work
OJS048023
steps:
properly due to freezing conditions.
Do not hold on to or try to pull
1. Insert the mechanical key from the
on the liftgate strut. Be aware
key fob or a small screwdriver into
WARNING
that the deformation of the lift-
the slot at the bottom of the liftgate
gate strut may cause vehicle
inside the luggage compartment.
The liftgate swings upward.
damage and risk of injury.
Make sure no objects or people
are near the rear of the vehicle
when opening the liftgate.
3-35
Convenient features of your vehicle
2. Slide the key or screwdriver to the
Fuel Filler Door
right to engage the safety release
Opening the fuel filler door
lever.
3. Push the liftgate outward and
upward.
WARNING
Be aware of the location of the
emergency liftgate safety
release lever in your vehicle
OJS048025
and know how to open the lift-
gate using the safety release
3. Pull the fuel filler door (1) outward
lever.
to access the fuel tank cap.
OJS048024
No one should be allowed to
4. To remove the fuel tank cap (2),
The fuel filler door is opened from
turn it counterclockwise. You may
occupy the luggage compart-
ment of the vehicle at any time.
inside the vehicle using the fuel filler
hear a hissing noise as the pres-
door release lever.
sure inside the tank equalizes.
The luggage compartment is a
very dangerous location in the
1. Turn the engine off. Locate the fuel
5. Place the cap on the fuel filler door.
event of a crash.
filler door release lever on the floor
on the left side of the driver seat.
i
Information
Use the release lever for emer-
gencies only. Use extreme cau-
2. Pull up on the release lever.
If the fuel filler door does not open
tion, especially while the vehi-
because ice has formed around it, tap
cle is in motion.
lightly or push on the door to break
the ice and release the door. Do not
pry on the door. If necessary, spray
around the door with an approved de-
icer fluid (do not use radiator anti-
freeze) or move the vehicle to a warm
place and allow the ice to melt.
3-36
Closing the fuel filler door
WARNING
Do not get back into a vehicle
1. To install the fuel tank cap, turn it
once you have begun refuel-
clockwise until it "clicks" one time.
Gasoline is highly flammable
ing. You can generate a build-
2. Close the fuel filler door until it is
and explosive. Failure to follow
up of static electricity by
latched securely.
these guidelines may result in
touching, rubbing or sliding
SERIOUS INJURY or DEATH:
against any item or fabric
capable of producing static
Read and follow all warnings
electricity. Static electricity
3
posted at the gas station.
discharge can ignite fuel
Before refueling, note the
vapors causing a fire. If you
location of the Emergency
must re-enter the vehicle, you
Gasoline Shut-Off, if available,
should once again eliminate
at the gas station.
potentially dangerous static
Before touching the fuel noz-
electricity discharge by touch-
zle, you should eliminate the
ing a metal part of the vehicle,
potential build-up of static
away from the fuel filler neck,
electricity by touching a metal
nozzle or other gasoline
part of the vehicle, a safe dis-
source, with your bare hand.
tance away from the fuel filler
When using an approved
neck, nozzle, or other gas
portable fuel container, be
source, with your bare hand.
sure to place the container on
Do not use cellular phones
the ground prior to refueling.
while refueling. Electric cur-
Static electricity discharge
rent and/or electronic interfer-
from the container can ignite
ence from cellular phones can
fuel vapors causing a fire.
potentially ignite fuel vapors
and cause a fire.
3-37
Convenient features of your vehicle
i
Information
Once refueling has begun,
Do not over-fill or top-off your
contact between your bare
vehicle tank, which can cause
Make sure to refuel your vehicle
hand and the vehicle should
gasoline spillage.
according to the "Fuel Requirements"
be maintained until the filling
If a fire breaks out during refu-
suggested in the Introduction chapter.
is complete.
eling, leave the vicinity of the
Use only approved portable
vehicle, and immediately con-
NOTICE
plastic fuel containers designed
tact the manager of the gas
Do not spill fuel on the exterior
to carry and store gasoline.
station and then contact the
local fire department. Follow
surfaces of the vehicle. Any type
When refueling, always move
of fuel spilled on painted sur-
the shift lever to the P (Park)
any safety instructions they
provide.
faces may damage the paint.
position (for automatic trans-
If the fuel filler cap requires
mission/dual clutch transmis-
If pressurized fuel sprays out,
sion) or first gear or R
it can cover your clothes or
replacement, use only a genuine
(Reverse, for manual trans-
skin and thus subject you to
HYUNDAI cap or the equivalent
mission), set the parking
the risk of fire and burns.
specified for your vehicle. An
brake, and place the ignition
Always remove the fuel cap
incorrect fuel filler cap can
switch to the LOCK/OFF posi-
carefully and slowly. If the cap
result in a serious malfunction
tion. Sparks produced by
is venting fuel or if you hear a
of the fuel system or emission
electrical components related
hissing sound, wait until the
control system.
to the engine can ignite fuel
condition stops before com-
vapors causing a fire.
pletely removing the cap.
Do not use matches or a
Always check that the fuel cap
lighter and do not smoke or
is installed securely to pre-
leave a lit cigarette in your
vent fuel spillage in the event
vehicle while at a gas station,
of an accident.
especially during refueling.
3-38
INSTRUMENT CLUSTER
Type A
Type C
3
Type B
1. Tachometer
2. Speedometer
3. Engine coolant temperature gauge
4. Fuel gauge
5. Warning and indicator lights
6. LCD display (including Trip computer)
The actual cluster in the vehicle may differ from the
illustration.
For more details, refer to the "Gauges and Meters"
in this chapter.
OJS048100N/OJS048101N/OJS048106N
3-39
Convenient features of your vehicle
Instrument Cluster Control
WARNING
Adjusting instrument cluster
illumination
Never adjust the instrument
cluster while driving. Doing so
could lead to driver distraction
which may cause an accident
and lead to vehicle damage,
serious injury, or death.
OJS048110L
• The brightness of the instrument
panel illumination is displayed.
• If the brightness reaches the maxi-
OJS048026
mum or minimum level, a chime
When the vehicle's position lights or
will sound.
headlights are on, press the illumina-
For information regarding the illu-
tion control button to adjust the
mination setting on your audio dis-
brightness of the instrument panel
play, refer to the "Setup" section of
illumination.
your Audio or Navigation manual.
When pressing the illumination con-
trol button, the interior switch illumi-
nation intensity is also adjusted.
3-40
Gauges and Meters
Tachometer
Engine coolant temperature
gauge
Speedometer
■ Cluster Type A, B
■ Cluster Type C
■ Cluster Type A, B
■ Cluster Type C
■ Cluster Type A, B
■ Cluster Type C
3
OJS048103/OJS048108
OJS048102L/OJS048107L
OJS048104/OAD046522
The tachometer indicates the
approximate number of engine revo-
This gauge indicates the tempera-
The speedometer indicates the
lutions per minute (rpm).
ture of the engine coolant when the
speed of the vehicle and is calibrated
Use the tachometer to select the cor-
ignition switch is in the ON position.
in miles per hour (MPH) and/or kilo-
rect shift points and to prevent lug-
meters per hour (km/h).
ging and/or over-revving the engine.
NOTICE
If the gauge pointer moves
NOTICE
beyond the normal range area
Do not operate the engine within
toward the "H" position, it indi-
the tachometer's RED ZONE. This
cates overheating that may dam-
may cause severe engine damage.
age the engine.
Do not continue driving with an
overheated engine. If your vehicle
overheats, refer to "If the Engine
Overheats" in chapter 6.
3-41
Convenient features of your vehicle
Fuel gauge
WARNING
WARNING
■ Cluster Type A, B
■ Cluster Type C
Never remove the radiator cap or
Running out of fuel can expose
reservoir cap when the engine is
vehicle occupants to danger.
hot. The engine coolant is under
You must stop and obtain addi-
pressure and could severely
tional fuel as soon as possible
burn. Wait until the engine is cool
after the warning light comes
before adding coolant to the
on or when the gauge indicator
reservoir.
comes close to the "E (Empty)"
level.
NOTICE
OJS048105/OAD046524
This gauge indicates the approxi-
Avoid driving with an extremely
mate amount of fuel remaining in the
low fuel level. Running out of fuel
fuel tank.
could cause the engine to misfire
damaging the catalytic converter.
i
Information
• The fuel tank capacity is given in
chapter 8.
• The fuel gauge is supplemented by a
low fuel warning light, which will
illuminate when the fuel tank is
nearly empty.
• On inclines or curves, the fuel gauge
pointer may fluctuate or the low fuel
warning light may come on earlier
than usual due to the movement of
fuel in the tank.
3-42
Outside temperature gauge
For vehicles equipped with Automatic
Range
Climate Control, you can also:
- Press and hold the AUTO and OFF
buttons on the climate control unit
for 3 seconds
Both the temperature unit on the
3
cluster LCD display and climate con-
trol screen will change.
Odometer
OPD047463N
OJS048324N

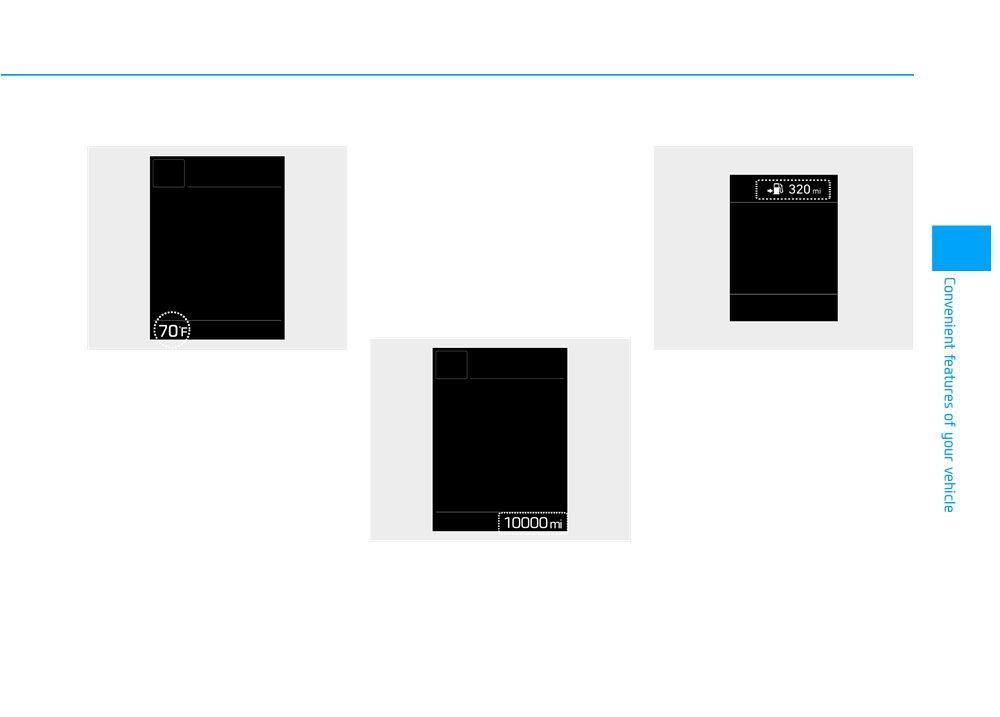

This gauge indicates the current out-
The range is the estimated dis-
side air temperature by 1°F (1°C).
tance the vehicle can be driven
- Temperature range : -40°F ~ 140°F
with the remaining fuel.
(-40°C ~ 60°C)
If the estimated distance is below
1 mi. (1 km), the trip computer will
Note that the temperature indicated
display "----" as range.
on the LCD display may not change
as quickly as the outside tempera-
ture
(there may be a slight delay
before the temperature changes.)
OPDE046141R
You can change the temperature unit
The odometer indicates the total dis-
from °F to °C or °C to °F in the User
tance that the vehicle has been driv-
Settings mode in the cluster:
en and should be used to determine
- Go to User Settings Mode ➝ Other
when periodic maintenance should
➝ Temperature Unit.
be performed.
3-43
Convenient features of your vehicle
Transmission shift indicator
: Indicates that shifting down to
i
Information
the 3rd gear is recommended
Manual transmission shift indi-
If the vehicle is not on level ground
(currently the shift lever is in the
cator (if equipped)
or the battery power has been inter-
4th, 5th, or 6th gear).
rupted, the range function may not
When the system is not working prop-
operate correctly.
erly, the indicator is not displayed.
The range may differ from the actu-
al driving distance as it is only an
estimate of the available driving
Automatic transmission/
range for the vehicle and driving
Dual clutch transmission shift
conditions.
indicator (if equipped)
The trip computer may not register
additional fuel if less than 1.6 gallon
(6 liters) of fuel are added to the
vehicle.
OPDE046142
The range may vary significantly
based on driving conditions, driving

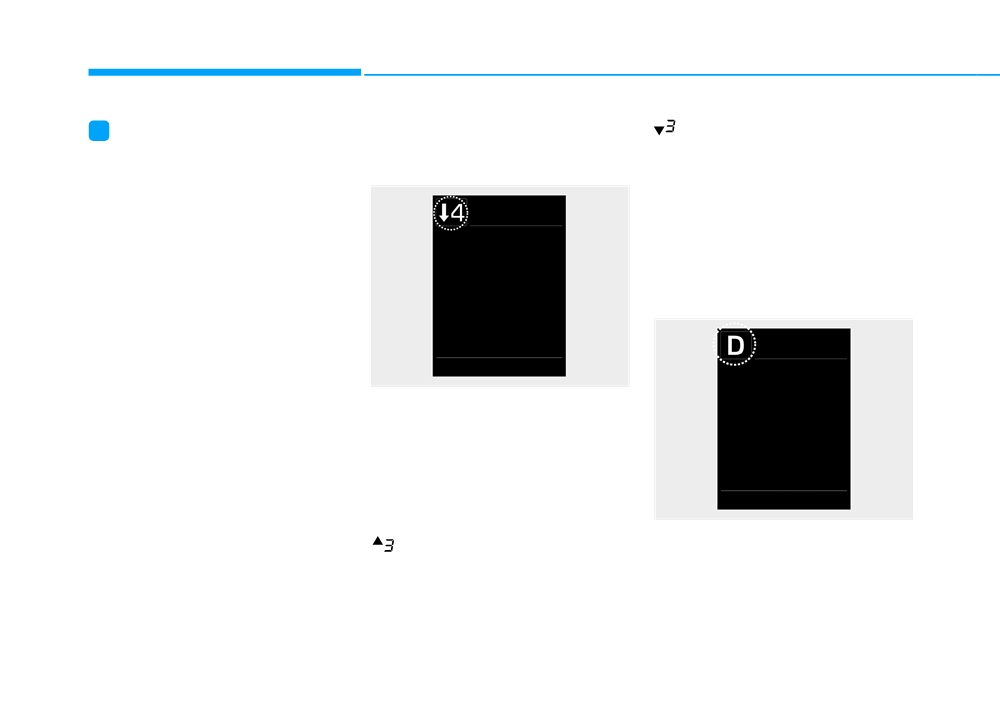

This indicator informs which gear is
habits, and condition of the vehicle.
recommended while driving, to save
fuel.
• Shifting up : ▲2, ▲3, ▲4, ▲5, ▲6
• Shifting down :
▼1, ▼2, ▼3, ▼4, ▼5
OTL045132
For example

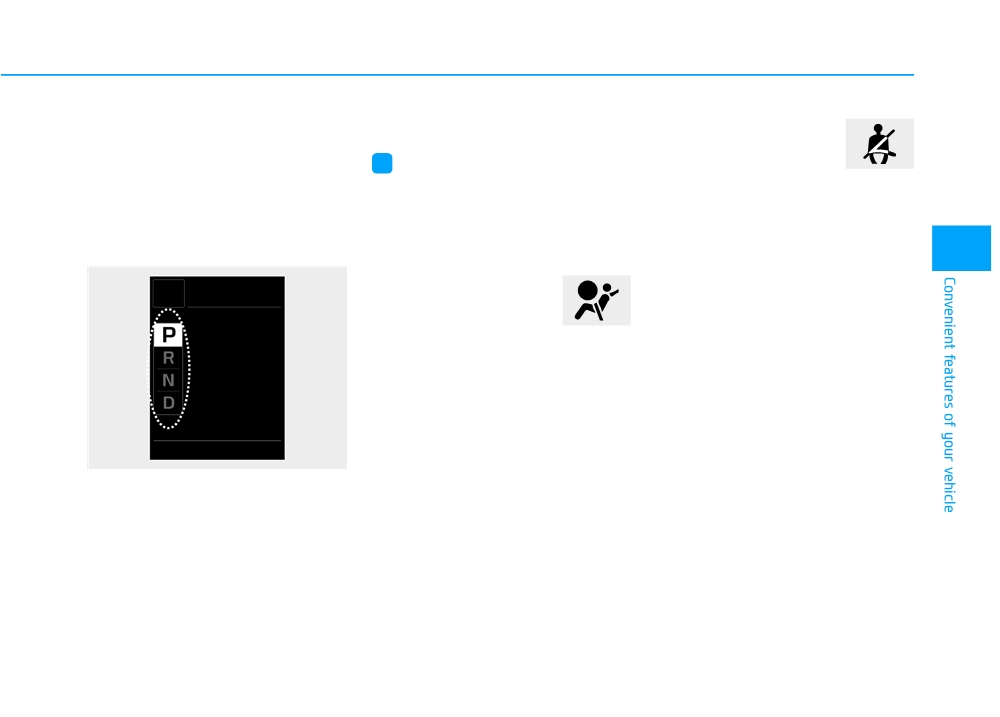

This indicator displays the gear posi-
: Indicates that shifting up to the
tion of the shift lever.
3rd gear is recommended (cur-
rently the shift lever is in the
• Park : P
2nd or 1st gear).
• Reverse : R
3-44
• Neutral : N
Warning and Indicator Lights
Seat Belt Warning Light
• Drive : D
• Manual shift mode
i
Information
- Auto Transmission : 1, 2, 3, 4, 5, 6
Make sure that all warning lights are
OFF after starting the engine. If any
This warning light informs the driver
- Dual Clutch Transmission : D1,
light is still ON, this indicates a situa-
that the seat belt is not fastened.
D2, D3, D4, D5, D6, D7
tion that needs attention.
For more details, refer to "Seat
3
Belts" in chapter 2.
Air Bag Warning Light
This warning light illuminates:
• When you place the ignition switch
to the ON position.
- The air bag warning light illumi-
nates for about 6 seconds and
then turns off when all checks
OTL045134
have been performed
Shift indicator pop-up (if equipped)
• The air bag warning light will
The pop-up indicates the current
remain illuminated if there is a mal-
gear position displayed in the cluster
function with the Safety Restraint
for about 2 seconds when shifting
System (SRS) air bag operation.
into other positions (P/R/N/D).
In this case, have the vehicle
inspected by an authorized
HYUNDAI dealer.
3-45
Convenient features of your vehicle
Parking Brake & Brake
If the brake fluid level in the reser-
Also, the vehicle will not stop in as
Fluid Warning Light
voir is low:
short a distance with only a portion
of the brake system working.
1. Drive carefully to the nearest safe
location and stop your vehicle.
If the brakes fail while you are driv-
ing, shift to a lower gear for addition-
This warning light illuminates:
2. With the engine stopped, check the
al engine braking and stop the vehi-
brake fluid level immediately and
When you place the ignition switch
cle as soon as it is safe to do so.
add fluid as required (For more
to the ON position.
details, refer to "Brake Fluid" in
- The parking brake light illumi-
chapter
7). After adding brake
WARNING
nates for about 3 seconds and
fluid, check all brake components
will then turn off once the parking
for fluid leaks. If a brake fluid leak is
Parking Brake & Brake Fluid
brake is released.
found, or if the warning light
Warning Light
Whenever the parking brake is
remains on, or if the brakes do not
Driving the vehicle with a warn-
applied.
operate properly, do not drive the
ing light ON is dangerous. If the
Whenever the brake fluid level in
vehicle. Have the vehicle inspected
Parking Brake & Brake Fluid
the reservoir is low.
by an authorized HYUNDAI dealer.
Warning Light illuminates with
- If the warning light illuminates
the parking brake released, it
with the parking brake released, it
Dual-diagonal braking system
indicates that the brake fluid
indicates the brake fluid level in
level is low.
Your vehicle is equipped with dual-
the reservoir is low.
diagonal braking systems. This
In this case, have the vehicle
means you still have braking on two
inspected by an authorized
wheels even if one of the dual sys-
HYUNDAI dealer.
tems should fail.
With only one of the dual systems
working, more than normal pedal
travel and greater pedal pressure is
required to stop the vehicle.
3-46
Anti-lock Brake System
Electronic Brake Force
Have the vehicle inspected by
(ABS) Warning Light
Distribution (EBD)
an authorized HYUNDAI dealer
System Warning Light
as soon as possible.
This warning light illuminates:
i
Information - Electronic
When you place the ignition switch
Brake Force Distribution
to the ON position.
These two warning lights illuminate
(EBD) System Warning Light
3
- The ABS warning light illuminates
at the same time while driving:
When the ABS Warning Light is on or
for about
3 seconds and then
• When the ABS and regular brake
both ABS and Parking Brake & Brake
turns off.
system may not work normally.
Fluid Warning Lights are on, the
Whenever there is a malfunction
In this case, have the vehicle inspect-
speedometer, odometer, or tripmeter
with the ABS.
ed by an authorized HYUNDAI dealer.
may not work. Also, the EPS Warning
Note that the hydraulic braking
Light may illuminate and the steering
system will still be operational even
effort may increase or decrease.
if there is a malfunction with the
WARNING
In this case, have the vehicle inspected
ABS.
by an authorized HYUNDAI dealer as
Electronic Brake Force
soon as possible.
Distribution (EBD) System
Warning Light
When both ABS and Parking
Brake & Brake Fluid Warning
Lights are on, the brake system
will not work normally and you
may experience an unexpected
and dangerous situation during
sudden braking.
In this case, avoid high speed
driving and abrupt braking.
3-47
Convenient features of your vehicle
Electric Power Steering
Malfunction Indicator
NOTICE
(EPS) Warning Light
Lamp (MIL)
If the Malfunction Indicator Lamp
(MIL) illuminates, potential catalyt-
ic converter damage is possible
This warning light illuminates:
This indicator light illuminates:
which could result in loss of
• When you place the ignition switch
• When you place the ignition switch
engine power.
to the ON position.
to the ON position.
In this case, have the vehicle
- The Electric Power Steering
- The malfunction indicator light
inspected by an authorized
Warning light illuminates for
illuminates for about 3 seconds
HYUNDAI dealer as soon as possi-
about 3 seconds and then goes
and then goes off.
ble.
off.
• Whenever there is a malfunction
• Whenever there is a malfunction
with either the emission control
with the EPS.
system or the engine or the vehicle
powertrain.
If this occurs, have the vehicle
inspected by an authorized
If this occurs, have the vehicle
HYUNDAI dealer.
inspected by an authorized
HYUNDAI dealer.
NOTICE
Driving with the Malfunction
Indicator Lamp
(MIL) on may
cause damage to the emission
control system which could affect
drivability and/or fuel economy.
3-48
Charging System
Engine Oil Pressure
NOTICE
Warning Light
Warning Light
If the engine does not stop
immediately after the Engine Oil
Pressure Warning Light is illumi-
When this warning light illuminates
This warning light illuminates:
nated, severe damage could
while the engine is running, the bat-
result.
• When the engine oil pressure is low.
tery is not being charged. Immediately
If the warning light stays on
3
turn OFF all electrical accessories.
while the engine is running, it
Try not to use electrically operated
If the engine oil pressure is low:
indicates that there may be seri-
controls, such as the power windows.
1. Drive carefully to the nearest safe
ous engine damage or malfunc-
Keep the engine running.
location and stop your vehicle.
tion. In this case:
Have the vehicle inspected by an
2. Turn the engine off and check the
1. Stop the vehicle as soon as it
authorized HYUNDAI dealer as soon
engine oil level (For more details,
is safe to do so.
as possible.
refer to "Engine Oil" in chapter 7).
2. Turn off the engine and check
If the level is low, add oil as required.
the oil level. If the oil level is
If the warning light remains on
low, fill the engine oil to the
after adding oil or if oil is not avail-
proper level.
able, have the vehicle inspected
3. Start the engine again. If the
by an authorized HYUNDAI dealer
warning light stays on after
as soon as possible.
the engine is started, turn the
engine off immediately. In this
case, have the vehicle
inspected by an authorized
HYUNDAI dealer.
3-49
Convenient features of your vehicle
Low Fuel Level
Master Warning Light
Low Tire Pressure
Warning Light
Warning Light
This warning light illuminates:
This warning light illuminates:
This warning light illuminates:
• When the fuel tank is nearly empty.
• When there is a malfunction in
• When you place the ignition switch
Add fuel as soon as possible.
operation in any of the following
ON position.
systems:
- It illuminates for approximately 3
NOTICE
- Low washer fluid
seconds and then goes off.
- Exterior
lamp malfunction
• When one or more of your tires are
Driving with the Low Fuel Level
(if equipped)
significantly underinflated.
(The
warning light on or with the fuel
location of the underinflated tires
level below "E" can cause the
- Blind-Spot Collision Warning
are displayed on the LCD display.)
(BCW) malfunction (if equipped)
engine to misfire and damage the
catalytic converter.
- Tire Pressure Monitoring System
For more details, refer to "Tire
(TPMS)
Pressure Monitoring System
(TPMS)" in chapter 6.
To identify the details of the warn-
ing, look at the LCD display.
3-50















Content   ..  5  6  7  8   ..
