Hyundai Tucson (2017 year). Instruction - part 30
Fuse Name
Symbol
Fuse Rating
Circuit Protected
Data Link Connector, A/C Control Module, ATM Shift Lever Ill.,
A/V & Navigation Head Unit, Electro Chromic Mirror,
MODULE 4
7.5A
Head Lamp Leveling Device Actuator LH/RH,
Auto Head Lamp Levelring Device Module, Crash Pad Switch, Front Air Ventilation Seat Module,
Low DC-DC Converter, Front Seat Warmer Module, Rear Seat Warmer, MTS Module
A/BAG IND
7.5A
Instrument Cluster, Center Facia Switch
MODULE 3
10A
BCM, ATM Shift Lever, Stop Lamp Switch
SMART KEY 1
15A
Smart Key Control Module
4WD
20A
4WD ECM
T/GATE OPEN
10A
Tail Gate Relay
S/HEATER RR
15A
Rear Seat Warmer
MDPS
7.5A
MDPS Unit
7
SMART KEY 3
7.5A
Immobilizer Module, Smart Key Control Module
CLUSTER
7.5A
Instrument Cluster
SMART KEY 2
10A
Immobilizer Module, Smart Key Control Module, Start/Stop Button Switch
MULTI MEDIA
15A
AUDIO, A/V & Navigation Head Unit, Low DC-DC Converter
7-67
Maintenance
Driver’s side fuse panel
Fuse Name
Symbol
Fuse Rating
Circuit Protected
INTERIOR
Glove Box Lamp, Ignition Key Ill. & Door Warning Switch, Luggage Lamp, Front Vanity Lamp
10A
LAMP
Switch LH/RH, Room Lamp, Overhead Console Lamp, Rear Personal Lamp LH/RH
Door Lock Relay, Door Unlock Relay,
DOOR LOCK
20A
ICM Relay Box (Dead Lock Relay)
SUN ROOF 2
20A
Panorama Sunroof
POWER
20A
Front Power Outlet & Cigarette Lighter
OUTLET
BRAKE
7.5A
Stop Lamp Switch, Smart Key Control Module
SWITCH
Auto Light & Photo Sensor, Data Link Connector, UIP Sensor A/C Control Module, Instrument
MEMORY 2
10A
Cluster, Electro Chromic Mirror, BCM, ICM Relay Box (Outside Mirror Folding/Unfolding Relay)
MEMORY 1
1
10A
MTS Module
MEMORY
P/SEAT PASS
30A
Passenger Seat Manual Switch
S/HEATER
20A
Front Air Ventilation Seat Control Module, Front Seat Warmer Control Module
FRT
SUN ROOF 1
20A
Panorama Sunroof
MODULE 2
20A
PCB Block (Fuse - F44/F45/F49/F50/F52/F53)
RR FOG
10A
ICM Relay Box (Rear Fog Lamp Relay)
LAMP
A/CON 2
7.5A
A/C Control Module
7-68
Driver’s side fuse panel
Fuse Name
Symbol
Fuse Rating
Circuit Protected
HEATED
10A
A/C Control Module, Driver/Passenger Power Outside Mirror, ECM/PCM
MIRROR
P/SEAT DRV
30A
Driver Seat Manual Switch
SAFETY
25A
Driver Safety Power Window Module
P/ WINDOW
P/ WINDOW
25A
Power Window Main Switch, Passenger Power Window Switch
RH
P/ WINDOW
25A
Power Window Main Switch, Passenger Power Window Switch
LH
7
7-69
Maintenance

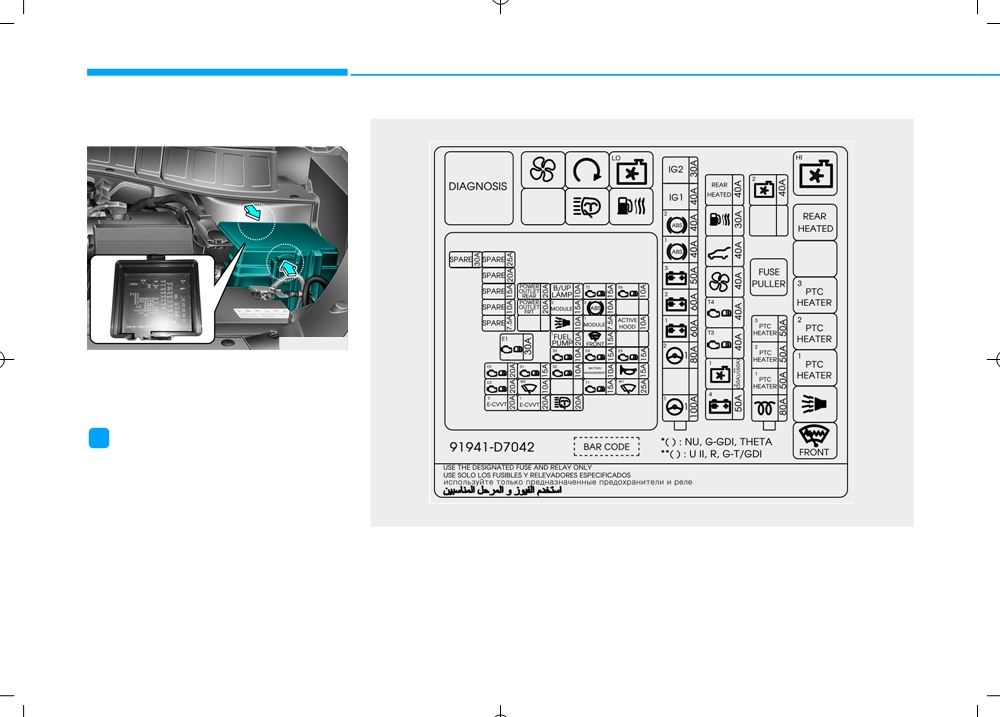

Engine compartment fuse panel
OTL075029
Inside the fuse/relay box covers, you
can find the fuse/relay label describ-
ing fuse/relay name and capacity.
i
Information
Not all fuse panel descriptions in this
manual may be applicable to your
vehicle. It is accurate at the time of
printing. When you inspect the fuse
OTLE077030
box on your vehicle, refer to the fuse
box label.
7-70
Engine compartment main fuse panel (Gasoline Engine)
Fuse Name
Symbol
Fuse rating
Circuit Protected
POWER
1
1
100A
MDPS Unit
STEERING1
POWER
2
1
80A
MDPS Unit
STEERING2
B+ 1
60A
Smart Junction Block (IPS1, IPS2, IPS3, IPS4)
B+ 2
60A
Smart Junction Block (IPS1, IPS2, IPS3, IPS4)
MULTI
B+ 3
50A
Smart Junction Block (IPS5, IPS6, IPS7, IPS8, IPS9, Fuse - F19/F28/F35/F42)
FUSE
ABS 1
40A
ESP Control Module, ABS Control Module, Multipurpose Check Connector
ABS 2
40A
ESP Control Module, ABS Control Module, Multipurpose Check Connector
W/O Smart Key : Ignition Switch
IG1
40A
With Smart Key : PCB Block (PDM (IG1) Relay, PDM (ACC) Relay)
W/O Smart Key : Ignition Switch
7
IG2
30A
With Smart Key : PCB Block (PDM (IG2) Relay)
Smart Junction Block (Fuse - F14/F21/F22/F31/F38/F45/F40/F46,
B+ 4
50A
Leak Current Autocut Device)
COOLING
(50A)
(G4NA/G4FD) : E/R Junction Block (RLY. 1, RLY. 9)
FAN1
[60A]
(G4FJ) : E/R Junction Block (RLY. 1)
FUSE
E-CVVT1
E-CVVT1
20A
ECVVT RLY 1
E-CVVT2
E-CVVT2
20A
ECVVT RLY 2
7-71
Maintenance
Engine compartment main fuse panel (Gasoline Engine)
Fuse Name
Symbol
Fuse rating
Circuit Protected
TCU 3
40A
TCM
TCU 4
40A
TCM
BLOWER
40A
E/R Junction Block (RLY. 13)
FUSE
POWER
40A
Power Tail Gate Module
TAILGATE
REAR
REAR
40A
E/R Junction Block (RLY. 2)
HEATED
HEATED
COOLING
2
40A
G4FJ : E/R Junction Block (RLY. 9)
FAN2
7-72
Engine compartment main fuse panel (Diesel Engine)
Fuse Name
Symbol
Fuse rating
Circuit Protected
POWER
1
1
100A
MDPS Unit
STEERING1
POWER
2
1
80A
MDPS Unit
STEERING2
B+ 1
60A
Smart Junction Block (IPS1, IPS2, IPS3, IPS4)
B+ 2
60A
Smart Junction Block (IPS5, IPS6, IPS7, IPS8, IPS9, Fuse - F19/F28/F35/F42)
B+ 3
50A
Smart Junction Block (Fuse - F23/F32/F39/F40/F46, Power Window Relay)
ABS 1
40A
ESP Control Module, ABS Control Module, Multipurpose Check Connector
MULTI
ABS 2
40A
ESP Control Module, ABS Control Module, Multipurpose Check Connector
FUSE
W/O Smart Key : Ignition Switch
IG1
40A
With Smart Key : PCB Block (PDM (IG1) Relay, PDM (ACC) Relay)
W/O Smart Key : Ignition Switch
7
IG2
30A
With Smart Key : PCB Block (PDM (IG2) Relay)
GLOW PLUG
50A
Glow Relay Unit
PTC 1
1
PTC
50A
E/R Junction Block (RLY. 6)
HEATER
HEATER
PTC 2
2
PTC
50A
E/R Junction Block (RLY. 5)
HEATER
HEATER
PTC 3
3
PTC
50A
E/R Junction Block (RLY. 4)
HEATER
HEATER
7-73
Maintenance
Engine compartment main fuse panel (Diesel Engine)
Fuse Name
Symbol
Fuse rating
Circuit Protected
Smart Junction Block (Fuse - F14/F21/F22/F31/F38/F45/F40/F46,
B+ 4
50A
Leak Current Autocut Device)
COOLING
(50A)
(G4NA/G4FD) : E/R Junction Block (RLY. 1, RLY. 9)
FAN1
[60A]
(G4FJ) : E/R Junction Block (RLY. 1)
TCU 3
40A
TCM
TCU 4
40A
TCM
FUSE
BLOWER
40A
E/R Junction Block (RLY. 13)
POWER
40A
Power Tail Gate Module
TAILGATE
FUEL
30A
E/R Junction Block (RLY. 10)
HEATER
REAR
REAR
40A
E/R Junction Block (RLY. 2)
HEATED
HEATED
COOLING
2
40A
G4FJ : E/R Junction Block (RLY. 9)
FAN2
7-74
LIGHT BULBS
Consult an authorized HYUNDAI
NOTICE
i
Information - Traffic Change
dealer to replace most vehicle light
Be sure to replace the burned-out
(for Europe)
bulbs. It is difficult to replace vehicle
light bulbs because other parts of the
bulb with one of the same wattage
The low beam light distribution is
vehicle must be removed before you
rating. Otherwise, it may cause
asymmetric. If you go abroad to a coun-
can get to the bulb. This is especially
damage to the fuse or electric
try with opposite traffic direction, this
true for removing the headlamp
wiring system.
asymmetric part will dazzle oncoming
assembly to get to the bulb(s).
car driver. To prevent dazzle, ECE reg-
ulation demand several technical solu-
Removing/installing the headlamp
i
Information
tions
(ex. automatic change system,
assembly can result in damage to
After heavy driving, rain or washing,
adhesive sheet, down aiming). These
the vehicle.
headlamp and tail lamp lenses could
headlamps are designed not to dazzle
appear frosty. This condition is caused
opposite drivers. So, you need not
WARNING
by the temperature difference between
change your headlamps in a country
the lamp inside and outside. This is
with opposite traffic direction.
similar to the condensation on your
Prior to working on the light,
windows inside your vehicle during the
firmly apply the parking brake,
rain and doesn’t indicate a problem
ensure that the ignition switch is
with your vehicle. If the water leaks
in the LOCK/OFF position and
into the lamp bulb circuitry, we rec-
turn off the lights to avoid sud-
ommend that the system be checked
den movement of the vehicle and
by an authorized HYUNDAI dealer.
7
burning your fingers or receiving
an electric shock.
7-75
Maintenance

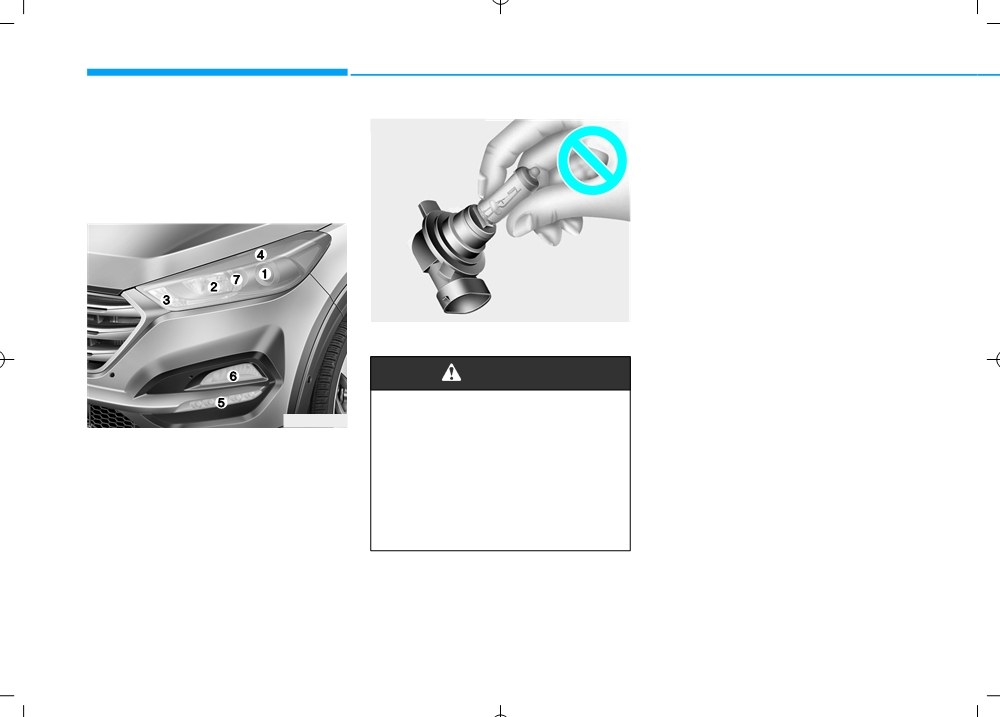

Headlamp, static bending lamp,
■ Halogen bulb
• Always handle them carefully, and
position lamp, turn signal lamp
avoid scratches and abrasions. If
and fog lamp light bulb replace-
the bulbs are lit, avoid contact with
ment
liquids.
• Never touch the glass with bare
Type A
hands. Residual oil may cause the
bulb to overheat and burst when lit.
• A bulb should be operated only
when installed in a headlamp.
• If a bulb becomes damaged or
cracked, replace it immediately
OLMB073042L
and carefully dispose of it.
Headlamp and Static bending lamp
WARNING
• Handle halogen bulbs with
OTL075064
care. Halogen bulbs contain
(1) Headlamp (Low)
pressurized gas that will pro-
duce flying pieces of glass that
(2) Headlamp (High)
could cause injuries if broken.
(3) Turn signal lamp
• Wear eye protection when
(4) Position lamp
changing a bulb. Allow the bulb
(5) Daytime running lamp
to cool down before handling it.
(6) Fog lamp
(7) Static bending lamp
(if equipped)
7-76

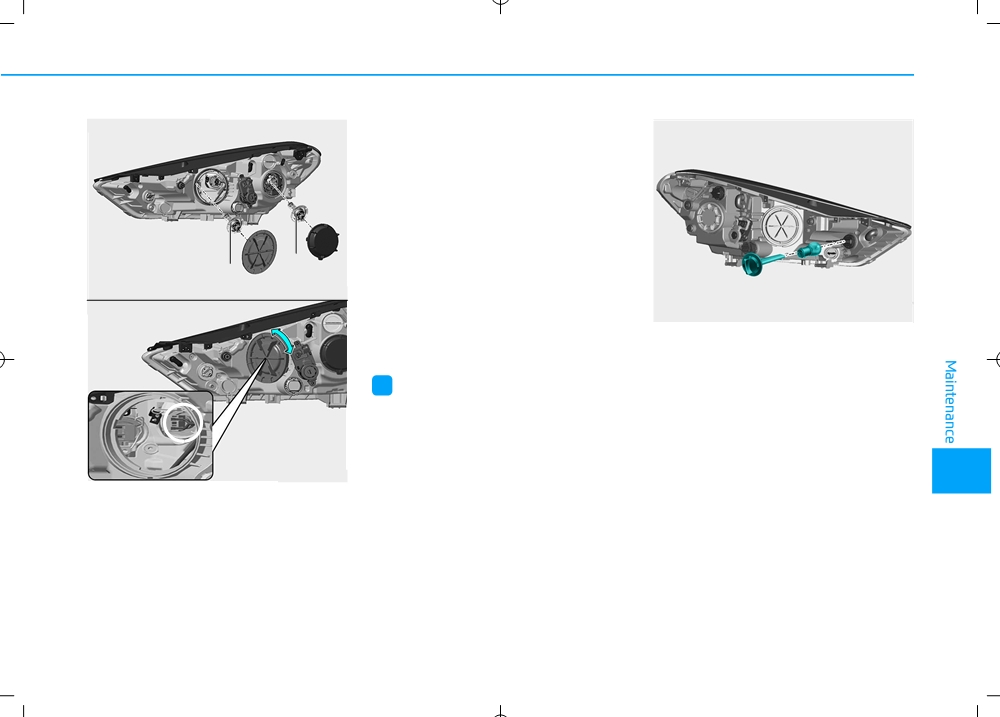

■ High/Low beam
5. Unsnap the bulb retaining wire by
pressing the end and pushing it
upward.
6. Remove the bulb from the head-
lamp assembly.
7. Install a new bulb and snap the
bulb retaining wire into position by
aligning the wire with the groove
Low
High
on the bulb.
OTLE075013
8. Connect the bulb socket-connec-

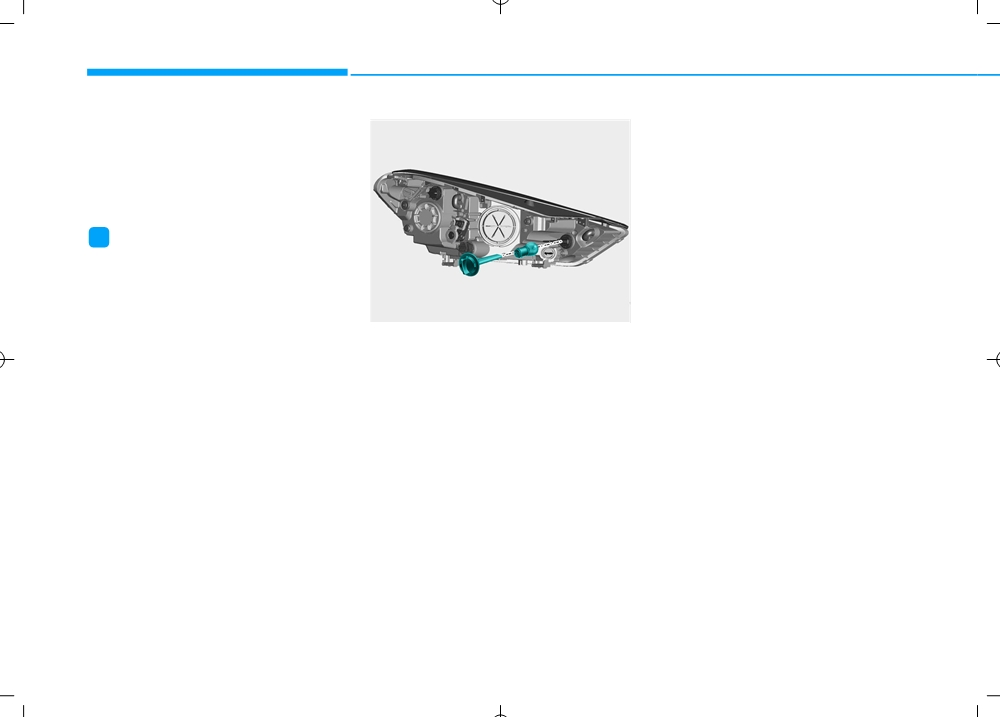

■ Static bending lamp
tor.
OTLE075019
9. Install the bulb cover by turning it

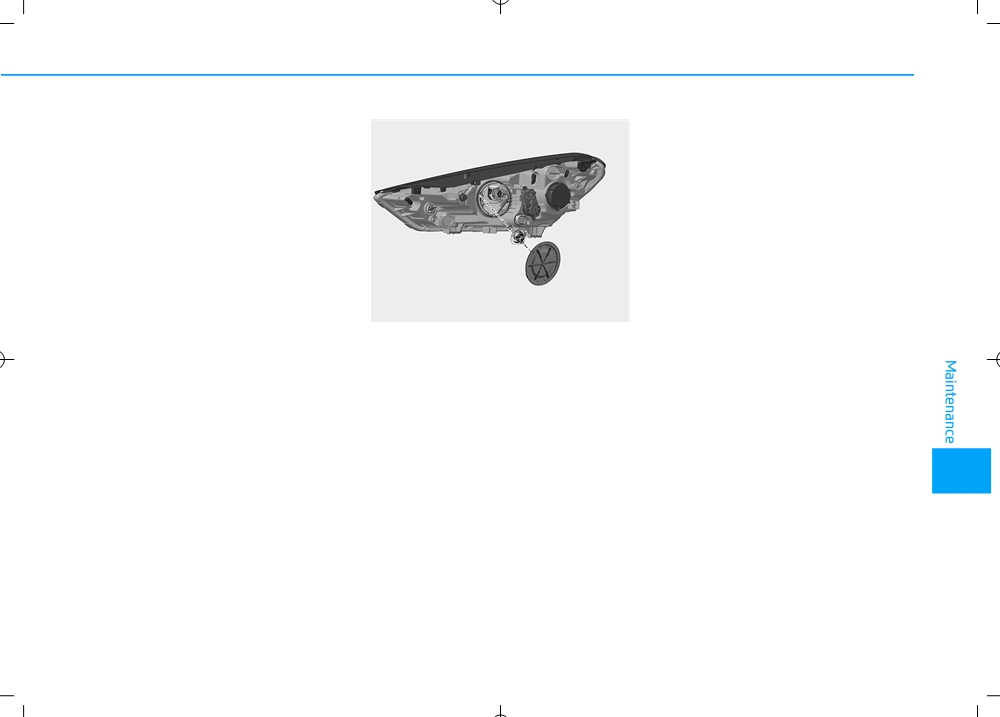

Turn signal lamp
clockwise.
1. Open the hood.
2. Disconnect the negative battery
i
Information
cable.

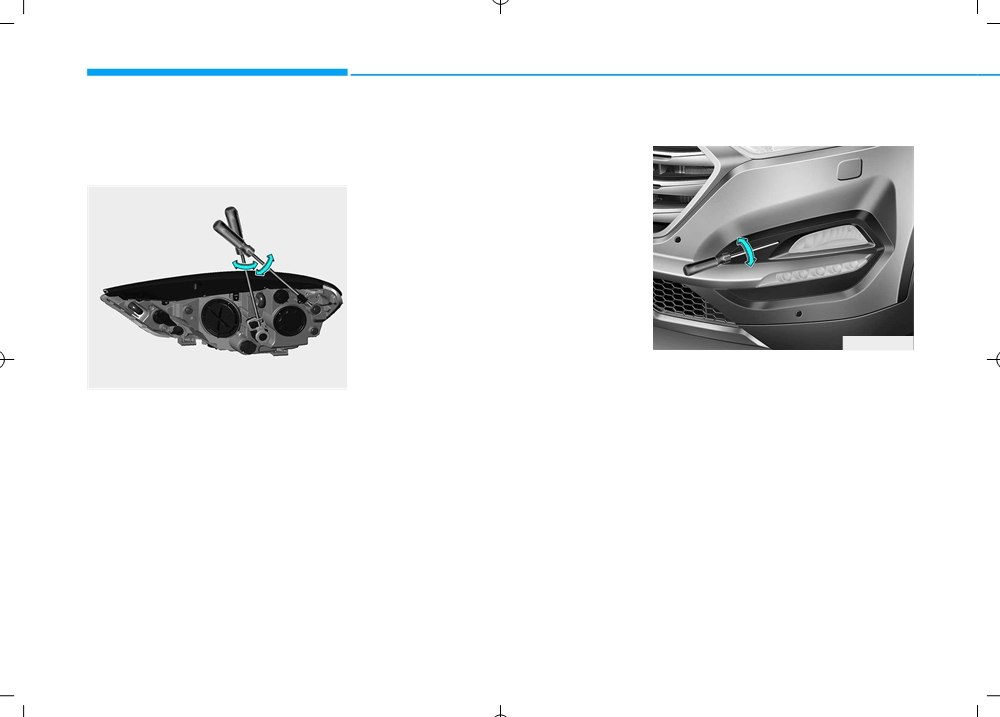

The headlamp aiming should be adjust-
3.Remove the socket from the
ed after an accident or after the head-
assembly by turning the socket
lamp assembly is reinstalled at an
counterclockwise until the tabs on
authorized HYUNDAI dealer.
the socket align with the slots on
7
OTLE075015
the assembly.
1. Open the hood.
4.Remove the bulb from the socket
2. Disconnect the negative battery
by pressing it in and rotating it
cable.
counterclockwise until the tabs on
3. Remove the bulb cover by turning
the bulb align with the slots in the
it counterclockwise.
socket. Pull the bulb out of the
4. Disconnect the bulb socket-con-
socket.
nector.
7-77
Maintenance
5.Insert a new bulb by inserting it into
Type B
■ Halogen bulb
the socket and rotating it until it
locks into place.
6.Install the socket in the assembly
by aligning the tabs on the socket
with the slots in the assembly.
7.Push the socket into the assembly
and turn the socket clockwise.
Position lamp/Daytime running
lamp/Fog lamp
OLMB073042L
If the LED lamp does not operate, we
Headlamp (High beam)
OTL075032
recommend you to have the vehicle
checked by an authorized HYUNDAI
(1) Headlamp (Low)
WARNING
dealer.
(2) Headlamp (High)
(3) Turn signal lamp
• Handle halogen bulbs with
care. Halogen bulbs contain
(4) Position lamp
pressurized gas that will pro-
(5) Daytime running lamp
duce flying pieces of glass that
(6) Fog lamp
could cause injuries if broken.
(7) Static bending lamp
• Wear eye protection when
changing a bulb. Allow the bulb
to cool down before handling it.
7-78
•
Always handle them carefully, and
■ High beam
6. Remove the bulb from the head-
avoid scratches and abrasions. If
lamp assembly.
the bulbs are lit, avoid contact with
7. Install a new bulb and snap the
liquids.
bulb retaining wire into position by
•
Never touch the glass with bare
aligning the wire with the groove
hands. Residual oil may cause the
on the bulb.
bulb to overheat and burst when lit.
8. Connect the bulb socket-connec-
•
A bulb should be operated only
tor.
when installed in a headlamp.
9. Install the bulb cover by turning it
•
If a bulb becomes damaged or
clockwise.
cracked, replace it immediately
OTLE075014
and carefully dispose of it.
1. Open the hood.
2. Disconnect the negative battery
cable.
3. Remove the bulb cover by turning
it counterclockwise.
4. Disconnect the bulb socket-con-
nector.
5. Unsnap the bulb retaining wire by
7
pressing the end and pushing it
upward.
7-79
Maintenance
Headlamp (Low, LED type)
5.Insert a new bulb by inserting it into
the socket and rotating it until it
If the LED lamp does not operate, we
locks into place.
recommend you to have the vehicle
checked by an authorized HYUNDAI
6.Install the socket in the assembly
dealer.
by aligning the tabs on the socket
with the slots in the assembly.
i
Information
7.Push the socket into the assembly
and turn the socket clockwise.
The headlamp aiming should be adjust-
ed after an accident or after the head-
lamp assembly is reinstalled at an
Position lamp/ Daytime running lamp/
authorized HYUNDAI dealer.
OTLE075019
Fog lamp/Static bending lamp
If the LED lamp does not operate, we
Turn signal lamp
recommend you to have the vehicle
1. Open the hood.
checked by an authorized HYUNDAI
2. Disconnect the negative battery
dealer.
cable.
3.Remove the socket from the
assembly by turning the socket
counterclockwise until the tabs on
the socket align with the slots on
the assembly.
4.Remove the bulb from the socket by
pressing it in and rotating it counter-
clockwise until the tabs on the bulb
align with the slots in the socket.
Pull the bulb out of the socket.
7-80

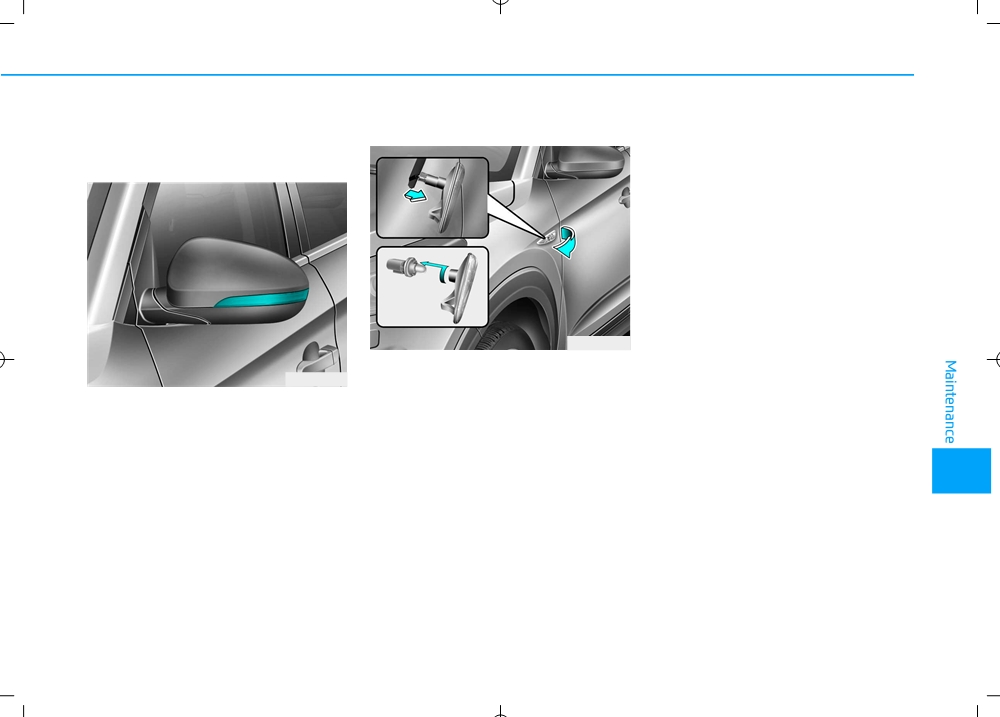

Side repeater lamp replace-
Type B
7.Connect the bulb electrical con-
ment
nector.
8.Reinstall the lamp assembly to the
Type A
body of the vehicle.
OTL075065
1.Remove the lamp assembly from
OTL075066
the vehicle by prying the lens and
pulling the assembly out.
If the light bulb does not operate, we
2.Disconnect the bulb electrical con-
recommend you to have the vehicle
nector.
checked by an authorized HYUNDAI
dealer.
3.Separate the socket and the lens
parts by turning the socket coun-
7
terclockwise until the tabs on the
socket align with the slots on the
lens part.
4.Remove the bulb by pulling it
straight out.
5.Insert a new bulb in the socket.
6.Reassemble the socket and the
lens part.
7-81
Maintenance
Headlamp and front fog lamp
4. With the headlamp and battery in
Front fog lamp aiming
aiming (for Europe)
normal condition, aim the head-
lamps so the brightest portion falls
Headlamp aiming
on the horizontal and vertical
lines.
5. To aim the low beam left or right,
turn the driver clockwise or coun-
terclockwise. To aim the low beam
up or down, turn the driver clock-
wise or counterclockwise.
To aim the high beam up or down,
turn the driver clockwise or coun-
terclockwise.
OTLE075021
The front fog lamp can be aimed as
OTLE075020
the same manner of the headlamps
aiming.
1. Inflate the tires to the specified
With the front fog lamps and battery
pressure and remove any loads
in normal condition, aim the front fog
from the vehicle except the driver,
lamps.
spare tire, and tools.
To aim the front fog lamp up or down,
2. The vehicle should be placed on a
turn the driver clockwise or counter-
flat floor.
clockwise.
3. Draw vertical lines (Vertical lines
passing through respective head
lamp centers) and a horizontal line
(Horizontal line passing through
center of head lamps) on the
screen.
7-82

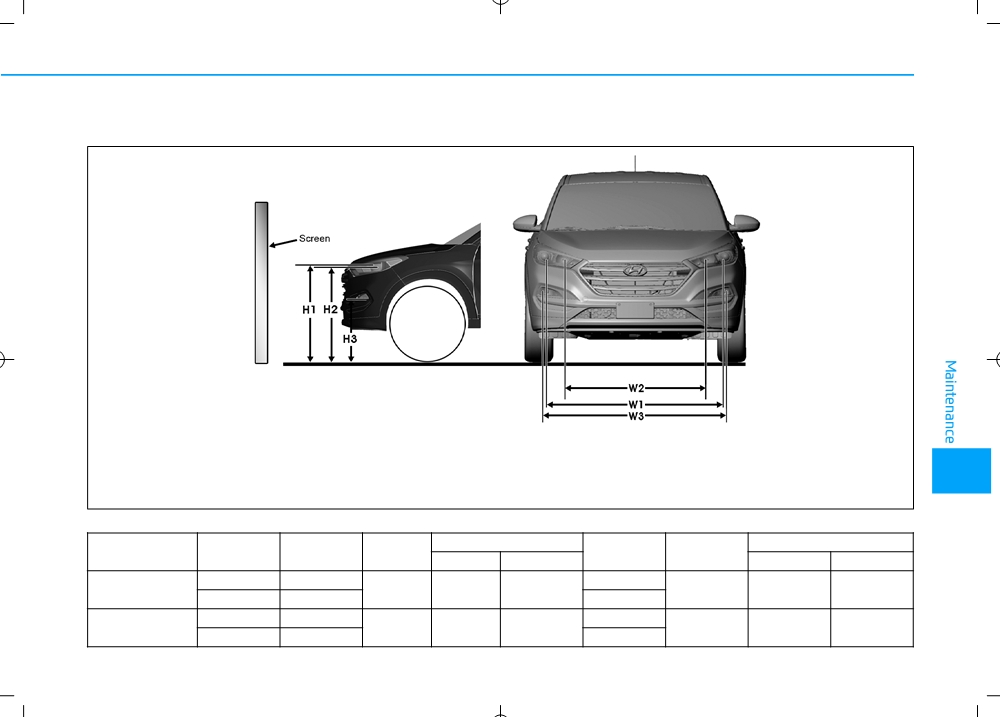

Aiming point
H1 : Height between the head lamp bulb center and ground (Low beam)
H2 : Height between the head lamp bulb center and ground (High beam)
H3 : Height between the fog lamp bulb center and ground
W1 : Distance between the two head lamp bulbs centers (Low beam)
W2 : Distance between the two head lamp bulbs centers (High beam)
7
W3 : Distance between the two fog lamp bulbs centers
OTLE075022
Unit: mm (in)
Vehicle
H3
W3
Lamp type
H1
H2
W1
W2
condition
FOG
FOG+DRL
FOG
FOG+DRL
Halogen/HID
886 (34.89)
862
578
1502 (59.13)
Without driver
565 (22.24)
1208 (47.56)
1474 (58.03)
1452 (57.17)
LED
884 (34.80)
(33.94)
(22.76)
1494 (58.82)
Halogen/HID
879 (34.60)
855
571
1502 (59.13)
With driver
558 (21.97)
1208 (47.56)
1474 (58.03)
1452 (57.17)
LED
877 (34.53)
(33.66)
(22.48)
1494 (58.82)
7-83
