Multimedia System

Name

Description

• Radio mode

SCAN

- Shortly press the key : Previews each broad-

cast for 5 seconds each.

- Press and hold the key : Previews the broad-

casts saved in Preset

for 5

seconds each.

❈ Press the

SCAN

key again to continue lis-

tening to the current frequency.

• USB, iPod modes

- Shortly press the key : Previews each song

(file) for 10 seconds each.

❈ Press the

SCAN

key again to continue lis-

tening to the current song (file).

Displays menus for the current mode.

Moves to previous screen.

Name

Description

FOLDER

USB mode : Folder Search

Each time the button is shortly pressed, it sets

FOLDER

❈ May differ depending on the selected audio.

the screen Off ➟ Screen On ➟ Screen Off.

TUNE knob

• Radio mode : Changes frequency by turning

❈ Audio operation is maintained and only the

the knob left/right.

screen will be turned Off. In the screen Off

• USB, iPod modes : Searches songs (files) by

state, press any key to turn the screen On

turning the knob left/right.

again.

❈ When the desired song is displayed, press

the knob to play the song.

4-16

TLe Eng 4 .qxp

2015-05-26

11:48 Page 17

-RDS, No Bluetooth equipped model

Name

Description

MEDIA

Each time the key is pressed, the mode is

changed in order of USB, iPod, AUX modes.

❈ In Setup>Display, the media pop up screen

will be displayed when [Mode Pop up] is

turned

❈ When the pop up screen is displayed, use

the

TUNE knob or keys

to select the desired mode.

• Shortly press the key : Moves to the Display,

Sound, Clock, Phone, System setting modes.

• Press and hold the key : Moves to clock set-

tings.

• Radio mode : Automatically searches for

SEEK

broadcast frequencies.

TRACK

• USB, iPod modes :

Name

Description

- Shortly press the key : Moves to next or pre

• Changes to FM mode.

vious song(file).

• Each time the key is pressed, the mode changed

- Press and hold the key : Rewinds or fast for-

in order of FM1 ➟ FM2.

wards the current song(file).

Changes to AM mode.

POWER/

•

Power Knob : Turns power On/Off by

VOL knob

pressing the knob.

•

Volume Knob : Sets volume by turning the

knob left/right.

• Radio mode : Saves frequencies (channels or

receives saved frequencies (channels).

(Preset)

• USB, iPod® modes

1 RPT

: Repeat

RDM

: Random

4-17

TLe Eng 4 .qxp

2015-05-26

11:48 Page 18

Multimedia System

Name

Description

• Radio mode

SCAN

- Shortly press the key : Previews each broad-

cast for 5 seconds each.

- Press and hold the key : Previews the broad-

casts saved in Preset

for 5

seconds each.

❈ Press the

SCAN

key again to continue lis-

tening to the current frequency.

• USB, iPod modes

- Shortly press the key : Previews each song

(file) for 10 seconds each.

❈ Press the

SCAN

key again to continue lis-

tening to the current song (file).

Displays menus for the current mode.

Moves to previous screen.

Name

Description

FOLDER

USB mode : Folder Search.

Each time the button is shortly pressed, it sets

FOLDER

❈ May differ depending on the selected audio.

the screen Off ➟ Screen On ➟ Screen Off.

TUNE knob

• Radio mode : Changes frequency by turning

❈ Audio operation is maintained and only the

the knob left/right.

screen will be turned Off. In the screen Off

• USB, iPod modes: Searches songs (files) by

state, press any key to turn the screen On

turning the knob left/right.

again.

❈ When the desired song is displayed, press

the knob to play the song.

4-18

TLe Eng 4 .qxp

2015-05-26

11:48 Page 19

Setup

Mode Pop up

Song Info

[Mode Pop up] Changes

When playing an MP3 file, select the

selection mode

desired display info from ‘Folder/File’

Display Settings

or ‘Album/Artist/Song’.

• During On state, press the

RADIO

MEDIA

key to display the mode

change pop up screen.

Press the

key Select

[Display] through

TUNE knob or

1 RPT

key Select menu through

Scroll text

TUNE knob

Off

[Scroll text] Set

•

: Maintains scroll

•

Off

: Scrolls only one (1) time.

4-19

TLe Eng 4 .qxp

2015-05-26

11:48 Page 20

Multimedia System

Sound Settings

Audio Settings

Speed Dependent Volume

This menu allows you to set the

Control

‘Bass, Middle, Treble’ and the Sound

This feature is used to automatically

Press the

key Select

Fader and Balance.

control the volume level according to

[Sound] through

TUNE knob or

Select [Audio Settings] Select menu

the speed of the vehicle.

2 RDM

key Select menu through

through TUNE knob

Select [Speed Dependent Vol.] Turn

TUNE knob

Turn TUNE knob left/right to set

SDVC On/Off by pressing the

TUNE knob

• Bass, Middle, Treble : Selects the

sound tone.

• Fader, Balance : Moves the sound

fader and balance.

• Default : Restores default settings.

❈ Return : While adjusting values,

re-pressing the TUNE knob will

restore the parent menu.

Volume Dialogue

Adjusts voice recognition volume.

Select

[Volume Dialogue] Set vol-

ume of TUNE knob

4-20

TLe Eng 4 .qxp

2015-05-26

11:49 Page 21

Clock Settings

Day Settings

This menu is used to set the time.

This menu is used to set the

date(DD/MM/YYYY).

Select [Clock Settings] Set through

Press the

key Select

TUNE knob Press TUNE knob

Select [Day Settings] Set through

[Clock] through

TUNE knob or

TUNE knob Press TUNE knob

key Select menu through

TUNE knob

❈ Adjust the number currently in

focus to set the [hour] and press

❈ Adjust the number currently in

the tune knob to set the [minute].

focus to make the settings and

press the tune knob to move to the

next setting. (Set in order of Day/

Month/Year)

4-21

TLe Eng 4 .qxp

2015-05-26

11:49 Page 22

Multimedia System

Time Format

Automatic RDS Time

NOTICE

This function is used to set the 12/24

This option is used to automatically

Because some local radio stations

hour time format of the audio system.

set the time by synchronizing with

do not support an automatic RDS

Select [Time Format] Set 12Hr / 24Hr

RDS.

time function, some RDS

through TUNE knob

Select

[Automatic RDS Time] Set

Transmitters may not provide cor-

Off

through TUNE knob

rect time. If incorrect time is dis-

•

: Turn on Automatic Time

Clock Display when Power is OFF

played, set it manually following

•

Off

: Turn off.

the Step "Clock Setting" in previ-

Select

[Clock Disp.(Pwr Off)] Set

ous page.

Off

through TUNE knob

•

: Displays time/date on screen

•

Off

: Turn off.

4-22

TLe Eng 4 .qxp

2015-05-26

11:49 Page 23

Phone Settings

Pair Phone

➂ Pairing completion is displayed.

(For Bluetooth® Wireless

❈ In some mobile phones, pairing

NOTICE

will automatically be followed by

Technology equipped model)

connection.

To pair a Bluetooth® Wireless

❈ It is possible to pair up to five

Technology enabled mobile

Press the

key Select [Phone]

Bluetooth® Wireless Technology

phone, authentication and con-

through

TUNE knob or

key

enabled mobile phones.

nection processes are first

Select menu through TUNE knob

required. As a result, you cannot

pair your mobile phone while driv-

ing the vehicle. First park your

vehicle before use.

Select

[Pair Phone] Set through

TUNE knob

➀ Search for device names as dis-

played on your mobile phone and

connect.

➁ Input the passkey displayed on the

screen. (Passkey : 0000)

❈ The device name and passkey will

be displayed on the screen for up

to 3 minutes. If pairing is not com-

pleted within the 3 minutes, the

mobile phone pairing process will

automatically be canceled.

4-23

TLe Eng 4 .qxp

2015-05-26

11:49 Page 24

Multimedia System

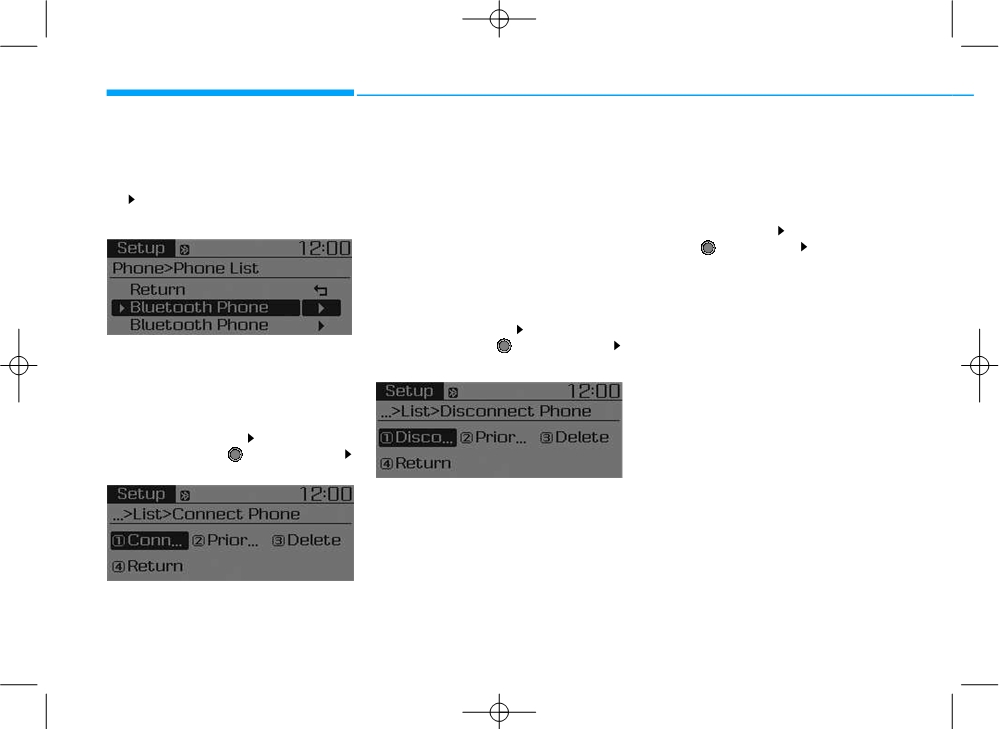

Phone List

➁ Connect the selected mobile

• Changing connection sequence

phone.

(Priority)

The names of up to 5 paired phones

will be displayed.

➂ Connection completion is dis-

This is used to change the order (pri-

played.

ority) of automatic connection for the

A [

] is displayed in front of the cur-

paired mobile phones.

rently connected phone.

❈ If a phone is already connected,

Select [Phone List] Select [Priority]

disconnect the currently connect-

through TUNE knob Select No. 1

ed phone and select a new phone

Priority mobile phone

to connect.

➀ Select [Priority].

• Disconnecting a connected phone

➁ From the paired phones, select

the phone desired for No.1 priority.

Select

[Phone List] Select mobile

phone through

TUNE knob

➂ The changed priority sequence is

Select the desired name to setup the

Select [Disconnect Phone]

displayed.

selected phone.

❈ Once the connection sequence

(priority) is changed, the new no. 1

• Connecting a phone

priority mobile phone will be con-

nected.

Select

[Phone List] Select mobile

- When the no. 1 priority cannot be

phone through

TUNE knob

connected : Automatically attempts

Select [Connect Phone]

to connect the most recently con-

➀ Select the currently connected

nected phone.

mobile phone.

- Cases when the most recently

➁ Disconnect the selected mobile

connected phone cannot be con-

phone.

nected : Attempts to connect in

➂ Disconnection completion is dis-

the order in which paired phones

played.

are listed.

➀ Select a mobile phone that is not

- The connected phone will automat-

currently connected.

ically be changed to No. 1 priority.

4-24

TLe Eng 4 .qxp

2015-05-26

11:49 Page 25

• Delete

Phone book Download

Auto Download

Select

[Phone List] Select mobile

This feature is used to download

When connecting a mobile phone, it

phone through

TUNE knob

phone book and call histories into

is possible to automatically download

Select [Delete]

the audio system.

new phone book and Call Histories.

Select

[Phone book Download]

Select [Auto Download] Set

Select through TUNE knob

Off

through TUNE knob

➀ Select the desired mobile phone.

➁ Delete the selected mobile phone.

NOTICE

➂ Deletion completion is displayed.

❈ When attempting to delete a cur-

• The download feature may not

be supported in some mobile

rently connected phone, the

phone is first disconnected.

phones.

• If a different operation is per-

NOTICE

formed while phone book is

being downloaded, downloading

• When you delete a mobile

will be discontinued. Phone

phone, the mobile phone phone

book already downloaded will

book will also be erased.

be saved.

• For stable Bluetooth® Wireless

• When downloading new phone

Technology communication,

book, delete all previously saved

delete the mobile phone from

phone book before starting

the audio and also delete the

download.

audio from your mobile phone.

4-25

TLe Eng 4 .qxp

2015-05-26

11:49 Page 26

Multimedia System

Outgoing Volume

Using the Bluetooth® Wireless

❈ If the Bluetooth® Wireless

Technology System

Technology system is turned on,

This is used to set the volume of your

the system will automatically try to

voice as heard by the other party

To use Bluetooth® Wireless Technology

connect the most recently connect-

while on a Bluetooth® Wireless

when the system is currently off, fol-

ed Bluetooth® Wireless Technology

Technology enabled handsfree call.

low these next steps.

mobile phone.

Select

[Outgoing Volume] Set vol-

• Turning On Bluetooth® Wireless

ume through TUNE knob

Technology through the

Key

NOTICE

Press the

key Screen

❈ Even while on a call, the volume

Guidance

• Bluetooth® Wireless Technology

can be changed by using the

TRACK

connection may become inter-

key.

SEEK

❈ Moves to the screen where

mittently disconnected in some

Bluetooth® Wireless Technology

mobile phones. Follow these

functions can be used and dis-

Bluetooth® Wireless Technology

next steps to try again.

plays guidance.

System Off

1) Turn the Bluetooth® Wireless

This feature is used when you do not

• Turning On Bluetooth® Wireless

Technology function within the

wish to use the Bluetooth® Wireless

Technology through the

mobile phone ON/OFF and try

Technology system.

Key

to connect again.

Select

[Bluetooth System Off] Set

Press the

key Select [Phone]

2) Turn the mobile phone power

through TUNE knob

through TUNE knob or

key

ON/OFF and try to connect

again.

➀ A screen asking whether to turn

❈ If a phone is already connected,

on Bluetooth® Wireless Technology

3) Completely remove the mobile

disconnect the currently connect-

will be displayed.

phone battery, reboot, and then

ed phone and turn the Bluetooth®

try to connect again.

Wireless Technology system off.

➁ On the screen, select

YES

to turn

on Bluetooth® Wireless Technology

4) Reboot the audio system and

and display guidance.

try to connect again

5) Delete all paired devices in your

mobile phone and the audio

system and pair again for use.

4-26

TLe Eng 4 .qxp

2015-05-26

11:49 Page 27

System Settings

Memory Information

• Expert

: This mode is for expert

(If equipped)

users and omits some information

during voice command operation.

Displays currently used memory and

Press the

key Select

(When using Expert mode, guid-

total system memory.

[System]

ance instructions can be heard

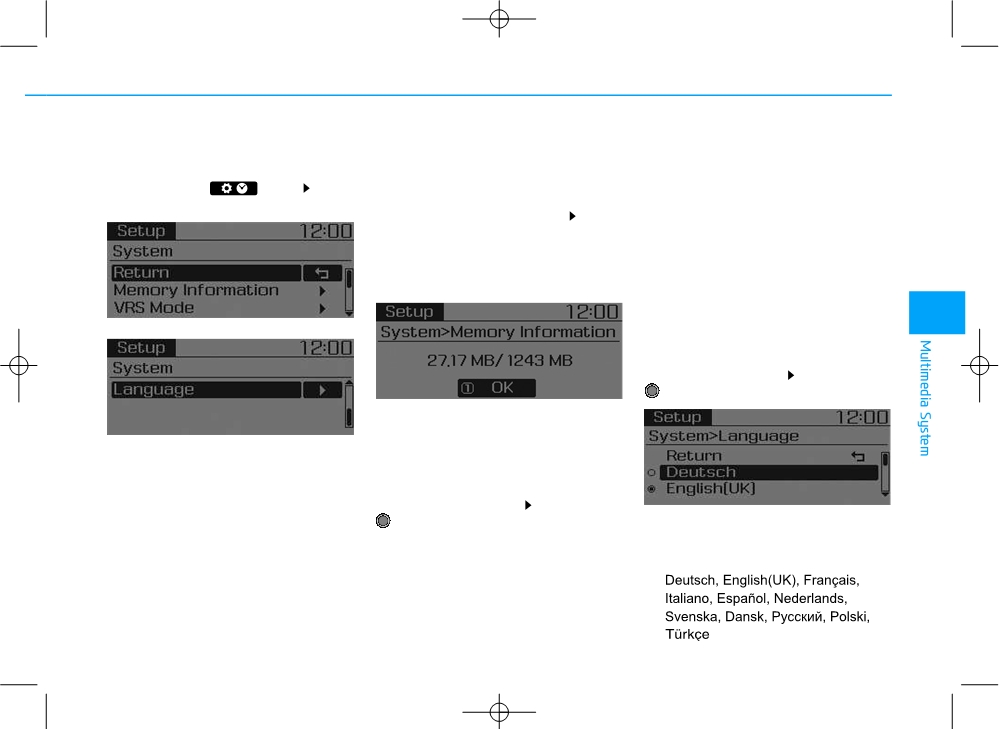

Select [Memory Information] OK

through the [Help] or [Menu] com-

The currently used memory is dis-

mands.)

played on the left side while the total

❈ May differ depending on the

system memory is displayed on the

selected audio.

right side.

Language

This menu is used to set the display

and voice recognition language.

Select

[Language] Set through

TUNE knob

VRS Mode

This feature is used to change voice

command feedback between Normal

and Expert modes.

Select

[VRS Mode] Set through

TUNE knob

❈ The system will reboot after the

• Normal : This mode is for beginner

language is changed.

users and provides detailed instruc-

❈ Language support by region

tions during voice command opera-

tion.

4-27

TLe Eng 4 .qxp

2015-05-26

11:49 Page 28

Multimedia System

Radio : FM, AM

Preset SEEK

Traffic Announcement (TA)

Press the

key

Shortly pressing the

SCAN

key

(under 0.8 seconds) : Set

Off

• Shortly pressing the key : Plays the

TA Traffic Announcement) mode.

frequency saved in the correspon-

ding key.

• Pressing and holding the key

Pressing and holding the desired

Within

key are the A.Store

key from

will save the

(Auto Store) and Info functions.

currently playing broadcast to the

selected key and sound a BEEP.

SEEK

Press the

SCAN

key

Press the

TRACK

key

SEEK

• Pressing and holding the key : The

• Shortly pressing the key : Changes

broadcast frequency increases and

the frequency.

previews each broadcast for 5 sec-

• Pressing and holding the key

onds each. After scanning all fre-

Automatically searches for the next

quencies, returns and plays the cur-

frequency.

rent broadcast frequency.

Selecting through manual

Turn the

TUNE knob left/right to

adjust the frequency.

4-28

TLe Eng 4 .qxp

2015-05-26

11:49 Page 29

AST (Auto Store)

AF (Alternative Frequency)

Info Volume

Press the

key Set [ AF]

Info Volume refers to the sound vol-

through TUNE knob or

2 RDM

key.

ume upon receiving News or Traffic

Press the

key Set [ AST]

information.

through TUNE knob or

1 RPT

key.

The Alternative Frequency option

can be turned On/Off.

The info volume can be controlled by

turning the

VOL knob left/right

while a news or traffic broadcast is

Region

playing.

Press the

key Set [ Region]

❈ AF, Region, and News are RDS

through TUNE knob or

key.

Radio menus.

The Region option can be turned

Select AST (Auto Store) to save fre-

On/Off.

quencies with superior reception to

presets

. If no frequen-

News

cies are received, then the most

Press the

key Set [ News]

recently received frequency will be

through TUNE knob or

key.

broadcast.

The News option can be turned

❈ Saves only to the Preset memory

of FMA or AMA mode.

On/Off.

4-29

TLe Eng 4 .qxp

2015-05-26

11:49 Page 30

Multimedia System

DAB Radio (For DAB Model)

Ensemble

Preset SEEK

❈ RADIO may differ depending on

Press the

FOLDER

key

Press the

key

FOLDER

the selected audio.

Changing RADIO mode

• Search the Ensemble. Use the Tune

• Shortly pressing the key (under 0.8

knob to select the desired

seconds): Plays the station saved in

Ensemble and select stations with-

the corresponding key.

in the Ensemble.

• Pressing and holding the key (over

Press the

RADIO

Key to change the

0.8 seconds): Pressing and holding

mode in order of FM1 ➟ FM2 ➟ FMA

the desired key from

➟ DAB1 ➟ DAB2 ➟ AM.

will save the currently playing station

to the selected key and sound a

SEEK

BEEP.

Press the

TRACK

key

SEEK

• Shortly pressing the key (under 0.8

seconds): Changes the station.

• Press and hold the key (over 0.8

seconds): Change the Ensemble.

4-30

TLe Eng 4 .qxp

2015-05-26

11:49 Page 31

SCAN

L-Band

Press the

key Set [ L-

Press the

SCAN

key

Band] through

TUNE knob or

• Shortly pressing the key (under 0.8

Within

key are the Service.F

2 RDM

key.

seconds): TA On/Off

(Service Following) And L-Band

• Pressing and holding the key(over

functions.

DAB Broadcasts include BAND III

and L-BAND according to the

0.8 seconds): The broadcast station

increases and previews each

Range. BAND III is always set as the

broadcasts for

5 seconds each.

default while the L-BAND feature can

After scanning all stations, returns

be turned on to search for L-BAND

and plays the current broadcast

broadcasts when in regions where L-

station.

BAND broadcasts are available.

Selecting through manual

Service Following

Press the

key Set

[

Service.F] through TUNE knob or

1 RPT

key.

When the DAB signal is weak, the

Service Following feature will auto-

matically convert to the identical FM

broadcast when such a broadcast is

available.

Turn the

TUNE knob left/right to

select the station.

4-31

TLe Eng 4 .qxp

2015-05-26

11:50 Page 32

Multimedia System

Basic Method of Use : USB / iPod® / My Music

- RDS, Bluetooth equipped model

Name

Description

Repeat

While song (file) is playing

1 RPT

key

USB, iPod®, My Music mode :

• Repeats the current song

USB mode :

• Repeats songs within the current folder.

(Pressing the key twice).

❈ Press the

RPT

key again to turn off repeat.

Random

While song (file) is playing

2 RDM

key

iPod®, My Music mode :

• Plays all songs randomly

USB mode :

• Folder Random : Plays all files within the cur-

- RDS, No Bluetooth equipped model

rent folder in random order.

• All Random : Plays all files in random

order(Pressing the key twice).

❈ Press the 2

RDM

key again to turn off repeat.

Changing

While song (file) is playing

TRACK

key

SEEK

Song/File

• Shortly pressing the key : plays the current

song from the beginning / plays the next song.

• Pressing and holding the key : Rewinds the

song / fast forwards the song.

❈ If the

TRACK

key is pressed again within 1

second, the previous song is played.

4-32

Content .. 11 12 13 14 ..
