Hyundai Sonata Plug-in Hybrid (2017 year). Instruction - part 40

Specifications, Consumer information and Reporting safety defects

Dimensions

8-2

Engine

8-2

Bulb Wattage

8-3

Tires and Wheels

8-4

Volume and Weight

8-5

Air Conditioning System

8-5

Recommended Lubricants and Capacities

8-6

Recommended SAE Viscosity Number

8-7

Vehicle Identification Number (VIN)

8-8

Vehicle Certification Label

8-8

Tire Specification and Pressure Label

8-9

Engine Number

8-9

Refrigerant Label

8-9

Consumer Information

8-10

Reporting Safety Defects

8-11

Specifications, Consumer information and Reporting safety defects

DIMENSIONS

Items

in (mm)

Overall length

191.1 (4,855)

Overall width

73.4 (1,865)

Overall height

57.87 (1,470)

205/65R16*

63.5 (1,614)

Front tread

215/55R17

63.0 (1,602)

205/65R16*

63.8 (1,621)

Rear tread

215/55R17

63.3 (1,609)

Wheelbase

110.4 (2,805)

* : Only for Hybrid vehicle. Not for Plug-in hybrid vehicle

ENGINE

Items

2.0 GDI

Displacement

121.98 (1,999)

cu. in (cc)

Bore x Stroke

3.18x3.82 (81x97)

in. (mm)

Firing order

1-3-4-2

No. of cylinders

4, In-line

8-2

BULB WATTAGE

Light Bulb

Bulb Type

Wattage (W)

Low

HB3

Type A

Headlamps

High

HB3

Type B

Low/High

D3S

Turn signal lamps

PY28/8W

Front

Parking lamps

LED

Daytime running lights

LED

Side repeater lamps

LED

Side marker lamps

W5W

Type A

Stop/Tail lamps (Outside)

P28/8W

28/8

(Bulb)

Tail lamp

Rear combina-

Type B

Stop/Tail lamps (Outside)

LED

tion lamp

(LED)

Stop/Tail lamps (Inside)

LED

Rear

Turn signal lamps

PY27W

All

Back up lamps

W16

High mounted stop lamp

LED

License plate lamps

W5W

Luggage room lamp

Festoon

with sunroof

LED

Map lamps

without sunroof

W10W

Interior

with sunroof

LED

Room lamps

without sunroof

Festoon

Vanity mirror lamps

Festoon

8-3

Specifications, Consumer information and Reporting safety defects

TIRES AND WHEELS

Inflation pressure

kPa (psi)

Wheel lug nut

Items

Tire Size

Wheel Size

torque kgf·m

Normal Load

Maximum Load

(lbf·ft, N·m)

Front

Rear

Front

Rear

205/65R16*

6.5JX16

240 (35)

9~11

Full size tire

(65~79, 88~107)

215/55R17

7.0JX17

240 (35)

*: Only for Hybrid vehicle. Not for Plug-in hybrid vehicle

CAUTION

When replacing tires, use the same size originally supplied with the vehicle.

Using tires of a different size can damage the related parts or not work properly.

NOTICE

• It is permissible to add 3 psi to the standard tire pressure specification if colder temperatures are expect-

ed soon.

Tires typically loose 1psi (7kPa) for every 12°F temperature drop. If extreme temperature variations are

expected, recheck your tire pressure as necessary to keep them properly inflated.

• An air pressure generally decreases, as you drive up to a high-altitude area above sea level. Thus, if you

plan to drive a high-altitude area, check the tire pressures in advance. If necessary, inflate them to a prop-

er level. (Air inflation per altitude : +2.4 psi/1 mile)

8-4

VOLUME AND WEIGHT

Items

Hybrid

Plug-in hybrid

Gross vehicle weight

4,630 (2,100)

4,784 (2,170)

lbs. (kg)

Luggage volume

13.42 (380)

9.89 (280)

cu ft (l)

AIR CONDITIONING SYSTEM

Items

Weight of Volume

Classification

Refrigerant

22.9 ± 0.8 (650 ± 25)

R-134a

oz. (g)

Compressor lubricant

4.59 ± 0.35 (130 ± 10)

POE (RB100EV)

oz. (cc)

Contact an authorized HYUNDAI dealer for more details.

8-5

Specifications, Consumer information and Reporting safety defects

RECOMMENDED LUBRICANTS AND CAPACITIES

To help achieve proper engine and powertrain performance and durability, use only lubricants of the proper quality.

The correct lubricants also help promote engine efficiency that results in improved fuel economy.

Lubricant

Volume

Classification

Engine oil *1 *2 (drain and refill)

Recommends

4.33 US qt. (4.1 l)

API Service SM or above*3/ILSAC GF-4 or above

MICHANG ATF SP-IV, SK ATF SP-IV NOCA ATF SP-IV,

Automatic transmission fluid

6.34 US qt. (6.0 l)

HYUNDAI genuine ATF & SP-IV or other brands meeting the above

specification approved by Hyundai Motor Co.

6.97~7.29 US qt.

Mixture of antifreeze and water

Engine coolant

(6.6 ~ 6.9 l)

(Phosphate-based ethylene glycol coolant for aluminum radiator)

Mixture of antifreeze and water

Inverter coolant

2.38 US qt. (2.26 l)

(Phosphate-based ethylene glycol coolant for aluminum radiator)

0.74~0.85 US qt.

Brake fluid

FMVSS116 DOT-3 or DOT-4

(0.7~0.8 l)

Hybrid

15.85 US gal. (60 l)

Fuel

Refer to “Fuel Requirements” in the Foreword chapter.

Plug-in hybrid

14.53 US gal. (55 l)

*1 Refer to the recommended SAE viscosity numbers on the next page.

*2 Engine oils labeled Energy Conserving Oil are now available. Along with other additional benefits, they contribute to fuel economy by reducing

the amount of fuel necessary to overcome engine friction. Often, these improvements are difficult to measure in everyday driving, but in a year’s

time, they can offer significant cost and energy savings.

*3 If the API service SM engine oil is not available in your country, you are able to use API service SL.

8-6

Recommended SAE viscosity

Engine oil viscosity (thickness) has an effect on fuel economy and cold

number

weather operating (engine start and engine oil flowability). Lower viscosity

engine oils can provide better fuel economy and cold weather performance,

however, higher viscosity engine oils are required for satisfactory lubrication

CAUTION

in hot weather. Using oils of any viscosity other than those recommended

could result in engine damage.

Always be sure to clean the area

around any filler plug, drain

When choosing an oil, consider the range of temperature your vehicle will be

plug, or dipstick before check-

operated in before the next oil change. Proceed to select the recommended

ing or draining any lubricant.

oil viscosity from the chart.

This is especially important in

dusty or sandy areas and when

Temperature Range for SAE Viscosity Numbers

the vehicle is used on unpaved

°C

-30

-20

-10

roads. Cleaning the plug and

Temperature

(°F)

-10

100

120

dipstick areas will prevent dirt

and grit from entering the

10W-30

Engine Oil *1

engine and other mechanisms

5W-20, 5W-30

that could be damaged.

*1 For better fuel economy, it is recommended to use the

engine oil of a viscosity grade SAE 5W-20 (API SM / ILSAC

GF-4). However, if the engine oil is not available in your

country, select the proper engine oil using the engine oil

viscosity chart.

8-7

Specifications, Consumer information and Reporting safety defects

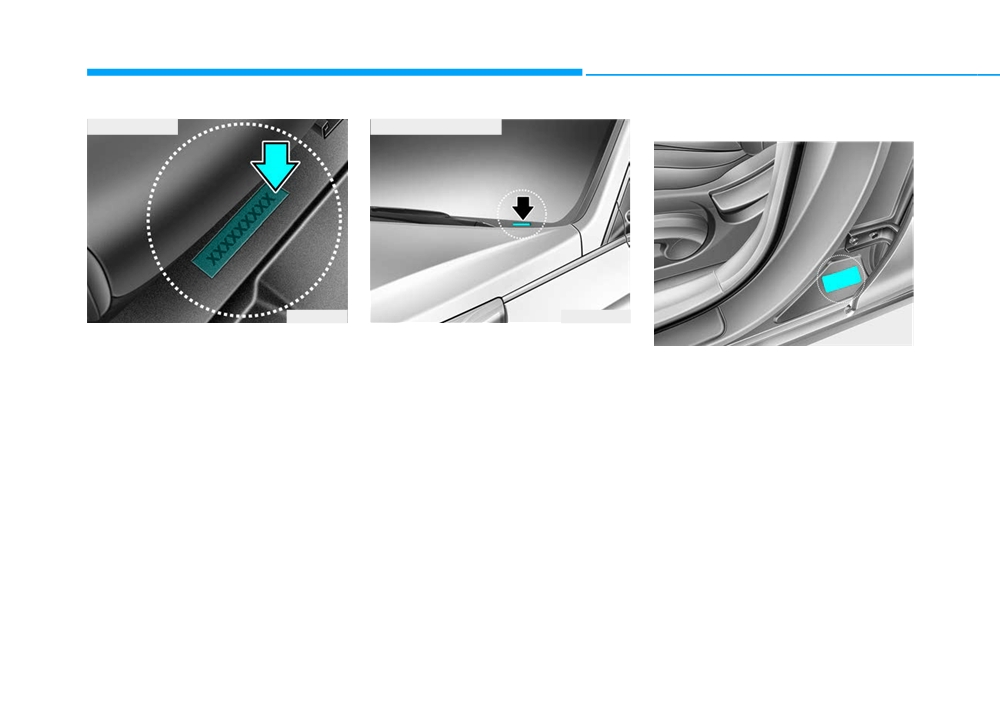

VEHICLE IDENTIFICATION NUMBER (VIN)

VEHICLE CERTIFICATION

■ Frame number

■ VIN label (if equipped)

LABEL

OLF084001

OLF084006N

The vehicle identification number

The VIN is also on a plate attached

OLFH085002N

(VIN) is the number used in register-

to the top of the dashboard. The

The vehicle certification label attached

ing your car and in all legal matters

number on the plate can easily be

on the driver’s side center pillar gives

pertaining to its ownership, etc.

seen through the windshield from

the Vehicle Identification Number

outside.

The number is punched on the floor

(VIN).

under the passenger seat. To check

the number, open the cover.

8-8

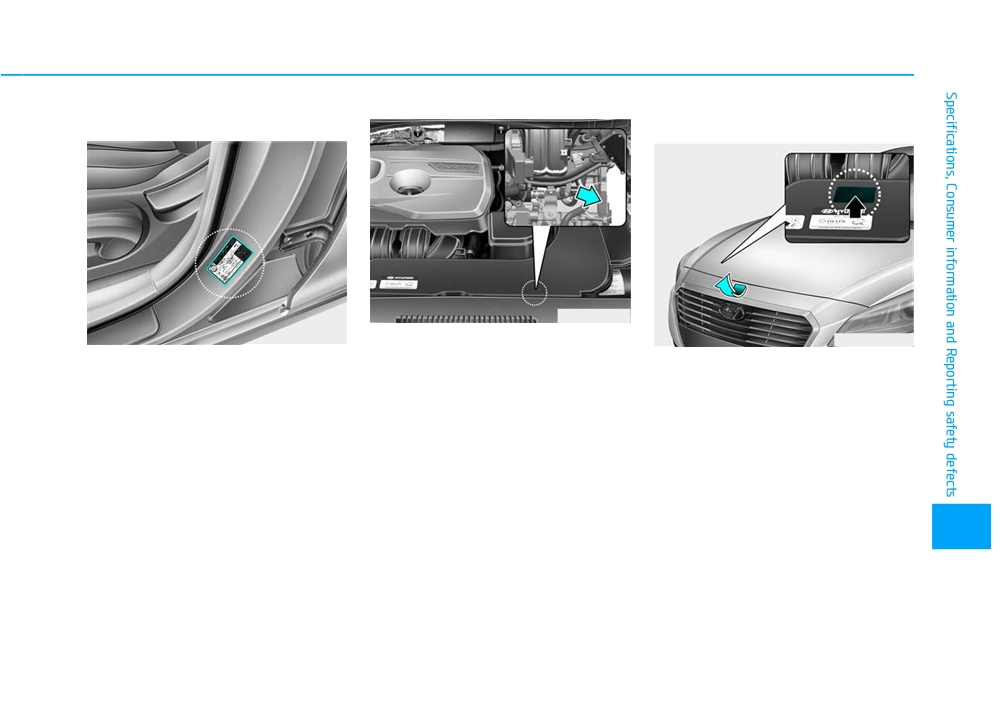

TIRE SPECIFICATION AND

ENGINE NUMBER

REFRIGERANT LABEL

PRESSURE LABEL

(IF EQUIPPED)

OLFH084003

OLFH085007N

The engine number is stamped on the

OLFH085005N

engine block as shown in the drawing.

The tires supplied on your new vehi-

The refrigerant label provides infor-

cle are chosen to provide the best

mation such as refrigerant type and

performance for normal driving.

amount.

The tire label located on the driver’s

The label is located on the underside

side center pillar gives the tire pres-

of the hood.

sures recommended for your car.

8-9

Specifications, Consumer information and Reporting safety defects

CONSUMER INFORMATION

This consumer information has been prepared in accordance with regulations issued by the National Highway Traffic

Safety Administration of the U.S. Department of Transportation. Your HYUNDAI dealer will help answer any questions you

may have as you read this information.

HYUNDAI motor vehicles are designed and manufactured to meet or exceed all applicable safety standards.

For your safety, however, we strongly urge you to read and follow all directions in this Owner’s Manual, particularly the

information under the headings "NOTICE", "CAUTION" and "WARNING".

If, after reading this manual, you have any questions regarding the operation of your vehicle, please contact your nearest

HYUNDAI Motor America Regional Office as listed in the following:

Eastern Region:

South Central Region:

Western Region:

Connecticut, Delaware,

Alabama, Arkansas, Louisiana,

Alaska, Hawaii, Arizona, California,

Maine,

Massachusetts,

New

Mississippi, New Mexico, Oklahoma,

Colorado, Idaho, Montana, Nevada,

Hampshire, New Jersey, New York,

Tennessee, Texas.

Oregon,

Utah,

Washington,

Pennsylvania,

Rhode Island,

Wyoming.

South Central Region

Vermont.

Western Region

1421 South Beltline Road, Suite 400

Eastern Region

Coppell, TX 75019

10550 Talbert Avenue P.O.Box

1122 Cranbury South River Road

20850 Fountain Valley, California

Jamesburg, NJ 08831

(800) 633-5151

92728-0850

(800) 633-5151

Central Region:

Southern Region:

Illinois, Indiana, lowa, Kentucky,

Florida, Georgia, Maryland, North

Michigan, Minnesota, Nebraska,

Carolina, South Carolina, Virginia,

North Dakota, South Dakota, Ohio,

West Virginia.

Wisconsin, Kansas, Missouri.

Southern Region

Central Region

3025 Chastain Meadows Parkway

1705 Sequoia Drive Aurora, Illinois

Suite 100 Marietta, GA 30066

60506

(800) 633-5151

8-10

REPORTING SAFETY DEFECTS

If you believe that your vehicle has a defect which could cause a crash or could cause injury or death, you should

immediately inform the National Highway Traffic Safety Administration (NHTSA) in addition to notifying HYUNDAI

MOTOR AMERICA.

If NHTSA receives similar complaints, it may open an investigation, and if it finds that a safety defect exists in a group

of vehicles, it may order a recall and remedy campaign. However, NHTSA cannot become involved in individual prob-

lems between you, your dealer, or HYUNDAI MOTOR AMERICA.

To contact NHTSA, you may call the Vehicle Safety Hotline toll-free at 1-888- 327-4236 (TTY: 1-800-424-9153);

go to http://www.safercar.gov;

or write to: Administrator, NHTSA

1200 New Jersey Ave, SE,

West Building Washington, D.C. 20590.

You can also obtain other information about motor vehicle safety from http://www.safercar.gov.

8-11

Index

Index

Airconditioning system

Automatic climate control system

3-138

A/V mode

3-98

Occupant Classification System (OCS)

3-137

Air bag warning labels

2-70

Alarm system

3-13

Air bags

2-47

Antenna

4-2

Additional safety precautions

2-69

Anti-lock brake system (ABS)

5-32

Air bag collision sensors

2-63

Appearance care

7-94

Air bag inflation conditions

2-65

Exterior care

7-94

Air bag non-inflation conditions

2-66

Interior care

7-99

Air bag warning labels

2-70

Armrest

2-14

Curtain air bags

2-51

Audio/Video/Navigation system (AVN)

4-4

Do not install a child restraint on the front

Auto door lock/unlock features

3-12

passenger seat

2-58

Auto hold

5-28

Driver's front air bag

2-49

Auto light position

3-115

How does the air bag system operate?

2-53

Automatic climate control system

3-136

Occupant Classification System (OCS)

2-58

Air conditioning

3-145

Passenger's front air bag

2-49

Automatic heating and air conditioning

3-137

Side air bags

2-50

Climate control air filter

3-148

SRS Care

2-68

Manual heating and air conditioning

3-138

SRS warning light

2-53

Automatic transmission

5-12

What to expect after an air bag inflates

2-57

Sports mode

5-15

Where are the air bags?

2-49

Automtice transmission shift indicator

3-75

Why didn't my air bag go off in a collision

2-63

AUX, USB and iPod® port

4-2

Air cleaner

7-35

Air conditioning system (Refrigerant/Compressor)

8-5

Air ventilation seats

2-22

I-2

Backseat pocket

2-11

California perchlorate notice

7-106

Back-up lamp

7-91

Capacities (Lubricants)

8-6

Battery

7-41

Care

Battery saver function

3-121

Exterior care

7-94

Before driving

5-4

Interior care

7-99

Blind spot detection system (BSD)

5-48

Tire care

7-44

Bluetooth® Wireless Technology Hands-Free

4-4

Center console storage

3-154

Brake fluid

7-33

Central door lock switch

3-10

Brake system

5-19

Certification label

8-8

Anti-lock brake system (ABS)

5-32

Chains

Auto hold

5-28

Tire chains

5-86

Disc brakes wear indicator

5-20

Charging the plug-in hybrid vehicle

H-4

Electric parking brake (EPB)

5-22

Checking tire inflation pressure

7-46

Braking system

Child restraint system (CRS)

2-36

Electronic stability control (ESC)

5-34

Children always in the rear

2-36

Foot parking brake

5-20

Installing a Child Restraint System (CRS)

2-39

Hill-start assist control (HAC)

5-39

Lower anchors and tether for children (LATCH)

Power brakes

5-19

system

2-40

Vehicle Stability Management

5-38

Securing with lap/shoulder belt

2-44

Bulb replacement

7-80

Securing with Tether anchors

2-43

Bulb wattage

8-3

Selecting a Child Restraint System (CRS)

2-37

Button start/stop, see engine start/stop button

5-5

Child-protector rear door lock

3-12

Climate control air filter

3-148, 7-37

Clock

3-159

Clothes hanger

3-160

I-3

Index

Combined instrument, see instrument cluster

3-60

Door locks

3-9

Consumer information

8-9

Auto door lock/unlock features

3-12

Coolant

7-29

Central door lock switch

3-10

Cooling fluid, see engine coolant

7-29

Child-protector rear door lock

3-12

Cruise control

5-60

Drinks holders, see cup holders

3-156

Cup holder

3-156

Drive mode integrated control system (Hybrid)

5-41

Curtain air bags

2-51

Drive mode integrated control system

(Plug-in hybrid)

5-43

Driver assis system

Rear parking assist system (RPAS)

3-121

Dashboard illumination, see instrument panel

Rear view camera

3-130

illumination

3-61

Driver position memory system

3-14

Dashboard, see instrument cluster

3-60

Driver's front air bag

2-49

Day/night rearview mirror

3-19

Driving at night

5-82

Daytime running light

3-122

Driving in flooded areas

5-83

Defogging (Windshield)

3-150

Driving in the rain

5-83

Defroster (Rear window)

3-135

Driving the hybrid/plug-in hybrid vehicle

H-22

Defrosting (Windshield)

3-150

Digital speedometer

3-109

Dimensions

8-2

Disc brakes wear indicator

5-20

Electric chromic mirror (ECM)

3-20

Display illumination, see instrument panel

Electric parking brake (EPB)

5-22

illumination

3-61

Electric power steering (EPS)

3-16

Displays, see instrument cluster

3-60

Electronic stability control (ESC)

5-34

Do not install a child restraint on the front

Emergency fuel filler door release

3-53

passenger seat

2-62

Emission control system

7-102

Door courtesy lamp

3-126

Engine specification

8-2

I-4

Engine compartment

1-6, 7-3

Fuel filler lid (Hybrid)

3-53

Engine compartment panel fuse

7-62

Fuel filler lid (Plug-in hybrid)

3-56

Engine coolant

7-29

Fuel Gauge

3-64

Engine Coolant Temperature gauge

3-61

Fuel requirements

F-7

Engine number

8-9

Fuse switch

7-62

Engine oil

7-27

Fuses

7-60

Engine start/stop button

5-5

Instrument panel fuse

7-61

Explanation of scheduled maintenance items

7-24

Engine compartment panel fuse

7-62

Exterior care

7-94

Fuse switch

7-62

Exterior overview (front)

1-2

Fuse/relay panel description

7-64

Exterior overview (rear)

1-3

Main fuse

7-63

Multi fuse

7-63

Flat tire (with Tire Mobility kit)

6-15

Floor mat anchor(s)

3-161

Gauges

3-62

Fluid

Glove box

3-154

Brake fluid

7-33

Glove box lamp

3-124

Washer fluid

7-34

Folding rear seats

2-12

Folding the side view mirror

3-36

Foot parking brake

5-20

Forward collision warning system (FCWS)

5-45

Front lamp

3-124

Front seats

2-6

Fuel Economy

3-107

Fuel filler lid

Emergency fuel filler door release

3-53

I-5

Index

Hazard warning flasher

6-2

If an accident occurs

6-26

Hazardous driving conditions

5-81

If the engine overheats

6-7

Head restraints

2-16

If the vehicle stalls at a crossroad or crossing

6-2

Headlamp bulb replacement

7-81

If the vehicle stalls while driving

6-2

Headlamp delay function

3-121

If the vehicle will not start

6-3

Headlamp position

3-116

If you have a flat tire

6-15

Heated steering wheel

3-17

If you have a flat tire while driving

6-3

Heater

Immobilzer system

3-8

Automatic climate control system

3-137

Improtant safety precautions

2-2

Manual climate control system

3-138

Air bag hazards

2-2

HEV (Hybrid Electric Vehicle) system

H-2

Always wear your seat belt

2-2

High - beam operation

3-117

Control your speed

2-3

High mounted stop lamp

7-92

Driver distraction

2-2

Highway driving

5-84

Keep your vehicle in safe condition

2-3

Hill-start assist control (HAC)

5-39

Restrain all children

2-2

Hood

3-46

In case of emergency while driving

6-2

Horn

3-18

Indicator lights (Instrument cluster)

3-67

How to use this manual

F-6

Information Mode

3-98

Hybrid Battery SOC (State of Charge) Gauge

3-63

Inside rearview mirror

3-19

Hybrid starter and generator belt (HSG belt)

7-32

Instrument cluster

3-60

Hybrid System Gauge

3-62

Automtice transmission shift indicator

3-75

Gauges

3-62

Instrument panel illumination

3-61

LCD Display Control

3-96

I-6

Content .. 38 39 40 41 ..
