Maintenance
Main fuse
Multi fuse
i
Information
If the multi fuse is blown, consult an
authorized HYUNDAI dealer.
OLF074025
OLF074026
If the main fuse is blown, it must be
If the multi fuse is blown, it must be
removed as follows:
removed as follows:
1. Turn off the engine.
1. Turn off the engine.
2. Disconnect the negative battery
2. Disconnect the negative battery
cable.
cable.
3. Remove the fuse panel cover by
3. Remove the fuse panel cover by
pressing the tab and pulling it up.
pressing the tab and pulling it up.
4. Remove the nuts shown in the pic-
ture above.
4. Remove the nuts shown in the pic-
5. Replace the fuse with a new one
ture above.
of the same rating.
5. Replace the fuse with a new one
6. Reinstall in the reverse order of
of the same rating.
removal.
6. Reinstall in the reverse order of
i
Information
removal.
If the main fuse is blown, consult an
authorized HYUNDAI dealer.
7-60

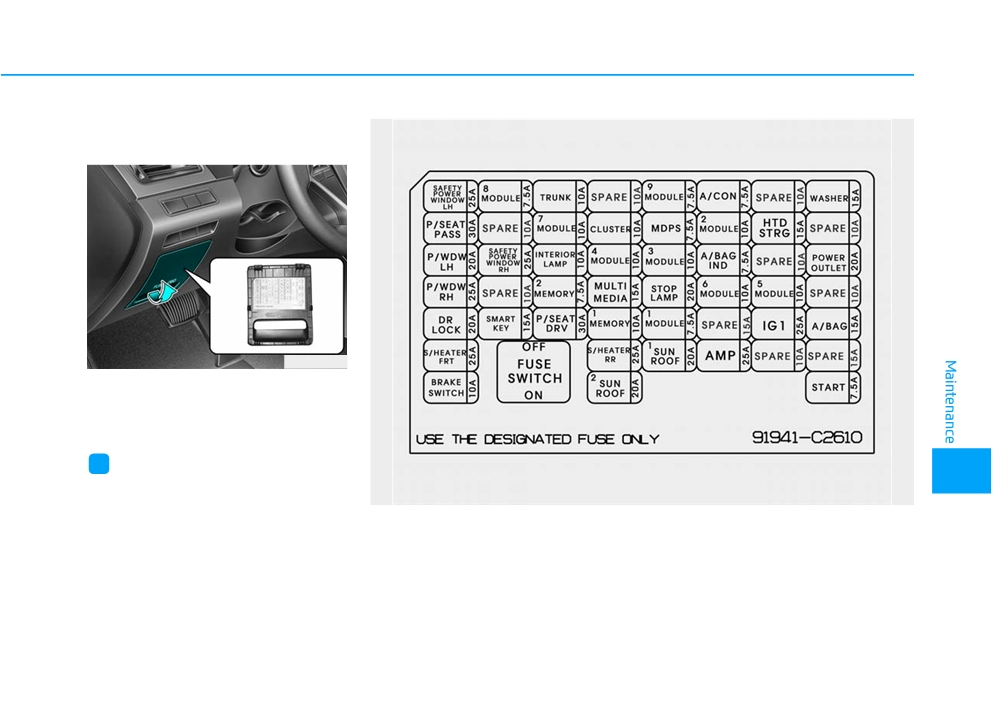

Fuse/Relay Panel Description
Instrument panel fuse panel
OLF074027
Inside the fuse/relay box cover, you
can find the fuse/relay label describ-
ing fuse/relay name and capacity.
i
Information
7
Not all fuse panel descriptions in this
OLF074058N
manual may be applicable to your
vehicle; the information is accurate at
the time of printing. When you inspect
the fuse box on your vehicle, refer to
the fuse box label.
7-61
Maintenance
Instrument panel fuse panel
Fuse Name
Fuse rating
Protected Component
SAFETY WINDOW LH
25A
Driver Safety Power Window Module
P/SEAT PASS
30A
Passenger Seat Manual Switch
P/WDW LH
20A
Power Window Main Switch, Rear Power Window Module LH
Power Window Main Switch, Rear Power Window Module RH, Passenger Door Module,
P/WDW RH
25A
Passenger Power Window Switch
DR LOCK
20A
Door Lock Relay, Door Unlock Relay
S/HEATER FRT
25A
Front Air Ventilation Seat Module, Front Seat Warmer Module
BRAKE SWITCH
10A
Stop Lamp Switch, Immobilizer Module, Smart Key Control Module
8 MODULE
7.5A
BCM, Smart Key Control Module
SAFETY POWER WINDOW
25A
Passenger Safety Power Window Module
RH
SMART KEY
15A
Smart Key Control Module
TRUNK
10A
Trunk Lid Relay, Fuel Filler Door & Trunk Lid Switch
7 MODULE
10A
Digital Clock, Driver/Passenger Door Module
Glove Box Lamp, Ignition Key Illumination & Door Warning Switch,
Front Vanity Lamp Switch LH/RH, Overhead Console Lamp, Room Lamp,
INTERIOR LAMP
10A
Rear Personal Lamp LH/RH, Trunk Room Lamp, Driver/Passenger Smart Key Outside Handle,
Driver/Passenger Door Lamp
2 MEMORY
7.5A
-
P/SEAT DRV
30A
Driver Seat Manual Switch, Driver IMS Module
CLUSTER
10A
Instrument Cluster
7-62
Instrument panel fuse panel
Fuse Name
Fuse rating
Protected Component
4 MODULE
10A
Immobilizer Module, Smart Key Control Module
MULTI MEDIA
15A
Audio, A/V & Navigation Head Unit, TMU Unit
1 MEMORY
10A
Immobilizer Module, Smart Key Control Module
S/HEATER RR
25A
Rear Seat Warmer Module
2 SUN ROOF
20A
Panoramic Sunroof Motor
9 MODULE
7.5A
Front Air Ventilation Seat Module, Front Seat Warmer Module, Rear Seat Warmer Module
MDPS
7.5A
MDPS Unit (Column Type/Rack Type)
3 MODULE
10A
BCM, Sport Mode Switch, Stop Lamp Switch
STOP LAMP
20A
Stop Signal Electronic Module
1 MODULE
7.5A
Key Solenoid, Driver/Passenger Door Module
1 SUN ROOF
20A
Panoramic Sunroof Motor
A/CON
7.5A
A/C Control Module, E/R Junction Block (RLY. 3 - Blower Relay)
Audio, A/V & Navigation Head Unit, TMU Unit, Digital Clock, BCM, AMP,
7
2 MODULE
10A
Power Outside Mirror Switch, Smart Key Control Module, Overhead Console Lamp,
E/R Junction Block (RLY. 5 - Power Outlet Relay)
A/BAG IND
7.5A
Instrument Cluster
Multipurpose Check Connector, A/C Control Module, TMU Unit, A/V & Navigation Head Unit,
6 MODULE
10A
Electro Chromic Mirror, Front Air Ventilation Seat Module, Front Seat Warmer Module,
Rear Seat Warmer Module, Driver IMS Module, A/T Shift Lever IND.
AMP
25A
AMP (JBL/MOBIS)
HTD STRG
15A
BCM
7-63
Maintenance
Instrument panel fuse panel
Fuse Name
Fuse rating
Protected Component
Front Console Switch, Tire Pressure Monitoring Module, Lane Departure Warning Unit,
Smart Cruise Control Unit, Fuel Filler Door & Trunk Lid Switch, Sport Mode Switch,
5 MODULE
10A
Rear Parking Assist Sensor LH/RH, Rear Parking Assist Sensor, LH/RH (Center),
Blind Spot Detection Radar LH/RH
IG1
25A
PCB Block
WASHER
15A
Multifunction Switch (Wiper Low & Washer Switch)
POWER OUTLET
20A
Front Power Outlet
A/BAG
15A
SRS Control Module, Occupant Detection Sensor
[Without Smart Key & Immobilzer] ICM Relay Box (Burglar Alarm Relay),
START
7.5A
Immobilzer] ICM Relay Box (Burglar Alarm Relay), Transaxle Range Switch,
PCM (G4KJ/G4KH)
7-64

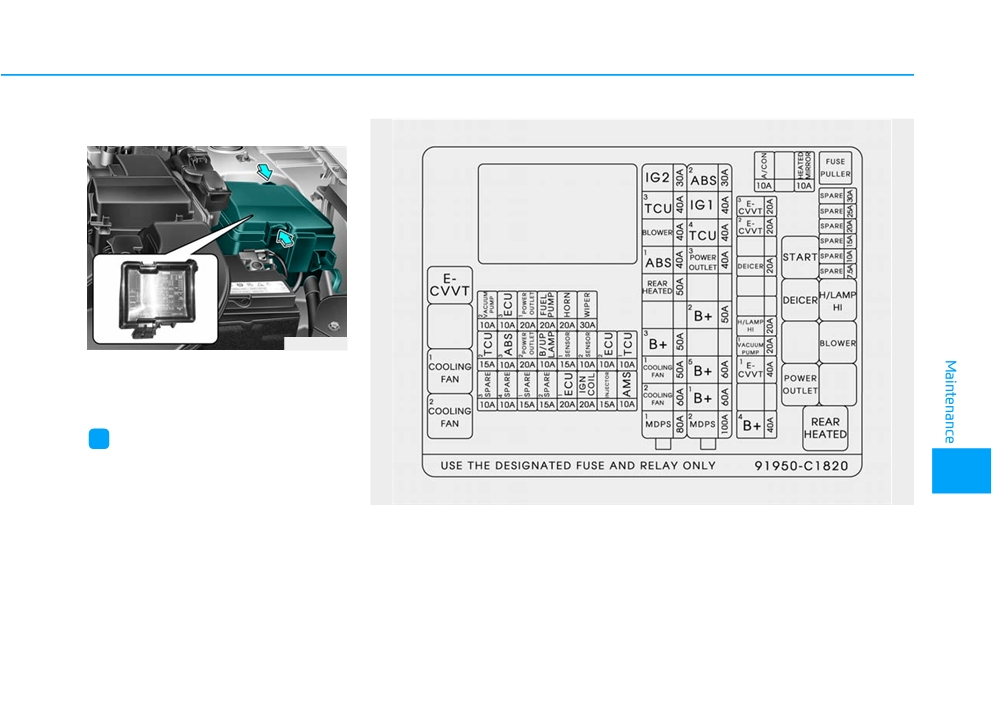

Engine compartment fuse panel
OLF074028
Inside the fuse/relay box cover, you
can find the fuse/relay label describ-
ing fuse/relay name and capacity.
i
Information
Not all fuse panel descriptions in this
7
manual may be applicable to your
vehicle; the information is accurate at
OLF074057N
the time of printing. When you inspect
the fuse panel in your vehicle, refer to
the fuse panel label.
7-65
Maintenance
Engine compartment main fuse panel
Fuse Name
Fuse rating
Protected Component
[Without Smart Key] Relay 8 (Start Relay), Ignition Switch,
IG2
30A
[With Smart Key] Relay 8 (Start Relay), PCB Block (IG2 Relay)
3 TCU
40A
[G4FJ - DCT] TCM
BLOWER
40A
Relay 3 (Blower Relay)
MULTI
1 ABS
40A
ESC Module
FUSE
REAR HEATED
50A
Relay 1 (Rear Heated Relay)
(TYPE A)
1 B+
50A
Smart Junction Block (IPS2 (4CH), IPS3 (4CH), Fuse - F28/F29)
1 COOLING FAN
50A
[G4KH/G4FJ] Relay 11 (Cooling Fan Relay), [G4KJ] Relay 12 (Cooling Fan Relay)
2 COOLING FAN
60A
[G4KH/G4FJ] Relay 12 (Cooling Fan Relay)
1 MDPS
80A
MDPS Unit (Column Type)
2 ABS
30A
ESC Module, Multipurpose Check Connector
IG1
40A
[Without Smart Key] Ignition Switch, [With Smart Key] PCB Block (IG1/ACC Relay)
4 TCU
40A
[G4FJ - DCT] TCM
MULTI
3 POWER OUTLET
40A
Relay 5 (Power Outlet Relay)
FUSE
2 B+
50A
Smart Junction Block (IPS1 (4CH), IPS4 (4CH), IPS5 (4CH), Fuse - F36)
(TYPE B)
5 B+
60A
PCB Block (Engine Control Relay, Fuse - F4/F5/F6/F13/F14/F22)
Smart Junction Block (Power Window Relay, Fuse -
1 B+
60A
F1/F2/F3/F4/F10/F13/F17/F23/F24/F30)
2 MDPS
100A
MDPS Unit (Rack Type)
7-66
Engine compartment main fuse panel
Fuse Name
Fuse rating
Protected Component
3 E-CVVT
20A
[G4KJ/G4KH] PCM
2 E-CVVT
20A
[G4KJ/G4KH] PCM
DEICER
20A
Relay 5 (Deicer Relay)
H/LAMP HI
20A
[With HID] Relay 5 (Head Lamp High Relay)
1 VACUUM PUMP
20A
[G4KH/G4FJ] Vacuum Pump
1 E-CVVT
40A
[G4KJ/G4KH] Relay 9 (E-CVVT Relay)
Smart Junction Block (Leak Current Autocut Device Fuse - F15/F21/F22,
4 B+
40A
Fuse - F5/F6/F7/F12)
A/CON
10A
A/C Control Module
HEATED MIRROR
10A
ECM (G4FJ), A/C Control Module, Drover/Passenger Power Outside Mirror
FUSE
2 VACUUM PUMP
10A
[G4KH/G4FJ] Vacuum Pump
3 ECU
10A
PCM/ECM
1 POWER OUTLET
20A
Cigarette Lighter
7
FUEL PUMP
20A
Fuel Pump Relay
HORN
20A
Horn Relay, ICM Relay Box (Burglar Alarm Horn Relay)
WIPER
30A
Front Wiper (Low) Relay, Front Wiper (High) Relay
2 TCU
15A
Transaxle Range Switch, TCM (G4FJ-DCT)
3 ABS
10A
ESC Module, MDPS Unit
2 POWER OUTLET
20A
Rear Power Outlet
7-67
Maintenance
Engine compartment main fuse panel
Fuse Name
Fuse rating
Protected Component
Transaxle Range Switch, PCM (G4KJ/G4KH-A/T), TCM (G4FJ-DCT), Audio,
B/UP LAMP
10A
Electro Chromic Mirror, Rear Combination Lamp (IN) LH/RH
1 SENSOR
15A
Oxygen Sensor (Up/Down)
Purge Control Solenoid Valve, Canister Close Valve, RCV Control Solenoid Valve,
Fuel Pump Relay, E/R Junction Block (RLY. 12 - Cooling Fan 2 Relay),
2 SENSOR
15A
[G4KJ/G4KH] Variable Intake Solenoid Valve, Oil Control Valve (Exhaust),
[G4FJ] Oil Control Valve #1/#2 (Intake/Exhaust)
FUSE
1 ECU
10A
PCM/ECM
1 TCU
10A
PCM (G4KJ/G4KH-A/T), TCM (G4FJ-DCT)
1 ECU
10A
PCM/ECM
IGN COIL
20A
Ignition Coil #1/#2/#3/#4, Condenser (G4FJ)
INJECTOR
15A
-
AMS
10A
Battery Sensor
7-68
LIGHT BULBS
Consult an authorized HYUNDAI
i Information
WARNING
dealer to replace most vehicle light
bulbs. It is difficult to replace vehicle
After heavy driving, rain or washing,
headlamp and trunk lenses could
•
Prior to replacing a lamp,
light bulbs because other parts of the
vehicle must be removed before you
appear frosty. This condition is caused
depress the foot brake, move
by the temperature difference
the shift lever into P
(Park)
can get to the bulb. This is especially
true for removing the headlamp
between the lamp inside and the out-
apply the parking brake, place
side temperature. This is similar to the
the igntion switch to the
assembly to get to the bulb(s).
condensation on your windows inside
LOCK/OFF position, and take
Removing/installing the headlamp
your vehicle during the rain and does-
the key with you when leaving
assembly can result in damage to
n’t indicate a problem with your vehi-
the vehicle to avoid sudden
the vehicle.
cle. If the water leaks into the lamp
movement of the vehicle and
bulb circuitry, have your vehicle
to prevent possible electric
checked by an authorized HYUNDAI
shock.
dealer.
•
Be aware the bulbs may be
hot and may burn your fin-
gers.
7
7-69
Maintenance
Headlamp, Position Lamp,
• Always handle them carefully, and
Turn Signal Lamp and
avoid scratches and abrasions. If
Side Marker Light Bulb
the bulbs are lit, avoid contact with
Replacement
liquids.
• Never touch the glass with bare
Type A
hands. Residual oil may cause the
bulb to overheat and burst when lit.
• A bulb should be operated only
when installed in a headlamp.
• If a bulb becomes damaged or
cracked, replace it immediately
OLMB073042L
and carefully dispose of it.
Headlamp (Halogen bulb)
WARNING
• Handle halogen bulbs with
OLF074051N
care. Halogen bulbs contain
pressurized gas that will pro-
(1) Headlamp (Low)
duce flying pieces of glass
(2) Headlamp (High)
that could cause injuries if
(3) Side marker
broken.
(4) Turn signal lamp
• Wear eye protection when
(5) Daytime running lamp/
changing a bulb. Allow the
bulb to cool down before han-
Position lamp
dling it.
7-70

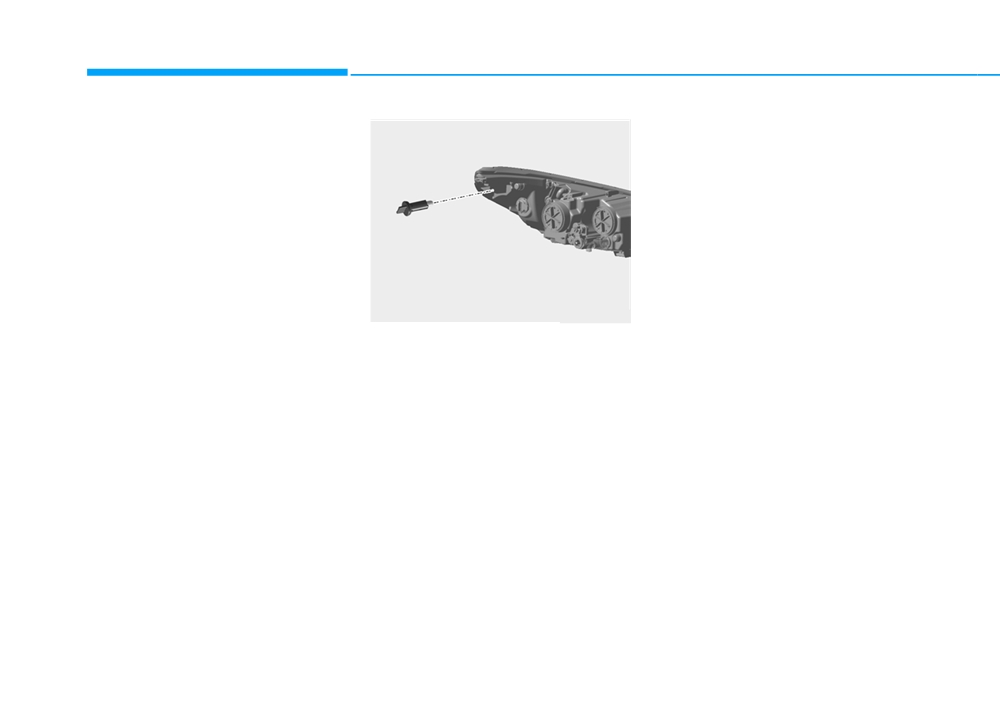

■ High beam
5. Unsnap the headlamp bulb retain-
ing wire by pressing the end and
pushing it upward.
6. Remove the bulb from the head-
lamp assembly.
7. Install a new headlamp bulb and
snap the headlamp bulb retaining
wire into position by aligning the
wire with the groove on the bulb.
OLF074102MX
8. Connect the headlamp bulb sock-
■ Low beam
et-connector.
OLF074052
9. Install the headlamp bulb cover by
Turn signal lamp
turning it clockwise.
1. Open the hood.
2. Disconnect the negative battery
i
Information
cable.
The headlamp aiming should be
3. Remove the socket from the
adjusted after an accident or after the
assembly by turning the socket
headlamp assembly is reinstalled at an
counterclockwise until the tabs on
authorized HYUNDAI dealer.
the socket align with the slots on
7
OLF074103MX
the assembly.
1. Open the hood.
4. Remove the bulb from the socket
2. Disconnect the negative battery
by pressing it in and rotating it
cable.
counterclockwise until the tabs on
3. Remove the headlamp bulb cover
the bulb align with the slots in the
by turning it counterclockwise.
socket. Pull the bulb out of the
4. Disconnect the headlamp bulb
socket.
socket-connector.
7-71
Maintenance
5. Insert a new bulb by inserting it
Daytime running lamp/
into the socket and rotating it until
Position lamp
it locks into place.
If the LED lamp does not operate,
6. Install the socket in the assembly
have the vehicle checked by an
by aligning the tabs on the socket
authorized HYUNDAI dealer.
with the slots in the assembly.
7. Push the socket into the assembly
and turn the socket clockwise.
OLF074084N
Side marker
1. Open the hood.
2. Disconnect the negative battery
cable.
3. Remove the socket from the
assembly by turning the socket
counterclockwise until the tabs on
the socket align with the slots on
the assembly.
4. Remove the bulb from the socket
by pulling out the bulb.
5. Insert a new bulb.
7-72
Type B
Type C
Headlamp (HID type)
WARNING
HID Headlamp low beam
Do not attempt to replace or
inspect the low beam (XENON
bulb) due to electric shock dan-
ger. If the low beam
(XENON
bulb) is not working, have your
vehicle checked by an author-
ized HYUNDAI Dealer.
OLF074051N
OLF074051N
(1) Headlamp (Low/High)
(1) Headlamp (Low)
i
Information
(2) Side marker
(2) Headlamp (High/DRL)
If your vehicle is equipped with High
(3) Turn signal lamp
(3) Side marker
Intensity Discharge (HID) headlamps,
(4) Daytime running lamp/
(4) Turn signal lamp/Position lamp
these headlamps contain mercury. So
Position lamp
if you need to have your vehicle dis-
posed, you should remove the HID
7
Headlamps before disposal. The
removed HID headlamps should be
recycled, re-used or disposed as haz-
ardous waste.
If the light bulb does not operate,
have the vehicle checked by an
authorized HYUNDAI dealer.
7-73
Maintenance
5. Insert a new bulb by inserting it
i
Information
into the socket and rotating it until
HID lamps have superior perform-
it locks into place.
ance vs. halogen bulbs.
6. Install the socket in the assembly
HID lamps are estimated by the man-
by aligning the tabs on the socket
ufacturer to last twice as long or
with the slots in the assembly.
longer than halogen bulbs depending
7. Push the socket into the assembly
on their frequency of use. They will
and turn the socket clockwise.
probably require replacement at some
point in the life of the vehicle. Cycling
the headlamps on and off more than
typical use will shorten HID lamps
OLF074052
life. HID lamps do not fail in the same
Turn signal lamp
manner as halogen incandescent
lamps. If a headlamp goes out after a
1. Open the hood.
period of operation but will immedi-
2. Disconnect the negative battery
ately relight when the headlamp
cable.
switch is cycled it is likely the HID
3. Remove the socket from the
lamp needs to be replaced. HID light-
assembly by turning the socket
ing components are more complex
counterclockwise until the tabs on
than conventional halogen bulbs thus
the socket align with the slots on
have higher replacement cost.
the assembly.
4. Remove the bulb from the socket
NOTICE
by pressing it in and rotating it
counterclockwise until the tabs on
The headlamp aiming should be
the bulb align with the slots in the
adjusted after an accident or after
socket. Pull the bulb out of the
the headlamp assembly is rein-
socket.
stalled at an authorized HYUNDAI
dealer.
7-74
Daytime running lamp/
Side Repeater Lamp
Position lamp
Replacement
If the LED lamp does not operate,
have the vehicle checked by an
authorized HYUNDAI dealer.
OLF074084N
Side marker
1. Open the hood.
OLF074053N
2. Disconnect the negative battery
If the LED lamp does not operate,
cable.
have the vehicle checked by an
3. Remove the socket from the
authorized HYUNDAI dealer.
assembly by turning the socket
counterclockwise until the tabs on
the socket align with the slots on
7
the assembly.
4. Remove the bulb from the socket
by pulling out the bulb.
5. Insert a new bulb.
7-75
Maintenance
Rear Combination Light Bulb
Replacement
Stop/Tail lamp
Type A
Turn Signal lamp
OLF074062
OLF074063
Stop/Tail lamp and Turn signal lamp
3. Remove the socket from the
assembly by turning the socket
1. Open the trunk lid.
counterclockwise until the tabs on
2. Remove the service cover by turn-
the socket align with the slots on
OLF074060
ing the lock counterclockwise and
the assembly.
(1) Stop/Tail lamp
then pulling it out.
4. Remove the bulb from the socket by
(2) Turn signal lamp
pressing it in and rotating it counter-
(3) Tail lamp
clockwise until the tabs on the bulb
(4) Back-up lamp
align with the slots in the socket.
Pull the bulb out of the socket.
5. Insert a new bulb by inserting it
into the socket and rotating it until
it locks into place.
6. Install the socket in the assembly
by aligning the tabs on the socket
with the slots in the assembly.
Push the socket into the assembly
and turn the socket clockwise.
7-76
