Index Hyundai Hyundai Sonata Hybrid - instruction 2017 year in english
|
|
|
Your vehicle at a glance

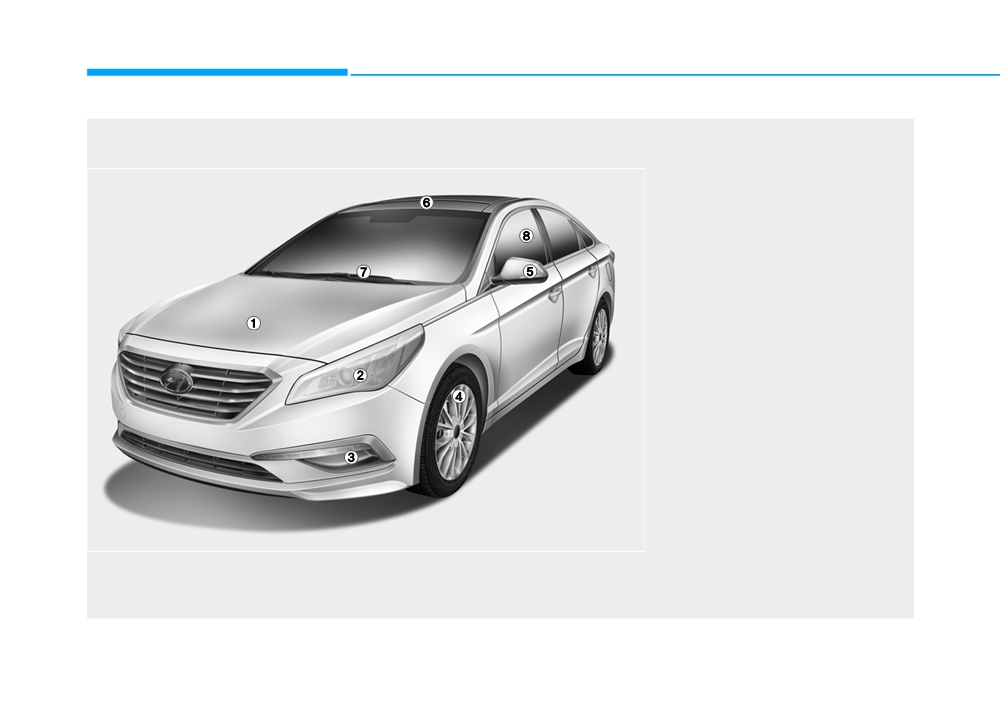

EXTERIOR OVERVIEW (I)
■ Front view
1. Hood
3-56
2. Headlamp
7-70
3. DRL/Position lamp
7-75
4. Tires and wheels
7-41
5. Side view mirrors
3-40
6. Sunroof*/Panoramic sunroof*...3-48, 3-52
7. Front windshield wiper blades
7-36
8. Windows
3-44
* : if equipped
The actual shape may differ from the illustration.
OLF014001N
1-2

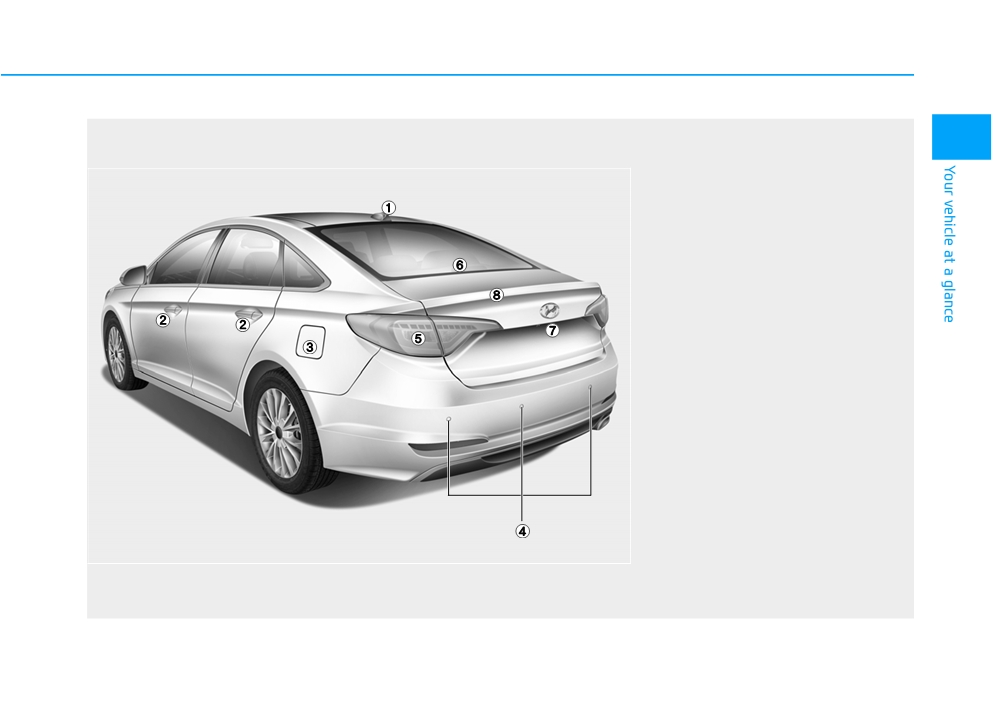

EXTERIOR OVERVIEW (II)
■ Rear view
1
1. Antenna
4-2
2. Doors
3-14
3. Fuel filler door
3-63
4. Rear parking assist system
3-125
5. Rear combination lamp
7-76
6. High mounted stop lamp
7-80
7. Rearview camera
3-124
8. Trunk
3-57
The actual shape may differ from the illustration.
OLF014002N
1-3
Your vehicle at a glance

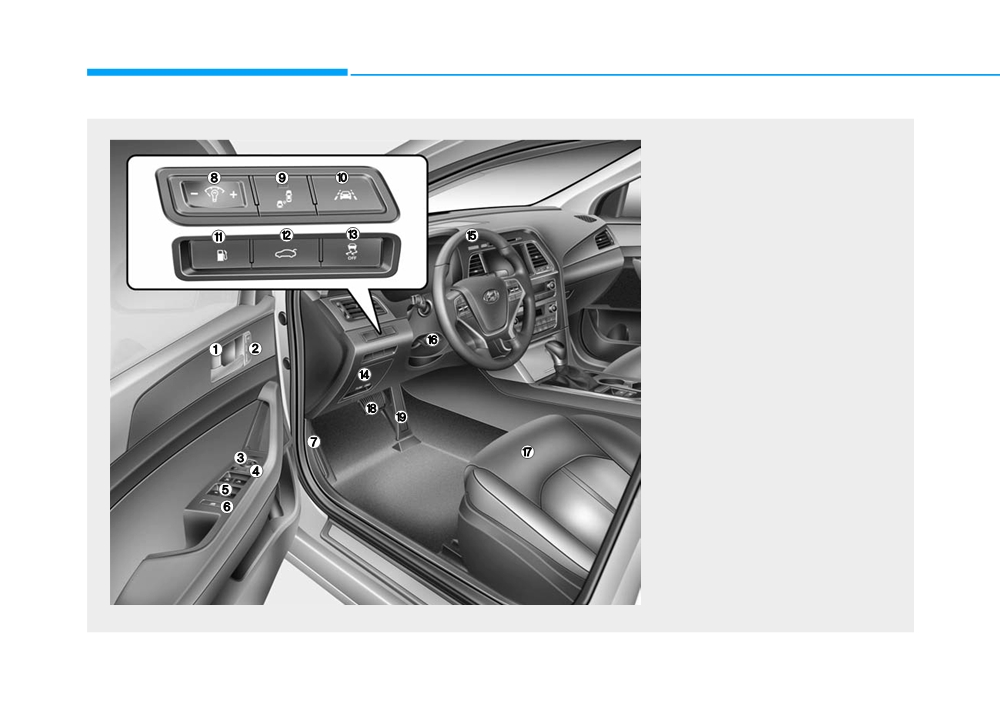

INTERIOR OVERVIEW
1. Door lock/unlock button
3-15
2. Driver position memory system
3-20
3. Side view mirrors control switch
3-40
4. Central door lock switch
3-16
5. Power window switches
3-45
6. Power window lock switch
3-47
7. Hood release lever
3-56
8. Instrument panel illumination
control switch
3-69
9. Blind spot detection system button*
5-74
10. Lane departure warning system
button*
5-69
11. Fuel filler door opener button
3-63
12. Trunk release button
3-59
13. ESC OFF button
5-43
14. Fuse box
7-57
15. Steering wheel
3-22
16. Steering wheel tilt/telescope lever
3-23
17. Seat
2-4
18. Brake pedal
5-28
19. Accelerator pedal
* : if equipped
The actual shape may differ from the illustration.
OLF014003N
1-4

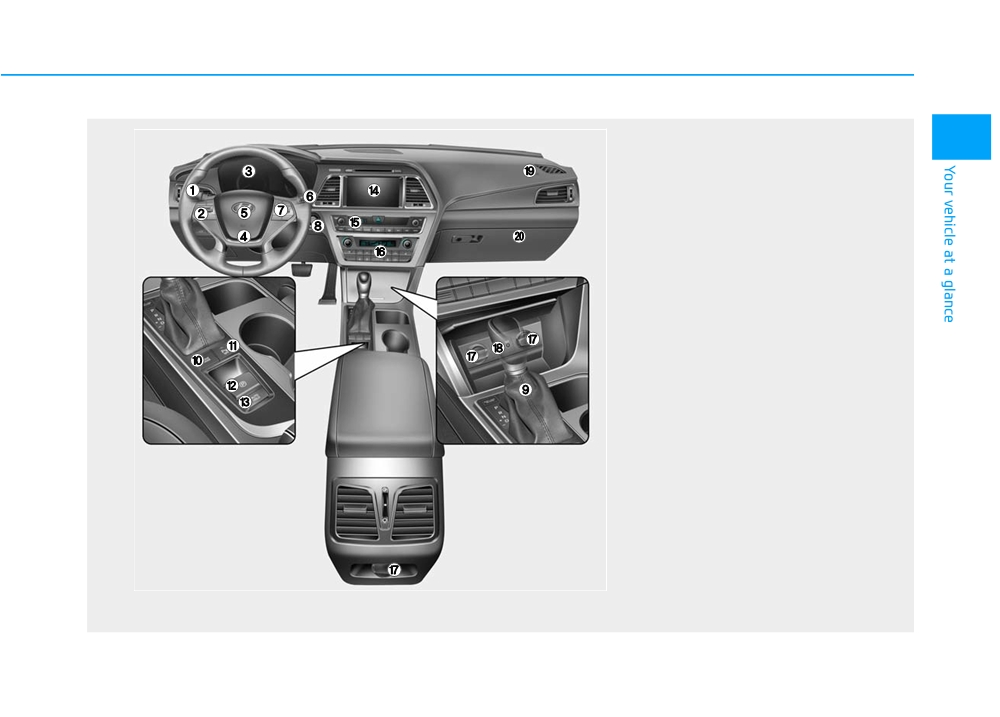

INSTRUMENT PANEL OVERVIEW
1. Light control/Turn signals
3-109
1
2. Steering wheel audio controls*/
Bluetooth® wireless technology
hands-free controls*
4-3
3. Instrument cluster
3-63
4. Horn
3-24
5. Driver’s front air bag
2-47
6. Wiper/Washer
3-122
7. Cruise controls*
5-50
8. Engine Start/Stop button/
Key ignition switch
5-6
9. Automatic transmission/Dual clutch
transmission shifter
5-14, 5-18
10. Drive mode integrated control
system
5-48
11. Rear parking assist system
3-124
12. EPB (Electronic Parking Brake)* ..5-31
13. AUTO HOLD
5-37
14. Audio system/Navigation system
4-4
15. Digital Clock
3-160
16.Climate control system
3-129, 3-139
17. Power outlet
3-158
18. AUX, USB and iPod® port
4-2
19. Passenger’s front air bag
2-47
20. Glove box
3-155
The actual shape may differ from the illustration.
* : if equipped
OLF014004N
1-5
Your vehicle at a glance

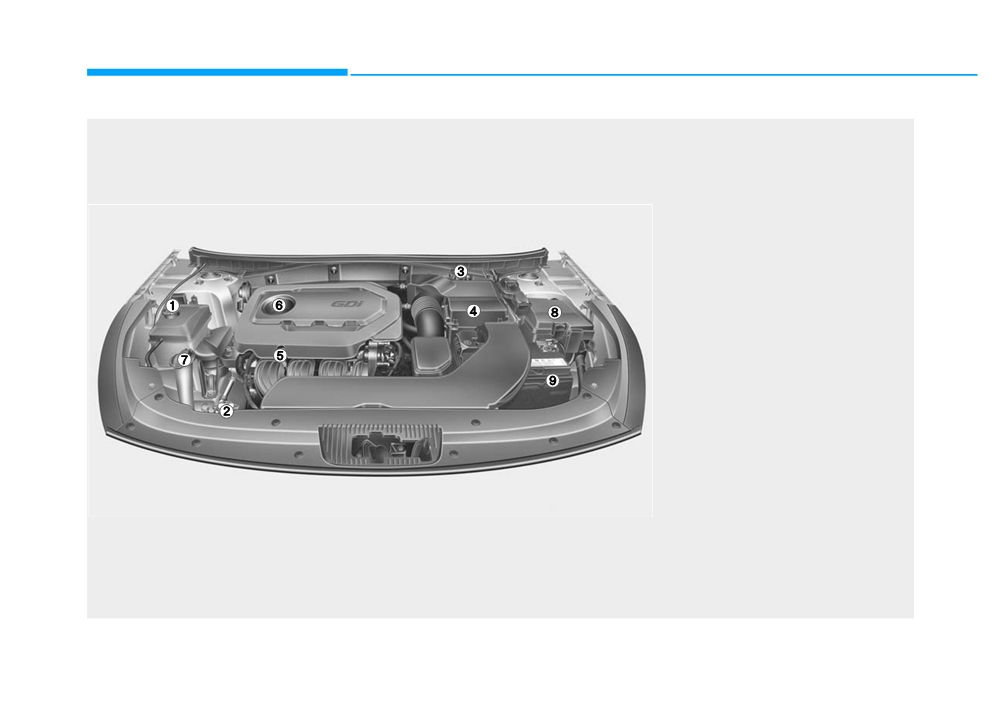

ENGINE COMPARTMENT
1. Engine coolant reservoir
7-27
2. Radiator cap
7-28
3. Brake fluid reservoir
7-30
4. Air cleaner
7-32
5. Engine oil dipstick
7-24
6. Engine oil filler cap
7-25
7. Windshield washer fluid reservoir
7-31
8. Fuse box
7-59
9. Battery
7-38
The actual engine room in the vehicle may differ from the illustration.
OLF014006
1-6
Safety system of your vehicle
This chapter provides you with important information about how to protect yourself and your passengers.
It explains how to properly use your seats and seat belts, and how your air bags work.
Additionally, this chapter explains how to properly restrain infants and children in your vehicle.
2
Important Safety Precautions
2-2
Child Restraint System (CRS)
2-34
Always Wear Your Seat Belt
2-2
Children Always in the Rear
2-34
Restrain All Children
2-2
Selecting a Child Restraint System (CRS)
2-35
Air Bag Hazards
2-2
Installing a Child Restraint System (CRS)
2-37
Driver Distraction
2-2
Air Bag -
Control Your Speed
2-3
Advanced Supplemental Restraint System
2-45
Keep Your Vehicle in Safe Condition
2-3
Where Are the Air Bags?
2-47
Seats
2-4
How Does the Air Bag System Operate?
2-50
Safety Precautions
2-5
What to Expect After an Air Bag Inflates
2-55
Front Seats
2-6
Occupant Classification System (OCS)
2-56
Rear Seats
2-12
Why Didn’t My Air Bag Go Off in a Collision? (Air bags
Head Restraints
2-15
are not designed to inflate in every collision.)
2-61
Seat Warmers and Air Ventilation Seats
2-19
SRS Care
2-66
Seat Belts
2-22
Additional Safety Precautions
2-67
Seat Belt Safety Precautions
2-22
Air Bag Warning Labels
2-68
Seat Belt Warning Light
2-23
Seat Belt Restraint System
2-24
Additional Seat Belt Safety Precautions
2-30
Care of Seat Belts
2-33
Safety system of your vehicle
IMPORTANT SAFETY PRECAUTIONS
You will find many safety precautions
Restrain All Children
Driver Distraction
and recommendations throughout
All children under age 13 should ride
Driver distraction presents a serious
this section, and throughout this man-
in your vehicle properly restrained in
and potentially deadly danger, espe-
ual. The safety precautions in this sec-
a rear seat, not the front seat. Infants
cially for inexperienced drivers. Safety
tion are among the most important.
and small children should be
should be the first concern when
restrained in an appropriate child
behind the wheel and drivers need to
Always Wear Your Seat Belt
restraint. Larger children should use
be aware of the wide array of potential
a booster seat with the lap/shoulder
distractions, such as drowsiness,
A seat belt is your best protection in
belt until they can use the seat belt
reaching for objects, eating, personal
all types of accidents. Air bags are
properly without a booster seat.
grooming, other passengers, and
designed to supplement seat belts,
using cellular phones.
not replace them. So even though
your vehicle is equipped with air bags,
Air Bag Hazards
Drivers can become distracted when
they take their eyes and attention off
ALWAYS make sure you and your
While air bags can save lives, they
passengers wear your seat belts, and
the road or their hands off the wheel
can also cause serious or fatal
to focus on activities other than driv-
wear them properly.
injuries to occupants who sit too
ing. To reduce your risk of distraction
close to them, or who are not prop-
or getting into an accident:
erly restrained. Infants, young chil-
dren, and shorter adults are at the
greatest risk of being injured by an
inflating air bag. Follow all instruc-
tions and warnings in this manual.
2-2
•
ALWAYS set up your mobile devices
Control Your Speed
Keep Your Vehicle in Safe
(i.e., MP3 players, phones, naviga-
Condition
Excessive speed is a major factor in
tion units, etc.) when your vehicle is
crash injuries and deaths. Generally,
Having a tire blowout or a mechanical
parked or safely stopped.
the higher the speed, the greater the
failure can be extremely hazardous. To
•
ONLY use your mobile device when
2
risk, but serious injuries can also
reduce the possibility of such prob-
allowed by laws and when conditions
occur at lower speeds. Never drive
lems, check your tire pressures and
permit safe use. NEVER text or
faster than is safe for current condi-
condition frequently, and perform all
email while driving. Most states have
tions, regardless of the maximum
regularly scheduled maintenance.
laws prohibiting drivers from texting.
speed posted.
Some states and cities also prohibit
drivers from using handheld phones.
•
NEVER let the use of a mobile
device distract you from driving. You
have a responsibility to your passen-
gers and others on the road to
always drive safely, with your hands
on the wheel as well as your eyes
and attention on the road.
2-3
Safety system of your vehicle

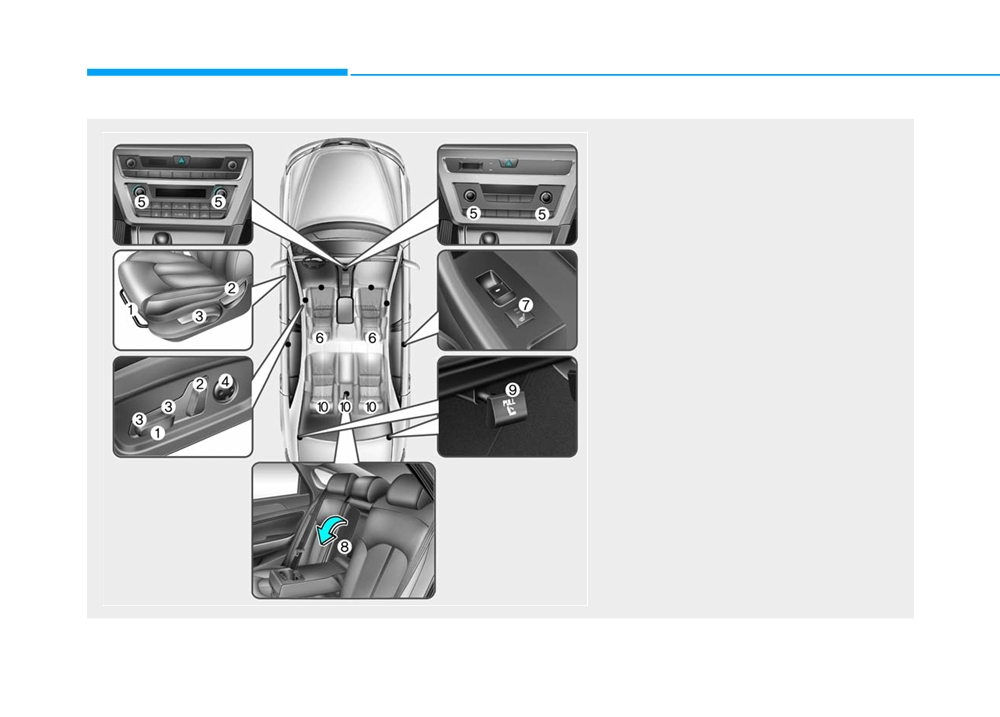

SEATS
Front seats

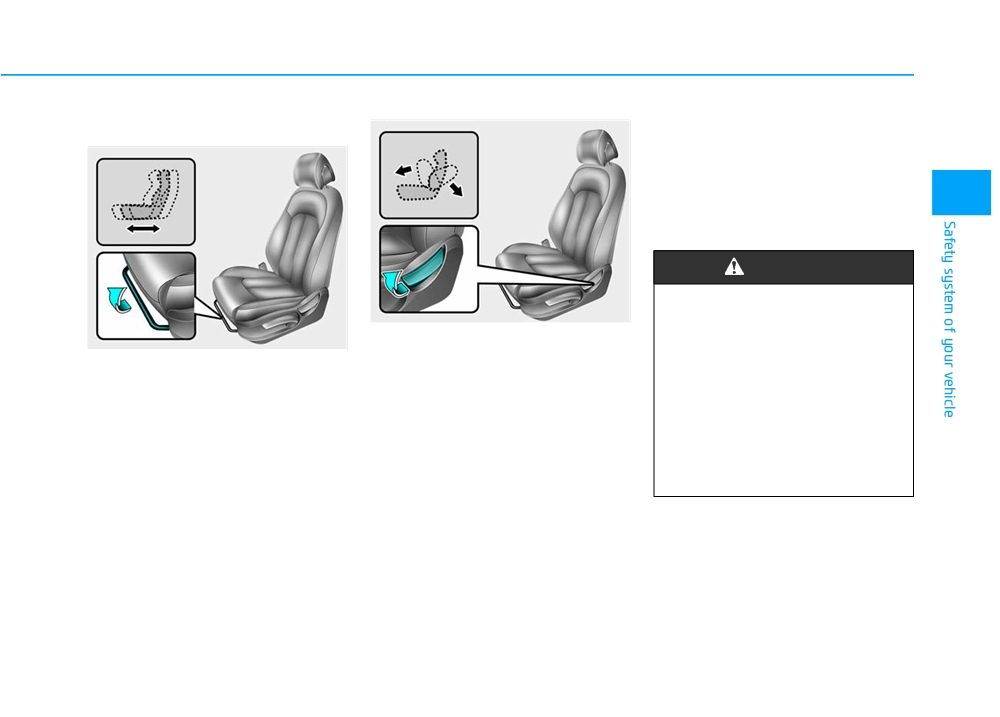

1. Seat sliding forward or rearward
adjustment
2. Seatback angle adjustment
3. Seat cushion height adjustment

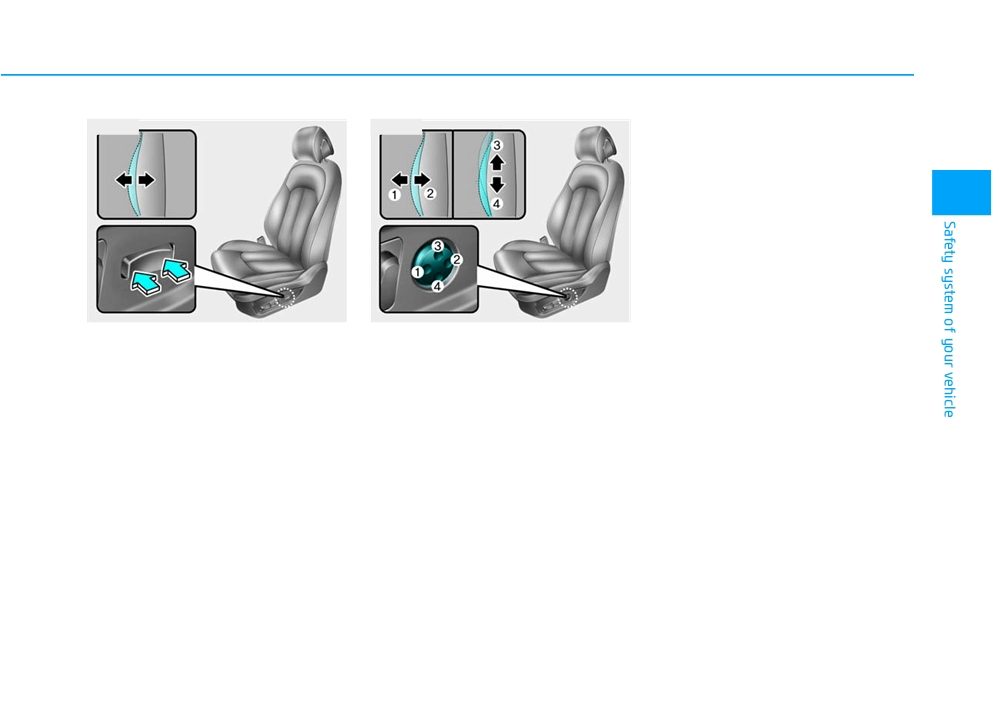

4. Lumbar support adjustment*
5. Seat warmer/Air ventilation seat*
6. Head restraint
Rear seats
7. Seat warmer*
8. Armrest
9. Seatback folding lever (trunk)
10. Head restraint
* : if equipped
OLF034001N
2-4
Safety Precautions
The National Highway Traffic Safety
Seat belts
Administration (NHTSA) recommends
Adjusting the seats so that you are sit-
Always fasten your seat belt before
that drivers allow at least 10 inches
ting in a safe, comfortable position
starting any trip.
(25 cm) between the center of the
plays an important role in driver and
At all times, passengers should sit
steering wheel and their chest.
2
passenger safety together with the
upright and be properly restrained.
seat belts and air bags in an accident.
Infants and small children must be
WARNING
restrained in appropriate child restraint
WARNING
systems. Children who have outgrown
To reduce the risk of serious
a booster seat and adults must be
injury or death from an inflating
Do not use a cushion that
restrained using the seat belts.
air bag, take the following pre-
reduces friction between the seat
cautions:
and the passenger. The passen-
ger’s hips may slide under the
•
Adjust the driver’s seat as far to
the rear as possible while main-
lap portion of the seat belt during
an accident or a sudden stop.
taining the ability to maintain
full control of the vehicle.
Serious or fatal internal injuries
could result because the seat
•
Adjust the front passenger seat
belt cannot operate properly.
as far to the rear as possible.
•
Hold the steering wheel by the
rim with hands at the 9 o’clock
Air bags
and 3 o’clock positions to mini-
mize the risk of injuries to your
You can take steps to reduce the risk
of being injured by an inflating air
hands and arms.
bag. Sitting too close to an air bag
•
NEVER place anything or any-
greatly increases the risk of injury in
one between the steering wheel
the event the air bag inflates.
and the air bag.
•
Do not allow the front passen-
ger to place feet or legs on the
dashboard to minimize the risk
of leg injuries.
2-5
Safety system of your vehicle
Front Seats
WARNING
(Continued)
• Use extreme caution when
WARNING
Take the following precautions
picking small objects trapped
when adjusting your seat belt:
under the seats or between
Take the following precautions
•
NEVER use one seat belt for
the seat and the center con-
when adjusting your seat:
more than one occupant.
sole. Your hands might be cut
•
NEVER attempt to adjust the
or injured by the sharp edges
•
Always position the seatback
seat while the vehicle is mov-
of the seat mechanism.
upright with the lap portion of
ing. The seat could respond
the seat belt snug and low
with unexpected movement
across the hips.
and may cause loss of vehicle
CAUTION
•
NEVER allow children or small
control resulting in an acci-
infants to ride in a passenger’s
dent.
To prevent injury:
lap.
•
Do not place anything under
• Do not adjust your seat while
•
Do not route the seat belt
the front seats. Loose objects
across your neck, across sharp
in the driver’s foot area could
wearing your seat belt.

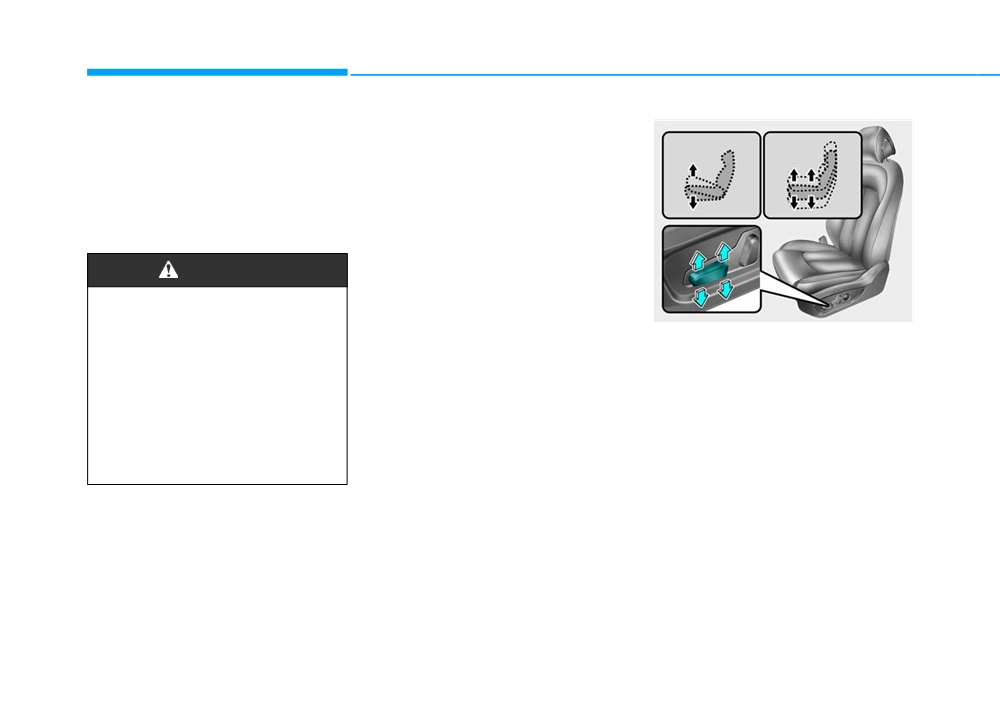

Moving the seat cushion for-
edges, or reroute the shoulder
interfere with the operation of
strap away from your body.
the foot pedals, causing an
ward may cause strong pres-
sure on your abdomen.
•
Do not allow the seat belt to
accident.
become caught or jammed.
•
Do not allow anything to inter-
• Do not allow your hands or
fingers to get caught in the
fere with the normal position
seat mechanisms while the
and proper locking of the seat-
seat is moving.
back.
•
Do not place a cigarette lighter
on the floor or seat. When you
operate the seat, gas may exit
out of the lighter causing a fire.
(Continued)
2-6
Manual adjustment
Reclining seatback
Sitting in a reclined position when
the vehicle is in motion can be dan-
gerous. Even when buckled up, the
protection of your restraint system
2
(seat belts and air bags) is greatly
reduced by reclining your seatback.
WARNING
NEVER ride with a reclined
OLF034003N
seatback when the vehicle is
Seatback angle
moving.
OLF034002N
To recline the seatback:
Riding with a reclined seatback
Forward and rearward adjustment
increases your chance of seri-
1. Lean forward slightly and lift up the
To move the seat forward or rearward:
ous or fatal injuries in the event
seatback lever.
1. Pull up the seat slide adjustment
of a collision or sudden stop.
2. Carefully lean back on the seat
lever and hold it.
Drivers and passengers should
and adjust the seatback to the
2. Slide the seat to the position you
ALWAYS sit well back in their
position you desire.
desire.
seats, properly belted, and with
3. Release the lever and make sure
the seatbacks upright.
3. Release the lever and make sure
the seatback is locked in place.
the seat is locked in place. Move
(The lever MUST return to its orig-
forward and rearward without using
inal position for the seatback to
the lever. If the seat moves, it is not
lock.)
locked properly.
2-7
Safety system of your vehicle
Seat belts must be snug against your
Power adjustment
hips and chest to work properly.
The front seat can be adjusted by
When the seatback is reclined, the
using the control switches located on
shoulder belt cannot do its job
the outside of the seat cushion. Before
because it will not be snug against
driving, adjust the seat to the proper
your chest. Instead, it will be in front
position so that you can easily control
of you. During an accident, you could
the steering wheel, foot pedals and
be thrown into the seat belt, causing
controls on the instrument panel.
neck or other injuries.
The more the seatback is reclined,
WARNING
the greater chance the passenger’s
hips will slide under the lap belt or
OLF034004N
NEVER allow children in the
the passenger’s neck will strike the

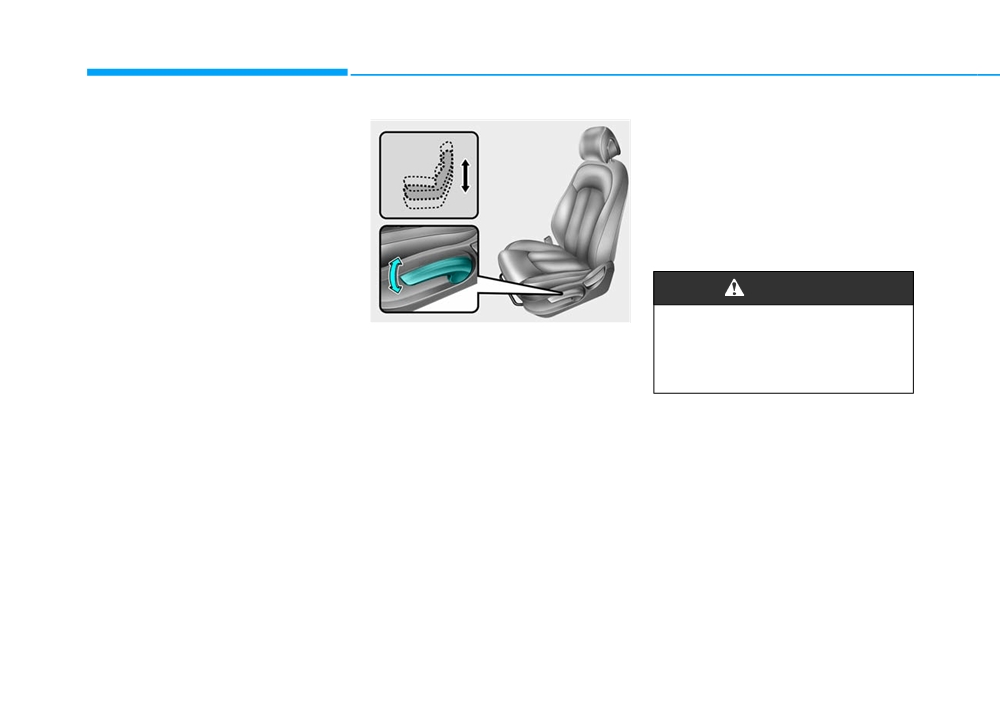

Seat cushion height
vehicle unattended. The power
shoulder belt.
To change the height of the seat
seats are operable when the
cushion:
engine is turned off.
• Push down on the lever several
times, to lower the seat cushion.
• Pull up on the lever several times,
to raise the seat cushion.
2-8
NOTICE
To prevent damage to the seats:
•
Always stop adjusting the seats
when the seat has been adjust-
2
ed as far forward or rearward as
possible.
•
Do not adjust the seats longer
than necessary when the engine
is turned off. This may result in
unnecessary battery drain.
OLF034005N
OLF034006N
•
Do not operate two or more
seats at the same time. This may

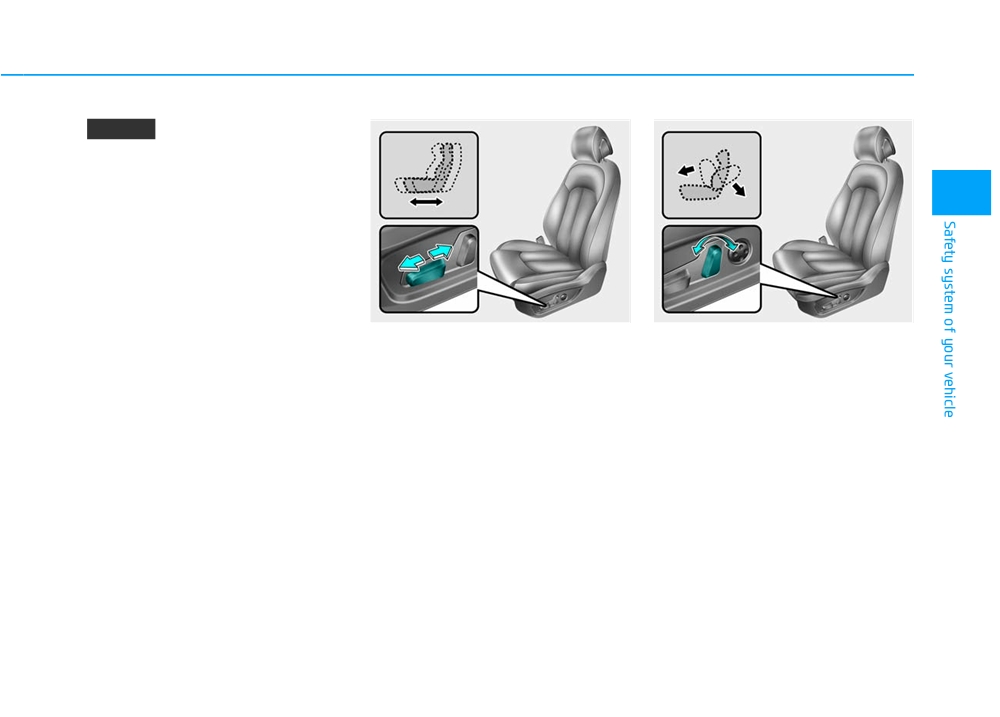

Forward and rearward adjustment
Seatback angle
result in an electrical malfunc-
To move the seat forward or rearward:
To recline the seatback:
tion.
1. Push the control switch forward or
1. Push the control switch forward or
rearward.
rearward.
2. Release the switch once the seat
2. Release the switch once the seat-
reaches the desired position.
back reaches the desired position.
2-9
Safety system of your vehicle
Reclining seatback
Seat belts must be snug against your
hips and chest to work properly.
Sitting in a reclined position when
When the seatback is reclined, the
the vehicle is in motion can be dan-
shoulder belt cannot do its job
gerous. Even when buckled up, the
because it will not be snug against
protections of your restraint system
your chest. Instead, it will be in front
(seat belts and air bags) is greatly
of you. During an accident, you could
reduced by reclining your seatback.
be thrown into the seat belt, causing
neck or other injuries.
WARNING
The more the seatback is reclined,
the greater chance the passenger’s
NEVER ride with a reclined seat-
hips will slide under the lap belt or
OLF034007N
back when the vehicle is moving.
the passenger’s neck will strike the
Seat cushion height
Riding with a reclined seatback
shoulder belt.
increases your chance of serious
To change the height of the seat
or fatal injuries in the event of a
cushion:
collision or sudden stop.
1. Pull the front portion of the control
Driver and passengers should
switch up to raise or push down to
ALWAYS sit well back in their
lower the front part of the seat
seats, properly belted, and with
cushion. Pull the rear portion of the
the seatbacks upright.
control switch up to raise or push
down to lower the seat cushion.
2. Release the switch once the seat
reaches the desired position.
2-10
■ Type A
■ Type B
According to the equipped feature, the
lumbar support does not operate up or
down when the lumbar support is in
the rearmost position.
In this case, to use the system, slight-
2
ly increase support by pushing the
front portion of the switch (1).
OLF034074N
OLF034008N
Lumbar support
Lumbar support
(for driver’s seat, if equipped)
(for driver’s seat, if equipped)
To adjust the lumbar support:
The lumbar support can be adjusted
by pressing the lumbar support
1. Press the front portion of the
switch.
switch to increase support or the
rear portion of the switch to
• Press the front portion of the
decrease support.
switch (1) to increase support or
the rear portion of the switch (2) to
2. Release the switch once it reach-
decrease support.
es the desired position.
• Move the support position up and
down by pressing the switch (3) or
(4).
2-11
|
|
|
