Hyundai Terracan (2007 year). Instruction - part 12





3 WHAT TO DO IN AN EMERGENCY
6
D040B03HP-GAT
2. Insert the spare wheel rod into the
Installation is the reverse order of re-
Handling the Spare Tire
hole in the upper pad of the rear
moval.
bumper.
3. Connect the wheel nut wrench to
the spare wheel rod.
!
CAUTION:
4. Turn the wheel nut wrench counter-
When installing, turn the wheel nut
clockwise and the spare tire will
wrench clockwise till you hear the
lower.
crackle once or twice(Tightening
torque : 3.87 kg.m). And make sure
the spare tire is secured in the
proper location.
HHP4015
1. Obtain the spare wheel rod (Jack
handle) after folding up the seat
cushion of the second seat .
To fold up the seat cushion, refer to
the page 1-25.
HHP4026
5. Remove the lift plate from the cen-
ter of the spare tire after the spare
tire is lowered completely.
HHP4025
WHAT TO DO IN AN EMERGENCY
3
IF YOU HAVE A FLAT TIRE
CHANGING A FLAT TIRE
7
D050A01HP-GAT
D060A02HP-GAT
If a tire goes flat while you are driving:
!
WARNING:
1. Take your foot off the accelerator
Your vehicle is equipped with tires
pedal and let the car slow down
designed to provide for safe ride
while driving straight ahead. Do not
and handling capability.
apply the brakes immediately or at-
Do not use a size and type of tire
tempt to pull off the road as this may
and wheel that is different from the
cause a loss of control. When the
one that was originally installed on
car has slowed to such a speed that
your vehicle. It can affect the safety
it is safe to do so, brake carefully
and performance of your vehicle,
and pull off the road. Drive off the
which could lead to handling fail-
D060A01HP
road as far as possible and park on
ure or rollover and serious injury.
firm, level ground. If you are on a
The procedure described on the fol-
When replacing the tires, be sure to
lowing pages can be used to rotate
equip all four tires with the tire and
divided highway, do not park in the
median area between the two traffic
tires as well as to change a flat tire.
wheel of the same size, type, tread,
lanes.
When preparing to change a flat tire,
brand and load-carrying capacity.
check to be sure the gear selector
If you nevertheless decide to equip
2. When the car is stopped, turn on
your emergency hazard flashers,
lever is in "P" (automatic transmission)
your vehicle with any tire/wheel
set the parking brake and put the
or reverse gear (manual transmission)
combination not recommended by
and that the parking brake is set, then:
Hyundai for off-road driving, you
transmission in "P" (automatic trans-
mission) or reverse (manual trans-
should not use these tires for high-
mission).
way driving.
3. Have all passengers get out of the
car. Be sure they all get out on the
side of the car that is away from
traffic.
4. Change the tire according to the
instructions provided as following.
3 WHAT TO DO IN AN EMERGENCY
8
D060B01HP-GAT
D060C01A-AAT
1. Obtain Spare Tire and Tool
2. Block the Wheel
HHP4011
Flat tire
o Remove the spare tire and take out
HHP4015
HHP4022
the jack and tool bag.
o Obtain the spare wheel rod (Jack
Block the wheel that is diagonally op-
handle) after folding up the seat
posite from the flat tire to keep the
NOTE:
cushion of the second seat .
vehicle from rolling when the car is
The spare tire is located underneath
To fold up the seat cushion, refer to
raised on the jack.
the car.
the page 1-25.
WHAT TO DO IN AN EMERGENCY
3
9
D065C02HP-GAT
D060D01A-AAT
D060E01A-AAT
3. Removing the Spare Wheel
4. Loosen Wheel Nuts

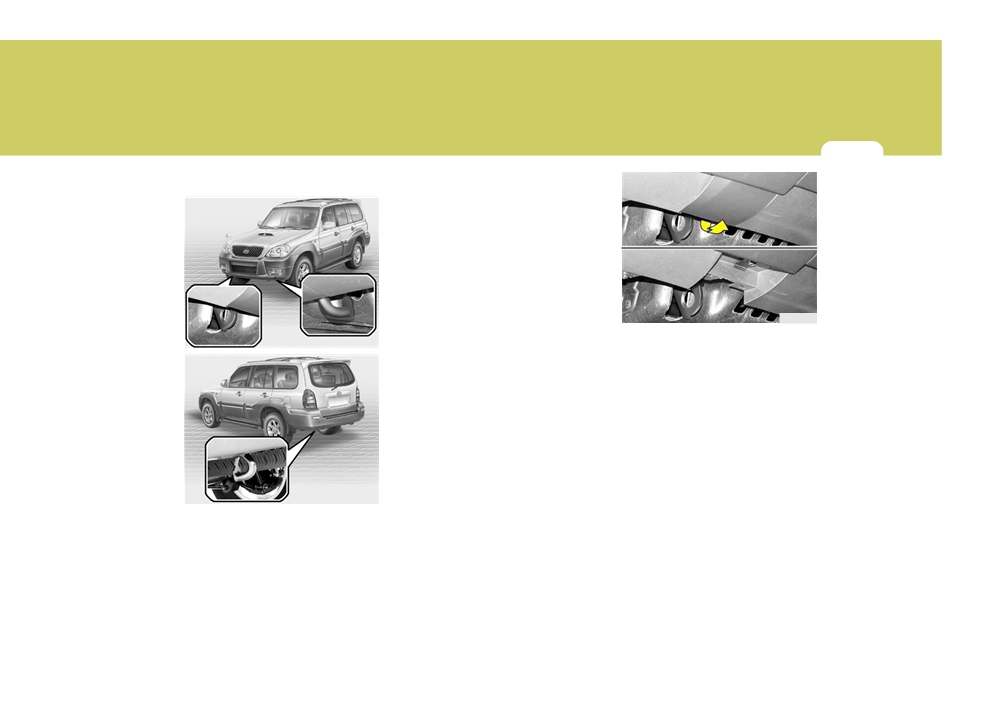

5. Put the Jack in Place
Cap
Front

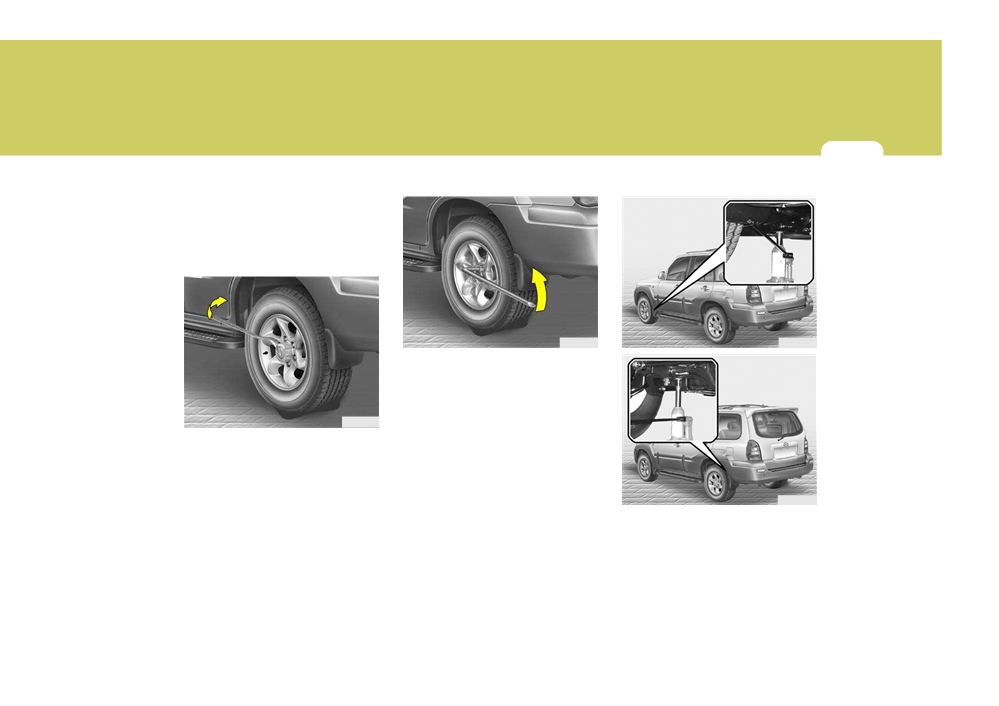

Pry off the wheel cap, using the bar as
shown in the illustration.
o Alloy Wheel Cap type
HHP4028
HHP4023
The wheel nuts should be loosened
Rear
slightly before raising the car. To loosen
the nuts, turn the wrench handle coun-
terclockwise. When doing this, be sure
that the socket is seated completely
HHP4027
over the nut so it cannot slip off. For
maximum leverage, position the
wrench so the handle is to the right as
shown in the illustration. Then, while
holding the wrench near the end of the
handle, pull up on it with steady pres-
HHP4024
sure. Do not remove the nuts at this
time. Just loosen them about one-half
The base of the jack should be placed
turn.
on firm, level ground. The jack should
be positioned as shown in the illustra-
tion.
3 WHAT TO DO IN AN EMERGENCY
10
D060F02HP-GAT

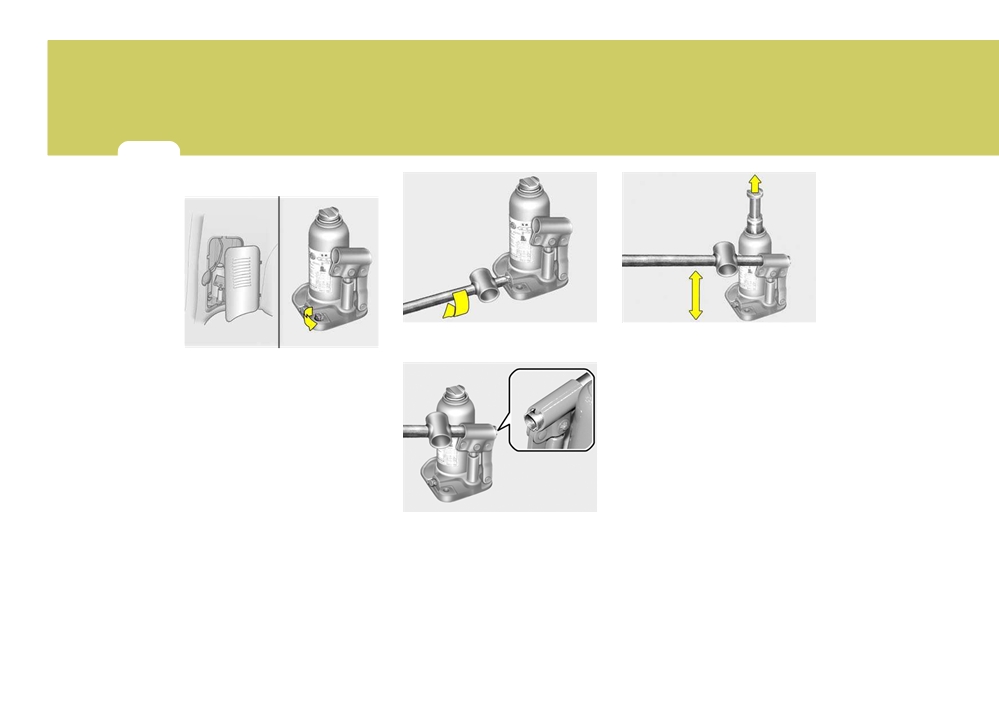

6. Raising the Car
HHP4016
HHP4018
Using the jack handle, turn the release
Move the jack handle up and down to
D060F01HP
valve clockwise until it reaches a stop.
raise the ram until just before the jack
o Open the lid at the left corner of the
contacts the jacking point of the car.
luggage compartment.
Position the jack with the jack handle.
o Loosen the hexagonal bolt, and then
Position it only at the specified points
take out the jack.
indicated in the "Put the Jack in Place".
Use of the jack at other points could
damage the car.
Moving the jack handle up and down to
raise the ram.
HHP4017
Then fit the jack handle into the holder,
and align the groove of the jack handle
with the notch of the holder.
WHAT TO DO IN AN EMERGENCY
3
11
As the jack begins to raise the vehicle,
4) This jack is hydraulic, and the
double check that it is properly posi-
ram is a two stage type. When
tioned and will not slip.
both rams are raised and the stop
Raise the car high enough so that the
Stop
mark of the upper ram becomes
fully inflated spare tire can be installed.
mark
visible, stop jacking immediately.
To do this, you will need more ground
clearance than is required to remove
the flat tire.
!
WARNING:
Do not get under the car when it is
HHP4019
supported by the jack! This is very
dangerous as the vehicle could fall
and cause serious injury or death.
!
CAUTION:
No one should stay in the car while
1) Use only the jack included with
the jack is being used.
the vehicle and use it only for
changing a wheel and for in-
stalling tire chains.
HHP4020
2) Position the jack on a hard, level
surface.
Using the jack handle, turn the release
3) If the release valve is loosened
valve counterclockwise slow to lower
by turning it 2 or more times in
the ram, and then take out the jack.
the counterclockwise direction,
When the release valve is difficult to
the jack's oil will leak and the
turn by jack handle, connect the wheel
jack cannot be used.
nut wrench to the jack handle.
3 WHAT TO DO IN AN EMERGENCY
12
D060G02Y-AAT
D060H02O-AAT
7. Changing Wheels
8. Reinstall Wheel Nuts
D060G02HP
D060G01HP
D060H01HP
!
Use the wrench to loosen the wheel
WARNING:
To reinstall the wheel, hold it on the
nuts, then remove them with your fin-
Wheel may have sharp edges. Handle
studs, put the wheel nuts on the studs
gers. Slide the wheel off the studs and
them carefully to avoid possible se-
and tighten them finger tight. The nuts
lay it flat so it cannot roll away. To put
vere injury.
should be installed with their small
the wheel on the hub, pick up the spare
Before putting the wheel into place,
diameter ends directed inward. Jiggle
tire, line up the holes with the studs
be sure that there is nothing on the
the tire to be sure it is completely
and slide the wheel onto them. If this is
hub or wheel (such as mud, tar, gravel,
seated, then tighten the nuts as much
difficult, tip the wheel slightly and get
etc.) that interferes with the wheel
as possible with your fingers again.
the top hole in the wheel lined up with
from fitting solidly against the hub. If
the top stud. Then jiggle the wheel
there is, remove it. If there is not good
back and forth until the wheel can be
contact on the mounting surface be-
slid over the other studs.
tween the wheel and hub, the wheel
nuts could come loose and cause the
loss of a wheel. Loss of a wheel may
result in loss of control of the vehicle.
This may cause serious injury or death.
WHAT TO DO IN AN EMERGENCY
3
13
D060I02HP-GAT
D060J01A-AAT

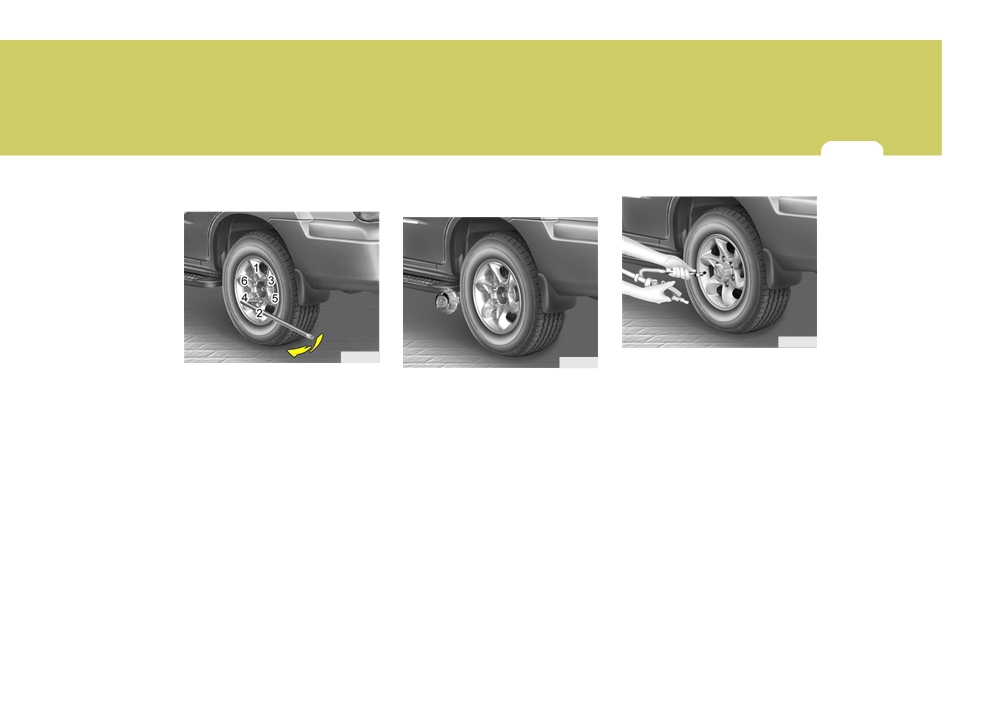

Go around the wheel tightening every
9. Lower Vehicle and Tighten
AFTER CHANGING WHEELS
other nut until they are all tight. Then
Nuts
double-check each nut for tightness.
HHP5019
HHP4029
If you have a tire gauge, remove the
HHP4030
Lower the car to the ground by moving
valve cap and check the air pressure.
And reinstall the wheel cap by fitting
the jack handle up and down. Then
If the pressure is lower than recom-
the boss of the wheel cap in the groove
position the wrench as shown in the
mended, drive slowly to the nearest
of the wheel, hitting the center of the
drawing and tighten the wheel nuts. Be
service station and inflate to the cor-
wheel cap with hand.
sure the socket is seated completely
rect pressure. If it is too high, adjust it
After changing wheels, have a techni-
over the nut. Do not stand on the
until it is correct. Always reinstall the
cian tighten the wheel nuts to their
wrench handle or use an extension
valve cap after checking or adjusting
proper torque as soon as possible.
pipe over the wrench handle.
tire pressure. If the cap is not replaced,
air may leak from the tire. If you lose a
Wheel nut tightening torque:
valve cap, buy another and install it as
Steel wheel & aluminium alloy wheel:
soon as possible.
900-1,100 kg.cm (65-80 lb.ft)
After you have changed wheels, al-
ways secure the flat tire in its place and
return the jack, jack handle, and tools
to their proper storage locations.
3 WHAT TO DO IN AN EMERGENCY
IF YOUR VEHICLE MUST BE
14
TOWED
D080A02HR-GAT
D080C02HP-GAT
If your vehicle has to be towed, it
Towing the 4 Wheel Drive Ve-
should be done by your Hyundai dealer
!
hicle
CAUTION:
or a commercial tow truck service.
o The 4WD vehicle should never
This will help assure that your vehicle
be towed with the wheels on the
is not damaged in towing. Also, profes-
ground. This can cause serious
sionals are generally aware of local
damage to the transmission or
laws governing towing. In any case,
the 4WD system.
rather than risk damage to your car, it
o When towing the vehicle, take
is suggested that you show this infor-
care not to cause damage to the
mation to the tow truck operator. Be
bumper or underbody of the ve-
dolly
sure that a safety chain system is used
hicle.
and that all local laws are observed.
It is recommended that your vehicle
be towed with a wheel lift and dollies or
flatbed equipment with all the wheels
off the ground.
dolly
!
CAUTION:
o Your vehicle can be damaged if
towed incorrectly!
o Be sure the transmission is in
HHP4045
HHP4044
neutral.
o When the engine will not start, be
When towing the 4WD vehicle, it must
o Do not tow with sling type truck
sure the steering is unlocked by
be towed by lifting all 4 wheels or using
as this may cause damage to the
placing the key in the "ACC" po-
the towing dolly.
bumper or underbody of the ve-
sition.
hicle.
WHAT TO DO IN AN EMERGENCY
3
15
D080D03HP-GAT
For emergency towing when no com-
Emergency Towing
mercial tow vehicle is available, attach
Front
a tow cable, chain or strap to one of the
towing hooks under the front/rear of
your car. Be very careful when at-
tempting this procedure when the ve-
hicle is on any unpaved surface to
avoid damage to your vehicle.
Nor should towing be attempted if the
wheels, drive train, axles, steering or
brakes are damaged. Before towing,
HHP4037
be sure the transmission is in neutral
and the key is in "ACC" (with the
NOTE:
HHP4035
engine off) or in the "ON" position (with
o To do the emergency towing, first
the engine running). A driver must be
Rear
remove the cover below the
in the towed car to steer it and operate
bumper on passenger's side by
the brakes.
pulling it
o To avoid serious damage to your
4WD vehicle, limit the towing to
15 km/h (10 mph) and not for
more than 1.5 km (1 mile) at ANY
TIME.
o Before towing, check the level of
the automatic transmission fluid.
HHP4036
If it is below the "HOT" range on
the dipstick, add fluid. If you can-
not add fluid, a towing dolly must
be used.
3 WHAT TO DO IN AN EMERGENCY
IF YOU LOSE YOUR KEYS
16
D120A01A-GAT
If you lose your keys, many Hyundai
dealers can make you a new key if you
have your key number. If you lock the
keys inside your car and you cannot
obtain a new key, many Hyundai deal-
ers can use special tools to open the
door for you. Information about the key
of immobilizer system (If Installed) will
be found on page 1-5.
CORROSION PREVENTION & APPEARANCE CARE
Corrosion Protection
4-2
To Help Prevent Corrosion
4-3
Washing and Waxing
4-4
Cleaning the Interior
4-6
4
4
4 CORROSION PREVENTION AND APPEARANCE CARE
CORROSION PROTECTION
2
E010A01A-AAT
E010C01A-AAT
Mud is particularly corrosive because
Protecting Your Hyundai from
High-Corrosion Areas
it is slow to dry and holds moisture in
Corrosion
contact with the vehicle. Although the
If you live in an area where your car is
mud appears to be dry, it can still retain
By using the most advanced design
regularly exposed to corrosive materi-
the moisture and promote corrosion.
and construction practices to combat
als, corrosion protection is particularly
High temperatures can also acceler-
corrosion, Hyundai produces cars of
important. Some of the common
ate corrosion of parts that are not
the highest quality, However, this is
causes of accelerated corrosion are
properly ventilated so the moisture
only part of the job. To achieve the
road salts, dust control chemicals,
can be dispersed. For all these rea-
long-term corrosion resistance your
ocean air and industrial pollution.
sons, it is particularly important to keep
Hyundai can deliver, the owner's co-
your car clean and free of mud or
operation and assistance is also re-
accumulations of other materials. This
quired.
E010D01A-AAT
applies not only to the visible surfaces
Moisture Breeds Corrosion
but particularly to the underside of the
car.
E010B01A-AAT
Moisture creates the conditions in
Common Causes of Corrosion
which corrosion is most likely to occur.
For example, corrosion is accelerated
The most common causes of corro-
by high humidity, particularly when tem-
sion on your car are:
peratures are just above freezing. In
such conditions, the corrosive mate-
o Road salt, dirt and moisture that is
rial is kept in contact with the car
allowed to accumulate underneath
surfaces by moisture that is slow to
the car.
evaporate.
o Removal of paint or protective coat-
ings by stones, gravel, abrasion or
minor scrapes and dents which leave
unprotected metal exposed to cor-
rosion.
CORROSION PREVENTION AND APPEARANCE CARE
4
TO HELP PREVENT CORROSION
3
E020A01A-AAT
ing it away will accelerate corrosion
E020D01A-AAT
You can help prevent corrosion from
rather than prevent it. Water under
Keep Paint and Trim in Good
getting started by observing the follow-
high pressure and steam are par-
Condition
ing:
ticularly effective in removing accu-
Scratches or chips in the finish should
mulated mud and corrosive materi-
be covered with "touch-up" paint as
als.
soon as possible to reduce the possi-
E020B01A-AAT
o When cleaning lower door panels,
bility of corrosion. If bare metal is show-
Keep Your Car Clean
rocker panels and frame members,
ing through, the attention of a qualified
be sure that drain holes are kept
body and paint shop is recommended.
The best way to prevent corrosion is to
open so that moisture can escape
keep your car clean and free of corro-
and not be trapped inside to ac-
sive materials. Attention to the under-
celerate corrosion.
side of the car is particularly important.
E020E01A-AAT
Don't Neglect the Interior
o If you live in a high-corrosion area —
E020C01A-AAT
where road salts are used, near the
Moisture can collect under the floor
Keep Your Garage Dry
ocean, areas with industrial pollu-
mats and carpeting to cause corro-
tion, acid rain, etc.—, you should
Don't park your car in a damp, poorly
sion. Check under the mats periodi-
take extra care to prevent corro-
ventilated garage. This creates a fa-
cally to be sure the carpeting is dry.
vorable environment for corrosion. This
Use particular care if you carry fertiliz-
sion. In winter, hose off the under-
side of your car at least once a
is particularly true if you wash your car
ers, cleaning materials or chemicals in
month and be sure to clean the
in the garage or drive it into the garage
the car.
when it is still wet or covered with
These should be carried only in proper
underside thoroughly when winter
is over.
snow, ice or mud. Even a heated ga-
containers and any spills or leaks
o When cleaning underneath the car,
rage can contribute to corrosion un-
should be cleaned up, flushed with
less it is well ventilated so moisture is
clear water and thoroughly dried.
give particular attention to the com-
dispersed.
ponents under the fenders and other
areas that are hidden from view. Do
a thorough job; just dampening the
accumulated mud rather than wash-
4 CORROSION PREVENTION AND APPEARANCE CARE
WASHING AND WAXING
4
E030A02A-AAT
line, strong solvents or abrasive clean-
When the weather is warm and the
Washing Your Hyundai
ing powders as these may damage the
humidity low, you may find it neces-
finish.
sary to rinse each section immediately
Never wash your car when the surface
Use a clean sponge or cloth, rinse it
after washing to avoid streaking.
is hot from being in the sun. Always
frequently and don't damage the finish
wash your car in the shade.
by rubbing too hard. For stubborn spots,
After rinsing, dry the car using a damp
dampen them frequently and remove
chamois or soft, absorbent cloth. The
Wash your car frequently. Dirt is abra-
them a little at a time.
reason for drying the car is to remove
sive and can scratch the paint if it is not
To clean whitewall tires, use a stiff
water from the car so it will dry without
removed. Air pollution or acid rain may
brush or soapy steel-wool scouring
water spots. Don't rub, this can dam-
damage the paint and trim through
pad.
age the finish.
chemical action if pollutants are al-
lowed to remain in contact with the
To clean plastic wheel covers, use a
If you find any nicks or scratches in the
surface. If you live near the ocean or in
clean sponge or soft cloth and water.
paint, use touch-up paint to cover them
an area where road salts or dust con-
to prevent corrosion. To protect the
trol chemicals are used, you should
To clean cast aluminum alloy wheels,
paintwork of the car against corrosion,
pay particular attention to the under-
use a mild soap or neutral detergent.
you must clean your Hyundai (at least
side of the car. Start by rinsing the car
Do not use abrasive cleaners. Protect
once a month). Give special attention
to remove dust and loose dirt. In win-
the bare-metal surfaces by cleaning,
to the removal of salt, mud and other
ter, or if you have driven through mud
polishing and waxing. Because alumi-
substances on the underside of the
or muddy water, be sure to thoroughly
num is subject to corrosion, be sure to
splashboards of the car. Make sure
clean the underside as well. Use a
give aluminum alloy wheels special
that the outlets and the underside of
hard direct stream of water to remove
attention in winter. If you drive on
the doors are open. Paint damage can
accumulations of mud or corrosive
salted roads, clean the wheels thor-
be caused by small accumulation of
materials. Use a good quality car-wash-
oughly afterwards.
tar, industrial precipitation, tree resin,
ing solution and follow the manufac-
insects and bird droppings, when not
turer's directions on the package.
After washing, be sure to rinse thor-
removed immediately.
These are available at your Hyundai
oughly. If soapy water dries on the
dealer or auto parts outlet. Don't use
finish, streaking will result.
strong household detergents, gaso-
CORROSION PREVENTION AND APPEARANCE CARE
4
5
If water alone is not strong enough to
E030B01A-AAT
E030D01A-AAT
remove the accumulated dirt, use a
Spot Cleaning
When to Wax Again
mild car washing solution. Be sure to
Don't use gasoline, strong solvents or
You should polish and wax the car
rinse the surface after washing to re-
corrosive cleaning agents. These can
again when water no longer beads on
move the solution. Never allow the
damage the finish of the car. To re-
a clean surface but spreads out over a
solution to dry on the painted surfaces.
move road tar, use turpentine on a
larger area.
clean, soft cloth or commercially avail-
able bug and tar remover. Be gentle.
!
CAUTION:
To remove dead insects or tree sap,
E030E01A-AAT
o Water washing in the engine com-
use warm water and mild soap or car-
Maintaining Bumpers
partment may cause the failure of
washing solution. Soak the spot and
electrical circuits located in the
rub gently. If the paint has lost its
Special precautions must be observed
engine compartment.
luster, use a commercial car-cleaning
to preserve the appearance of the
o Never allow water or other liquids
polish.
bumpers on your Hyundai. They are:
to come in contact with electrical/
electronic components inside the
o Be careful not to spill battery elec-
vehicle as this may damage them.
trolyte or hydraulic brake fluid on the
E030C01A-AAT
bumpers. If you do, wash it off
Polishing and Waxing
immediately with clean water.
Always wash and dry the car before
o Be gentle when cleaning the bumper
polishing or waxing or using a combi-
surfaces. They are made of soft
nation cleaner and wax. Use a good
plastic and the surface can be dam-
quality commercial product and follow
aged if mistreated. Do not use abra-
the manufacturer's directions on the
sive cleaners. Use warm water and
container. Polish and wax the bright
mild soap or car-washing solution.
trim pieces as well as the paint.
o Do not expose the bumpers to high
temperatures. For example, if you
have your car repainted, do not
leave the bumpers on the car if the
car is going to be placed in a high-
temperature paint booth.
4 CORROSION PREVENTION AND APPEARANCE CARE
CLEANING THE INTERIOR
6
E040A01A-AAT
E040B01A-AAT
During tanning operations, sufficient
To Clean the Vinyl Upholstery
To Clean the Leather Upholstery
oils are incorporated through process-
(If Installed)
ing that none need be applied during
To clean the vinyl upholstery, first re-
the life of the leather. Oil applied to the
move loose dirt and dust with a vacuum
In the normal course of use, leather
finished surface will in no way help the
cleaner. Then apply a solution of mild
upholstered surfaces will, like any
leather and may do more harm than
soap or detergent and water using a
material, pick-up dust and dirt. This
good. Varnishes and furniture polishes
clean sponge or soft cloth. Allow this to
dust and dirt must be cleaned off or it
should never be used under any con-
stay on the surface to loosen the dirt,
may work into the surface of the leather,
ditions.
then wipe with a clean damp sponge or
causing damage.
cloth. If all the dirt stains are not re-
moved, repeat this procedure until the
Fine leather needs care, and should
upholstery is clean. Do not use gaso-
be cleaned when necessary. Washing
E040C01A-AAT
line, solvent, paint thinner or other
leather thoroughly with soap and water
Cleaning the Carpets
strong cleaners.
will keep your leather lustrous, beauti-
Use a foam-type carpet cleaner. Clean-
ful and ensure you have many years of
ers of this type are available in aerosol
wear.
cans in liquid form or powder. Read the
Take a piece of cheese cloth and using
instructions and follow them exactly.
any mild soap and lukewarm water,
Using a vacuum cleaner with the ap-
work up a good lather. Thoroughly
propriate attachment, remove as much
wash the leather. Wipe clean with a
dirt from the carpets as possible. Apply
slightly damp cloth and dry with soft
the foam following the manufacturer's
cloth. Do this as often as the leather
directions, then rub in overlapping
becomes soiled.
circles. Do not add water. These clean-
ers work best when the carpet is kept
as dry as possible.















Content   ..  10  11  12  13   ..
