OWNER'S MANUAL
A030A01FC-GAT
Operation
Maintenance
Specifications
HFC001-2
All information in the Owner's Manual is current at the time of publication. Hyundai reserves the right to make
changes at any time as part of our policy of continual product improvement may be carried out.
This manual applies to current Hyundai
models and explanations of optional as well as standard equipment
are included. As a result, you may find material in this manual that does not apply to your specific vehicle.
Please note that some
models are equipped with Right-Hand Drive (RHD). The explanations and illustrations
for some operations in RHD models are opposite of those written in this manual.
A020A01A-AAT
RESPONSIBILITY FOR MAINTENANCE
The maintenance requirements for your new Hyundai are found in Section 5. As the
owner, it is your responsibility to see that all maintenance operations specified by the
manufacturer are carried out at the appropriate intervals. When the vehicle is used
in severe driving conditions, more frequent maintenance is required for some
operations. Maintenance requirements for severe operating conditions are also
included in Section 5.
A040A01A-AAT
FOREWORD
Thank you for choosing Hyundai. We are pleased to welcome you to the growing number of
discriminating people who drive Hyundais. The advanced engineering and high-quality construc-
tion of each Hyundai we build is something of which we're very proud.
Your Owner's Manual will introduce you to the features and operation of your new Hyundai. It is
suggested that you read it carefully because the information it contains can contribute greatly to
the satisfaction you receive from your new car.
The manufacturer also recommends that all service and maintenance on your car be performed
by an authorized Hyundai dealer. Hyundai dealers are prepared to provide high-quality service,
maintenance and any other assistance that may be required.
A050A05A-AAT
HYUNDAI MOTOR COMPANY
Note: Because future owners will also need the information included in this manual, if you sell this
Hyundai, please leave the manual in the vehicle for their use. Thank you.
!
CAUTION:
Severe engine and transaxle damage may result from the use of poor quality fuels and
lubricants that do not meet Hyundai specifications. You must always use high quality fuels
and lubricants that meet the specifications listed on Page 9-4 in the Vehicle Specifications
section of the Owner's Manual.
Copyright 2006 Hyundai Motor Company. All rights reserved. No part of this publication may be
reproduced, stored in any retrieval system or transmitted in any form or by any means without the
prior written permission of Hyundai Motor Company.
A070A01A-GAT
! CAUTION: MODIFICATIONS TO YOUR HYUNDAI
Modification of components may void the manufacturer's warranty
Your Hyundai should not be modified in any way. Modifications may adversely affect
the safety, durability and performance of your Hyundai. Components which are
subjected to modification or are added to the vehicle resulting in consequential
damage are not covered by the vehicle manufacturer's warranty.
A080A01S-AAT
TWO-WAY RADIO OR CELLULAR TELEPHONE INSTALLATION
Your vehicle is equipped with electronic fuel injection and other electronic compo-
nents. It is possible for an improperly installed/adjusted two-way radio or cellular
telephone to adversely affect electronic systems. For this reason, we recommend
that you carefully follow the radio manufacturer's instructions or consult your Hyundai
dealer for precautionary measures or special instructions if you choose to install one
of these devices.
TABLE OF CONTENTS
FEATURES OF YOUR HYUNDAI
1
DRIVING YOUR HYUNDAI
2
WHAT TO DO IN AN EMERGENCY
3
CORROSION PREVENTION & APPEARANCE CARE
4
VEHICLE MAINTENANCE REQUIREMENTS
5
SECTION
DO-IT-YOURSELF MAINTENANCE
6
EMISSION CONTROL SYSTEMS
7
CONSUMER INFORMATION
8
VEHICLE SPECIFICATIONS
9
INDEX
10
A090A01A-AAT
SAFETY AND VEHICLE DAMAGE WARNING
This manual includes information titled as WARNING, CAUTION and NOTE.
These titles indicate the following:
!
WARNING:
This indicates that a condition may result in harm, serious injury or death to
you or other persons if the warning is not heeded. Follow the advice provided
with the warning.
!
CAUTION:
This indicates that a condition may result in damage to your vehicle or its
equipment if the caution is not heeded. Follow the advice provided with the
caution.
NOTE:
This indicates that interesting or helpful information is being provided.
A100A01L-GAT
tation, counterfeit or used salvage
Hyundai Genuine Parts are only
GUIDE TO HYUNDAI GENUINE
parts are not covered under the
sold through authorized Hyundai
PARTS
Hyundai New Vehicle Limited War-
Dealership and Service Center.
ranty or any other Hyundai war-
1.What are Hyundai Genuine Parts?
ranty. In addition, any damage to or
failure of Genuine Hyundai Parts
Hyundai Genuine Parts are the same
caused by the installation or failure
parts used by Hyundai Motor Com-
of an imitation, counterfeit or used
pany to manufacture vehicles. They
salvage part is not covered by
are designed and tested for the
Hyundai Motor Company.
optimum safety, performance, and
reliability to our customers.
3. How can you tell if you purchasing
Hyundai Genuine Parts?
2. Why should you use genuine parts?

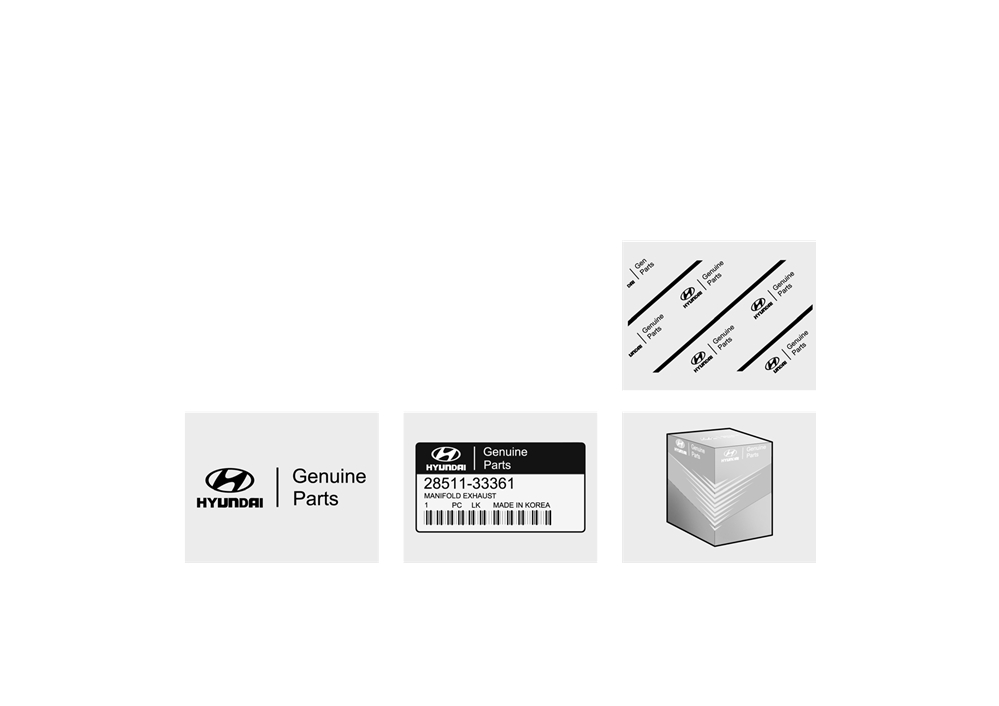

Look for the Hyundai Genuine Parts
Hyundai Genuine Parts are engi-
Logo on the package (see below).
neered and built to meet rigid manu-
facturing requirements. Using imi-
The export specifications are writ-
ten in English only.
A100A03L
A100A02L
A100A04L

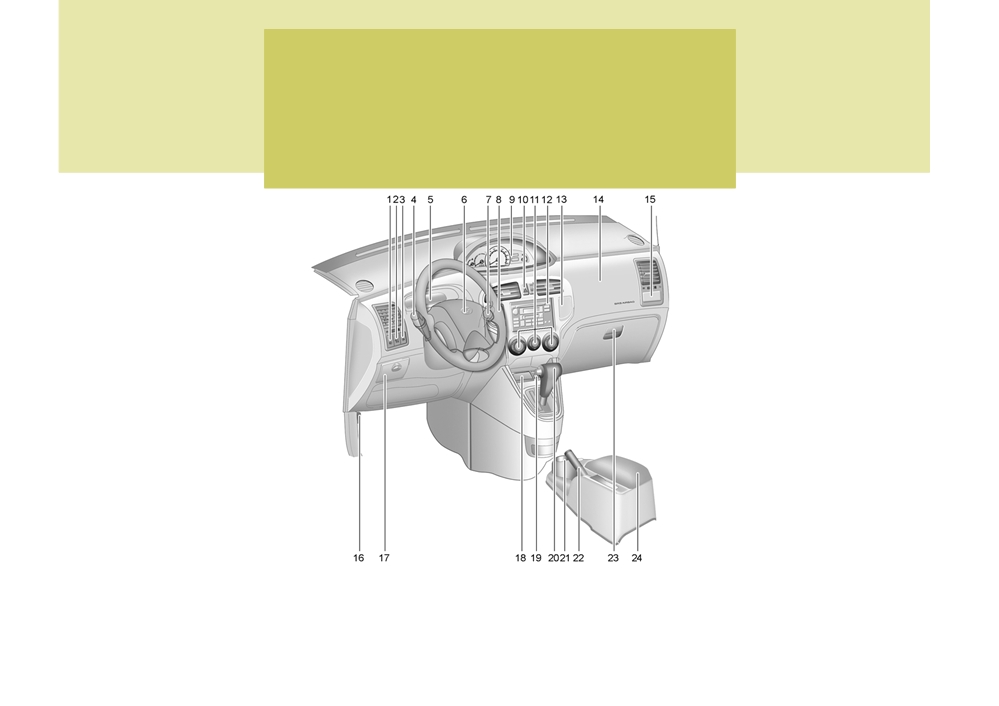

INSTRUMENTS AND CONTROLS
(LEFT-HAND DRIVE)
B250A02FC-GAT
B250A02FC
1. Front Fog Light Switch (If installed)
13.Accessory Tray
2. Headlight Leveling Switch (If installed)
14.Passenger's Airbag (If installed)
3. Rear Fog Light Switch (If installed)
15.Passenger's Drink Holder
4. Multi-Function Light Switch
16.Hood Release Lever
5. Indicator and Warning Light
17.Multi Box
6. Horn and Driver's Airbag (If installed)
18.Ashtray
7. Windshield Wiper/Washer Switch
19.Cigarette Lighter
8. Electronic Stability Program (ESP) Switch (If installed)
20.Shift Lever (If installed)
9. Instrument Cluster
21.Drink Holder
10.Hazard Warning Light
22.Parking Brake Lever
11.Heating/Air Conditioning Control Panel (If installed)
23.Glove Box
12.Audio System (If installed)
24.Center Console (If installed)
!
CAUTION:
When installing a container of liquid air freshener inside the vehicle, do not place it near the
instrument cluster nor on the instrument panel pad surface. If there is any leakage from the
air freshener onto these areas (instrument cluster, instrument panel pad or air ventilator), it
may damage these parts. If the liquid from the air freshener does leak onto these areas, wash
them with water immediately.

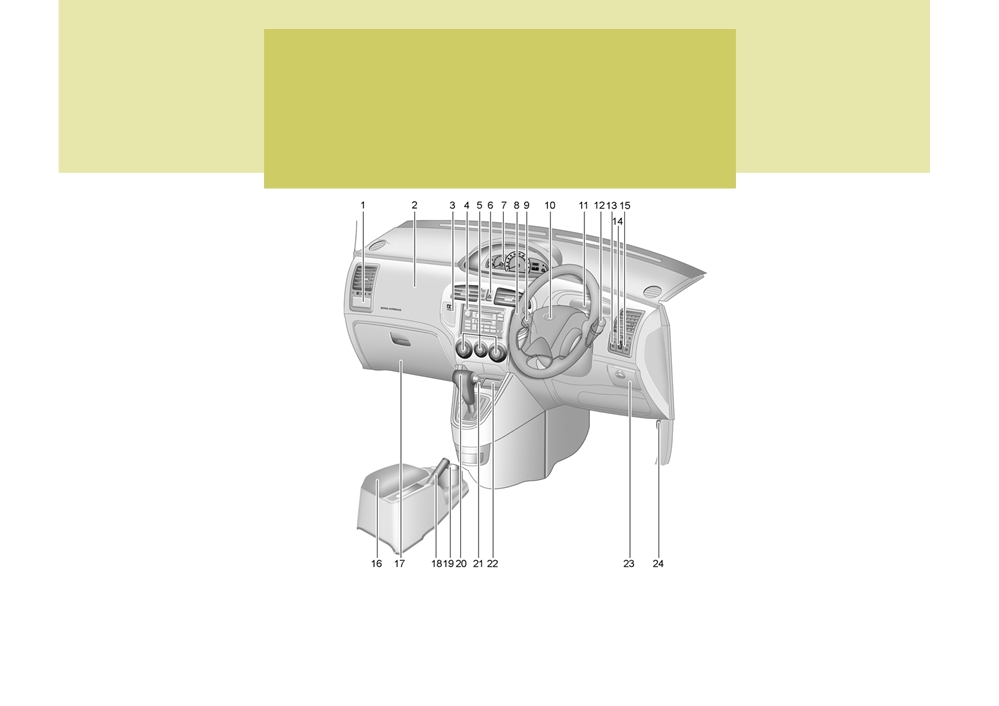

INSTRUMENTS AND CONTROLS
(RIGHT-HAND DRIVE)
B250B02FC-GAT
B250A02FC-D
1. Passenger's Drink Holder
13.Rear Fog Light Switch (If installed)
2. Passenger's Airbag (If installed)
14.Headlight Leveling Switch (If installed)
3. Accessory Tray
15.Front Fog Light Switch (If installed)
4. Audio System (If installed)
16.Glove Box
5. Heating/Air Conditioning Control Panel (If installed)
17.Center Console (If installed)
6. Hazard Warning Light
18.Parking Brake Lever
7. Instrument Cluster
19.Drink Holder
8. Electronic Stability Program (ESP) Switch (If installed)
20.Shift Lever (If installed)
9. Windshield Wiper/Washer Switch
21.Cigarette Lighter
10.Horn and Driver's Airbag (If installed)
22.Ashtray
11.Indicator and Warning Light
23.Multi Box
12.Multi-Function Light Switch
24.Hood Release Lever
!
CAUTION:
When installing a container of liquid air freshener inside the vehicle, do not place it near the
instrument cluster nor on the instrument panel pad surface. If there is any leakage from the
air freshener onto these areas (instrument cluster, instrument panel pad or air ventilator), it
may damage these parts. If the liquid from the air freshener does leak onto these areas, wash
them with water immediately.
YOUR VEHICLE AT A GLANCE
B255A02FC-GAT

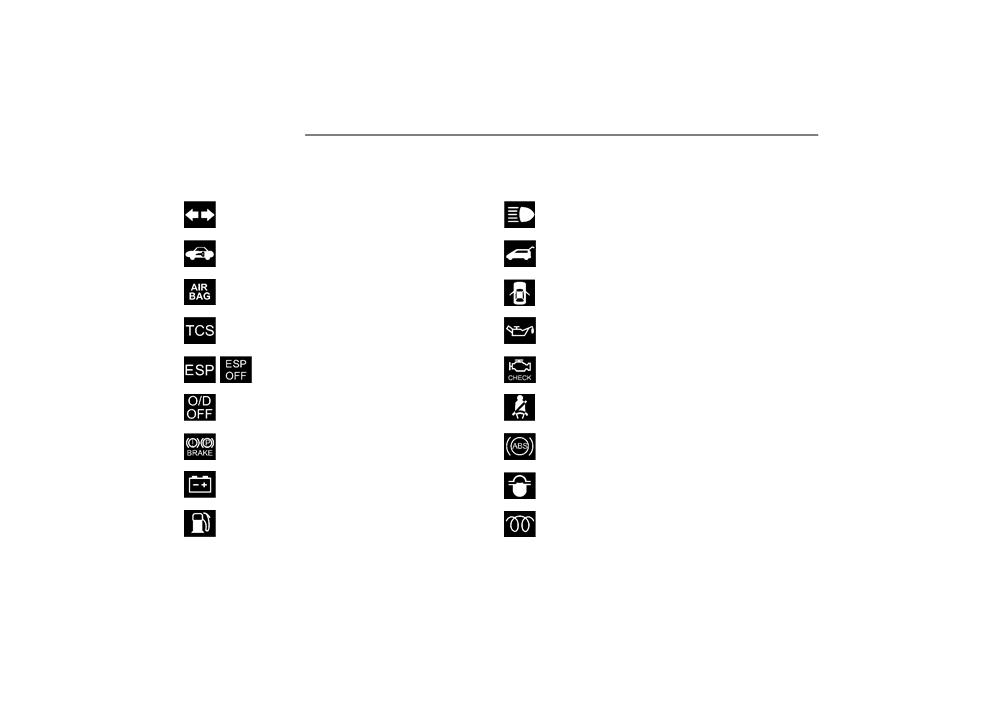

INDICATOR SYMBOLS ON THE INSTRUMENT PANEL
Turn Signal Indicator Lights
High Beam Indicator Light
Immobilizer Warning Indicator Light (If installed)
Tail Gate Open Warning Light
SRS (Airbag) Service Reminder
Door Ajar Warning Light
Indicator (If installed)
Traction Control Indicator Light
Low Oil Pressure Warning Light
(If installed)
Electronic Stability Program Indicator
Malfunction Indicator Light
Lights (If installed)
O/D OFF Indicator Light
Seat Belt Warning Light (If installed)
(1.6 Automatic Transaxle only)
Parking Brake/Low Brake Fluid Level
ABS Service Reminder Indicator (If installed)
Warning Light
Charging System Warning Light
Fuel Filter Warning Light (Diesel)
Low Fuel Level Warning Light
Diesel Pre-heat Indicator Light (Diesel)
* More detailed explanations of these items will be found beginning on page 1-48.
FEATURES OF YOUR HYUNDAI
Fuel Recommendations
1-2
Breaking In Your New Hyundai
1-3
1
Keys
1-4
Immobilizer System
1-5
Door
1-7
Theft-Alarm System
1-10
Window
1-13
Seat
1-14
Seat Belts
1-21
Child Restraint System
1-28
Supplemental Restraint (AIRBAG) System
1-37
Instrument Cluster and Indicator
1-44
Warning and Indicator Lights
1-48
Trip Computer
1-57
1
Multi-function Light Switch
1-59
Windshield Wiper/Washer Switch
1-61
Sunroof
1-69
Mirror
1-73
Hood Release
1-76
Heating and Cooling Control
1-83
Stereo Sound System
1-99
Audio System
1-102
Antenna
1-133
1 FEATURES OF YOUR HYUNDAI
2
FUEL RECOMMENDATIONS
B010A03O-GAT
If leaded gasoline is used, it will cause
o Above -5°C (23°F) ... Summer type
Use Unleaded Gasoline
the catalytic converter to become inef-
diesel fuel.
fective and the emission control sys-
o Below -5°C (23°F) ... Winter type
tem to malfunction. This can also result
diesel fuel.
in increased maintenance expense.
To avoid accidental use of leaded fuel,
Watch the fuel level in the tank very
the large nozzle used with leaded gaso-
carefully : If the engine stops through
line at service stations can not be
fuel failure, the circuits must be com-
inserted into fuel tank opening of Hyundai
pletely purged to permit restarting.
vehicle.
NOTE:
!
CAUTION:
o For some countries, Hyundai ve-
B010A02FC-1
Do not let any gasoline or water enter
hicles are designed to use leaded
For Europe - For the optimal vehicle
the tank. This would make it neces-
gasoline. When you are going to
performance, we recommend you to
sary to drain it out and to bleed the
use leaded gasoline, ask to
use unleaded gasoline with an octane
lines to avoid jamming the injection
Hyundai dealer whether leaded
rating of RON (Research Octane Num-
pump and damaging the engine.
gasoline in your vehicle is avail-
ber) 95 /AKI (Anti Knock Index) 91 or
able or not.
higher.
o Octane Rating of leaded gaso-
You may use unleaded gasoline with an
B010B01A-AAT
line is same with unleaded one.
octane rating of RON 91~94/AKI 87~90
What About Gasohol?
but it may result in slight performance
Use Diesel
Gasohol (a mixture of 90% unleaded
reduction of the vehicle.
gasoline and 10% ethanol or grain
Diesel fuel of 52 to 54 cetane is used in
Except Europe - Unleaded gasoline
alcohol) may be used in your Hyundai.
Hyundai vehicle. If two types of diesel
with a Pump Octane Rating of 87 (Re-
However, if your engine develops
fuel are available, use summer or win-
search Octane Number 91) or higher
driveability problems, the use of 100%
ter fuel properly according to the fol-
must be used in Hyundai vehicle.
unleaded gasoline is recommended.
lowing temperature conditions.
Fuels with unspecified quantities of
alcohol, or alcohols other than ethanol,
should not be used.
FEATURES OF YOUR HYUNDAI
1
BREAKING IN YOUR NEW
3
HYUNDAI
B010D01S-AAT
B010E01A-AAT
B020A01S-GAT
Do not Use Methanol
Gasolines for Cleaner Air
During the First 2,000 Km
(1,200 Miles) (Gasoline Engine)
Fuels containing methanol (wood al-
To help contribute to cleaner air,
cohol) should not be used in your
Hyundai recommends that you use
No formal "break-in" procedure is re-
Hyundai. This type of fuel can reduce
gasolines treated with detergent addi-
quired with your new Hyundai. How-
vehicle performance and damage com-
tives, which help prevent deposit for-
ever, you can contribute to the eco-
ponents of the fuel system.
mation in the engine. These gasolines
nomical operation and durability of your
will help the engine run cleaner and
Hyundai by observing the following
enhance performance of the Emission
recommendations during the first 2,000
!
CAUTION:
Control System.
km (1,200 miles).
Your Hyundai's New Vehicle Lim-
ited Warranty may not cover dam-
o Don't drive faster than 88 km/h (55
age to the fuel system and perfor-
mph).
B010F01A-AAT
mance problems that are caused by
o While driving, keep your engine
Operation in Foreign Countries
the use of methanol or fuels con-
speed (rpm, or revolutions per
taining methanol.
If you are going to drive your Hyundai
minute) between 2,000 rpm and
in another country, be sure to:
4,000 rpm.
o Use moderate acceleration. Don't
o Observe all regulations regarding
start, depress the accelerator pedal
registration and insurance.
fully.
o Determine that acceptable fuel is
o For the first 300 km (200 miles), try
available.
to avoid hard braking.
o Don't lug the engine (in other words,
don't drive so slowly in toohigh a
gear that the engine "bucks": shift to
a lower gear).
1 FEATURES OF YOUR HYUNDAI
KEYS
4
o Whether going fast or slow, vary your
o
Use moderate acceleration. Don't
B030A01A-AAT
speed from time to time.
start, depress the accelerator pedal
o Don't let the engine idle longer than
fully.
3 minutes at one time.
o
For the first 300 km (200 miles), try
o Don't tow a trailer during the first
to avoid hard braking.
2,000 km (1,200 miles) of opera-
o
Don't lug the engine (in other words,
tion.
don't drive so slowly in too-high a
gear that the engine "bucks": shift to
a lower gear).
o
Whether going fast or slow, vary
B020B01FC-GAT
your speed from time to time.
During the First 1,000 Km
o
Don't let the engine idle longer than
(600 Miles) (Diesel Engine)
B030A01B
3 minutes at one time.
o
Don't tow a trailer during the first
For greater convenience, the same key
No formal "break-in" procedure is re-
1,000 km (600 miles) of operation.
operates all the locks in your Hyundai.
quired with your new Hyundai. How-
However, because the doors can be
ever, you can contribute to the eco-
locked without a key, carrying a spare
nomical operation and durability of your
key is recommended in case you acci-
Hyundai by observing the following
dentally lock one key inside the car.
recommendations during the first 1,000
km (600 miles).
o While driving, keep your engine
speed (rpm, or revolutions per
minute) within 3,000 rpm.
o While driving, keep under three quar-
ters of maximum speed.
|
|
|
