Hyundai Santa Fe Sport (2018 year). Instruction

Features of your vehicle

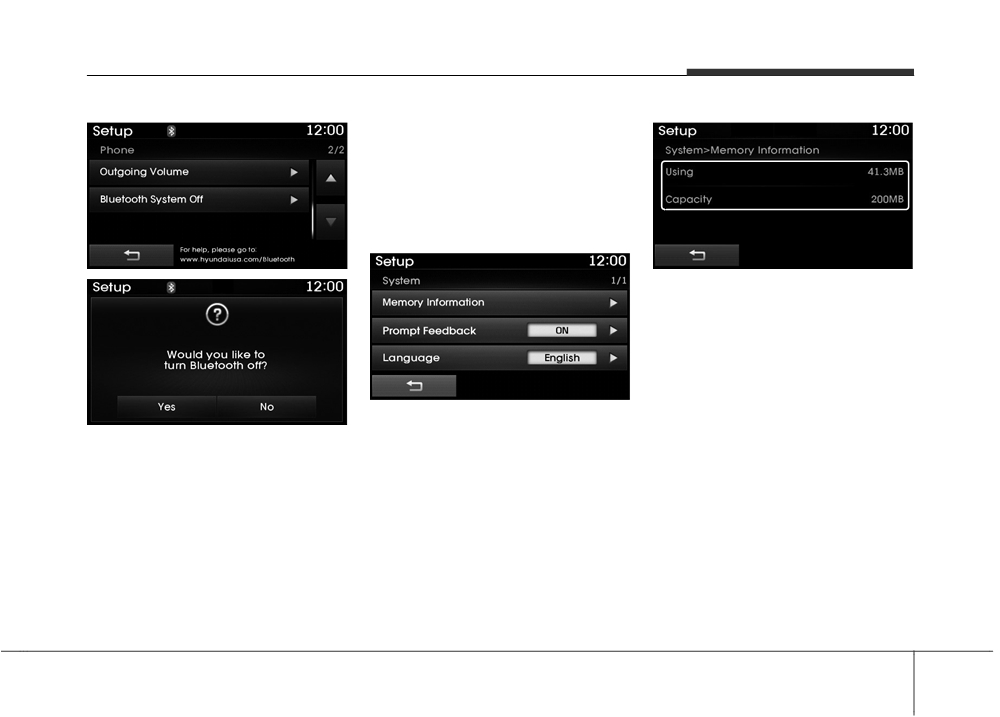

With the System Button

Press the [SETUP] button Select

[System].

You can select and control options

related to

[Memory Information],

[Prompt Feedback] and [Language].

Memory Information

This feature displays information

related to system memory.

• Using : Displays capacity currently

in use.

• Capacity : Displays total capacity.

Turning Bluetooth System Off

Once Bluetooth® Wireless Technology

is turned off, Bluetooth® Wireless

Technology related features will not

be supported within the audio sys-

tem.

To turn Bluetooth® Wireless Technology

back on, go to [SETUP] [Phone]

and press “Yes”.

4 241

Features of your vehicle

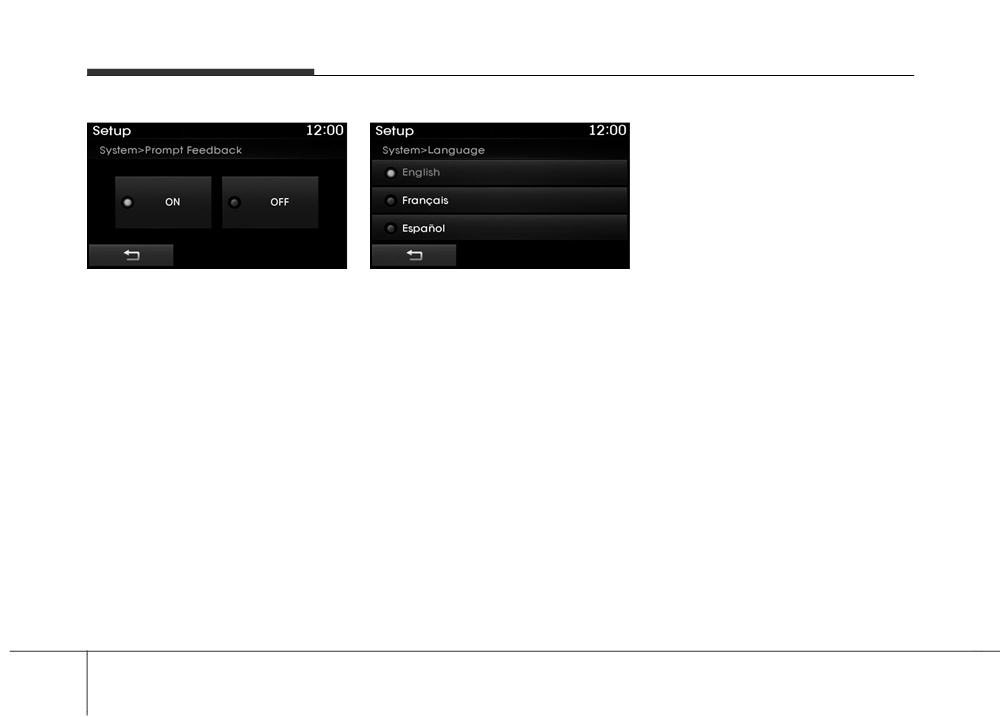

Prompt Feedback

Language

This feature is used to select the

This feature is used to change the

desired prompt feedback option from

system and voice recognition lan-

ON and OFF.

guage.

• ON : When using voice recognition,

If the language is changed, the sys-

provides detailed guidance prompts.

tem will restart and apply the select-

ed language.

• OFF : When using voice recogni-

tion, omits some guidance prompts.

4 242

Features of your vehicle

iPod® is a registered trademark of

Sirius, XM and all related marks

Apple Inc. iPod® mobile digital

and logos are trademarks of Sirius

device sold separately. The

XM Radio Inc. Android™ is a

Bluetooth® word mark and logos

trademark of Google, Inc.

are registered trademarks owned

BlackBerry is a registered trade-

by Bluetooth® SIG, Inc. and any

mark of Research In Motion

use of such marks by Hyundai is

Limited

(RIM). All other marks,

under license. SiriusXM services

channel names and logos are the

require a subscription sold sepa-

property of their respective own-

rately, or as a package, by Sirius

XM Radio Inc. If you decide to con-

tinue service after your trial, the

subscription plan you choose will

automatically renew thereafter

and you will be charged according

to your chosen payment method

at then-current rates. Fees and

taxes apply. To cancel you must

call SiriusXM at

1-866-635-2349.

See SiriusXM Customer Agreement

for complete terms at www.sir-

iusxm.com. SiriusXM U.S. satellite

and data services are available

only in the 48 contiguous states,

DC and Puerto Rico (with cover-

age limitations). SiriusXM satellite

service is also available in

Canada; see www.siriusxm.ca. All

fees and programming subject to

change.

4 243

Features of your vehicle

Declaration of Conformity

FCC

This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15

of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a resi-

dential installation.

This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance

with the instructions,may cause harmful interference to radio communications. However, there is no guarantee that

interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or tel-

evision reception, which can be determined by turning the equipment off and on, the user is encouraged to try to cor-

rect the interference by one ormore of the following measures :

• Reorient or relocate the receiving antenna.

• Increase the separation between the equipment and receiver.

• Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.

• Consult the dealer or an experienced radio/TV technician for help.

Caution : Any changes or modifications to this device not explicitly approved by manufacturer could void your author-

ity to operate this equipment.

This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions :

(1) This device may not cause harmful interference, and (2) this device must accept any interference received, includ-

ing interference that may cause undesired operation.

This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment.

This equipment should be installed and operated with a minmum of 20 cm between the transmitter and your body.

This transmitter must not be connected or oprated in conjunction with any other antenna or transmitter unless author-

ized to do so by the FCC.

4 244

Driving your vehicle

Before driving

5-3

Lane departure warning system (LDWS)

5-96

Key

5-6

Active ECO system

5-100

Engine start/stop button

5-9

Economical operation

5-101

Automatic transaxle

5-14

Special driving conditions

5-103

All wheel drive (AWD)

5-21

• Hazardous driving conditions

5-103

• Reducing the risk of a rollover

5-103

Drive mode integrated control system

5-28

• Rocking the vehicle

5-104

Brake system

5-30

• Smooth cornering

5-105

• Power brakes

5-30

• Driving at night

5-105

• Parking brake

5-32

• Driving in the rain

5-106

• Electronic parking brake (EPB)

5-34

• Driving in flooded areas

5-107

• Emergency braking

5-39

• Driving off-road

5-107

• Auto hold

5-40

• Highway driving

5-107

• Anti-lock brake system (ABS)

5-43

Winter driving

5-109

• Electronic stability control (ESC)

5-46

• Vehicle stability management (VSM)

5-50

Trailer Towing

5-114

• Downhill brake control (DBC)

5-51

Vehicle load limit

5-123

• Hill-start assist control (HAC)

5-53

• Tire and loading information label

5-123

• Good braking practices

5-54

Vehicle weight

5-128

Automatic emergency braking (AEB)

5-56

• Base curb weight

5-128

Cruise control system

5-67

• Vehicle curb weight

5-128

Advanced smart cruise control system

5-72

• Cargo weight

5-128

• GAW (Gross axle weight)

5-128

Blind spot detection system (BSD)

5-88

• GAWR (Gross axle weight rating)

5-128

• BSD (Blind Spot Detection) /

• GVW (Gross vehicle weight)

5-128

LCA (Lane Change Assist)

5-89

• GVWR (Gross vehicle weight rating)

5-128

• RCTA (Rear Cross Traffic Alert)

5-92

Driving your vehicle

WARNING - ENGINE EXHAUST CAN BE DANGEROUS!

Engine exhaust fumes can be extremely dangerous. If, at any time, you smell exhaust fumes inside the vehicle,

open the windows immediately.

• Do not inhale exhaust fumes.

Exhaust fumes contain carbon monoxide, a colorless, odorless gas that can cause unconsciousness and death

by asphyxiation.

• Be sure the exhaust system does not leak.

The exhaust system should be checked whenever the vehicle is raised to change the oil or for any other purpose.

If you hear a change in the sound of the exhaust or if you drive over something that strikes the underneath side

of the vehicle, have the exhaust system checked as soon as possible by an authorized HYUNDAI dealer.

• Do not run the engine in an enclosed area.

Letting the engine idle in your garage, even with the garage door open, is a hazardous practice. Never run the

engine in your garage any longer than it takes to start the engine and back the vehicle out.

• Avoid idling the engine for prolonged periods with people inside the vehicle.

If it is necessary to idle the engine for a prolonged period with people inside the vehicle, be sure to do so only in

an open area with the air intake set at "Fresh" and fan operating at one of the higher speeds so fresh air is drawn

into the interior.

If you must drive with the liftgate (tailgate) open because you are carrying objects that make this necessary:

1. Close all windows.

2. Open side vents.

3. Set the air intake control at "Fresh", the air flow control at "Floor" or "Face" and the fan at one of the higher speeds.

To assure proper operation of the ventilation system, be sure the ventilation air intakes located just in front of the

windshield are kept clear of snow, ice, leaves or other obstructions.

5 2

Driving your vehicle

BEFORE DRIVING

Before entering vehicle

Necessary inspections

CALIFORNIA PROPO-

•

Be sure that all windows, outside

Fluid levels, such as engine oil,

SITION 65 WARNING

mirror(s), and outside lights are

engine coolant, brake fluid, and

Engine exhaust and a wide vari-

clean.

washer fluid should be checked on a

ety of automobile components

regular basis, with the exact interval

•

Check the condition of the tires.

and parts, including compo-

depending on the fluid. Further

nents found in the interior fur-

•

Check under the vehicle for any

details are provided in Section

sign of leaks.

nishings in a vehicle, contain or

“Maintenance”.

emit chemicals known to the

•

Be sure there are no obstacles

State of California to cause can-

behind you if you intend to back up.

cer and birth defects and repro-

WARNING

ductive harm. In addition, cer-

Driving while distracted can

tain fluids contained in vehicles

result in a loss of vehicle con-

and certain products of compo-

trol, that may lead to an accident,

nent wear contain or emit chem-

severe personal injury, and

icals known to the State of

death. The driver’s primary

California to cause cancer and

responsibility is in the safe and

birth defects or other reproduc-

legal operation of a vehicle, and

tive harm.

use of any handheld devices,

other equipment, or vehicle sys-

tems which take the driver’s

eyes, attention and focus away

from the safe operation of a vehi-

cle or which are not permissible

by law should never be used

during operation of the vehicle.

5 3

Driving your vehicle

Before starting

WARNING

WARNING - Driving under

• Close and lock all doors.

All passengers must be proper-

the influence of alcohol or

• Position the seat so that all con-

ly belted whenever the vehicle

drugs

trols are easily reached.

is moving. Refer to “Seat belts”

Drinking and driving is danger-

• Adjust the inside and outside

in section 3 for more informa-

ous. Drunk driving is the num-

rearview mirrors.

tion on their proper use.

ber one contributor to the high-

• Be sure that all lights work.

way death toll each year. Even a

• Check all gauges.

small amount of alcohol will

affect your reflexes, percep-

• Check the operation of warning

WARNING

tions and judgement. Driving

lights when the ignition switch is

Always check the surrounding

while under the influence of

turned to the ON position.

areas near your vehicle for peo-

drugs is as dangerous or more

• Release the parking brake and

ple, especially children, before

dangerous than driving drunk.

make sure the brake warning light

putting a vehicle into D (Drive)

You are much more likely to

goes out.

or R (Reverse).

have a serious accident if you

For safe operation, be sure you are

drink or take drugs and drive.

familiar with your vehicle and its

If you are drinking or taking

equipment.

drugs, do not drive. Do not ride

with a driver who has been drink-

ing or taking drugs. Choose a

designated driver or call a cab.

5 4

Driving your vehicle

WARNING

•

When you intend to park or

stop the vehicle with the

engine on, be careful not to

depress the accelerator pedal

for a long period of time. It may

overheat the engine or exhaust

system and cause fire.

•

When you make a sudden

stop or turn the steering

wheel rapidly, loose objects

may drop on the floor and it

could interfere with the opera-

tion of the foot pedals, possi-

bly causing an accident. Keep

all things in the vehicle safely

stored.

•

If you do not focus on driving,

it may cause an accident. Be

careful when operating what

may disturb driving such as

audio or heater. It is the

responsibility of the driver to

always drive safely.

5 5

Driving your vehicle

KEY

Illuminated ignition switch

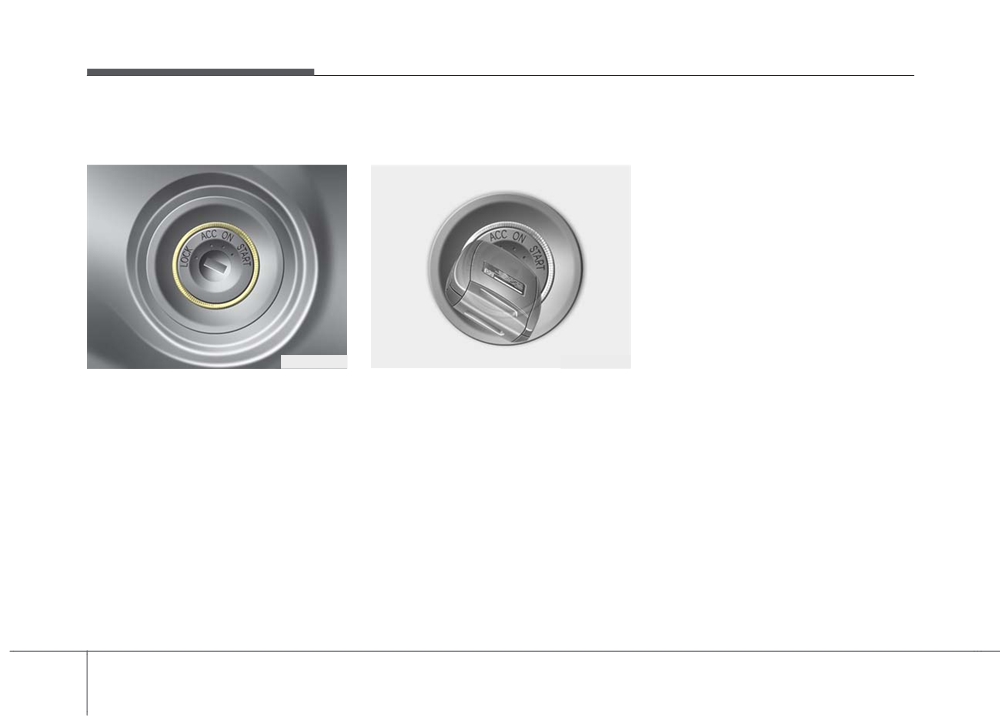

Ignition switch position

ACC (Accessory)

(if equipped)

LOCK

The steering wheel is unlocked and

electrical accessories are operative.

✽ NOTICE

If difficulty is experienced turning

the ignition switch to the ACC posi-

tion, turn the key while turning the

steering wheel right and left to

release the tension.

OUM054001

OYP054029K

Whenever a front door is opened, the

The steering wheel locks to protect

ignition switch will be illuminated for

against theft. The ignition key can be

your convenience, provided the igni-

removed only in the LOCK position.

tion switch is not in the ON position.

When turning the ignition switch to

The light will go off immediately

the LOCK position, push the key

when the ignition switch is turned on

inward at the ACC position and turn

or go off after about

30 seconds

the key toward the LOCK position.

when the door is closed.

5 6

Driving your vehicle

(Continued)

WARNING - Ignition key

The warning lights can be checked

•

Never reach for the ignition

before the engine is started. This is

•

Never turn the ignition switch

switch, or any other controls

the normal running position after the

to LOCK or ACC while the vehi-

through the steering wheel

engine is started.

cle is moving.This would result

while the vehicle is in motion.

in loss of directional control

Do not leave the ignition switch ON if

The presence of your hand or

and braking function, which

the engine is not running to prevent

arm in this area could cause a

could cause an accident.

battery discharge.

loss of vehicle control, an

•

The anti-theft steering column

accident and serious bodily

lock is not a substitute for the

START

injury or death.

parking brake. Before leaving

Turn the ignition switch to the START

•

Do not place any movable

the driver’s seat, always make

position to start the engine. The

objects around the driver’s

sure the shift lever is engaged

engine will crank until you release

seat as they may move while

in P

(Park), set the parking

the key; then it returns to the ON

driving, interfere with the driv-

brake fully and shut the engine

position. The brake warning light can

er and lead to an accident.

off. Unexpected and sudden

be checked in this position.

vehicle movement may occur if

these precautions are not

taken.

(Continued)

5 7

Driving your vehicle

Starting the engine

4. Do not wait for the engine to warm

up while the vehicle remains sta-

CAUTION

tionary.

If the engine stalls while you are

WARNING

Start driving at moderate engine

in motion, do not attempt to

Always wear appropriate shoes

speeds. (Steep accelerating and

move the shift lever to the P

when operating your vehicle.

decelerating should be avoided.)

(Park) position. If traffic and

Unsuitable shoes (high heels,

road conditions permit, you may

ski boots,etc.) may interfere

put the shift lever in the N

with your ability to use the

(Neutral) position while the

brake or the accelerator pedal.

vehicle is still moving and turn

the ignition switch to the START

position in an attempt to restart

1. Make sure the parking brake is

the engine.

applied.

2. Place the transaxle shift lever in P

(Park). Depress the brake pedal

fully.

CAUTION

You can also start the engine

Do not engage the starter for

more than 10 seconds. If the

when the shift lever is in the N

(Neutral) position.

engine stalls or fails to start, wait

5 to 10 seconds before re-engag-

3. Turn the ignition switch to START

ing the starter. Improper use of

and hold it there until the engine

the starter may damage it.

starts

(a maximum of

10 sec-

onds), then release the key.

should be started without

depressing the accelerator pedal.

5 8

Driving your vehicle

ENGINE START/STOP BUTTON (IF EQUIPPED)

Illuminated engine start/stop

Engine start/stop button posi-

✽ NOTICE

button

tion

You are able to turn off the engine

OFF

(START/RUN) or vehicle power

(ON), only when the vehicle is not in

motion.

White

CAUTION

In an emergency situation while

To turn off the engine (START/RUN

the vehicle is in motion, you are

position) or vehicle power (ON posi-

able to turn the engine off and

tion), press the engine start/stop but-

to the ACC position by pressing

ton with the shift lever in the P (Park)

the engine start/stop button for

position. When you press the engine

more than 2 seconds or 3 times

ODM052006

start/stop button without the shift

successively within 3 seconds.

lever in the P

(Park) position, the

Whenever the front door is opened,

If the vehicle is still moving, you

engine start/stop button will not

can restart the engine without

the engine start/stop button will illu-

minate for your convenience. The

change to the OFF position but to the

depressing the brake pedal by

ACC position.

pressing the engine start/stop

light will go off after about 30 sec-

onds when the door is closed. It will

button with the shift lever in the

also go off immediately when the

N (Neutral) position.

theft-alarm system is armed.

5 9

Driving your vehicle

ACC(Accessory)

START/RUN

Orange

Blue

Not illuminated

Press the engine start/stop button

To start the engine, depress the

Press the engine start/stop button

while it is in the ACC position without

brake pedal and press the engine

while it is in the OFF position without

depressing the brake pedal.

start/stop button with the shift lever in

depressing the brake pedal.

the P (Park) or the N (Neutral) posi-

tion. For your safety, start the engine

The warning lights can be checked

The electrical accessories are opera-

with the shift lever in the P (Park)

before the engine is started. Do not

tional.

position.

leave the engine start/stop button in

If the engine start/stop button is in

the ON position for a long time. The

the ACC position for more than 1

battery may discharge, because the

hour, the button is turned off auto-

engine is not running.

matically to prevent battery dis-

charge.

5 10

Driving your vehicle

✽ NOTICE

(Continued)

WARNING

If you press the engine start/stop

• Never reach for the engine

button without depressing the brake

•

Never press the engine

start/ stop button or any other

pedal, the engine will not start and

start/stop button while the

controls through the steering

the engine start/stop button changes

vehicle is in motion. This

wheel while the vehicle is in

as follow:

would result in loss of direc-

motion. The presence of your

OFF ➔ACC ➔ ON ➔ OFF or ACC

tional control and braking

hand or arm in the area could

function, which could cause

cause loss of vehicle control,

✽ NOTICE

an accident.

an accident and serious bodi-

•

Before leaving the driver's

If you leave the engine start/stop

ly injury or death.

button in the ACC or ON position

seat, always make sure the

• Do not place any movable

shift lever is engaged in P

for a long time, the battery will dis-

objects around the driver's

charge.

(Park), set the parking brake

seat as they may move while

fully and shut the engine off.

driving, interfere with the driv-

Unexpected and sudden vehi-

er and lead to an accident.

cle movement may occur if

these precautions are not

taken.

(Continued)

5 11

Driving your vehicle

Starting the engine

5. Do not wait for the engine to warm

•

Even if the smart key is in the vehi-

up while the vehicle remains sta-

cle, if it is far away from you, the

tionary.

engine may not start.

WARNING

Start driving at moderate engine

•

When the engine start/stop button

Always wear appropriate shoes

speeds. (Steep accelerating and

is in the ACC position or above, if

when operating your vehicle.

decelerating should be avoided.)

any door is opened, the system

Unsuitable shoes

(high heels,

checks for the smart key. If the

ski boots,etc.) may interfere with

smart key is not in the vehicle, the

your ability to use the brake or

“

” indicator and a message

the accelerator pedal.

“Key not in vehicle” will appear on

the instrument cluster and LCD dis-

1. Carry the smart key or leave it

play. And if all doors are closed, the

inside the vehicle.

chime will sound for 5 seconds. The

indicator or warning will turn off

2. Make sure the parking brake is

while the vehicle is moving. Always

firmly applied.

have the smart key with you.

3. Place the transaxle shift lever in P

(Park). Depress the brake pedal

fully.

WARNING

You can also start the engine

The engine will start, only when

when the shift lever is in the N

the smart key is in the vehicle.

(Neutral) position.

Never allow children or any per-

4. Press the engine start/stop button.

son who is unfamiliar with the

vehicle to press the engine start/

It should be started without depress-

stop button or related parts.

ing the accelerator pedal.

5 12

Driving your vehicle

(Continued)

CAUTION

• When the stop lamp fuse is blown,

If the engine stalls while the

you cannot start the engine nor-

vehicle is in motion, do not

mally.

attempt to move the shift lever

Replace the fuse with a new one. If

to the P (Park) position. If the

it is not possible, you can start the

traffic and road conditions per-

engine by pressing the engine

mit, you may put the shift lever

start/stop button for

10 seconds

in the N (Neutral) position while

while it is in the ACC position. The

the vehicle is still moving and

engine can start without depressing

press the engine start/stop but-

the brake pedal. But for your safe-

ton in an attempt to restart the

ty always depress the brake pedal

ODM052007

engine.

before starting the engine.

✽ NOTICE

• If the battery is weak or the smart

key does not work correctly, you

CAUTION

can start the engine by pressing

Do not press the engine

the engine start/stop button with

start/stop button for more than

the smart key.

10 seconds except when the

The side with the lock button

stop lamp fuse is blown.

should contact the engine

start/stop button directly.

When you press the engine

start/stop button directly with the

smart key, the smart key should

contact the button at a right angle.

(Continued)

5 13

Hyundai Santa Fe Sport (2018 year). Instruction - part 20
