DRIVER ASSIST SYSTEM
Rear view monitor (if equipped)
This is a supplemental system that
NOTICE
shows behind the vehicle through
the mirror or navigation display while
• Do not spray the camera or its
backing-up.
surrounding area directly with a
high pressure washer. Shock
applied from high pressure
WARNING
water may cause the device to
not operate normally.
The Rear view monitor is not a
3
safety device. It only serves to
• Do not use any cleanser con-
assist the driver in identifying
taining acid or alkaline deter-
objects directly behind the mid-
gents when cleaning the lens.
dle of the vehicle. The camera
Use only a mild soap or neutral
does NOT cover the complete
detergent, and rinse thoroughly
OOS047046
area behind the vehicle.
with water.
i
Information
WARNING
Always keep the camera lens clean. The
camera may not work normally if the
• Never rely solely on the rear
lens is covered with dirt, water or snow.
camera display when backing-
up.
• ALWAYS look around your
vehicle to make sure there are
no objects or obstacles before
moving the vehicle in any
OOS047091
direction to prevent a collision.
The Rear view monitor will activate
• Always pay close attention
when the engine is running and the
when the vehicle is driven
shift lever is in the R (Reverse) posi-
close to objects, particularly
tion.
pedestrians, and especially
children.
3-99
Convenient features of your vehicle
Parking Distance Warning
Operation of the Parking
WARNING
(Reverse) system (if equipped)
Distance Warning (Reverse)
system
•
ALWAYS look around your vehi-
Operating condition
cle to make sure there are not
any objects or obstacles before
•
This system will activate when
moving the vehicle in any direc-
backing up with the ignition switch
tion to prevent a collision.
in the ON position. However, if vehi-
cle speed exceeds 5 km/h (3 mph),
•
Always pay close attention
the system may not detect objects.
when the vehicle is driven close
to objects, particularly pedestri-
•
If vehicle speed exceeds 10 km/h (6
ans, and especially children.
mph), the system will not warn you
even though objects are detected.
•
Be aware that some objects
may not be visible on the
•
When more than two objects are
OOS047042
screen or be detected by the
sensed at the same time, the clos-
[A] : Sensor
sensors, due to the objects
est one will be recognized first.
distance, size or material, all of
The Parking Distance Warning
which can limit the effective-
(Reverse) system assists the driver
ness of the sensor.
during reverse movement of the vehi-
cle by chiming if any object is sensed
within the distance of 120 cm (50
inches) behind the vehicle.
This system is a supplemental sys-
tem that senses objects within the
range and location of the sensors, it
cannot detect objects in other areas
where sensors are not installed.
3-100
Types of warning sound and indicator
To turn off the Parking Distance
Warning (Reverse) system
Types of warning sound
Indicator
(if equipped)
When an object is 120 cm to 60 cm (47 in. to 24 in.) from the rear
bumper : Buzzer beeps intermittently.
3
When an object is 60 cm to 30 cm (24 in. to 12 in.) from the rear
bumper : Buzzer beeps more frequently.
When an object is within 30 cm (12 in.) of the rear bumper :
Buzzer beeps continuously.
OOS047045L
Push the button to turn off the
NOTICE
Parking Distance Warning (Reverse)
• The indicator may differ from the illustration depending on objects or
system. The indicator light on the
sensors status. If the indicator blinks, we recommend that you have
button will turn on.
your vehicle checked by an authorized HYUNDAI dealer.
• If the audible warning does not sound or if the buzzer sounds inter-
mittently when shifting into R (Reverse) position, this may indicate a
malfunction with Parking Distance Warning (Reverse) system. If this
occurs, we recommend that you have your vehicle checked by an
authorized HYUNDAI dealer as soon as possible.
3-101
Convenient features of your vehicle
Non-operational conditions of
There is a possibility of the Parking
Detecting range may decrease when:
Parking Distance Warning
Distance Warning (Reverse) system
•
Outside air temperature is extreme-
(Reverse) system
malfunction when:
ly hot or cold.
The Parking Distance Warning
•
Driving on uneven road surfaces
•
Undetectable objects smaller than
(Reverse) system may not operate
such as unpaved roads, gravel,
1 m (40 inches) and narrower than
normally when:
bumps, or gradient.
14 cm (6 inches) in diameter.
• Moisture is frozen to the sensor.
•
Objects generating excessive noise
such as vehicle horns, loud motor-
• Sensor is covered with foreign mat-
cycle engines, or truck air brakes
ter, such as snow or water, or the
can interfere with the sensor.
sensor cover is blocked.
•
Heavy rain or water spray is present.
•
Wireless transmitters or mobile
phones are present near the sensor.
•
The sensor is covered with snow.
•
Any non-factory equipment or acces-
sories have been installed, or if the
vehicle bumper height or sensor
installation has been modified.
3-102
The following objects may not be
Parking Distance Warning
•
Do not spray the sensors or its sur-
recognized by the sensor:
(Reverse) system precautions
rounding area directly with a high
pressure washer. Shock applied
• Sharp or slim objects such as
•
The Parking Distance Warning
from high pressure water may cause
ropes, chains or small poles.
(Reverse) system may not sound
the device to not operate normally.
• Objects, which tend to absorb sen-
consistently depending on the speed
sor frequency such as clothes,
and shapes of the objects detected.
spongy material or snow.
•
The Parking Distance Warning
(Reverse) system may malfunction if
3
the vehicle bumper height or sensor
WARNING
installation has been modified or
damaged. Any non-factory installed
Your new vehicle warranty does
equipment or accessories may also
not cover any accidents or dam-
interfere with the sensor perform-
age to the vehicle or injuries to
ance.
its occupants related to a
Parking Distance Warning
•
The sensor may not recognize
(Reverse) system. Always drive
objects less than 30 cm (11 in.) from
safely and cautiously.
the sensor, or it may sense an incor-
rect distance. Use caution.
•
When the sensor is frozen or stained
with snow, dirt, or water, the sensor
may be inoperative until the stains
are removed using a soft cloth.
•
Do not push, scratch or strike the
sensor with any hard objects that
could damage the surface of the
sensor. Sensor damage could occur.
3-103
Convenient features of your vehicle
Parking Distance Warning
The Parking Distance Warning
Operation of the Parking
(Reverse/Forward) system
(Reverse/Forward) system assists
Distance Warning
(if equipped)
the driver during movement of the
(Reverse/Forward) system
vehicle by chiming if any object is
■ Front sensor
sensed within the distance of 100 cm
(39 inches) in front and 120 cm (47
inches) behind the vehicle.
This system is a supplemental sys-
tem that senses objects within the
range and location of the sensors, it
cannot detect objects in other areas
where sensors are not installed.
WARNING
OOS047043
OOS047045
•
ALWAYS look around your vehi-
■ Rear sensor
cle to make sure there are no
Operating condition
objects or obstacles before
• This system will activate when the
moving the vehicle in any direc-
Parking Distance Warning (Reverse/
tion to prevent a collision.
Forward) system button is pressed
•
Always pay close attention
with the engine running.
when the vehicle is driven close
to objects, particularly pedestri-
ans, and especially children.
•
Be aware that some objects
may not be visible on the
screen or be detected by the
OOS047042
sensors, due to the objects
[A] : Rear Sensor, [B] : Front Sensor
distance, size or material, all of
which can limit the effective-
ness of the sensor.
3-104
•
The Parking Distance Warning
Types of warning sound and indicator
cm (in)
(Reverse/Forward) system button
turns on automatically and activates
Warning indicator
Distance
the Parking Distance Warning
When driving
When driving
Warning sound
from object
(Reverse/Forward) system when
forward
rearward
you move the shift lever to the R
61 ~ 100
Buzzer beeps
(Reverse) position. However, if vehi-
Front
-
(24 ~39)
intermittently
cle speed exceeds
10 km/h
(6
3
mph), the system will not warn you
61 ~ 120
Buzzer beeps
Rear
-
even though objects are detected,
(24 ~47)
intermittently
and if vehicle speed exceeds 20
Buzzer beeps
km/h (12 mph), the system will turn
Front
31 ~ 60
frequently
off automatically. To turn on the sys-
tem, press the Parking Distance
(12 ~24)
Buzzer beeps
Rear
-
Warning (Reverse/Forward) system
frequently
button.
Buzzer sounds
Front
•
When more than two objects are
continuously
30
sensed at the same time, the clos-
(12)
Buzzer sounds
est one will be recognized first.
Rear
-
continuously
NOTICE
• The indicator may differ from the illustration depending on objects or
sensors status. If the indicator blinks, we recommend that the system
be checked by an authorized HYUNDAI dealer.
• If the audible warning does not sound or if the buzzer sounds inter-
mittently when shifting into R (Reverse) position, this may indicate a
malfunction with the Parking Distance Warning (Reverse/Forward)
system. If this occurs, we recommend that you have your vehicle
checked by an authorized HYUNDAI dealer as soon as possible.
3-105
Convenient features of your vehicle
Non-operational conditions of
Detecting range may decrease when:
Parking Distance Warning
Parking Distance Warning
• Outside air temperature is
(Reverse/Forward) system
(Reverse/Forward) system
extremely hot or cold.
precautions
Parking Distance Warning
• Undetectable objects smaller than
•
The Parking Distance Warning
(Reverse/Forward) system may not
1 m and narrower than 14 cm in
(Reverse/Forward) system may not
operate normally when:
diameter.
sound consistently depending on the
• Moisture is frozen to the sensor.
speed and shapes of the objects
detected.
• Sensor is covered with foreign mat-
The following objects may not be
•
The Parking Distance Warning
ter, such as snow or water, or the
recognized by the sensor:
(Reverse/Forward) system may mal-
sensor cover is blocked.
• Sharp or slim objects such as
function if the vehicle bumper height
There is a possibility of Parking
ropes, chains or small poles.
or sensor installation has been mod-
Distance Warning (Reverse/Forward)
• Objects, which tend to absorb sen-
ified or damaged. Any non-factory
system malfunction when:
sor frequency such as clothes,
installed equipment or accessories
•
Driving on uneven road surfaces
spongy material or snow.
may also interfere with the sensor
such as unpaved roads, gravel,
performance.
bumps, or gradient.
WARNING
•
The sensor may not recognize
•
Objects generating excessive noise
objects less than 30 cm (11 in.) from
such as vehicle horns, loud motor-
Your new vehicle warranty does
the sensor, or it may sense an incor-
cycle engines, or truck air brakes
not cover any accidents or dam-
rect distance. Use caution.
can interfere with the sensor.
age to the vehicle or injuries to
•
When the sensor is frozen or stained
its occupants related to a
•
Heavy rain or water spray is present.
with snow, dirt, or water, the sensor
Parking Distance Warning
may be inoperative until the stains
•
Wireless transmitters or mobile
(Reverse/Forward)
system.
are removed using a soft cloth.
phones are present near the sensor.
Always drive safely and cau-
•
Do not push, scratch or strike the
•
The sensor is covered with snow.
tiously.
sensor. Sensor damage could occur.
•
Any non-factory equipment or
•
Do not spray the sensors or its sur-
accessories have been installed, or
rounding area directly with a high
if the vehicle bumper height or sen-
pressure washer. Shock applied
sor installation has been modified.
from high pressure water may cause
3-106
the device to not operate normally.
DEFROSTER
NOTICE
■ Automatic climate control system
i
Information
To prevent damage to the conduc-
• If there is heavy accumulation of
tors bonded to the inside surface
snow on the rear window, brush it off
of the rear window, never use
before operating the rear defroster.
sharp instruments or window
• The rear window defroster automat-
cleaners containing abrasives to
ically turns off after approximately
clean the window.
20 minutes or when the ignition
3
switch is in the OFF position.
i
Information
If you want to defrost and defog the
Outside mirror defroster
OOS047303L
front windshield, refer to “Windshield
(if equipped)
Defrosting and Defogging” in this
The defroster heats the window to
If your vehicle is equipped with out-
chapter.
remove frost, fog and thin ice from
side mirror defrosters, they will oper-
the interior and exterior of the rear
ate at the same time you turn on the
window, while the engine is running.
rear window defroster.

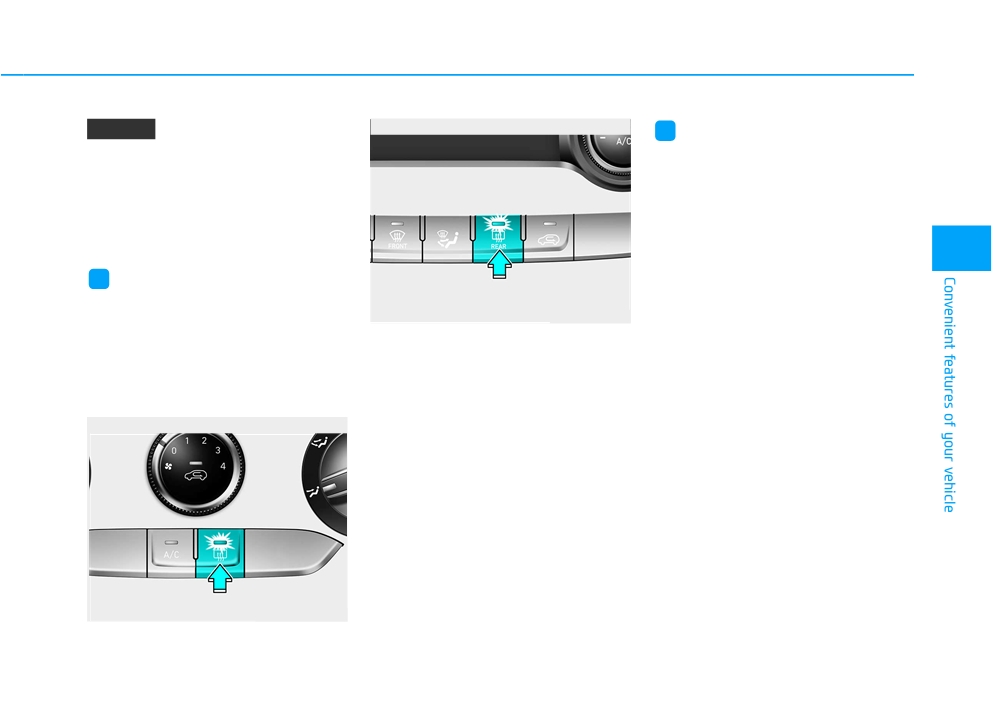

Rear window defroster
• To activate the rear window
■ Manual climate control system
defroster, press the rear window
defroster button located in the cen-
ter facia switch panel. The indicator
on the rear window defroster but-
ton illuminates when the defroster
is ON.
• To turn off the defroster, press the
rear window defroster button
again.
OOS047302L
3-107
Convenient features of your vehicle

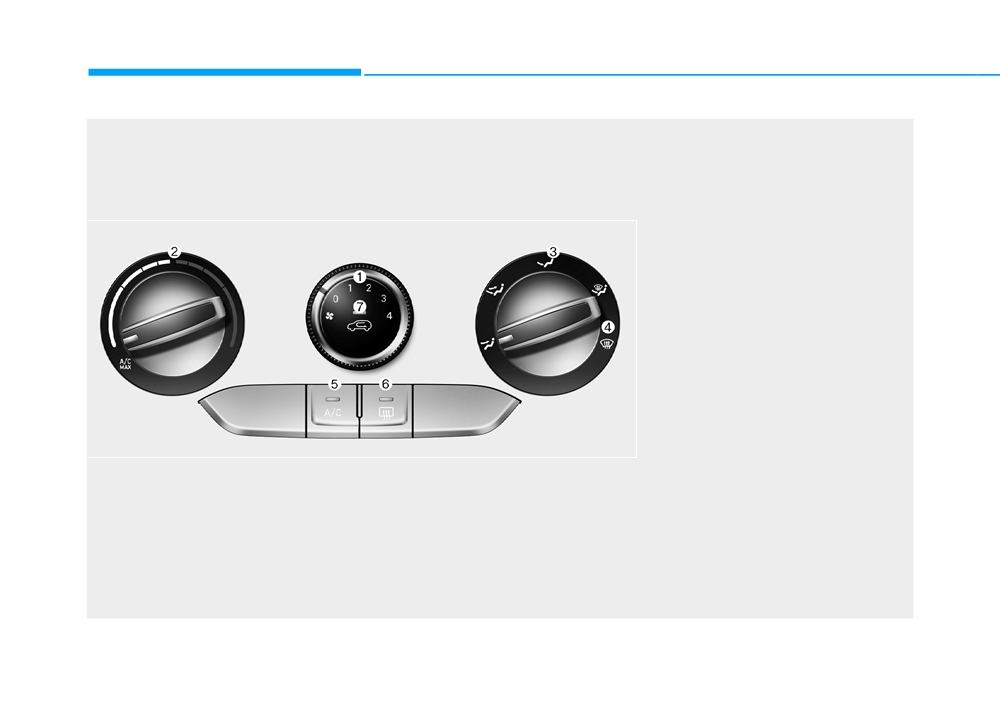

MANUAL CLIMATE CONTROL SYSTEM (IF EQUIPPED)
1. Fan speed control knob
2. Temperature control knob
3. Mode selection knob
4. Front windshield defroster position
5. A/C (Air conditioning) button*
6. Rear window defroster button
7. Air intake control button
* : if equipped
OOS047300L
3-108
Heating and air conditioning
Mode selection
1. Start the engine.
2. Set the mode to the desired posi-
tion.
To improve the effectiveness of
heating and cooling, select:
- Heating:
3
- Cooling:
3. Set the temperature control to the
desired position.
4. Set the air intake control to the
outside (fresh) air position.
5. Set the fan speed control to the
desired speed.
6. If air conditioning is desired, turn
the air conditioning system on.
OOS047304

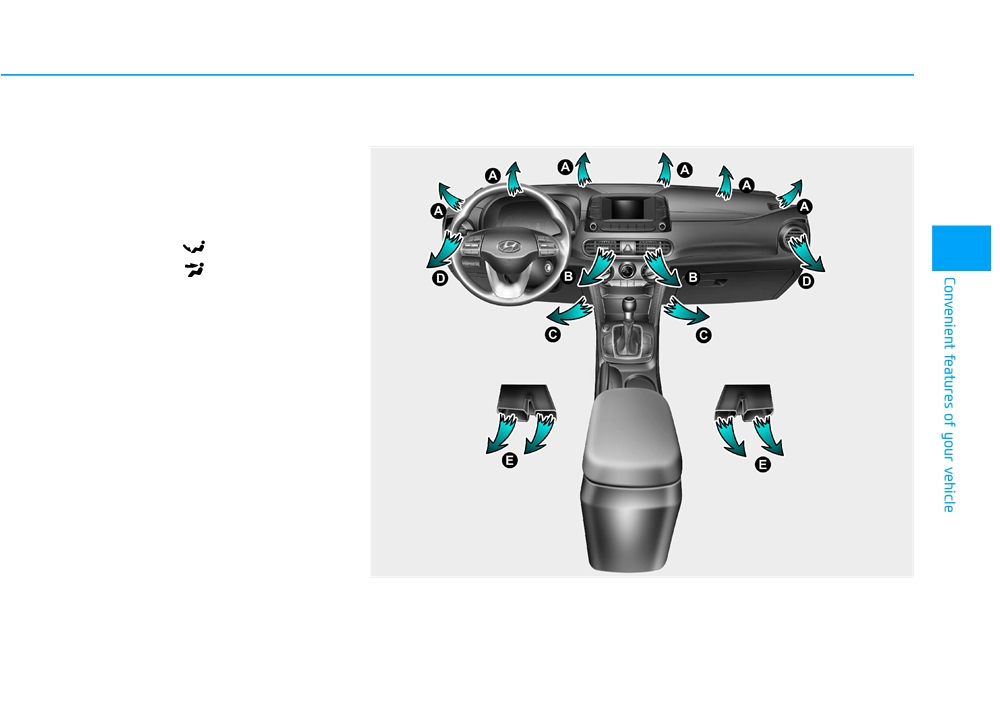

The mode selection button controls the direction of the air flow through the
ventilation system.
Air can be directed to the floor, dashboard outlets, or windshield.
3-109
Convenient features of your vehicle
After the interior has cooled suffi-
Face-Level (B, D)
Defrost-Level (A, D)
ciently, whenever possible, move the
temperature knob away from A/C
MAX and press the A/C button.
Air flow is directed toward the upper
Most of the air flow is directed to the
body and face. Additionally, each
windshield with a small amount of air
outlet can be controlled to direct the
directed to the side window defrosters.
air discharged from the outlet.
Bi-Level (B, C, D, E)
Air flow is directed towards the face
and the floor.
Floor-Level (A, C, D, E)
OOS047306
Most of the air flow is directed to the

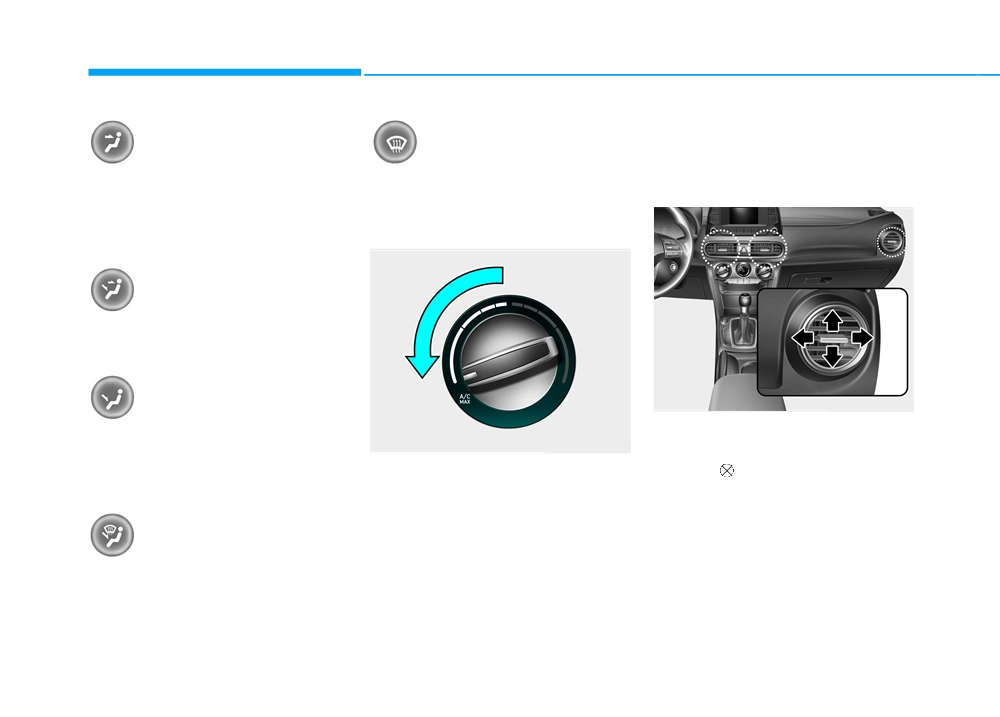

Instrument panel vents
OOS047305
floor, with a small amount of the air
The outlet vents can be opened or
being directed to the windshield and
closed
(
) separately using the
A/C MAX-Level (B, D)
side window defrosters.
thumbwheel.
(if equipped)
Also, you can adjust the direction of
To operate the A/C MAX, turn the
Floor/Defrost-Level
temperature control knob to extreme
air delivery from these vents using
(A, C, D, E)
left. Air flow is directed toward the
the vent control lever as shown.
upper body and face.
Most of the air flow is directed to the
In this mode, the air conditioning and
floor and the windshield with a small
the recirculated air position will be
amount directed to the side window
selected automatically.
defrosters.
3-110
Temperature control (2)
i
Information
• Continued climate control sys-
The temperature will increase by turn-
Using the system in the fresh air posi-
tem operation in the recirculat-
ing the knob to the right. The tempera-
tion is recommended.
ed air position can cause
ture will decrease by turning the knob
drowsiness or sleepiness, and
Prolonged operation of the heater in
to the left.
loss of vehicle control. Set the
the recirculated air position (without
air intake control to the outside
air conditioning selected) can cause
(fresh) air position as much as
Air intake control (7)
fogging of the windshield and side win-
possible while driving.
3
This is used to select outside (fresh)
dows and the air within the passenger
air position or recirculated air position.
compartment will become stale.
To change the air intake control posi-
In addition, prolonged use of the air
Fan speed control (1)
tion, press the control button.
conditioning with the recirculated air
Turn the knob to the right to increase
position selected will result in exces-
Recirculated air position
the fan speed and airflow. Turn the
sively dry air in the passenger com-
knob to the left to decrease fan
With the recirculated air
partment.
speed and airflow.
position selected, air from
the passenger compart-
Setting the fan speed control knob to
WARNING
ment will be drawn
the “0” position turns off the fan.
through the heating sys-
•
Continued climate control
tem and heated or cooled
NOTICE
system operation in the recir-
according to the function
culated air position may allow
Operating the fan speed when the
selected.
humidity to increase inside
ignition switch is in the ON posi-
the vehicle which may fog the
tion could cause the battery to
glass and obscure visibility.
Outside (fresh) air posi-
discharge. Operate the fan speed
tion
•
Do not sleep in a vehicle with
when the engine is running.
the air conditioning or heating
With the outside (fresh)
air position selected, air
system on. It may cause seri-
ous harm or death due to a
enters the vehicle from
outside and is heated or
drop in the oxygen level
and/or body temperature.
cooled according to the
function selected.
3-111
Convenient features of your vehicle
Air conditioning (A/C) (5)
5. If dehumidified heating is desired,
Air conditioning
(if equipped)
turn the air conditioning system (if
HYUNDAI Air Conditioning Systems
equipped) on.
Press the A/C button to turn the air
are filled with R-134a or R-1234yf
conditioning system on
(indicator
If the windshield fogs up, set the mode
refrigerant.
light will illuminate). Press the button
to the
or
position.
1. Start the engine. Push the air con-
again to turn the air conditioning sys-
ditioning button.
tem off.
Operation Tips
2. Set the mode to the
position.
•
To keep dust or unpleasant fumes
3. Set the air intake control to the out-
System operation
from entering the vehicle through
side air or recirculated air position.
the ventilation system, temporarily
Ventilation
4. Adjust the fan speed control and
set the air intake control to the
temperature control to maintain
1. Set the mode to the
position.
recirculated air position. Be sure to
maximum comfort.
2. Set the air intake control to the
return the control to the fresh air
outside (fresh) air position.
position when the irritation has
i
Information
3. Set the temperature control to the
passed to keep fresh air in the
desired position.
vehicle. This will help keep the driv-
Your vehicle is filled with R-134a or
er alert and comfortable.
R-1234yf according to the regulation
4. Set the fan speed control to the
desired speed.
•
To prevent interior fog on the wind-
in your country at the time of produc-
shield, set the air intake control to
tion. You can find out which air condi-
the fresh air position and fan speed
tioning refrigerant is applied to your
Heating
vehicle on the label located inside of
to the desired position, turn on the
1. Set the mode to the
position.
air conditioning system, and adjust
the hood. Refer to chapter 8 for the
the temperature control to the
location of the air conditioning refrig-
2. Set the air intake control to the
desired temperature.
erant label.
outside (fresh) air position.
3. Set the temperature control to the
desired position.
4. Set the fan speed control to the
desired speed.
3-112
NOTICE
• When opening the windows in
• If you operate the air conditioner
humid weather air conditioning
excessively, the difference between
•
The refrigerant system should
may create water droplets inside
the temperature of the outside air
only be serviced by trained and
the vehicle. Since excessive
and that of the windshield could
certified technicians to insure
water droplets may cause dam-
cause the outer surface of the
proper and safe operation.
age to electrical equipment, air
windshield to fog up, causing loss
•
The refrigerant system should
conditioning should only be
of visibility. In this case, set the
be serviced in a well-ventilated
used with the windows closed.
mode selection button to the
3
place.
position and set the fan speed con-
trol knob to the lowest speed set-
•
The air conditioning evaporator
Air conditioning system operation
ting.
(cooling coil) shall never be
tips
repaired or replaced with one
• If the vehicle has been parked in
removed from a used or sal-
direct sunlight during hot weather,
vaged vehicle and new replace-
open the windows for a short time
ment MAC evaporators shall be
to let the hot air inside the vehicle
certified (and labeled) as meet-
escape.
ing SAE Standard J2842.
• After sufficient cooling has been
achieved, switch back from the
NOTICE
recirculated air to the fresh outside
• When using the air conditioning
air position.
system, monitor the temperature
• To help reduce moisture inside of
gauge closely while driving up
the windows on rainy or humid
hills or in heavy traffic when out-
days, decrease the humidity inside
side temperatures are high. Air
the vehicle by operating the air
conditioning system operation
conditioning system with the win-
may cause engine overheating.
dows and sunroof closed.
Continue to use the fan but turn
• Use the air conditioning system
the air conditioning system off if
every month for a few minutes to
the temperature gauge indicates
ensure maximum system perform-
engine overheating.
ance.
3-113
Convenient features of your vehicle
System maintenance
If the air flow rate suddenly decreas-
WARNING
es, we recommend the system be
Climate control air filter
checked at an authorized HYUNDAI
Vehicles equipped with R-134a
dealer.
Outside air
Because the refriger-
NOTICE
ant is at very high
Recirculated
pressure, the air condi-
air
It is important that the correct
tioning system should
type and amount of oil and refrig-
only be serviced by trained and
erant is used. Otherwise, damage
certified technicians. It is impor-
to the compressor and abnormal
tant that the correct type and
system operation may occur.
amount of oil and refrigerant is
Blower
Heater core
used. Otherwise, it may cause
Climate control
Evaporator
Checking the amount of air con-
damage to the vehicle and per-
air filter
core
1LDA5047
sonal injury.
ditioner refrigerant and com-
pressor lubricant
This filter is installed behind the
glove box. It filters the dust or other
When the amount of refrigerant is
pollutants that enter the vehicle
low, the performance of the air con-
through the heating and air condi-
ditioning is reduced. Overfilling also
tioning system.
reduces the performance of the air
conditioning system.
We recommend that the climate con-
trol air filter be replaced by an
Therefore, if abnormal operation is
authorized HYUNDAI dealer accord-
found, we recommend that the sys-
ing to the maintenance schedule. If
tem be inspected by an authorized
the vehicle is being driven in severe
HYUNDAI dealer.
conditions such as dusty or rough
roads, more frequent climate control
filter inspections and changes are
required.
3-114
Air conditioning refrigerant
Each symbols and specification on
WARNING
label
air conditioning refrigerant label
means as below:
Vehicles equipped with R-1234yf
■ Example
• Type A
Because the refriger-
1. Classification of refrigerant
ant is mildly inflamma-
2. Amount of refrigerant
ble at very high pres-
sure, the air condition-
3. Classification of Compressor lubri-
3
ing system should only
cant
be serviced by trained
and certified techni-
You can find out which air conditioning
cians. It is important
refrigerant is applied to your vehicle on
that the correct type and amount
the label located inside of the hood.
of oil and refrigerant is used.
ODH044365R
Refer to chapter 8 for the location of
Otherwise, it may cause dam-
the air conditioning refrigerant label.
age to the vehicle and personal
• Type B
injury.
We recommend the air conditioning
system be serviced by an authorized
HYUNDAI dealer.
ODH043366
The actual Air Conditioning refriger-
ant label in the vehicle may differ
from the illustration.
3-115
