Your vehicle at a glance

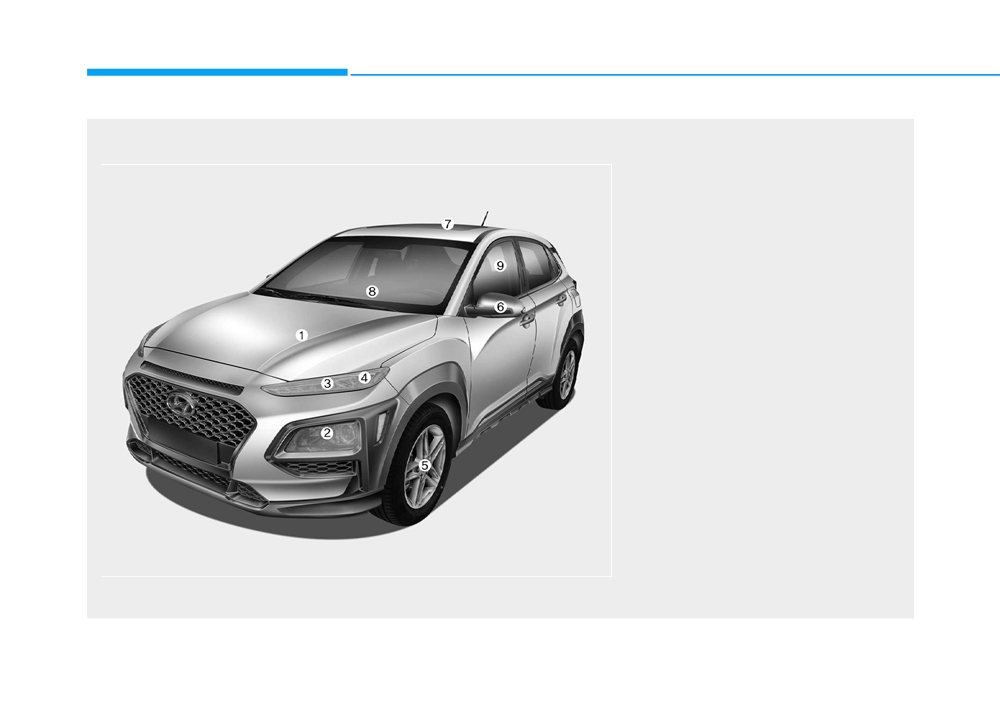

EXTERIOR OVERVIEW (I)
■ Front view
1. Hood
3-31
2. Head lamp
3-83, 7-64
3. DRL (Daytime Running Light)
7-64
4. Turn signal lamp
7-64
5. Tires and wheels
7-36, 8-4
6. Outside rearview mirror
3-20
7. Sunroof
3-27
8. Front windshield wiper blades
3-95
9. Windows
3-23
The actual shape may differ from the illustration.
OOS017001
1-2

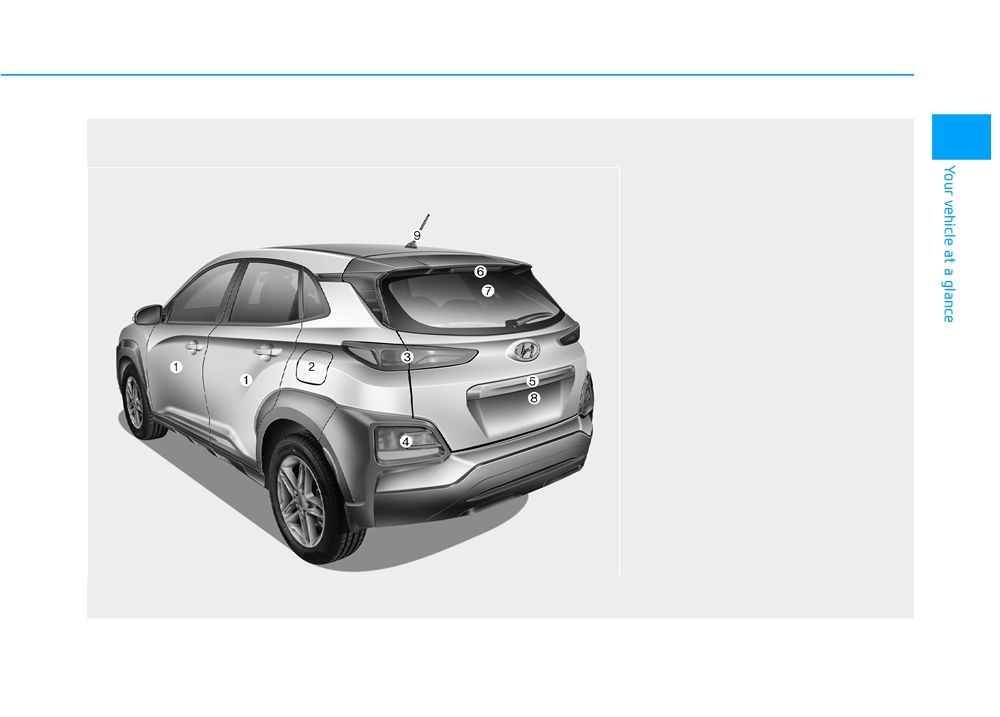

EXTERIOR OVERVIEW (II)
■ Rear view
1
1. Door
3-11
2. Fuel filler door
3-34
3. Rear combination lamp
7-74
4. Turn signal lamp, Rear fog lamp,
Back-up lamp
7-74
5. Tailgate
3-32
6. High mounted stop lamp
7-76
7. Defroster
3-107
8. Rearview monitor
3-99
9. Antenna
4-2
The actual shape may differ from the illustration.
OOS017002
1-3
Your vehicle at a glance

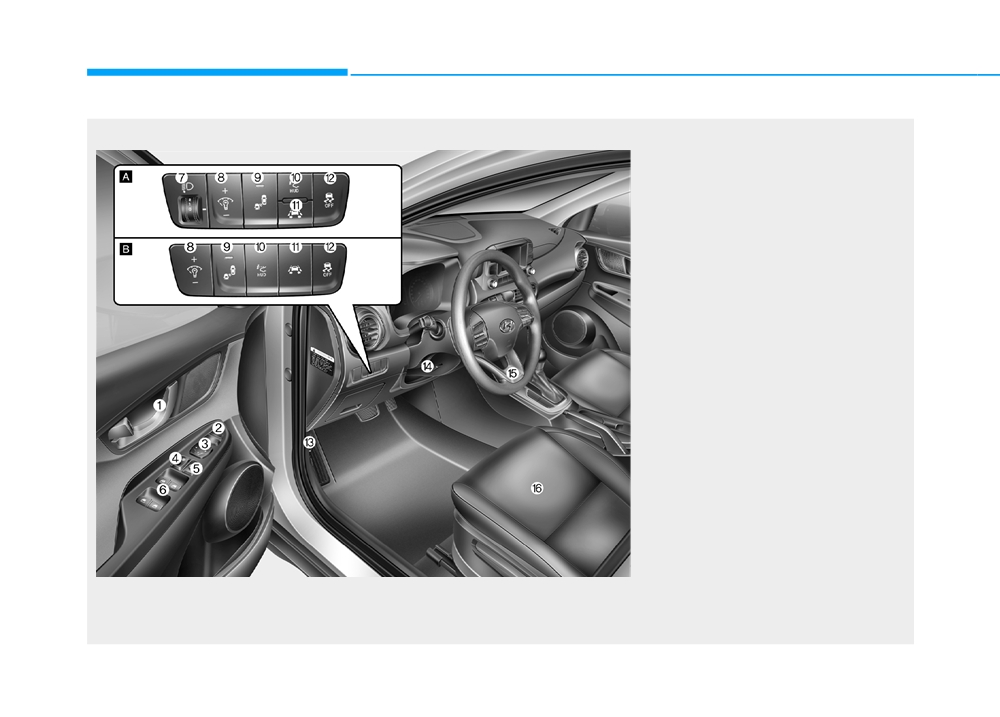

INTERIOR OVERVIEW (I)
■ Left-Hand drive type
1. Inside door handle
3-12
2. Outside rearview mirror folding
3-22
3. Outside rearview mirror control
3-21
4. Central door lock switch
3-13
5. Power window lock switch
3-26
6. Power window switches
3-23
7. Headlight leveling device
3-91
8. Instrument panel illumination
control switch
3-38
9. Blind-spot Collision Warning (BCW)
system
5-55
10. Head-up display button
3-81
11. Lane keeping assist (LKA) system ..5-76
12. ESC OFF button
5-33
13. Hood release lever
3-31
14. Steering wheel tilt/telescopic lever ..3-17
15. Steering wheel
3-17
16. Seat
2-4
[A] : Type A, [B] : Type B
OOS017003
The actual shape may differ from the illustration.
1-4

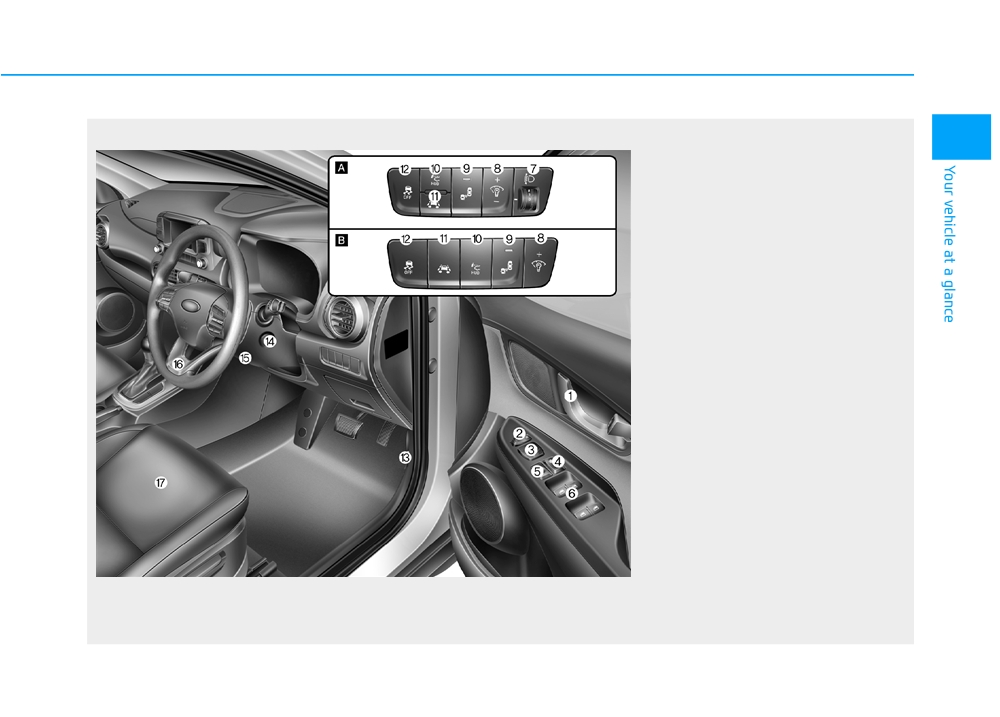

INTERIOR OVERVIEW (II)
■ Right-Hand drive type
1
1. Inside door handle
3-12
2. Outside rearview mirror folding
3-22
3. Outside rearview mirror control
3-21
4. Central door lock switch
3-13
5. Power window lock switch
3-26
6. Power window switches
3-23
7. Headlight leveling device
3-91
8. Instrument panel illumination
control switch
3-38
9. Blind-spot Collision Warning (BCW)
system
5-55
10. Head-up display button
3-81
11. Lane keeping assist (LKA) system ..5-76
12. ESC OFF button
5-33
13. Hood release lever
3-31
14. Ignition switch
5-6
15. Steering wheel tilt/telescopic lever ..3-17
16. Steering wheel
3-17
17. Seat
2-5
[A] : Type A, [B] : Type B
OOS017003R
The actual shape may differ from the illustration.
1-5
Your vehicle at a glance

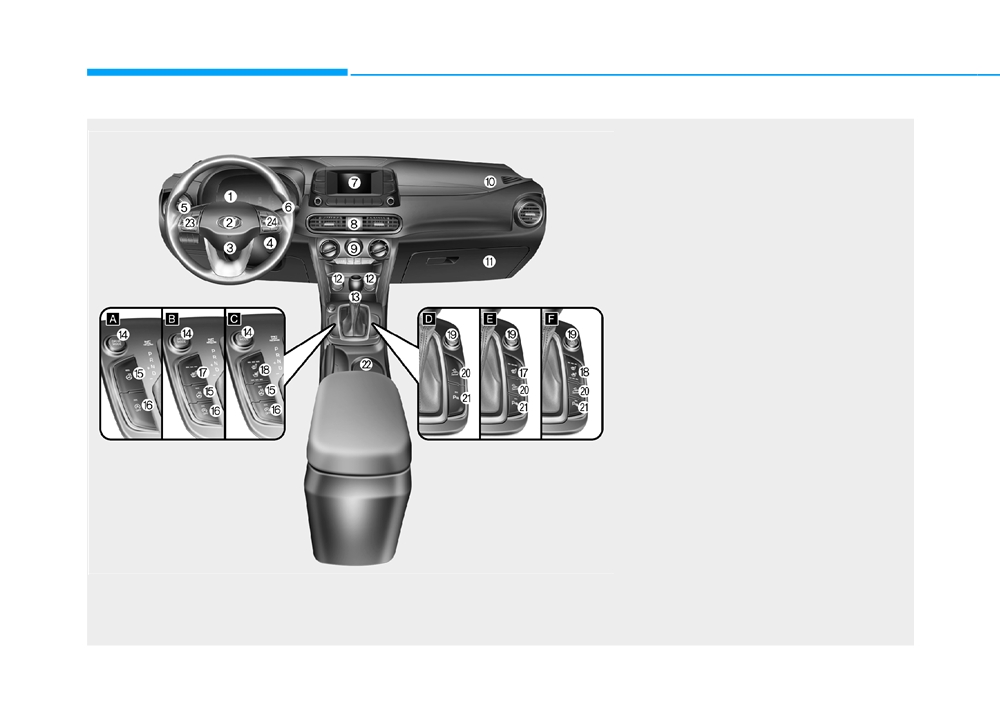

INSTRUMENT PANEL OVERVIEW (I)
■ Left-Hand drive type
1. Instrument cluster
3-37
2. Horn
3-19
3. Driver’s front air bag
2-48
4. Key ignition switch/
5-6
Engine Start/Stop button
5-9
5. Light control/Turn signals
3-83
6. Wiper/Washer
3-95
7. Audio system/
4-7
Navigation system
4-4
8. Hazard warning flasher switch
6-3
9. Manual climate control system/
3-108
Automatic climate control system
3-116
10. Passenger’s front air bag
2-48
11. Glove box
3-128
12. Power outlet
3-132
13. Manual transmission shift lever/
Dual clutch transmission shift lever ..5-16, 5-19
14. Drive mode button
5-53
15. Heated steering wheel
3-18
16. Idle stop and go (ISG) OFF button
5-47
17. Seat warmer
2-19
18. Seat warmer/Air ventilation seat
2-21
19.4WD lock button
5-41
20. DBC button
5-38
21. Parking Distance Warning
(Reverse/Forward) button
3-104
22. Cup holder
3-131
23. Steering wheel audio controls/
4-3
Bluetooth® wireless technology
OOS017004
hands-free controls
4-4
24. Speed limiter controls/
5-88
Cruise controls/
5-90
The actual shape may differ from the illustration.
[A-F] : Type A ~ Type F
1-6

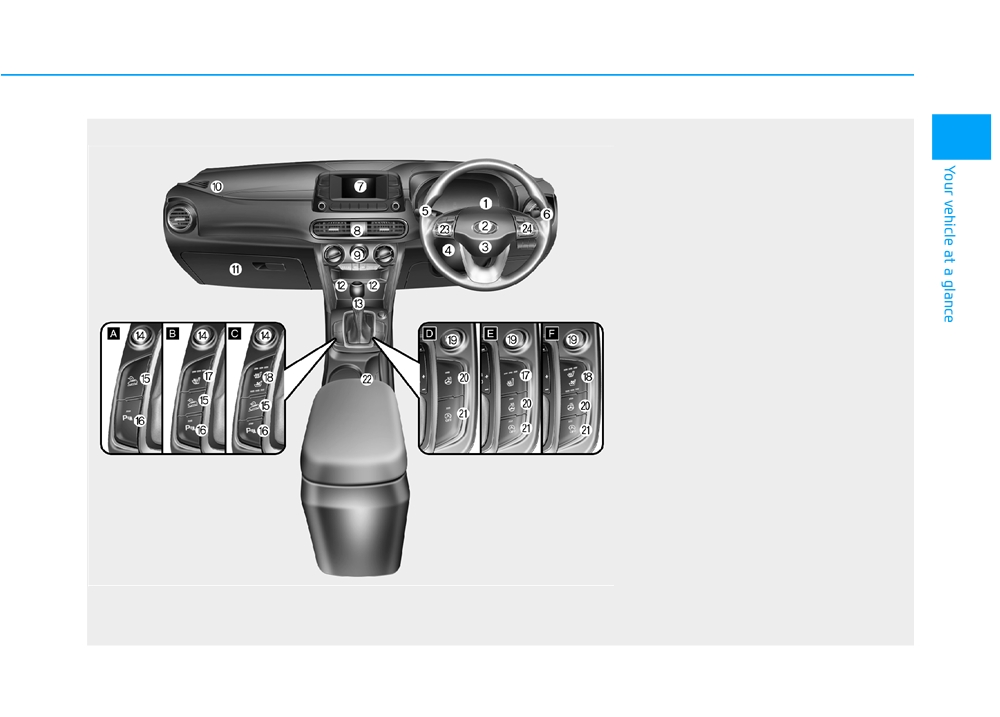

INSTRUMENT PANEL OVERVIEW (II)
■ Right-Hand drive type
1. Instrument cluster
3-37
1
2. Horn
3-19
3. Driver’s front air bag
2-48
4. Engine Start/Stop button
5-9
5. Light control/Turn signals
3-83
6. Wiper/Washer
3-95
7. Audio system/
4-7
Navigation system
4-4
8. Hazard warning flasher switch
6-3
9. Manual climate control system/
3-108
Automatic climate control system
3-116
10. Passenger’s front air bag
2-48
11. Glove box
3-128
12. Power outlet
3-132
13. Manual transmission shift lever/
Dual clutch transmission shift lever ..5-16, 5-19
14.4WD lock button
5-41
15. DBC button
5-38
16. Parking Distance Warning (Reverse/Forward)
button
3-104
17. Seat warmer
2-19
18. Seat warmer/Air ventilation seat
2-21
19. Drive mode button
5-53
20. Heated steering wheel
3-18
21. Idle stop and go (ISG) OFF button
5-47
22. Cup holder
3-131
23. Steering wheel audio controls/
4-3
Bluetooth® wireless technology
OOS017004E
hands-free controls
4-4
24. Speed limiter controls/
5-88
Cruise controls
5-90
The actual shape may differ from the illustration.
[A-F] : Type A ~ Type F
1-7
Your vehicle at a glance

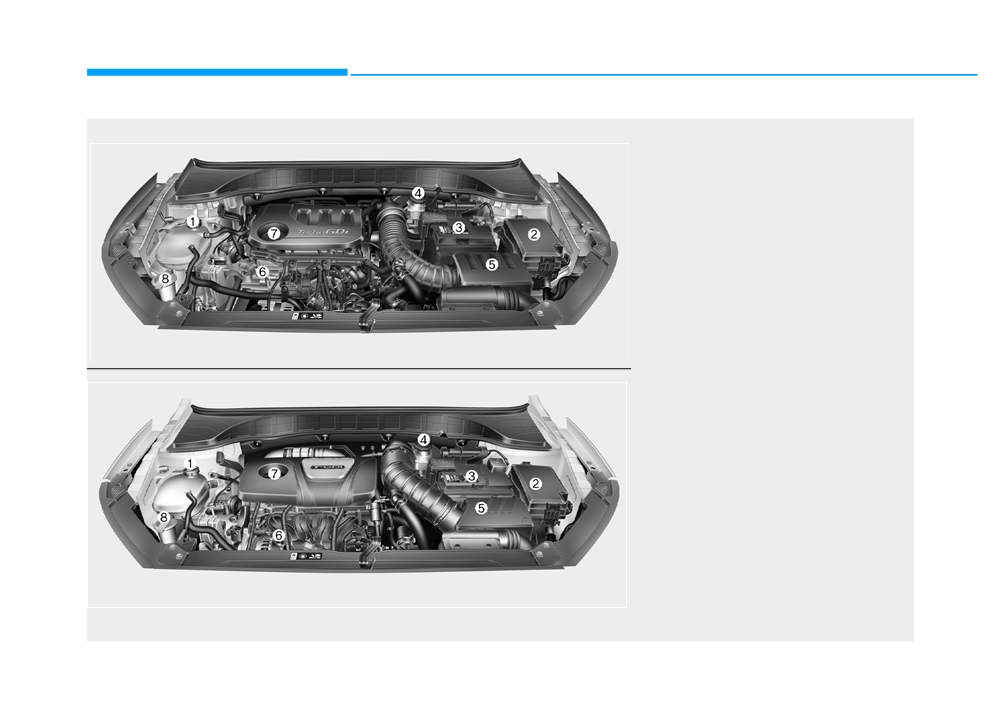

ENGINE COMPARTMENT
■ Gasoline Engine (Kappa 1.0 T-GDI)
1. Engine coolant reservoir/
Engine coolant cap
7-23
2. Fuse box
7-55
3. Battery
7-32
4. Brake/clutch fluid reservoir
7-26
■ Gasoline Engine (Gamma 1.6 T-GDI)
5. Air cleaner
7-28
6. Engine oil dipstick
7-21
7. Engine oil filler cap
7-22
8. Windshield washer fluid reservoir
7-27
The actual engine compartment in the vehicle may differ from the illustration.
OOS077070L/OOS077001
1-8
Safety system of your vehicle
This chapter provides you with important information about how to protect yourself and your passengers.
It explains how to properly use your seats and seat belts, and how your air bags work.
Additionally, this chapter explains how to properly restrain infants and children in your vehicle.
2
Important safety precautions
2-2
Child restraint system (CRS)
2-33
Always wear your seat belt
2-2
Our recommendation:Children always in the rear..2-33
Restrain all children
2-2
Selecting a Child Restraint System (CRS)
2-34
Air bag hazards
2-2
Installing a Child Restraint System (CRS)
2-36
Driver distraction
2-2
Air bag - supplemental restraint system
2-45
Control your speed
2-3
Where are the air bags?
2-48
Keep your vehicle in safe condition
2-3
How does the air bags system operate?
2-53
Seats
2-4
What to expect after an air bag inflates
2-57
Safety precautions
2-6
Why didn't my air bag go off in a collision?
2-58
Front seats
2-7
SRS care
2-63
Rear seats
2-12
Additional safety precautions
2-64
Headrest
2-15
Air bag warning labels
2-64
Seat warmers and air ventilation seats
2-19
Seat belts
2-22
Seat belt safety precautions
2-22
Seat belt warning light
2-23
Seat belt restraint system
2-25
Additional seat belt safety precautions
2-30
Care of seat belts
2-32
Safety system of your vehicle
IMPORTANT SAFETY PRECAUTIONS
You will find many safety precautions
Restrain all children
Driver distraction
and recommendations throughout
All children under age 13 should ride
Driver distraction presents a serious
this section, and throughout this man-
in your vehicle properly restrained in
and potentially deadly danger, espe-
ual. The safety precautions in this sec-
a rear seat, not the front seat. Infants
cially for inexperienced drivers. Safety
tion are among the most important.
and small children should be
should be the first concern when
restrained in an appropriate Child
behind the wheel and drivers need to
Always wear your seat belt
Restraint System. Larger children
be aware of the wide array of potential
should use a booster seat with the
distractions, such as drowsiness,
A seat belt is your best protection in
lap/shoulder belt until they can use
reaching for objects, eating, personal
all types of accidents. Air bags are
the seat belt properly without a
grooming, other passengers, and
designed to supplement seat belts,
booster seat.
using cellular phones.
not replace them. So even though
your vehicle is equipped with air bags,
Drivers can become distracted when
they take their eyes and attention off
ALWAYS make sure you and your
Air bag hazards
passengers wear your seat belts, and
the road or their hands off the wheel
While air bags can save lives, they
to focus on activities other than driv-
wear them properly.
can also cause serious or fatal
ing. To reduce your risk of distraction
injuries to occupants who sit too
and an accident:
close to them, or who are not prop-
• ALWAYS set up your mobile devices
erly restrained. Infants, young chil-
(i.e., MP3 players, phones, naviga-
dren, and short adults are at the
tion units, etc.) when your vehicle is
greatest risk of being injured by an
parked or safely stopped.
inflating air bag. Follow all instruc-
tions and warnings in this manual.
• ONLY use your mobile device when
allowed by laws and conditions per-
mit safe use. NEVER text or email
while driving. Most countries have
laws prohibiting drivers from texting.
Some countries and cities also pro-
hibit drivers from using handheld
phones.
2-2
• NEVER let the use of a mobile device
Keep your vehicle in safe condi-
distract you from driving. You have a
tion
responsibility to your passengers and
Having a tire blowout or a mechanical
others on the road to always drive
failure can be extremely hazardous. To
safely, with your hands on the wheel
2
reduce the possibility of such prob-
as well as your eyes and attention on
lems, check your tire pressures and
the road.
condition frequently, and perform all
regularly scheduled maintenance.
Control your speed
Excessive speed is a major factor in
crash injuries and deaths. Generally,
the higher the speed, the greater the
risk, but serious injuries can also
occur at lower speeds. Never drive
faster than is safe for current condi-
tions, regardless of the maximum
speed posted.
2-3
Safety system of your vehicle

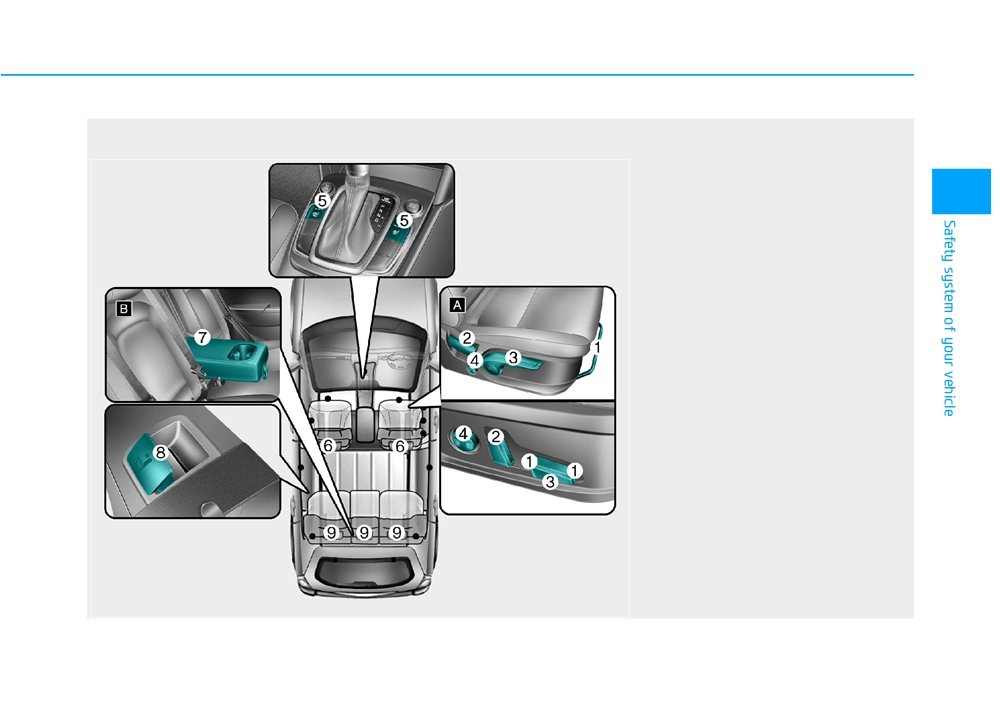

SEATS
■ Left-Hand drive type
Front seat
(1) Forward and backward
(2) Seatback angle
(3) Seat cushion height *
(4) Lumbar support (Driver’s seat)*
(5) Seat warmer*/Air ventilation seat*
(6) Headrest
Rear seat
(7) Armrest*
(8) Seatback folding
(9) Headrest
* : if equipped
[A] : Driver’s Side, [B] : Rear seat
OOS037073
2-4

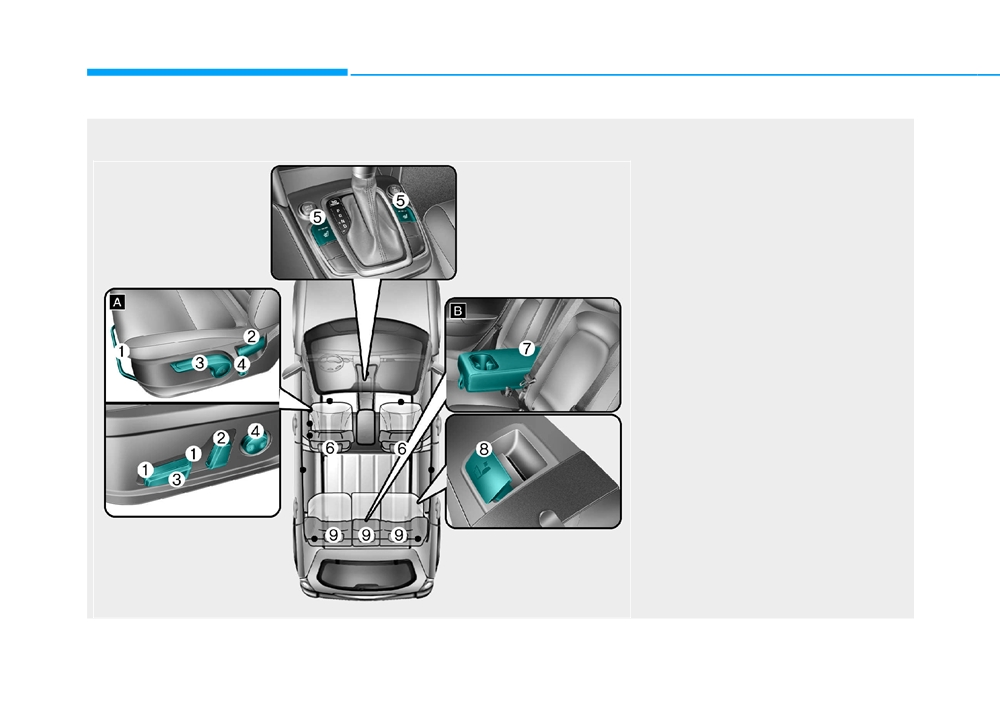

■ Right-Hand drive type
2
Front seat
(1) Forward and backward
(2) Seatback angle
(3) Seat cushion height *
(4) Lumbar support (Driver’s seat)*
(5) Seat warmer*/Air ventilation seat*
(6) Headrest
Rear seat
(7) Armrest*
(8) Seatback folding
(9) Headrest
* : if equipped
[A] : Driver’s Side, [B] : Rear seat
OOS037001R
2-5
Safety system of your vehicle

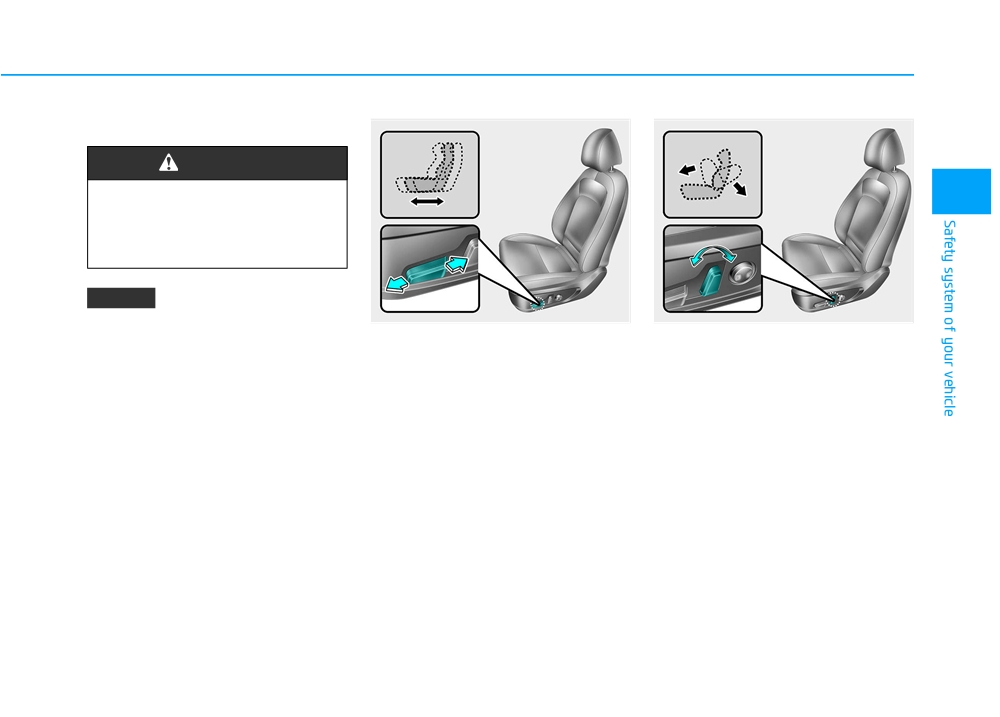

Safety precautions
Seat belts
WARNING
Adjusting the seats so that you are sit-
Always fasten your seat belt before
ting in a safe, comfortable position
starting any trip. At all times, passen-
To reduce the risk of serious
plays an important role in driver and
gers should sit upright and be prop-
injury or death from an inflating
passenger safety together with the
erly restrained. Infants and small
air bag, take the following pre-
seat belts and air bags in an accident.
children must be restrained in appro-
cautions:
priate Child Restraint Systems.
•
Adjust the driver’s seat as far
Children who have outgrown a
WARNING
to the rear as possible main-
booster seat and adults must be
taining the ability to control the
restrained using the seat belts.
Do not use a cushion that reduces
vehicle.
friction between the seat and the
•
Adjust the front passenger seat
WARNING
passenger.The passenger's hips
as far to the rear as possible.
may slide under the lap portion
Take the following precautions
•
Hold the steering wheel by the
of the seat belt during an acci-
when adjusting your seat belt:
rim with hands at the 9 o’clock
dent or a sudden stop.
and 3 o’clock positions to min-
•
NEVER use one seat belt for
Serious or fatal internal injuries
imize the risk of injuries to
more than one occupant.
could result because the seat
your hands and arms.
•
Always position the seatback
belt cannot operate properly.
•
NEVER place anything or any-
upright with the lap portion of
one between you and the air
the seat belt snug and low
bag.
across the hips.
Air bags
•
Do not allow the front passen-
•
NEVER allow children or small
You can take steps to reduce the risk
ger to place feet or legs on the
infants to ride on a passenger’s
of being injured by an inflating air
dashboard to minimize the risk
lap.
bag. Sitting too close to an air bag
of leg injuries.
•
Do not route the seat belt
greatly increases the risk of injury in
across your neck, across sharp
the event the air bag inflates. Move
edges, or reroute the shoulder
your seat as far back as possible
strap away from your body.
from front air bags, while still main-
taining control of the vehicle.
•
Do not allow the seat belt to
become caught or jammed.
2-6
Front seats
Manual adjustment
•
Do not place a cigarette lighter
The front seat can be adjusted by
on the floor or seat. When you
using the control lever (or knob) or
operate the seat, gas may exit
switches located on the outside of the
out of the lighter causing a fire.
2
seat cushion. Before driving, adjust
•
Use extreme caution when
the seat to the proper position so that
picking up small objects
you can easily control the steering
trapped under the seats or
wheel, foot pedals and controls on the
between the seat and the center
instrument panel.
console. Your hands might be
cut or injured by the sharp
WARNING
edges of the seat mechanism.
•
If there are occupants in the
Take the following precautions
rear seats, be careful while
OOS037002
when adjusting your seat:
adjusting the front seat posi-

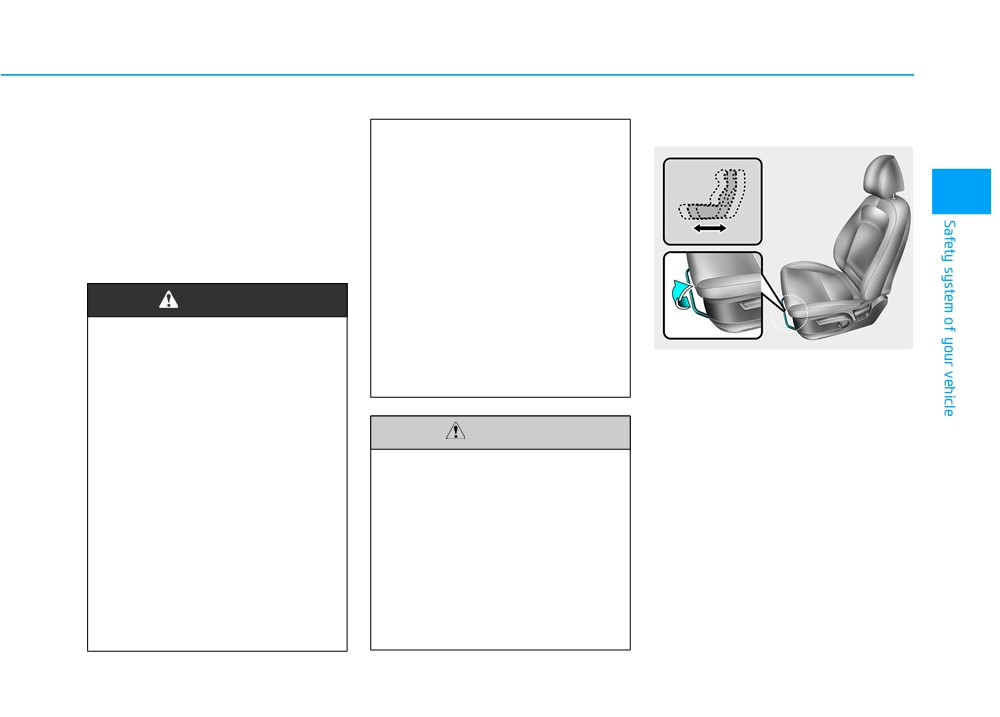

Forward and rearward adjustment
•
NEVER attempt to adjust the
tion.
seat while the vehicle is mov-
To move the seat forward or rearward:
ing. The seat could respond
1. Pull up the seat slide adjustment
with unexpected movement
lever and hold it.
CAUTION
and may cause loss of vehicle
2. Slide the seat to the position you
control resulting in an accident.
To prevent injury:
desire.
•
Do not place anything under
3. Release the lever and make sure
the front seats. Loose objects
• Do not adjust your seat while
the seat is locked in place. Move
in the driver’s foot area could
wearing your seat belt.
forward and rearward without using
interfere with the operation of
Moving the seat cushion for-
the lever. If the seat moves, it is not
the foot pedals, causing an
ward may cause strong pres-
locked properly.
accident.
sure on your abdomen.
•
Do not allow anything to inter-
• Do not allow your hands or
fere with the normal position
fingers to get caught in the
and proper locking of the seat-
seat mechanisms while the
back.
seat is moving.
2-7
Safety system of your vehicle
WARNING
NEVER ride with a reclined seat-
back when the vehicle is moving.
Riding with a reclined seatback
increases your chance of seri-
ous or fatal injuries in the event
of a collision or sudden stop.
Drivers and passengers should
ALWAYS sit well back in their
OOS037003
seats, properly belted, and with
OOS037004
the seatbacks upright.

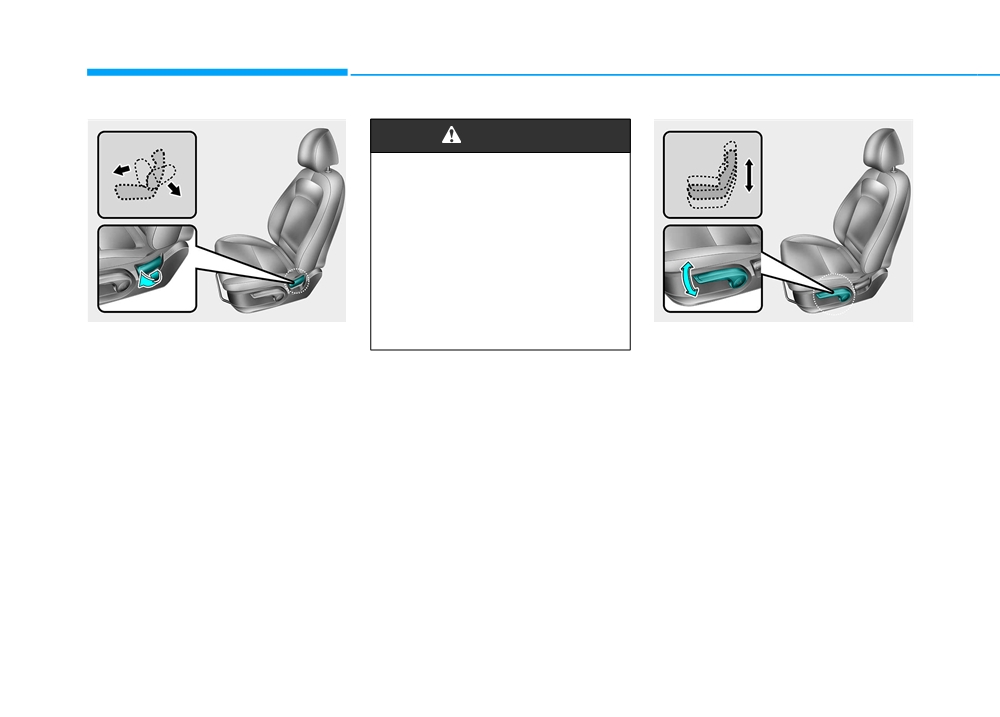

Seatback angle
Seat cushion height (if equipped)
To recline the seatback:
To change the height of the seat
1. Lean forward slightly and lift up the
Seat belts must be snug against your
cushion:
seatback lever.
hips and chest to work properly.
• Push down the lever several times,
When the seatback is reclined, the
to lower the seat cushion.
2. Carefully lean back on the seat
shoulder belt cannot do its job
and adjust the seatback to the
• Pull up the lever several times, to
because it will not be snug against
position you desire.
raise the seat cushion.
your chest. Instead, it will be in front
3. Release the knob and make sure
of you. During an accident, you could
the seatback is locked in place.
be thrown into the seat belt, causing
neck or other injuries.
Reclining seatback
The more the seatback is reclined,
Sitting in a reclined position when
the greater chance the passenger’s
the vehicle is in motion can be dan-
hips will slide under the lap belt or
gerous. Even when buckled up, the
the passenger’s neck will strike the
protections of your restraint system
shoulder belt.
(seat belts and/or air bags) is greatly
reduced by reclining your seatback.
2-8
Power adjustment
WARNING
2
NEVER allow children in the
vehicle unattended. The power
seats are operable when the
engine is turned off.
NOTICE
OOS037005
OOS037006
To prevent damage to the seats:
Forward and rearward adjustment
Seatback angle
• Always stop adjusting the seats
To move the seat forward or rearward:
To recline the seatback:
when the seat has been adjust-
ed as far forward or rearward as
1. Push the control switch forward or
1. Push the control switch forward or
possible.
rearward.
rearward.
• Do not adjust the seats longer
2. Release the switch once the seat
2. Release the switch once the seat-
than necessary when the engine
reaches the desired position.
back reaches the desired position.
is turned off. This may result in
unnecessary battery drain.
• Do not operate two or more seats
at the same time. This may result
in an electrical malfunction.
2-9
|
|
|
