Features of your vehicle
Clothes hanger (if equipped)
(Continue)
WARNING
•
Adjust the air-conditioner or
■ Type A
Avoid electrical shocks. Do not
heater to the lowest operating
place your fingers or foreign
level when using the power
objects (pin, etc.) into a power
outlet.
outlet or touch the power outlet
with a wet hand.
•
Close the cover when not in
use.
•
Some electronic devices can
CAUTION
cause electronic interference
when plugged into a vehicle’s
To prevent damage to the Power
Outlets:
power outlet. These devices
OUN026348
may cause excessive audio
■ Type B
•
Use the power outlet only
static and malfunctions in
when the engine is running
other electronic systems or
and remove the accessory
devices used in your vehicle.
plug after use. Using the
•
Push the plug in as far as it
accessory plug for prolonged
will go. If good contact is not
periods of time with the
made, the plug may overheat
engine off could cause the
or the internal temperature
battery to discharge.
fuse may open.
•
Only use 12V electrical acces-
sories which are less than 15A
OMDS042193
in electrical capacity.
To hang items, pull down the upper
(Continue)
portion of the hanger. (Type A)
These hangers are not designed to
hold large or heavy items.
4 116
Features of your vehicle
Floor mat anchor(s)
WARNING
WARNING
Do not hang other objects
If a floor mat is the wrong size
except clothes. In an accident it
or not properly installed, it can
may cause vehicle damage or
interfere with the accelerator or
personal injury.
the brake pedal while driving.
Take the following precautions
when installing any floor mat:
•
ALWAYS ensure the floor mats
are securely attached to the
vehicle's floor mat anchor(s)
and do not interfere with the
accelerator or brake pedal
OMD040195N
before driving the vehicle.
ALWAYS use the Floor Mat Anchors
•
Use only the HYUNDAI floor
to attach the front floor mats to the
mats designed for use in your
vehicle. The anchors on the front
vehicle.
floor carpet keep the floor mats from
•
Do not stack floor mats on top
sliding forward.
of one another (e.g. all-weath-
Your vehicle was manufactured with
er rubber mat on top of a car-
driver's side floor mat anchors that
peted floor mat).
are designed to securely hold the
•
Only a single floor mat should
floor mat in place. To avoid any inter-
be installed in each position.
ference with pedal operation,
HYUNDAI recommends that the
•
Do not place anything on top
HYUNDAI floor mat designed for use
of the driver side floor mat.
in your vehicle be installed.
•
Do not place the floor mats bot-
tom- side up or upside down.
4 117
Features of your vehicle
Luggage net holder
(if equipped)
WARNING
Avoid eye injury. DO NOT over-
stretch the luggage net.
ALWAYS keep your face and
body out of the luggage net’s
recoil path. DO NOT use the lug-
gage net when the strap has vis-
ible signs of wear or damage.
OYF049225
To keep items from shifting in the
trunk, you can use the
4 holders
located in the trunk to attach the lug-
gage net.
Make sure the luggage net is securely
attached to the holders in the trunk.
4 118
Features of your vehicle
AUDIO SYSTEM
✽ NOTICE
Antenna (if equipped)
Shark fin antenna (if equipped)
•
If you install an after market HID
The shark fin antenna will receive the
(high intensity discharge) head
transmit data.
lamp, your vehicle's audio and
electronic devices may malfunc-
CAUTION
tion.
•
Prevent chemicals such as per-
•
Do not clean the inside of the
rear window glass with a
fume, cosmetic oil, sun cream,
hand cleaner, and air freshener
cleaner or scraper to remove
foreign deposits as this may
from contacting the interior parts
because they may cause damage
cause damage to the antenna
elements.
or discoloration.
•
Avoid adding metallic coat-
OMD044161
ings
such as Nickel,
When the radio power switch is
Cadmium, and so on. These
turned on while the ignition key is in
can disturb the reception of
either the
“ON” or “ACC” position,
AM and FM broadcast signals.
your car will receive both AM and FM
broadcast signals through the anten-
na in the rear window glass.
4 119
Features of your vehicle
Steering wheel audio control
2. PRESET/SEEK (
/
)
CAUTION
(if equipped)
The SEEK/PRESET button has dif-
Do not operate audio remote
■ Type A
ferent functions based on the system
control buttons simultaneously.
mode.
For the following functions the button
1. VOLUME (VOL+/-)
should be pressed for 0.8 second or
more.
• Push the lever upward
(+) to
increase the volume.
• Push the lever downward
(-) to
RADIO mode
decrease the volume.
It will function as the AUTO SEEK
select button.
OMD040139N
■ Type B
CD/USB/iPod mode
It will function as the FF/REW button.
If the SEEK/PRESET button is
pressed for less than 0.8 second, it
will work as follows in each mode.
RADIO mode
It will function as the PRESET STA-
OMD040139
TION buttons.
The steering wheel may incorporate
audio control buttons.
CD/USB/iPod mode
It will function as TRACK UP/DOWN
button.
4 120
Features of your vehicle
3. MODE
Aux, USB and iPod® port
✽ NOTICE
Press the button to change audio
When using a portable audio device
source.
connected to the power outlet, noise
- FM(1~2) ➟ AM ➟ SAT(1~3) ➟ CD
may occur during playback. If this
➟ USB AUX(iPod) FM...
happens, use the power source of the
portable audio device.
4. MUTE (if equipped)
❈ iPod® is a trademark of Apple Inc.
• Press the button to mute the
sound.
• Press the button to turn off the
microphone during a telephone
call.
OMD040140
Detailed information for audio control
If your vehicle has an aux and/or
buttons are described in the following
USB(universal serial bus) port, you
pages in this chapter.
can use an aux port to connect audio
devices and an USB port to plug in
an USB and iPod.
4 121
Features of your vehicle
How vehicle audio works
This can be due to factors, such as
AM reception
the distance from the radio station,
FM reception
closeness of other strong radio sta-
tions or the presence of buildings,
bridges or other large obstructions in
the area.
JBM002

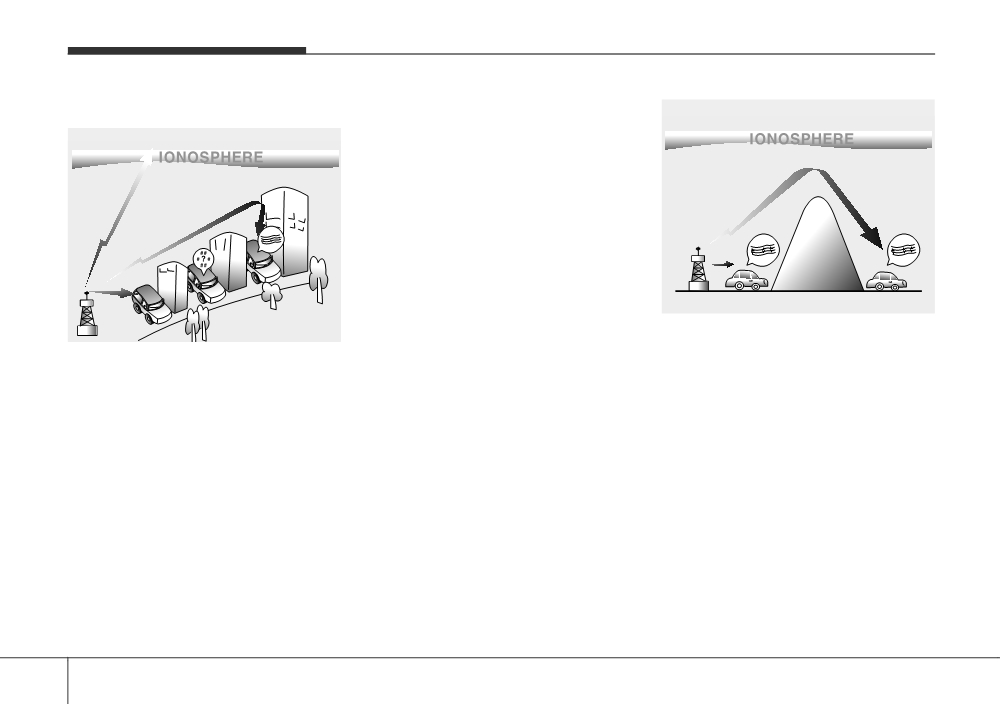

AM broadcasts can be received at
JBM001
greater distances than FM broad-
AM and FM radio signals are broad-
casts. This is because AM radio
cast from transmitter towers located
waves are transmitted at low fre-
around your city. They are intercept-
quencies. These long distance, low
ed by the radio antenna on your vehi-
frequency radio waves can follow the
cle. This signal is then processed by
curvature of the earth rather than
the radio and sent to your vehicle
travelling straight. In addition, they
speakers.
curve around obstructions resulting
When a strong radio signal has
in better signal coverage.
reached your vehicle, the precise
engineering of your audio system
ensures the best possible quality
reproduction. However, in some
cases the signal coming to your vehi-
cle may not be strong and clear.
4 122
Features of your vehicle
FM radio station
JBM003
JBM004
JBM005

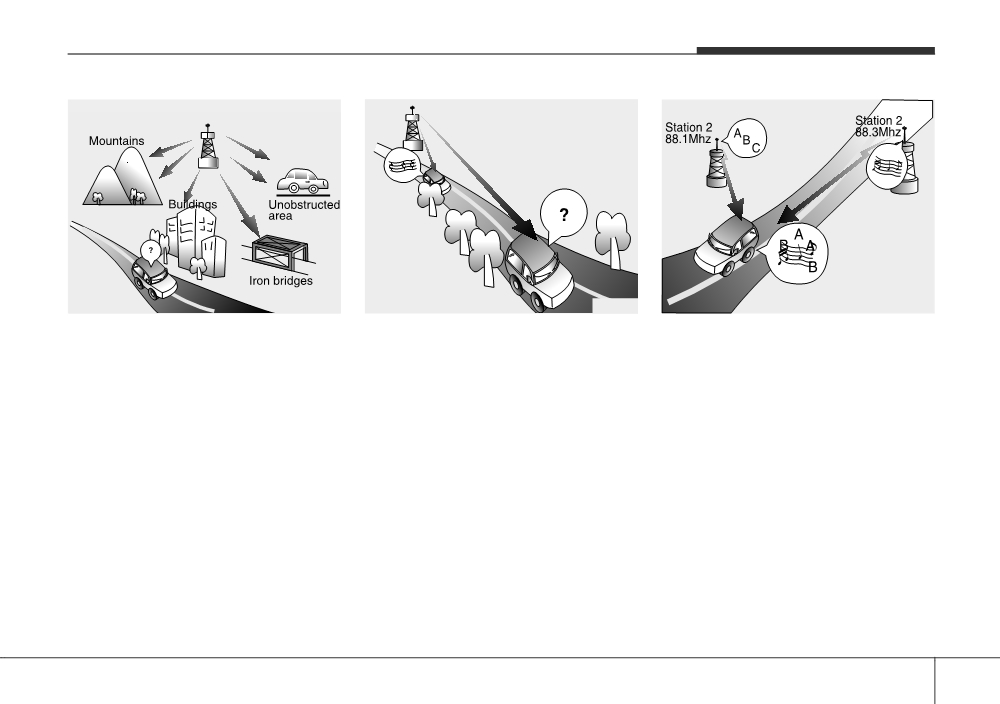

FM broadcasts are transmitted at
•
Fading - As your vehicle moves
•
Station Swapping - As an FM signal
high frequencies and do not bend to
away from the radio station, the
weakens, another more powerful
follow the earth's surface. Because
signal will weaken and sound will
signal near the same frequency
of this, FM broadcasts generally
begin to fade. When this occurs,
may begin to play. This is because
begin to fade within short distances
we suggest that you select another
your radio is designed to lock onto
from the station. Also, FM signals are
stronger station.
the clearest signal. If this occurs,
easily affected by buildings, moun-
select another station with a
•
Flutter/Static - Weak FM signals or
tains, and obstructions. This can lead
stronger signal.
large obstructions between the
to undesirable or unpleasant listen-
transmitter and your radio can dis-
•
Multi-Path Cancellation - Radio sig-
ing conditions which might lead you
turb the signal causing static or
nals being received from several
to believe a problem exists with your
radio. The following conditions are
fluttering noises to occur. Reducing
directions can cause distortion or
normal and do not indicate radio
the treble level may lessen this
fluttering. This can be caused by a
trouble:
effect until the disturbance clears.
direct and reflected signal from the
same station, or by signals from two
stations with close frequencies. If
this occurs, select another station
until the condition has passed.
4 123
Features of your vehicle
Using a cellular phone or a two-
Caring for disc
• Depending on the type of CD-
way radio
R/CD-RW CDs, certain CDs may
•
If the temperature inside the car is too
not operate normally according to
When a cellular phone is used inside
high, open the car windows to venti-
the manufacturing companies. In
the vehicle, noise may be produced
late before using the system.
such circumstances, continued
from the audio system. This does not
•
It is illegal to copy and use
use may cause malfunctions to
mean that something is wrong with
MP3/WMA files without permission.
your audio system.
the audio equipment. In such a case,
Use CDs that are created only by
try to operate mobile devices as far
lawful means.
from the audio equipment as possible.
✽ NOTICE - Playing an
•
Do not apply volatile agents, such
Incompatible Copy
as benzene and thinner, use nor-
CAUTION
Protected Audio CD
mal cleaners and magnetic sprays
When using a communication
made for analogue disc onto CDs.
Some copy protected CDs, which do
system such as a cellular phone
not comply with international audio
•
To prevent the disc surface from
or a radio set inside the vehicle, a
CD standards (Red Book), may not
getting damaged, hold CDs by the
separate external antenna must
play on your car audio. Please note
edges or the center hole only.
be fitted. When a cellular phone
that inabilities to properly play a
•
Clean the disc surface with a piece
or a radio set is used with an
copy protected CD may indicate
of soft cloth before playback (wipe
internal antenna alone, it may
that the CD is defective, not the CD
it from the center to the outside
interfere with the vehicle's elec-
player.
edge).
trical system and adversely affect
•
Do not damage the disc surface or
safe operation of the vehicle.
attach pieces of sticky tape or
paper.
•
Make certain only CDs are insert-
WARNING
ed into the CD player (Do not insert
Do not use a cellular phone
more than one CD at a time).
while driving. Stop at a safe
•
Keep CDs in their cases after use to
location to use a cellular phone.
protect them from scratches or dirt.
4 124
Features of your vehicle
NOTE:
(Continued)
WARNING
Order of playing files (folders) :
•
Please refrain from use if the
•
Do not stare at the screen
1. Song playing order :
to
screen is blank or no sound
while driving. Staring at the
sequentially.
can be heard as these signs
screen for prolonged periods
2. Folder playing order :
may indicate product malfunc-
of time could lead to traffic
tion. Continued use in such
❋ If no song file is contained in the
accidents.
conditions could lead to acci-
folder, that folder is not displayed.
•
Do not disassemble, assem-
dents(fires, electric shock) or
ble, or modify the audio sys-
product malfunctions.
tem. Such acts could result in
•
Do not touch the antenna dur-
accidents, fire, or electric
ing thunder or lightening as
shock.
such acts may lead to light-
•
Using the phone while driving
ning induced electric shock.
may lead to a lack of attention of
•
Do not stop or park in park-
traffic conditions and increase
ing-restricted areas to operate
the likelihood of accidents.
the product. Such acts could
Use the phone feature after
lead to traffic accidents.
parking the vehicle.
•
Use the system with the vehi-
•
Heed caution not to spill water
cle ignition turned on.
or introduce foreign objects
into the device. Such acts
Prolonged use with the igni-
could lead to smoke, fire, or
tion turned off could result in
product malfunction.
battery discharge.
(Continued)
4 125
Features of your vehicle
(Continued)
(Continued)
CAUTION
•
Turn on the car ignition before
•
Do not place beverages close
•
Operating the device while
using this device. Do not oper-
to the audio system. Spilling
driving could lead to accidents
ate the audio system for long
beverages may lead to system
due to a lack of attention to
periods of time with the ignition
malfunction.
external surroundings. First
turned off as such operations
park the vehicle before operat-
•
In case of product malfunction,
may lead to battery discharge.
ing the device.
please contact your closest
•
Do not subject the device to
authorized HYUNDAI dealer.
•
Adjust the volume to levels that
severe shock or impact. Direct
allow the driver to hear sounds
•
Placing the audio system
from outside of the vehicle.
pressure onto the front side of
within an electromagnetic
the monitor may cause dam-
Driving in a state where exter-
environment may result in
nal sounds cannot be heard
age to the LCD or touch
noise interference.
screen.
may lead to accidents.
•
Prevent caustic solutions
•
When cleaning the device,
•
Pay attention to the volume set-
such as perfume and cosmet-
make sure to turn off the
ting when turning the device
ic oil from contacting the
device and use a dry and
on. A sudden output of extreme
dashboard because they may
smooth cloth. Never use
volume upon turning the
cause damage or discol-
tough materials, chemical
device on could lead to hearing
oration.
cloths, or solvents
(alcohol,
impairment. (Adjust the volume
benzene, thinners, etc.) as
to a suitable levels before turn-
such materials may damage
ing off the device.)
the device panel or cause
(Continued)
color/quality deterioration.
(Continued)
4 126
Features of your vehicle
✽ NOTICE - USING THE
(Continued)
(Continued)
USB DEVICE
•
An encrypted MP3 PLAYER is
•
If you disconnect the external
not recognizable.
USB device during playback in
•
To use an external USB device,
•
Depending on the condition of
USB mode, the external USB
make sure the device is not con-
the external USB device, the
device can be damaged or may
nected when starting up the
connected external USB device
malfunction. Therefore, discon-
vehicle. Connect the device after
can be unrecognizable.
nect the external USB device
starting up.
•
When the formatted byte/sector
when the audio is turned off or
•
If you start the engine when the
setting of External USB device
in another mode.
(e.g, Radio,
USB device is connected, it may
is not either
512BYTE or
CD)
damage the USB device. (USB
2048BYTE, then the device will
•
Depending on the type and
flashdrives are very sensitive to
not be recognized.
capacity of the external USB
electric shock.)
•
Use only a USB device format-
device or the type of the files
•
If the engine is started up or
ted to FAT 12/16/32.
stored in the device, there is a
turned off while the external USB
•
USB devices without USB I/F
difference in the time taken for
device is connected, the external
authentication may not be rec-
recognition of the device.
USB device may not work.
ognizable.
•
Do not use the USB device for
•
The System may not play unau-
•
Make sure the USB connection
purposes other than playing
thenticated MP3 or WMA files.
terminal does not come in con-
music files.
1) It can only play MP3 files
tact with the human body or
•
Playing videos through the USB
with the compression rate
other objects.
is not supported.
between 8Kbps~320Kbps.
•
If you repeatedly connect or dis-
•
Use of USB accessories such as
2) It can only play WMA music
connect the USB device in a
rechargers or heaters using USB
files with the compression
short period of time, it may
I/F may lower performance or
rate
between
break the device.
cause trouble.
8Kbps~320Kbps.
•
You may hear a strange noise
(Continued)
•
Take precautions for static elec-
when connecting or disconnect-
tricity when connecting or dis-
ing a USB device.
connecting the external USB
(Continued)
device.
(Continued)
4
127
Features of your vehicle
(Continued)
(Continued)
✽ NOTICE - USING THE
• If you use devices such as a USB
• Some USB flash memory read-
iPod® DEVICE
hub purchased separately, the
ers (such as CF, SD, micro SD,
vehicle’s audio system may not
• Some iPod® models may not
etc.) or external-HDD type
recognize the USB device. In that
support communication proto-
devices can be unrecognizable.
case, connect the USB device
col and files may not properly
• Music files protected by DRM
directly to the multimedia termi-
play.
(DIGITAL RIGHTS MANAGE-
nal of the vehicle.
Supported iPod® models:
MENT) are not recognizable.
• If the USB device is divided by
- iPhone® 3GS/4
• The data in the USB memory
logical drives, only the music files
- iPod® touch 1st~4th generation
may be lost while using this
on the highest-priority drive are
- iPod® nano 1st~6th generation
audio. Always back up impor-
recognized by car audio.
- iPod® classic
tant data on a personal storage
• Devices such as MP3 Player/
• The order of search or playback
device.
Cellular phone/Digital camera can
of songs in the iPod® can be dif-
• Please avoid using
be unrecognizable by standard
ferent from the order searched
USB memory prod-
USB I/F can be unrecognizable.
in the audio system.
ucts which can be
• Charging through the USB may
• If the iPod® is disabled due to its
used as key chains or
not be supported in some mobile
own malfunction, reset the
cellular phone accessories as
devices.
iPod®.
(Reset: Refer to iPod®
they could cause damage to the
• USB HDD or USB types liable to
manual)
USB jack. Please make certain
connection failures due to vehicle
• An iPod® may not operate nor-
only to use plug type connector
vibrations are not supported.
mally on low battery.
products.
(i-stick type)
(Continued)
• Some non-standard USB devices
(METAL COVER TYPE USB)
can be unrecognizable.
(Continued)
4 128
Features of your vehicle
✽ NOTICE - Bluetooth®
(Continued)
(Continued)
Wireless Technology
•
Some iPod® devices, such as the
•
When connecting iPod® with the
iPhone®
, can be connected
iPod® Power Cable, insert the
through the Bluetooth® Wireless
connector to the multimedia
•
The Bluetooth® word mark and
Technology interface. The
socket completely. If not insert-
logos are registered trademarks
device must have audio
ed completely, communications
owned by Bluetooth SIG, lnc. and
Bluetooth® Wireless Technology
between iPod® and audio may
any use of such marks is under
capability
(such as for stereo
be interrupted.
license.
headphone Bluetooth® Wireless
•
When adjusting the sound
A Bluetooth® enabled call phone is
Technology).
effects of the iPod® and the
required to use Bluetooth® wire-
The device can play, but it will
audio system, the sound effects
less technology.
not be controlled by the audio
of both devices will overlap and
•
Bluetooth® Wirelss Technology
system.
might reduce or distort the
phone compatibility can be checked
•
To use iPod® features within the
quality of the sound.
by visiting www. hyundaiusa.com
audio, use the cable provided
•
Deactivate (turn off) the equal-
and under the SERVICE & PARTS
upon purchasing an iPod®
izer function of an iPod® when
- BLUETOOTH COMPATIBILI-
device.
adjusting the audio system’s
TY menu.
•
Skipping or improper operation
volume, and turn off the equal-
may occur depending on the
izer of the audio system when
characteristics of your iPod®/
using the equalizer of an iPod®.
iPhone® device.
•
When not using iPod® with car
•
If your iPhone® is connected to
audio, detach the iPod® cable
both the Bluetooth® Wireless
from iPod®. Otherwise, iPod®
Technology and USB, the sound
may remain in accessory mode,
may not be properly played. In
and may not work properly.
your iPhone®, select the Dock
connector
or
Bluetooth®
Wireless Technology to change
the sound output (source).
(Continued)
4 129
Features of your vehicle
✽ NOTICE - BEFORE USING
✽ NOTICE - PRECAUTIONS
✽ NOTICE - WHEN CON-
THE Bluetooth®
FOR SAFE DRIVING
NECTING A Bluetooth®
HANDSFREE
PHONE
•
Bluetooth® is a feature that enables
•
Before connecting the head unit
What is Bluetooth® ?
drivers to use handsfree while
with the mobile phone, check to
driving. Connecting the head unit
• Bluetooth® refers to a short-dis-
see that the mobile phone supports
tance wireless networking technol-
with a Bluetooth® phone allows the
Bluetooth® features.
user to conveniently make and
ogy which uses a
2.4GHz
~
•
Even if the phone supports
2.48GHz frequency to connect
receive calls and use contacts.
Bluetooth®, the phone will not be
Before using Bluetooth®, carefully
various devices
within a certain
found during device searches if the
distance.
read the contents of this user’s
phone has been set to hidden state
manual.
• Supported within PCs, external
or the Bluetooth® power is turned
devices, Bluetooth® phones, PDAs,
•
Excessive use or operations while
off. Disable the hidden state or
driving may lead to negligent driv-
various electronic devices, and auto-
turn on the Bluetooth® power
motive environments, Bluetooth®
ing practices and result in acci-
prior to searching/connecting with
dents. Refrain from excessive
allows data to be transmitted at high
the Head unit.
speeds without having to use a con-
operations while driving.
•
Bluetooth phone is automatically
•
Viewing the screen for prolonged
nector cable.
connected when the ignition is
• Bluetooth® Handsfree refers to a
periods of time is dangerous and
turned on.
may lead to accidents. When driv-
device which allows the user to
•
If you do not want automatic con-
conveniently make phone calls
ing, view the screen only for short
nection with your Bluetooth®
periods of time.
with Bluetooth® mobile phones
device, turn off the Bluetooth® fea-
through the audio system.
ture within your mobile phone.
• Bluetooth® Handsfree may not be sup-
•
The Handsfree call volume and
ported in some mobile phones. To
quality may differ depending on
learn more about mobile device com-
the mobile phone.
patibility, visit www. hyundaiusa.com.
(Continued)
4 130
Features of your vehicle
(Continued)
✽ NOTICE - USING THE
(Continued)
•
Park the vehicle when connecting
VOICE RECOGNITION
- When driving on rugged and
the head unit with the mobile
uneven roads
phone.
- During severe rain (heavy rains,
•
When using the voice recognition
•
Bluetooth® connection may become
windstorms)
intermittently disconnected in
feature, only commands listed
•
Phone related voice commands
within the user's manual are sup-
some mobile phones. Follow these
can be used only when a
steps to try again.
ported.
Bluetooth® Wireless Technology
•
Be aware that during the opera-
1.Within the mobile phone, turn
device is connected.
the Bluetooth® function off/on
tion of the voice recognition sys-
•
When making calls by stating a
and try again.
tem, pressing any key other than
name, the corresponding contact
2.Turn the mobile phone power
the
key terminates voice
must be downloaded and stored
Off/On and try again.
recognition mode.
within the audio system.
3.Completely remove the mobile
•
For superior voice recognition
•
After downloading the Bluetooth®
phone battery, reboot, and then
performance, position the micro-
Wireless Technology phone book,
again.
phone used for voice recognition
it takes some time to convert the
4.Reboot the Audio System and
above the head of the driver’s seat
phone book data into voice infor-
try again.
and maintain a proper position
mation. During this time, voice
5.Delete all paired devices, pair
when saying commands.
recognition may not properly
and try again.
•
Within the following situations,
operate.
•
Handsfree call quality and volume
voice recognition may not function
•
Pronounce the voice commands
may differ depending on the
properly due to external sound.
naturally and clearly as if in a nor-
model of your mobile phone.
- When the windows and sunroof
mal conversation.
are open
- When the wind of the cooling /
heating device is strong
- When entering and passing
through tunnels
(Continued)
4 131
Features of your vehicle

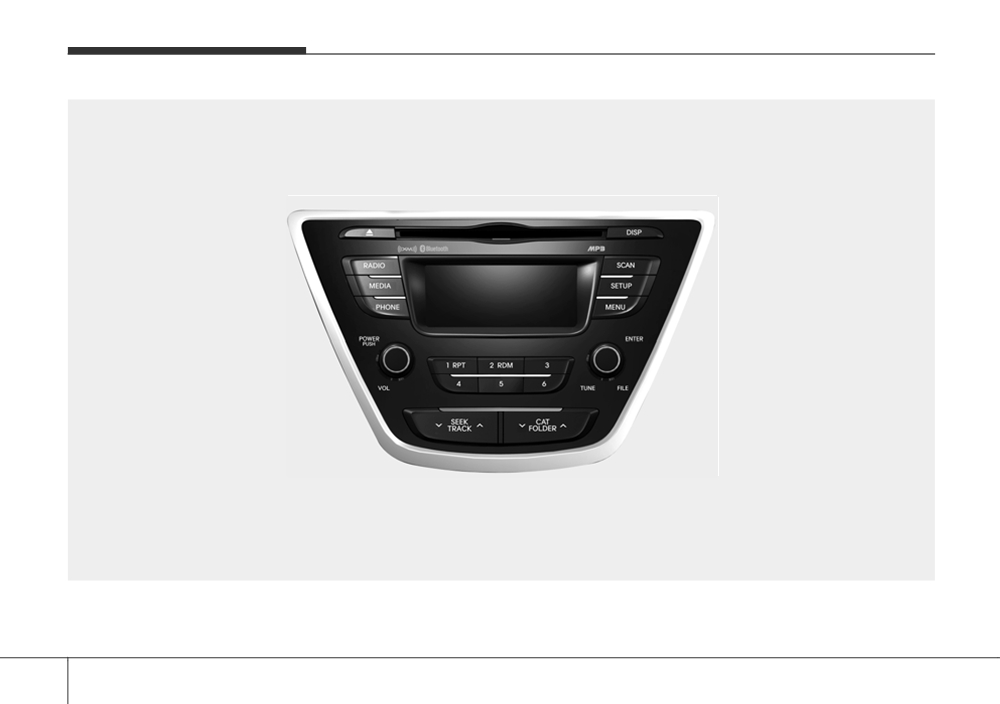

■ CD Player : AM1B0MDKN F/L, AM1B0MDAN F/L, AM1B1MDAN F/L
4 132
