Features of your vehicle
Engine Oil Pressure
Low Fuel Level Warning
Warning Light
CAUTION - Engine Oil
Light
Pressure
Warning Light
This warning light illuminates:
This warning light illuminates:
•
If the engine does not stop
• Once you set the ignition switch or
When the fuel tank is nearly empty.
immediately after the Engine
Engine Start/Stop Button to the ON
Oil Pressure Warning Light is
position.
illuminated, severe damage
If the fuel tank is nearly empty, add
- It remains on until the engine is
could result.
fuel as soon as possible.
started.
•
If the warning light stays on
• When the engine oil pressure is low.
while the engine is running, it
CAUTION - Low Fuel
indicates that there may be
serious engine damage or
Level
If the engine oil pressure is low:
malfunction. In this case,
Driving with the Low Fuel Level
1. Drive carefully to the nearest safe
warning light on or with the fuel
1. Stop the vehicle as soon as
location and stop your vehicle.
it is safe to do so.
level below "E
(Empty)" can
2. Turn the engine off and check the
cause the engine to misfire and
2. Turn off the engine and
engine oil level (For more details,
damage the catalytic converter
check the oil level. If the oil
refer to “Engine Oil” in chapter 7).
(if equipped).
level is low, fill the engine
If the level is low, add oil as
oil to the proper level.
required.
3. Start the engine again. If the
If the warning light remains on
warning light stays on after
after adding oil or if oil is not avail-
the engine is started, turn
able, have your vehicle inspected
the engine off immediately.
by an authorized HYUNDAI dealer
In this case, have your vehi-
as soon as possible.
cle inspected by an author-
ized HYUNDAI dealer.
4 65
Features of your vehicle
Low Tire Pressure
This warning light remains on after
Warning Light
blinking for approximately 60 seconds
WARNING - Low tire
(if equipped)
or repeats blinking and off at the
pressure
intervals of approximately 3 seconds:
•
Significantly low tire pressure
•
When there is a malfunction with
makes the vehicle unstable
This warning light illuminates:
the TPMS.
and can contribute to loss of
•
Once you set the ignition switch or
vehicle control and increased
In this case, have your vehicle
Engine Start/Stop Button to the ON
inspected by an authorized
braking distances.
position.
HYUNDAI dealer as soon as possi-
•
Continued driving or low pres-
- It illuminates for approximately 3
ble.
sure tires will cause the tires to
seconds and then goes off.
overheat and fail.
For more details, refer to
“Tire
•
When one or more of your tires are
Pressure Monitoring System
significantly underinflated.
(TPMS)” in chapter 6.
For more details, refer to
“Tire
WARNING - Safe Stopping
Pressure Monitoring System
•
The TPMS cannot alert you to
(TPMS)” in chapter 6.
severe and sudden tire damage
caused by external factors.
•
If you notice any vehicle insta-
bility, immediately take your
foot off the accelerator pedal,
apply the brakes gradually with
light force, and slowly move to
a safe position off the road.
4 66
Features of your vehicle
Door Ajar Warning Light
Electronic Stability
Electronic Stability
Control (ESC) Indicator
Control (ESC) OFF
Light
Indicator Light
This indicator light illuminates:
This warning light illuminates:
• Once you set the ignition switch or
This indicator light illuminates:
When a door is not closed securely.
Engine Start/Stop Button to the ON
• Once you set the ignition switch or
position.
Engine Start/Stop Button to the ON
- It illuminates for approximately 3
position.
Trunk Open Warning
seconds and then goes off.
- It illuminates for approximately 3
Light
• When there is a malfunction with
seconds and then goes off.
the ESC system.
• When you deactivate the ESC sys-
In this case, have your vehicle
tem by pressing the ESC OFF but-
This warning light illuminates:
ton.
inspected by an authorized
When the trunk is not closed secure-
HYUNDAI dealer.
ly.
For more details, refer to “Electronic
Stability Control (ESC)” in chapter 5.
This indicator light blinks:
While the ESC is operating.
For more details, refer to “Electronic
Stability Control (ESC)” in chapter 5.
4 67
Features of your vehicle
ECO Indicator Light
Immobilizer Indicator
Immobilizer Indicator
(if equipped)
ECO
Light (Without Smart Key)
Light (With Smart Key)
This indicator light illuminates:
This indicator light illuminates:
This indicator light illuminates for up
When you activate the active ECO
When the vehicle detects the immo-
to 30 seconds:
system by pressing the ACTIVE
bilizer in your key properly while the
When the vehicle detects the smart
ECO button.
ignition switch is ON.
key in the vehicle properly while the
- At this time, you can start the
Engine Start/Stop Button is ACC or
ON.
For more details, refer to
“Active
engine.
ECO System” in chapter 5.
- The indicator light goes off after
- At this time, you can start the
engine.
starting the engine.
- The indicator light goes off after
starting the engine.
This indicator light blinks:
When there is a malfunction with the
immobilizer system.
This indicator light blinks for a few
seconds:
In this case, have your vehicle
inspected by an authorized
When the smart key is not in the
HYUNDAI dealer.
vehicle.
- At this time, you can not start the
engine.
4 68
Features of your vehicle
This indicator light illuminates for 2
This indicator light blinks:
Turn Signal Indicator
seconds and goes off:
Light
•
When the battery of the smart key
When the vehicle can not detect the
is weak.
smart key which is in the vehicle
- At this time, you can not start the
while the Engine Start/Stop Button is
engine. However, you can start
This indicator light blinks:
ON.
the engine if you press the Engine
When you turn the turn signal light
In this case, have your vehicle
Start/Stop Button with the smart
on.
inspected by an authorized
key. (For more details, refer to
HYUNDAI dealer.
“Starting the Engine” in section 5).
•
When there is a malfunction with
If any of the following occurs, there
the immobilizer system.
may be a malfunction with the turn
signal system. In this case, have your
In this case, have your vehicle
vehicle inspected by an authorized
inspected by an authorized
HYUNDAI dealer.
HYUNDAI dealer.
- The indicator light does not blink
but illuminates.
- The indicator light blinks more
rapidly.
- The indicator light does not illumi-
nate at all.
4 69
Features of your vehicle
High Beam Indicator
Light ON Indicator Light
Cruise Indicator Light
Light
(if equipped)
CRUISE
This indicator light illuminates:
This indicator light illuminates:
This indicator light illuminates:
• When the cruise control system is
When the parking lights or head-
• When the headlights are on and in
lights are on.
enabled.
the high beam position
• When the turn signal lever is pulled
For more details, refer to
“Cruise
Front Fog Indicator
into the Flash-to-Pass position.
Control System” in chapter 5.
Light (if equipped)
Cruise SET Indicator
This indicator light illuminates:
Light (if equipped)
SET
When the front fog lights are on.
This indicator light illuminates:
• When the cruise control speed is set.
For more details, refer to
“Cruise
Control System” in chapter 5.
4 70
Features of your vehicle
REARVIEW CAMERA (IF EQUIPPED)
KEY OUT Indicator Light
KEY
(if equipped)
WARNING
OUT
•
This system is a supplemen-
tary function only. It is the
responsibility of the driver to
When the ENGINE START/STOP
always check the inside/out-
button is in the ACC or ON position,
side rearview mirror and the
if any door is open, the system
area behind the vehicle before
checks for the smart key.
and while backing up.
•
Always keep the camera lens
OMD044091
This indicator light blinks:
clean. If the lens is covered
When the smart key is not in the
with foreign matter, the cam-
vehicle and any door is open with the
era may not operate normally.
ignition switch or Engine Start/Stop
button in the ACC or ON position.
- At this time, if you close all doors,
the chime will also sound for
approximately 5 seconds.
- The indicator will go off while the
vehicle is moving.
OMD045092
The rearview camera will activate
when the back-up light is ON with the
engine start/stop button ON and the
shift lever in the R position.
This system is a supplemental sys-
tem that shows behind the vehicle
through the monitor while backing-
up.
4 71
Features of your vehicle
LIGHT
Exterior lights
Parking light position (
)
Headlight position (
)
Lighting control
OBK049046
OBK049047
OBK049045
When the light switch is in the park-
When the light switch is in the head
To operate the lights, turn the knob at
ing light position (1st position), the
light position
(2nd position), the
the end of the control lever to one of
parking lights, taillights, license plate
headlights, taillights, license plate
the following positions:
lights and instrument panel lights are
lights and instrument panel lights are
(1) OFF position
turned ON.
turned ON.
(2) Parking light position
(3) Headlight position
✽ NOTICE
(4) AUTO light position (if equipped)
The ignition switch must be in the ON
position to turn on the headlights.
4 72
Features of your vehicle
AUTO light position (if equipped)
High beam operation
CAUTION
•
Do not cover or spill anything
on the sensor (1) located on
the instrument panel.
•
Do not clean the sensor using
a window cleaner, the cleanser
may leave a light film which
could interfere with sensor
operation.
•
If your vehicle has window tint
or other types of metallic coat-
ing on the front windshield,
OMD040095
OBK049050
the AUTO light system may
When the light switch is in the AUTO
To turn on the high beam headlights,
not work properly.
position, the parking (position) light
push the lever away from you. Pull it
and headlights will be turned ON or
back for low beams.
OFF automatically depending on the
The high beam indicator will light
amount of light outside the vehicle.
when the headlight high beams are
Even with the AUTO light feature in
switched on.
operation, it is recommended to
To prevent the battery from being
manually turn ON the lights when
discharged, do not leave the lights
driving at night or in a fog, or when
on for a prolonged time while the
you enter dark areas, such as tun-
engine is not running.
nels and parking facilities.
4 73
Features of your vehicle
Turn signals and lane change sig-
WARNING
nals
Do not use high beam when there
are other vehicles approaching
you. Using high beam could
obstruct the other driver's vision.
OBK049049
To flash the high beam headlights,
pull the lever towards you, then
OBK049051
release the lever. The high beams
To signal a turn, move the lever up
will remain ON as long as you hold
the lever towards you.
for a right turn or down for a left turn
to position (A). The lever will return to
the OFF position when the turn is
completed.
To signal a lane change, move the
turn signal lever slightly and hold it in
position (B). The lever will return to
the OFF position when released.
4 74
Features of your vehicle
One-touch lane change function
Front fog light (if equipped)
You can use the fog lights only when
the headlights are on low beam.
To activate an one-touch lane
When the headlight switch is in the
change function, move the turn sig-
AUTO position, you can also use the
nal lever slightly and then release it.
fog lights when the headlights turn
The lane change signals will blink 3
on automatically. The fog lights will
times.
go OFF when the headlights turn
OFF.
✽ NOTICE
If the turn signal indicator stays on
CAUTION
and does not flash, or if it flashes
When in operation, the fog
abnormally, a bulb may be burned
lights consume large amounts
out or have a poor electrical connec-
OYFH041905N
of vehicle electrical power. Only
tion in the circuit. The bulb may
use the fog lights when visibility
require replacement.
Fog lights are used to provide
is poor.
improved visibility when visibility is
poor due to fog, rain or snow, etc.
Use the switch next to the headlight
switch to turn the fog lights ON and
OFF. The fog lights will turn on when
fog light switch (1) is turned to ON
after the parking lights are turned on.
To turn off the fog lights, turn the
switch to the OFF position.
4 75
Features of your vehicle
Battery saver function
Headlight escort function
CAUTION
The purpose of this feature is to pre-
If the key is removed from the ignition
vent the battery from being dis-
switch or placed in the ACC position
If the driver gets out of the vehi-
charged. The system automatically
or the LOCK/OFF position with the
cle through other doors (except
turns off the parking lights when the
headlights ON, the headlights (and/or
driver's door), the battery saver
driver removes the ignition key or
parking lights) remain on for about 5
function does not operate and
turns the engine off (for smart key)
minutes. However, if the driver’s door
the headlamp delay function
and opens the driver-side door.
is opened and closed, the headlights
does not turn off automatically.
are turned off after 15 seconds.
Therefore, It causes the battery
With this feature, the parking lights
to be discharged. In this case,
will turn off automatically if the driver
The headlights can be turned off by
make sure to turn off the lamp
parks on the side of road at night.
pressing the LOCK button on the
before getting out of the vehicle.
If necessary, to keep the lights on
remote key or smart key twice or
turning the light switch to the OFF or
when the ignition key is removed or
the engine is turned off (for smart
AUTO position. However, if you turn
the light switch to the AUTO position
key), perform the following:
when it is dark outside, the head-
1) Open the driver-side door.
lights will not be turned off.
2) Turn the parking lights OFF and
ON again using the light switch on
the steering column.
4 76
Features of your vehicle
Daytime Running Light (DRL)
Interior lights
Automatic turn off function
(if equipped)
Daytime Running Lights (DRL) can
make it easier for others to see the
CAUTION
When all doors are closed, if you lock
front of your vehicle during the day,
the vehicle by using the remote key
Do not use the interior lights for
especially after dawn and before
or smart key, all interior lamp will be
extended periods when the
sunset.
off within 5 seconds.
engine is turned off or the bat-
The DRL will turn off when:
tery will discharge.
If you do not operate anything in the
1. The headlight switch is in the ON
vehicle after turning off the engine,
position.
the lights will turn off after 20 minutes.
WARNING
2. The parking brake is applied.
Do not use the interior lights
3. The engine is turned off.
when driving in the dark. The
interior lights may obscure your
view and cause an accident.
4 77
Features of your vehicle
Front lamps

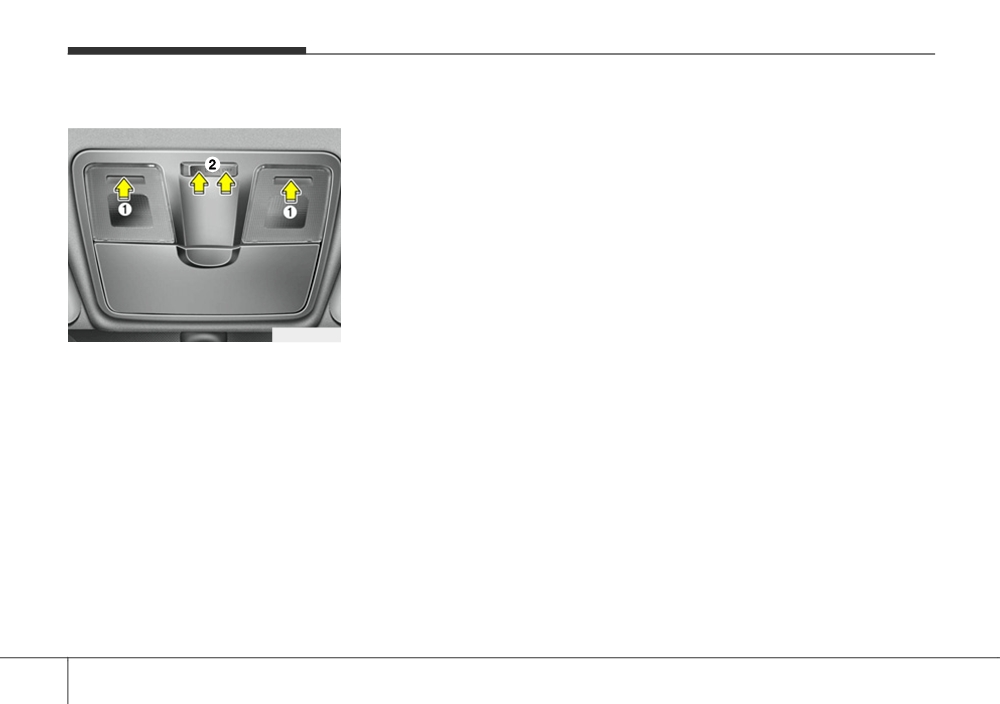

Front Map Lamp:
ON :
Press either the right or left lens to
With the Front Room Lamp in this
turn the map lamp on or off. This light
position, the front and rear room
produces a spot beam for convenient
lamps remain on at all times.
use as a map lamp at night or as a
OFF :
personal lamp for the driver and the
With the Front Room Lamp in this
front passenger.
position the front and rear room
lamps remain off at all times.
Front Room Lamp:
The Front Room Lamp Switch acti-
vates the front and rear room lamps
✽ NOTICE
when the switch is pressed in either of
When the map lamp (1) is turned
the three positions indicated below:
ON by pressing the lens, the map
OMD040096
DOOR :
lamp will not turn off even if the
(1) Front Map Lamp
With the switch in this position, the
front room lamp switch is in the
(2) Front Room Lamp
OFF position.
front and rear room lamps come on
when the front or rear doors are
opened, or when the doors are
unlocked by the remote key or smart
key.
Once all doors are closed, the room
lamps will go out gradually after
about 30 seconds.
If a door is open with the ignition
switch in the ACC position or the
LOCK/OFF position, the lamps will
remain on for about 20 minutes. If a
door is open with the ignition switch
in the ON position, the lamps will
stay on continuously.
4
78
Features of your vehicle
Rear lamp
Trunk lamp
Vanity mirror lamp (if equipped)
OMD040097
OMD040160
OYF049209
Rear Room Lamp Switch:
The trunk lamp comes on when the
Push the switch to turn the light ON
trunk is opened.
or OFF.
Press this switch to turn the room
lamp on and off.
•
: The lamp will turn ON.
CAUTION
• O : The lamp will turn OFF.
CAUTION
The trunk lamp comes on as
Do not leave the lamp switches
long as the trunk lid is open. To
CAUTION
on for an extended period of time
prevent unnecessary charging
To prevent unnecessary charg-
when the engine is turned off.
system drain, close the trunk lid
ing system drain, turn off the
securely after using the trunk.
lamp by pushing the O button
after using the lamp.
4 79
Features of your vehicle
WIPERS AND WASHERS
Windshield wipers
✽ NOTICE
If there is heavy accumulation of
snow or ice on the windshield, defrost
the windshield for about 10 minutes,
or until the snow and/or ice is
removed before using the windshield
wipers to ensure proper operation.
OYF049100
OYF049102

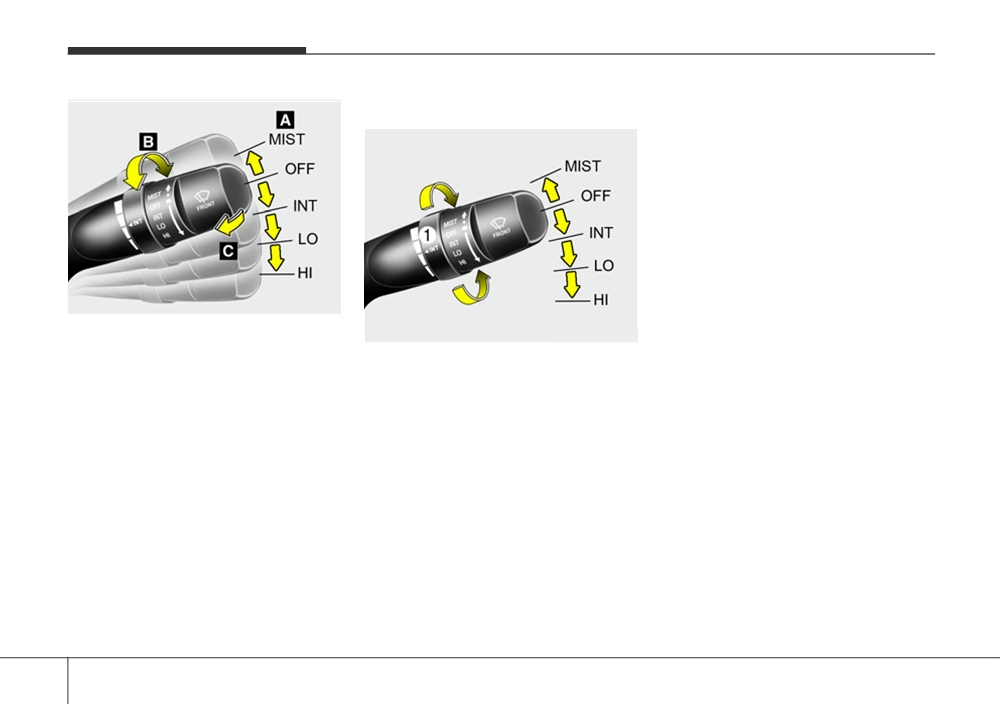

A : Wiper speed control
· MIST - Single wipe
Operates as follows when the igni-
tion switch is in the ON position.
· OFF - Off
MIST : For a single wipe push the
· INT - Intermittent wipe
lever upward and release. The
· LO - Low wiper speed
wipers will operate continu-
· HI - High wiper speed
ously if the lever is held in this
position.
B : Intermittent or Auto control
OFF : Wiper is not in operation.
wipe time adjustment
INT : Wiper operates intermittently at
the same wiping intervals. To
vary the speed setting, turn the
C : Wash with brief wipes
speed control knob (1).
(if equipped)
LO : The wiper runs at a lower speed.
HI : The wiper runs at a higher speed.
4 80
Features of your vehicle
Windshield washers
WARNING
CAUTION
When the outside temperature
•
To prevent possible damage
is below freezing, ALWAYS
to the washer pump, do not
warm the windshield using the
operate the washer when the
defroster to prevent the washer
fluid reservoir is empty.
fluid from freezing on the wind-
•
To prevent possible damage
shield and obscuring your
to the wipers or windshield,
vision which could result in an
do not operate the wipers
accident and serious injury or
when the windshield is dry.
death.
•
To prevent damage to the
wiper arms and other compo-
nents, do not attempt to move
OYF049101
the wipers manually.
In the OFF position, pull the lever
gently toward you to spray washer
fluid on the windshield and to run the
wipers 1-3 cycles. Use this function
when the windshield is dirty.
The spray and wiper operation will
continue until you release the lever. If
the washer does not work, you may
need to add washer fluid to the
washer fluid reservoir.
4 81
