Hyundai Atos (2002 year). Instruction - part 2

FEATURES OF YOUR HYUNDAI

B200A01A-GAT

B210A01A-AAT

B220A01A-AAT

Adjusting Your Seat Belt

To Release the Seat Belt

SEAT BELTS (2-Point Static Type)

(Rear Seat Center)

To Fasten Your Seat Belt

YR10311B

YR10321B

You should place the belt as low as possible on

The seat belt is released by pressing the release

your hips, not on your waist. If located too high on

button in the locking buckle. When it is released,

SSA1090S

your body, the chances of sliding out from under

the belt should automatically draw back into the

To fasten a 2-point static type belt, insert the

it and suffering serious injury or death are in-

retractor.

metal tab into the locking buckle. There will be an

creased. Both arms should not be under or over

If this does not happen, check the belt to be sure

audible "click" when the tab locks into the buckle.

the belt. Rather, one should be over and the other

it is not twisted, then try again.

Check to make sure the belt is properly locked

under, as shown in the illustration.

and that the belt is not twisted.

1- 10

FEATURES OF YOUR HYUNDAI

B220B01A-AAT

B220C01A-AAT

B230A02P-GAT

Adjusting Your Seat Belt

To Release the Seat Belt

CHILD RESTRAINT SYSTEM

(If installed)

Children riding in the car should sit in the rear

seat and must always be restrained to minimize

the risk of injury in an accident, sudden stop or

sudden maneuver. According to accident statis-

tics, children are safer when properly restrained

Too high

in the rear seats than in the front seat. Larger

children should use one of the seat belts pro-

vided.

Shorten

You are required by law to use safety restraints

Correct

for children. If small children ride in your vehicle

SSA1090T

B220C01A

you must put them in a child restraint system

(safety seat).

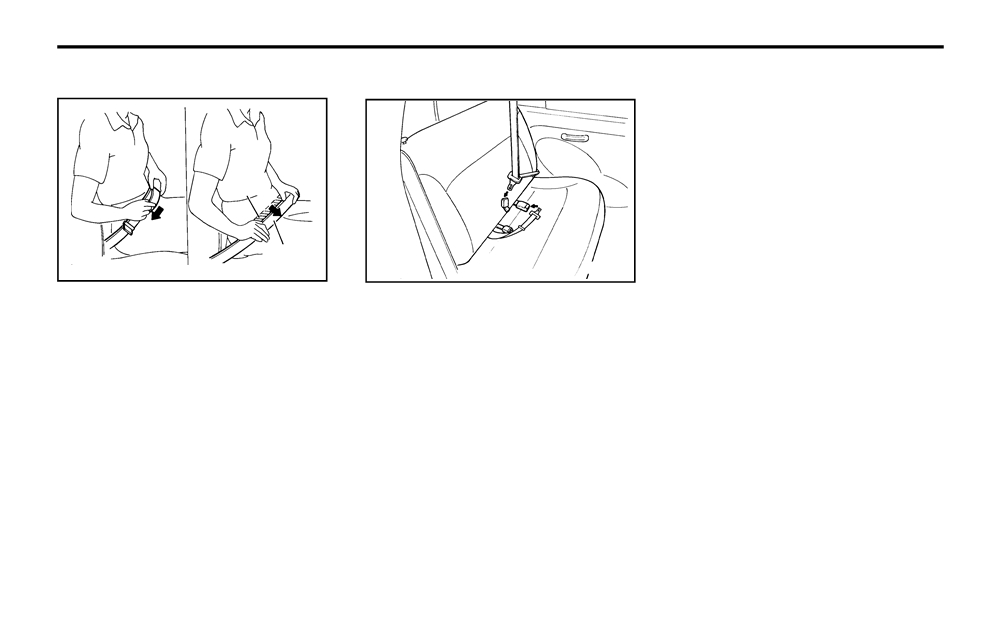

With a 2-point static type seat belt, the length

When you want to release the seat belt, press the

Children could be injured in a crash if their

must be adjusted manually so it fits snugly around

button in the locking buckle.

restraints are not properly secured. For small

your body. Fasten the belt and pull on the loose

children and babies, a child seat or infant seat

end to tighten. The belt should be placed as low

WARNING:

must be used. Before buying a particular child

as possible on your hips, not on your waist. If the

The center lap belt latching mechanism is

restraint system, make sure it fits your car seat

belt is too high, it could increase the possibility of

different from those for the rear seat shoul-

and seat belts, and fits your child. Follow all the

your being injured in an accident.

der belts. When fastening the rear seat shoul-

instructions provided by the manufacturer when

der belts or the center lap belt, make sure

installing the child restraint system.

they are inserted into the correct buckle to

obtain maximum protection from the seat

WARNING:

belt system and assure proper operation.

o A child restraint system must be placed in

the rear seat. Never install a child or infant

seat on the front passenger's seat.

Should an accident occur and cause the

passenger side airbag to deploy, it could

severely injure or kill an infant or child

seated in an infant or child seat. Thus, only

use a child restraint in the rear seat of your

vehicle.

1- 11

FEATURES OF YOUR HYUNDAI

Since a safety belt or child restraint sys-

not provide adequate security in an acci-

After installation of the child restraint system, try

tem can become very hot if it is left in a

dent.

to move it in all directions to be sure the child

closed vehicle, be sure to check the seat

o Never allow a child to be held in a person's

restraint system is securely installed.

cover and buckles before placing a child

arms while they are in a moving vehicle, as

If you need to tighten the belt, pull more webbing

there.

this could result in serious injury to the

toward the retractor. When you unbuckle the

When the child restraint system is not in

child in the event of an accident or a

seat belt and allow it to retract, the retractor will

use, fasten it with a safety belt so that it

sudden stop. Holding a child in a moving

automatically revert back to its normal seated

will not be thrown forward in the case of a

vehicle does not provide the child with

passenger emergency locking usage condition.

sudden stop or an accident.

any means of protection during an acci-

Children who are too large to be in a child

dent, even if the person holding the child

NOTE:

restraint should sit in the rear seat and be

is wearing a seat belt.

o Before installing the child restraint sys-

restrained with the available lap/shoulder

tem, read the instructions supplied by the

B230G01A-GAT

belts. Never allow children to ride in the

child restraint system manufacturer.

Installation on Outboard Rear Seats

front passenger seat.

o If the seat belt does not operate as de-

Always make sure that the shoulder belt

On outboard rear seats

scribed, have the system checked imme-

portion of the outboard lap/shoulder belt

diately by your authorized Hyundai dealer.

is positioned midway over the shoulder,

never across the neck. Moving the child

WARNING:

closer to the center of the vehicle may help

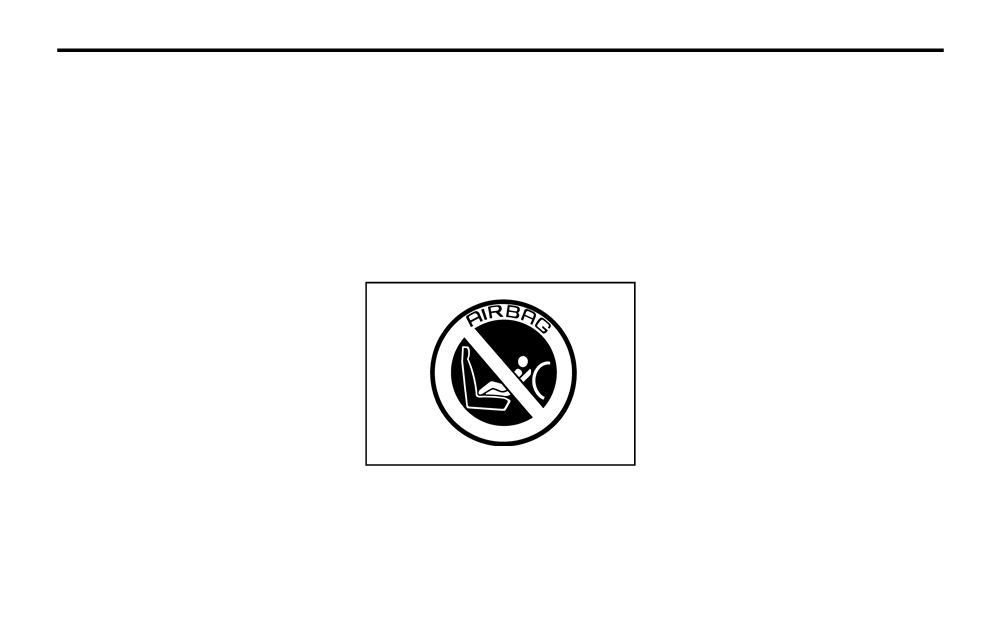

Do not install any child restraint system in the

provide a good shoulder belt fit. The lap

front passenger seat. Should an accident

belt portion of the lap/shoulder belt or the

occur and cause the passenger side airbag

center seat lap belt must always be posi-

to deploy, it could severely injure or kill an

tioned as low as possible on the child's

infant or child seated in an infant or child

hips and as snug as possible.

seat. Therefore, only use a child restraint

If the seat belt will not properly fit the

system in the rear seat of your vehicle.

YR10400B

child, we recommend the use of an ap-

proved booster seat in the rear seat in

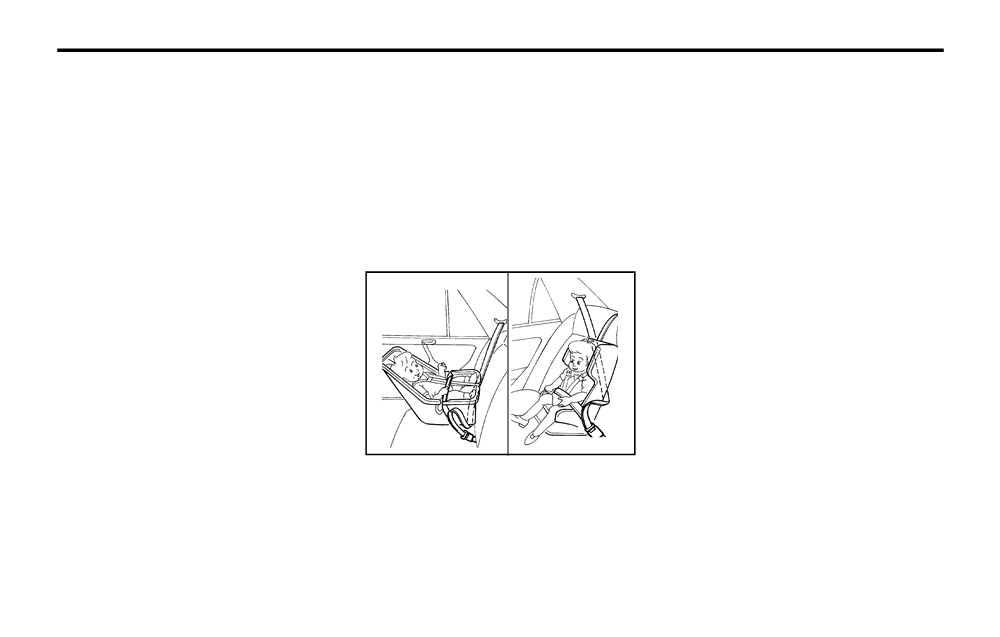

To install a child restraint system in the outboard

order to raise the child's seating height so

rear seats, extend the shoulder/lap belt from its

that the seat belt will properly fit the child.

retractor. Install the child restraint system, buckle

Never allow a child to stand up or kneel on

the seat belt and allow the seat belt to take up any

the seat.

slack. Make sure that the lap portion of the belt is

Never use an infant carrier or child safety

tight around the child restraint system and the

seat that "hooks" over a seatback; it may

shoulder portion of the belt is positioned so that

it cannot interfere with the child's head or neck.

1- 12

FEATURES OF YOUR HYUNDAI

B230H01X-GAT

B180B01X-GAT

B240A03F-AAT

Child Seat Restraint Suitability For Seat Po-

SUPPLEMENTAL RESTRAINT

Pre-tensioner Seat Belt (If installed)

sition

Ordinarily the pre-tensioner seat belt operates in

(AIRBAG) SYSTEM (If installed)

Use child safety seats that have been officially

the same way as E.L.R (Emergency Locking

approved and are appropriate for your children.

Retractor) type (When vehicles stop suddenly,

the belt will lock into the position. It will also

Seating Position

lock if you try to lean forward too quickly.).

Age Group

Front

Rear

However, when vehicles crash, the retractor

Passenger

Outboard

Center

rewinds the belt webbing. This will restrain the

0 : Up to 10 kg

passenger movement quickly and also reduce

(0 ~ 9 months)

the slack between passenger and belt webbing.

0+ : Up to 13 kg

(0 ~ 2 years)

NOTE:

I : 9kg to 18kg

o When the pre-tensioner seat belt is acti-

(9 months ~

vated, there may be an explosion noise.

AS10356A

4 years)

This noise is normal and is not hazardous.

Your Hyundai is equipped with a Supplemental

II & III : 15kg to 36kg

o Pre-tensioner seat belt is designed to op-

Restraint (Airbag) System. The indications of the

(4 ~ 12 years)

erate only when a sufficiently severe im-

system's presence are the letters "SRS AIRBAG"

pact occurs and it will be only operated

embossed on the airbag pad cover in the steering

U :

Suitable for "universal" category restraints

once.

wheel and the passenger's side front panel pad

approved for use in this mass group

above the glove box.

UF : Suitable for forward-facing "universal" cat-

WARNING:

egory restraints approved for use in this

If the pre-tensioner seat belt was activated,

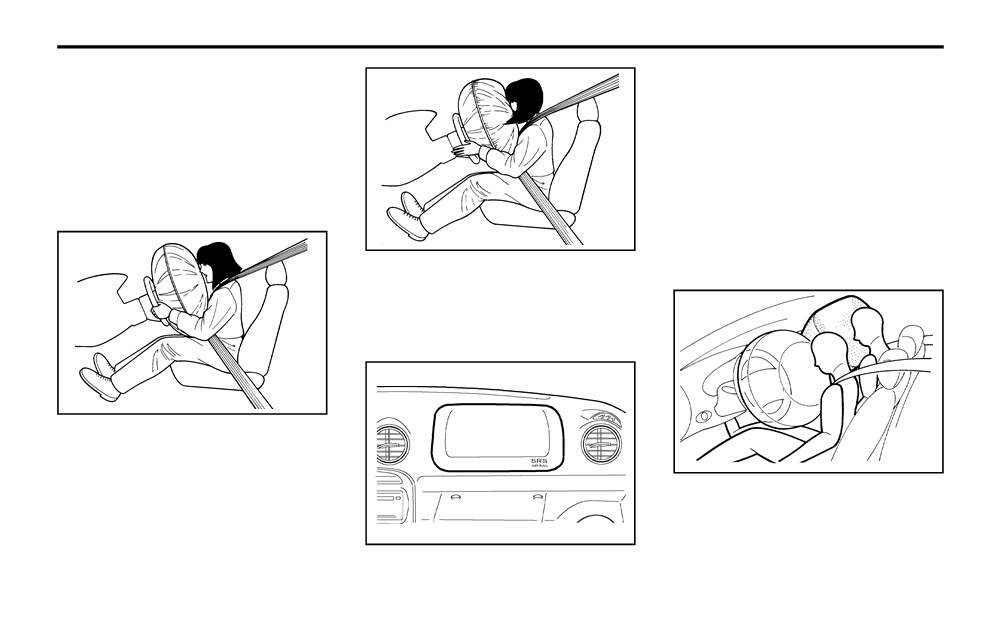

The Hyundai SRS consists of airbags installed

mass group

never attempt to replace it by yourself. It must

under the pad covers in the center of the steering

X :

Seat position not suitable for children in this

be replaced by an authorized Hyundai Dealer.

wheel and the passenger's side front panel above

mass group

the glove box. The purpose of the SRS is to

provide the vehicle's driver and the front passen-

ger with additional protection when used to-

gether with the seat belt, in case of a frontal

impact.

NOTE:

Be sure to read information about the SRS on

the labels provided on the backside of the

sun visor and in the glove box.

1- 13

FEATURES OF YOUR HYUNDAI

WARNING:

crashes. In addition, airbags will not de-

o For maximum safety protection in all types

As its name implies, the SRS is designed

ploy in frontal crashes below the deploy-

of crashes, all occupants including the

to work with, and be supplemental to, the

ment threshold speed.

driver should always wear their seat belts

driver's and the passenger's three point

The driver should sit back as far as possi-

whether or not an airbag is also provided

seat belt systems and is not a substitute

ble while still maintaining control of the

at their seating position to minimize the

for them. Therefore, your seat belts must

vehicle. If you are sitting too close to the

risk of severe injury or death in the event

be worn at all times while the vehicle is in

airbag, it can cause death or serious injury

of a crash. Do not sit or lean unnecessarily

motion. The airbags deploy only in certain

when it inflates.

close to the airbag while the vehicle is in

frontal impact conditions severe enough

No objects should be placed over or near

motion.

to likely cause significant injury to the

the airbag modules on the steering wheel,

o The SRS airbag system must deploy very

vehicle occupants.

instrument panel, and the front passen-

rapidly to provide protection in a crash. If

The SRS is designed to deploy the airbags

ger's panel above the glove box, because

an occupant is out of position because of

only when an impact is sufficiently severe

any such object could cause harm if the

not wearing a seat belt, the airbag may

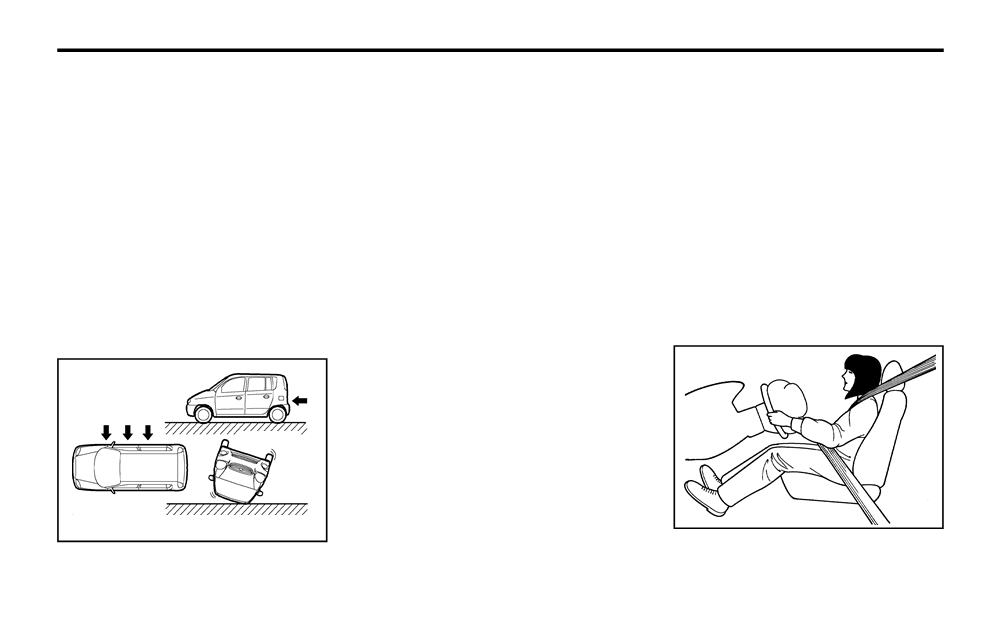

and when the impact angle is less than 30°

vehicle is in a crash severe enough to

forcefully contact the occupant causing

from the forward longitudinal axis of the

cause the airbags to deploy.

serious or fatal injuries.

vehicle and will not deploy in side, rear or

If the airbags deploy, they must be re-

rollover impacts. Additionally, the airbags

placed by an authorized Hyundai dealer.

B240B03A-AAT

will only deploy once. Thus, seat belts

Do not tamper with or disconnect SRS

SRS Components and Functions

must be worn at all times.

wiring, or other components of the SRS

system. Doing so could result in injury,

due to accidental firing of the airbags or

by rendering the SRS inoperative.

Do not install a child restraint system in

the front passenger seat position. A child

restraint system must never be placed in

Rear impact

the front seat. The infant or child could be

severely injured or killed by an airbag

deployment in case of an accident.

Do not allow children to ride in the front

Side impact

passenger seat. If also children(teenagers

FUA1111B

Rollover

and older) must ride in the front seat,

B240C01X

make sure they are always properly belted

and that the seat is moved back as far as

Front airbags are not intended to deploy

possible.

in side-impact, rear-impact or rollover

1- 14

FEATURES OF YOUR HYUNDAI

The SRS consists of the following components:

Upon deployment, tear seams molded directly

into the pad covers will separate under pressure

- Driver's Airbag Module

from the expansion of the airbags. Further open-

- Passenger's Airbag Module

ing of the covers then allows full inflation of the

- SRS Service Reminder Indicator (SRI)

airbags.

- SRS Control Module (SRSCM)

A fully inflated airbag in combination with a prop-

The SRSCM continually monitors all elements

erly worn seat belt slows the driver's or the

while the ignition is "ON" to determine if a frontal

passenger's forward motion, thus reducing the

or near-frontal impact is severe enough to re-

risk of head or chest injury.

quire airbag deployment.

FUA1113A

After complete inflation, the airbag immediately

starts deflating, enabling the driver to maintain

The airbag modules are located both in the

forward visibility.

center of the steering wheel and in the front

passenger's panel above the glove box. When

the SRSCM detects a considerable impact to the

front of the vehicle, it will automatically deploy the

airbags.

FUA1112A

The SRS service reminder indicator (SRI) on the

instrument panel will blink for about 6 seconds

after the ignition key is turned to the "ON"

FUA1115A

position or after the engine is started, after which

the SRI should go out.

CAUTION:

When installing a container of liquid air fresh-

ener inside a vehicle, do not place it near the

B240B04X

instrument cluster nor on the instrument panel

pad surface. If there is any leakage from the

air freshener onto these areas (Instrument

1- 15

FEATURES OF YOUR HYUNDAI

cluster, instrument panel pad or air ventila-

B240C01Y-GAT

to the body structure, can adversely affect

tor), it may damage these parts. If the liquid

SRS Care

SRS performance and lead to possible

from the air freshener does leak onto these

The SRS is virtually maintenance-free and so

injury.

areas, wash them with water immediately.

there are no parts you can safely service by

For cleaning the airbag pad covers, use

yourself. The entire SRS system must be in-

only a soft, dry cloth or one which has

WARNING:

spected by an authorized Hyundai dealer in 10

been moistened with plain water. Solvents

When the SRS is activated, there may be a

years after the date that the vehicle was manu-

or cleaners could adversely affect the

loud noise and fine dust will be released

factured.

airbag covers and proper deployment of

through out the vehicle. These conditions

the system.

Any work on the SRS system, such as removing,

are normal and are not hazardous. How-

No objects should be placed over or near

installing, repairing, or any work on the steering

ever, the fine dust generated during airbag

the airbag modules on the steering wheel,

wheel must be performed by a qualified Hyundai

deployment may cause skin irritation. Be

instrument panel, and the front passen-

technician. Improper handling of the SRS sys-

sure to wash your hands and face thor-

ger's panel above the glove box, because

tem may result in serious personal injury.

oughly with lukewarm water and a mild

any such object could cause harm if the

soap after an accident in which the airbags

vehicle is in a crash severe enough to

were deployed.

cause the airbags to inflate.

The SRS can function only when the igni-

If the airbags inflate, they must be re-

tion key is in the "ON" position. If the SRS

placed by an authorized Hyundai dealer.

SRI does not come on, or continuously

Do not tamper with or disconnect SRS

remains on, after flashing for about 6 sec-

wiring, or other components of the SRS

onds when the ignition key is turned to

system. Doing so could result in injury,

the "ON" position, or after the engine is

due to accidental firing of the airbags or

started, or comes on while driving, the

by rendering the SRS inoperative.

SRS is not working properly. If this oc-

Do not install a child restraint system in

curs, have your vehicle immediately in-

the front passenger seat position.

spected by your Hyundai dealer.

YT10355A

A child restraint system must never be

Before you replace a fuse or disconnect a

placed in the front seat. The infant or child

battery terminal, turn the ignition key to

WARNING:

could be severely injured by an airbag

the "LOCK" position or remove the igni-

o Extreme Hazard! Do not use a rearward

deployment in case of an accident.

tion key. Never remove or replace the air

facing child restraint on a seat protected

If components of the airbag system must

bag related fuse(s) when the ignition key

by an airbag in front of it!

be discarded, or if the vehicle must be

is in the "ON" position. Failure to heed this

o Modification to SRS components or wir-

scrapped, certain safety precautions must

warning will cause the SRS SRI to illumi-

ing, including the addition of any kind of

be observed. Your Hyundai dealer knows

nate.

badges to the pad covers or modifications

these precautions and can give you the

1- 16

FEATURES OF YOUR HYUNDAI

necessary information. Failure to follow

these precautions and procedures could

increase the risk of personal injury.

o If you sell your vehicle, be sure to inform

the new owner of these important points

and make certain that this manual is trans-

ferred to the new owner.

o If your car was flooded and has soaked

carpeting or water on flooring, you

shouldn't try to start engine; have the car

towed to authorized Hyundai dealer.

1- 17

FEATURES OF YOUR HYUNDAI

B250A02X-GAT

INSTRUMENTS AND CONTROLS

5,6

12 13

CAUTION:

When installing a container of liquid air fresh-

ener inside a vehicle, do not place it near the

instrument cluster nor on the instrument panel

pad surface. If there is any leakage from the

air freshener onto these areas (Instrument

cluster, instrument panel pad or air ventila-

tor), it may damage these parts. If the liquid

from the air freshener does leak onto these

areas, wash them with water immediately.

1819

B250A02X

1. Multi-Function Light Switch

8. Center Air Vent Louver

16. Hood Release Lever

2. Headlight Leveling Device (If installed)

9. Digital Clock (If installed)

17. Ignition Switch and Keys

3. Horn Button

10. Hazard Warning Switch

18. Air Conditioning Switch

4. Driver's Airbag (If installed)

11. Defroster Ventilation Outlet

19. Cigarette Light

5. Windshield Wiper/Washer Switch

12. Front Fog Light Switch (If installed)

20. Ashtray

6. Rear Wiper Switch/Rear Washer Switch

13. Rear Fog Light Switch (If installed)

21. Heating/Air Conditioning Control Panel

(If installed)

14. Passenger's Airbag (If installed)

22. Audio System

7. Rear Defroster Switch

15. Side Air Vent Louver

1- 18

FEATURES OF YOUR HYUNDAI

B260B01X-GAT

INSTRUMENT CLUSTER AND INDICATOR

B260A03X

1. Temperature Gauge

8. Immobilizer Warning Indicator Light

15. Parking Brake/Brake Fluid Level Warning

2. Turn Signal Indicator Light

9. Door Ajar Warning Light

Light

3. Speedometer

10. Seat Belt Warning Light

16. SRS Service Reminder Indicator (If installed)

4. Odometer

11. Malfunction Indicator Lamp (MIL) (If installed)

17. Charging System Warning Light

5. Trip Odometer

12. Low Fuel Warning Light

18. Oil Pressure Warning Light

6. Trip Odometer Reset button

13. High Beam Indicator Light

19. Overdrive Off Indicator Light (Auto T/A only)

7. Fuel Gauge

14. ABS Service Reminder Indicator (If installed)

1- 19

FEATURES OF YOUR HYUNDAI

B260D01A-AAT

CAUTION:

B260G01A-AAT

Turn Signal Indicator Lights

If the both ABS SRI and Parking Brake/Brake

Oil Pressure Warning Light

fluid level warning lights remain "ON" or

come on while driving, there may be a prob-

The blinking green arrows on the instrument

CAUTION:

lem with E.B.D (Electronic Brake Force Dis-

panel show the direction indicated by the turn

If the oil pressure warning light stays on

tribution).

signals. If the arrow comes on but does not

while the engine is running, serious engine

If this occurs, avoid sudden stops and have

illuminate, blinks more rapidly than normal, or

damage may result. The oil pressure warning

your vehicle checked by your Hyundai dealer

does not illuminate at all, a malfunction in the turn

light comes on whenever there is insufficient

as soon as possible.

signal system is indicated. Your dealer should be

oil pressure. In normal operation, it should

consulted for repairs.

come on when the ignition switch is turned

B260C01A-AAT

on, then go out when the engine is started. If

B260P02Y-AAT

O/D OFF Indicator

the oil pressure warning light stays on while

ABS Service Reminder Indica-

(If installed)

the engine is running, there is a serious

When the overdrive switch is turned on, the

malfunction.

tor (SRI) (If installed)

overdrive off indicator will go out. This amber

If this happens, stop the car as soon as it is

When the key is turned to the "ON" position, the

indicator will be illuminated when the overdrive

safe to do so, turn off the engine and check

ABS SRI will come on and then go off in a few

switch is turned off. (Auto T/A only)

the oil level. If the oil level is low, fill the engine

seconds. If the ABS SRI remains on, comes on

oil to the proper level and start the engine

while driving, or does not come on when the key

again. If the light stays on with the engine

is turned to the "ON" position, this indicates that

B260F01A-AAT

running, turn the engine off immediately. In

there may be a problem with the ABS.

High Beam Indicator Light

any instance where the oil light stays on

when the engine is running, the engine should

If this occurs, have your vehicle checked by your

The high beam indicator light comes on when-

be checked by an Hyundai dealer before the

Hyundai dealer as soon as possible. The normal

ever the headlights are switched to the high

car is driven again.

braking system will still be operational, but with-

beam or flash position.

out the assistance of the anti-lock brake system.

B260H03A-AAT

B260E02A-GAT

Parking Brake/Brake Fluid Level

Seat Belt Reminder Light

Warning Light

WARNING:

The seat belt reminder light comes on until your

If you suspect brake trouble, have your brakes

seat belt is fastened when the ignition key is

checked by a Hyundai dealer as soon as

turned from the "OFF" position to "ON" or

possible. Driving your car with a problem in

"START".

either the brake electrical system or brake

1- 20

FEATURES OF YOUR HYUNDAI

hydraulic system is dangerous, and could

distance with only half of the brake system work-

B260M01A-AAT

result in serious injury or death.

ing. If the brakes fail while you are driving, shift to

Low Fuel Level Warning Light

a lower gear for additional engine braking and

stop the car as soon as it is safe to do so.

The low fuel level warning light comes on when the

Warning Light Operation

fuel tank is approaching empty. When it comes on,

The parking brake/brake fluid level warning light

you should add fuel as soon as possible. Driving

should come on when the parking brake is ap-

B260J01S-GAT

with the fuel level warning light on or with the fuel

plied and the ignition switch is turned to "ON" or

Charging System Warning Light

level below "E" can cause the engine to misfire

"START". After the engine is started, the light

and damage the catalytic converter.

should go out when the parking brake is re-

The charging system warning light should come

leased.

on when the ignition is turned on, then go out

If the parking brake is not applied, the warning

when the engine is running. If the light stays on

B260B01S-GAT

light should come on when the ignition switch is

while the engine is running, there is a malfunction

SRS (Airbag) Service Reminder

turned to "ON" or "START", then go out when the

in the electrical charging system. If the light

Indicator (SRI) (If installed)

engine starts. If the light comes on at any other

comes on while you are driving, stop, turn off the

The SRS service reminder indicator (SRI) comes

time, you should slow the vehicle and bring it to

engine and check under the hood. First, make

on and flashes for about

6 seconds after the

a complete stop in a safe location off the road-

certain the generator drive belt is in place. If it is,

ignition key is turned to the "ON" position or after

way.

check the tension of the belt.

the engine is started, after which it will go out.

The brake warning light indicates that the brake

And then, have the system checked by your

This light also comes on when the SRS is not

fluid level in the brake master cylinder is low and

Hyundai dealer.

working properly. If the SRI does not come on, or

hydraulic brake fluid conforming to DOT 3 or

continuously remains on after flashing for about

DOT 4 specifications should be added. After

CAUTION:

6 seconds when you turned the ignition key to the

adding fluid, if no other trouble is found, the car

If the drive belt (generator belt) is loosen,

"ON" position or started the engine, or if it comes

should be immediately and carefully driven

broken, or mission while the vehicle is driv-

on while driving, have the SRS inspected by an

to a Hyundai dealer for inspection. If further

ing, there may be a serious malfunction, en-

authorized Hyundai Dealer.

trouble is experienced, the vehicle should not be

gine could overheat because this belt also

driven at all but taken to a dealer by a profes-

drives the water pump.

sional towing service or some other safe method.

B270A01A-AAT

Your Hyundai is equipped with dual-diagonal

BRAKE PAD WEAR WARNING SOUND

braking systems. This means you still have brak-

B260L01A-GAT

The front disc brake pads have wear indicators

ing on two wheels even if one of the dual systems

Door Ajar Warning Light

that should make a high-pitched squealing or

should fail. With only one of the dual systems

scraping noise when new pads are needed. The

working, more than normal pedal travel and

The door ajar warning light warns you that a door

sound may come and go or be heard all the time

greater pedal pressure are required to stop the

is not completely closed.

when the vehicle is moving. It may also be heard

car. Also, the car will not stop in as short a

1- 21

FEATURES OF YOUR HYUNDAI

when the brake pedal is pushed down firmly.

B280A01A-AAT

WARNING:

Excessive rotor damage will result if the worn

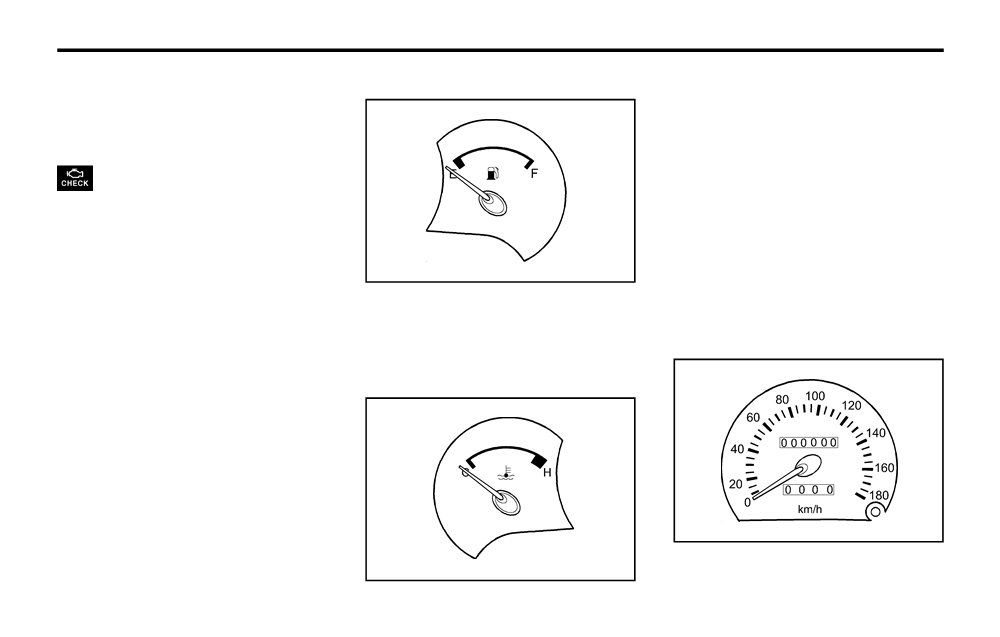

FUEL GAUGE

Never remove the radiator cap when the en-

pads are not replaced. See your Hyundai dealer

gine is hot. The engine coolant is under pres-

immediately.

sure and could erupt and cause severe burns.

Wait until the engine is cool before removing

the radiator cap.

B260N02A-AAT

Malfunction Indicator Light

The needle on the engine coolant temperature

gauge should stay in the normal range. If it

(If installed)

moves across the dial to "H" (Hot), pull over and

This light illuminates when there is a malfunction

stop as soon as possible and turn off the engine.

of an exhaust gas related component, and the

Then open the hood and check the coolant level

system is not functioning properly so that the

and the water pump drive belt. If you suspect

exhaust gas regulation values are not satisfied.

cooling system trouble, have your cooling sys-

This light will also illuminate when the ignition key

B280A01X

tem checked by Hyundai dealer as soon as

is turned to the "ON" position, and will go out in a

few seconds. If it illuminates while driving, or

The needle on the gauge indicates the approxi-

possible.

does not illuminate when the ignition key is

mate fuel level in the fuel tank. The fuel capacity

turned to the "ON" position, take your car to your

is given in Section 9.

B300A01A-GAT

nearest authorized Hyundai dealer and have the

SPEEDOMETER

system checked.

B290A02A-AAT

ENGINE COOLANT TEMPERATURE

GAUGE

B900A01A-GAT

ACOUSTIC WARNING SOUND

(If installed)

The acoustic warning chime sounds when the

tail lights are on and the door in driver side is

open. This prevents the battery from discharging

when the car is left with the tail lights on. The

chime sounds until the tail lights are turned off.

B300A01X

Your Hyundai's speedometer is calibrated in

B290A01X

kilometers per hour or miles per hour.

1- 22

FEATURES OF YOUR HYUNDAI

B310A01A-GAT

B340B01A-AAT

B340C01A-AAT

ODOMETER

Lane Change Signal

Headlight Switch

The odometer records the total driving distance

in kilometers or miles, and is useful for keeping a

record for maintenance intervals.

NOTE:

Any alteration of the odometer may void your

warranty coverage.

B320A01A-GAT

TRIP ODOMETER

The trip odometer may be used to conveniently

B340B01X

B340C01X

record trip distances. Push the reset knob to set

the counter to zero.

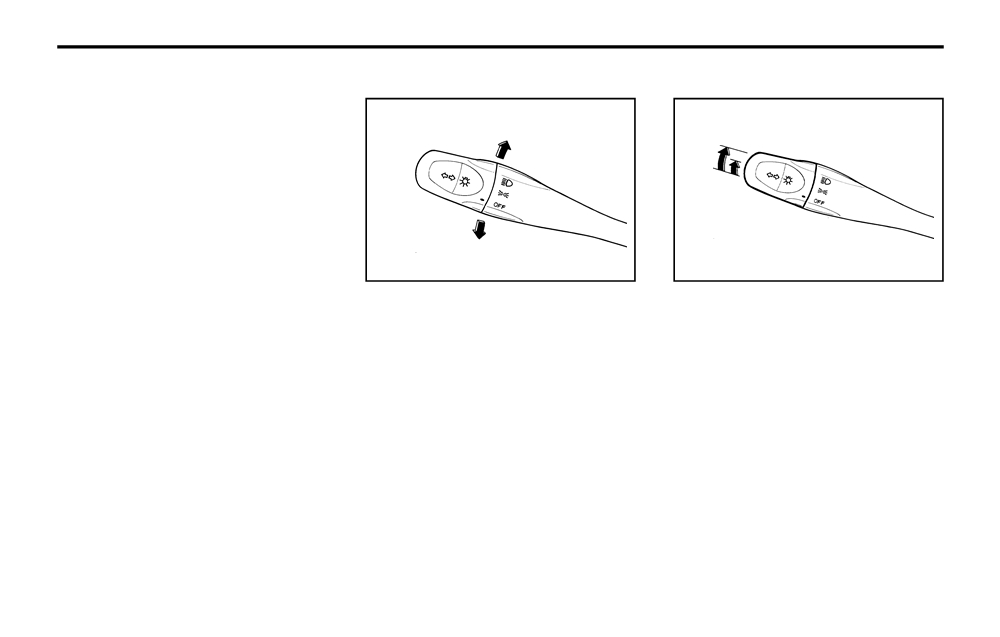

To indicate a lane change, move the lever up or

To operate the headlights, turn the barrel on the

down to a point where it begins flashing.

end of the multi-function switch. The first position

B340A01A-AAT

The lever will automatically return to the center

turns on the parking lights, sidelights, tail lights

COMBINATION TURN SIGNAL,

position when released.

and instrument panel lights. The second position

HEADLIGHT AND HIGH-BEAM SWITCH

turns on the headlights.

Turn Signal Operation

Pulling down on the lever causes the turn signals

B340F01A-GAT

on the left side of the car to blink. Pushing upward

Daytime Running Lights (If Installed)

on the lever causes the turn signals on the right

Your Hyundai is equipped with daytime running

side of the car to blink. As the turn is completed,

lights. The daytime running lights are used to

the lever will automatically return to the center

improve visibility for oncoming traffic. Your vehi-

position and turn off the turn signals at the same

cle daytime running lights are designed to remain

time. If either turn signal indicator light blinks

on continuously when the engine is operating

more rapidly than usual, goes on but does not

even though the headlight switch is in the "OFF"

blink, or does not go on at all, there is a malfunc-

position. However, the daytime running lights will

tion in the system. Check for a burned-out fuse or

be off while the parking brake is applied.

bulb or see your Hyundai dealer.

1- 23

FEATURES OF YOUR HYUNDAI

B340D01A-AAT

B350A01A-AAT

B350B01A-AAT

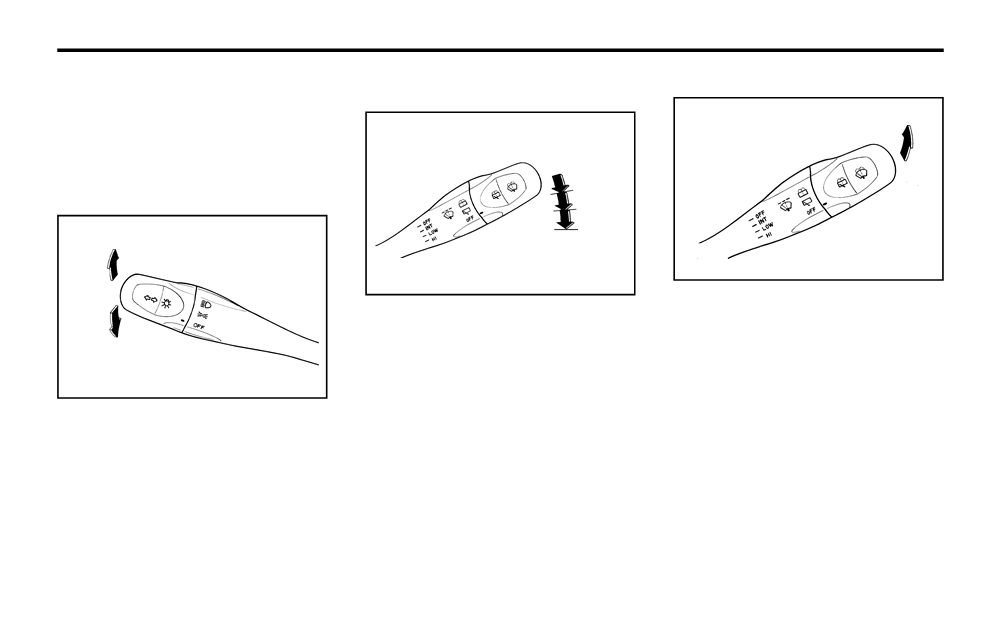

High-Beam Switch

WINDSHIELD WIPER AND WASHER

Windshield Washer Operation

To turn on the headlight high beams, push the

SWITCH

lever forward (away from you). The high beam

indicator light will come on at the same time. For

low beams, pull the lever back toward you.

OFF

B340E01A-AAT

Headlight Flasher

B350B01X

B350A01X

To use the windshield washer, pull the wiper/

The windshield wiper switch has three positions:

washer lever toward the steering wheel. When

the washer lever is operated, the wipers auto-

1. Intermittent wiper operation

matically make two passes across the wind-

2. Low-speed operation

shield. The washer continues to operate until the

3. High-speed operation

lever is released.

B340E01X

NOTE:

To flash the headlights, pull the switch lever

To prevent damage to the wiper system, do

o Do not operate the washer more than 15

toward you, then release it. The headlights can

not attempt to wipe away heavy accumula-

seconds at a time or when the fluid reser-

be flashed even though the headlight switch is in

tions of snow or ice. Accumulated snow and

voir is empty.

the "OFF" position.

ice should be removed manually. If there is

o In icy or freezing weather, be sure the

only a light layer of snow or ice, operate the

wiper blades are not frozen to the glass

heater in the defrost mode to melt the snow or

prior to operating the wipers.

ice before using the wiper.

o In areas where water freezes in winter, use

windshield washer antifreeze.

1- 24

FEATURES OF YOUR HYUNDAI

B390A01X-GAT

wiper blade wear. For the same reason, do not

Loading condition

Switch position

REAR WINDOW WIPER AND WASHER

operate the washer when the washer fluid reser-

voir is empty.

Driver only

(If installed)

Driver + front passenger

B340G02X-GAT

Full passengers

HEADLIGHT LEVELING DEVICE SYS-

(including driver)

TEM (If installed)

Full passengers (including

driver) + Permissible load

Driver + Permissible load

B370A01A-AAT

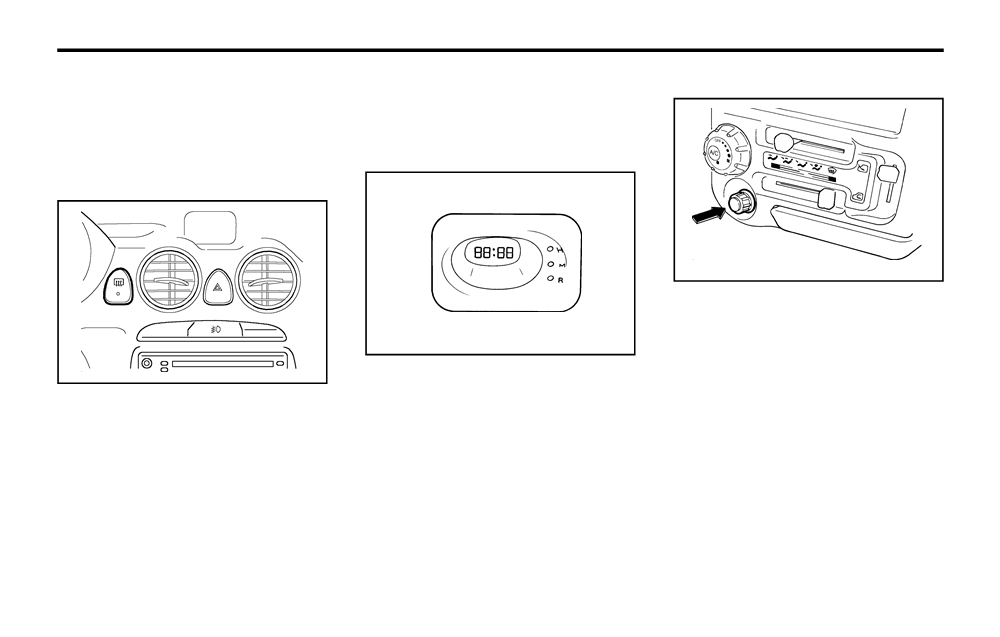

HAZARD WARNING SYSTEM

B390A01X

To operate the rear wiper and washer, turn the

barrel on the end of the multifunction switch.

B340G01X

1. OFF

2. When the point indicates the

, the rear

To adjust the headlight beam level according to

windshield wiper starts to operate continu-

the number of the passengers and the loading

ously.

weight in the luggage area, turn the beam level-

3. The washer fluid will be spray onto the rear

ing switch.

winshield by indicating the point onto the

The higher the number of the switch position, the

The wiper operates continuously after the

lower the headlight beam level. Always keep the

HMX404D

washer fluid is sprayed.

headlight beam at the proper leveling position, or

The hazard warning system should be used

headlights may dazzle other road users.

Do not operate the washer continuously for more

whenever you find it necessary to stop the car in

Listed below are the examples of proper switch

than 15 seconds or when the fluid reservoir is

a hazardous location. When you must make

settings. For loading conditions other than those

empty; this could damage the system.

such an emergency stop, always pull off the road

listed below, adjust the switch position so that the

Do not operate the wiper when the window is dry;

as far as possible.

beam level may be the nearest as the condition

this can result in scratching as well as premature

The hazard warning lights are turned on by

obtained according to the list.

pushing in on the hazard switch. This causes all

1- 25

FEATURES OF YOUR HYUNDAI

turn signal lights to blink. The hazard warning

NOTE:

B420A02A-AAT

lights will operate even though the key is not in

The engine must be running for the rear

CIGARETTE LIGHTER

the ignition.

window defroster to operate.

To turn the hazard warning lights off, push in on

the switch a second time.

B400A01A-AAT

B380A01A-AAT

DIGITAL CLOCK (If Installed)

REAR WINDOW DEFROSTER

SWITCH

B420A01A-1

For the cigarette lighter to work, the key must be

in the "ACC" position or the "ON" position.

To use the cigarette lighter, push it all the way into

B400A01A

its socket. When the element has heated, the

lighter will pop out to the "ready" position.

There are three control buttons for the digital

Do not hold the cigarette lighter pressed in. This

HMX404C

clock. Their functions are:

can damage the heating element and create a

The rear window defroster is turned on by push-

fire hazard.

ing in on the switch. To turn the defroster off, push

HOUR - Push "H" to advance the hour indicated.

If it is necessary to replace the cigarette lighter,

in on the switch a second time. The rear window

MIN - Push "M" to advance the minute indicated.

use only a genuine Hyundai replacement or its

defroster automatically turns itself off after about

RESET - Push "R" to reset minutes to ":00" to

approved equivalent.

15 minutes. To restart the defroster cycle, push

facilitate resetting the clock to the correct time.

in on the switch again after it has turned itself off.

When this is done:

CAUTION:

Do not use electric accessories or equipment

CAUTION:

Pressing "R" between 10 : 30 and 11 : 29 changes

other than the Hyundai genuine parts in the

Do not clean the inner side of the rear window

the readout to 11 : 00.

socket.

glass with an abrasive type of glass cleaner

Pressing "R" between 11 : 30 and 12 : 29 changes

or use a scraper to remove the foreign depos-

the readout to 12 : 00.

its from the inner surface of the glass as this

may cause damage to the defroster elements.

1- 26

Content .. 1 2 3 ..
