Hyundai Santa Fe (2006 year). Manual - part 270





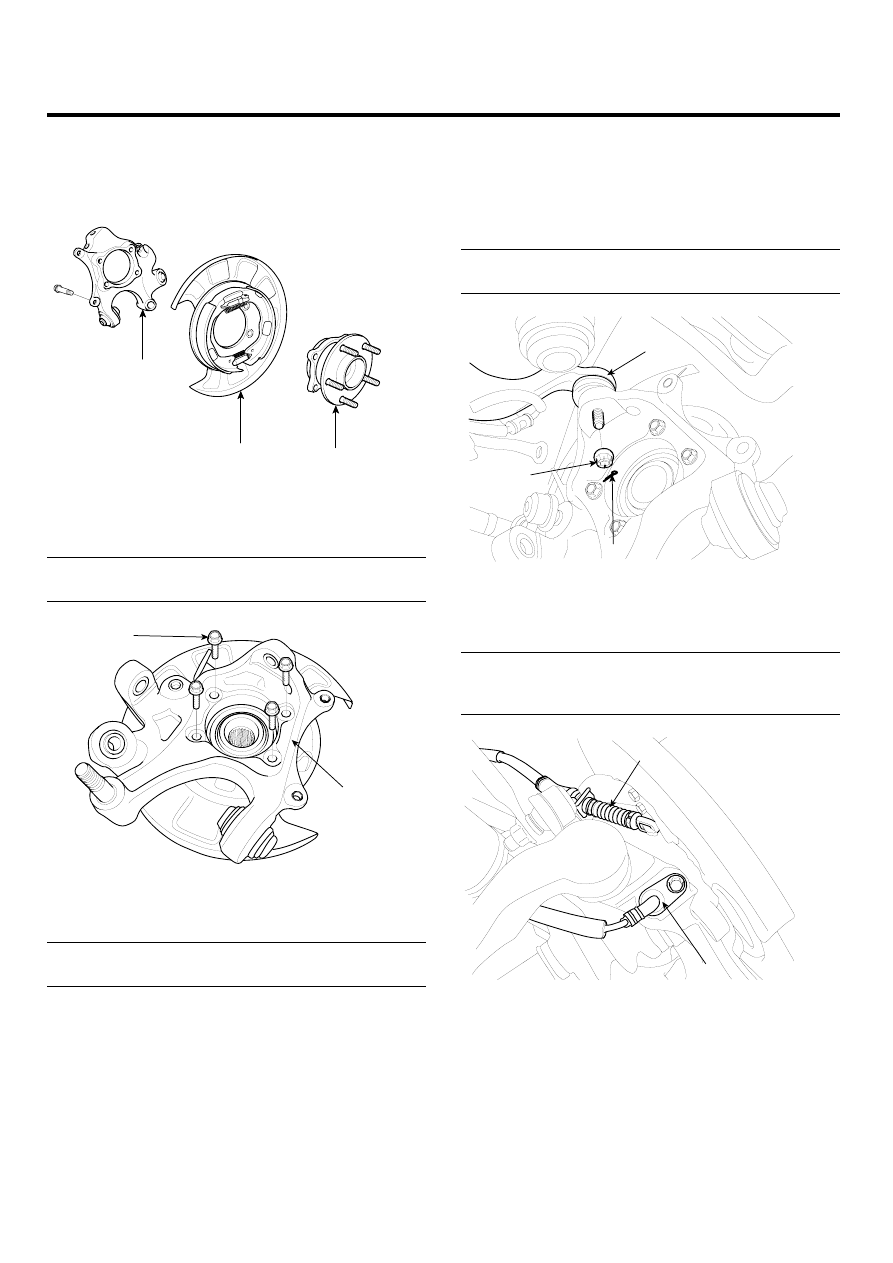

DS -40

DRIVESHAFT AND AXLE

REASSEMBLY

EB2FA7EF

1.

Install the parking brake assembly (B) and the hub
assembly (C) to the rear axle carrier (A).

A

C

B

SCMDS6506D

2.

Install the hub assembly to the rear axle carrier (A)
and then tighten the mounting bolt (B).

Tightening torque Nm (kgf-m, lb-ft) :
78.5~88.3 (8~9, 57.9~65.1)

A

B

SCMDS6032D

3.

Install the brake disc to the rear axle carrier assembly.

Tightening torque Nm (kgf-m, lb-ft) :
Screw: 4.9~5.9 (0.5~0.6, 3.6~4.3)

INSTALLATION

E3ABD444

1.

Install the rear axle carrier assembly.

2.

Install the split pin (A) and the castle nut (B) to the rear
upper arm ball joint (C).

Tightening torque Nm (kgf-m, lb-ft) :
78.5~88.3 (8.0~9.0, 57.9~65.1)

A

B

C

SCMDS6030D

3.

Install the wheel speed sensor (A) and the parking
brake cable (B) to the rear axle carrier.

Tightening torque Nm (kgf-m, lb-ft) :
Wheel speed sensor (A) :
6.9~10.8 (0.7~1.1, 5.1~8.0)

A

B

SCMDS6029D

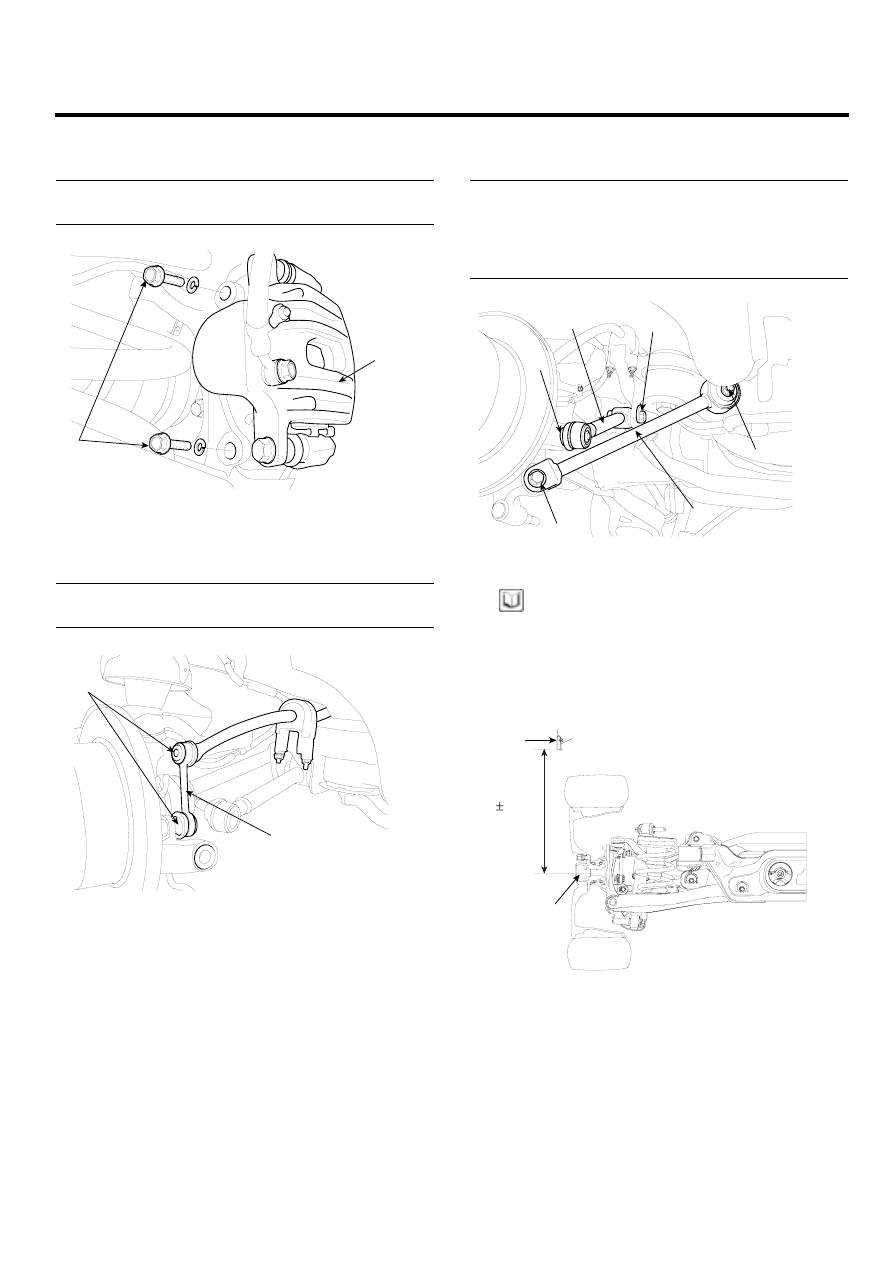

REAR AXLE

DS -41

4.

Install the brake caliper (B), then tighten the brake
caliper mounting bolts (A).

Tightening torque Nm (kgf-m, lb-ft) :
63.7~73.5 (6.5~7.5, 47.0~54.2)

A

B

SCMDS6027D

5.

Install the rear stabilizer link (A) from the rear axle
carrier.

Tightening torque Nm (kgf-m, lb-ft) :
Nut(B) : 58.8~78.5 (6.0~8.0, 43.4~57.9)

A

B

SCMDS6026D

6.

Install the assist arm (A) and the trailing arm (B) to the
rear axle carrier.

Tightening torque Nm (kgf-m, lb-ft) :
Bolt (C) : 137.3~156.9 (14~16, 101.3~115.7)
Nut (D) : 98.1~117.7 (10~12, 72.3~86.8)
Nut (E) : 137.3~156.9 (14~16, 101.3~115.7)
Bolt (F) : 137.3~156.9 (14~16, 101.3~115.7)

E

B

F

D

A

C

SCMDS6052D

NOTE

After checking the distance(453±10mm(17.83
±0.39in)) between the wheel housing garnish(A) and
the hub assembly(B) as shown in the illustration,
tighten the mounting bolts and nuts of rear chassis
part with specified torque.

A

B

453 10 mm

SCMDS6513D

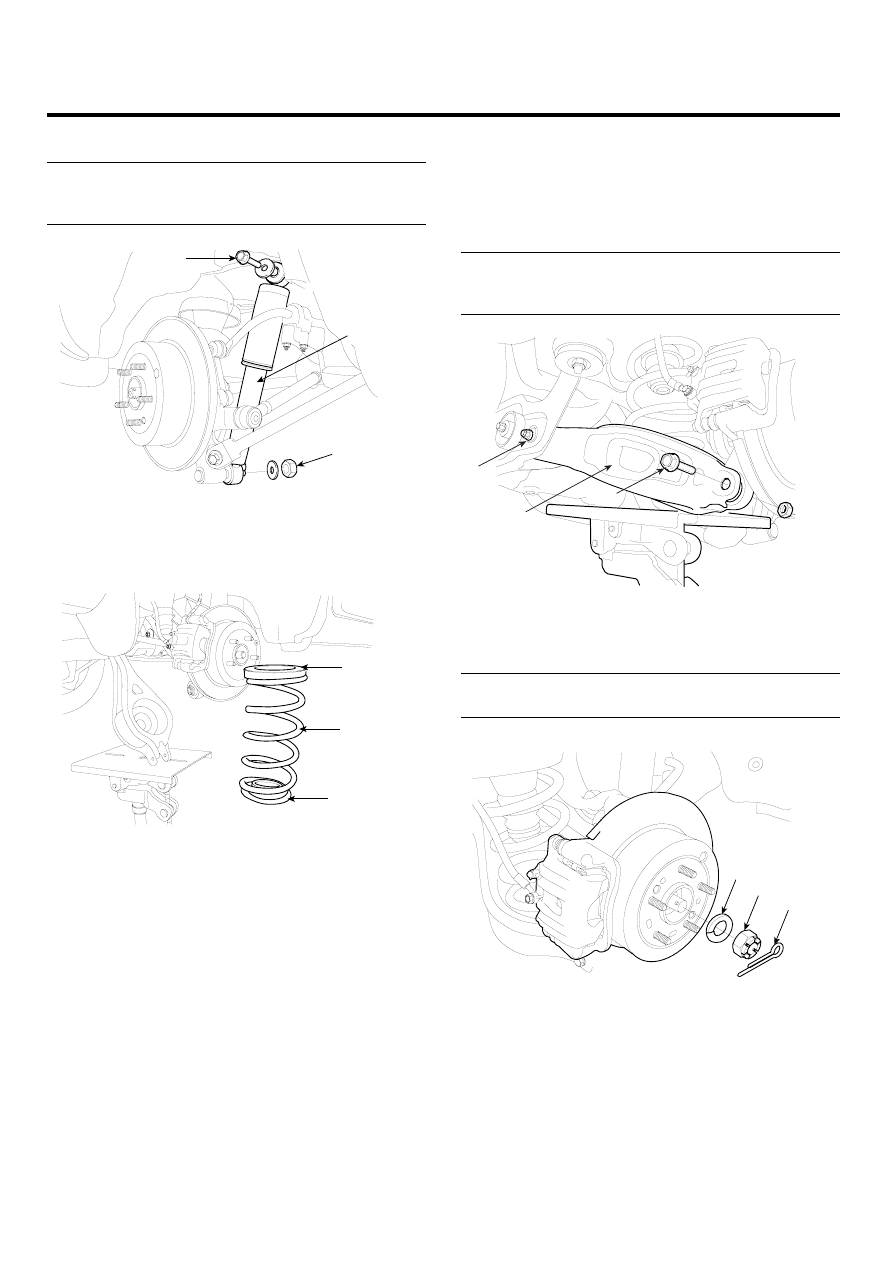

DS -42

DRIVESHAFT AND AXLE

7.

Install the rear shock absorber (A).

Tightening torque Nm (kgf-m, lb-ft) :
Bolt (B) : 137.3~156.9 (14~16, 101.3~115.7)
Nut (C) : 98.1~117.7 (10.0~12.0, 72.3~86.8)

A

C

B

SCMDS6023D

8.

Install the spring (A), the upper pad (B) and the lower
pad (C).

B

A

C

SCMDS6022D

9.

Install the mounting bolt (B) of the rear lower arm(A)
and the rear carrier with a specified torque, while sup-
porting the lower arm (A) with a jack as shown in
the illustration. Tighten the mounting bolt (C) of the
cross member and the rear lower arm with a speci-
fied torque.

Tightening torque Nm (kgf-m, lb-ft) :
Bolt (B) : 137.3~156.9 (14~16, 101.3~115.7)
Nut (C) : 137.3~156.9 (14~16, 101.3~115.7)

A

C

B

SCMDS6021D

10. Install the washer (C), castle nut (B) and split pin (A)

to the rear hub assembly.

Tightening torque Nm (kgf-m, lb-ft) :
196.1~255.0 (20~26, 144.7~188.1)

A

B

C

SCMDS6020D

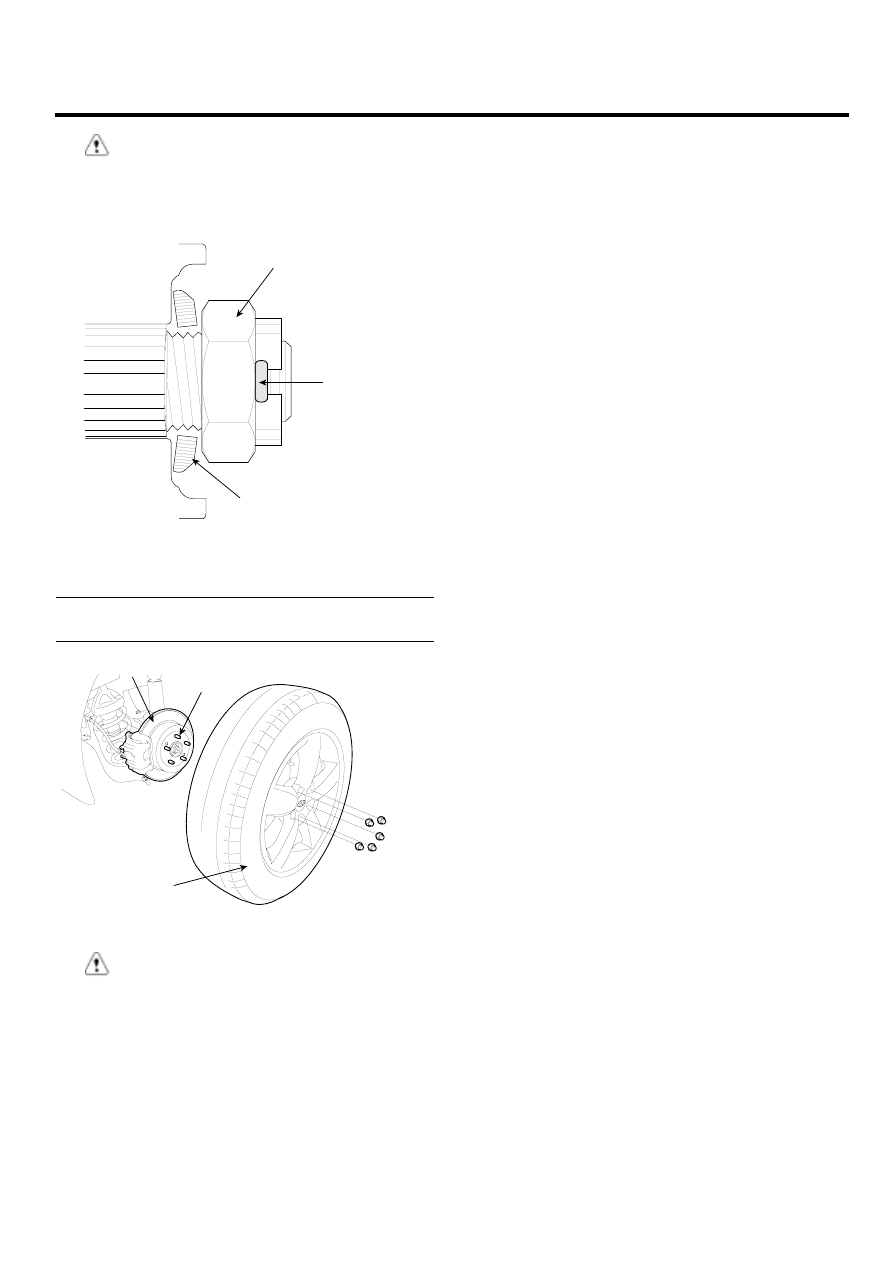

REAR AXLE

DS -43

CAUTION

The washer (B) should be assembled with convex
surface outward when installing the castle nut (A)
and split pin (C).

A

C

B

EIKD010A

11. Install the wheel and tire (A) to the rear hub (B).

Tightening torque Nm (kgf-m, lb-ft) :
88.3~107.9 (9~11, 65.1~79.6)

A

B

C

SCMDS6019D

CAUTION

Be careful not to damage the hub bolts (C) when
installing the rear wheel and tire (A).
