MULTIFUNCTION SWITCH
INSTRUMENTS AND WARNING SYSTEM
TIBURON(GK) > 2003 > G 2.7 V6 DOHC > Body Electrical System > General Information > Specifications,
TIBURON(GK) > 2003 > G 2.7 V6 DOHC > Body Electrical System > General Information > Specifications
SPECIFICATIONS
Items
Specifications
Rated Voltage
DC 12V
Operating temperature range
-30°C ~ +80°C (-22 ~ +1 76°F)
Rated load
Dimmer & passing switch
Lighting switch
Turn signal & lane change switch
Wiper switch
Wiper mist switch
Washer switch
Variable intermittent wiper volume switch
Rear wiper & washer switch
Horn switch
High : 1A (Relay load)
Low : 1A (Relay load)
Passing : 1A (Relay load)
Lighting : 1A (Relay load)
6.6 ± 0.5A (Lamp load)
Low, High : 4.5A (Motor load)
Int. : 0.22 ± 0.05A (Relay load)
Lock : Max. 28A (Motor load)
4.5A (Motor load)
4A (Motor load)
Max. 25mA
Rear wiper : 0.2A (Relay load)
Rear washer : 4A (Motor load)
1A (Relay load)
Warning lamps
Bulb wattage (W)
Color
High beam
Low fuel
Turn signal (LH, RH)
Battery (charge)
Oil pressure
Air bag
Parking brake
Seat belt
Check engine
ABS
Door ajar
Trunk lid open
Cruise
TCS
TCS OFF
LED
LED
LED
LED
LED
Bulb (1.4W)
LED
LED
Bulb (1.4W)
LED
LED
LED
LED
LED
LED
Blue
Amber
Green
Red
Red
Red
Red
Red
Amber
Amber
Red
Red
Green
Amber
Amber

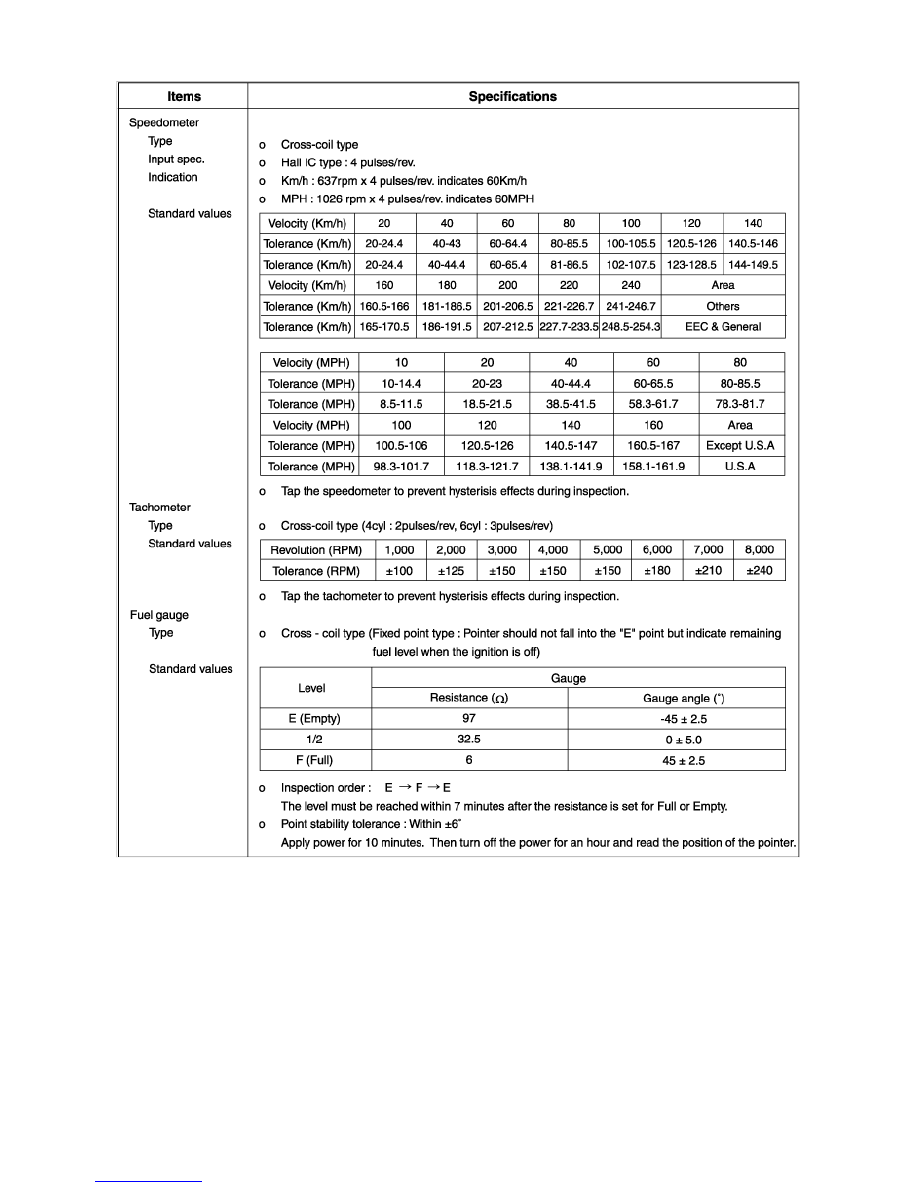

INDICATORS AND GAUGES
