TIBURON(GK) > 2003 > G 2.7 V6 DOHC > Driveshaft and axle > Driveshaft Assembly > Center Bearing
And Inner Shaft > Repair procedures, TIBURON(GK) > 2003 > G 2.7 V6 DOHC > Driveshaft and axle >
Driveshaft Assembly > Center Bearing And Inner Shaft > Repair procedures

DISASSEMBLY

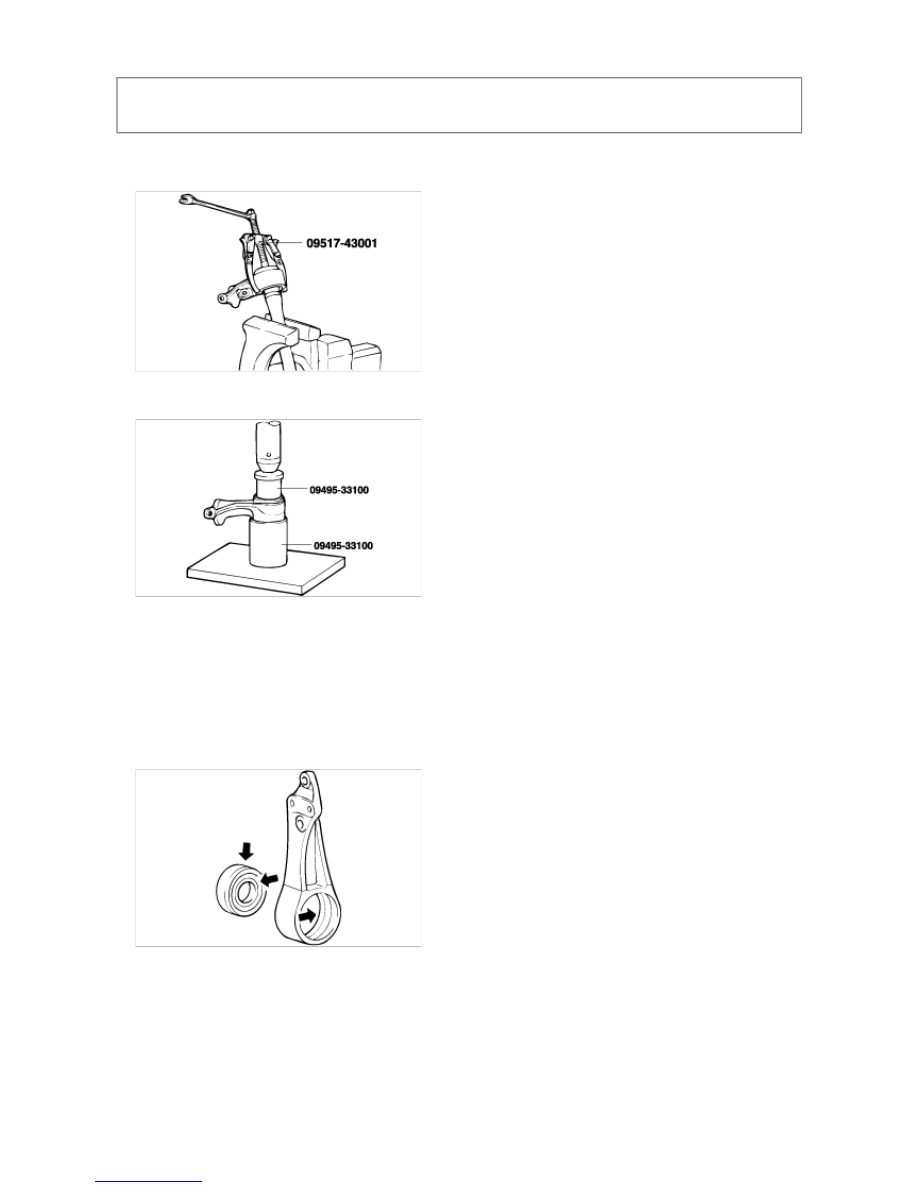

1. Using the special tool (09517-43001), disassemble the center bearing bracket from the inner shaft.



2. Using the special tools (09216-21100, 09495-33100), press out the center bearing from the outside to the

inside direction of the center bearingbracket as shown in the illustration.



INSPECTION

1. Check the inner shaft for damage, bending or rust.

2. Check the inner shaft splines for wear or damage.

3. Check the center bearing for scoring, discoloration and roughness of the roller journals moving surfaces.

REASSEMBLY

1. Apply multipurpose grease to the center bearing and inside the center bearing bracket.



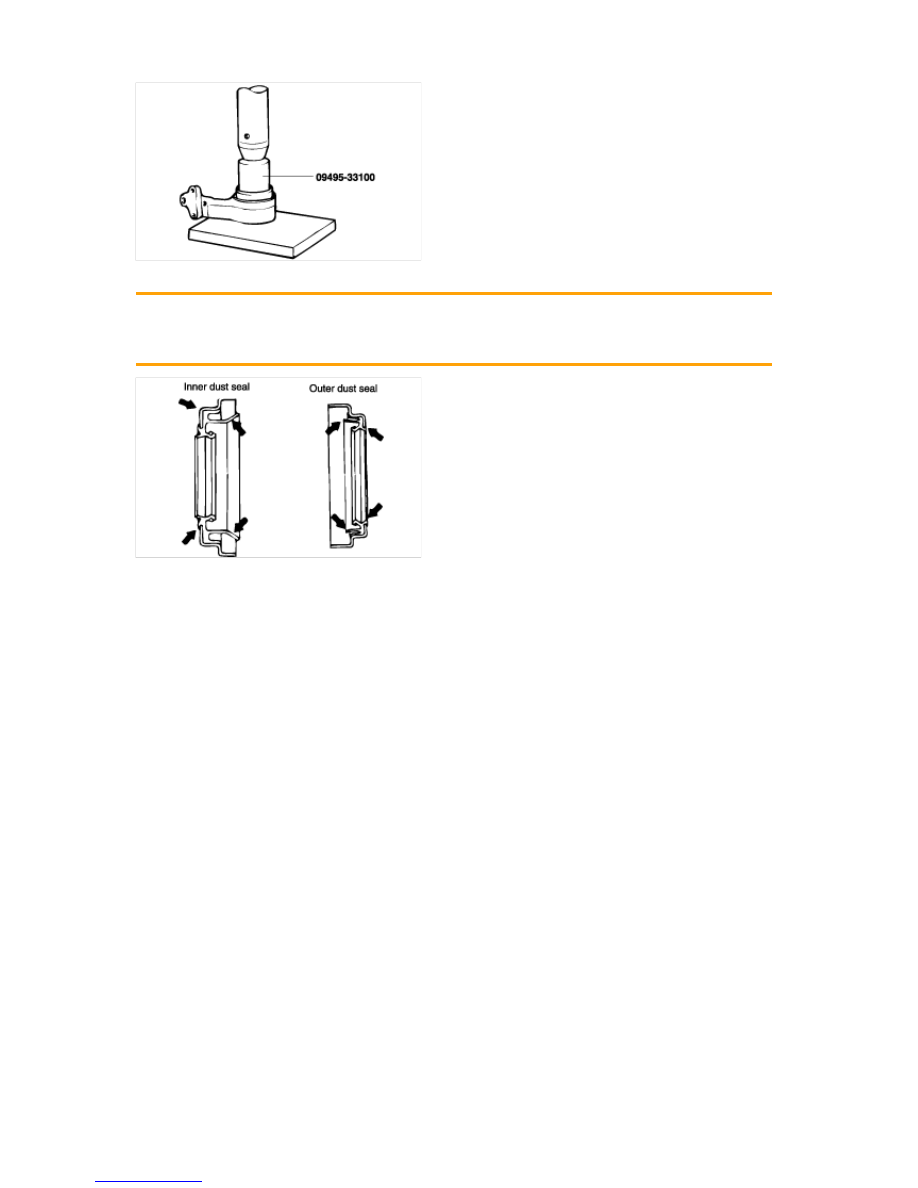

2. Using the special tool (09495-33100), press the center bearing into the center bearing bracket.



3. Apply multipurpose grease to the rear surface of all dust seals.



Recommended grease : Sunlight No.2
Inner dust seal : 7~10 gr.
Outer dust seal : 4~6 gr.

4. Install the inner shaft into the center bearing bracket.





TIBURON(GK) > 2003 > G 2.7 V6 DOHC > Driveshaft and axle > Front Axle Assembly > Front Hub / Axle >
Components and Components Location, TIBURON(GK) > 2003 > G 2.7 V6 DOHC > Driveshaft and axle > Front
Axle Assembly > Front Hub / Axle > Components and Components Location

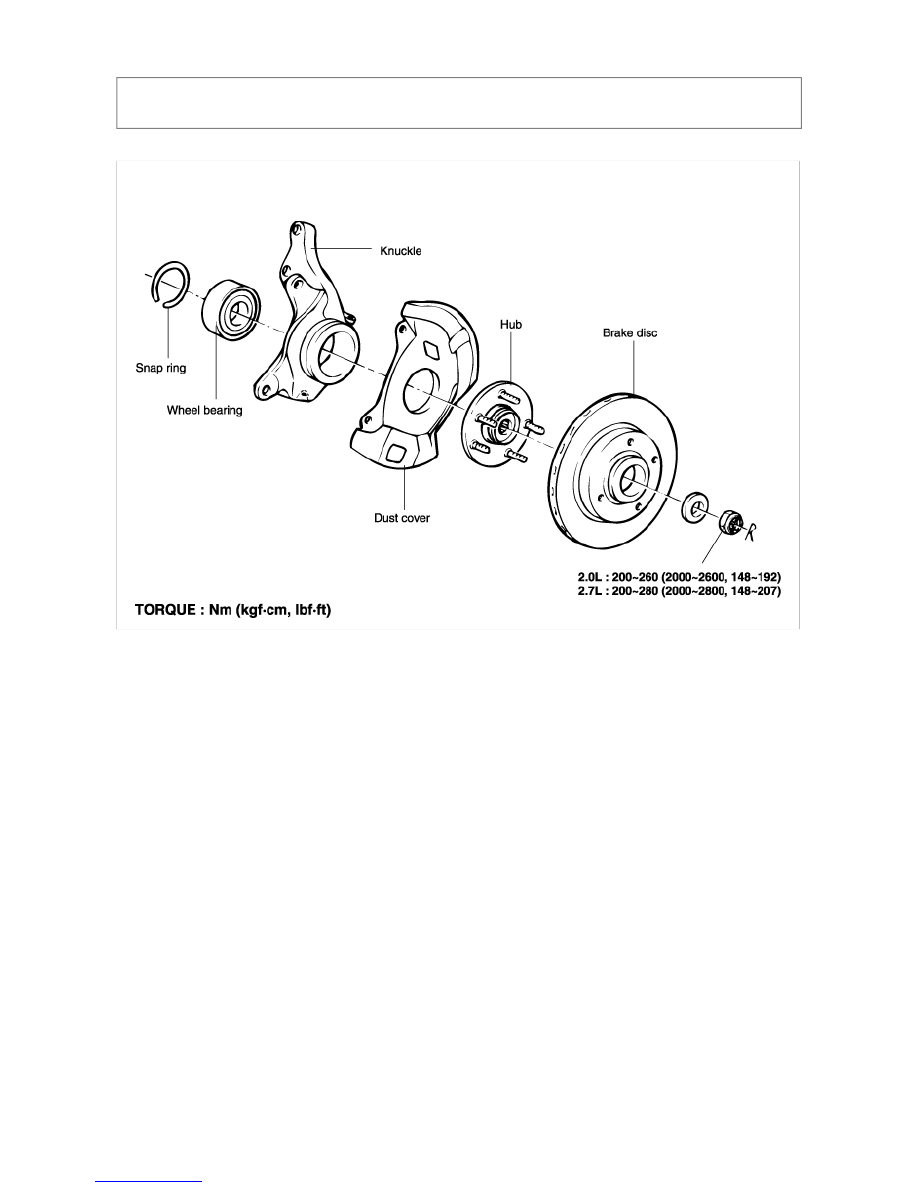

COMPONENTS



TIBURON(GK) > 2003 > G 2.7 V6 DOHC > Driveshaft and axle > Front Axle Assembly > Front Hub / Axle
> Repair procedures, TIBURON(GK) > 2003 > G 2.7 V6 DOHC > Driveshaft and axle > Front Axle
Assembly > Front Hub / Axle > Repair procedures

REMOVAL

1. Remove the front wheel.

2. Remove the split pin and driveshaft nut from the front hub.

3. Remove the front brake assembly from the knuckle and suspend it with a wire.

4. Remove the vehicle speed sensor from the knuckle.

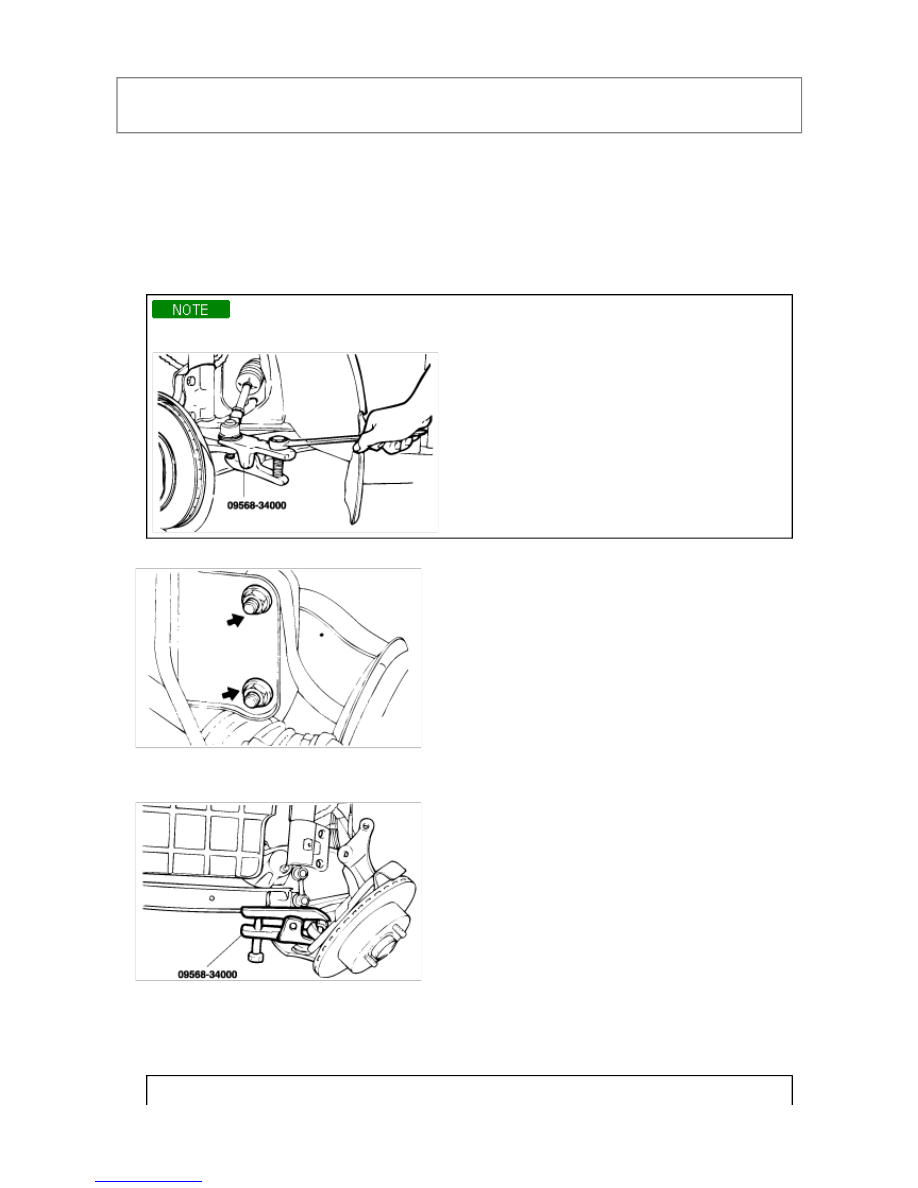

5. Disconnect the tie rod end ball joint from the knuckle by using the special tool (09568 - 34000).

Be sure to tie the special tool (09568 - 34000) to the near part with a cord not to fall.



6. Disconnect the strut assembly from the knuckle.



7. Disconnect the driveshaft from the hub.

8. Disconnect the lower arm ball joint from the knuckle by using the special tool (09568 - 34000).



9. Remove the hub and knuckle as an assembly.

INSTALLATION

1. Installation is the reverse of removal.
