BODY CONSTRUCTION

BC-5

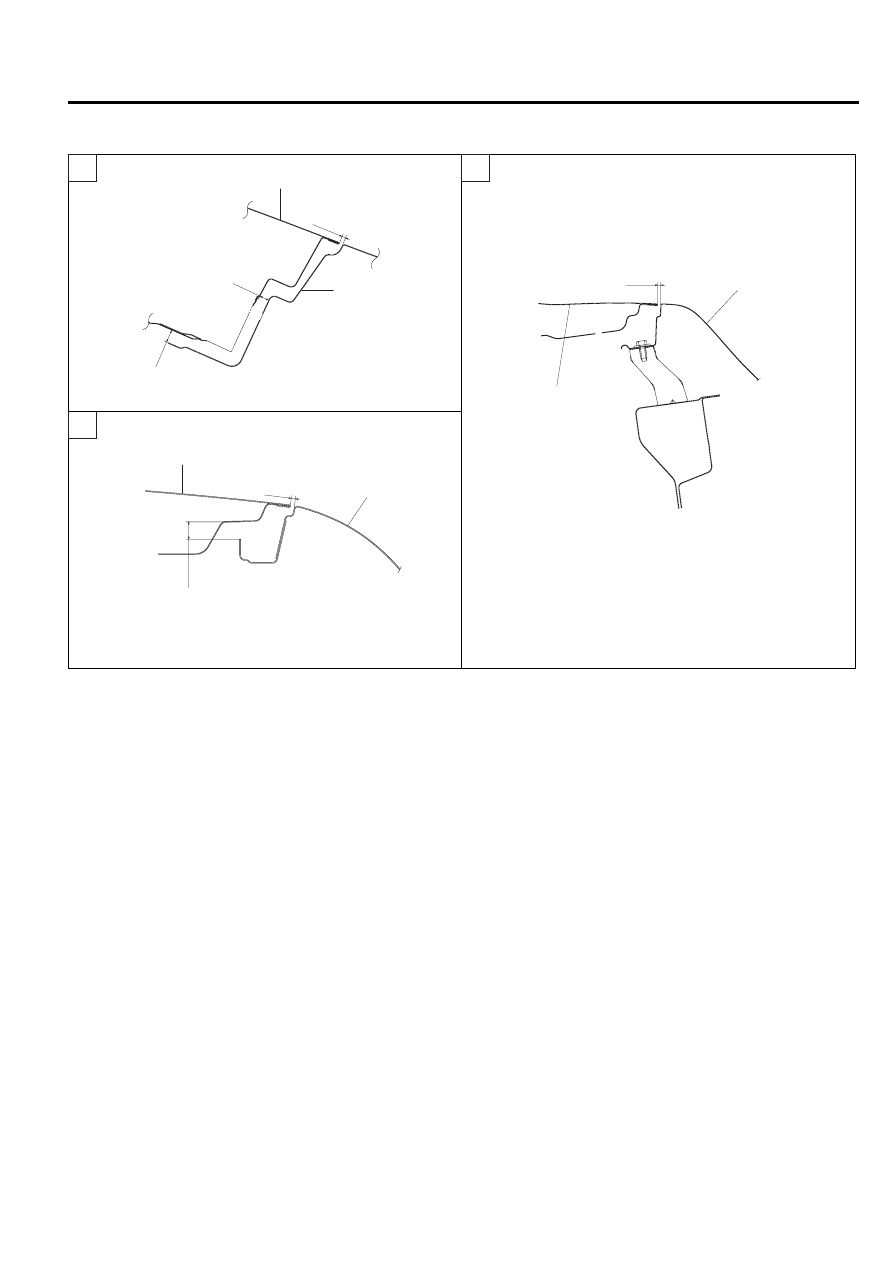

P - P

Q - Q

R - R

BHDBC6216

R

BHDBC6215

BHDBC6214

P

Q

3.5 mm

12 mm

11 m

m

Rear door panel assembly

Quarter
panel

Fender panel

Hood panel

assembly

Trunk panel assembly

Quarter panel

2.7 mm

3 mm

12.4 mm

BODY
DIMENSIONS

GI

BC

BD

BP

BS

CP

BT

PP

BD-2

BODY DIMENSIONS

GENERAL

1.

Basically, all measurements in this manual are taken
with a tracking gauge.

2.

When a measuring tape is used, check to be sure there
is no elongation, twisting or bending.

3.

For measuring dimensions, both projected dimension
and actual-measurement dimension are used in this
manual.

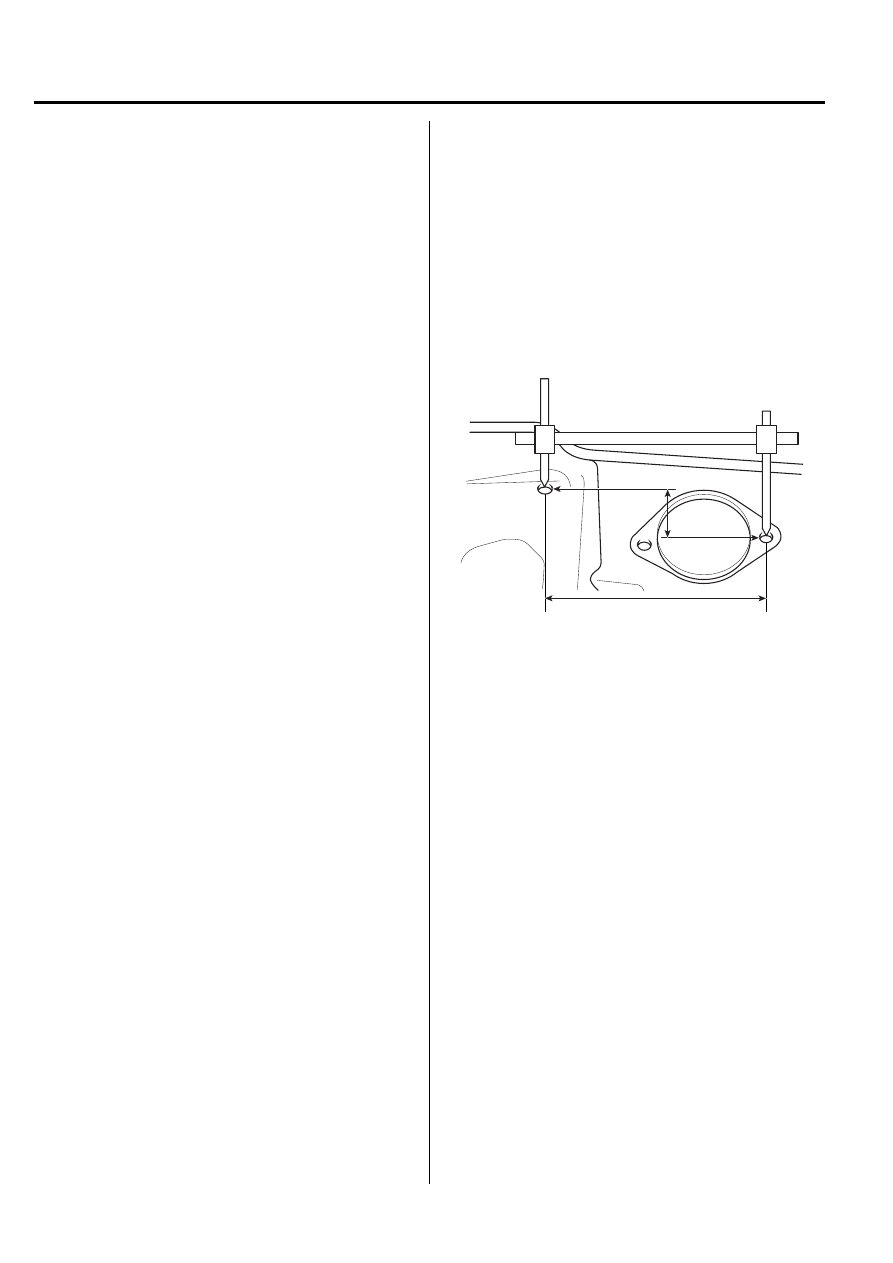

MEASUREMENT METHOD

PROJECTED DIMENSIONS

1.

These are the dimensions measured when the
measurement points are projected into the reference
plane, and are the reference dimensions used for body
alterations.

2.

 If the length of the tracking gauge probes are
adjustable, make the measurement by lengthening one
probe by the amount equivalent to the difference in
height of  the two surfaces.

BMCBD6001

Projected Dimension

Height

BODY DIMENSIONS

BD-3

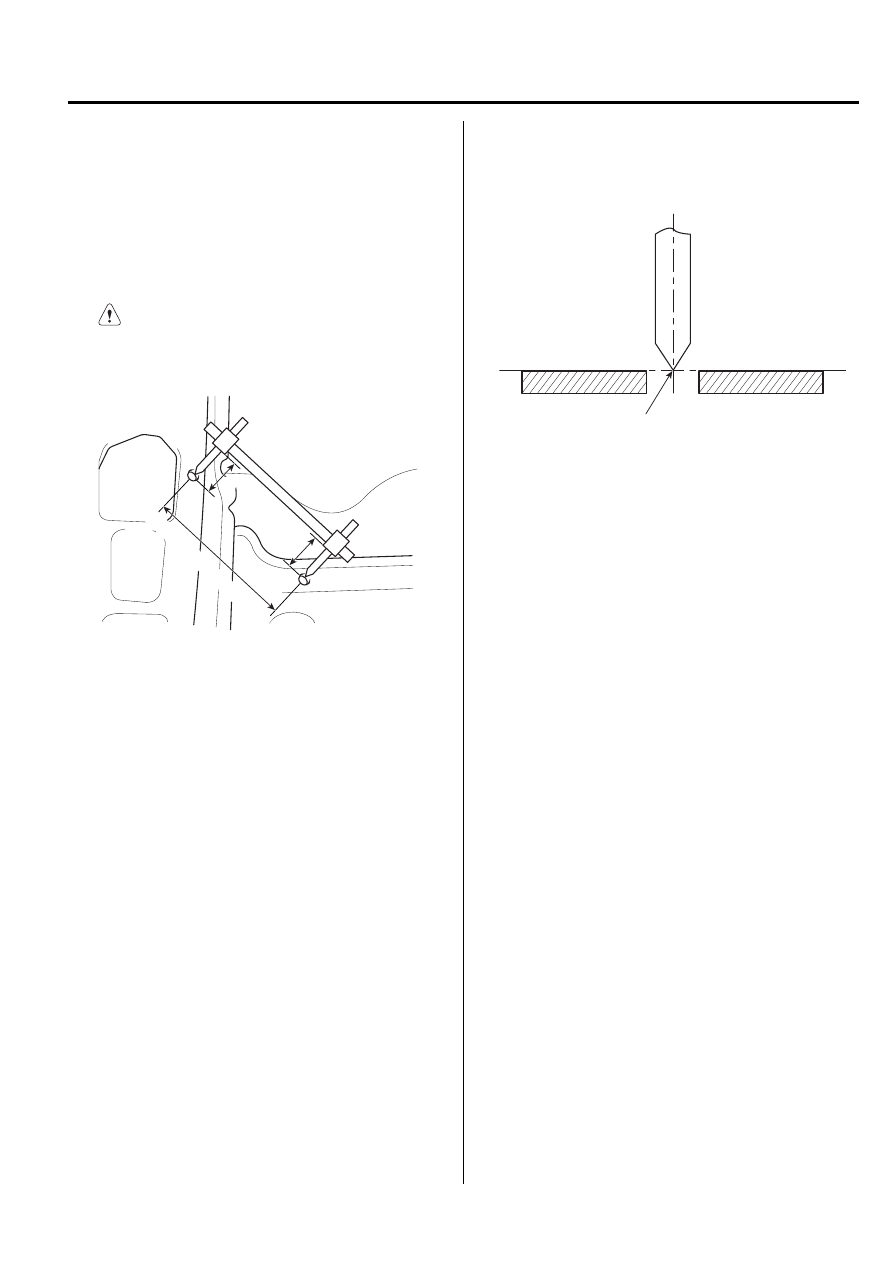

ACTUAL-MEASUREMENT DIMENSIONS

1.

These dimensions indicate the actual linear distance
between measurement points, and are the reference
dimensions for use if a tracking gauge is used for
measurement.

2.

Measure by first adjusting both probes to the same
length (A=A')

CAUTION

Check the probes and gauge itself to make sure
there is no free play.

MEASUREMENT POINT

1.

Measurements should be taken at the hole center.

BMCBD6003

Hole Center

BMCBD6002

Actually-Measured Dimension

A

A'
