Hyundai H1: Body Repair Manual - part 10





42

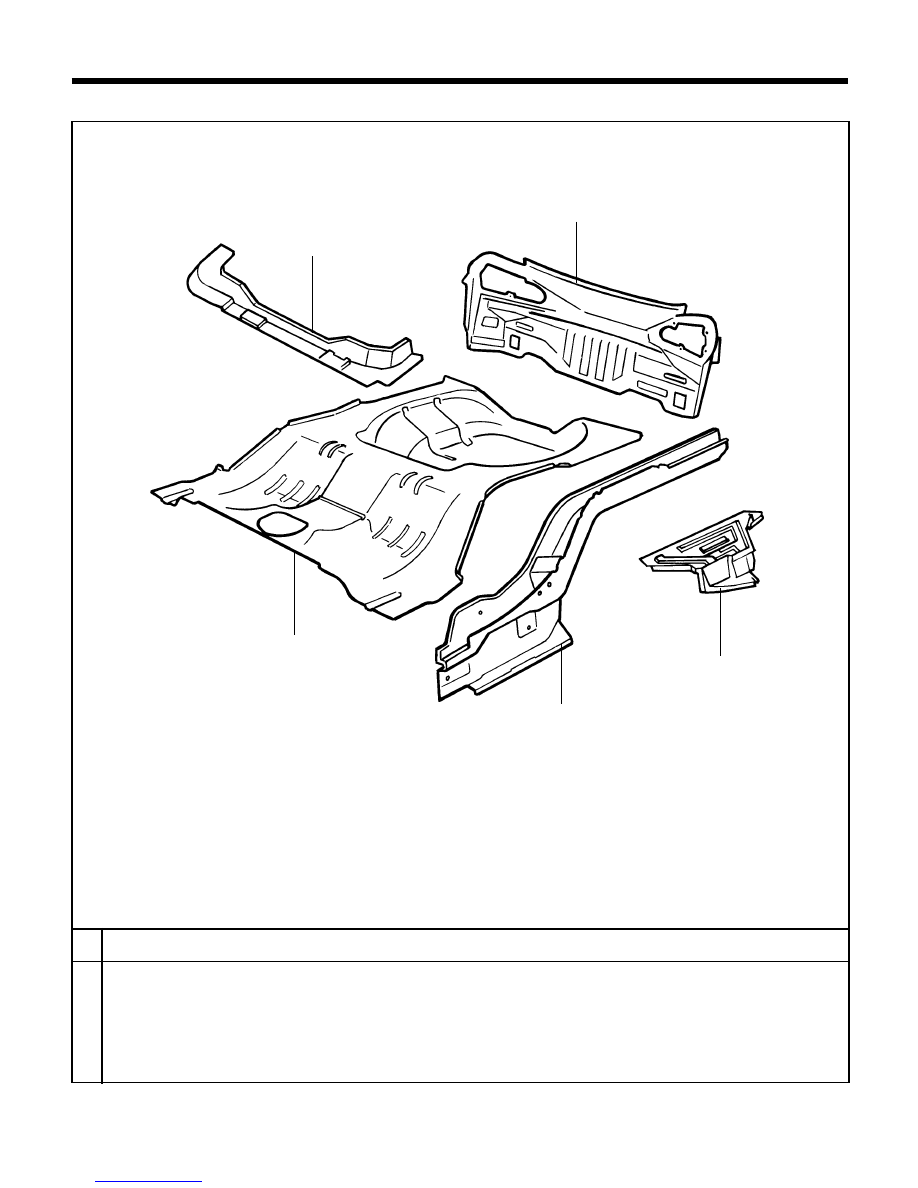

REPLACEMENT PARTS - Rear body

REAR BODY

A

B

C

D

E

REAR FLOOR PANEL

REAR FLOOR SIDEMEMBER ASSEMBLY

LH/RH

REAR FLOOR SIDE PANEL

LH/RH

REAR FLOOR CENTER CROSSMEMBER ASSEMBLY

BACK PANEL ASSEMBLY

PART NAME

BC03

D

B

C

E

A

43

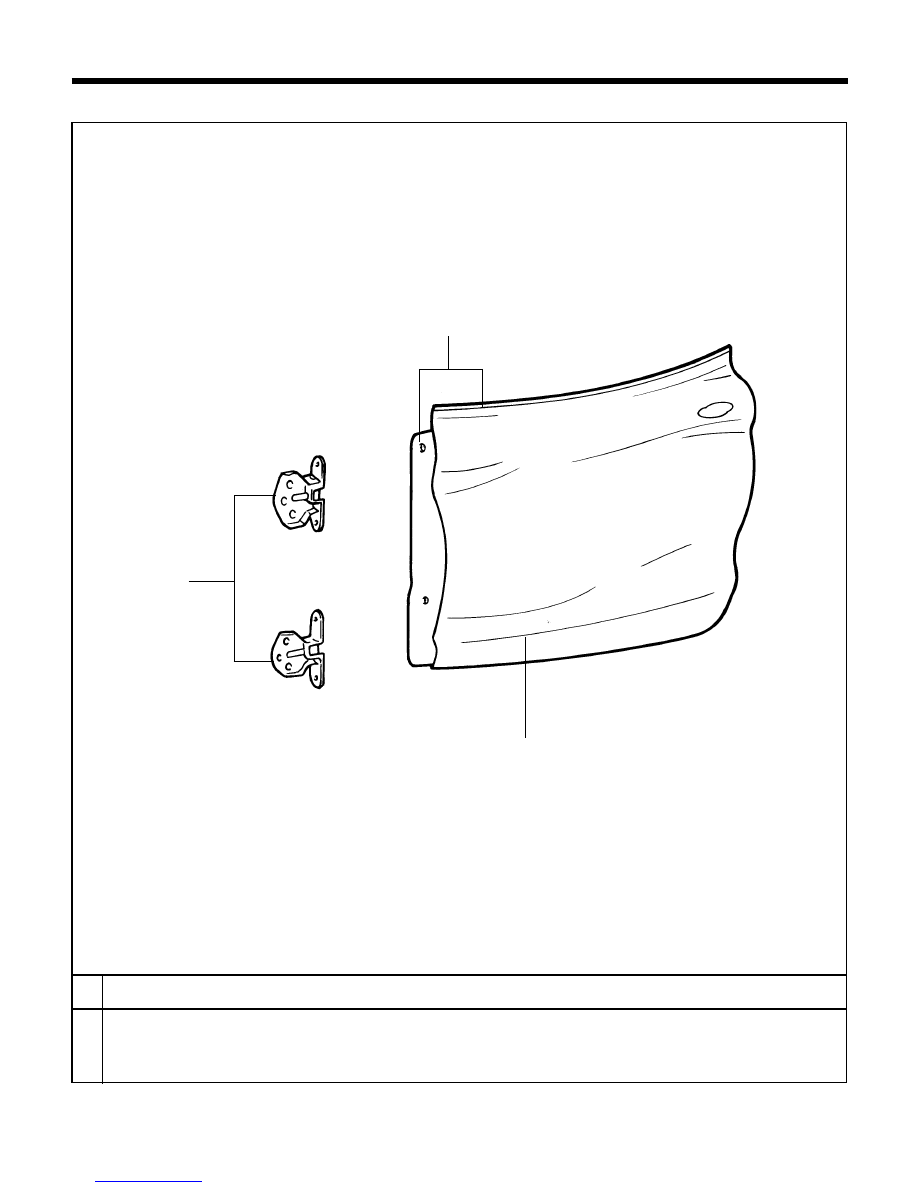

REPLACEMENT PARTS - Door

DOOR

REP-1770,0010,0020, PRO-1800

BC04

B

C

A

A

B

C

FRONT DOOR PANEL ASSEMBLY

LH/RH

FRONT DOOR OUTER PANEL

LH/RH

DOOR HINGE ASSEMBLY

LH/RH

PART NAME

44

BODY
DIMENSIONS

45

GENERAL

1.

Basically, all measurements in this manual are taken with a
tacking gauge.

2.

When a measuring tape is used, check to be sure there is no
elongation, twisting or bending.

3.

For measuring dimensions, both projected dimension and ac-
tual-measurement dimension are used in this manual.

ACTUAL-MEASUREMENT DIMENSIONS

1.

These dimensions indicate the actual linear distance between
measurement points, and are the reference dimensions for use
if a tacking gauge is used for measurement.

2.

Measure by first adjusting both probes to the same length
(A=A').

NOTE
Check the probes and gauge itself to make sure there is no
free play.

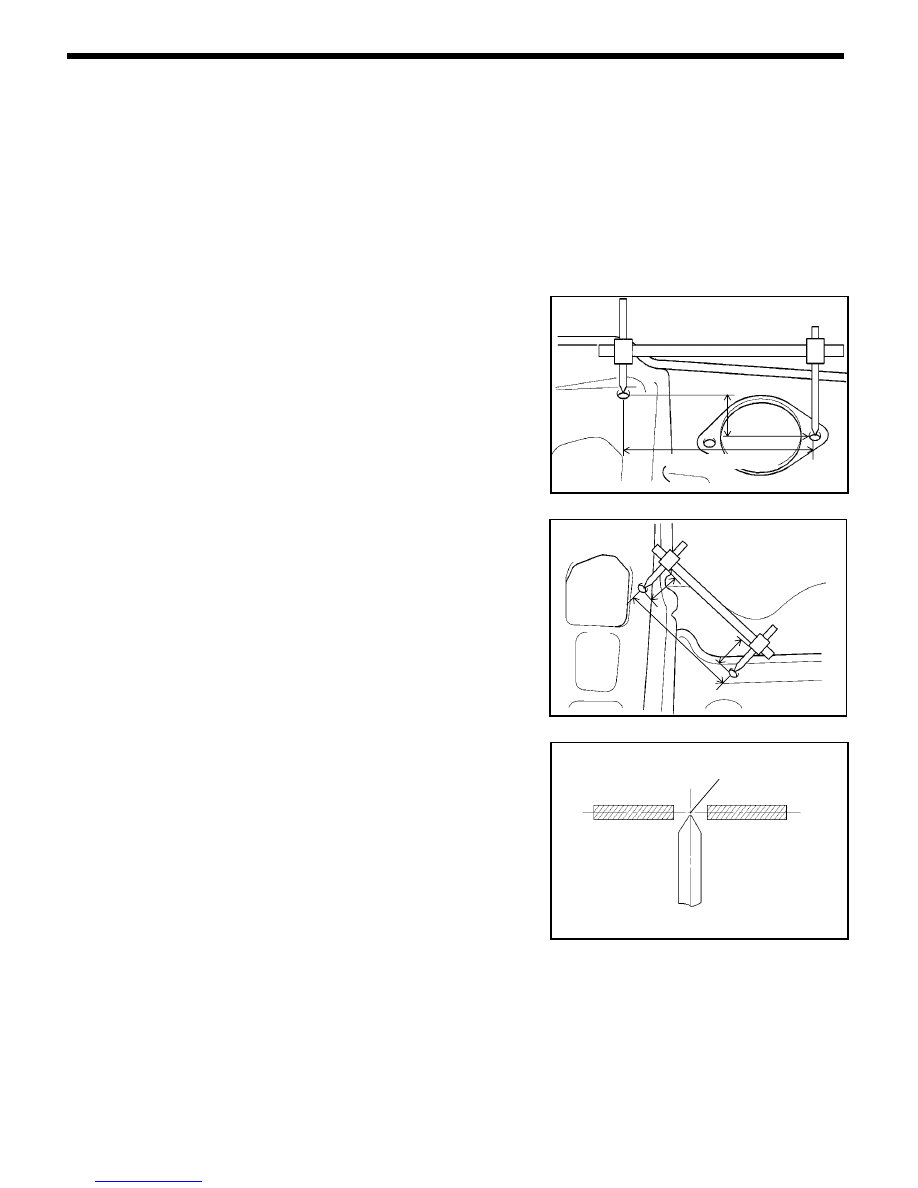

MEASUREMENT POINT

1.

Measurements should be taken at the hole center.

DIM0010

DIM0020

DIM0030

MEASUREMENT METHOD

PROJECTED DIMENSIONS

1.

These are the dimensions measured when the measurement
points are projected into the reference plane, and are the
reference dimensions used for body alterations.

2.

If the length of the tacking gauge probes are adjustable, make
the measurement by lengthening one probe by the amount
equivalent to the difference in height of the two surfaces.

GENERAL

A

A'

Height

Projected dimension

Actually-measured dimension

Hole center
