22

BODY CONSTRUCTION - Front body

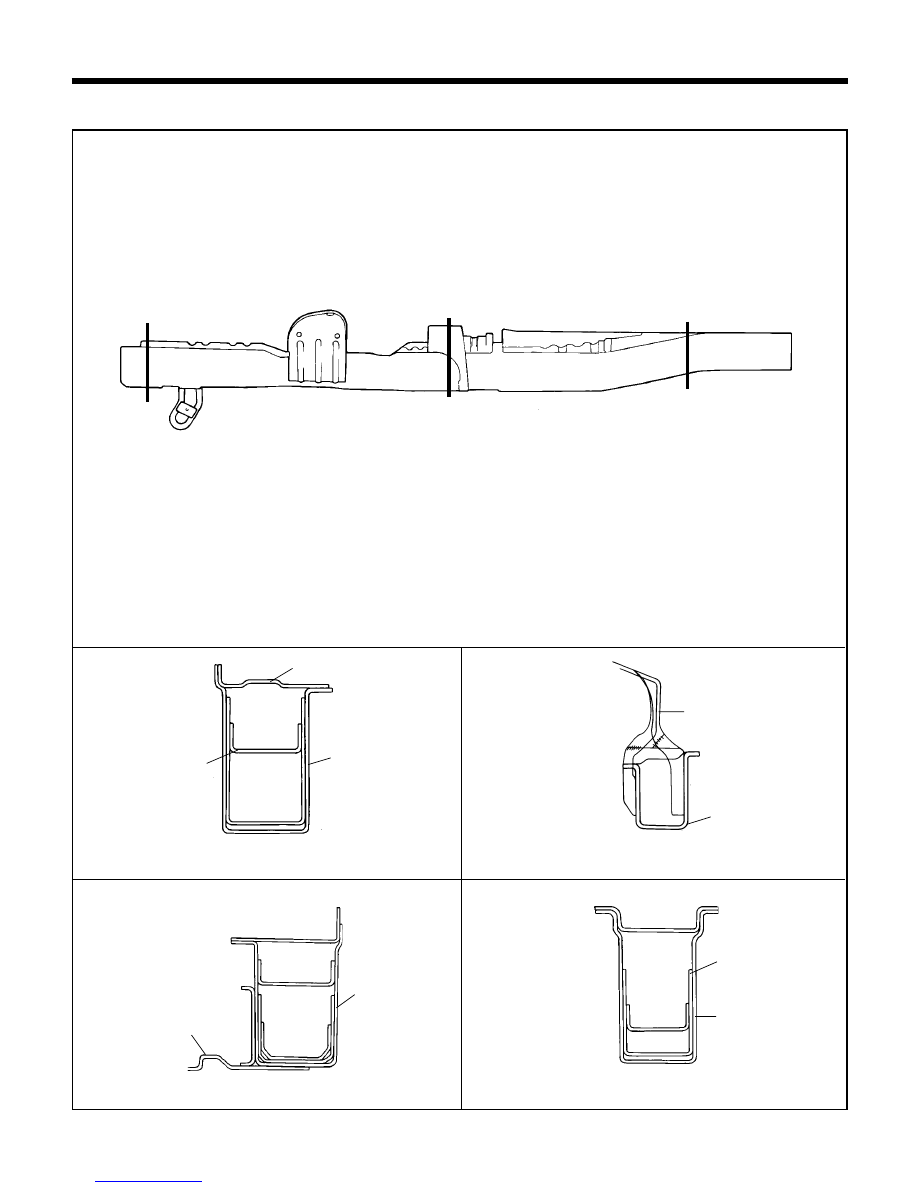

FRONT END CROSSMEMBER

(Cross - Sectional Views)

D

D'

C

C'

Î

Î

Î

Î

Î

B

A

A'

SECTION C - C'

SECTION D - D'

CFAF1230

CFAF1240

SECTION A - A'

SECTION B - B'

CFAF1210

CFAF1220

CFAF1200

Front sidemember
reinforcement

Cover panel (A)

Front sidemember

Upper arm mounting
bracket

Front sidemember

No.1 crossmember

Front sidemember

Front sidemember
reinforcement (B)

Front sidemember

B

Í

Í

Í

Í

Í

23

BODY CONSTRUCTION - Front body

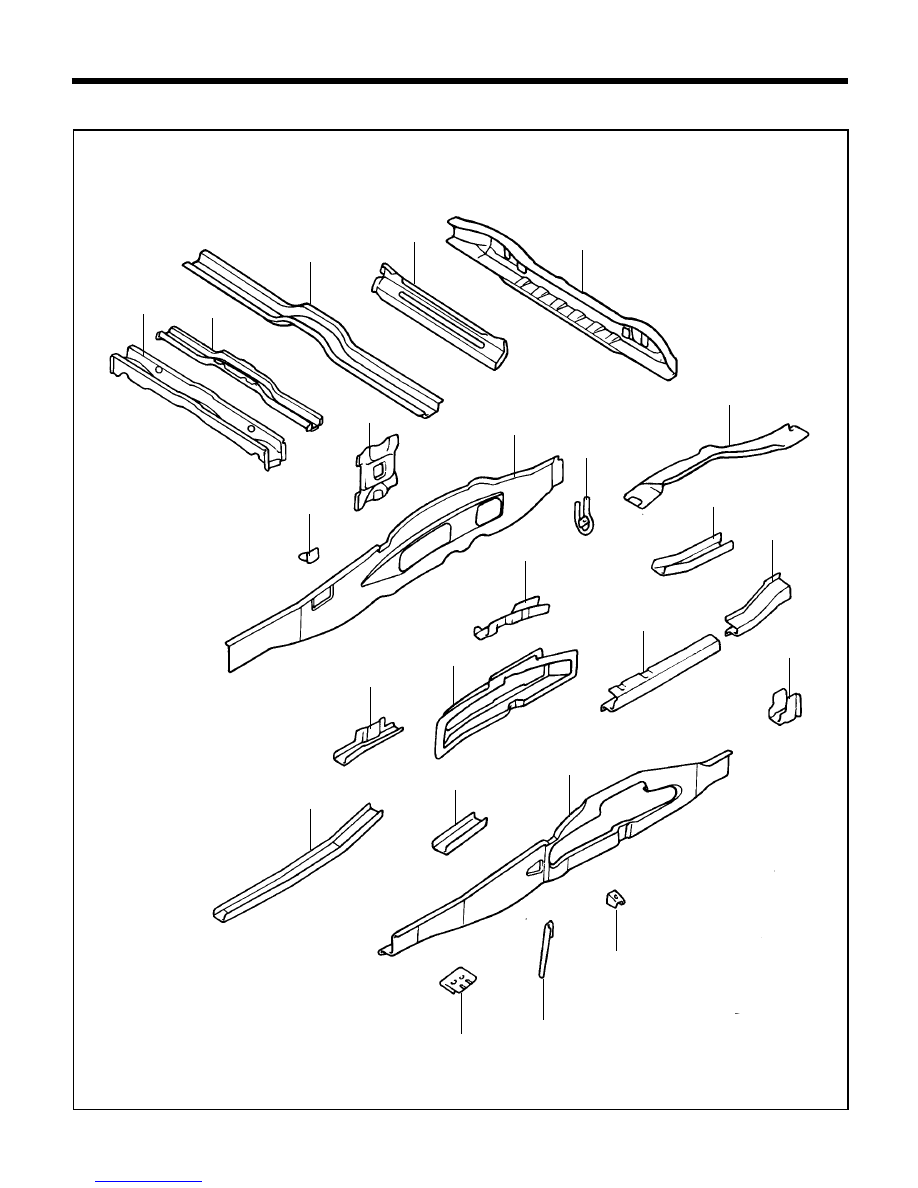

FRONT SIDEMEMBER COMPLETE (4WD)

CFAF1500

1

2

3

4

5

6

7

8

9

10

11

12

13

14

15

16

17

18

19

20

21

22

23

24

BODY CONSTRUCTION - Front body

No.

PART NAME

1

2

3

4

5

6

7

8

9

10

11

12

13

14

15

16

17

18

19

20

21

22

23

Front end crossmember.

Front end cross innermember.

No.1 crossmember.

No.2 crossmember.

No.3 crossmember.

Front sidemember outer.

Front sidemember inner.

Front sidemember outer extension (LH).

Cover panel.

Front sidemember front (A) reinforcement.

Front sidemember front (B) reinforcement.

Front sidemember lower (A) reinforcement.

Front sidemember lower (B) reinforcement.

Front sidemember rear (A) reinforcement.

Front sidemember rear (B) reinforcement.

Transmission mounting reinforcement.

Front sidemember center reinforcement.

Hanger support.

Front hook.

Front side extension.

Rear stopper bracket.

Shield panel bracket.

Seatanchor (B) reinforcement.

25

BODY CONSTRUCTION - Front body

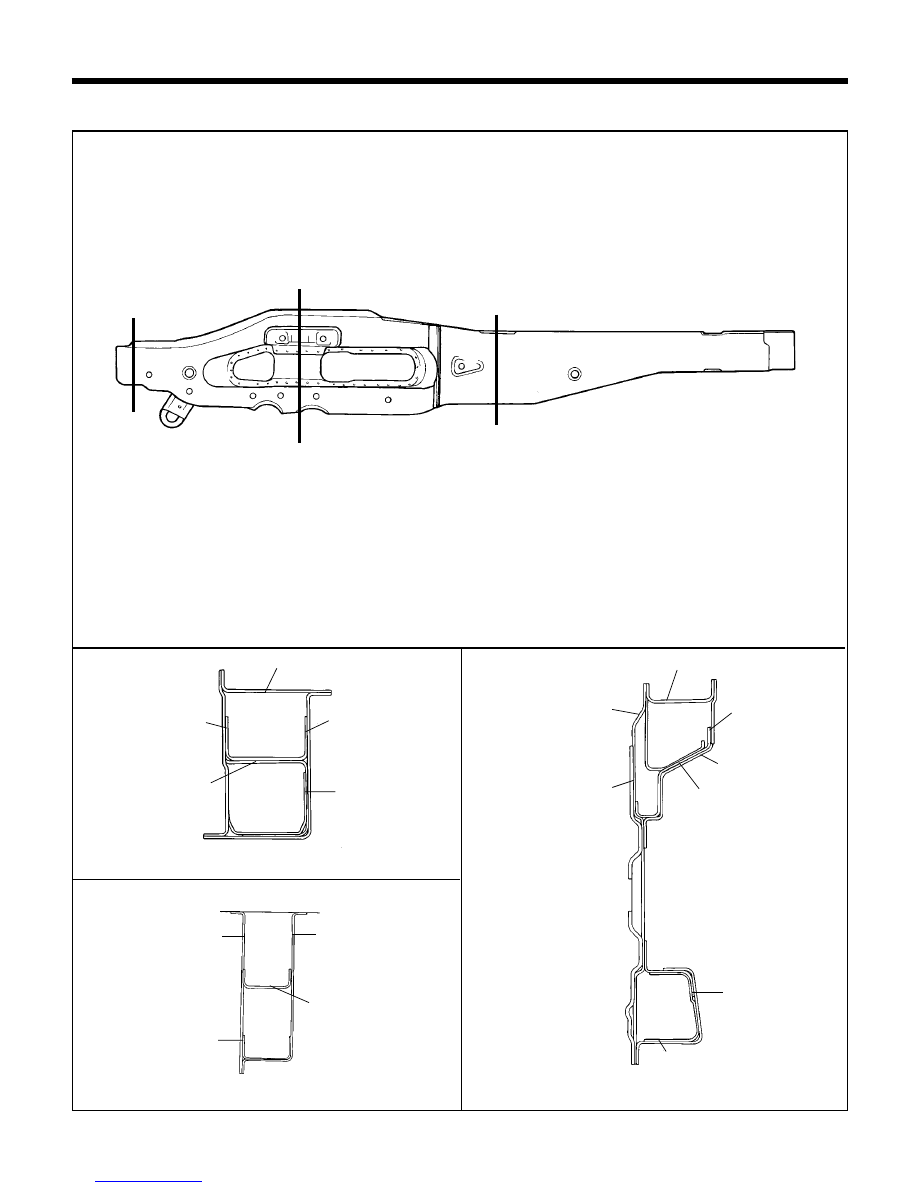

FRONT SIDEMEMBER (4WD)

CFAF1400

(Cross - Sectional Views)

Í

Í

Í

Í

Í

B

B

Í

Í

Í

Í

Í

A

A

Í

Í

Í

Í

Í

Í

Í

Í

Í

Í

C

C'

Í

Í

Í

Í

Í

Í

Í

Í

Í

Í

Front side member rear
reinforcement

T/M Mounting reinforcement

Front side inner member

Front side outer member

SECTION C - C'

CFAF1430

SECTION A - A'

Front side member lower
reinforcement

Front side inner member

Cover panel

Front side extension

Front side outer member

CFAF1410

SECTION B - B'

CFAF1420

Front side member lower reinforcement

Front side outer member

Front side member
center reinforcement

Front side inner
member

Cover panel

Front  side member
rear reinforcement

Front side member
outer extension

Front side member front
reinforcement
