Fig. 38: Roof Mounted Luggage Basket
Courtesy of GENERAL MOTORS CORP.

2. With the aid of an assistant, remove the roof basket from the vehicle.

Installation Procedure



2004 Hummer H2

2004 ACCESSORIES & EQUIPMENT Roof - Hummer H2



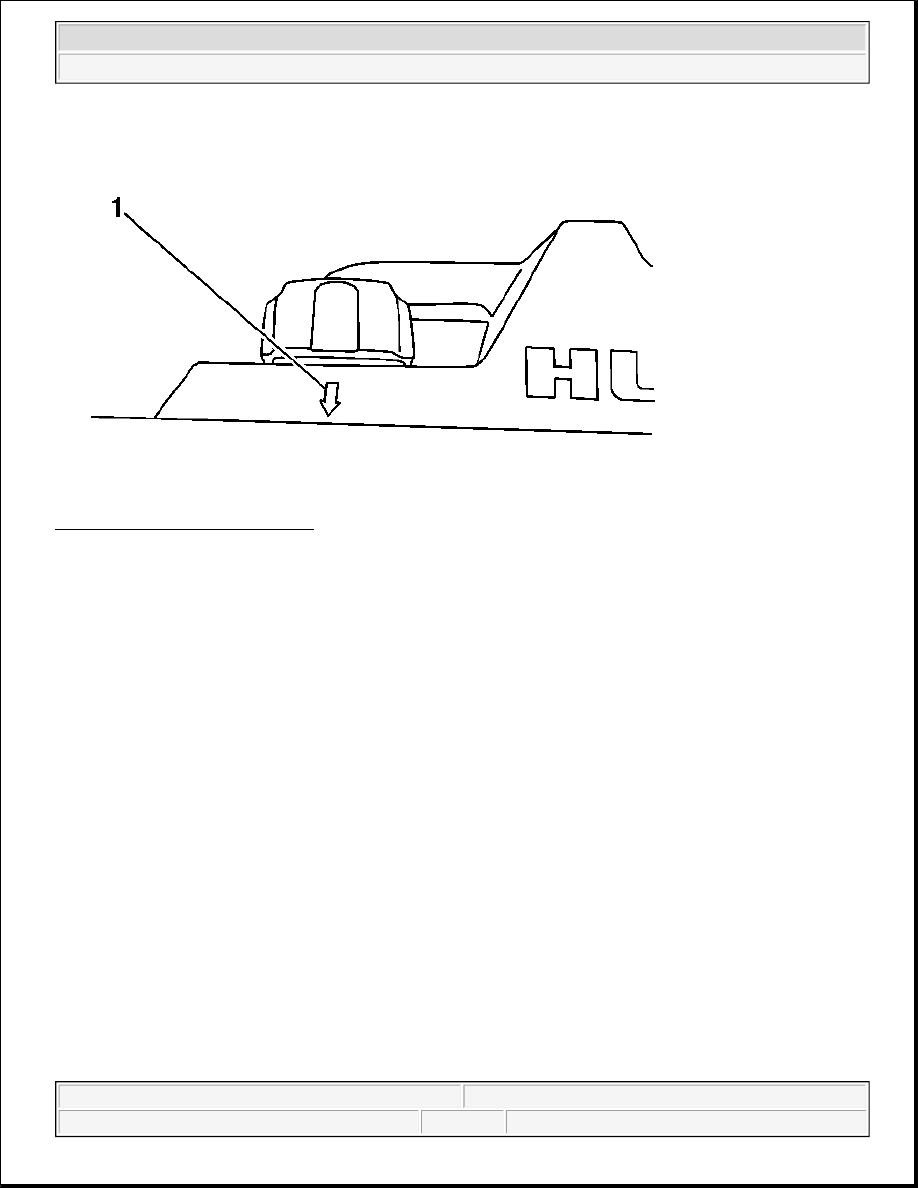

Fig. 39: Aligning Front Cross Bar
Courtesy of GENERAL MOTORS CORP.

IMPORTANT: It is necessary to use the following alignment marks when aligning the front

cross bar. Marks are located on the top surface of the passenger side roof rail,
and should be aligned with the arrow (1) on the crossbar. All roof rack kits
include a stop clip, which should be placed on the roof rail in the appropriate
stop location. Failure to align to these marks could result in component
interference and excessive wind noise.



2004 Hummer H2

2004 ACCESSORIES & EQUIPMENT Roof - Hummer H2



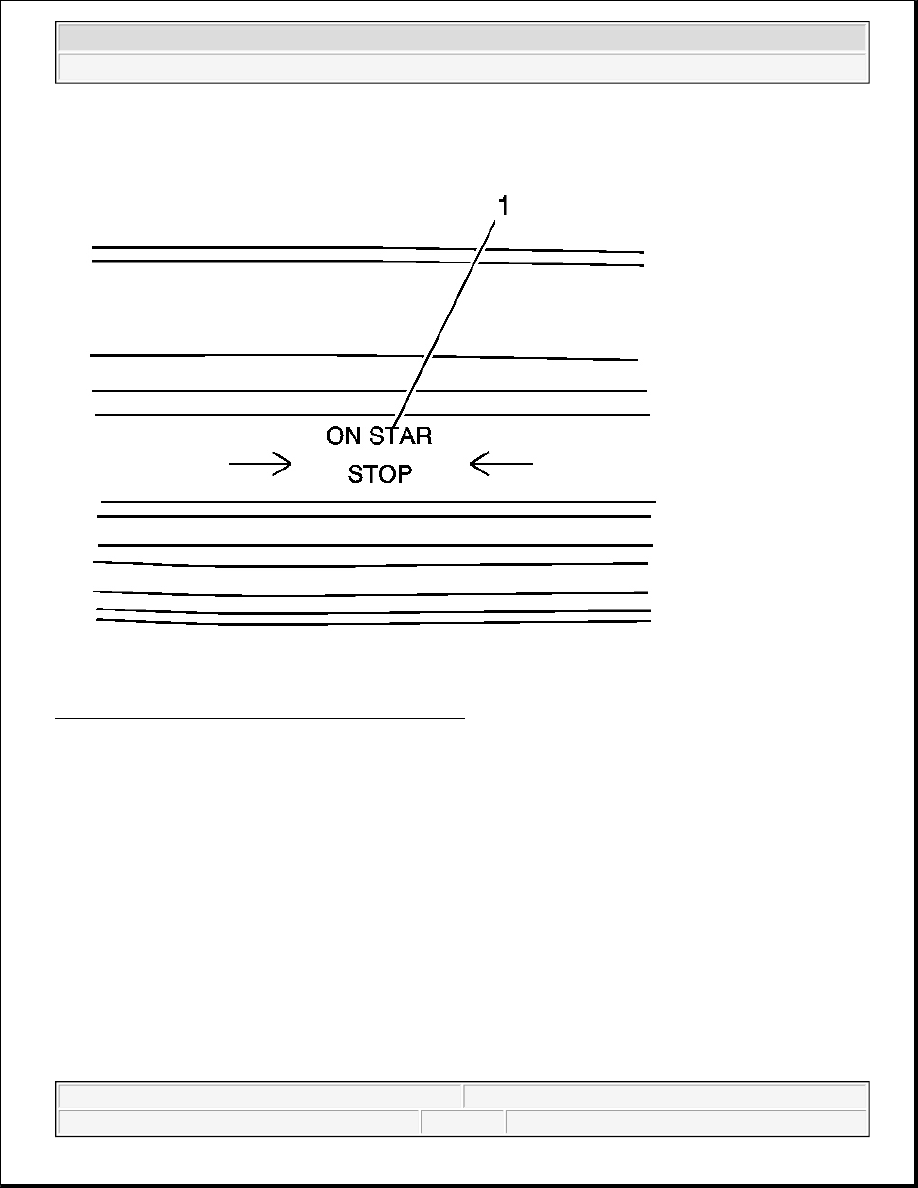

Fig. 40: Aligning Front Cross Bar With On-Star Stop
Courtesy of GENERAL MOTORS CORP.

On vehicles not equipped with sunroofs, align the front cross bar with the On-Star stop (1), located
approximately 7.5 inches behind the front outer marking light.



2004 Hummer H2

2004 ACCESSORIES & EQUIPMENT Roof - Hummer H2



Fig. 41: Aligning Arrow On Cross Bar With Sunroof Stop
Courtesy of GENERAL MOTORS CORP.

On vehicles equipped with sunroofs, align the arrow on the cross bar with the sunroof stop (1), located
approximately 20 inches rearward on the OnStar stop.
