Hummer H2. Manual - part 532

Removal Procedure

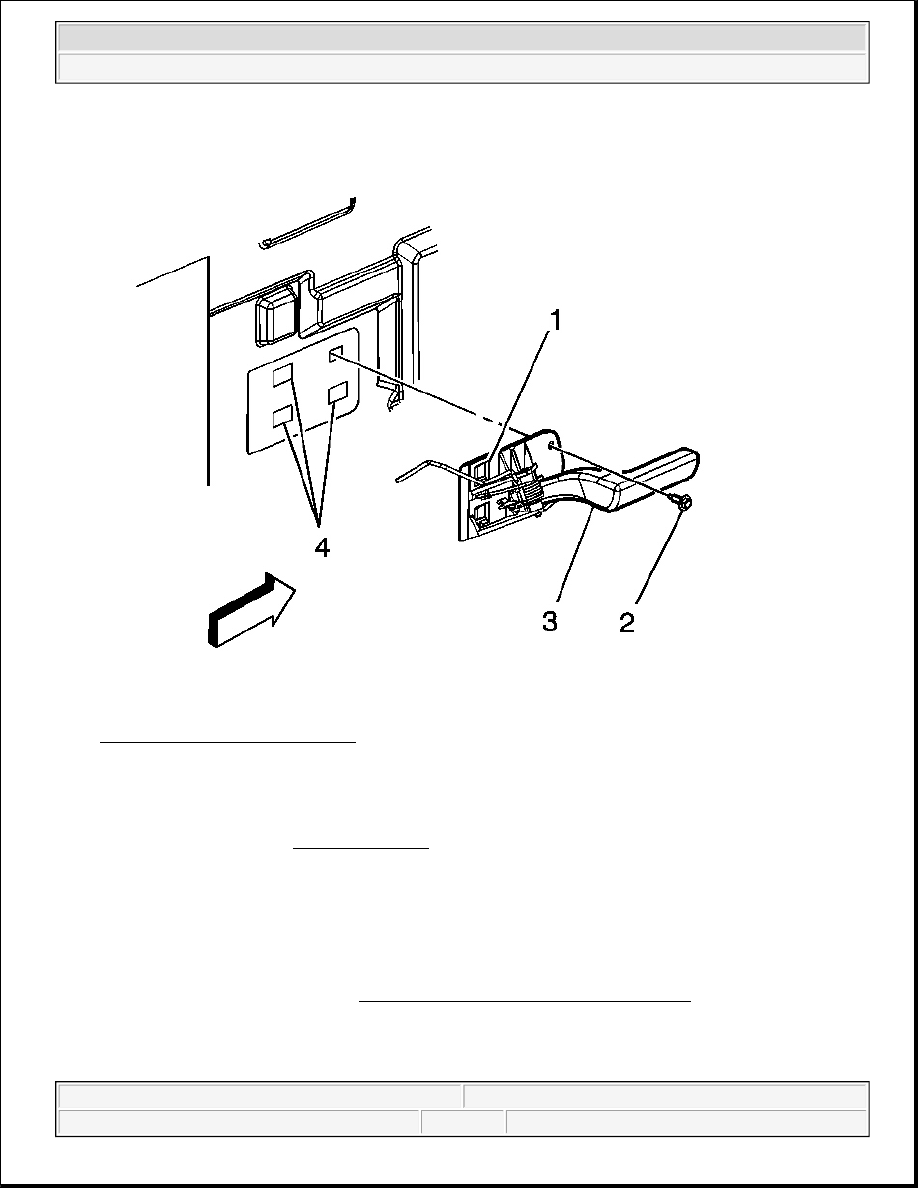

Fig. 71: Rear Inside Door Handle
Courtesy of GENERAL MOTORS CORP.

1. Open the door.

2. Remove door trim panel. Refer to Trim Panel Replacement - Side Front Door .

3. Release the inside door handle rod retention clip (1).

4. Remove the fastener (2) retaining the door handle (3) to the door.

5. Remove the door handle by sliding the handle out of the retention slots (4).

Installation Procedure



2004 Hummer H2

2004 ACCESSORIES & EQUIPMENT Doors - Hummer H2



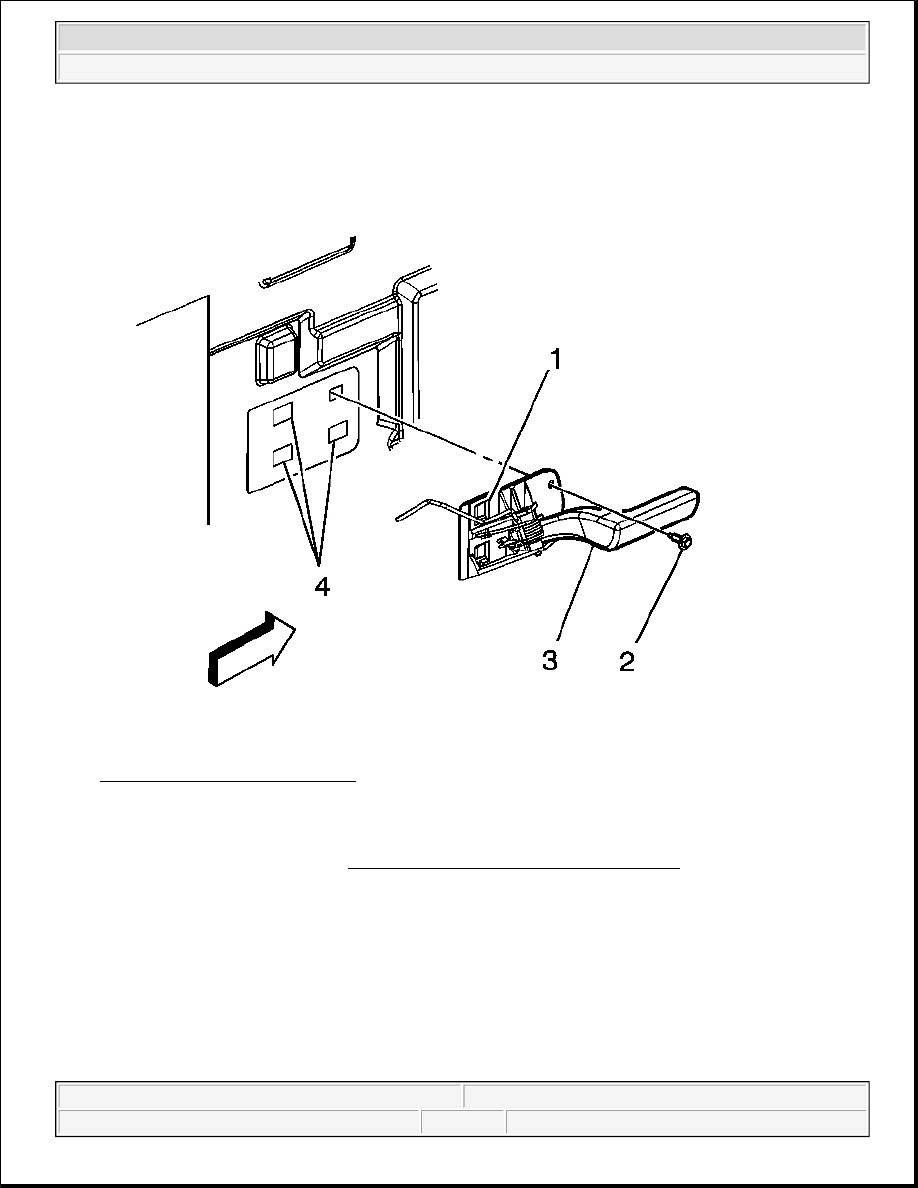

Fig. 72: Rear Inside Door Handle
Courtesy of GENERAL MOTORS CORP.

1. Position the door handle in the retention slots (4).

2. Install the fastener (2) retaining the door handle to the door.

Tighten: Tighten the fasteners to 9 N.m (7 lb ft).

3. Attach the inside door handle rod retention clip (1).

4. Install the door trim panel. Refer to Trim Panel Replacement - Side Front Door .

5. Close the door.

LOCK CYLINDER REPLACEMENT - DOOR

NOTE:

Refer to Fastener Notice in Cautions and Notices.



2004 Hummer H2

2004 ACCESSORIES & EQUIPMENT Doors - Hummer H2



Removal Procedure

1. Remove the outside door handle. Refer to Door Handle Replacement - Front Outside .

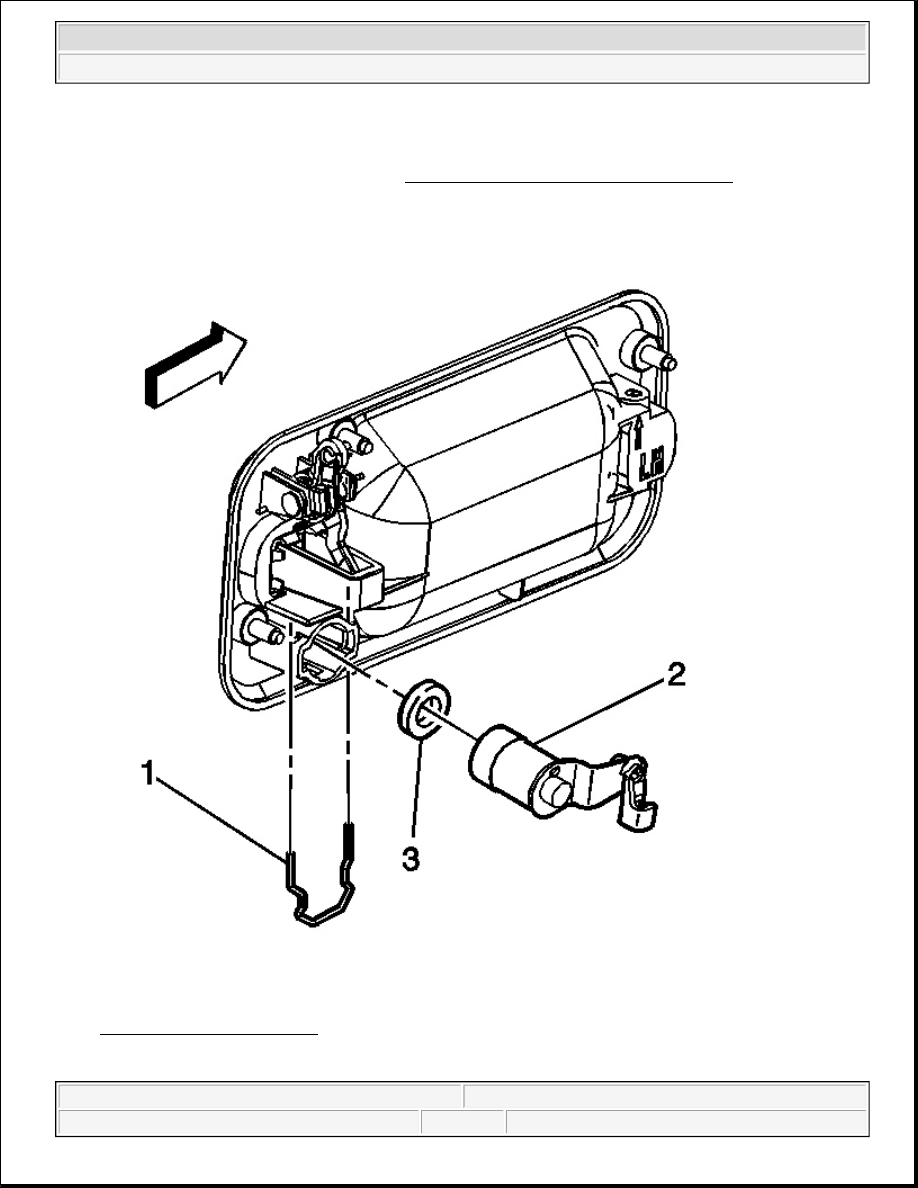

Fig. 73: Door Lock Cylinder
Courtesy of GENERAL MOTORS CORP.



2004 Hummer H2

2004 ACCESSORIES & EQUIPMENT Doors - Hummer H2



2. Remove the lock cylinder retainer (1).

3. Remove the lock cylinder (2).

Installation Procedure

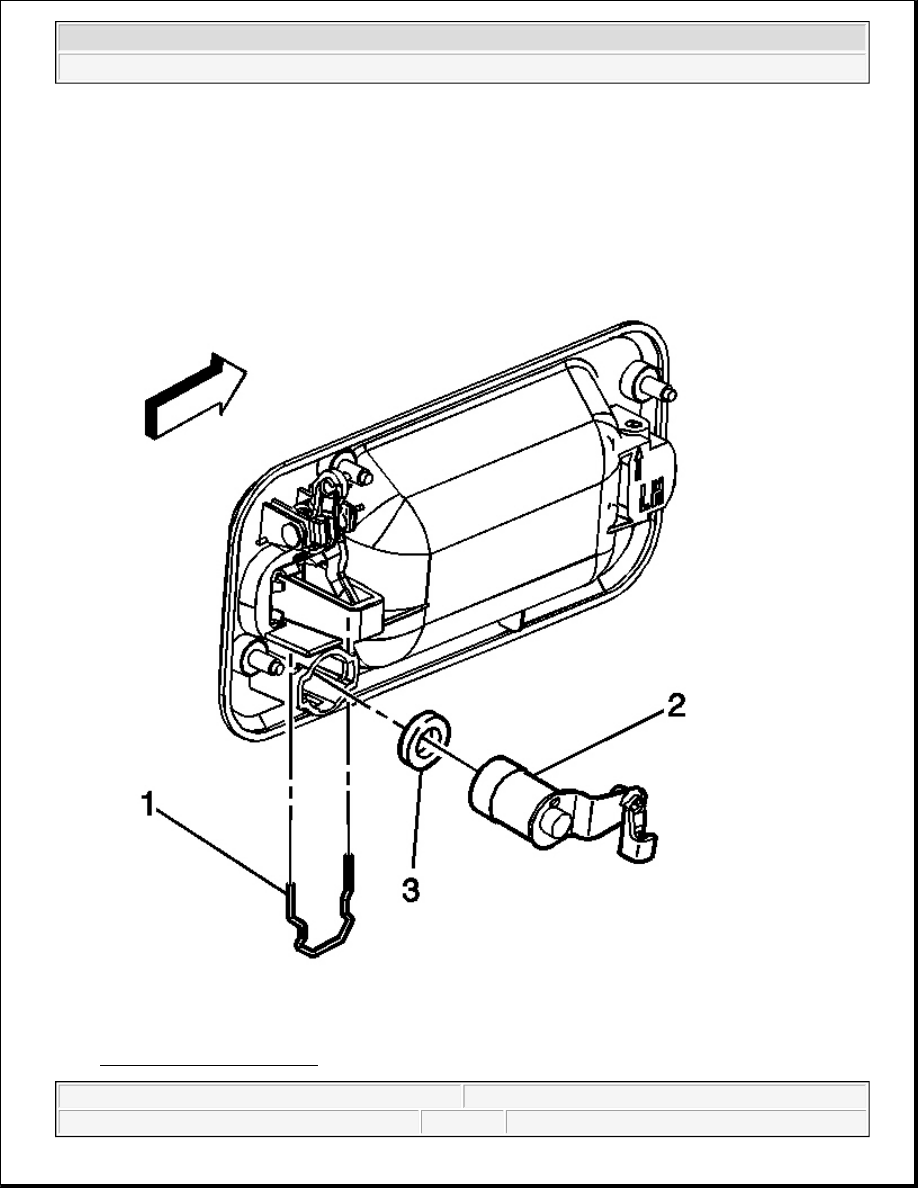

Fig. 74: Door Lock Cylinder



2004 Hummer H2

2004 ACCESSORIES & EQUIPMENT Doors - Hummer H2
