3. Remove the wiring harness. Refer to Wiring Harness Replacement - Rear Door .

4. Remove the fasteners retaining the door check link to the body. Refer to Door Check Link

Replacement .

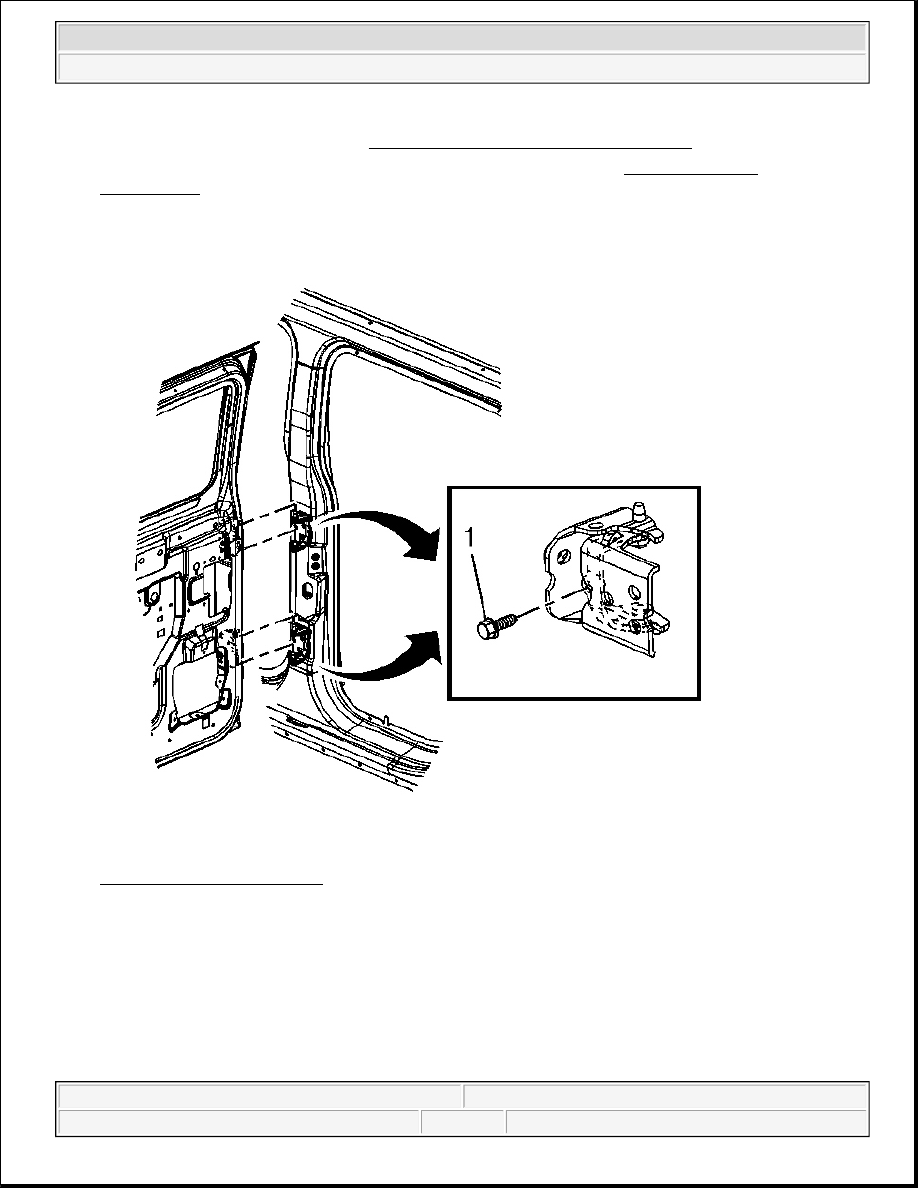

Fig. 45: Rear Door Fasteners
Courtesy of GENERAL MOTORS CORP.

5. Remove the fasteners (1) retaining the door hinge halves together.

6. With an assistant, lift up on the door and remove the door from the vehicle.

Installation Procedure



2004 Hummer H2

2004 ACCESSORIES & EQUIPMENT Doors - Hummer H2

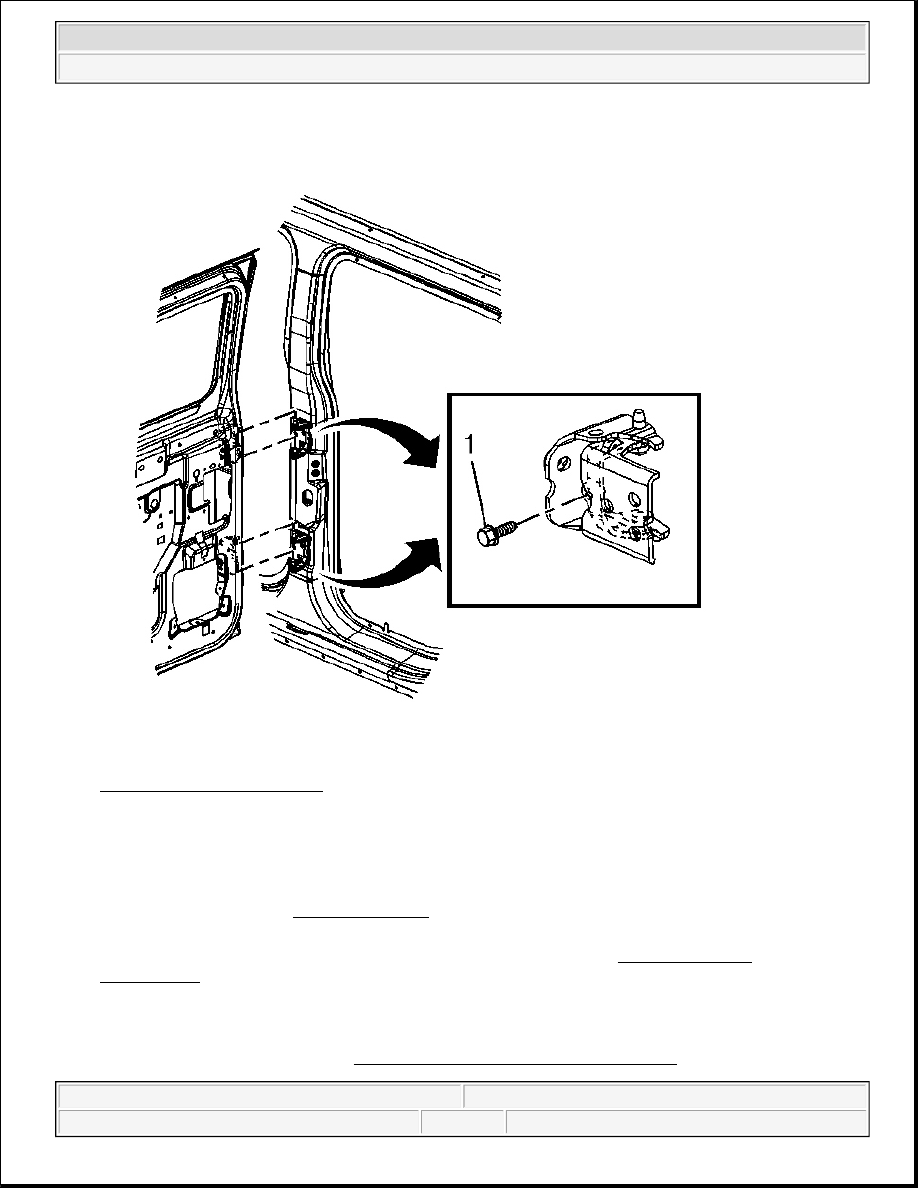

Fig. 46: Rear Door Fasteners
Courtesy of GENERAL MOTORS CORP.

1. With an assistant, align the door to the vehicle and install the fasteners (1) that retain the door hinge

halves together.

2. Install the fasteners that retain the door check link to the body. Refer to Door Check Link

Replacement .

Tighten: Tighten the fasteners to 9 N.m (7 lb ft)

3. Install the wiring harness. Refer to Wiring Harness Replacement - Rear Door .

NOTE:

Refer to Fastener Notice in Cautions and Notices



2004 Hummer H2

2004 ACCESSORIES & EQUIPMENT Doors - Hummer H2



4. Transfer components as necessary.

5. Install the water deflector. Refer to Water Deflector Replacement - Rear Door .

6. Install the door trim panel. Refer to Trim Panel Replacement - Side Rear Door .

HINGE REPLACEMENT - FRONT DOOR

Removal Procedure

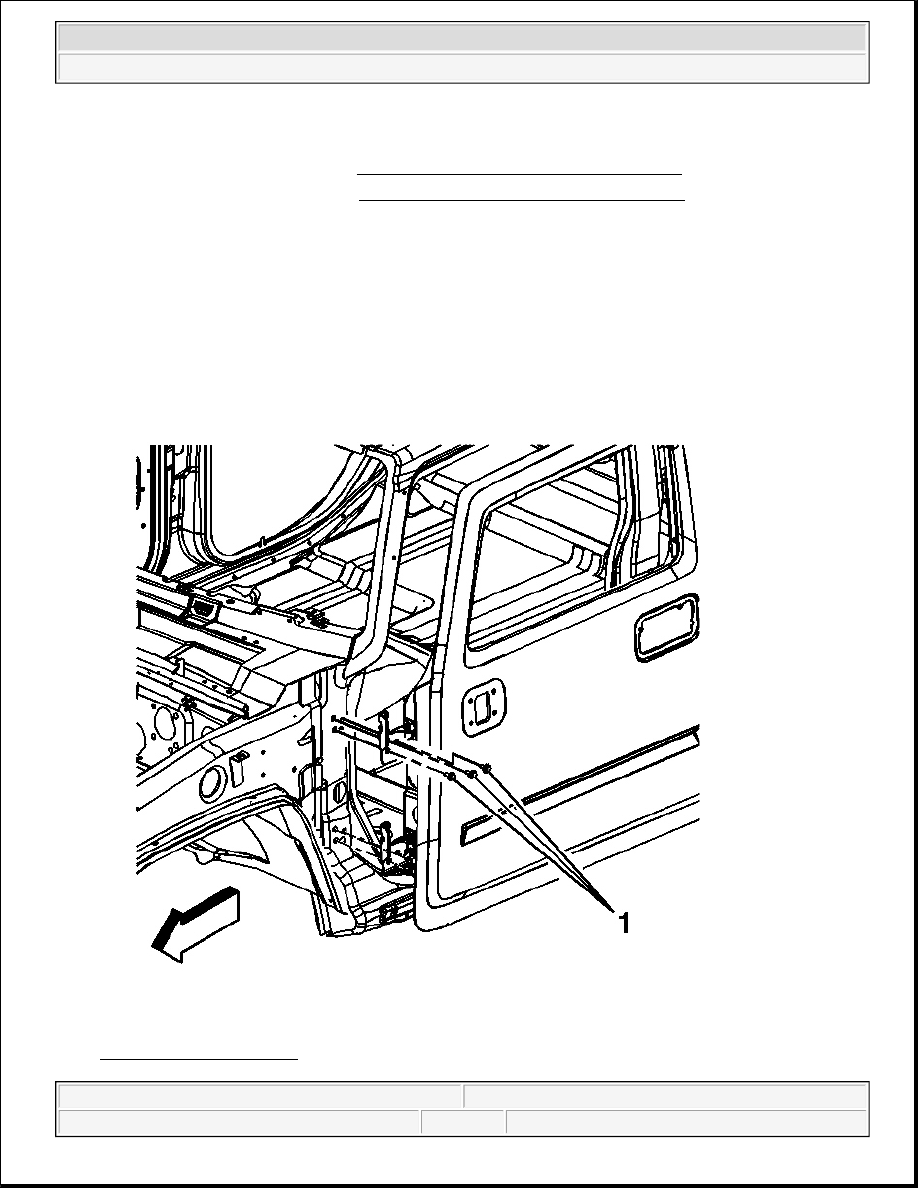

Fig. 47: Vehicle Fasteners
Courtesy of GENERAL MOTORS CORP.

IMPORTANT: To retain proper alignment, properly support the door and replace the hinges

one at a time if possible.



2004 Hummer H2

2004 ACCESSORIES & EQUIPMENT Doors - Hummer H2



1. Open the door.

2. Mark the hinge location with a grease pencil prior to removal.

3. Remove the 3 fasteners (1) retaining the hinge to the vehicle.

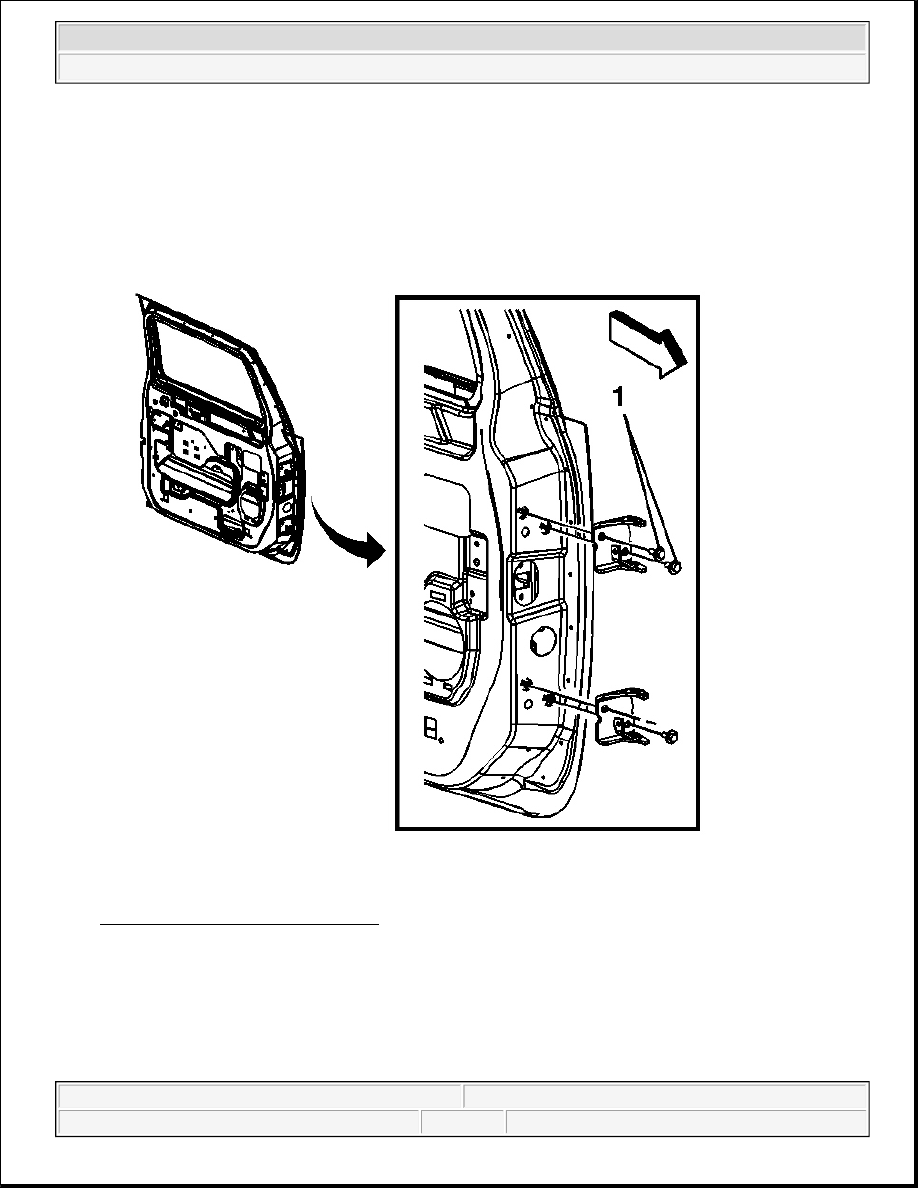

Fig. 48: Front Door Hinge Fasteners
Courtesy of GENERAL MOTORS CORP.

4. Remove the 2 fasteners (1) retaining the hinge to the door.

5. Remove the hinge.

Installation Procedures
