Hummer H2. Manual - part 393

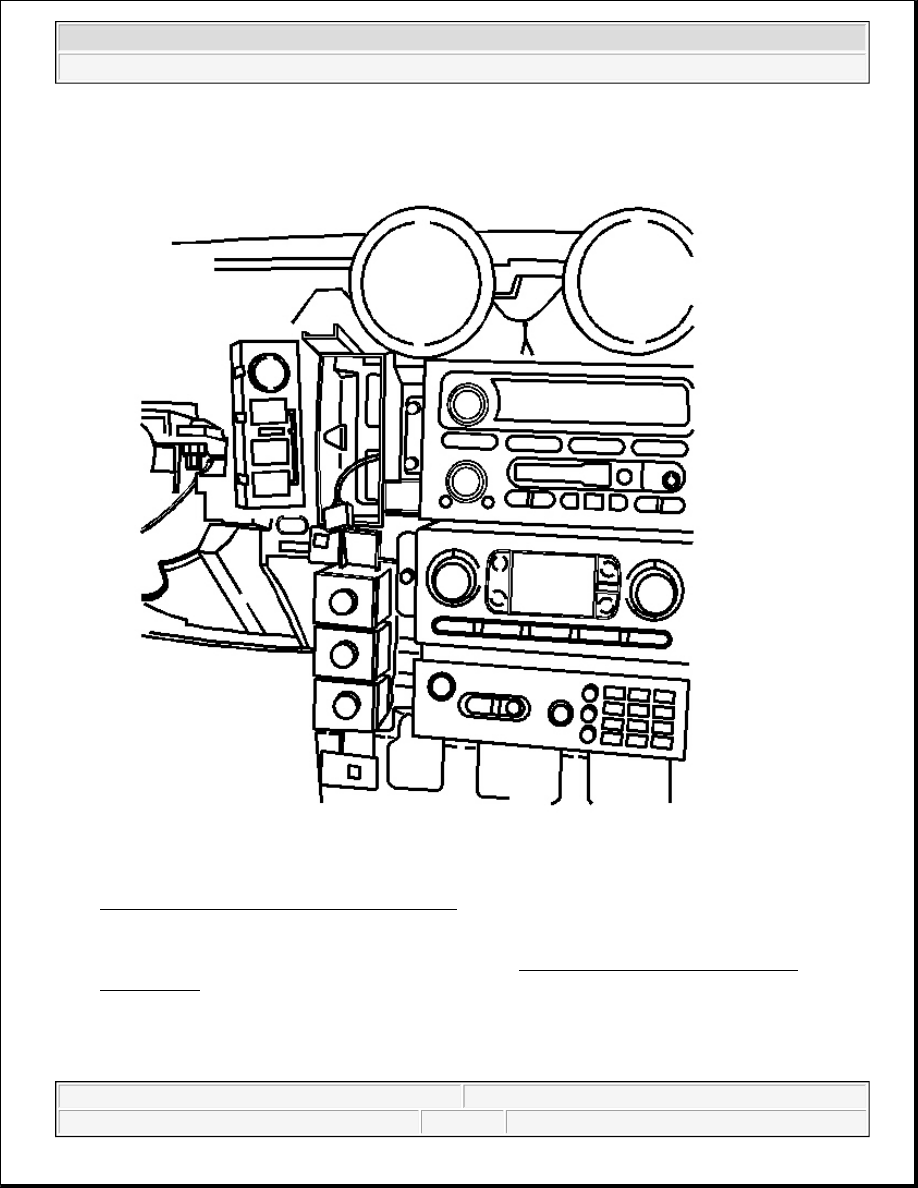

Fig. 76: Traction Control & Air Ride Switch Module Assembly
Courtesy of GENERAL MOTORS CORP.

22. Remove the traction control, air ride switch module assembly.



2004 Hummer H2

2004 ACCESSORIES & EQUIPMENT Instrument Panel, Gauges, and Console - Hummer H2



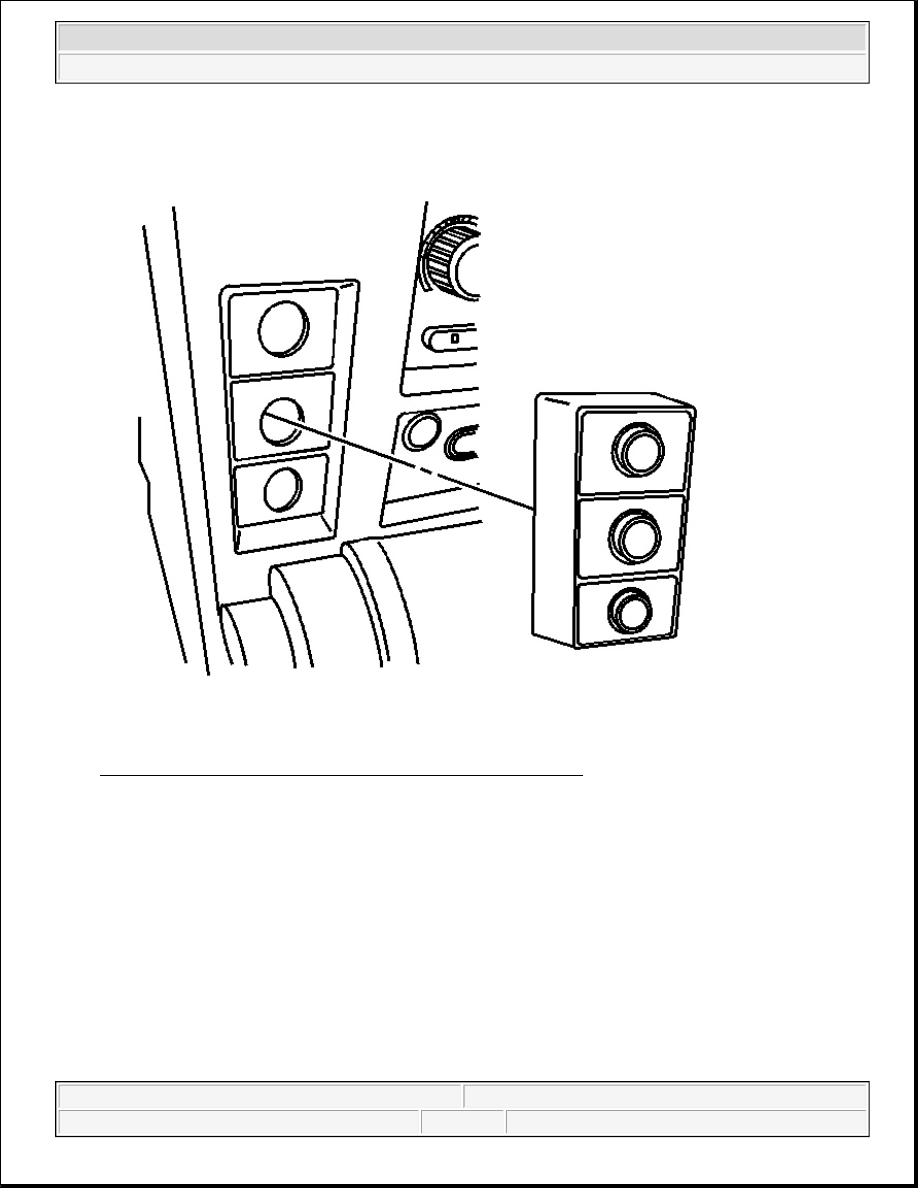

Fig. 77: Transfer Case Control Switch Module
Courtesy of GENERAL MOTORS CORP.

23. Remove the transfer case control switch module. Refer to Transfer Case Shift Control Module

Replacement in Transfer Case - BW 4484.



2004 Hummer H2

2004 ACCESSORIES & EQUIPMENT Instrument Panel, Gauges, and Console - Hummer H2



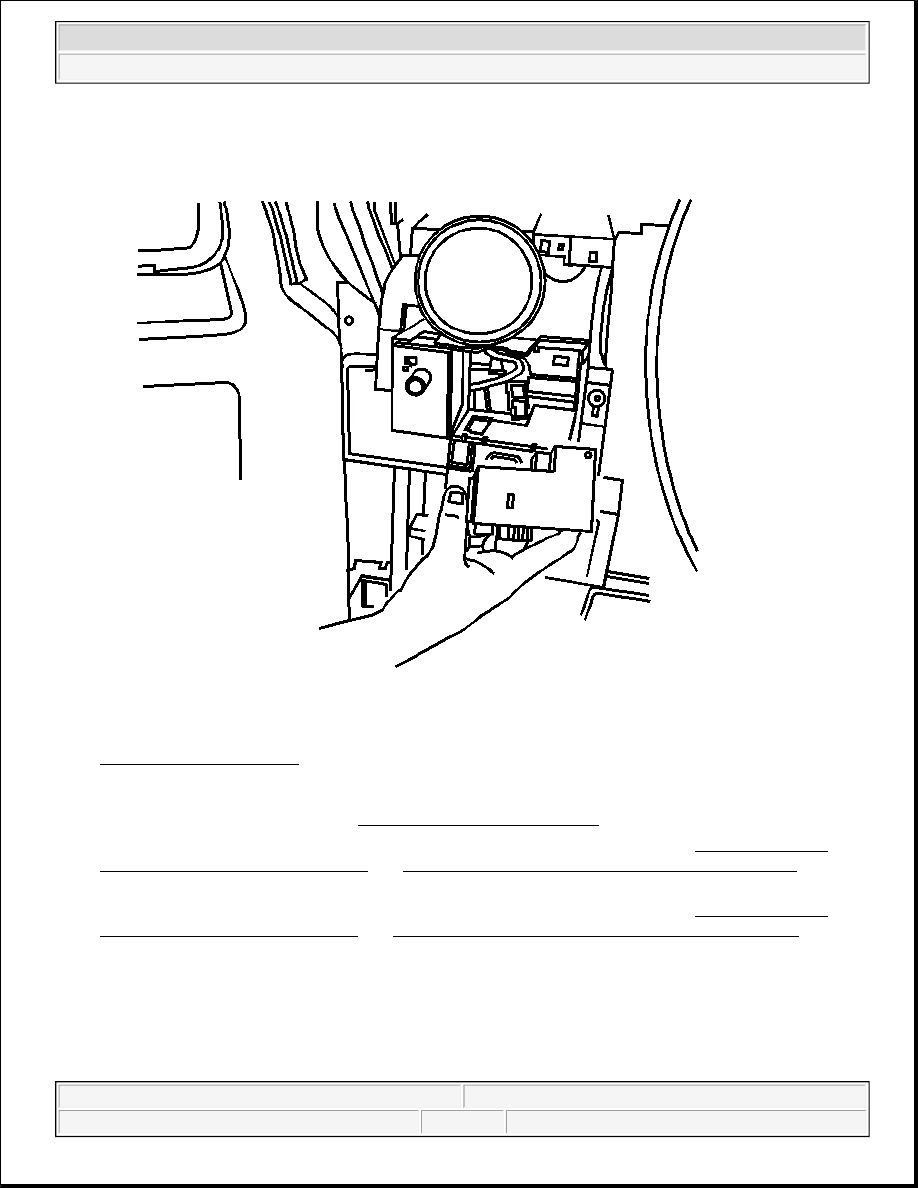

Fig. 78: Rear Wiper Switch
Courtesy of GENERAL MOTORS CORP.

24. Remove the rear wiper switch. Refer to Wiper/Washer Switch Replacement - Rear in Wipers/Washer

Systems.



2004 Hummer H2

2004 ACCESSORIES & EQUIPMENT Instrument Panel, Gauges, and Console - Hummer H2



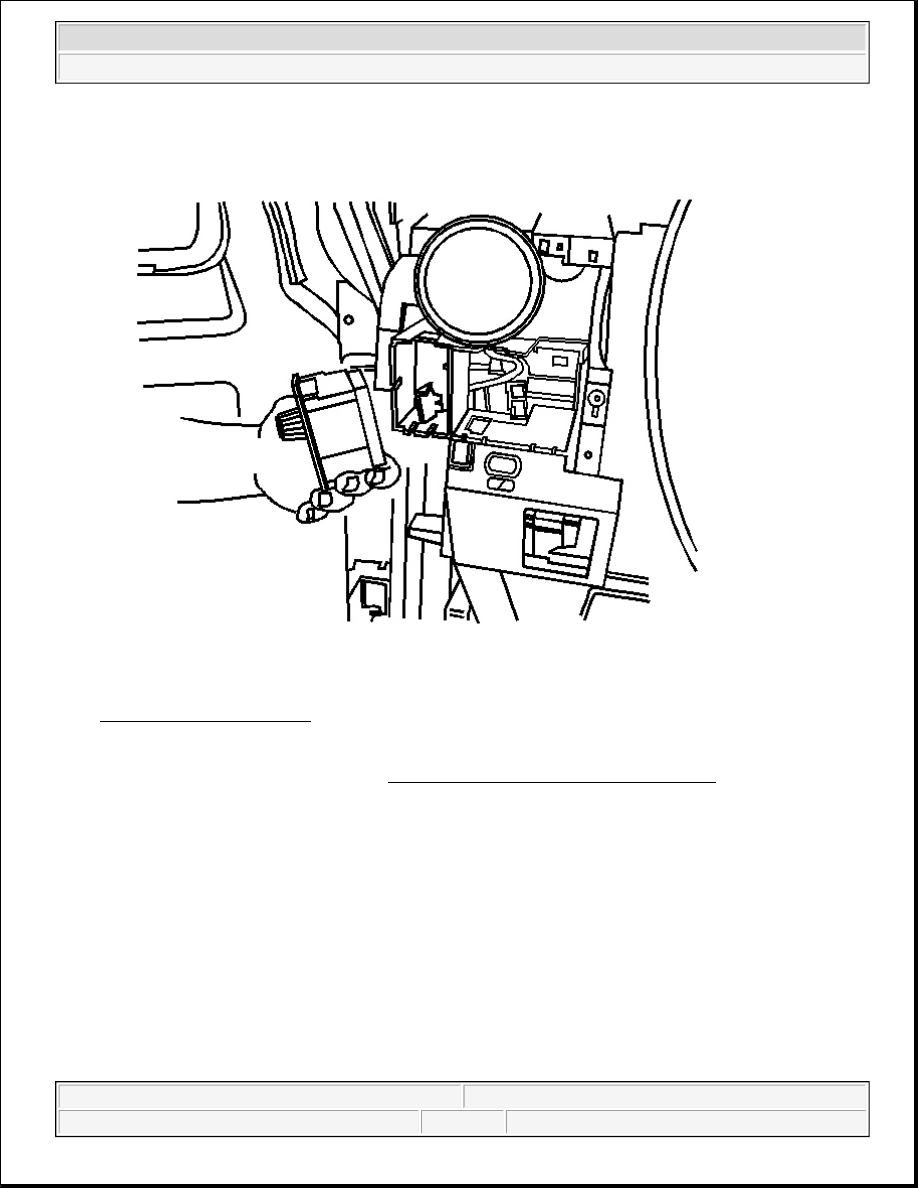

Fig. 79: Headlamp Switch
Courtesy of GENERAL MOTORS CORP.

25. Remove headlamp switch. Refer to Headlamp Switch Replacement in Lighting Systems.

26. Remove the upper HVAC air temperature sensors from the HVAC ducts. Refer to Air Temperature

Sensor Replacement - Upper Right and Air Temperature Sensor Replacement - Upper Left in
HVAC Systems - Automatic.

27. Remove the lower HVAC air temperature sensors from the HVAC ducts. Refer to Air Temperature

Sensor Replacement - Lower Left and Air Temperature Sensor Replacement - Lower Right in
HVAC Systems - Automatic.
