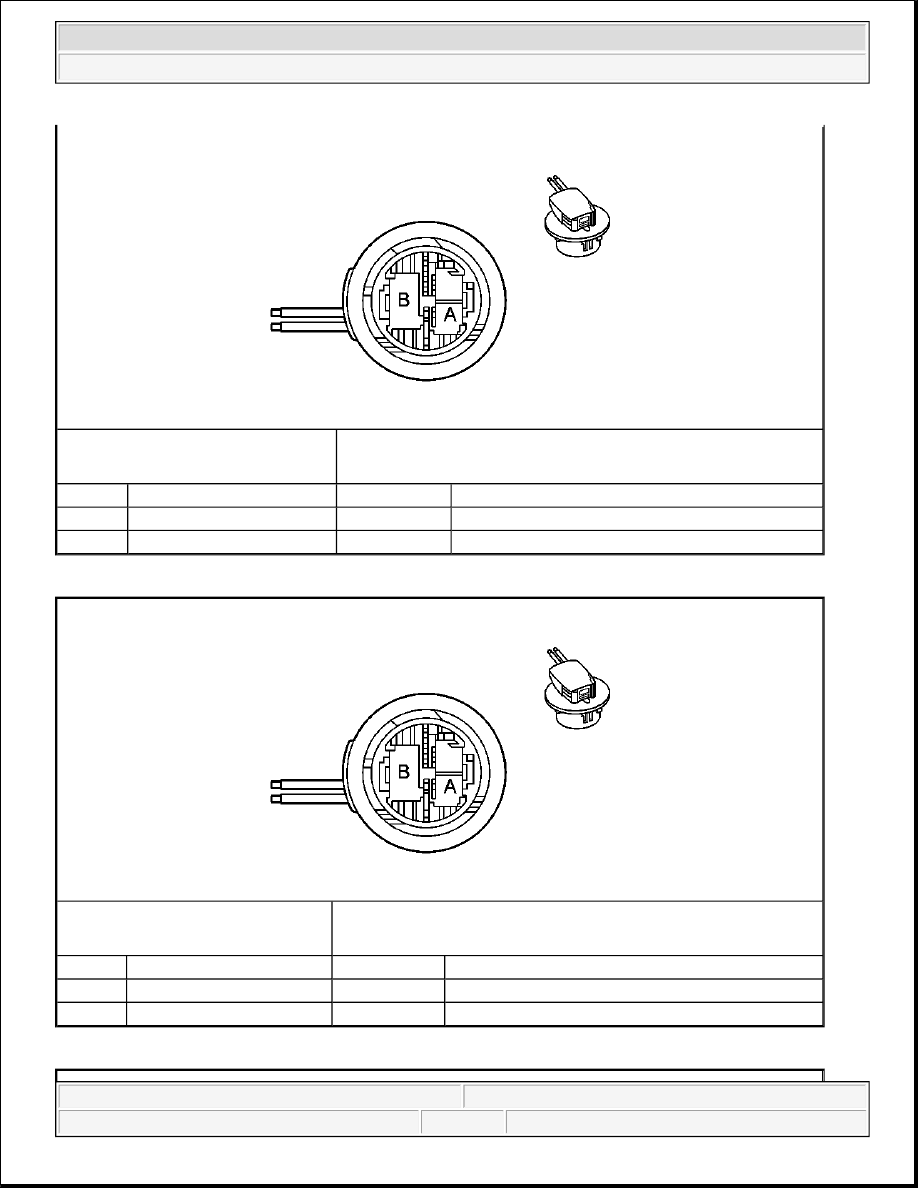

Stop Lamp Terminal Identification Switch

Tail/Stop Lamp Terminal Identification - Left

A

BN

2409

Interior Park Lamps Supply Voltage

B

BK

1450

Ground

Connector Part Information

z

12040551

z

6-Way F Metri-Pack 480 Series (BK)

Pin

Wire Color

Circuit No.

Function

A

WH

17

Stop Lamp Switch Signal

B

OG

1540

Battery Positive Voltage

C

BN

441

Ignition 3 Voltage

D

PU

420

TCC Brake Switch/Cruise Control Release Signal

E

L-GN/BK

584

A/T Shift Lock Control Switch Supply Voltage

F

D-GN/WH

1135

A/T Shift Lock Control Solenoid Supply Voltage



2004 Hummer H2

2004 ACCESSORIES & EQUIPMENT Lighting Systems - Hummer H2



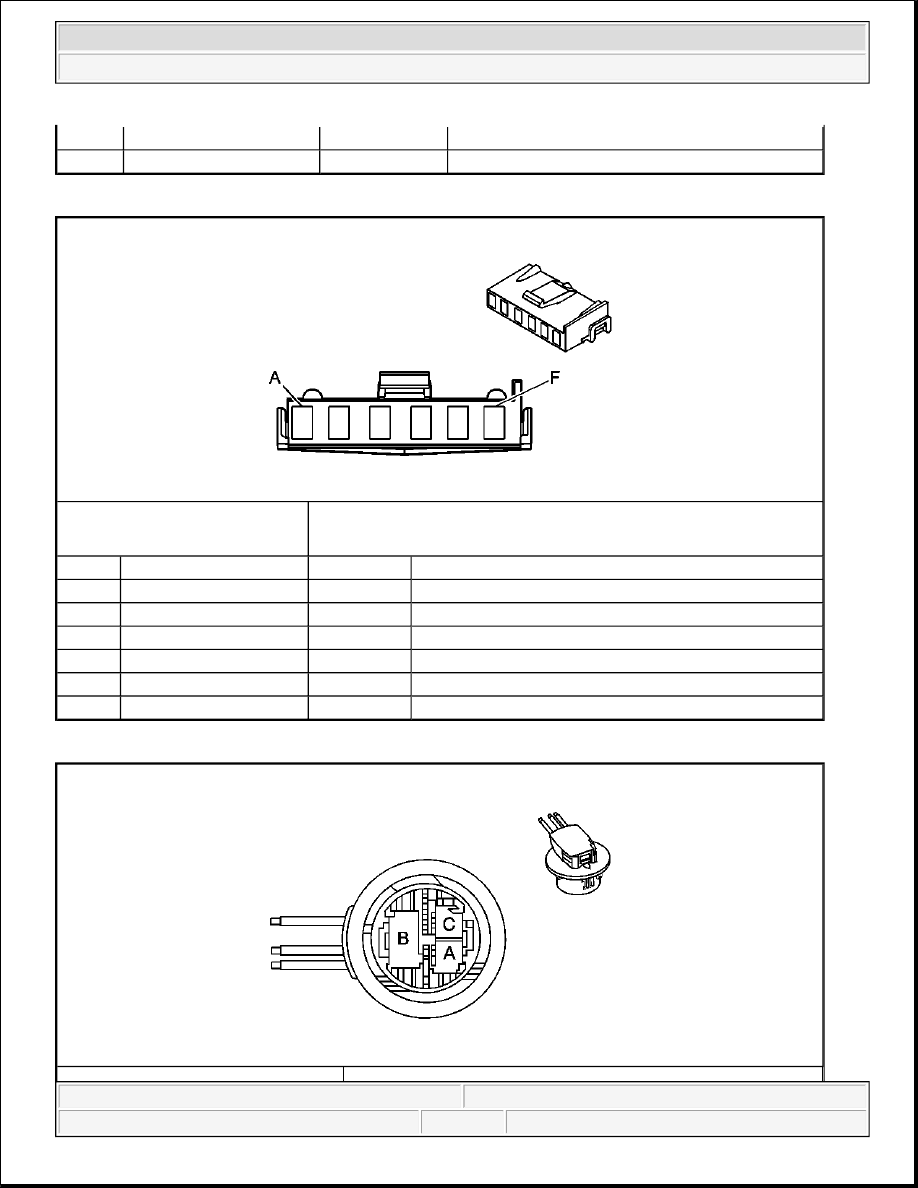

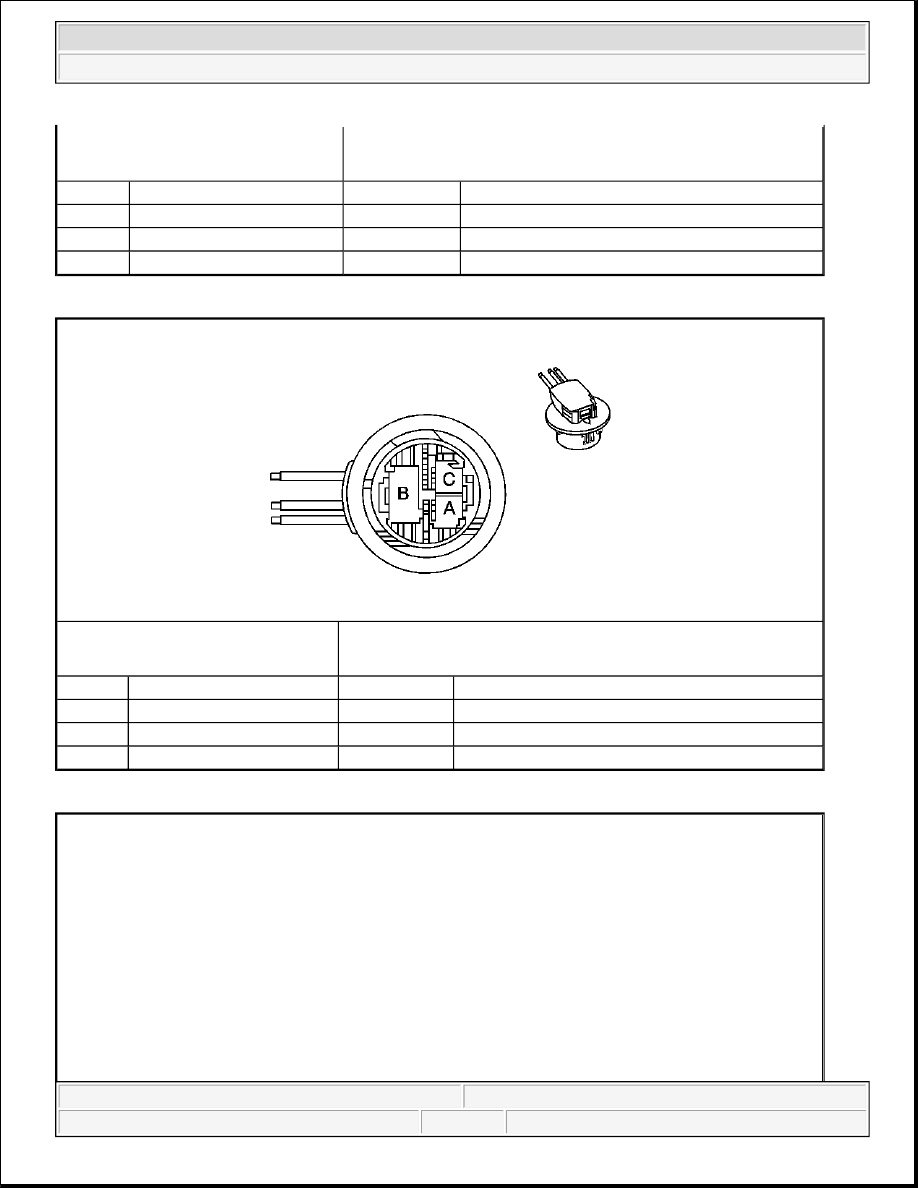

Tail/Stop Lamp Terminal Identification - Right

Turn Signal Lamp Terminal Identification - LR

Connector Part Information

z

0001036

z

3-Way F CE-F29.14-6A Series (BK)

Pin

Wire Color

Circuit No.

Function

A

RD

1320

Stop Lamp Supply Voltage

B

L-GN/BK

1750

Ground

C

L-BU

2509

Left Rear Park Lamps Supply Voltage

Connector Part Information

z

0001036

z

3-Way F CE-F29.14-6A Series (BK)

Pin

Wire Color

Circuit No.

Function

A

RD

1320

Stop Lamp Supply Voltage

B

L-GN/BK

1750

Ground

C

L-BU

2609

Right Rear Park Lamps Supply Voltage



2004 Hummer H2

2004 ACCESSORIES & EQUIPMENT Lighting Systems - Hummer H2



Turn Signal Lamp Terminal Identification - RR

Trailer Terminal Identification Connector

Connector Part Information

z

0001035

z

2-Way F CE-F29.14-5A Series (BK)

Pin

Wire Color

Circuit No.

Function

A

OG

2114

Left Turn Signal Lamps Supply Voltage

B

BK

1750

Ground

Connector Part Information

z

0001035

z

2-Way F CE-F29.14-5A Series (BK)

Pin

Wire Color

Circuit No.

Function

A

OG

2115

Right Turn Signal Lamps Supply Voltage

B

BK

1750

Ground



2004 Hummer H2

2004 ACCESSORIES & EQUIPMENT Lighting Systems - Hummer H2



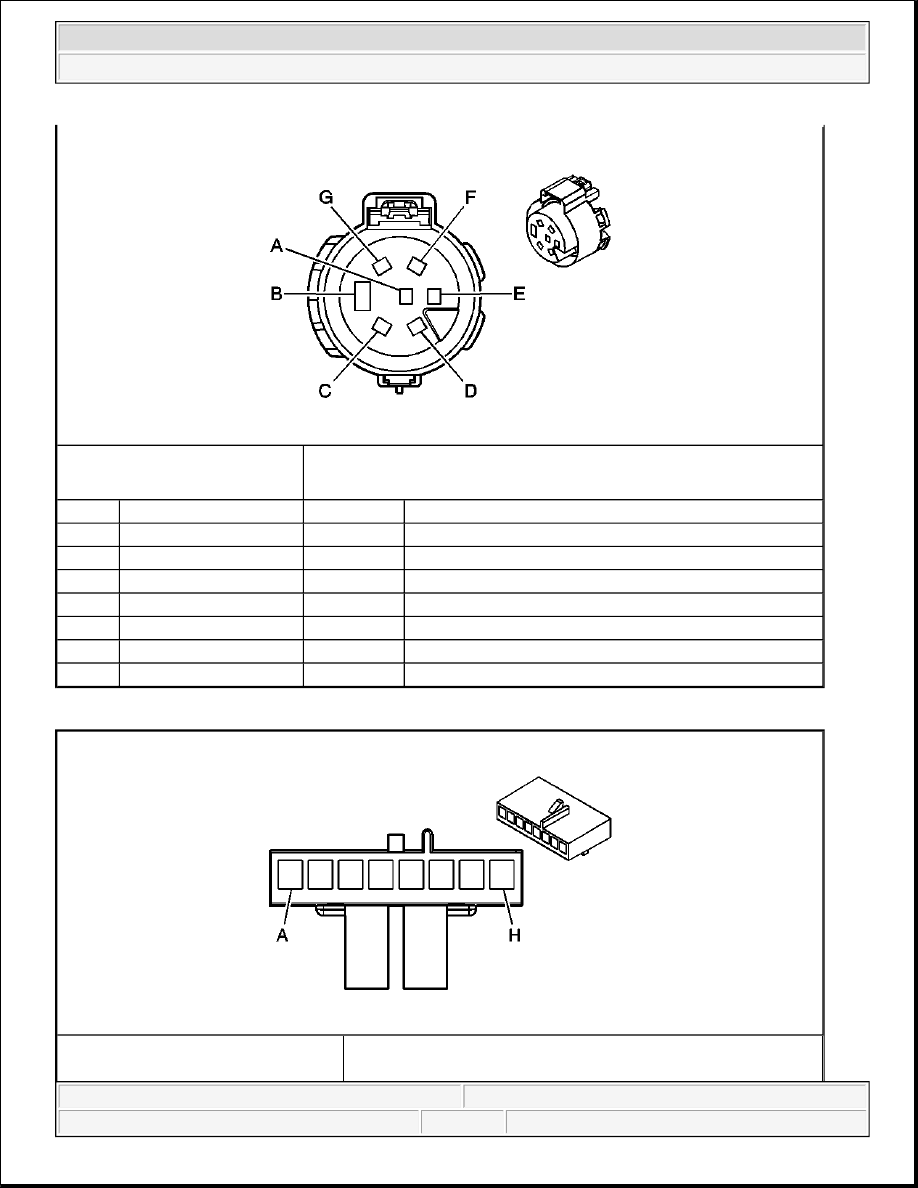

Turn Signal/Multi-Function Switch Terminal Identification - C1

Connector Part Information

z

15354653

z

7-Way F Metri-Pack 280 Sealed (BK)

Pin

Wire Color

Circuit No.

Function

A

L-GN

1624

Trailer Backup Lamps Supply Voltage

B

BK

1750

Ground

C

D-BU

47

Trailer Auxiliary Supply Voltage

D

D-GN

1619

Trailer Right Rear Turn/Stop Lamp Supply Voltage

E

RD

742

Battery Positive Voltage

F

BN

2109

Trailer Park Lamps Supply Voltage

G

YE

1618

Trailer Left Rear Turn/Stop Lamp Supply Voltage

Connector Part Information

z

12064862
