Hummer H2. Manual - part 267

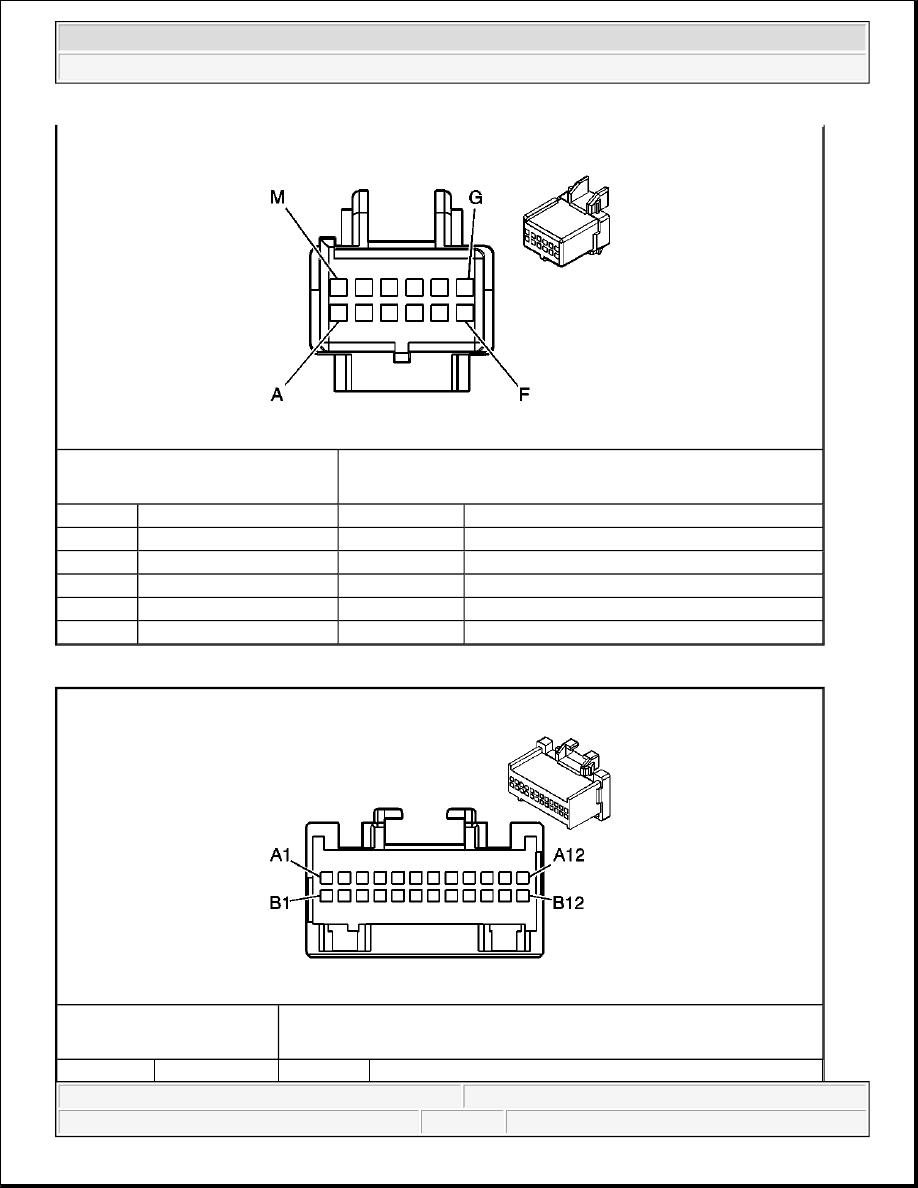

Rear Seat Audio (RSA) Controller - Terminal Identification

Connector Part Information

z

12064799

z

12-Way F Micro-Pack 100 Series (BK)

Pin

Wire Color

Circuit No.

Function

A-D

-

-

Not Used

E

D-GN/WH

817

Vehicle Speed Signal

F-K

-

-

Not Used

L

OG/BK

2061

Navigation Mono Audio Signal (-)

M

PK/BK

2062

Navigation Mono Audio Signal (+)

Connector Part

Information

z

12110206

z

24-Way F Micro-Pack 100 Series (L-BU)

Circuit



2004 Hummer H2

2004 ACCESSORIES & EQUIPMENT Entertainment - Hummer H2



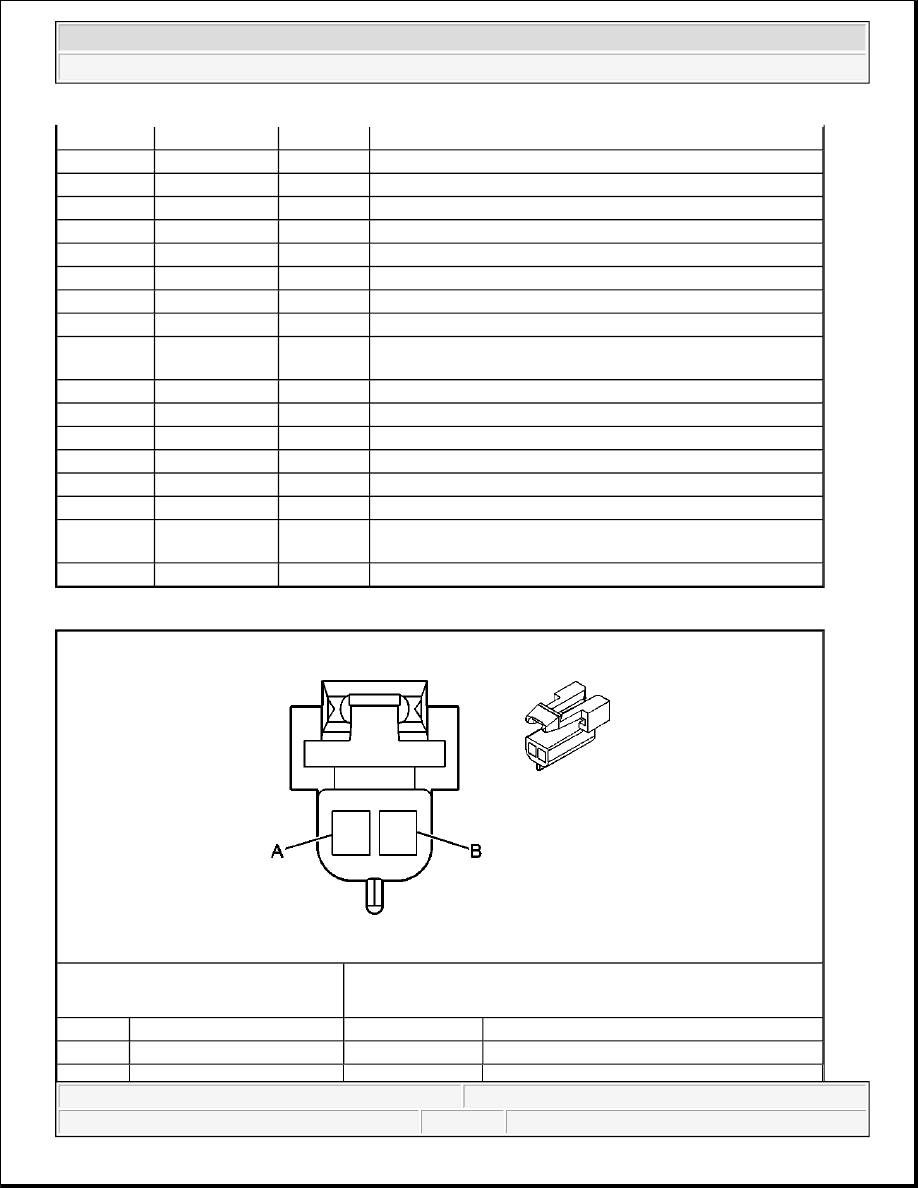

Speaker - Terminal Identification - LF Door

Pin

Wire Color

No.

Function

A1

L-BU

2288

RSA Class 2 Serial Data

A2

OG

340

Battery Positive Voltage

A3

-

-

Not Used

A4

BK/WH

1851

Ground

A5

BARE

2099

Drain Wire

A6

BN

1547

Left Rear Low Level Audio Signal (-) w/o Class 2 Amplifier

A7

BK

1946

Right Rear Low Level Audio Signal (-)

A8

D-GN/WH

1547

Left Rear Low Level Audio Signal (-) w/o Class 2 Amplifier

A9

BK

1946

Right Rear Low Level Audio Signal (-) w/o Class 2
Amplifier

A10-A12

-

-

Not Used

B1-B4

-

-

Not Used

B5

BARE

2099

Drain Wire w/o Class 2 Amplifier

B6

BN

599

Left Rear Low Level Audio Signal (+)

B7

D-BU

546

Right Rear Low Level Audio Signal (+)

B8

BN

599

Left Rear Low Level Audio Signal (+) w/o Class 2 Amplifier

B9

D-BU

546

Right Rear Low Level Audio Signal (+) w/o Class 2
Amplifier

B10-B12

-

-

Not Used

Connector Part Information

z

12052832

z

2-Way F Metri-Pack 150 Series (BK)

Pin

Wire Color

Circuit No.

Function

A

GY

118

Left Front Speaker Output (-)



2004 Hummer H2

2004 ACCESSORIES & EQUIPMENT Entertainment - Hummer H2



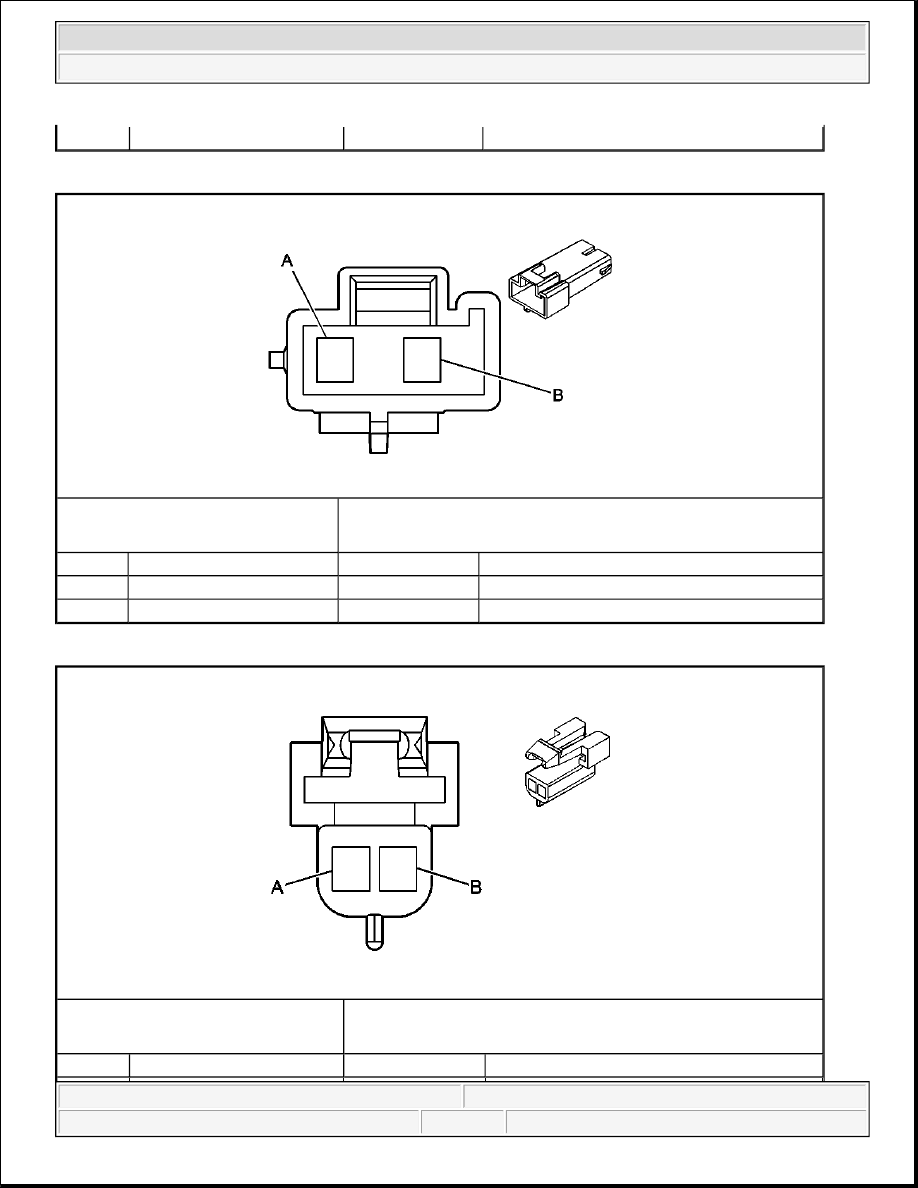

Speaker - Terminal Identification - LF Tweeter

Speaker - Terminal Identification - LR Door

B

TN

201

Left Front Speaker Output (+)

Connector Part Information

z

12110131

z

2-Way M Metri-Pack 280 Series (WH)

Pin

Wire Color

Circuit No.

Function

A

GY

118

Left Front Speaker Output (-)

B

TN

201

Left Front Speaker Output (+)

Connector Part Information

z

12052832

z

2-Way F Metri-Pack 150 Series (BK)

Pin

Wire Color

Circuit No.

Function



2004 Hummer H2

2004 ACCESSORIES & EQUIPMENT Entertainment - Hummer H2



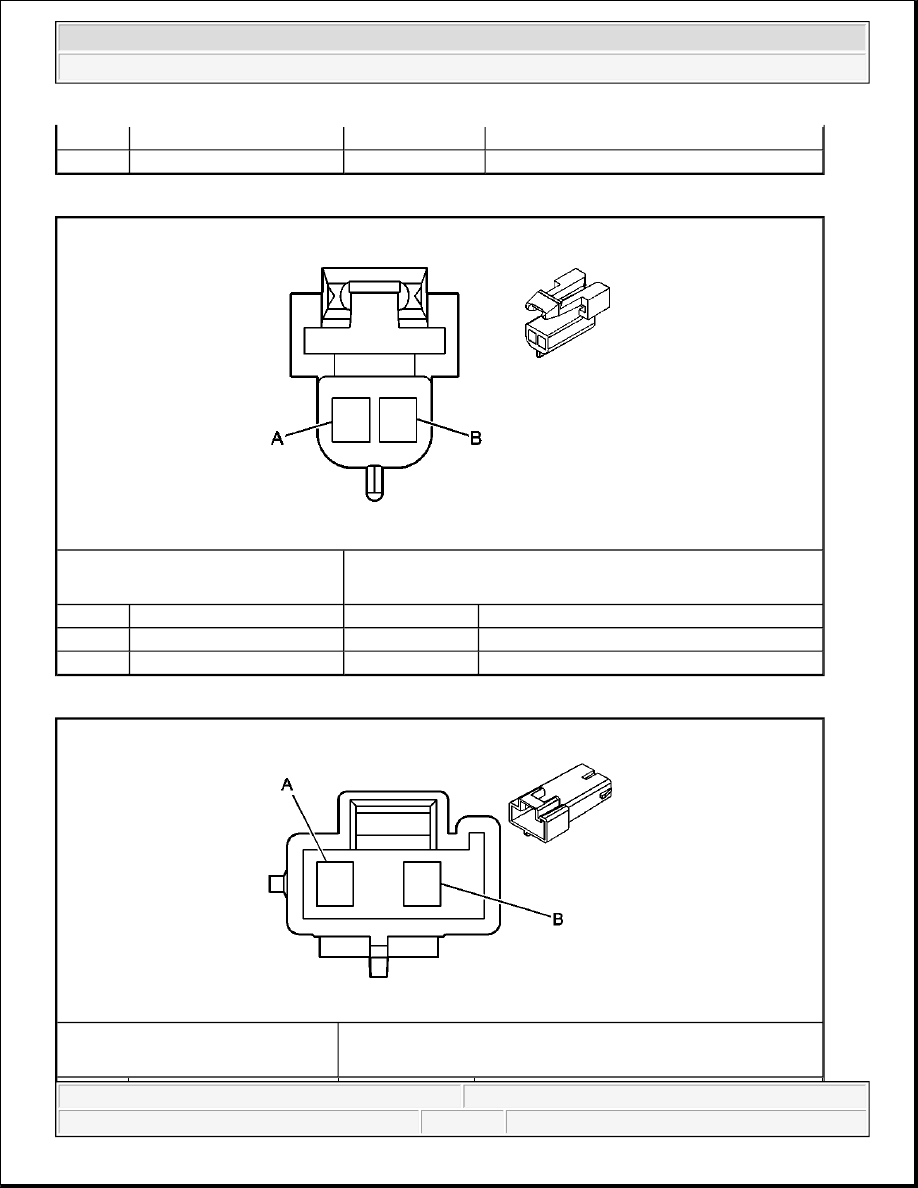

Speaker - Terminal Identification - RF Door

Speaker - Terminal Identification - RF Tweeter

A

YE

116

Left Rear Speaker Output (-)

B

BN

199

Left Rear Speaker Output (+)

Connector Part Information

z

12052832

z

2-Way F Metri-Pack 150 Series (BK)

Pin

Wire Color

Circuit No.

Function

A

D-GN

117

Right Front Speaker Output (-)

B

L-GN

200

Right Front Speaker Output (+)

Connector Part Information

z

12110131

z

2-Way M Metri-Pack 280 Series (WH)
