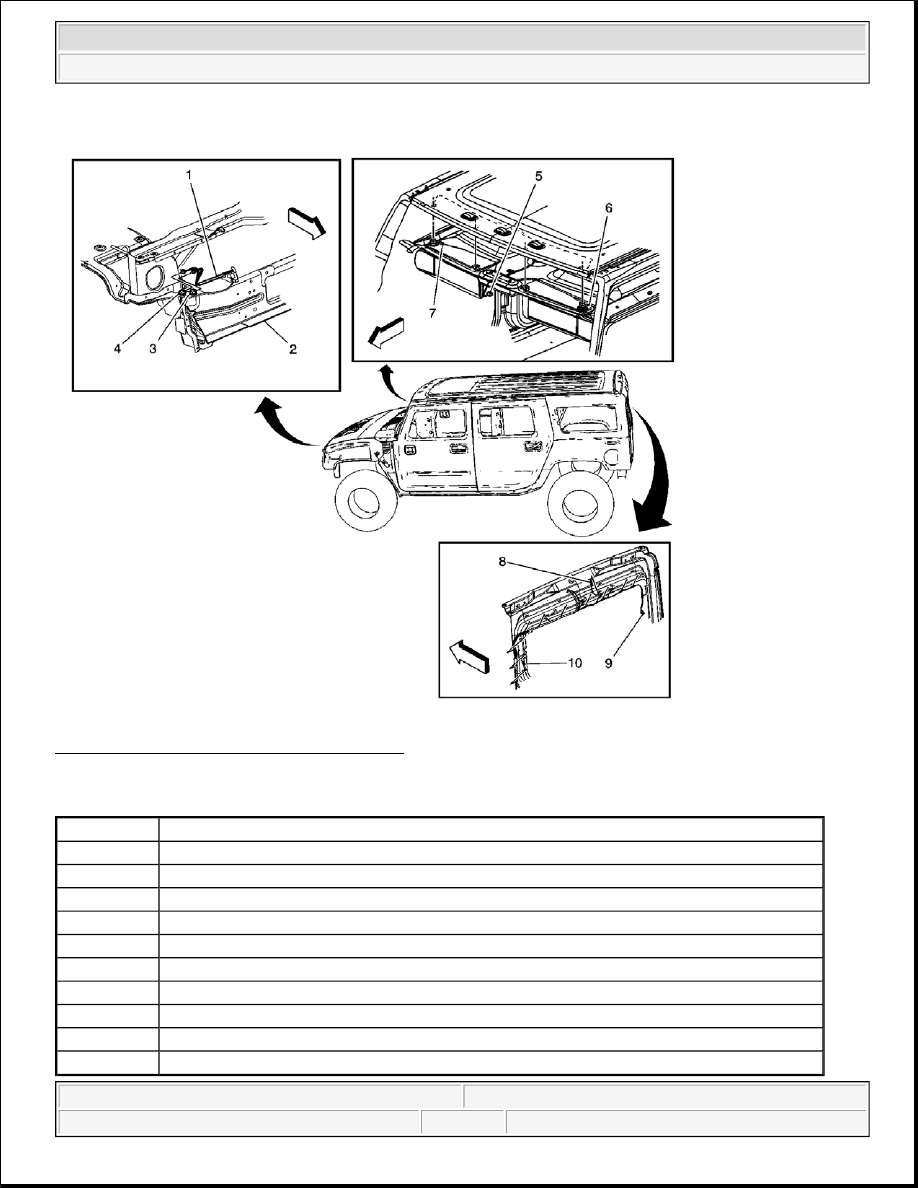

Fig. 3: Stationary Window Component Views
Courtesy of GENERAL MOTORS CORP.

Callouts For Fig. 3

Callout

Component Name

1

Forward Lamp Harness

2

Radiator Support

3

Ambient Air Temperature Sensor - HVAC

4

Ambient Air Temperature Sensor - Mirror

5

Inside Rearview Mirror Connector

6

Vanity Mirror Lamp Connector - Left

7

Vanity Mirror Lamp Connector - Right

8

Center High Mounted Stop Lamp (CHMSL) Connector

9

Rear Window Defogger Grid Connector

10

Rear Window Defogger Grid Connector



2004 Hummer H2

2004 ACCESSORIES & EQUIPMENT Stationary Windows - Hummer H2



STATIONARY WINDOWS CONNECTOR END VIEWS

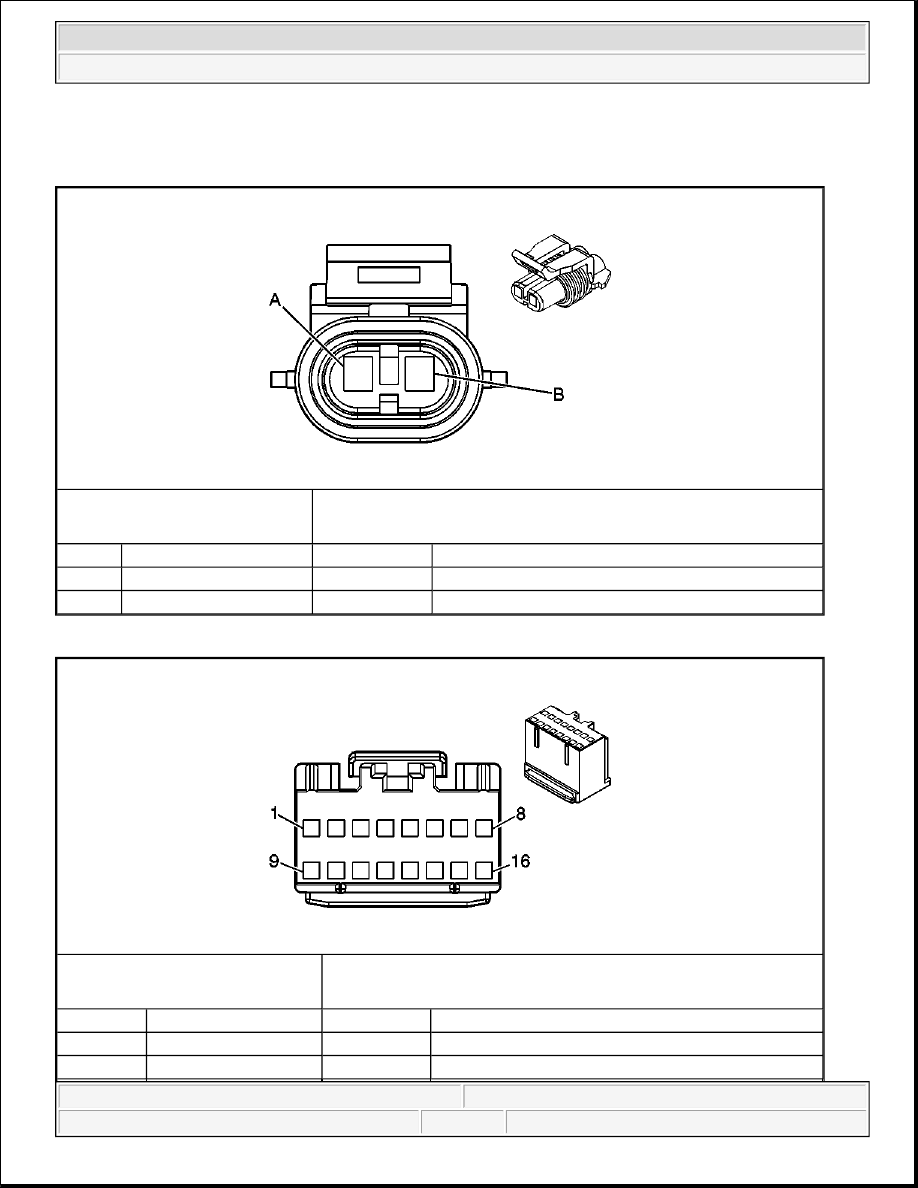

Ambient Air Temperature Sensor Terminal Identification - Mirror

Inside Rearview Mirror (ISRVM) Terminal Identification

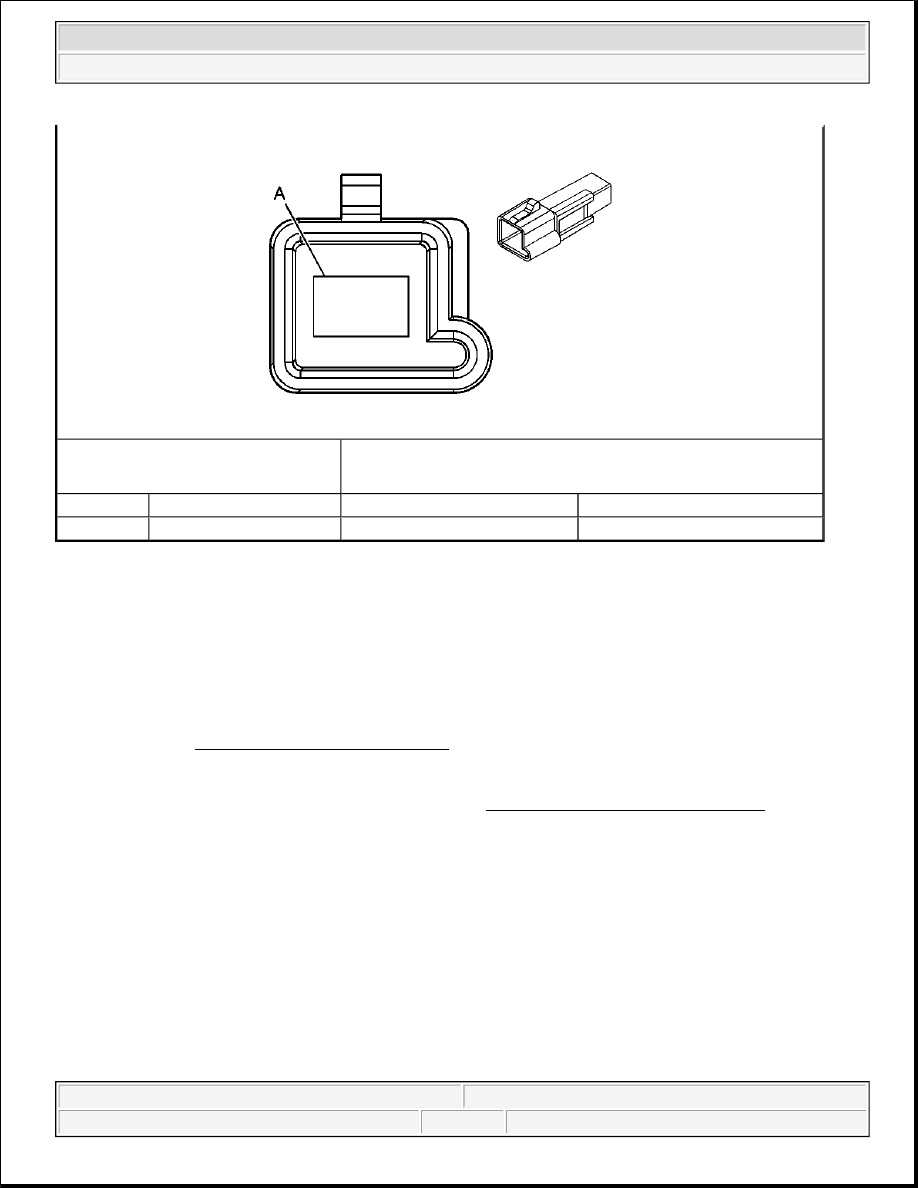

Connector Part Information

z

12052642

z

2-Way F Metri-Pack 150 Series Sealed (L-GN)

Pin

Wire Color

Circuit No.

Function

A

D- GN/WH

636

Ambient Air Temperature Sensor Signal

B

BK/WH

1704

Low Reference

Connector Part Information

z

15324871

z

16-Way F AMP (BK)

Pin

Wire Color

Circuit No.

Function

1-4

-

-

Not Used

5

GY

1690

Automatic Day/Night Mirror Signal



2004 Hummer H2

2004 ACCESSORIES & EQUIPMENT Stationary Windows - Hummer H2



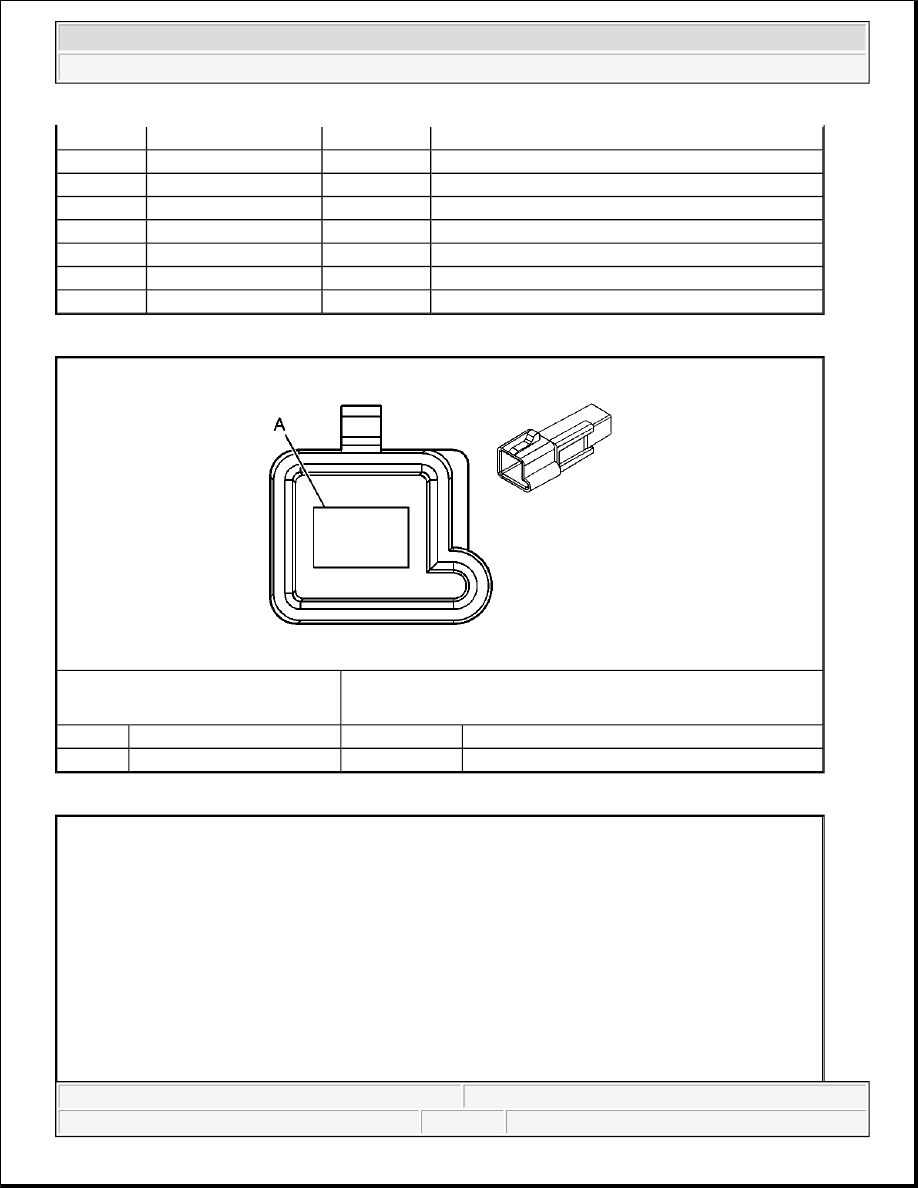

Rear Window Defogger Grid Terminal Identification - C1

Rear Window Defogger Grid Terminal Identification - C2

6

D-GN/WH

636

Ambient Air Temperature Sensor Signal

7

BK/WH

1704

Low Reference

8

BK

1050

Ground

9

L-GN

24

Backup Lamp Supply Voltage

10-12

-

-

Not Used

13

BN

341

Ignition 3 Voltage

14-15

-

-

Not Used

16

PK

1691

Automatic Day/Night Mirror Low Reference

Connector Part Information

z

12059885

z

1-Way M Metri-Pack 480 Series (BK)

Pin

Wire Color

Circuit No.

Function

A

PU

293

Rear Defog Element Supply Voltage



2004 Hummer H2

2004 ACCESSORIES & EQUIPMENT Stationary Windows - Hummer H2



DIAGNOSTIC INFORMATION AND PROCEDURES

DIAGNOSTIC STARTING POINT - STATIONARY WINDOWS

For the inside rearview mirror with the automatic day-night feature, begin the diagnosis by reviewing the
system Description and Operation. Reviewing the Description and Operation information will help you
determine the correct symptom diagnostic procedure when a malfunction exists. Reviewing the Description and
Operation information will also help you determine if the condition described by the customer is normal
operation. Refer to Symptoms - Stationary Windows in order to identify the correct procedure for diagnosing
the system and where the procedure is located.

For the rear window defogger, begin the diagnosis with the Diagnostic System Check - Defogger . The
Diagnostic System Check will provide the following information:

z

The identification of the control modules which command the system

z

The ability of the control modules to communicate through the serial data circuit

z

The identification of any stored diagnostic trouble codes (DTCs) and their status

The use of the Diagnostic System Check will identify the correct procedure for diagnosing the system and
where the procedure is located.

DIAGNOSTIC SYSTEM CHECK - DEFOGGER

Test Description

Connector Part Information

z

12059885

z

1-Way M Metri-Pack 480 Series (BK)

Pin

Wire Color

Circuit No.

Function

A

BK

1450

Ground
