Hummer H2. Manual - part 2343

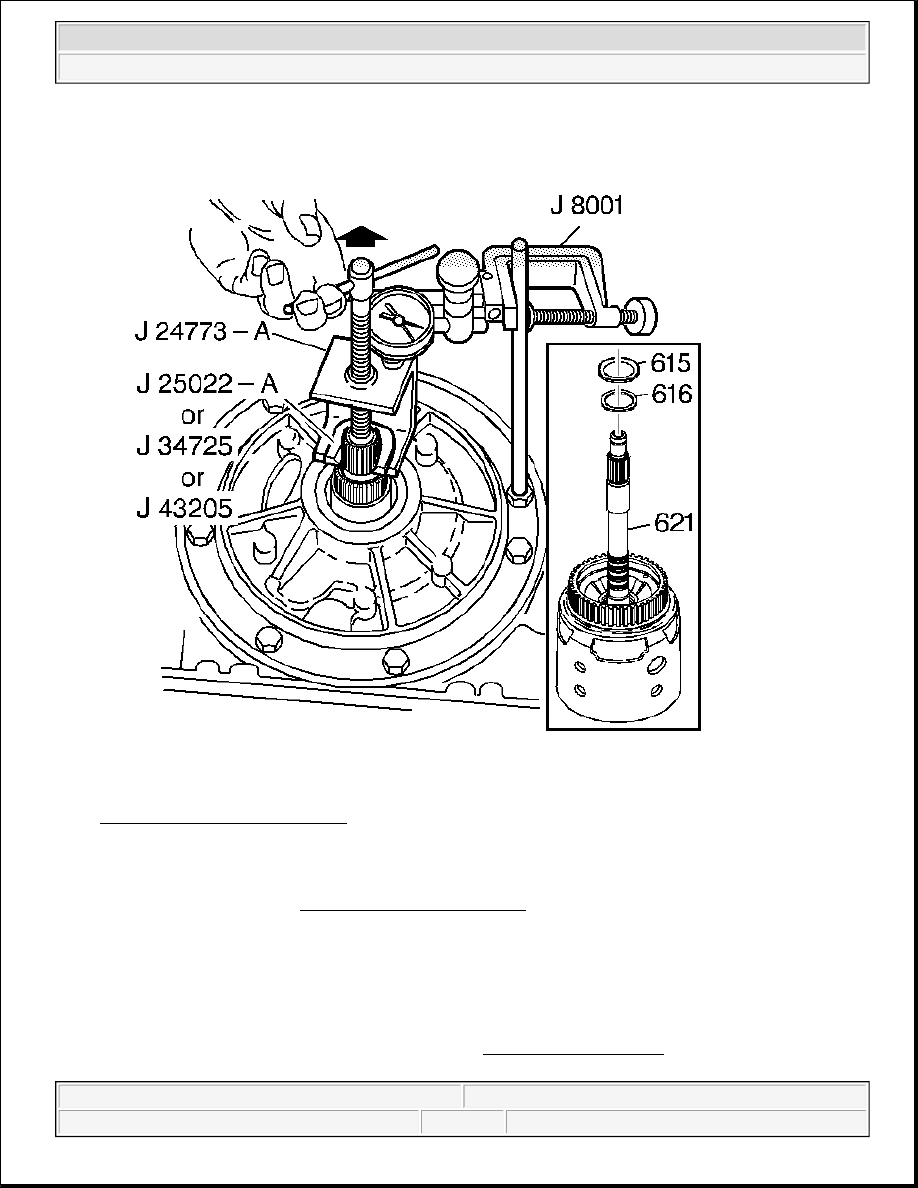

Fig. 400: Setting J 8001 To Zero
Courtesy of GENERAL MOTORS CORP.

6. Set the J 8001 to zero.

7. Pull up on J 24773-A . See Special Tools and Equipment .

Proper end play should be 0.13-0.92 mm (0.005-0.036 in).

8. The selective washer (616), which controls the end play, is located between the input housing (621) and

the thrust bearing (615) on the oil pump hub.

If the end play measurement is incorrect, refer to the End Play Specifications table. Choose a new
selective washer (616) based on the original selective washer and the information contained in the table.



2004 Hummer H2

2004 TRANSMISSION Automatic Transmission - 4L60-E/4L65-E (Introduction) - Hummer H2



If the dial indicator shows no end play, the selective washer (616) and thrust bearing (615) may have been
misassembled.

9. Correct the end play by changing the selective washer (616).

CONVERTER HOUSING INSTALLATION

Tools Required

J 41510 T-50 Plus Bit. See Special Tools and Equipment .



2004 Hummer H2

2004 TRANSMISSION Automatic Transmission - 4L60-E/4L65-E (Introduction) - Hummer H2

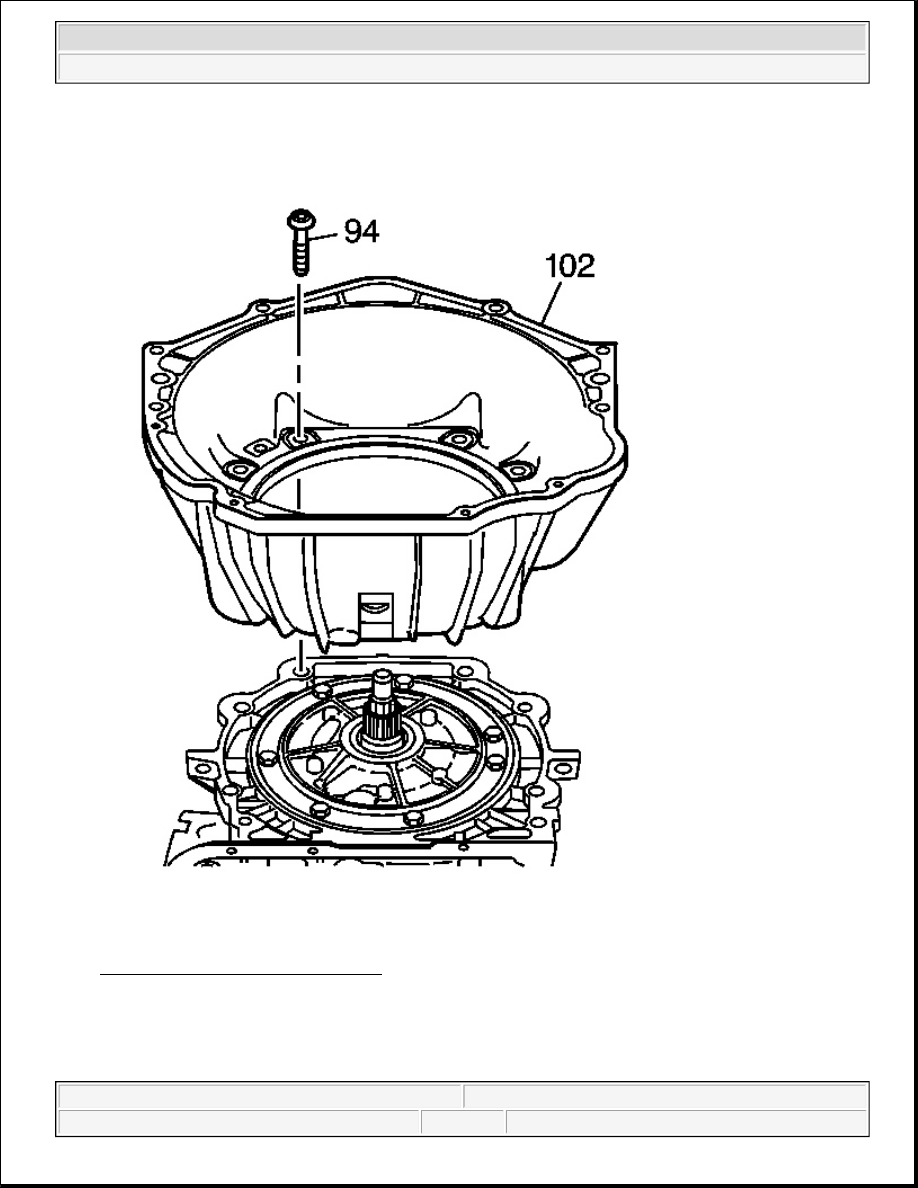

Fig. 401: Converter Housing & Bolts
Courtesy of GENERAL MOTORS CORP.

1. Install the converter housing (102).



2004 Hummer H2

2004 TRANSMISSION Automatic Transmission - 4L60-E/4L65-E (Introduction) - Hummer H2



2. Install the converter housing bolts (94) to the transmission case. Use the J 41510 . See Special Tools and

Equipment .

Tighten: Tighten the converter housing bolts (94) to 65-75 N.m (48-55 lb ft).

TURBINE SHAFT O-RING INSTALLATION

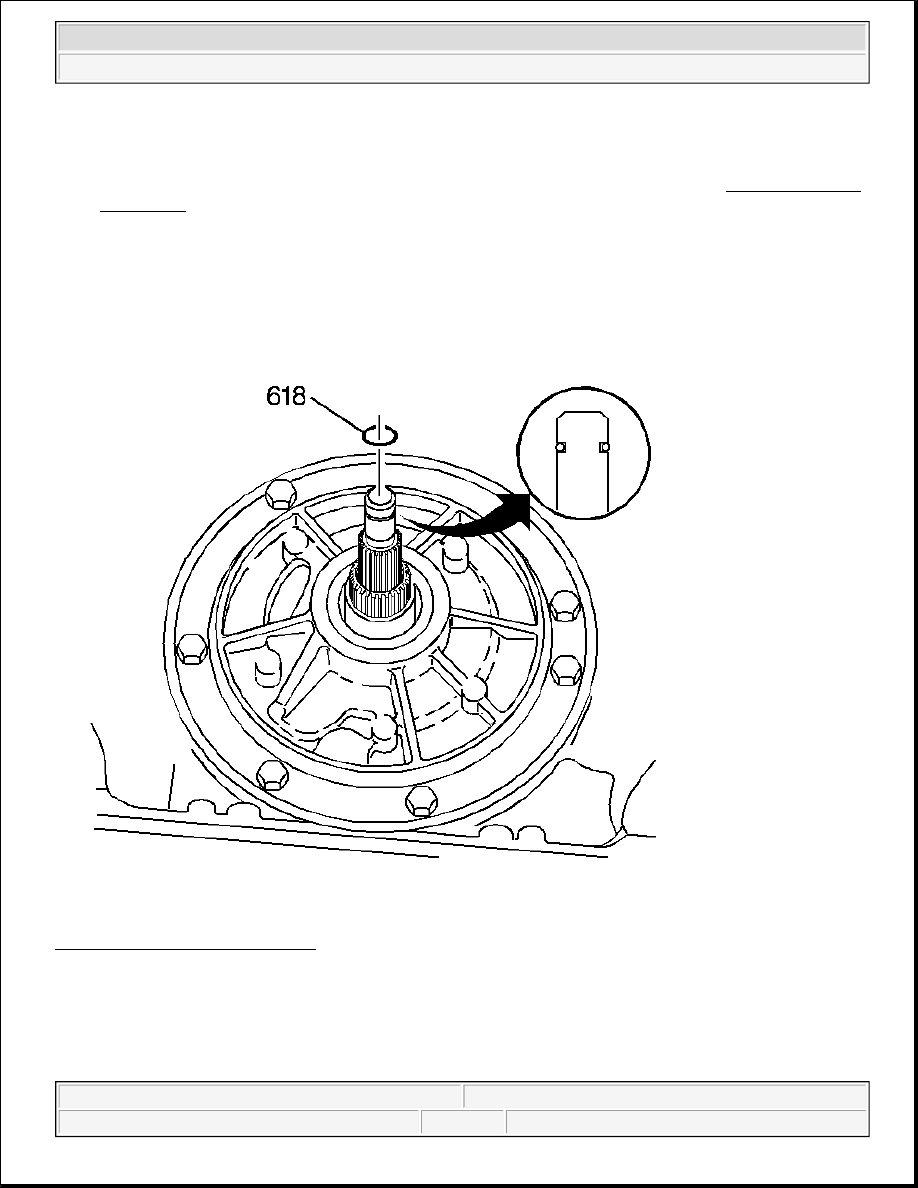

Fig. 402: O-Ring & Turbine Shaft
Courtesy of GENERAL MOTORS CORP.

Install the O-ring (618) on the turbine shaft. O-Ring location is location dependent.

CONTROL VALVE BODY DISASSEMBLE

NOTE:

Refer to Fastener Notice in Cautions and Notices.



2004 Hummer H2

2004 TRANSMISSION Automatic Transmission - 4L60-E/4L65-E (Introduction) - Hummer H2
