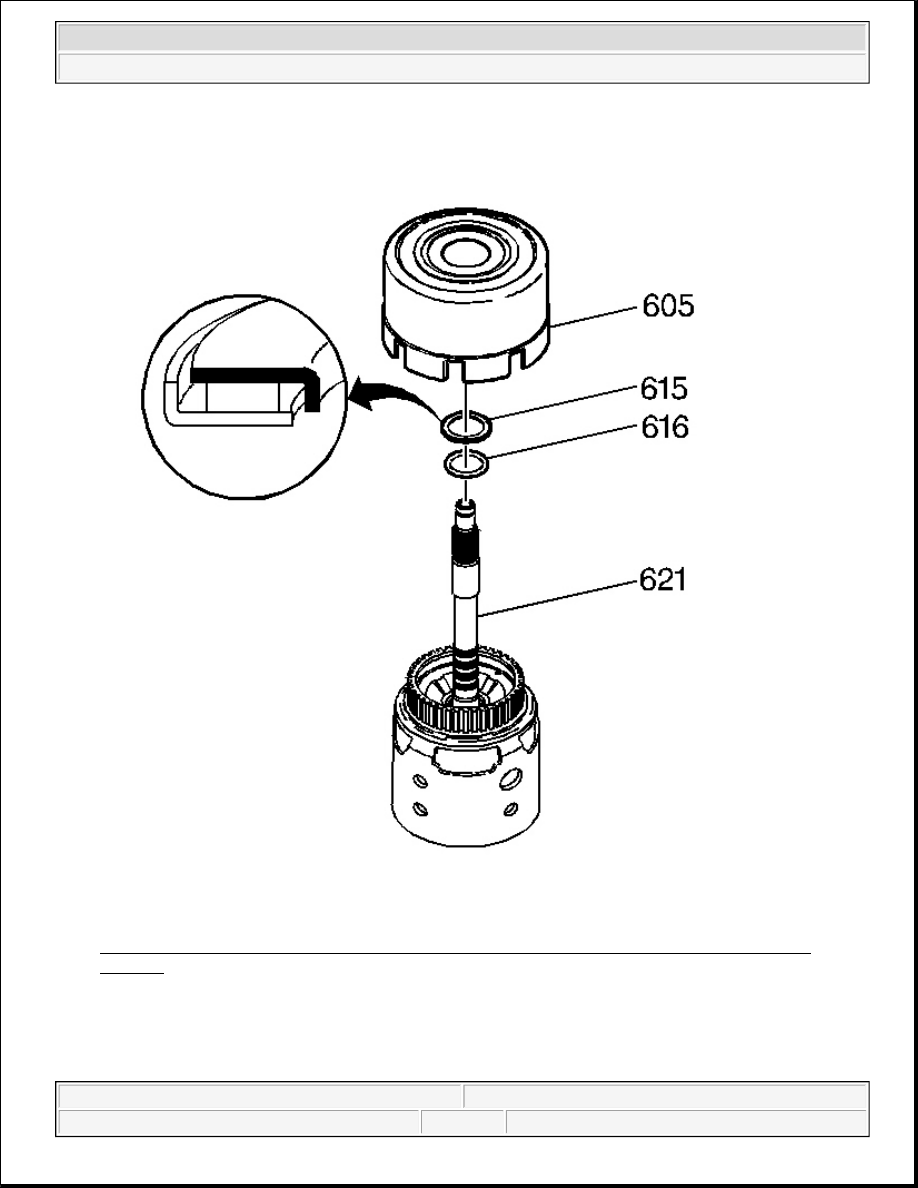

Fig. 356: Selective Thrust Washer, Stator Shaft/Selective Washer Bearing Assembly & Input
Housing
Courtesy of GENERAL MOTORS CORP.

1. Install the selective thrust washer (616) on the input housing (621).

2. Install the stator shaft/selective washer bearing assembly (615) on the input housing (621).



2004 Hummer H2

2004 TRANSMISSION Automatic Transmission - 4L60-E/4L65-E (Introduction) - Hummer H2



The black race on the bearing goes toward the oil pump.

3. Install the reverse input clutch assembly (605) on the input housing (621).

4. Index the reverse input clutch plates with the input clutch hub. Make certain all clutch plates are fully

engaged.



2004 Hummer H2

2004 TRANSMISSION Automatic Transmission - 4L60-E/4L65-E (Introduction) - Hummer H2

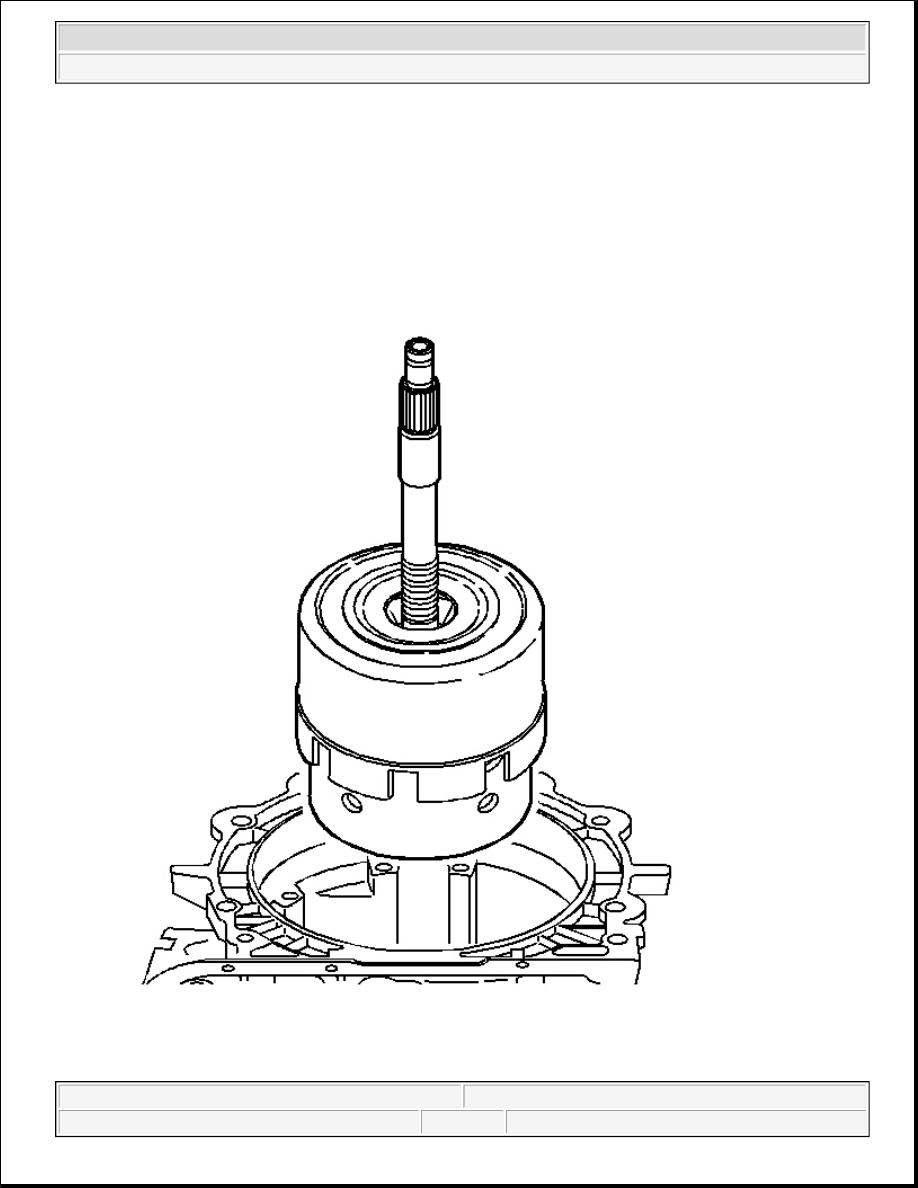

Fig. 357: Reverse Input & Input Clutch Assembly
Courtesy of GENERAL MOTORS CORP.

5. Install the reverse input and the input clutch assembly into the transmission case.

6. Index the 3rd and 4th clutch plates with the input internal gear.

z

Ensure that all clutch plates are fully engaged.

z

When properly assembled, the reverse input clutch housing will be located just below the case oil
pump face.

2-4 BAND ASSEMBLY INSTALLATION

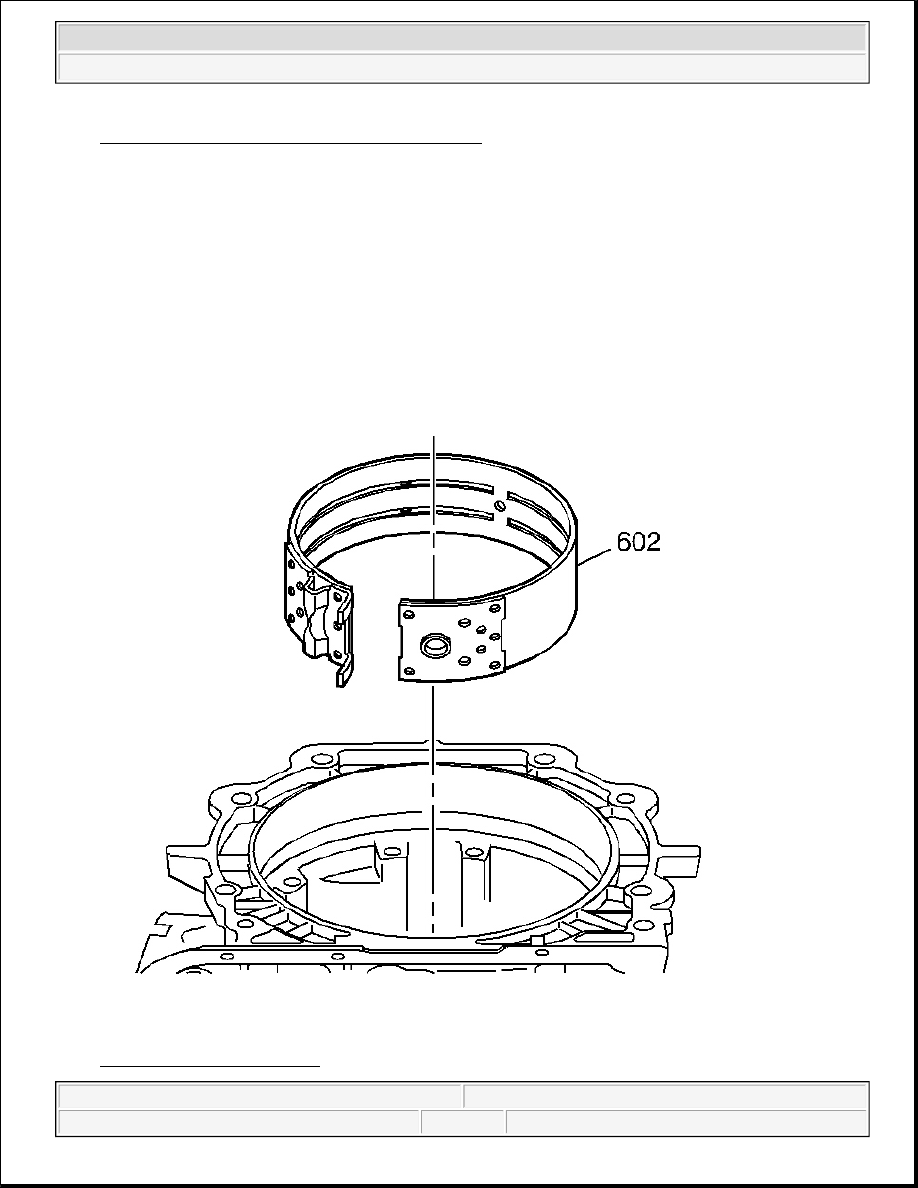

Fig. 358: 2-4 Band Assembly



2004 Hummer H2

2004 TRANSMISSION Automatic Transmission - 4L60-E/4L65-E (Introduction) - Hummer H2



Courtesy of GENERAL MOTORS CORP.

1. Inspect the 2-4 band assembly (602) for damage or wear.

2. Install the 2-4 band (602) into the case.

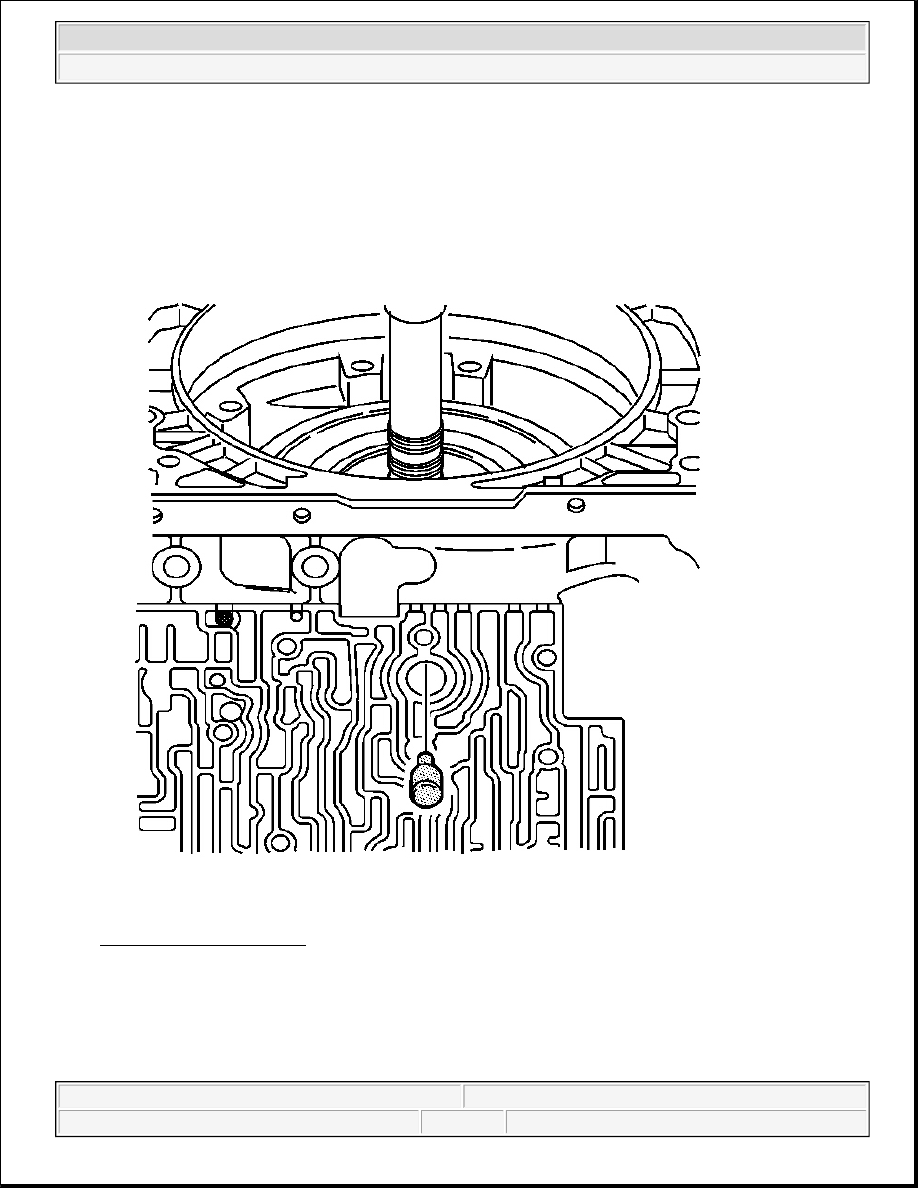

Fig. 359: Band Anchor Pin
Courtesy of GENERAL MOTORS CORP.

3. Install the band anchor pin into the case.

4. Index the band to fit the band anchor pin into the band.

OIL PUMP DISASSEMBLE
