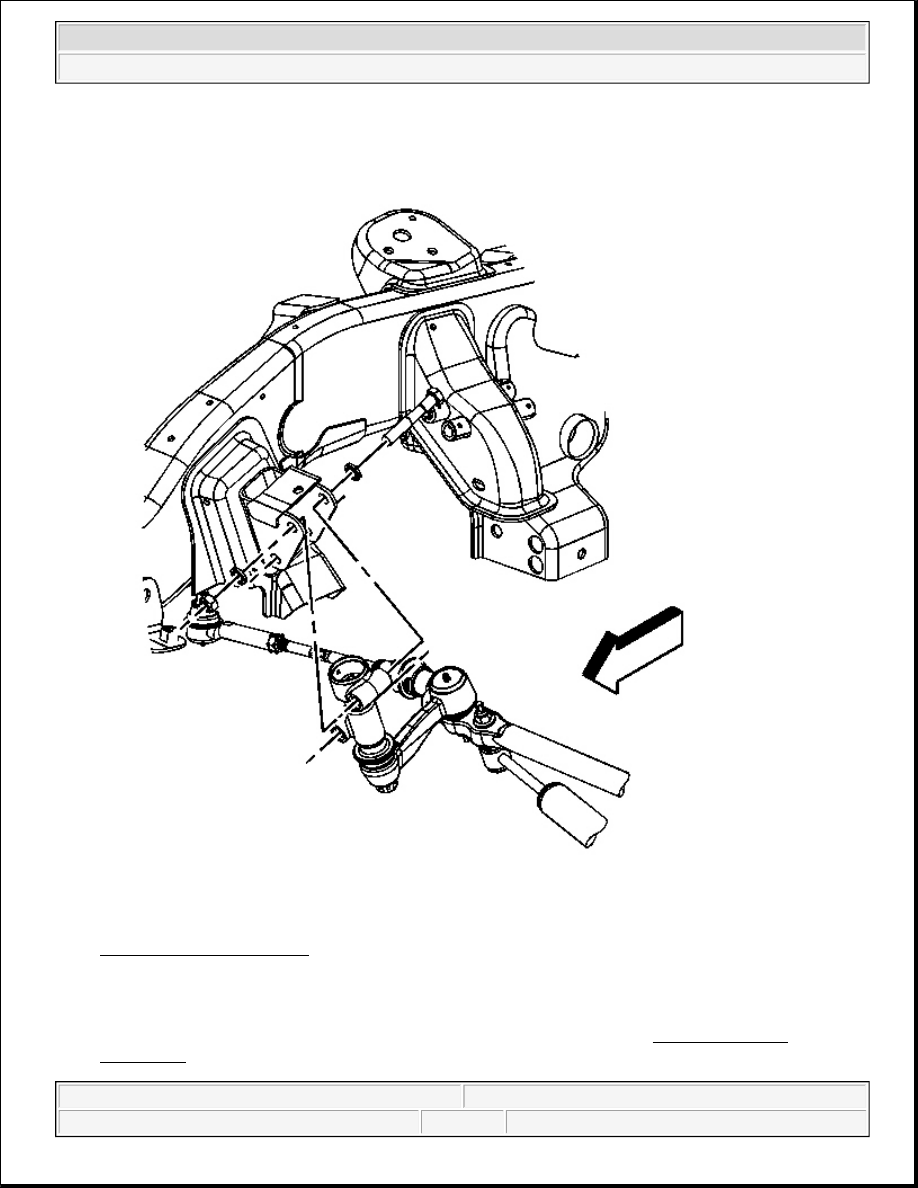

Fig. 13: View Of Idler Arm
Courtesy of GENERAL MOTORS CORP.

6. Remove the pitman arm nut. Do not reuse the nut.

7. Remove the relay rod from the idler arm ball stud using the J 24319-B . See Special Tools and

Equipment .



2004 Hummer H2

2004 STEERING Steering Linkage (Non-Rack & Pinion) - Hummer H2



8. Remove the relay rod from the pitman arm ball stud using theJ 24319-B . See Special Tools and

Equipment .

9. Remove the relay rod from the vehicle.

10. Inspect the threads on the tie rod ends for damage.

11. Inspect the ball stud threads for damage.

12. Inspect the ball stud seals for excessive damage.

13. Clean the threads on the ball studs.

Installation Procedure

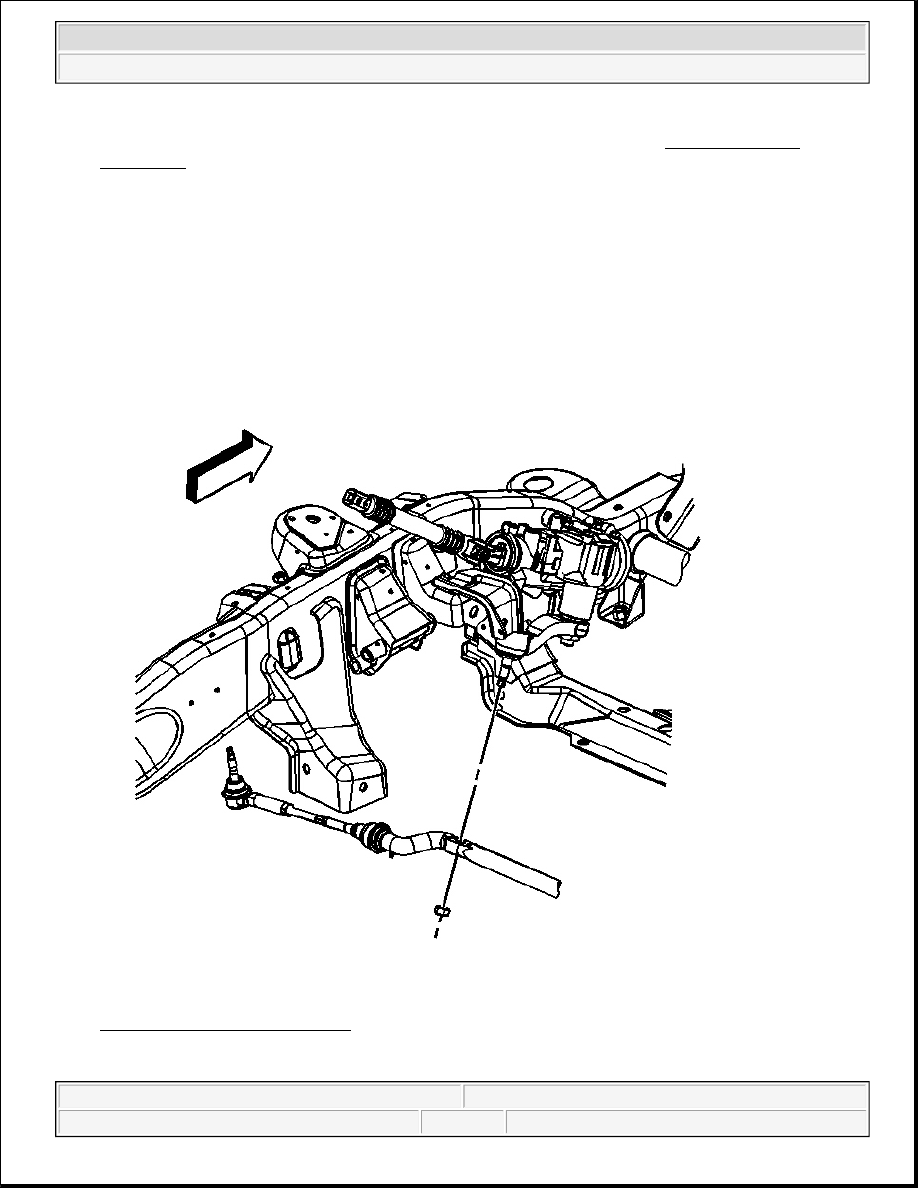

Fig. 14: Idler Arm Ball Stud Nut
Courtesy of GENERAL MOTORS CORP.



2004 Hummer H2

2004 STEERING Steering Linkage (Non-Rack & Pinion) - Hummer H2



1. Install the relay rod to the vehicle.

2. Install the relay rod to the pitman arm ball stud.

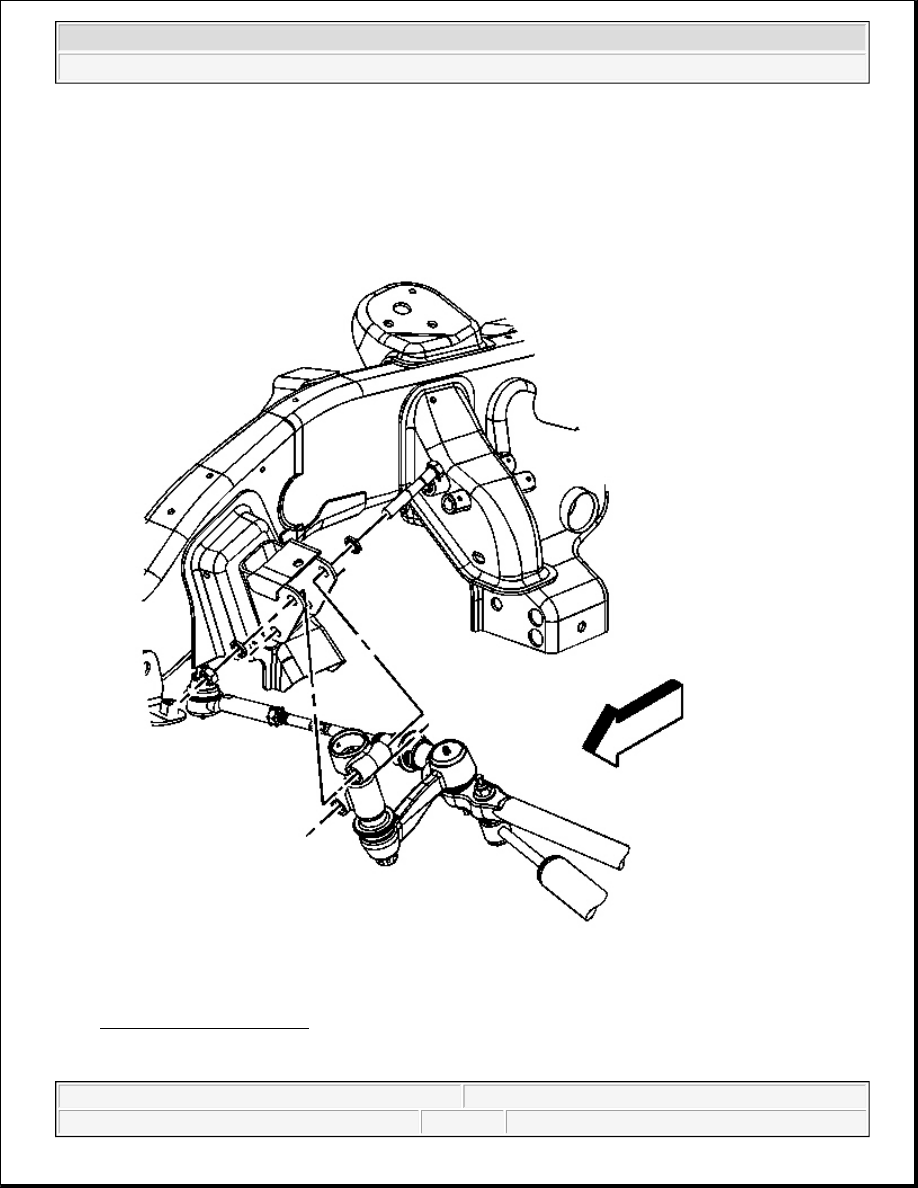

Fig. 15: View Of Idler Arm
Courtesy of GENERAL MOTORS CORP.



2004 Hummer H2

2004 STEERING Steering Linkage (Non-Rack & Pinion) - Hummer H2



3. Install the relay rod to the idler arm ball stud. Verify that the seal is seated on the stud

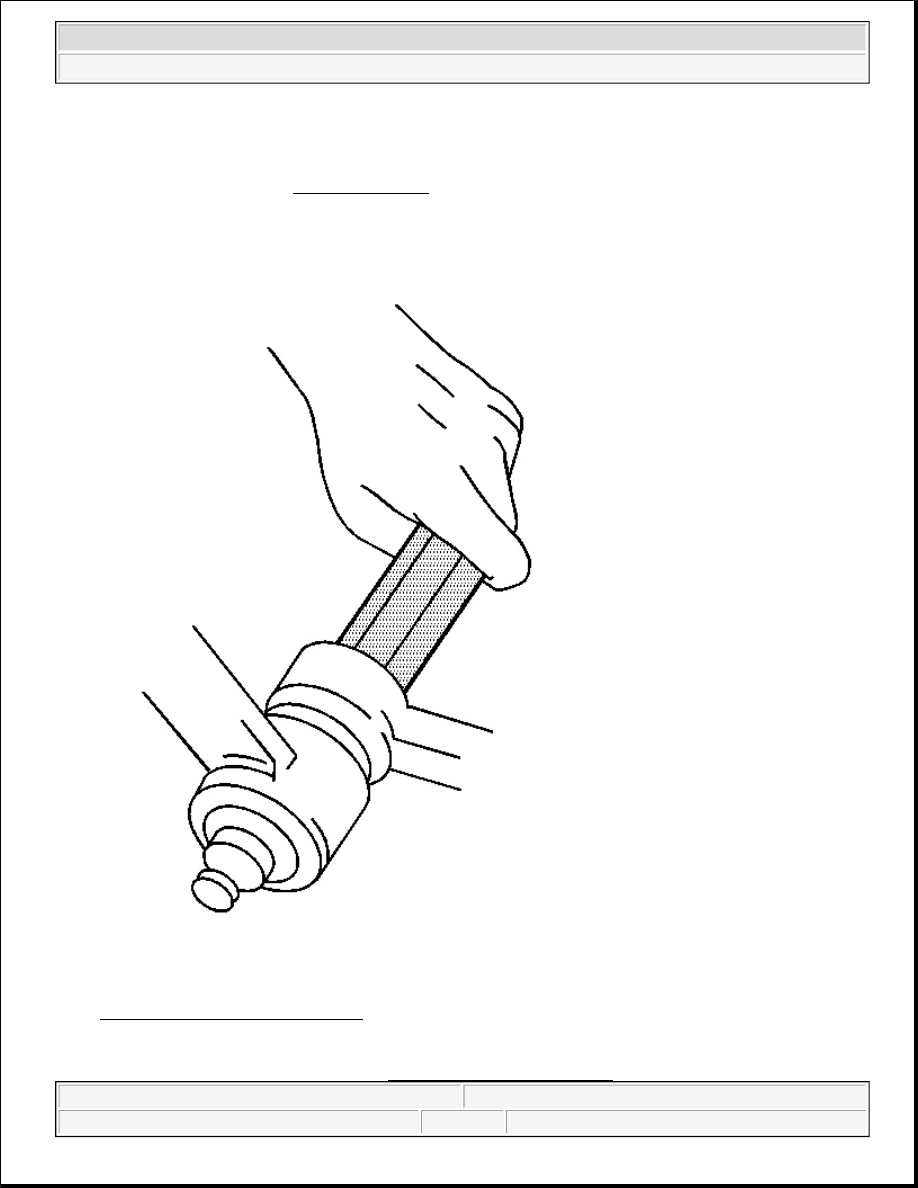

Fig. 16: Seating Relay Rod Tapers
Courtesy of GENERAL MOTORS CORP.

4. Install the J 29193 or the J 29194 . See Special Tools and Equipment .

NOTE:

Refer to Fastener Notice in Cautions and Notices.
