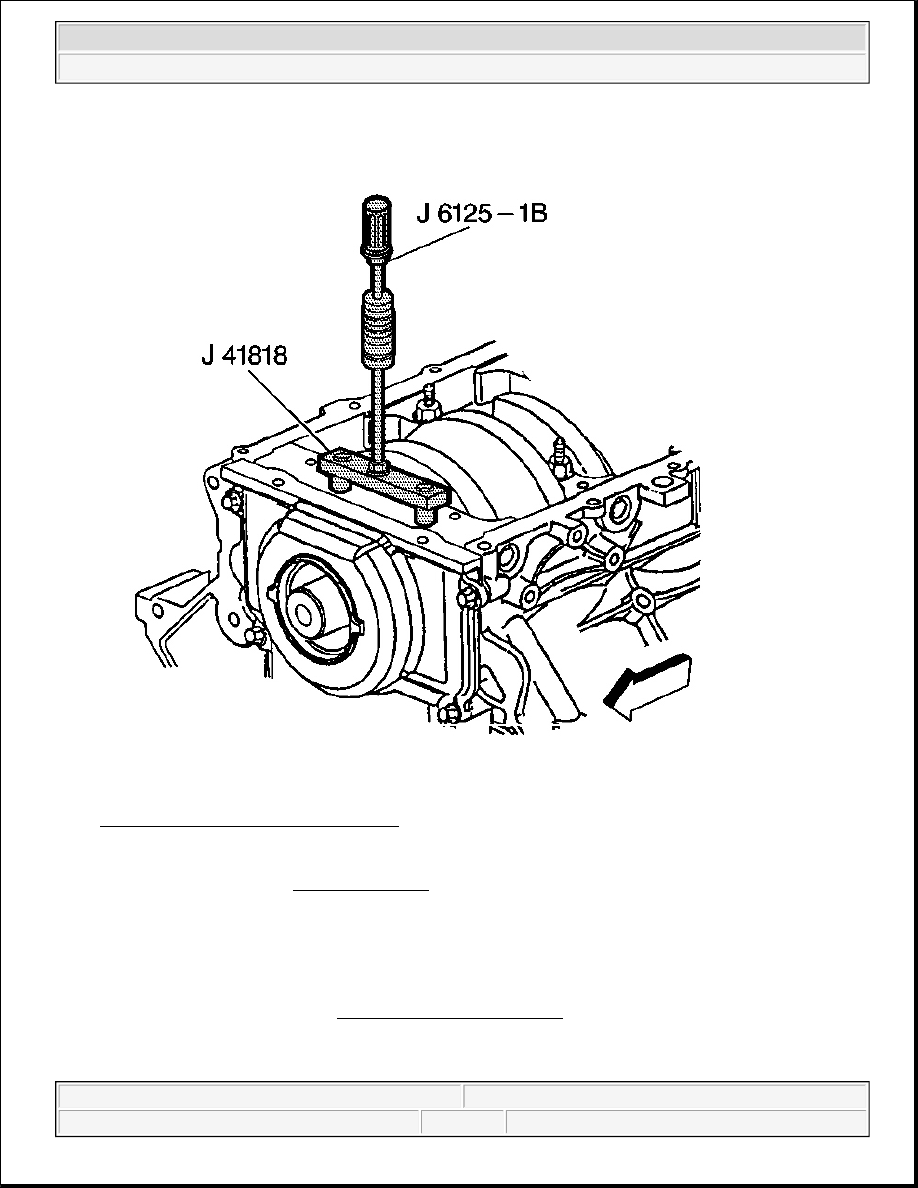

Fig. 384: View Of J 6125-1B & J 41818
Courtesy of GENERAL MOTORS CORP.

3. Install the J 41818 to the bearing cap.

Tighten: Tighten the J 41818 bolts to 11 N.m (100 lb in).

4. Install the J 6125-1B to the. See Special Tools and Equipment . J 41818 in order to remove the bearing

cap.

NOTE:

Refer to Fastener Notice in Cautions and Notices.



2004 Hummer H2

2004 ENGINE Engine Mechanical - 4.8L, 5.3L, and 6.0L - Hummer H2

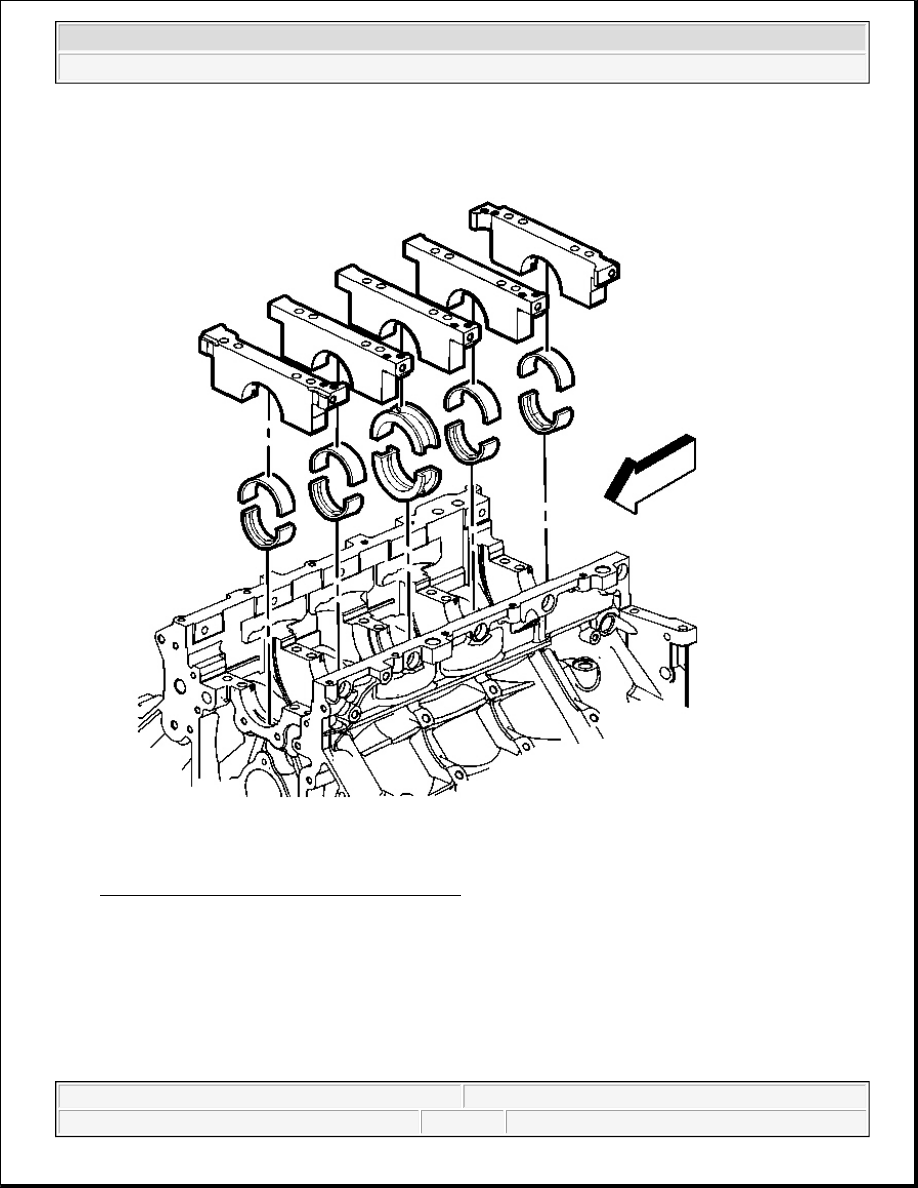

Fig. 385: Crankshaft Bearings & Bearing Caps
Courtesy of GENERAL MOTORS CORP.

5. Remove the bearing cap and lower bearing.



2004 Hummer H2

2004 ENGINE Engine Mechanical - 4.8L, 5.3L, and 6.0L - Hummer H2

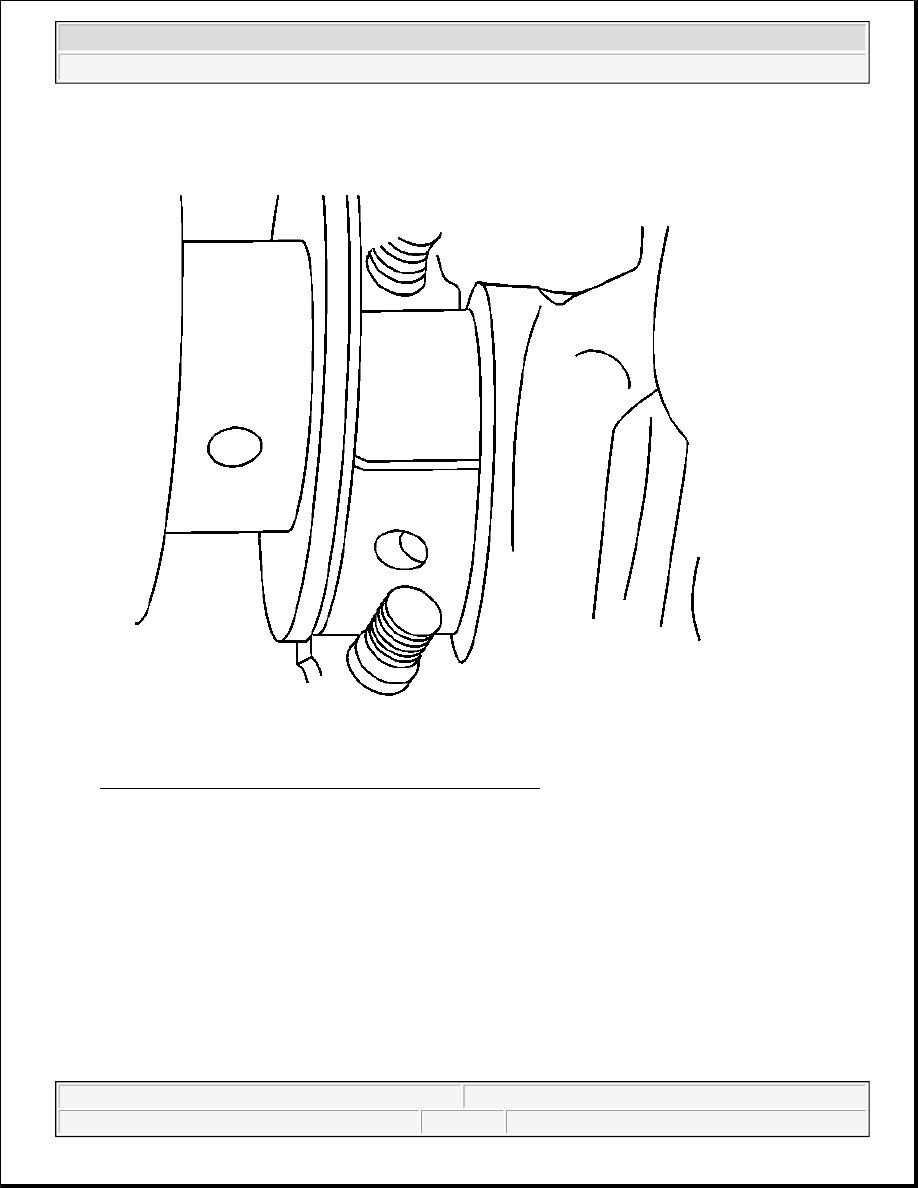

Fig. 386: Gaging Plastic Installed On Crankshaft Journal
Courtesy of GENERAL MOTORS CORP.

6. Install gaging plastic onto the crankshaft journal. Install the gaging plastic the full width of crankshaft

bearing journal.



2004 Hummer H2

2004 ENGINE Engine Mechanical - 4.8L, 5.3L, and 6.0L - Hummer H2

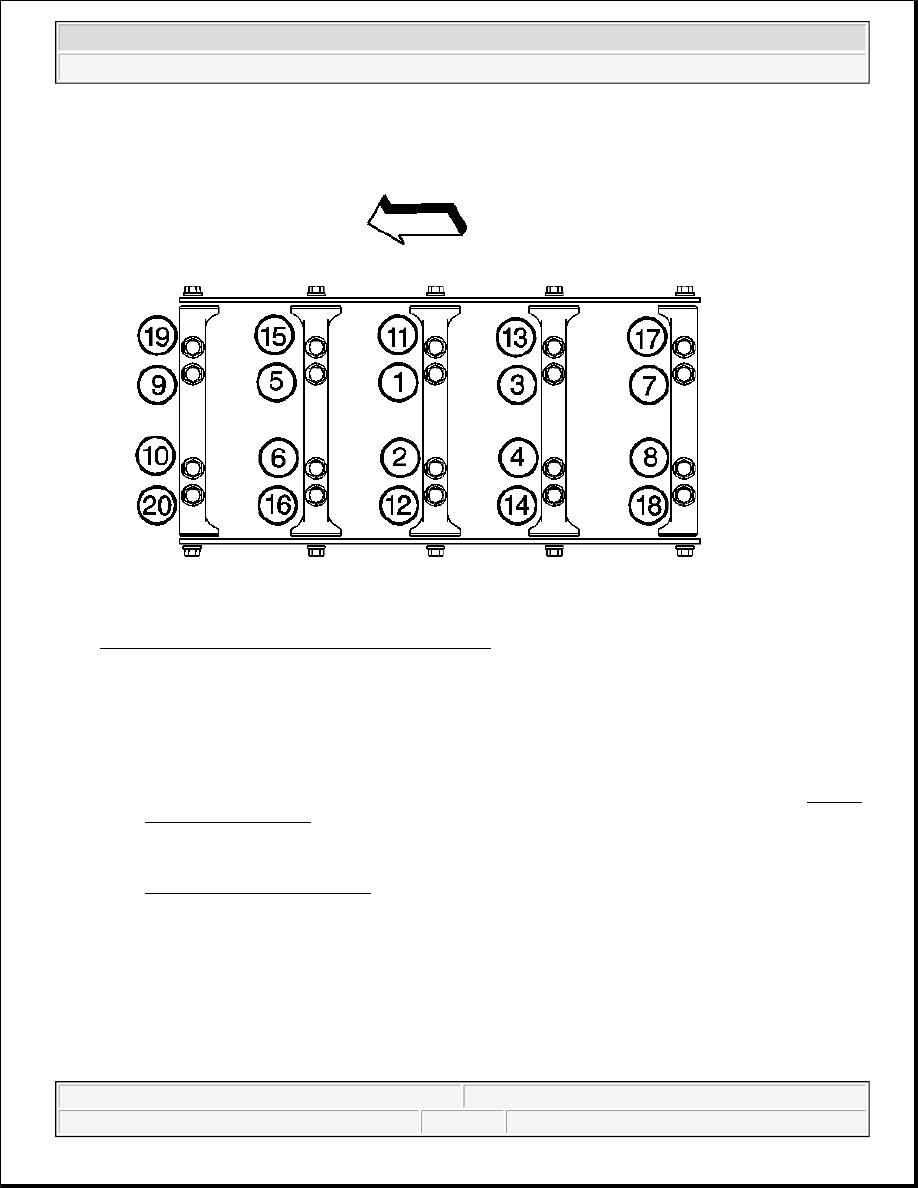

Fig. 387: Main Cap Bolt Hole Tightening Sequence
Courtesy of GENERAL MOTORS CORP.

7. Install the bearing, bearing cap, bolts and bolt/studs.

Tighten:

1. Tighten the M10 bolts (1-10) a first pass in sequence to 20 N.m (15 lb ft).

2. Tighten the M10 bolts (1-10) a final pass in sequence to 80 degrees using the J 45059 . See Special

Tools and Equipment .

3. Tighten the M10 studs (11-20) a first pass in sequence to 20 N.m (15 lb ft).

4. Tighten the M10 studs (11-20) a final pass in sequence to 53 degrees using the J 45059 . See

Special Tools and Equipment .

5. Tighten the M8 bolts to 25 N.m (18 lb ft).

Tighten the bolt on one side of the bearing cap and then tighten the bolt on the opposite side of the
same bearing cap.
