2004 ACCESSORIES & EQUIPMENT

Theft Deterrent - Hummer H2

SCHEMATIC AND ROUTING DIAGRAMS

THEFT DETERRENT SYSTEM SCHEMATICS

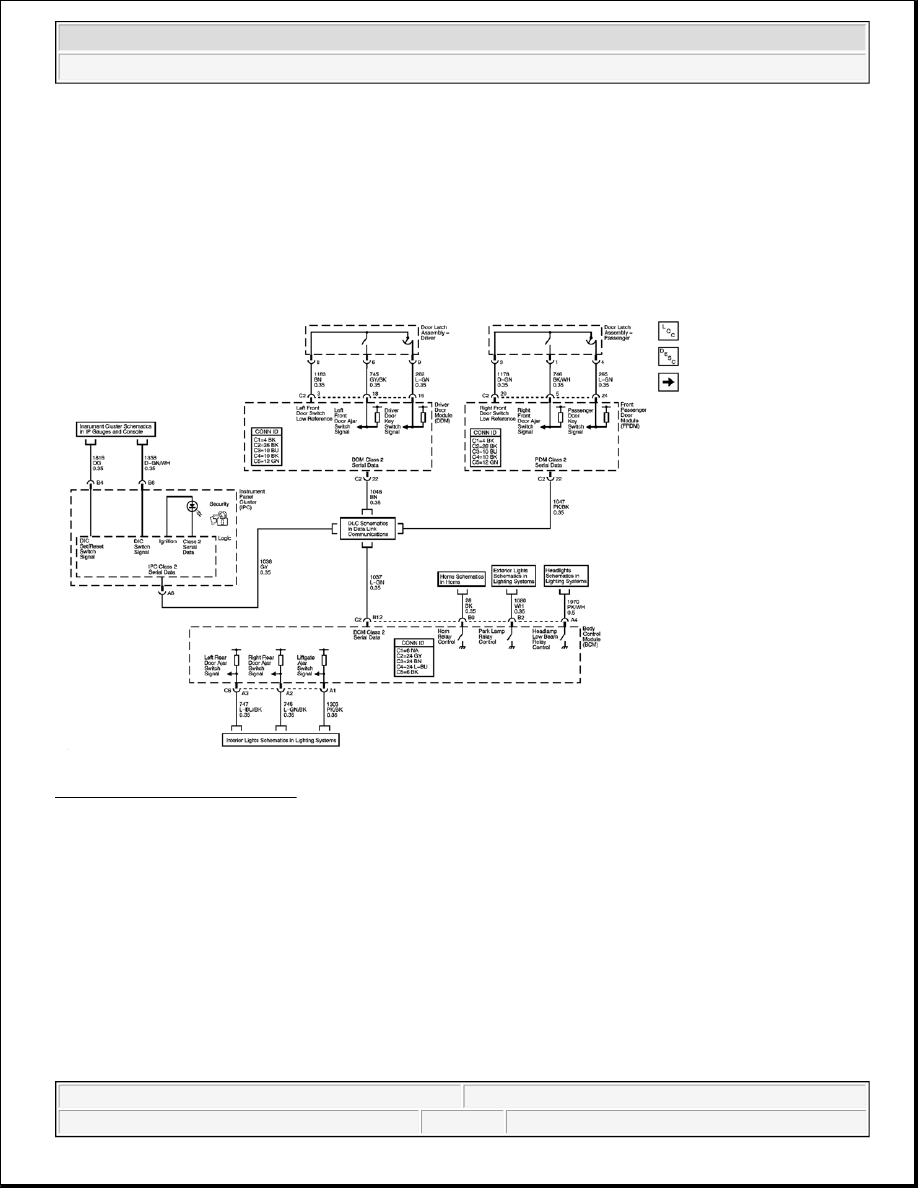

Fig. 1: Content Theft Deterrent
Courtesy of GENERAL MOTORS CORP.



2004 Hummer H2

2004 ACCESSORIES & EQUIPMENT Theft Deterrent - Hummer H2





2004 Hummer H2

2004 ACCESSORIES & EQUIPMENT Theft Deterrent - Hummer H2

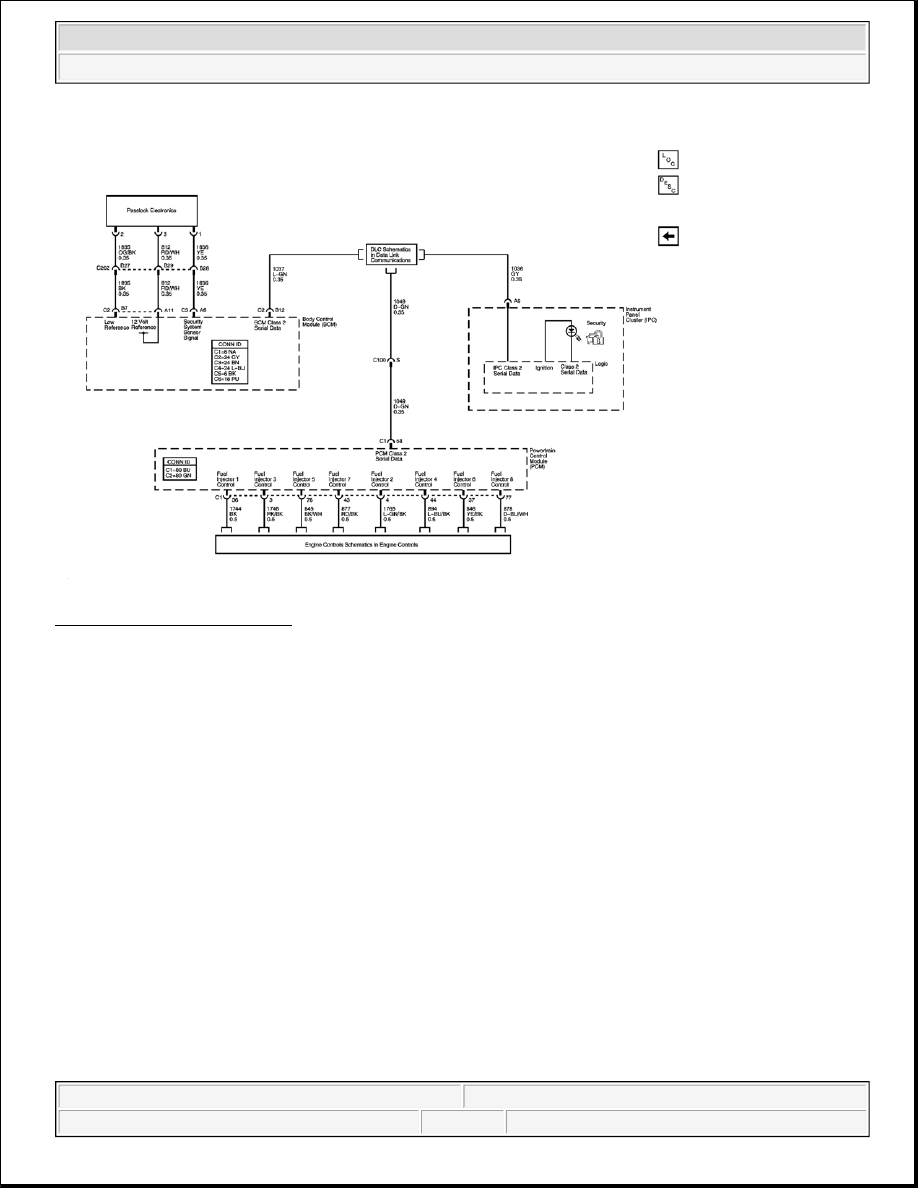

Fig. 2: Vehicle Theft Deterrent
Courtesy of GENERAL MOTORS CORP.

COMPONENT LOCATOR

THEFT DETERRENT SYSTEM COMPONENT VIEWS



2004 Hummer H2

2004 ACCESSORIES & EQUIPMENT Theft Deterrent - Hummer H2



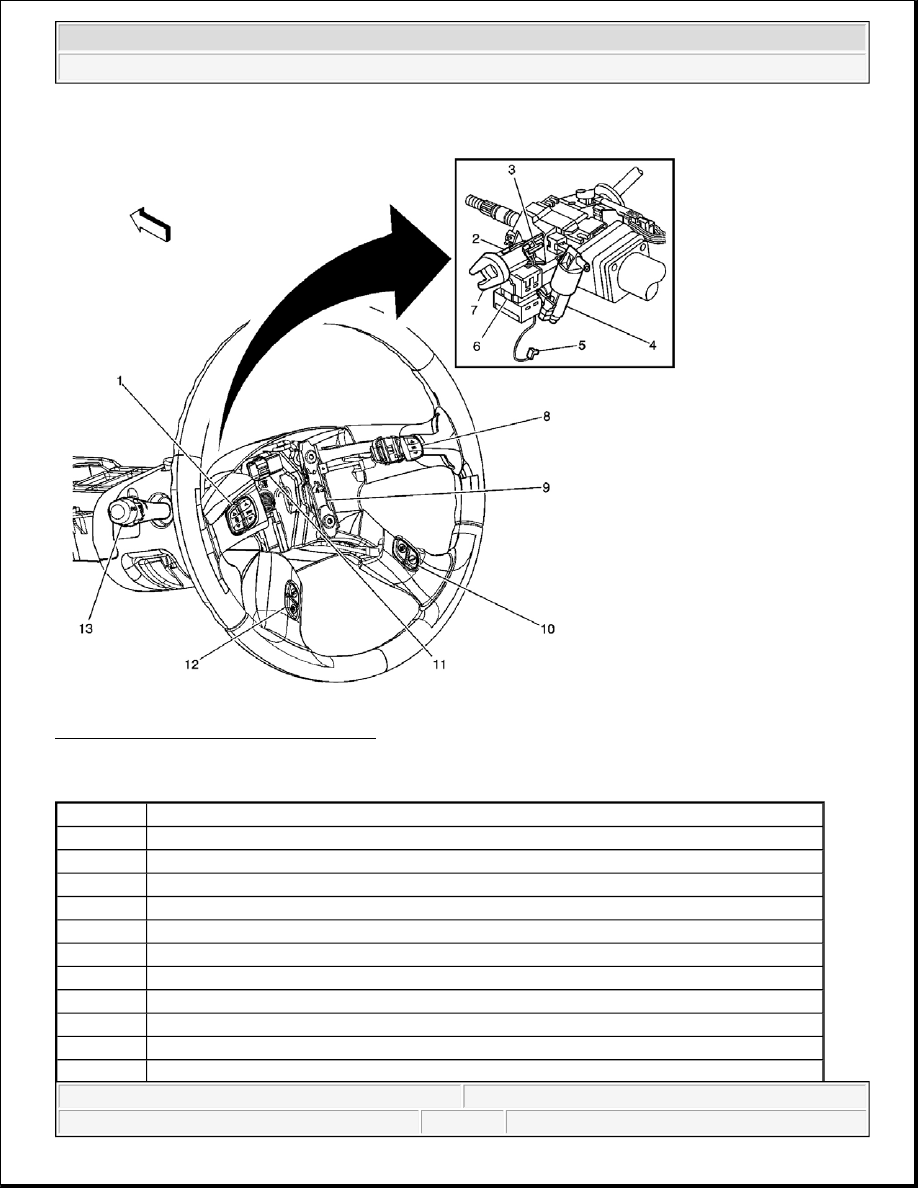

Fig. 3: Passlock Sensor Component Views
Courtesy of GENERAL MOTORS CORP.

Callouts For Fig. 3

Callout

Component Name

1

Steering Wheel Audio Controls - Left

2

Passlock Sensor Connector

3

Ignition Key Alarm Switch

4

Ignition Lock Cylinder Control Actuator

5

Ignition Lock Cylinder Control Actuator Connector

6

Ignition Switch

7

Ignition Key Cylinder

8

Steering Wheel Audio Controls - Right

9

Horn Switch

10

Steering Wheel Driver Information (DIC) Controls - Right

11

C277



2004 Hummer H2

2004 ACCESSORIES & EQUIPMENT Theft Deterrent - Hummer H2



THEFT DETERRENT SYSTEM CONNECTOR END VIEWS

Passlock Terminal Identification Sensor

DIAGNOSTIC INFORMATION AND PROCEDURES

DIAGNOSTIC STARTING POINT - THEFT DETERRENT

Begin the system diagnosis with the Diagnostic System Check - Theft Deterrent . The Diagnostic System
Check will provide the following information:

z

The identification of the control module(s) which command the system

z

The ability of the control module(s) to communicate through the serial data circuit

z

The identification of any stored diagnostic trouble codes (DTCs) and their status

The use of the Diagnostic System Check will identify the correct procedure for diagnosing the system and
where the procedure is located.

DIAGNOSTIC SYSTEM CHECK - THEFT DETERRENT

12

Steering Wheel Driver Information Center (DIC) Controls - Left

13

Turn Signal/Multifunction Switch

Connector Part Information

z

50579403

z

3-Way F Molex 70066 Series (BK)

Pin

Wire Color

Circuit No.

Function

1

YE

1836

Magnetic Rotation Detection Sensor - Signal

2

OG/BK

1835

Magnetic Rotation Detection Sensor - Return

3

RD/WH

812

12 Volt Reference
