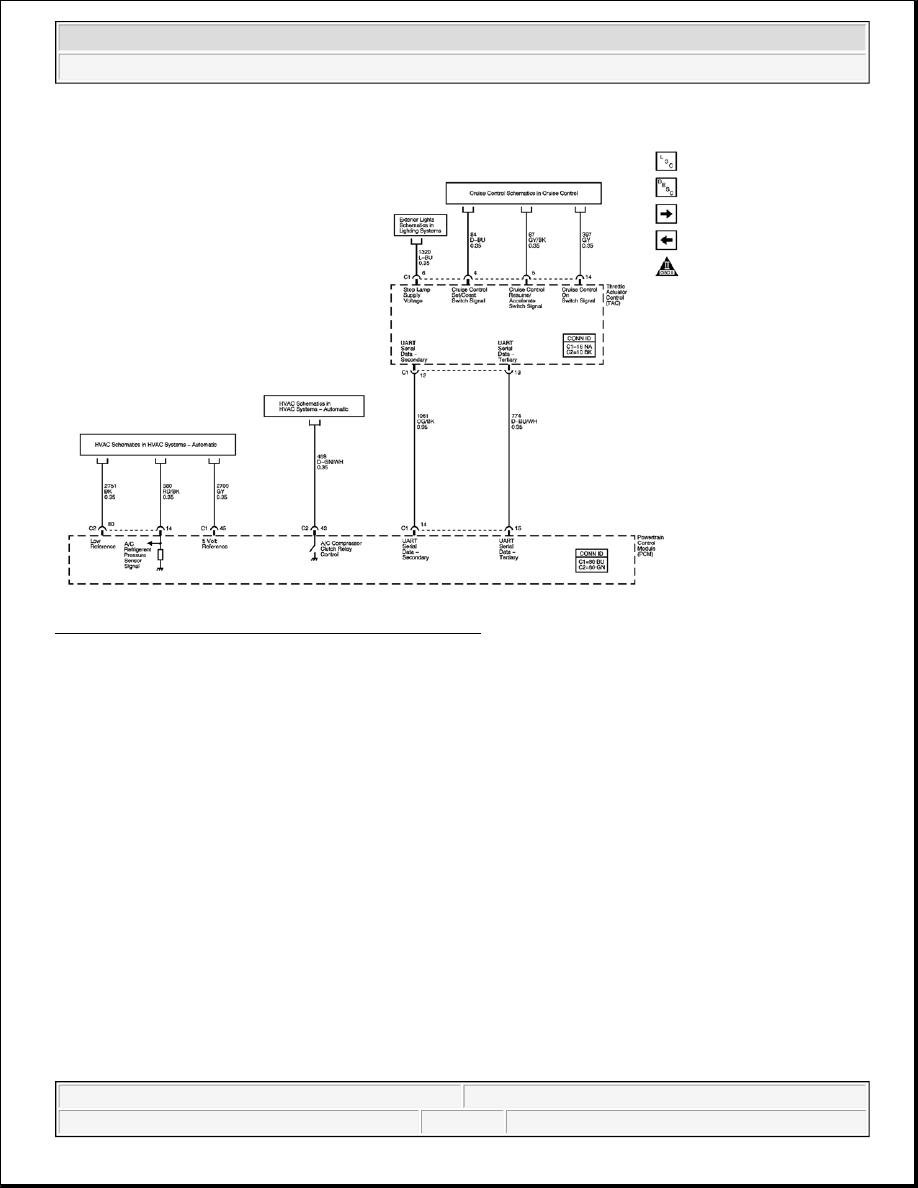

Fig. 16: HVAC and Cruise Control Circuits Schematics
Courtesy of GENERAL MOTORS CORP.



2004 Hummer H2

2004 ENGINE PERFORMANCE Engine Controls (Introduction) - 4.8L, 5.3L, and 6.0L - Hummer H2

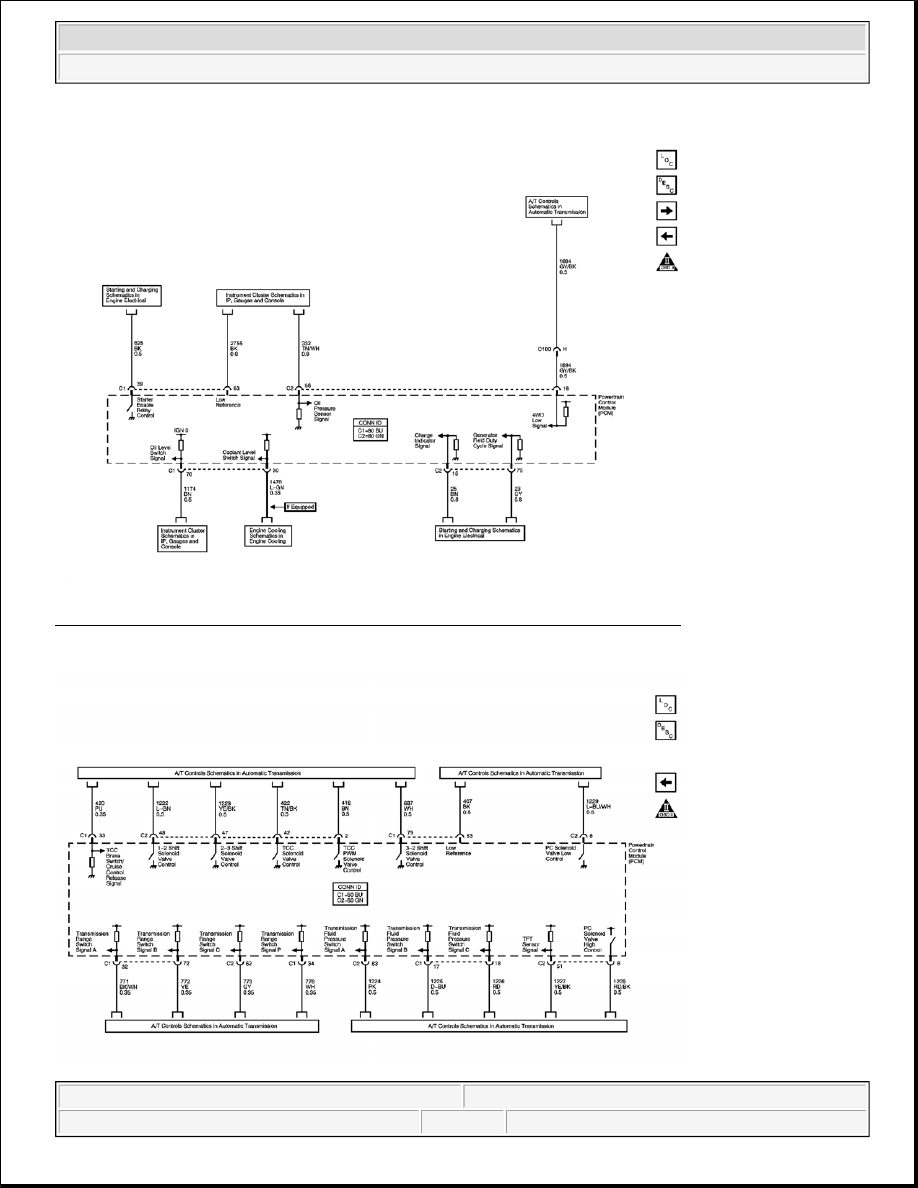

Fig. 17: Starter, Generator Oil Level and Pressure, and 4WD Circuits Schematics
Courtesy of GENERAL MOTORS CORP.

Fig. 18: Automatic Transmission Circuits Schematics



2004 Hummer H2

2004 ENGINE PERFORMANCE Engine Controls (Introduction) - 4.8L, 5.3L, and 6.0L - Hummer H2



Courtesy of GENERAL MOTORS CORP.

COMPONENT LOCATOR

ENGINE CONTROLS COMPONENT VIEWS

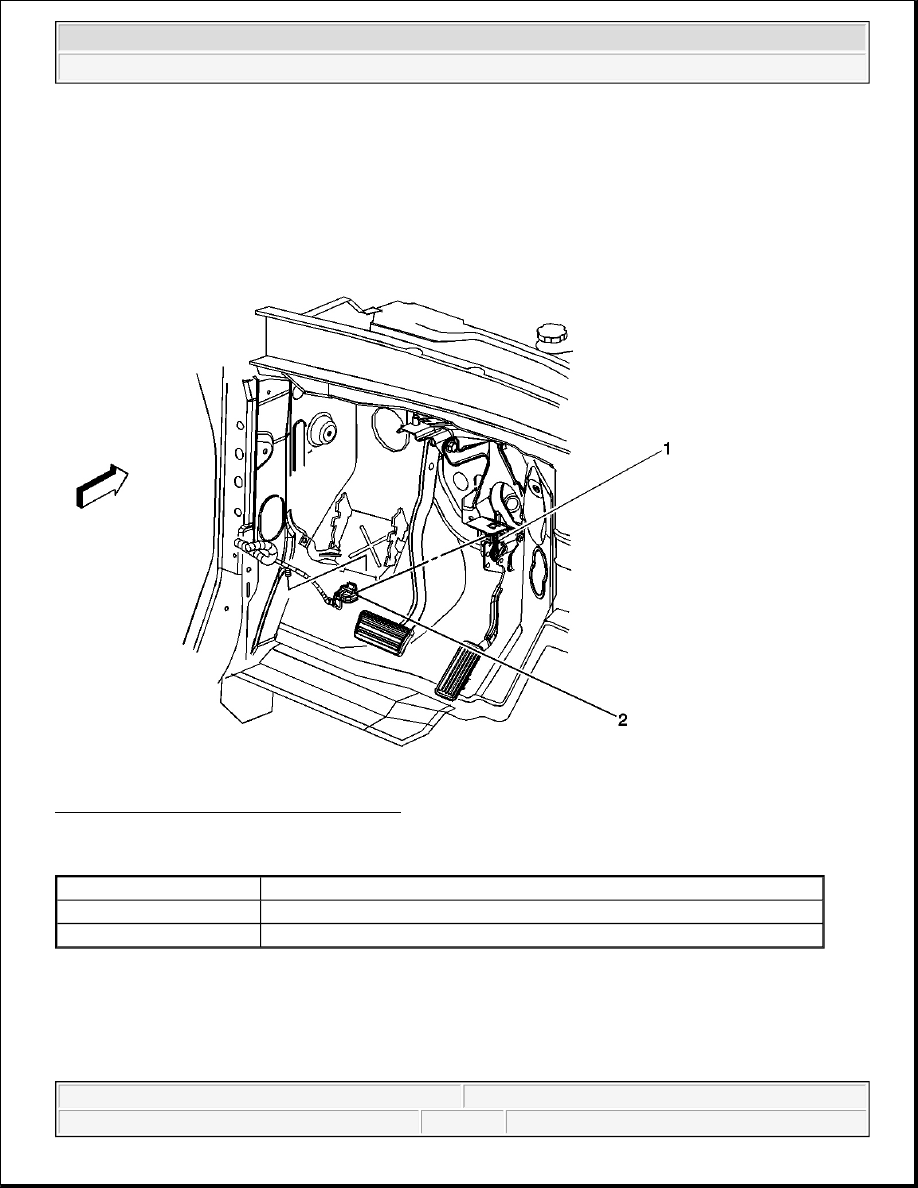

Fig. 19: Lower Left Of I/P Component Views
Courtesy of GENERAL MOTORS CORP.

Callouts For Fig. 19

Callout

Component Name

1

APP Sensor

2

APP Sensor Connector



2004 Hummer H2

2004 ENGINE PERFORMANCE Engine Controls (Introduction) - 4.8L, 5.3L, and 6.0L - Hummer H2



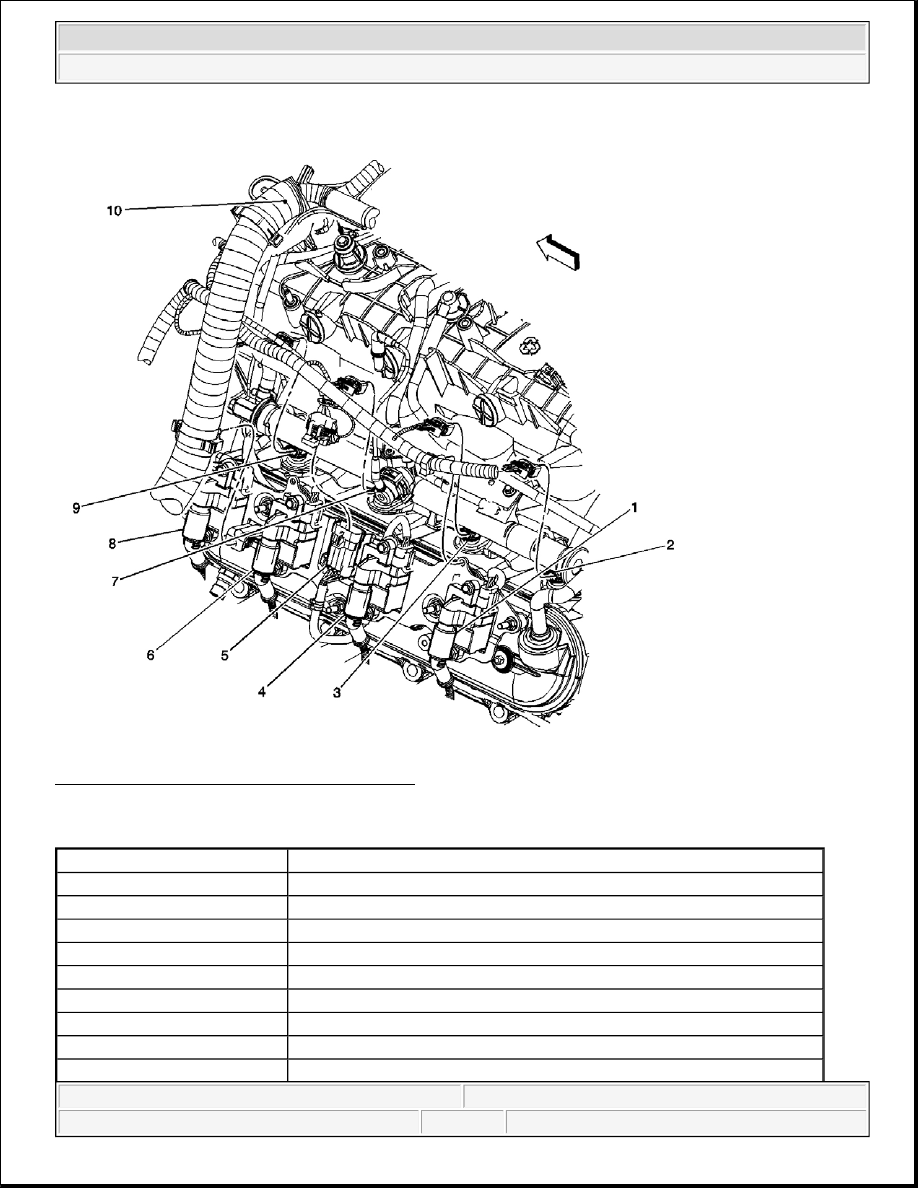

Fig. 20: Left Side Of Engine Component Views
Courtesy of GENERAL MOTORS CORP.

Callouts For Fig. 20

Callout

Component Name

1

Ignition Coil 7

2

Fuel Injector 7

3

Fuel Injector 5

4

Ignition Coil 5

5

Inline C148

6

Ignition Coil 3

7

Fuel Injector 3

8

Ignition Coil 1

9

Fuel Injector 1



2004 Hummer H2

2004 ENGINE PERFORMANCE Engine Controls (Introduction) - 4.8L, 5.3L, and 6.0L - Hummer H2
