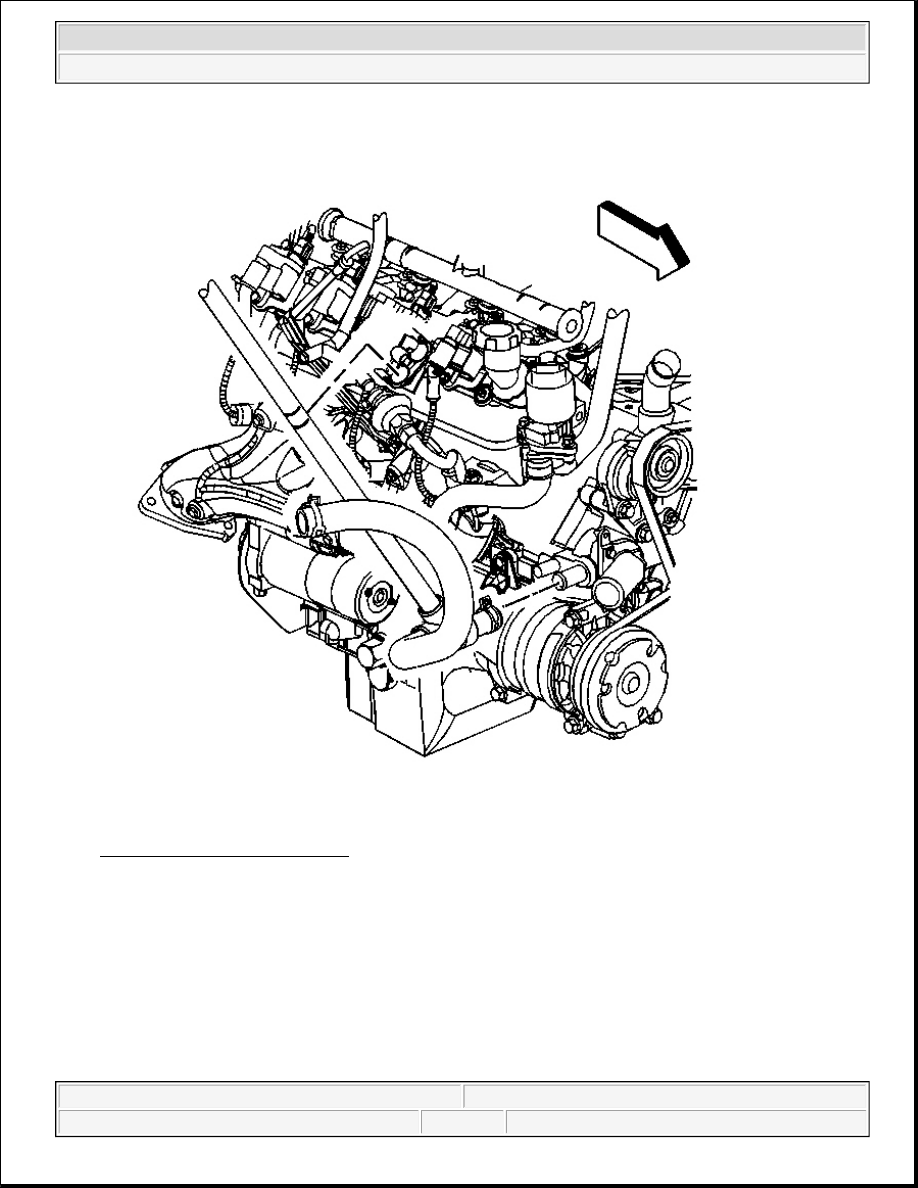

Fig. 81: Surge Tank Outlet Hose
Courtesy of GENERAL MOTORS CORP.

5. Install the surge tank outlet hose to the water pump.

6. Position the surge tank outlet hose clamp at the water pump.



2004 Hummer H2

2004 ENGINE Engine Cooling - Hummer H2



Fig. 82: Outlet Hose & Water Pump (4.8, 5.3, & 6.0L)
Courtesy of GENERAL MOTORS CORP.

7. Install the outlet hose to the water pump.

8. Position the outlet hose clamp at the water pump.

9. Install the accessory drive belt. Refer to Drive Belt Replacement - Accessory in Engine Mechanical -

6.0L (LQ4).

10. Install the fan blade. Refer to Fan Replacement .



2004 Hummer H2

2004 ENGINE Engine Cooling - Hummer H2

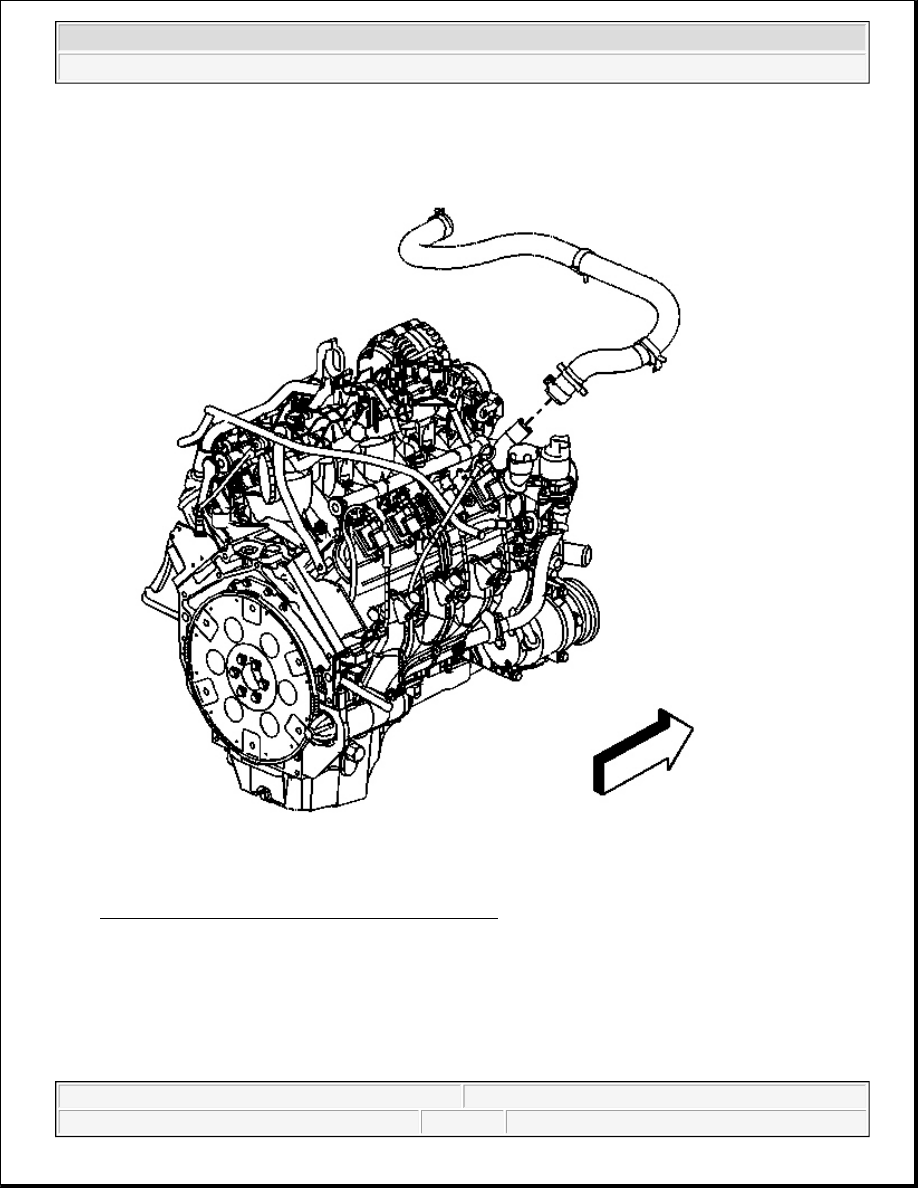

Fig. 83: Inlet Hose & Water Pump (4.8, 5.3, & 6.0L)
Courtesy of GENERAL MOTORS CORP.

11. Install the inlet hose to the water pump.

12. Position the inlet hose clamp at the water pump.



2004 Hummer H2

2004 ENGINE Engine Cooling - Hummer H2

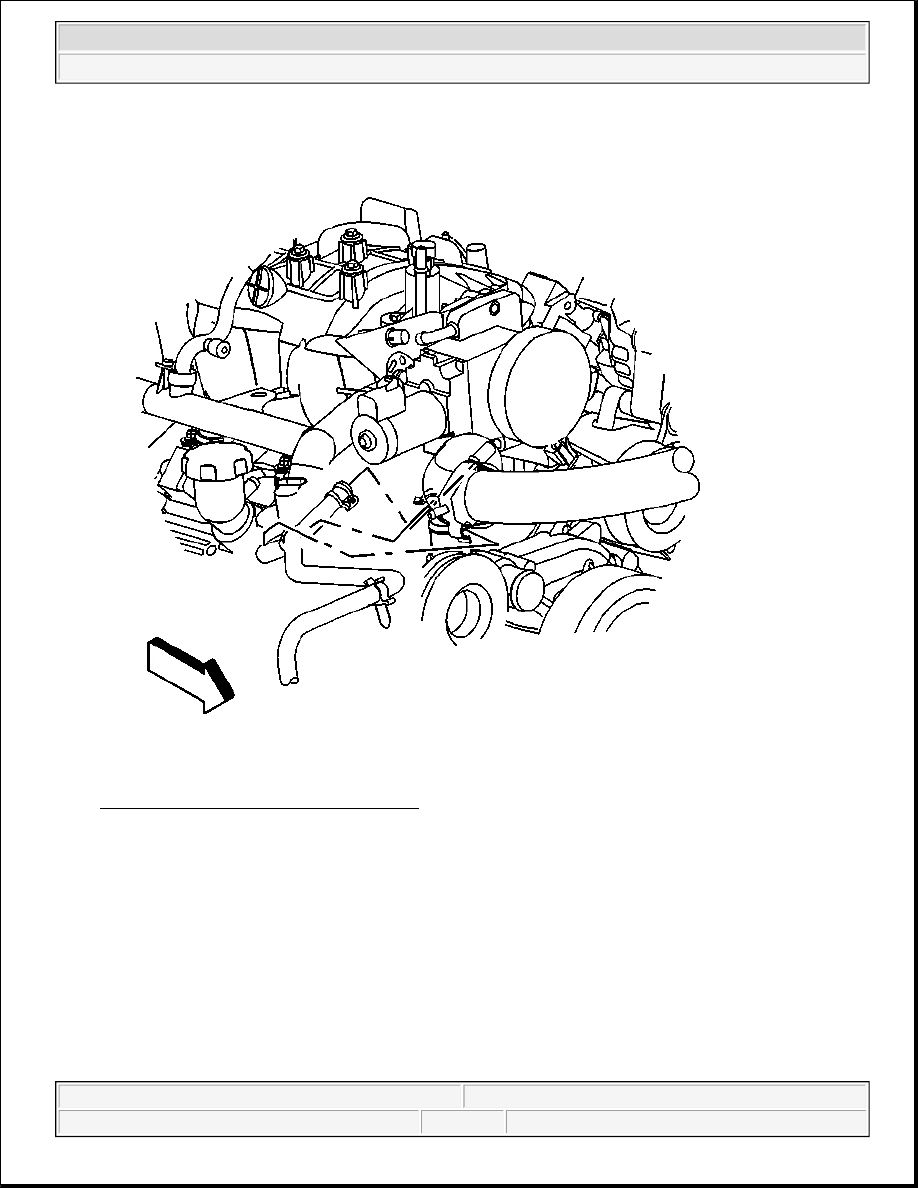

Fig. 84: Vent Inlet Hose At Throttle Body
Courtesy of GENERAL MOTORS CORP.

13. Install the engine vent inlet hose to the radiator hose clips.
