Hummer H2. Manual - part 1293

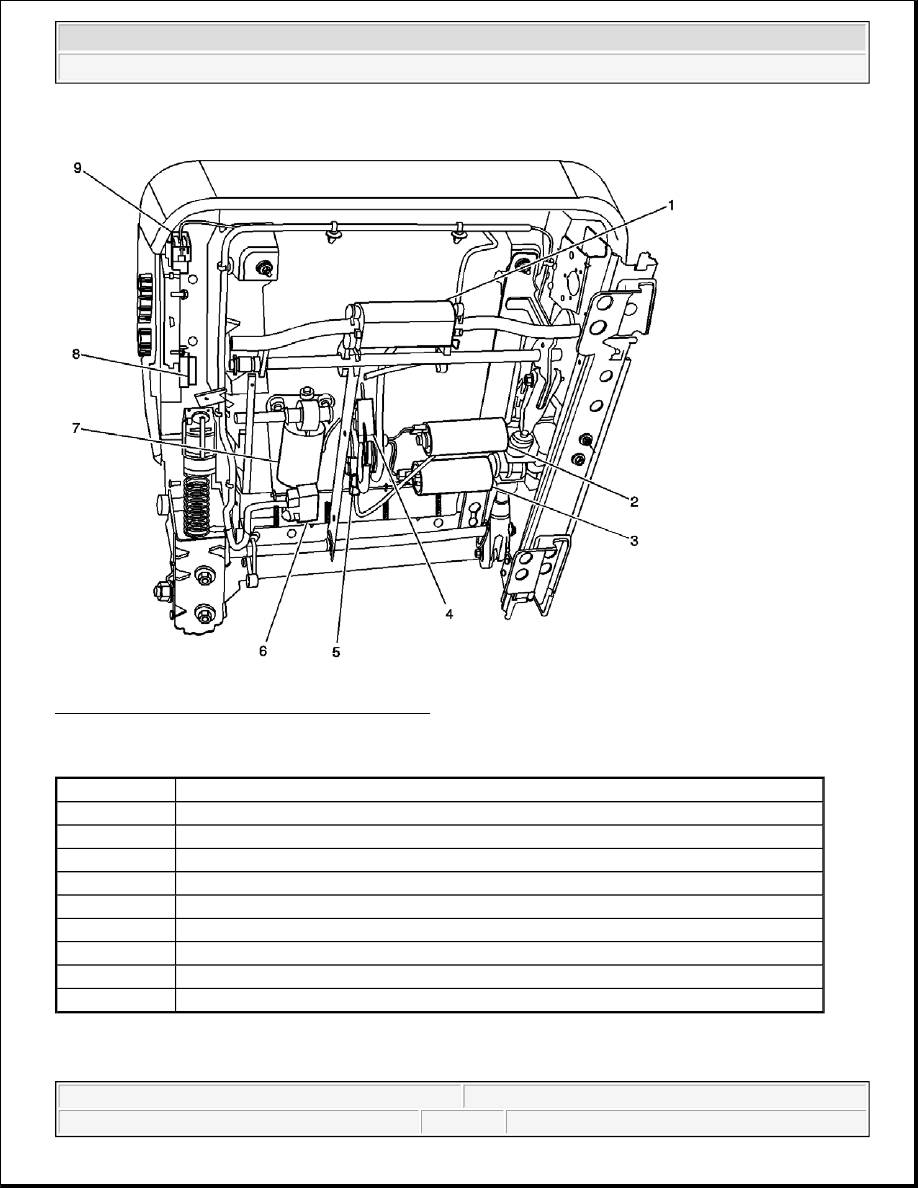

Fig. 95: C375, C376 and C377 Component Views
Courtesy of GENERAL MOTORS CORP.

Callouts For Fig. 95

Callout

Component Name

1

Seat Horizontal Motor - Front Passenger

2

Seat Front Vertical Motor - Front Passenger

3

Seat Rear Vertical Motor - Front Passenger

4

C376

5

C377

6

C375

7

Seat Recline Motor - Front Passenger

8

Seat Bolster/Lumbar Switch - Front Passenger

9

Seat Adjuster Switch - Front Passenger



2004 Hummer H2

2004 ACCESSORIES & EQUIPMENT Wiring Systems - Hummer H2



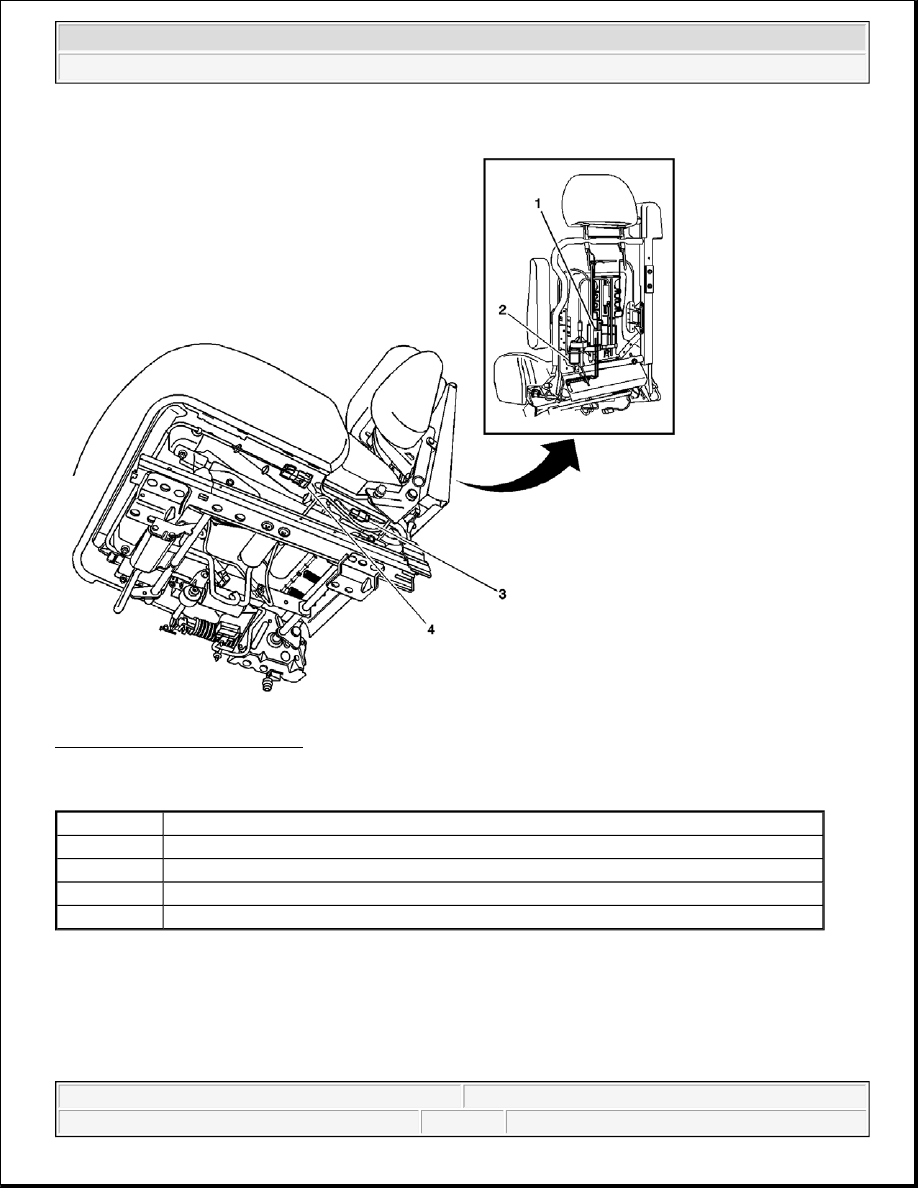

Fig. 96: C378 Component Views
Courtesy of GENERAL MOTORS CORP.

Callouts For Fig. 96

Callout

Component Name

1

Seat Bolster Motor - Passenger

2

Seat Lumbar Motor - Passenger

3

Heated Seat Element - Passenger Cushion Connector

4

C378



2004 Hummer H2

2004 ACCESSORIES & EQUIPMENT Wiring Systems - Hummer H2



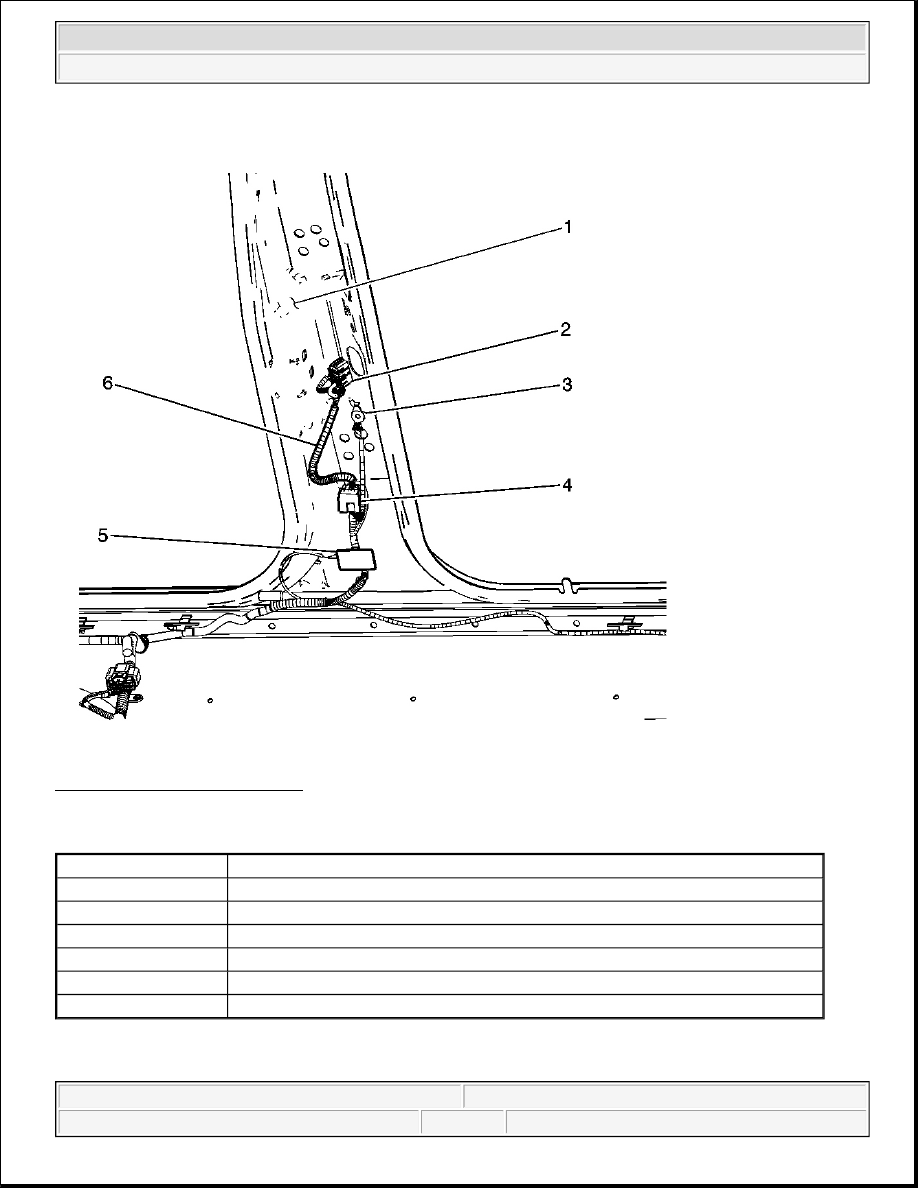

Fig. 97: C390 Component Views
Courtesy of GENERAL MOTORS CORP.

Callouts For Fig. 97

Callout

Component Name

1

RH B Pillar

2

C390

3

G306

4

Liftgate Relay

5

Courtesy Lamp - RH B Pillar

6

Body Harness



2004 Hummer H2

2004 ACCESSORIES & EQUIPMENT Wiring Systems - Hummer H2



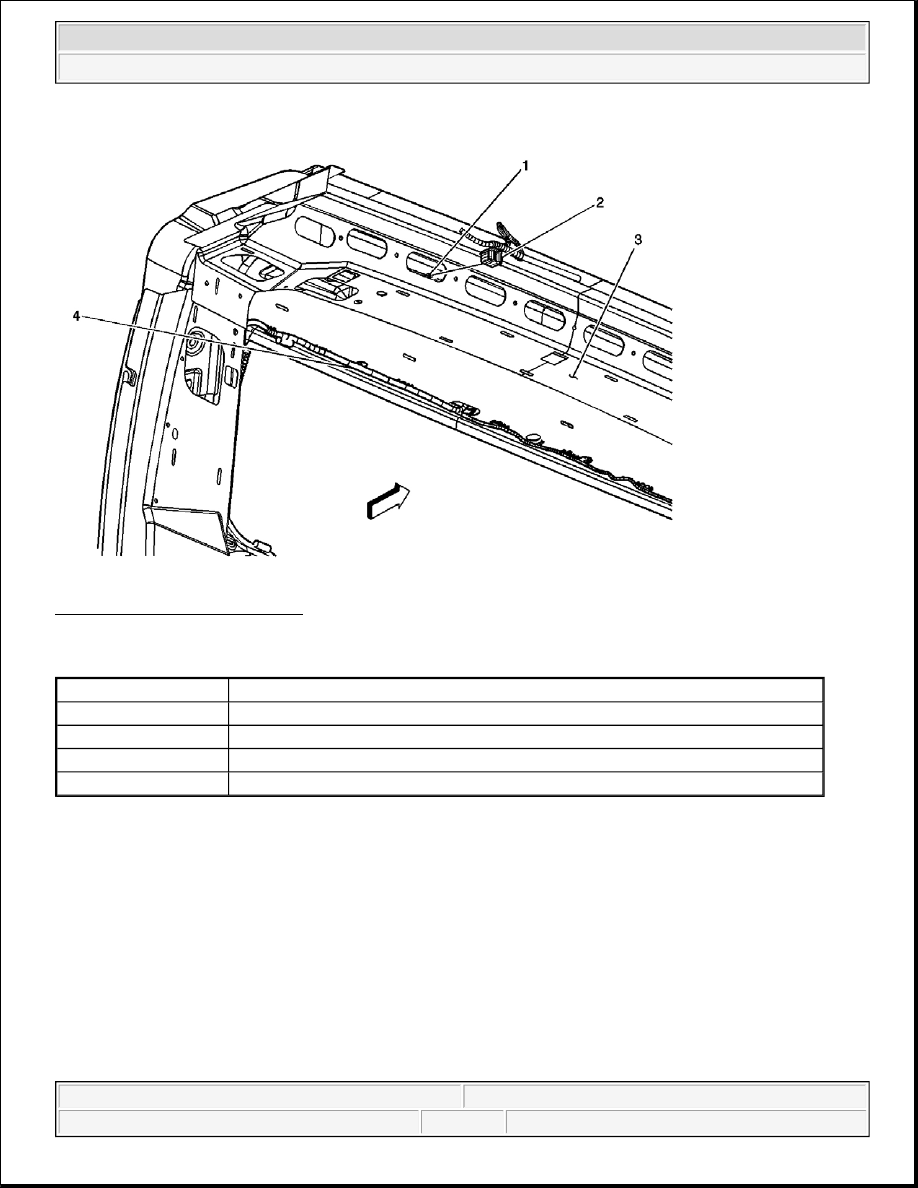

Fig. 98: C420 Component Views
Courtesy of GENERAL MOTORS CORP.

Callouts For Fig. 98

Callout

Component Name

1

C420 - Liftgate Harness Side

2

C420 - Body Harness Side

3

Liftgate

4

Liftgate Harness



2004 Hummer H2

2004 ACCESSORIES & EQUIPMENT Wiring Systems - Hummer H2
