Hummer H2. Manual - part 1078

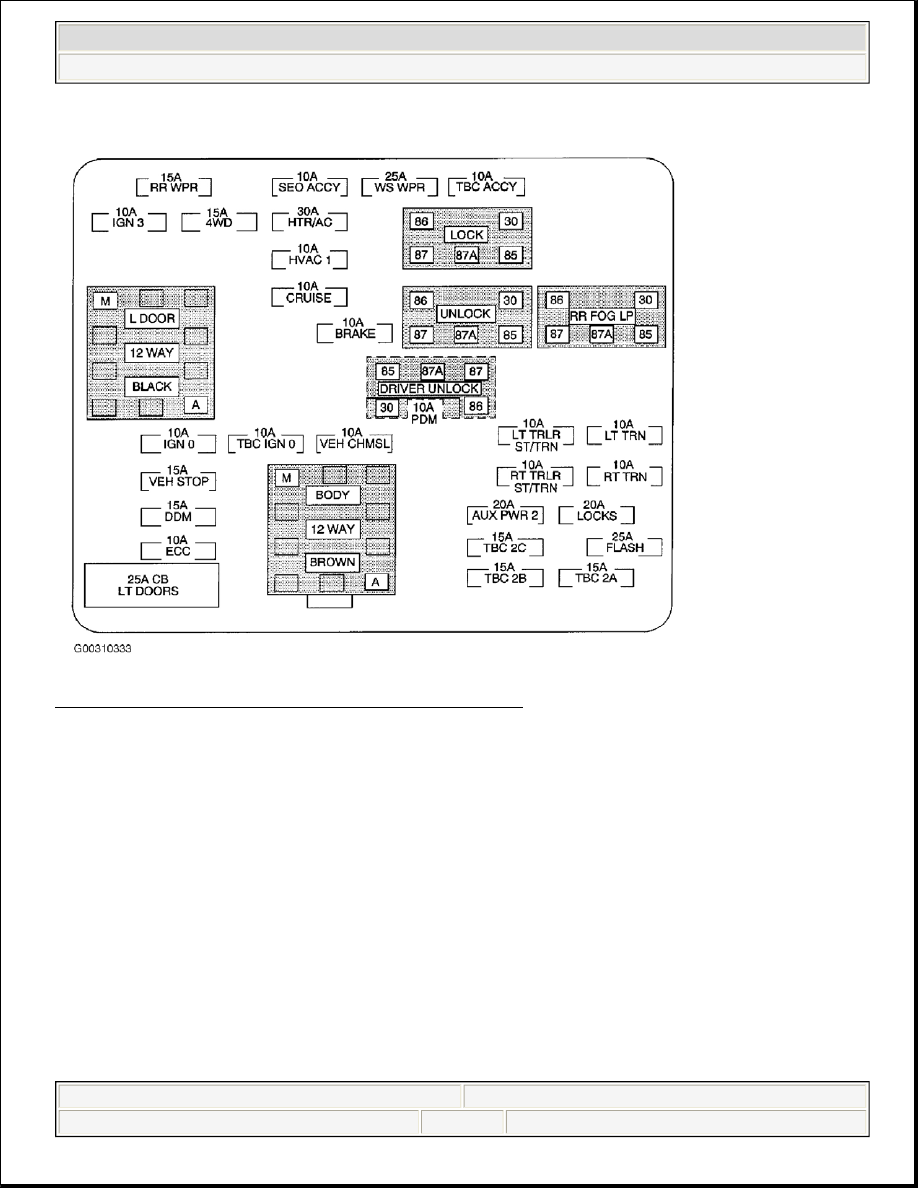

Fig. 3: Identifying Instrument Panel Fuse Block Components
Courtesy of GENERAL MOTORS CORP.



2004 Hummer H2

2003-04 ELECTRICAL Fuses & Circuit Breakers - H2

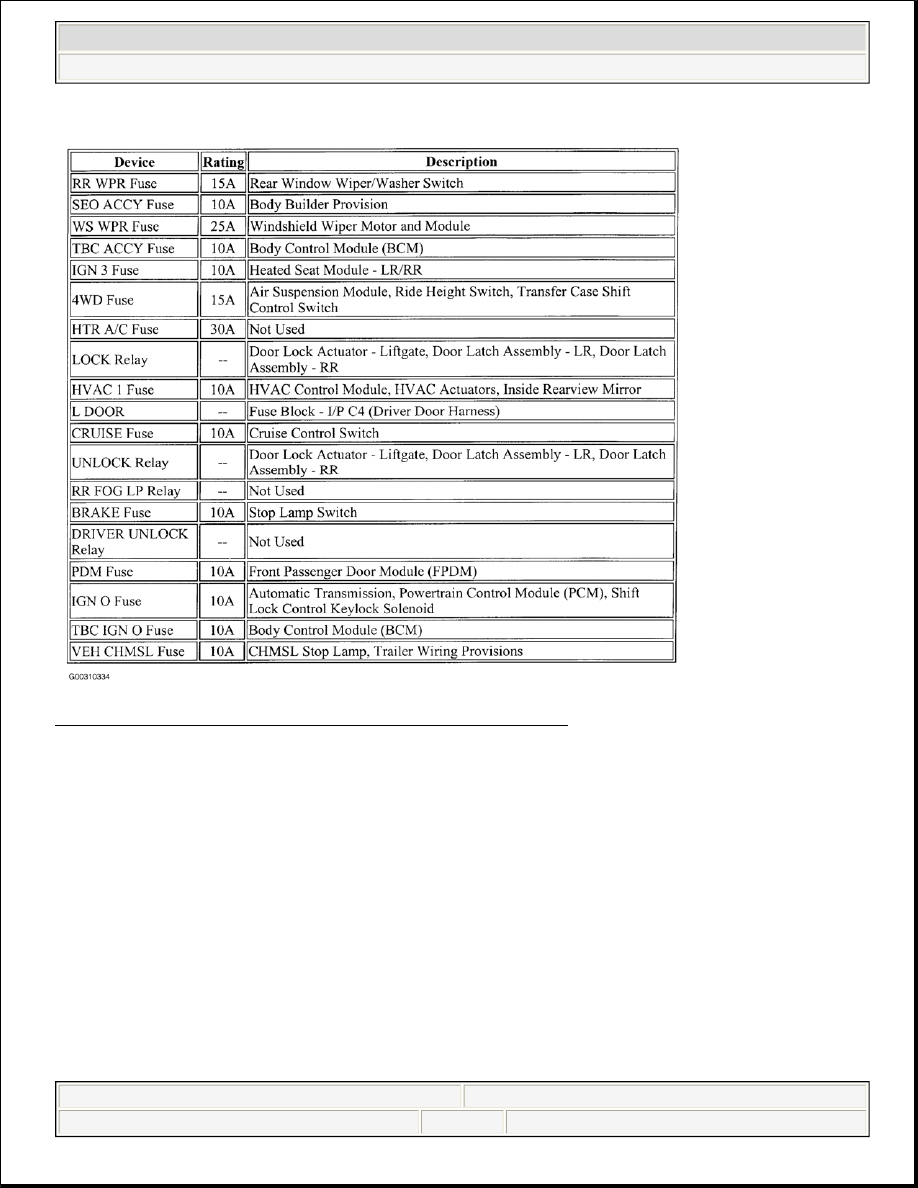

Fig. 4: Instrument Panel Fuse Block Legend - 1 Of 2 (2003 & 2004)
Courtesy of GENERAL MOTORS CORP.



2004 Hummer H2

2003-04 ELECTRICAL Fuses & Circuit Breakers - H2

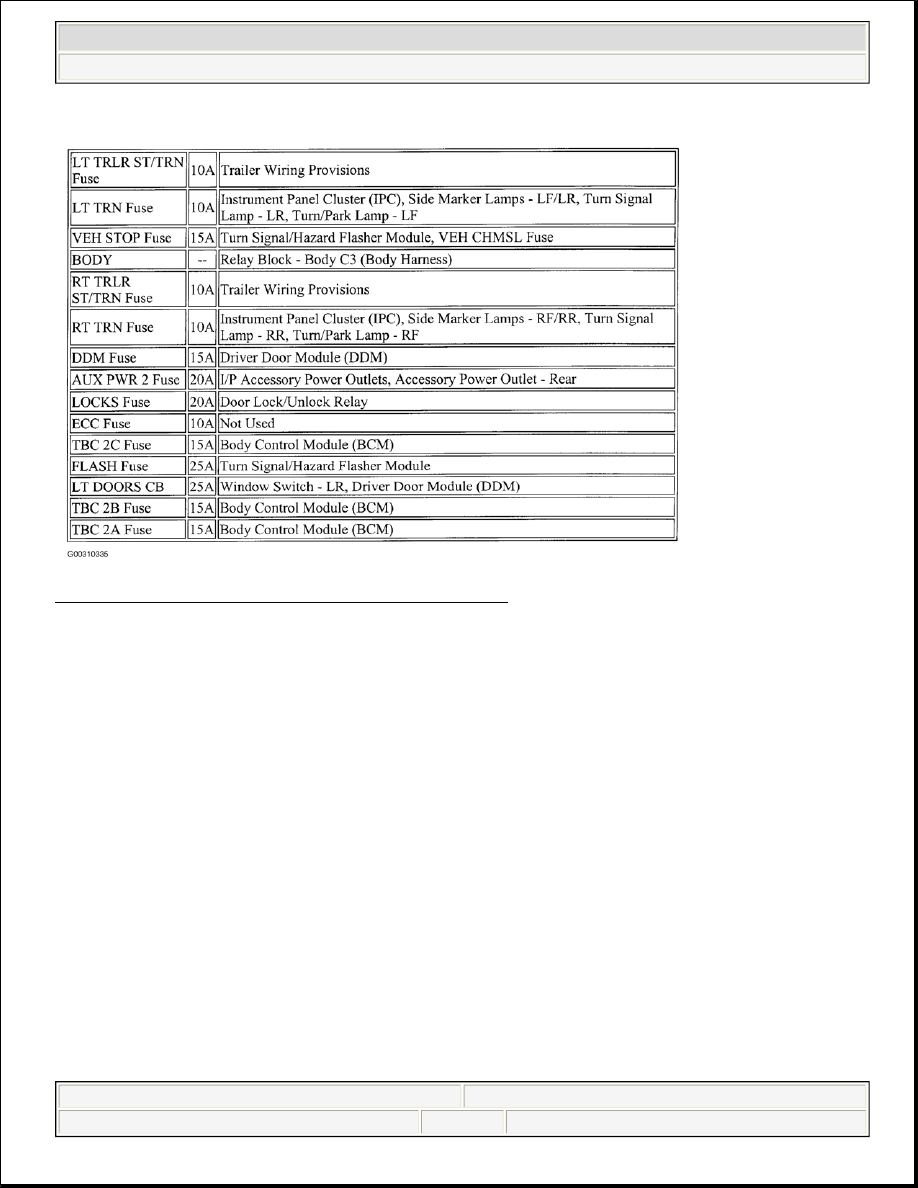

Fig. 5: Instrument Panel Fuse Block Legend - 2 Of 2 (2003)
Courtesy of GENERAL MOTORS CORP.



2004 Hummer H2

2003-04 ELECTRICAL Fuses & Circuit Breakers - H2

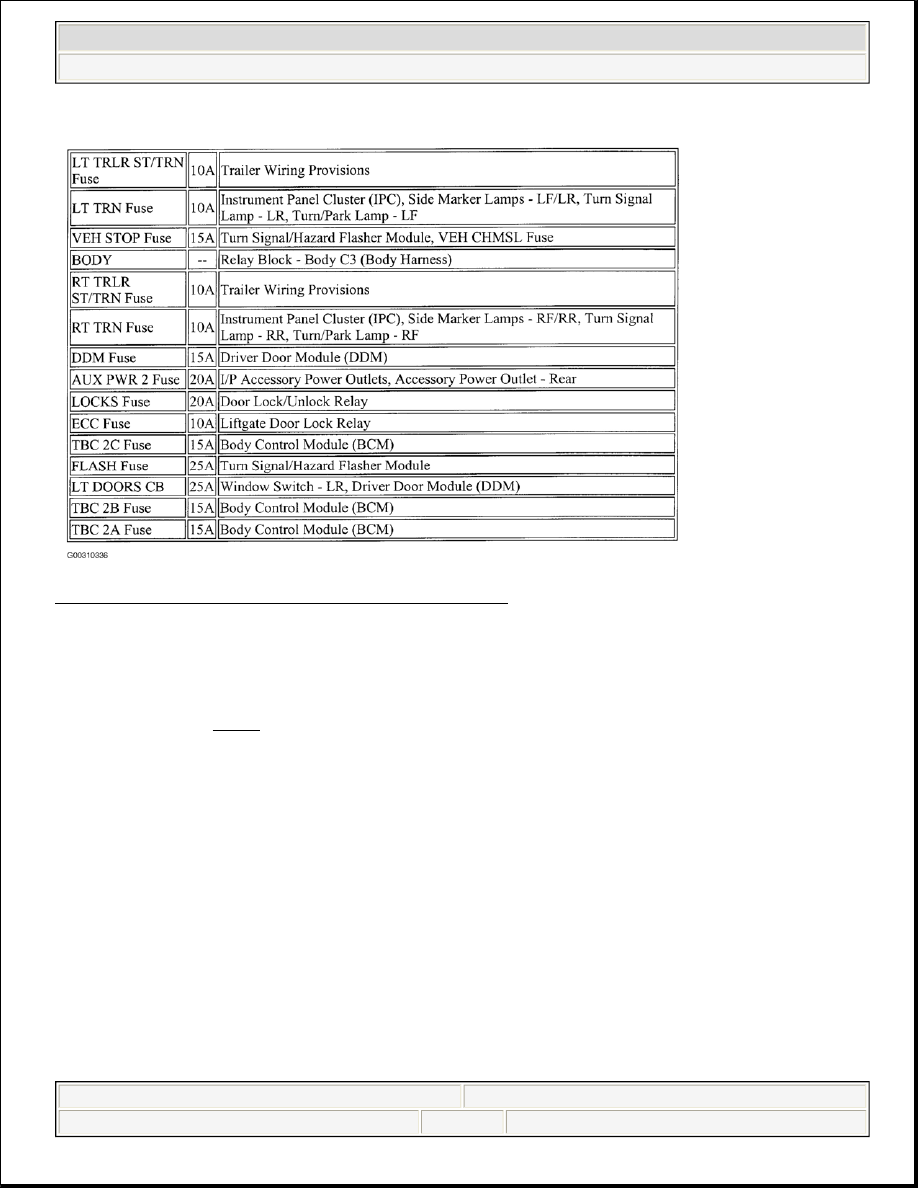

Fig. 6: Instrument Panel Fuse Block Legend - 2 Of 2 (2004)
Courtesy of GENERAL MOTORS CORP.

INSTRUMENT PANEL RELAY BLOCK

NOTE:

Instrument panel relay block is located at lower left corner of instrument panel.
See Fig. 7 .



2004 Hummer H2

2003-04 ELECTRICAL Fuses & Circuit Breakers - H2
