Hummer H1 (2006+). Manual - part 411

13-18

Accessories

_____________________________________________________________

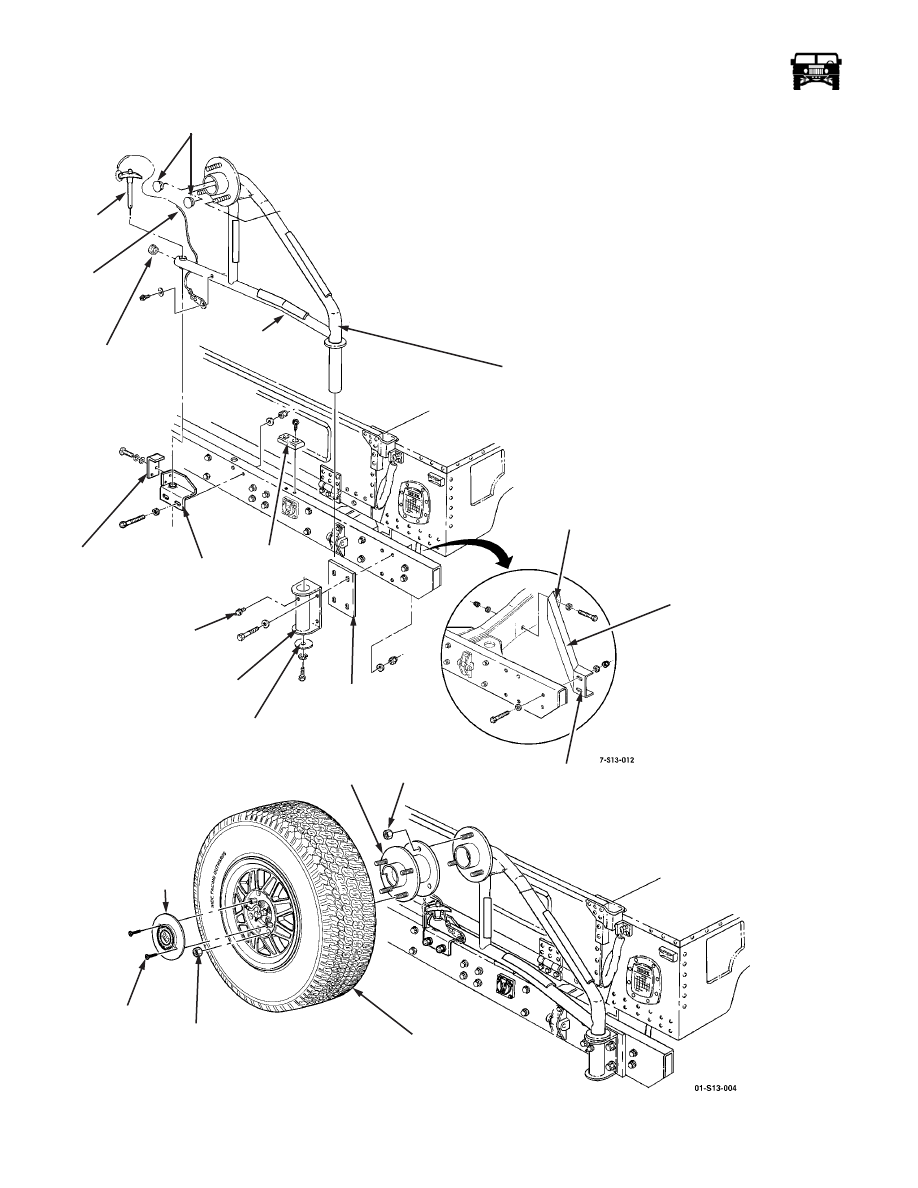

Figure 13-27:   Swing-Away Spare Tire Carrier Breakdown

LOCK

END CAPS

RUBBER

FRAME ASSEMBLY

LANYARD

END

GUIDE

HOLD-DOWN

STOP

ANGLED

BUMPER

SQUARED

SPACER

CUSHION

 SIDE

BRACE

SIDE

BRACKET

BLOCK

 BRACKET

RETAINING

PLATE

GREASE

FITTING

BRACKET

ASSEMBLY

 PIN

CAP

ALUMINUM WHEEL

AND TIRE ASSEMBLY

ADAPTOR

PLATE

TAPERED

LUGNUT

CENTER

CAP

RETAINING

SCREWS

LOCK

NUT

____________________________________________________________

 Accessories  13-19

5745804

CARGO BED-MOUNTED SPARE TIRE CARRIER REPLACEMENT

WARNING:  Always support the tire and wheel assembly when removing the lug nuts. The tire and wheel assembly
weighs approximately 160 lbs (72 kgs) and may cause personal injury if it is not supported properly.

NOTE: Cargo bed-mounted spare tire carrier may be located either directly behind the cab or at the left wheelhouse on two door
models. On four door models, the spare tire carrier will be located at the left wheelhouse.

Removal

NOTE: Perform steps 1 and 2 on vehicles with frame assembly stowed in the down position.

1.

Disconnect the lock pins and raise the frame assembly to the upright position (Figure  13-28).

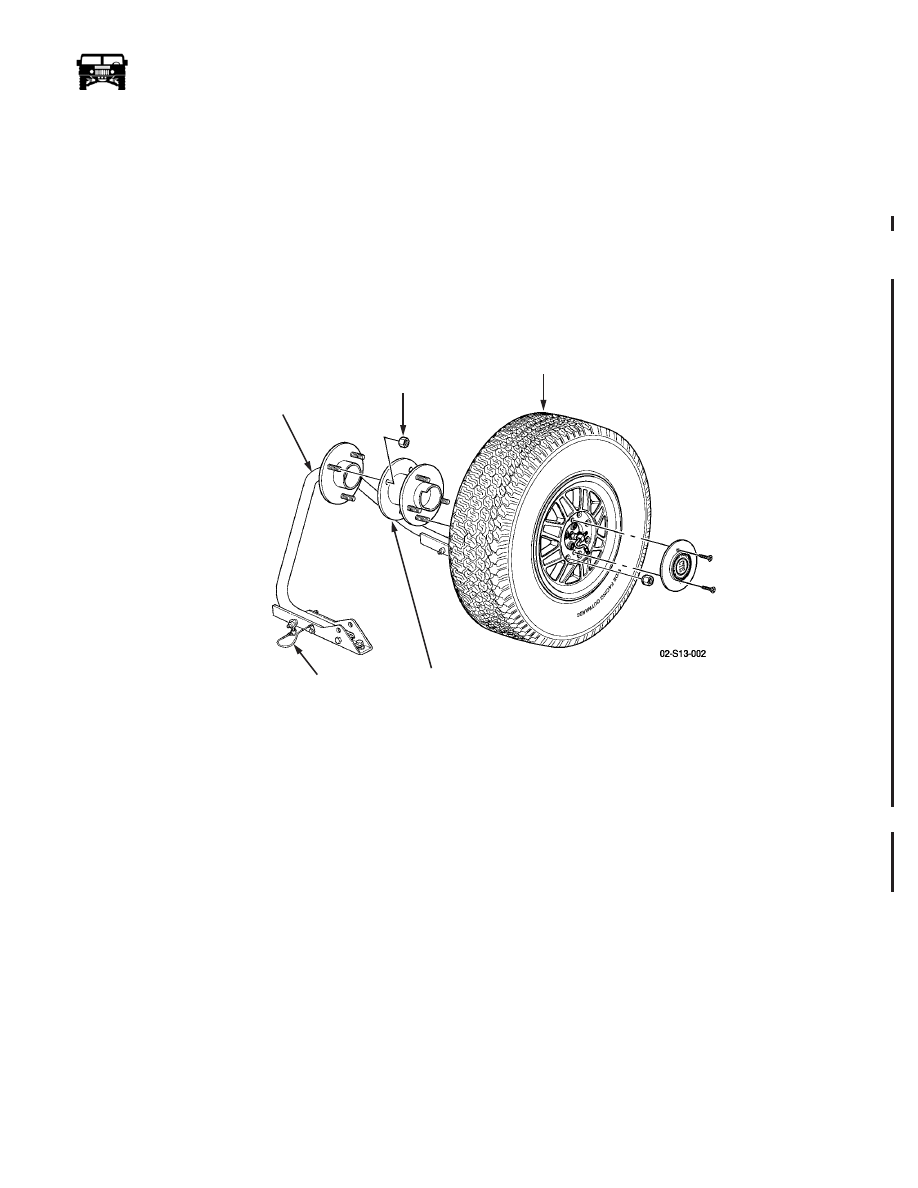

Figure 13-28:   Cargo Bed-Mounted Spare Tire Carrier Appearance

2.

Secure the frame assembly in the upright position with the lock pins.

3.

Remove the lug nuts securing the tire to the frame assembly and remove the wheel/tire assembly.

4.

Remove the self-tapping screws, lockwashers, and the lanyard/lock pin assemblies from the mounting brackets (Figure
 13-29).

5.

Remove the locknuts, bolts and the frame assembly from the mounting brackets.

6.

Remove the screws securing the mounting brackets to the cargo floor (Figure  13-30).

7.

Remove the bolts, lockwashers, washers, and the mounting brackets from the cargo floor.

FRAME ASSEMBLY

WHEEL/TIRE ASSEMBLY

LOCK

PIN

ALUMINUM WHEEL

SPARE TIRE ADAPTER

FLANGED

LUG NUT

6-1-05

13-20

Accessories

_____________________________________________________________

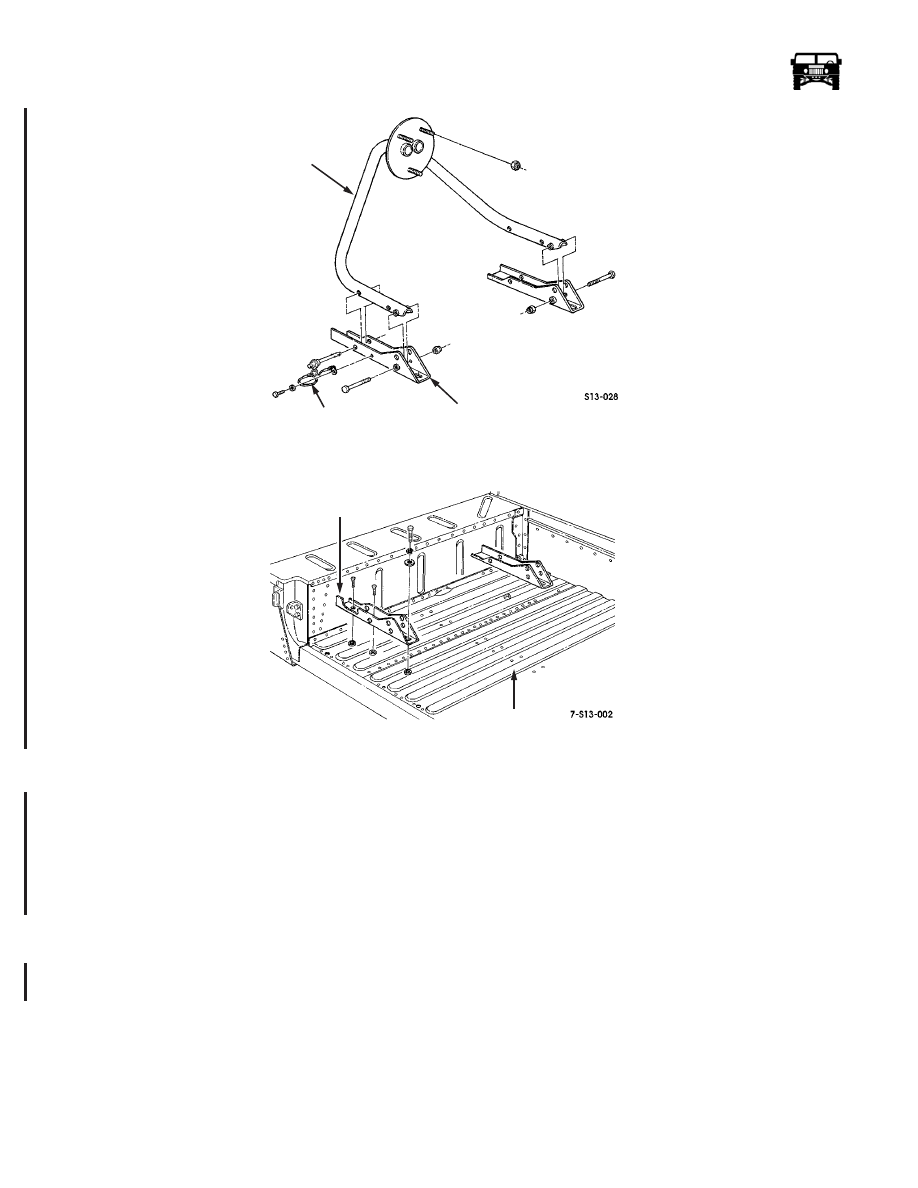

Figure 13-29:    Frame Assembly Mounting

Figure 13-30:    Mounting Bracket Positioning

Installation

1.

Install the mounting brackets on the cargo floor with the washers, lockwashers, and the bolts (Figure  13-30).

2.

Secure the mounting brackets to the cargo floor with the screws. Tighten the screws to 44 lb-ft (60 N•m).

3.

Install the frame assembly on the mounting brackets with the bolts and the locknuts (Figure  13-29).

4.

Install the lanyard/lock pin assemblies on the mounting brackets and the frame assembly with the lockwashers and the self-
tapping screws.

5.

With the carrier in the upright position, install the tire on the frame assembly with the three lug nuts (Figure  13-28).

NOTE: Perform steps 6 and 7 to stow frame assembly in down position.

6.

Disconnect the lock pins and lower the frame assembly to the down position.

7.

Connect the lock pins.

LANYARD AND

LOCK PIN ASSEMBLY

MOUNTING

BRACKET

FRAME

ASSEMBLY

MOUNTING

BRACKET

CARGO FLOOR

6-1-05

____________________________________________________________

 Accessories  13-21

5745804

ALUMINUM WHEEL SPARE TIRE CARRIER ADAPTER

Installation

NOTE: This kit is an accessory for the swing-away spare tire carrier PN 5744642 and the bed mounted spare tire carrier PN
5742944. The swing-away or bed mounted spare tire carrier must be installed before this kit can be used. Refer to the installation
instructions of the swing-away spare tire carrier on   page 13–16 or the bed mounted spare tire carrier on  page 13–19 .

1.

Install the Aluminum Wheel Spare Tire Carrier Adapter on the mounting flange of the spare tire carrier frame (See Figure
13-31).

2.

Secure the Aluminum Wheel Spare Tire Carrier Adapter using the three 9/16" flanged lug nuts that are supplied with the spare
tire carrier kit.

3.

Install the aluminum spare wheel on the Aluminum Wheel Spare Tire Carrier Adapter securing it with the four supplied
tapered lug nuts.

4.

Place the caution decal on the angled support bar of the tire carrier frame, just below the cushion.

Figure 13-31:   Adapter installation.

TIRE AND WHEEL

ASSEMBLY

CENTER

CAP

SPARE TIRE

CARRIER

MOUNTING

ADAPTER

ASSEMBLY

FLANGED

LUGNUTS

LUG

NUT

MOUNTING

FLANGE

CAUTION

DECAL
