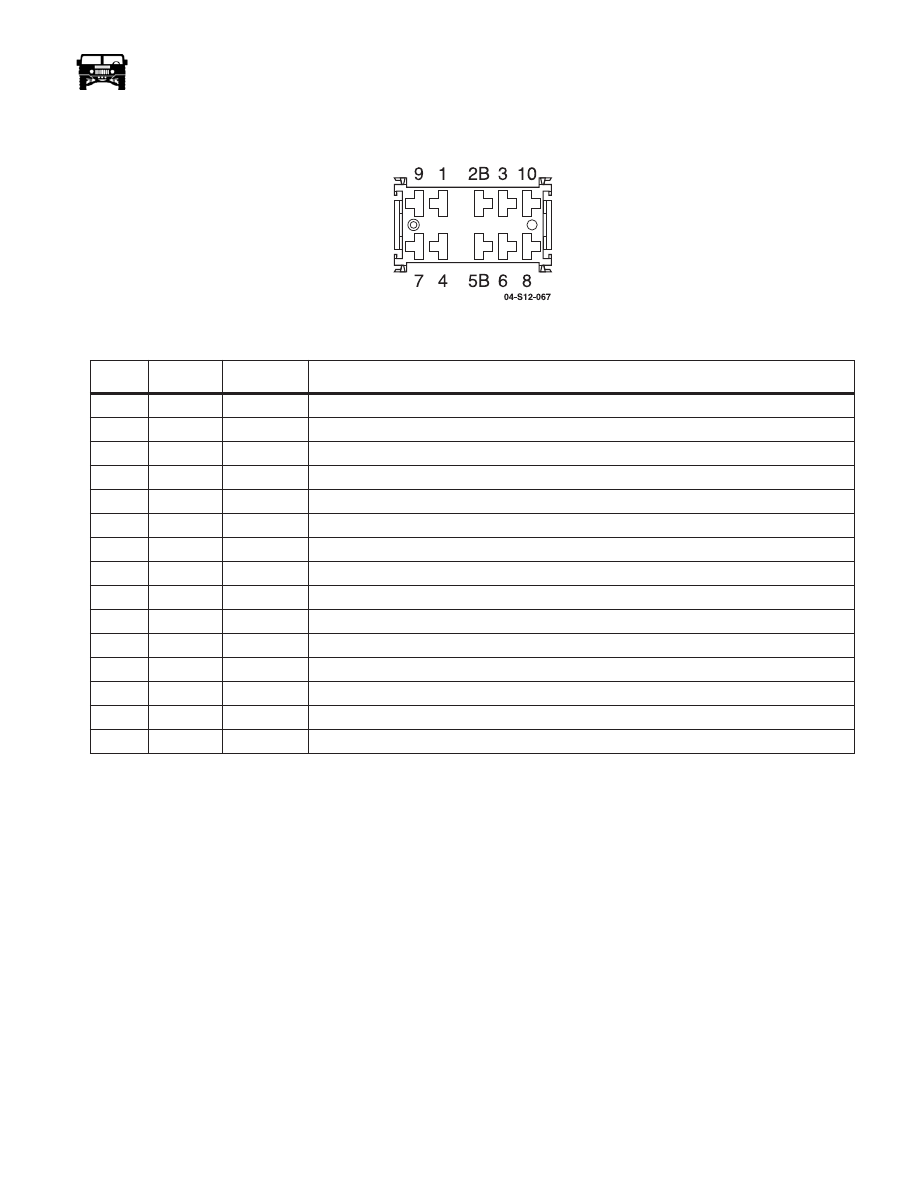

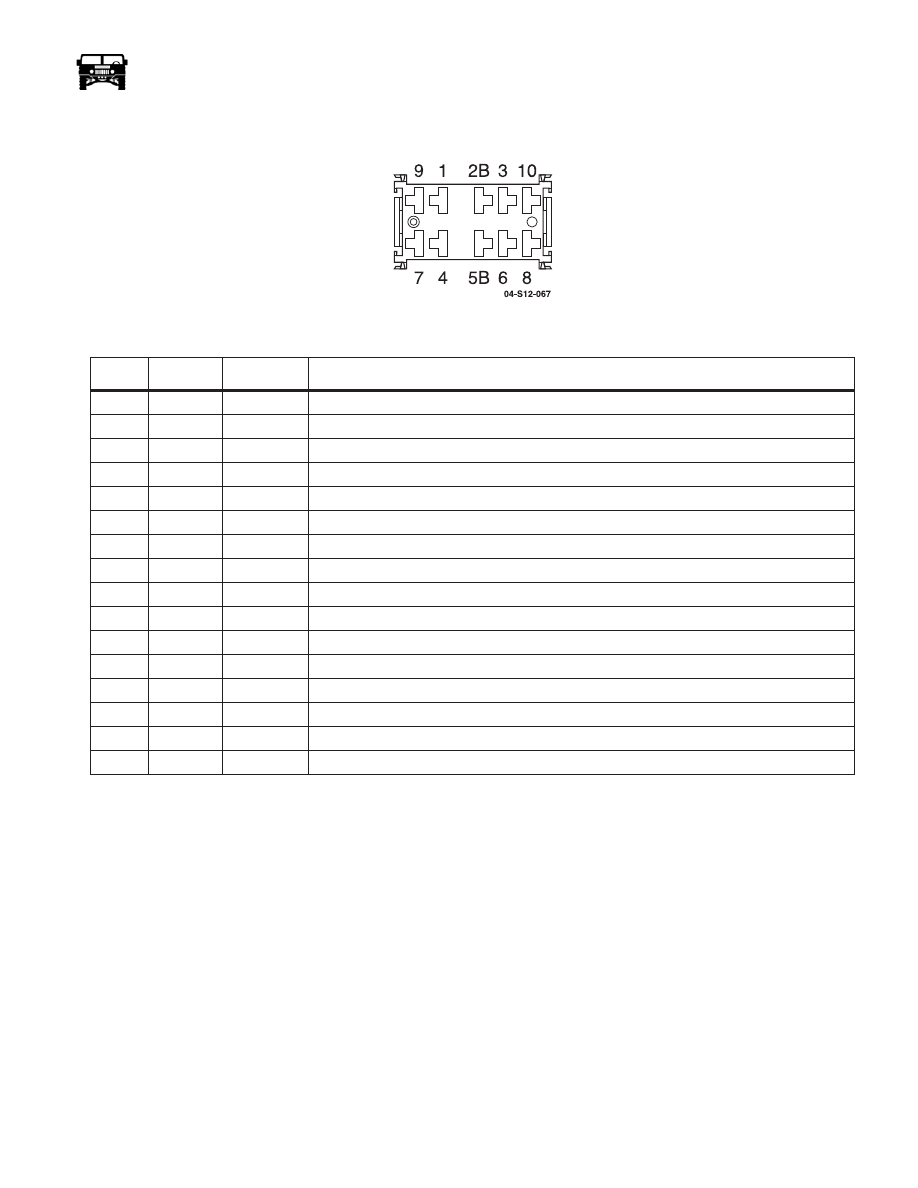

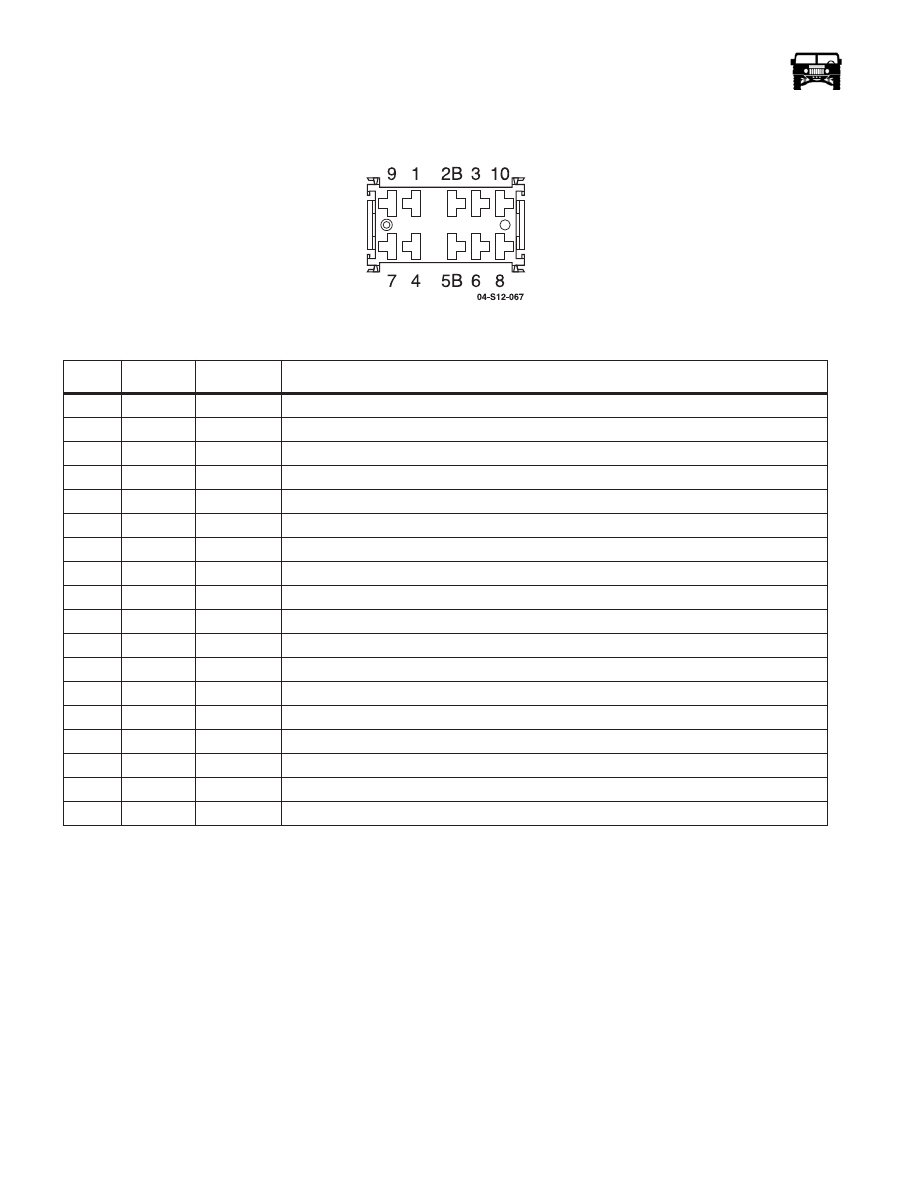

C118/ 10 WAY RIGHT FRONT WINDOW SWITCH CONNECTOR LOCATION: DRIVERS CONSOLE
PIN
CKT
COLOR
DESCRIPTION
1
56
BK
Ground
1
56
BK
Ground
2B
313
DB
Power Up
3
171
RD
12 Volt Ignition
3
171
RD
12 Volt Ignition
4
171
RD
12 Volt Ignition
4
171
RD
12 Volt Ignition
5B
314
OR
Power Down
6
56
BK
Ground
6
56
BK
Ground
7
59
BK
Ground
7
59
BK
Ground
8
59
BK
Ground
8
59
BK
Ground
9
17
PP
Illumination
9
17
PP
Illumination
10
17
PP
Illumination
10
17
PP
Illumination
