Hummer H1 (2006+). Manual - part 380

12-196

Electrical System

______________________________________________________

TRANSMISSION SOLENOIDS

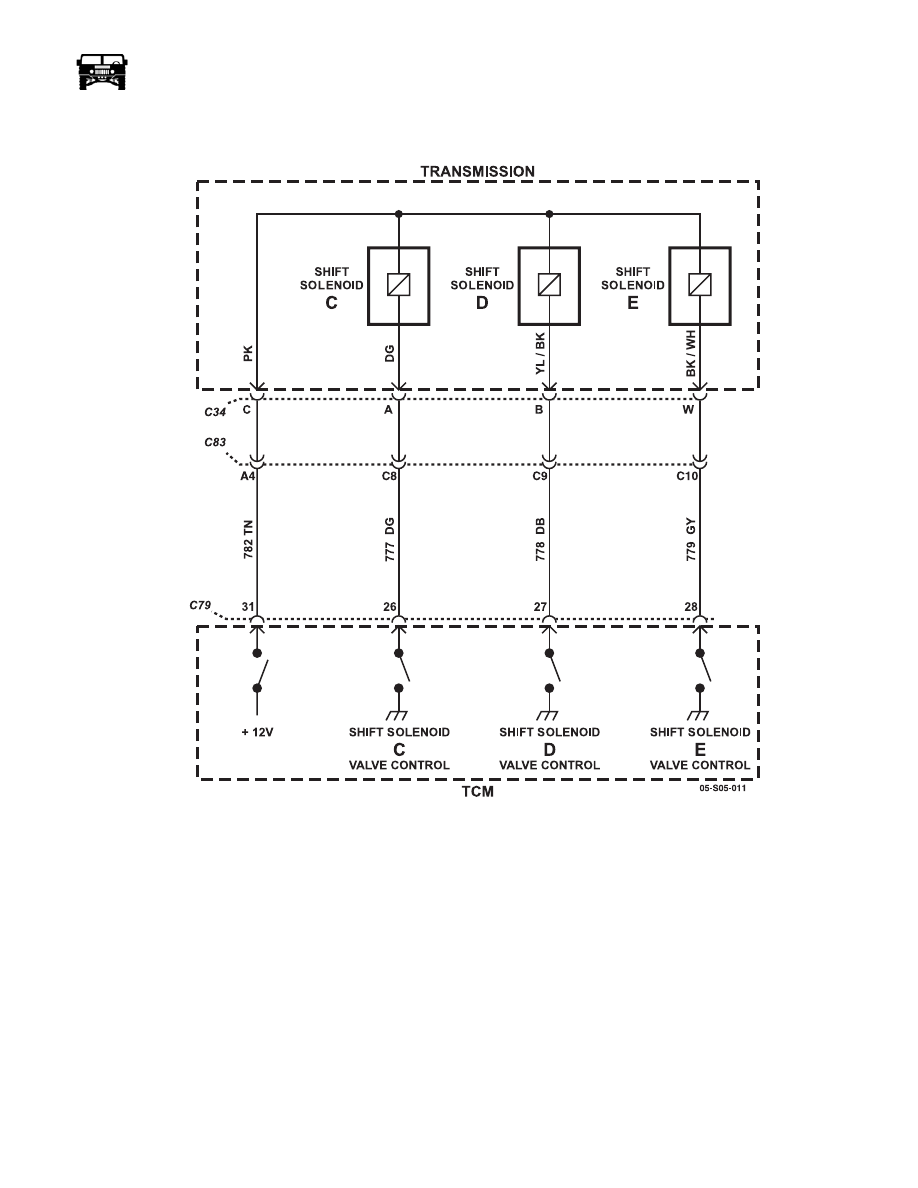

Figure 12-152:   Transmission Solenoids Wiring Schematic

_____________________________________________________

 Electrical System  12-197

TRANSMISSION SOLENOIDS

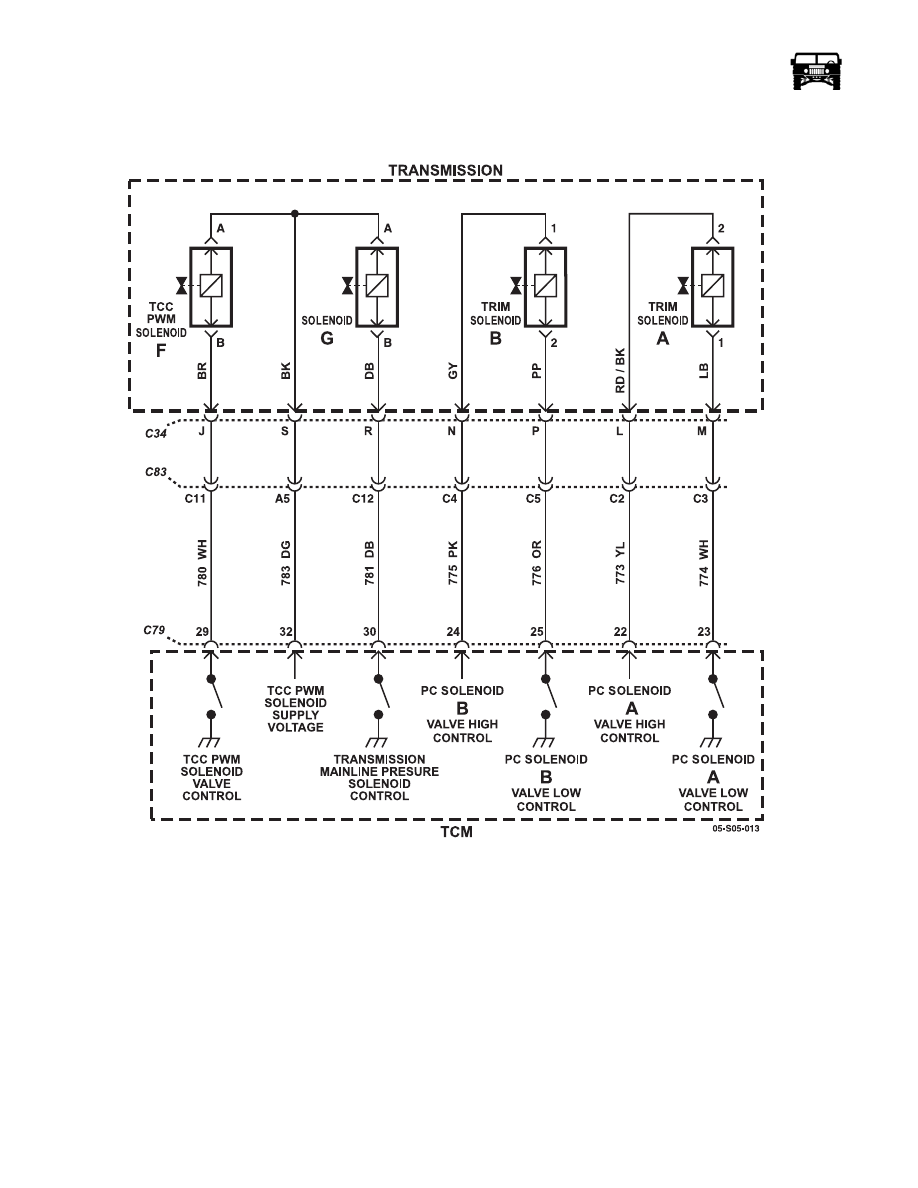

Figure 12-153:   Transmission Solenoids Wiring Schematic

12-198

Electrical System

______________________________________________________

TURBO VANE POSITION SENSOR/ TURBO VANE SOLENOID

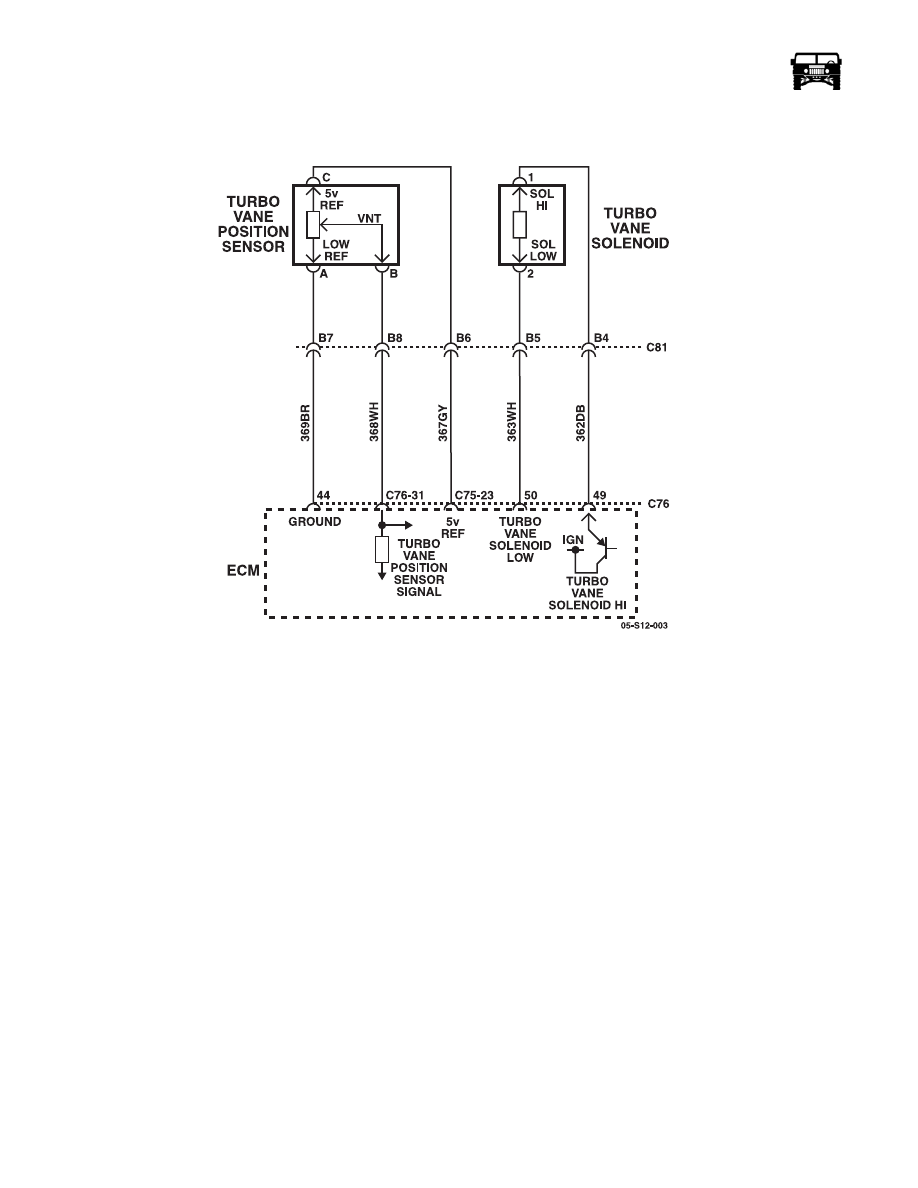

Figure 12-154:   Turbo Vane Position/ Turbo Vane Solenoid Wiring Schematic

_____________________________________________________

 Electrical System  12-199

WINDOWS SWITCHES W/INCANDESCENT BULBS (DRIVERS CONSOLE)  THROUGH VIN 226860

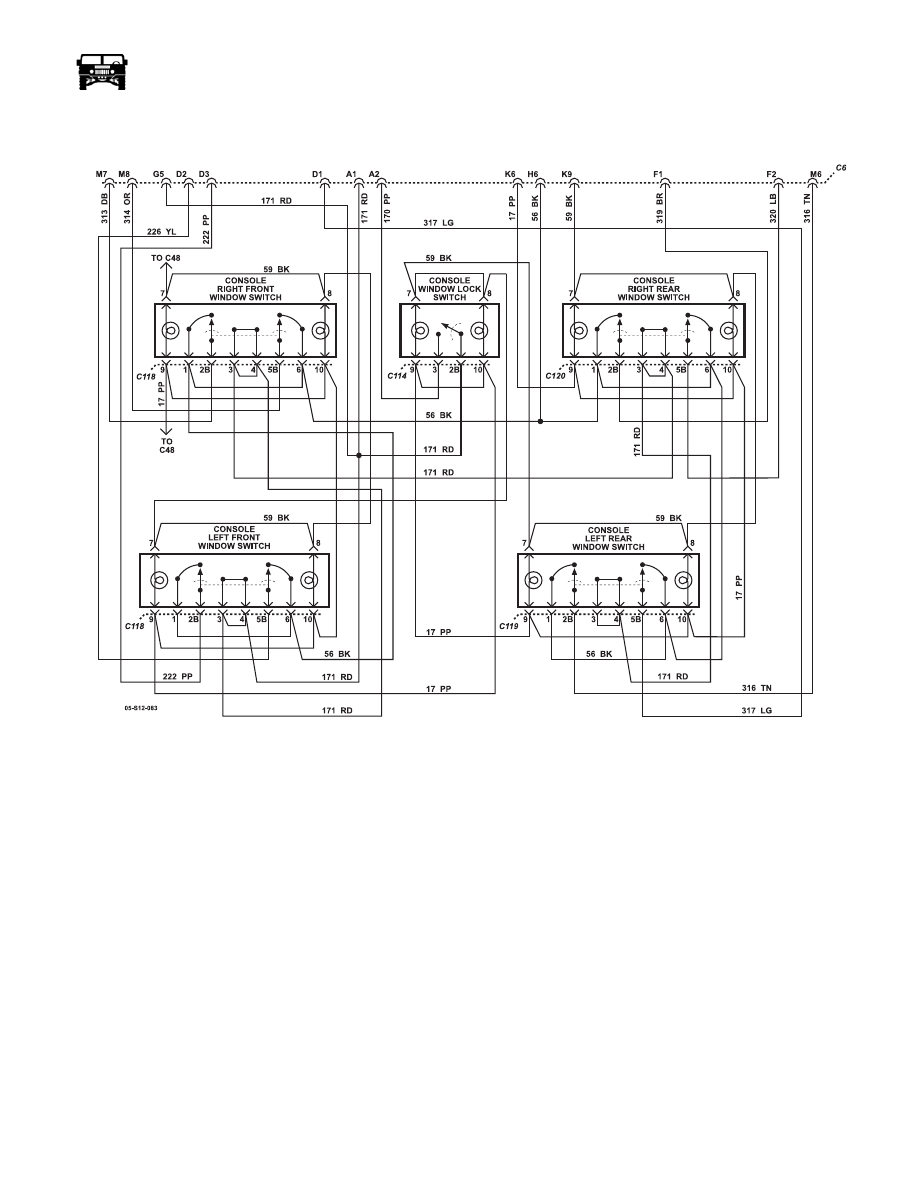

Figure 12-155:   Window Switches With Incandescent Wiring Schematic
