Hummer H1 (2006+). Manual - part 330





11-54 Heating/Ventilation/Air Conditioning (HVAC)

______________________

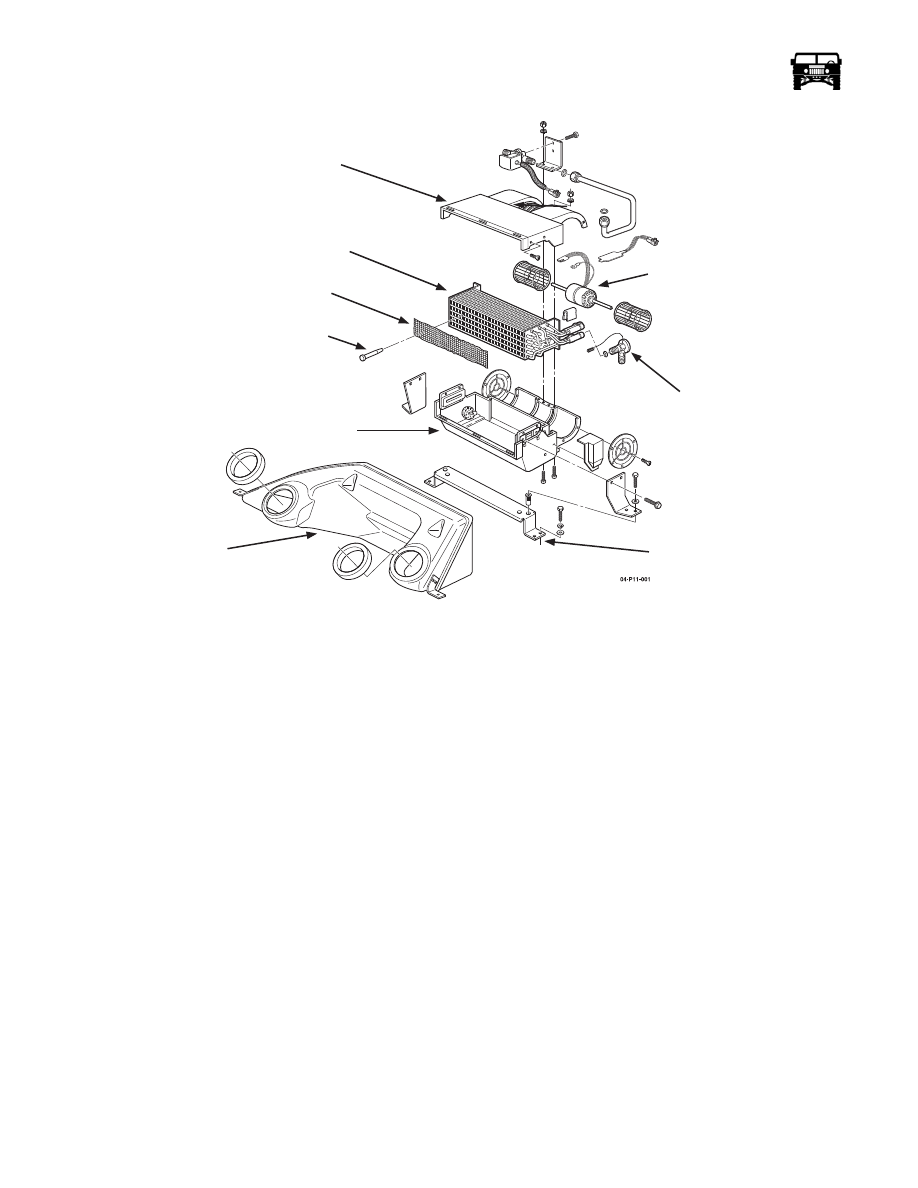

Figure 11-52:   Auxiliary Air Conditioning Components

AUXILIARY EXPANSION VALVE REPLACEMENT

Removal

1.

Discharge the air conditioning system.

2.

Remove the center console.

3.

Remove the prestite tape and the bulb clamp.

4.

Using two wrenches for equalized support, remove the high-pressure hose from the expansion valve. Remove the O-ring from
the hose and discard the O-ring (Figure  11-53).

5.

Using two wrenches for equalized support, remove the expansion valve from the auxiliary unit. Remove and discard the O-
ring (Figure  11-46).

Installation

1.

Install the O-ring and the expansion valve on the auxiliary unit. Using two wrenches for equalized support, tighten to 15-20 lb-
ft. (20-27 N•m) (Figure  11-46).

2.

Position the O-ring onto the high pressure hose and hand-thread the hose fitting onto the expansion valve. Using two wrenches
for equalized support, tighten to 11-13 lb-ft. (15-17 N•m) (Figure  11-53).

3.

Install the prestite tape and the bulb clamp.

4.

Evacuate, charge, and leak test the system.

5.

Install the center console.

6.

Start the engine and check the operation of the auxiliary unit.

PLENUM

TUNNEL SUPPORT BRACKET

EXPANSION VALVE

BLOWER MOTOR ASSEMBLY

TOP HOUSING

EVAPORATOR/HEATER

CORE ASSEMBLY

MESH FILTER

PLASTIC PIN

LOWER HOUSING

_____________________

 Heating/Ventilation/Air Conditioning (HVAC)  11-55

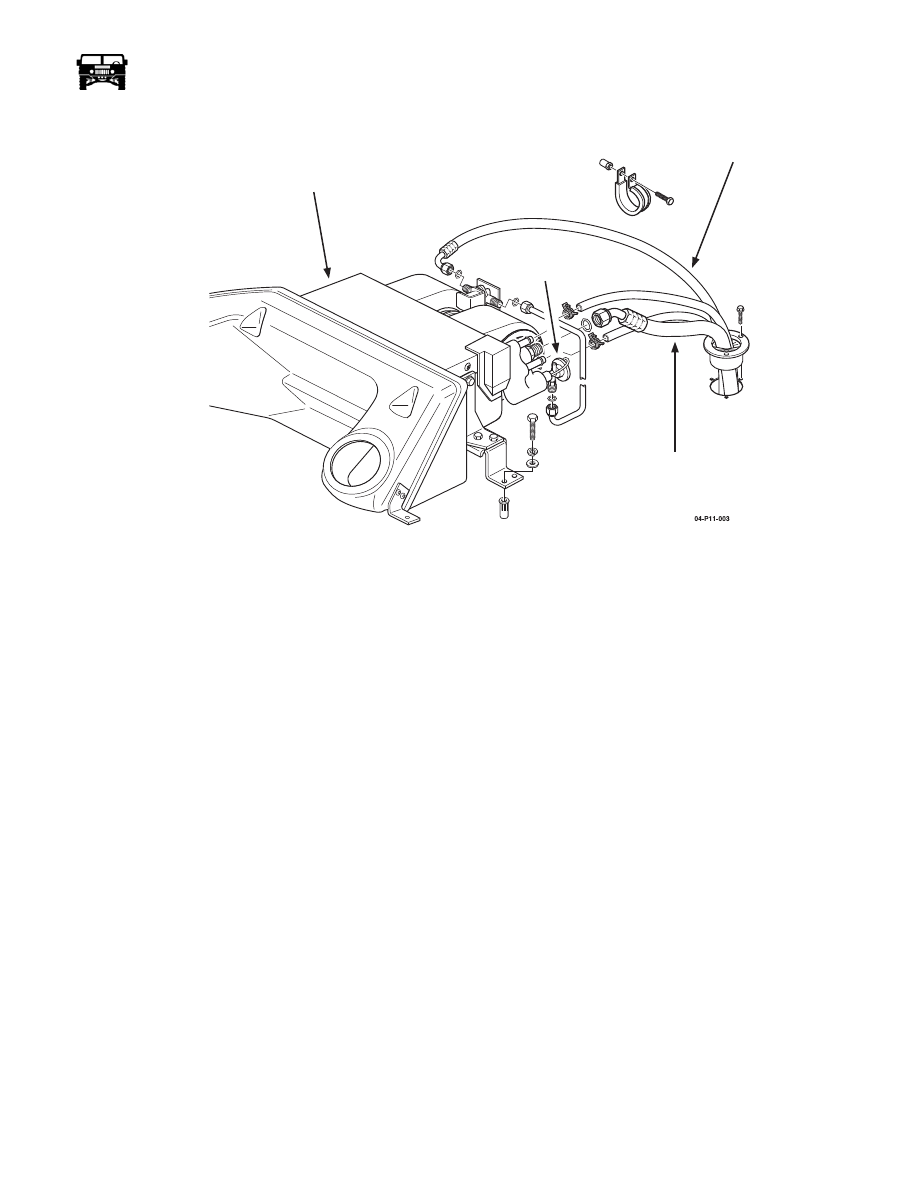

Figure 11-53:   Expansion Valve Removal/Installation

VACUUM PUMP

The vacuum pump is located under the hood near the air cleaner assembly. It is an electrically operated motor with a built in pres-
sure sensor switch, when the ignition is turned on and the vacuum drops below 11” Hg the motor is activated until 15” Hg vacuum
is achieved.

Removal

1.

Disconnect the vacuum hose.

2.

Disconnect the electrical connector.

3.

Remove the three retaining screws with a long shank number two Phillips screw driver and remove the pump.

Installation

1.

Install the vacuum pump with the three retaining screws.

2.

Connect the electrical connector.

3.

Connect the vacuum hose.

4.

Check the vacuum pump for proper operation.

AUXILIARY

LOW PRESSURE A/C HOSE

UNIT

HIGH PRESSURE

HOSE

EXPANSION

VALVE

11-56 Heating/Ventilation/Air Conditioning (HVAC)

______________________

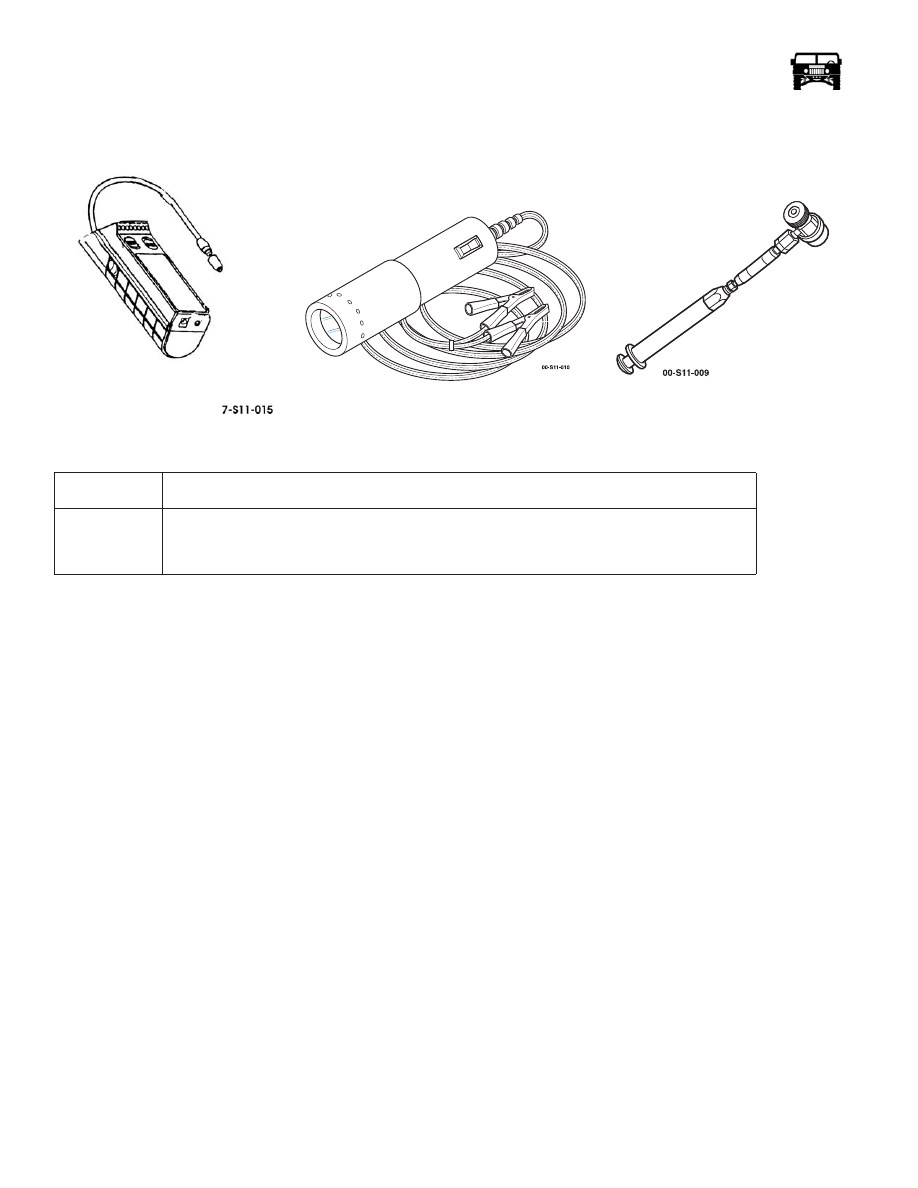

ESSENTIAL TOOLS

Procure from Kent-Moore.

Tool No.

Description

J–41995
J–41459
J–42220

Leak Detector, A/C R134a
Leak Detection Dye Injector
High Intensity Ultra Violet (Black) Light

J–41995

J–41459

J–42220

_____________________

 Heating/Ventilation/Air Conditioning (HVAC)  11-57

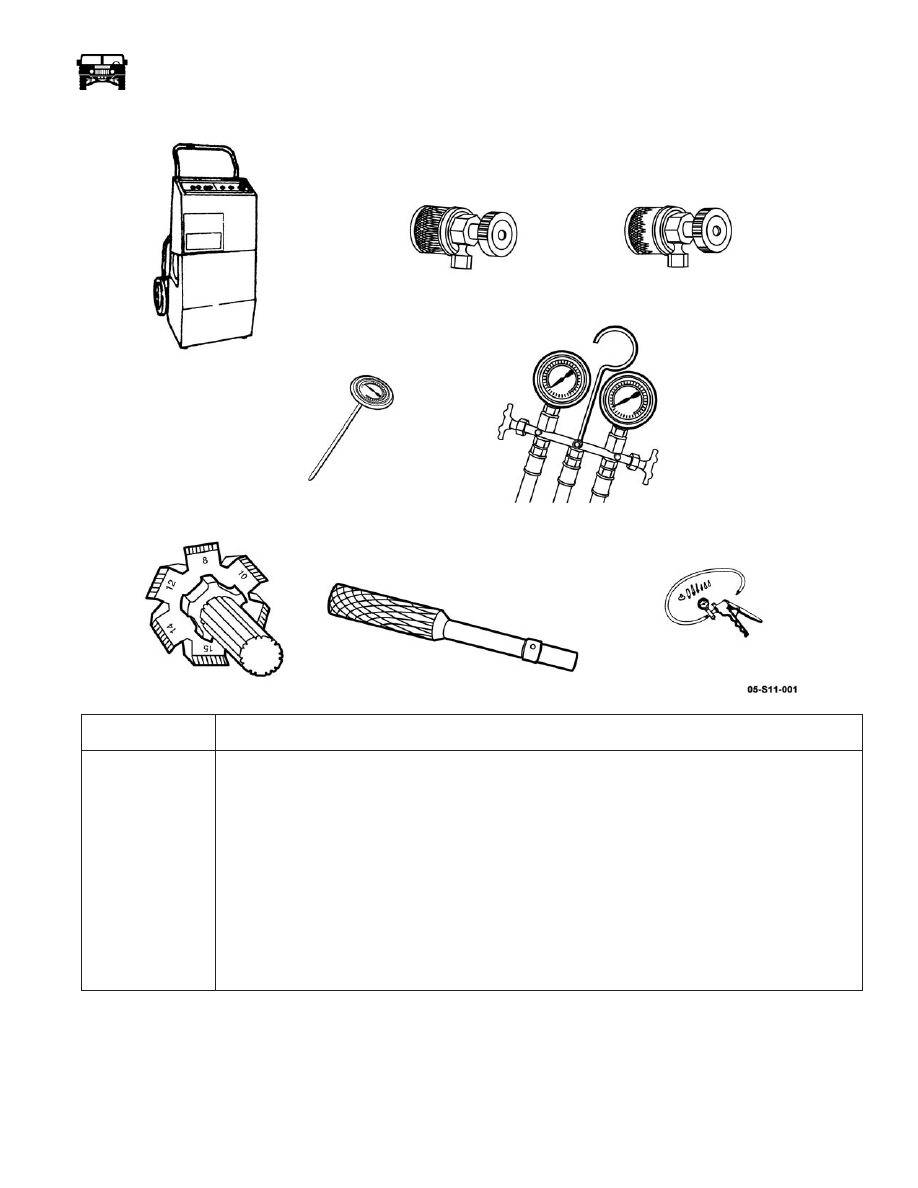

SPECIAL TOOLS

Procure from Kent-Moore.

Tool No.

Description

J–39500-A

A/C Recovery, Recycle, Evacuate and Discharge Service Cart (from Robinaire)

J–39500-20A

High Side Coupler Adapter (Compact Profile)

J–39500-24A

Low Side Coupler Adapter (Compact Profile)

J–39183-C

Manifold Gauge Set

J–6742-03

Thermometer

J–36847

Condenser Fin Straightener Tool

J–24182-2A

Schrader Valve Core Tool

J-35555

Hand Vacuum Pump

J–39500-A

J–39500-20A

J–39500-24A

J–39183-C

J–6742-03

J–36847

J–24182-2A

J–35555
