16. Remove the retainer and the harness from the door assembly.

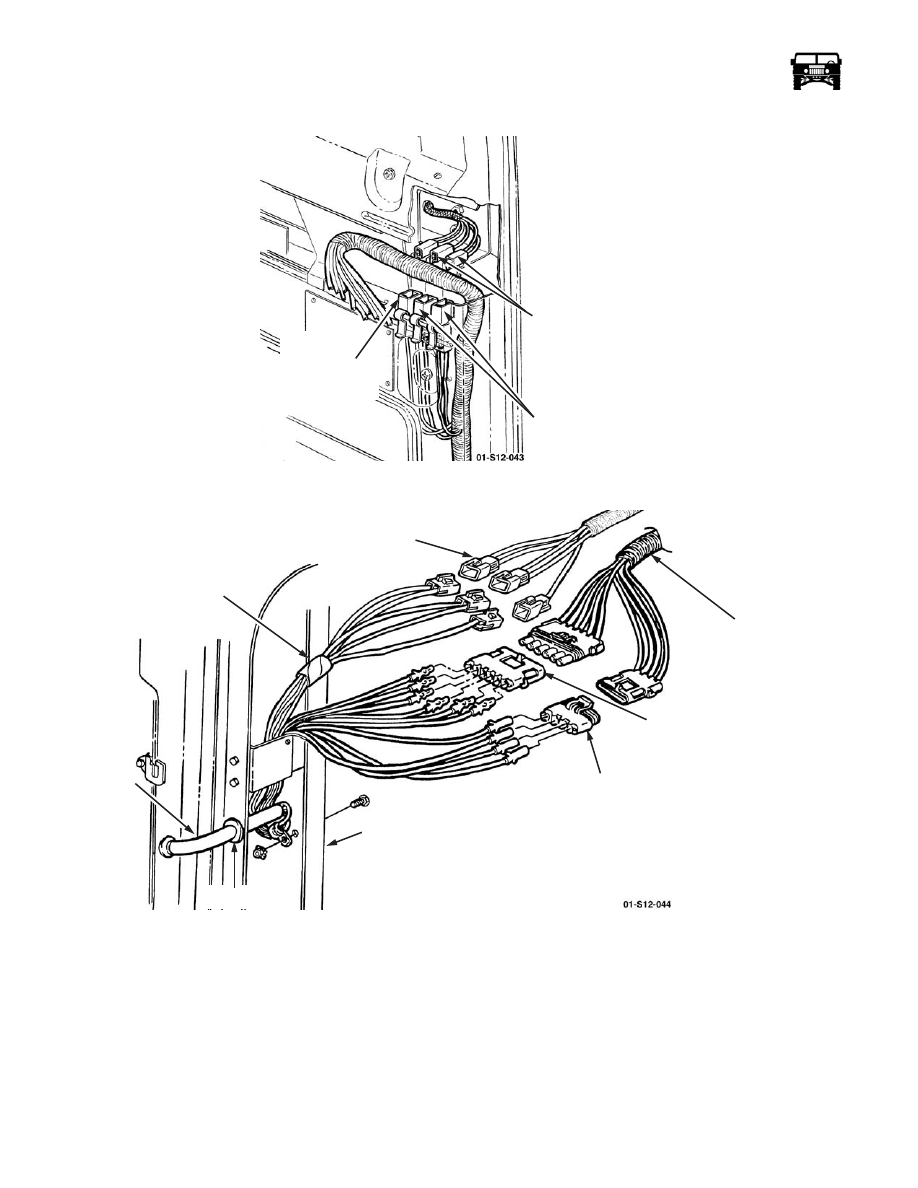

Figure 10-58:   Heated Power Mirrors Door Harness

Figure 10-59:   Power Windows and Door Locks Connections

Installation

NOTE: Lubricate the bushing, grommet and harness teflon cover with silicone spray.

1.

Route the harness through the harness mounting bracket, mounting bracket bushing and the door bushing (Figure  10-60).

2.

Install the harness mounting bracket on the door assembly with the two self-tapping screws (Figure  10-61).

3.

Route the harness through the A-pillar rubber grommet (Figure  10-59).

POWER MIRRORS

DOOR JUMPER

CONNECTORS

HARNESS

CONNECTORS

 HARNESS

HEATED

POWER

MIRROR

CONNECTOR

FRONT DOOR

POWER WINDOWS

AND DOOR LOCKS

BODY HARNESS

6-WAY

4-WAY

A-PILLAR

TEFLON

 CONNECTOR

 CONNECTOR

 HARNESS

HEATED POWER

GROMMET

MIRRORS HARNESS

TUBE

_____________________________________________________________________

 Body  10-55

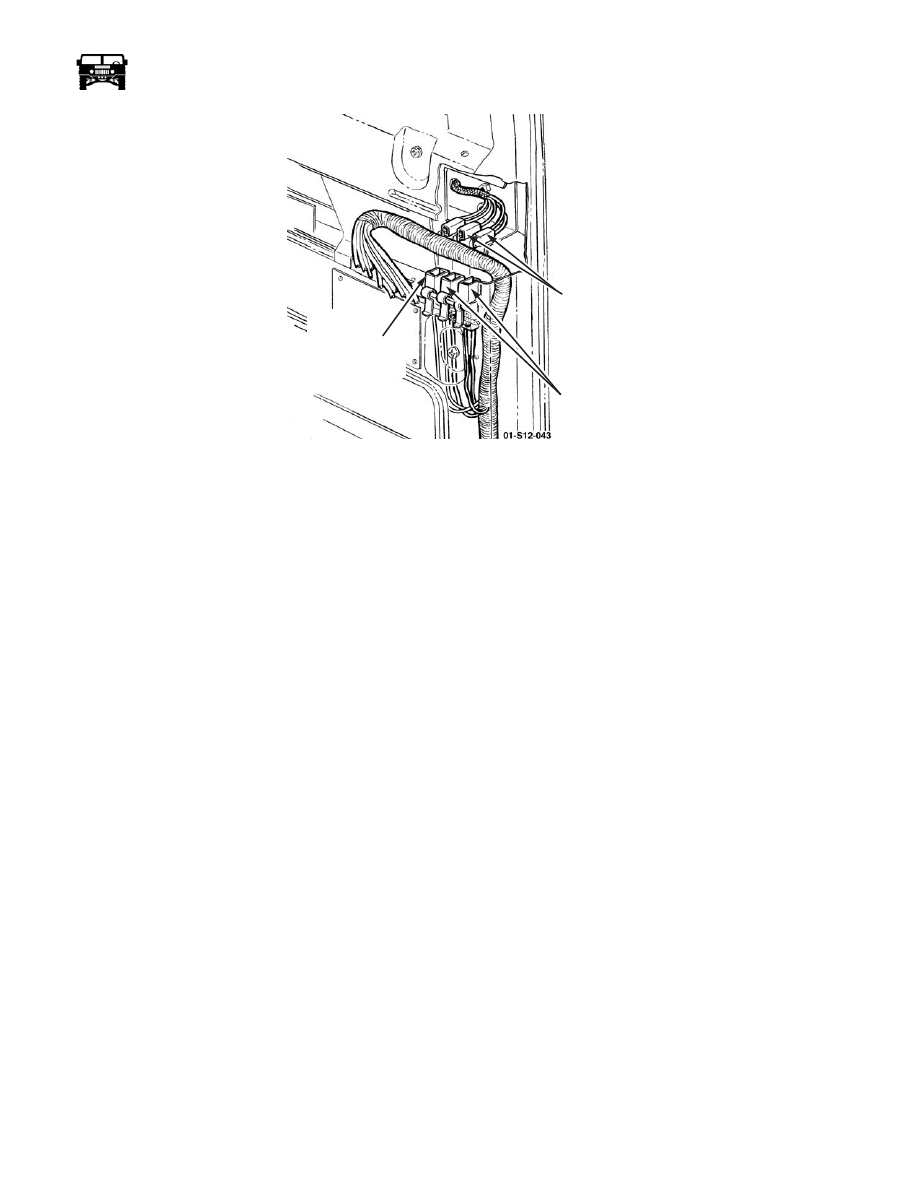

Figure 10-60:   Heated Power Mirrors Door Harness

NOTE: When connecting the harness wires to the 4-way and 6-way connectors, ensure the wire colors align with the mating con-
nector wires.

4.

Connect the harness wires to the 4-way and the 6-way connectors.

5.

Connect the 4-way and the 6-way harness connectors to the power windows and the door locks body harness connectors.

6.

Connect the two harness connectors to the power mirrors body harness connectors.

7.

Secure the harness to the A-pillar with the clamp, self-tapping screw, nut and the lock washer assembly.

NOTE: Be careful to match the wire colors, since the harness connectors can be interchanged.

8.

Connect the two harness connectors to the power mirrors door jumper harness connectors (Figure  10-59).

9.

Connect the harness connector to the power window regulator (Figure  10-61).

10. Connect the harness connector to the power door lock actuator.

11. Secure the harness to the door reinforcement with the clamp and the self-tapping screw.

12. Secure the harness to the door assembly with the retainer.

13. Install the moisture barrier flap, vapor barrier and the door trim panel on the door (Refer to section 10).

14. Install the front outer kick panels (Refer to section 10).

15. Connect the battery ground cable (Refer to section 12).

16. Check the power windows and the door locks for proper operation.

POWER MIRRORS

DOOR JUMPER

CONNECTORS

HARNESS

CONNECTORS

 HARNESS

HEATED

POWER

MIRROR

CONNECTOR

10-56 Body

______________________________________________________________________

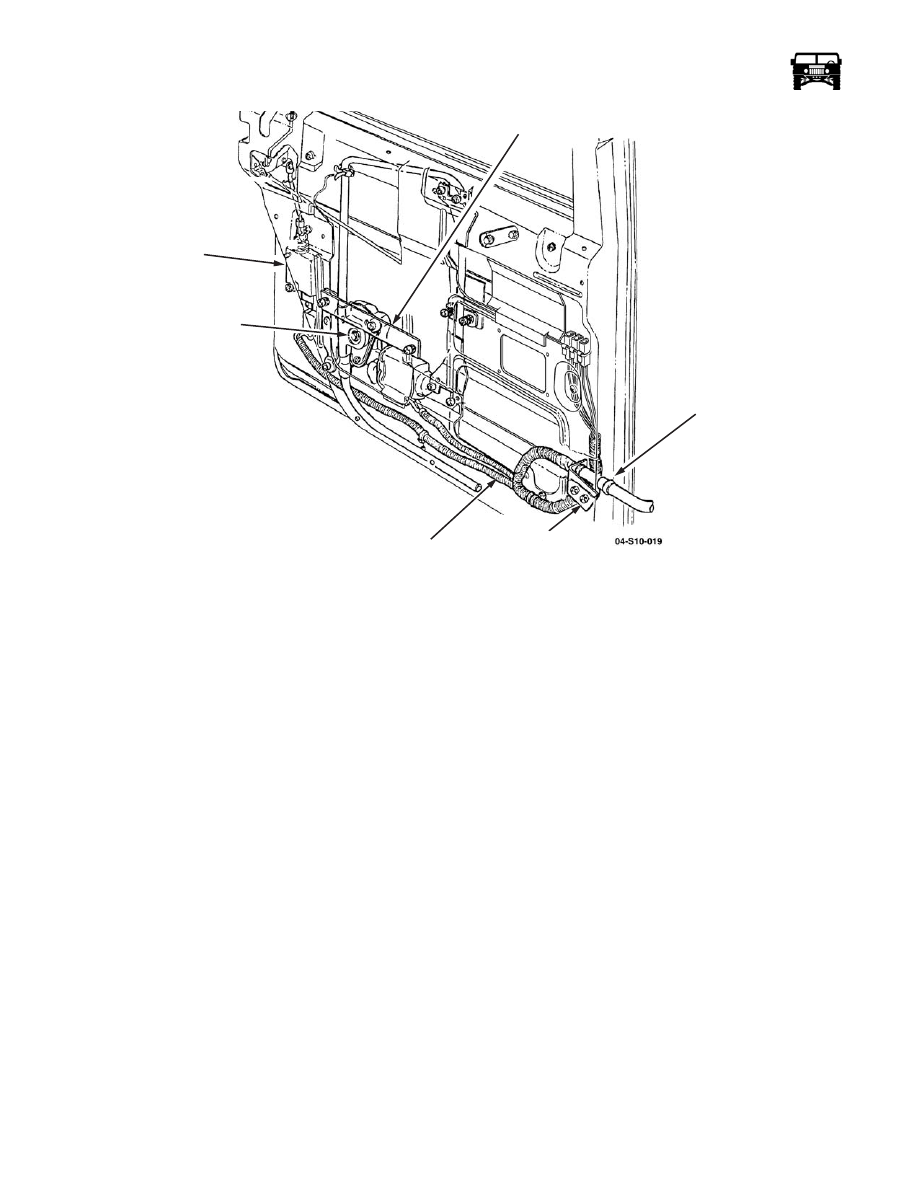

Figure 10-61:   Power Windows and Door Locks Door Harness

POWER WINDOWS AND DOOR LOCKS REAR DOOR HARNESS REPLACEMENT

Removal

1.

Remove the center outer kick panel and the lower B-pillar trim (Refer to section 10).

2.

Remove the rear door trim, vapor barrier and the moisture barrier flap from the door (Refer to section 10).

NOTE: Tag the leads for installation.

3.

Disconnect the 6-way harness connector from the power windows and the door locks rear door jumper harness connector
(Figure  10-62).

POWER DOOR LOCKS

POWER WINDOW

REGULATOR BRACKET

FRONT

MOUNTING

BRACKET

 BUSHING

 DOOR

 HARNESS

ACTUATOR

 REGULATOR

MOUNTING

BRACKET

_____________________________________________________________________

 Body  10-57

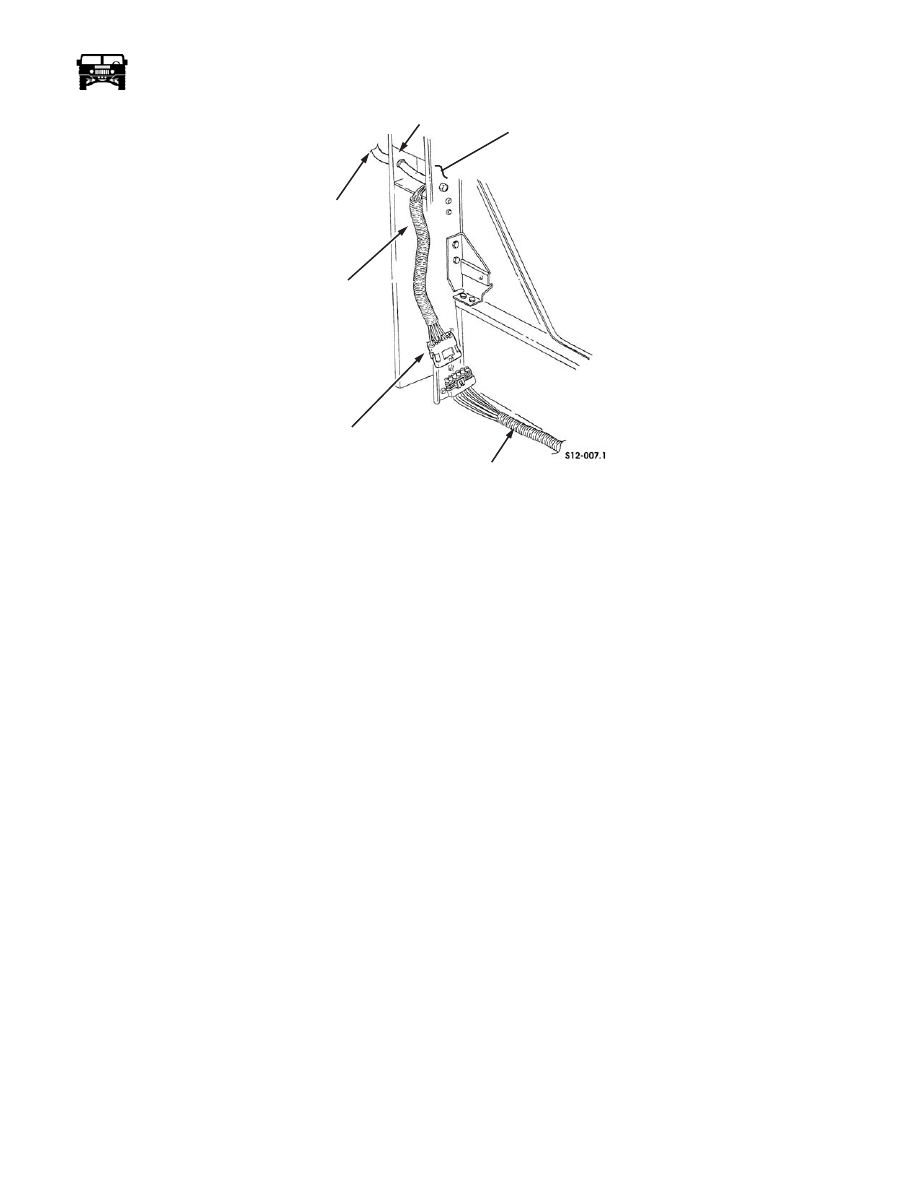

Figure 10-62:   Rear Door Harness and Rear Door Jumper Harness

4.

Remove the harness wires from the 6-way connector.

5.

Remove the screw, nut, lock washer and the clamp securing the harness to the B-pillar. Discard the nut and the lock washer
assembly.

NOTE: Lubricate the bushings, grommet and the harness teflon cover with silicone spray.

6.

Pull the harness through the B-pillar rubber grommet.

7.

Remove and inspect the B-pillar rubber grommet. Replace it if damaged.

8.

Remove the two self-tapping screws and the harness mounting bracket from the door assembly (Figure  10-63).

9.

Pull the harness through the door bushing.

10. Inspect the door bushing and replace it if damaged.

11. Remove the harness mounting bracket and the mounting bracket bushing from the harness. Inspect the bushing and replace it

if damaged.

12. Remove the self-tapping screw and the clamp securing the harness to the door reinforcement.

13. Disconnect the harness connector from the power window regulator (push the locking tab up on the bottom of the connector).

14. Disconnect the harness connector from the power door lock actuator.

15. Remove the retainer securing the harness to the door assembly.

16. Remove the tie strap and the harness from the door assembly. Discard the tie strap.

TEFLON TUBE

GROMMET

REAR DOOR

6-WAY CONNECTOR

REAR DOOR JUMPER HARNESS

B-PILLAR

 HARNESS
