Remove the screws and the lower C-pillar trim from the C-pillar.

6.

Remove the dome light.

7.

Remove the panel fasteners and the rear headliner from the J-channel.

Installation

1.

Secure the rear headliner to the J-channel and the roof with the panel fasteners.

2.

Install the dome light.

3.

Secure the trim panel to the compartment wall with the screw.

4.

Secure the lower C-pillar trim to the lower side of the C-pillar with the screws.

5.

Secure the seat belt assembly and bracket to the C-pillar with the washers and bolts. Tighten the bolts to 35-40 lb-ft (47-55
N•m).

6.

Secure the upper C-pillar trim to the C-pillar with the screws.

7.

Install the rear seats.

Inner Kick Panels Replacement

Removal

1.

Remove the seats.

2.

Remove bolts, washers and seat buckles from front and rear of tunnel (Figure  10-40).

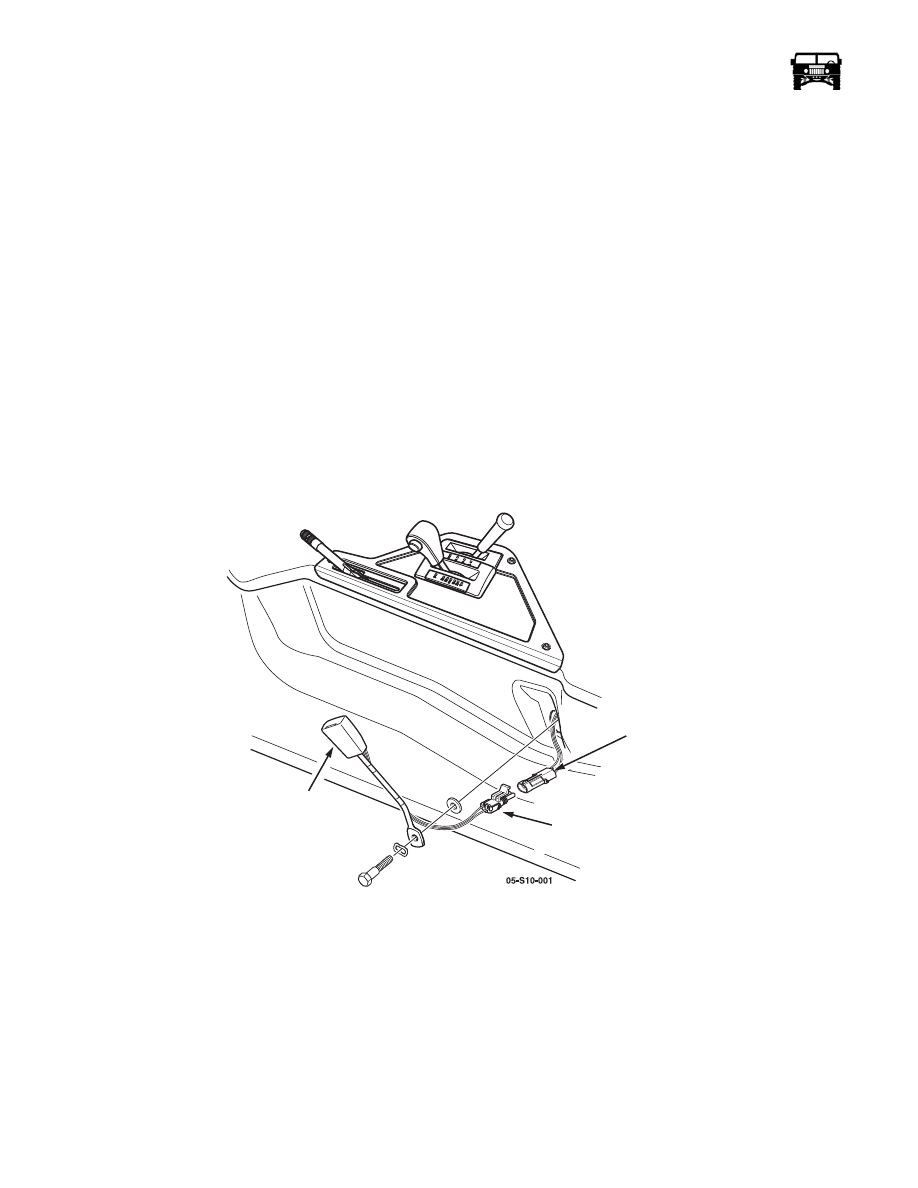

Figure 10-40:   Seat Belt Buckle Electrical Connector Location

NOTE: Ensure the seat belt buckle electrical connector or wiring harness is pulled out and away from the kick panel for ease of in-
stallation.

3.

Disconnect the seat belt buckle electrical connector from the wiring harness connector on the driver side.

4.

Remove the panel fasteners, screw/washer assemblies and the rear wall trim from the rear compartment wall (Figure  10-41).

5.

Remove the panel fasteners and the rear inner kick panel from the tunnel (Figure  10-42).

WIRING

HARNESS

CONNECTOR

SEAT BELT BUCKLE

ELECTRICAL

CONNECTOR

SEAT

BELT

BUCKLE

_____________________________________________________________________

 Body  10-39

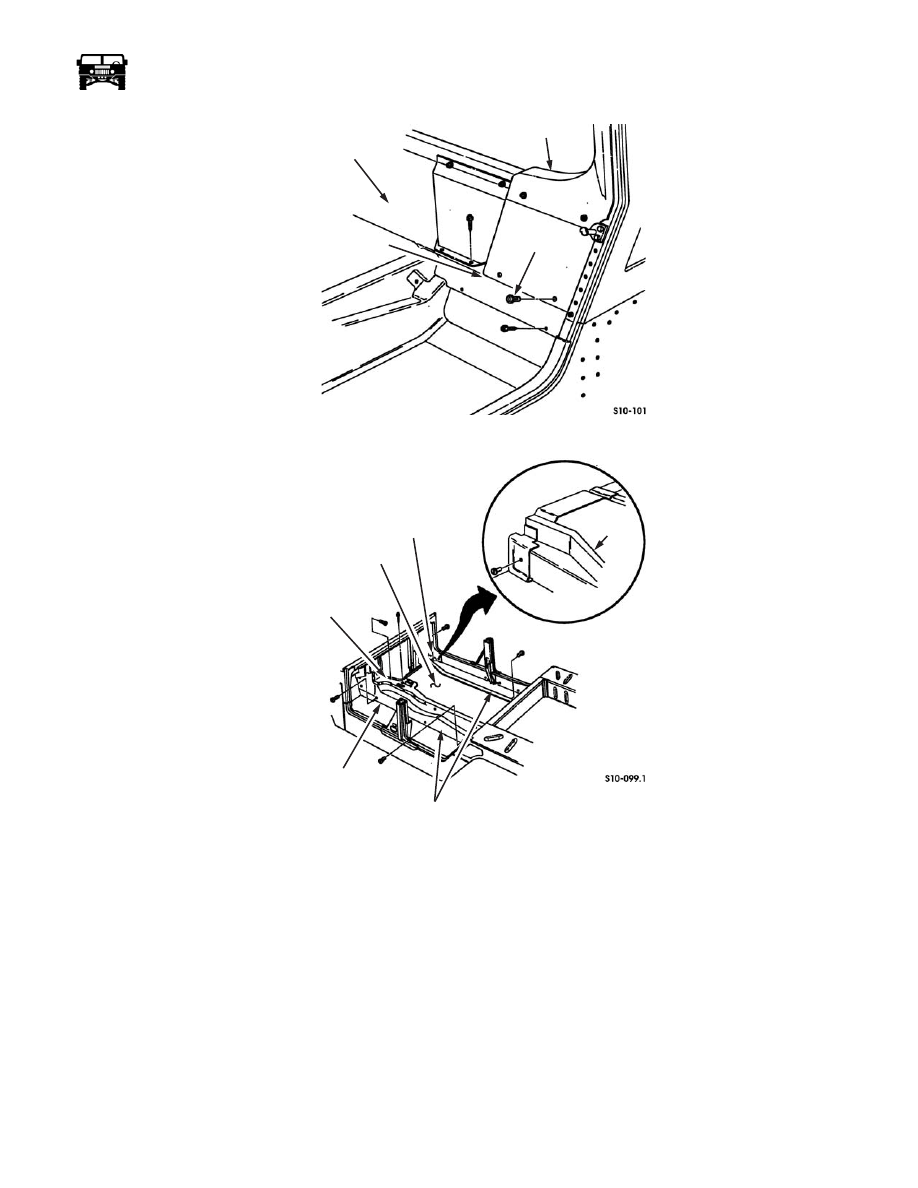

Figure 10-41:   Rear Compartment Trim Removal

Figure 10-42:   Inner Kick Panel Mounting

6.

Remove the center consoles.

7.

Remove the screws, panel fastener and the shift control panel from the tunnel (Figure  10-42).

8.

Remove the panel fasteners and the left front inner kick panel from the tunnel.

9.

Remove the panel fasteners and the right front inner kick panel.

10. Remove the panel fastener and the inner kick panel from the rear of tunnel.

Installation

1.

Secure the rear inner kick panel to the right rear of the tunnel with the panel fastener (Figure  10-42).

2.

Secure the right front inner kick panel to the tunnel with the panel fasteners.

3.

Secure the left front inner kick panel to the tunnel with the panel fasteners.

4.

Secure the shift control trim panel to the tunnel with the screw/washer assemblies and the panel fastener.

5.

Install the center consoles.

REAR

REAR

PANEL

FASTENER

WALL TRIM

COMPARTMENT

COMPARTMENT

WALL

PANEL

RIGHT FRONT

TUNNEL

LEFT FRONT

REAR INNER

KICK PANELS

 INNER KICK

 PANEL

 INNER KICK PANEL

SHIFT

CONTROL

TRIM PANEL

KICK

PANEL

10-40 Body

______________________________________________________________________

6.

Secure the rear inner kick panels with the panel fasteners (Figure  10-41).

7.

Secure the rear wall trim to the rear compartment wall with the panel fasteners and the screw/washer assemblies.

8.

Connect the driver side seat belt buckle electrical connector (Figure  10-40).

9.

Secure the seat buckles to the tunnel with the washers and the bolts. Tighten the bolts to 35-40 lb-ft (47-55 N•m).

10. Install the seats.

Outer Kick Panel Replacement

Removal

1.

Remove the door stop straps.

2.

Remove the panel fasteners and the right front outer kick panel from the body (Figure  10-43).

3.

Remove the panel fasteners and the left front outer kick panel from the body.

4.

Remove the panel fasteners and the left center outer kick panel from the body.

5.

Remove the panel fastener and the right center outer kick panel from the body.

6.

Remove the screws, washers and the rear lower seat belt brackets from the body.

7.

Remove the panel fasteners and the left and right rear outer kick panels from the body.

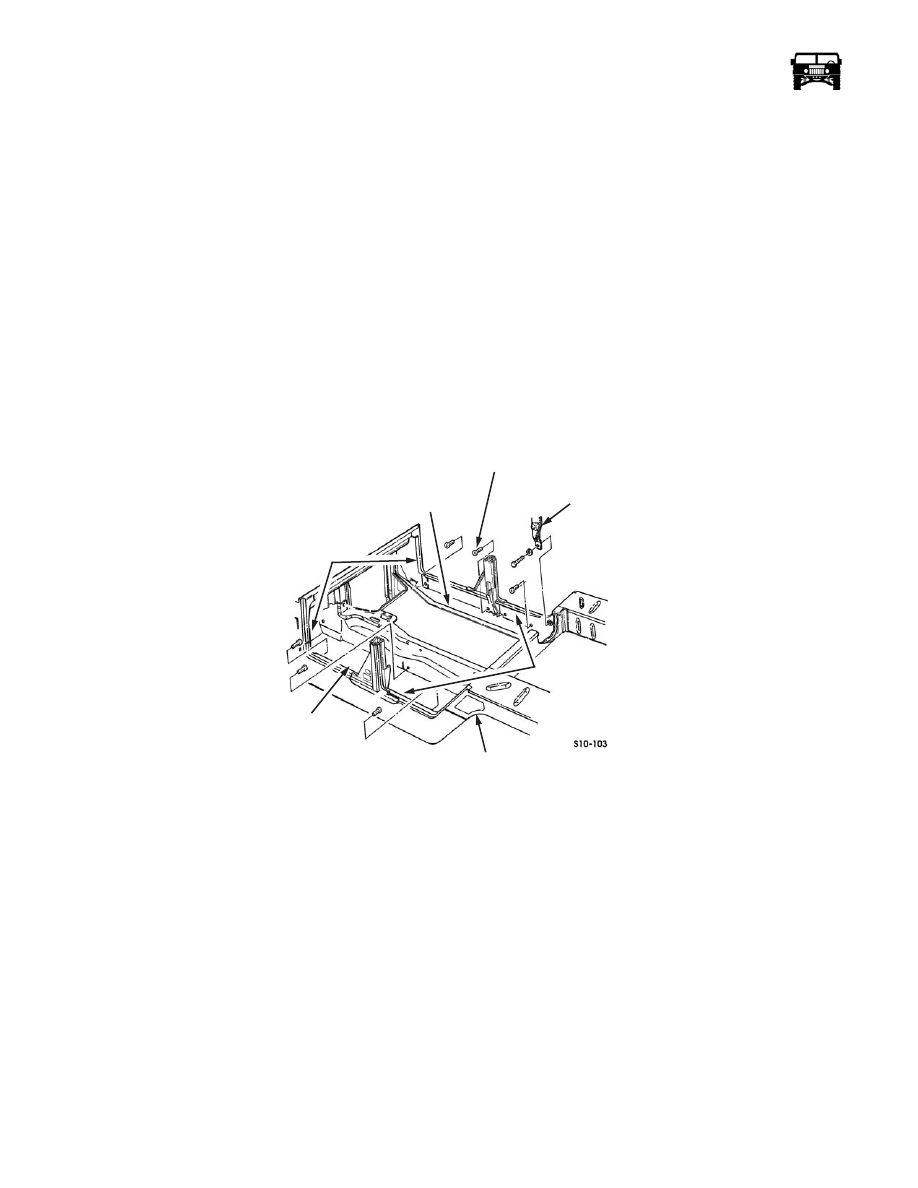

Figure 10-43:   Outer Kick Panel Identification

Installation

1.

Secure the left and the right rear outer kick panels to the body with the panel fasteners (Figure  10-43).

2.

Secure the rear lower seat belt brackets to the body with the washers and the screws.

3.

Secure the right center outer kick panel to the body with the panel fastener.

4.

Secure the left center outer kick panel to the body with the panel fasteners.

5.

Secure the left front outer kick panel to the body with the panel fasteners.

6.

Secure the right front outer kick panel to the body with the panel fasteners.

7.

Install the door stop straps.

Tunnel Carpet, Padding and Hardboard Replacement

Removal

1.

Remove the inner kick panels.

2.

Remove the carpet from the tunnel (Figure  10-44).

3.

Remove the padding from the tunnel.

PANEL FASTENER

SEAT BELT

BODY

REAR KICK

CENTER KICK

FRONT KICK

BRACKET

 PANELS

 PANEL

PANELS

CENTER KICK

 PANEL

LOWER

_____________________________________________________________________

 Body  10-41

4.

Remove the panel fasteners and the hardboard from the tunnel.

Installation

1.

Secure the hardboard to the tunnel with the panel fasteners (Figure  10-44).

2.

Install the padding on the tunnel.

3.

Install the carpet on the tunnel.

4.

Install the inner kick panels.

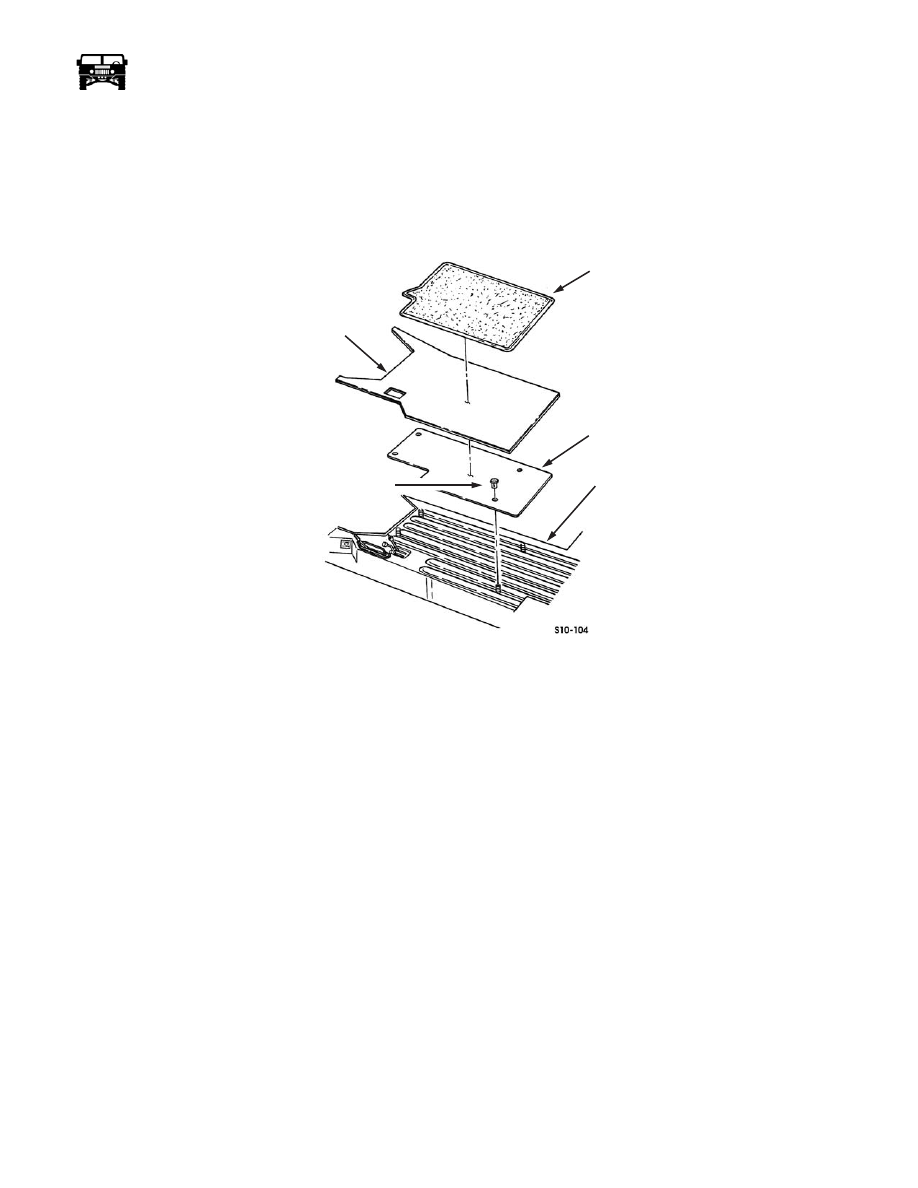

Figure 10-44:   Carpet and Padding Installation

VISOR REPLACEMENT

Removal

NOTE: The visor replacement is the same for each side of the vehicle. This procedure covers the driver’s side.

1.

Remove the six screws, lock washers and the visor from the body (Figure  10-45).

Installation

1.

Secure the visor mounting brackets to the body with the six screws, lock washers and washers.

CARPET

PADDING

HARDBOARD

PANEL FASTENER

TUNNEL
