8-8

Steering System

______________________________________________________________

TIE ROD ADJUSTING SLEEVE REPLACEMENT

Removal

1.

Raise and support the front of the vehicle.

2.

Remove the cotter pins and slotted nuts from the center link end and the geared hub end of the tie rod (Figure  8-8).

3.

Using puller J-24319-B remove the tie rod from the center link and the geared hub.

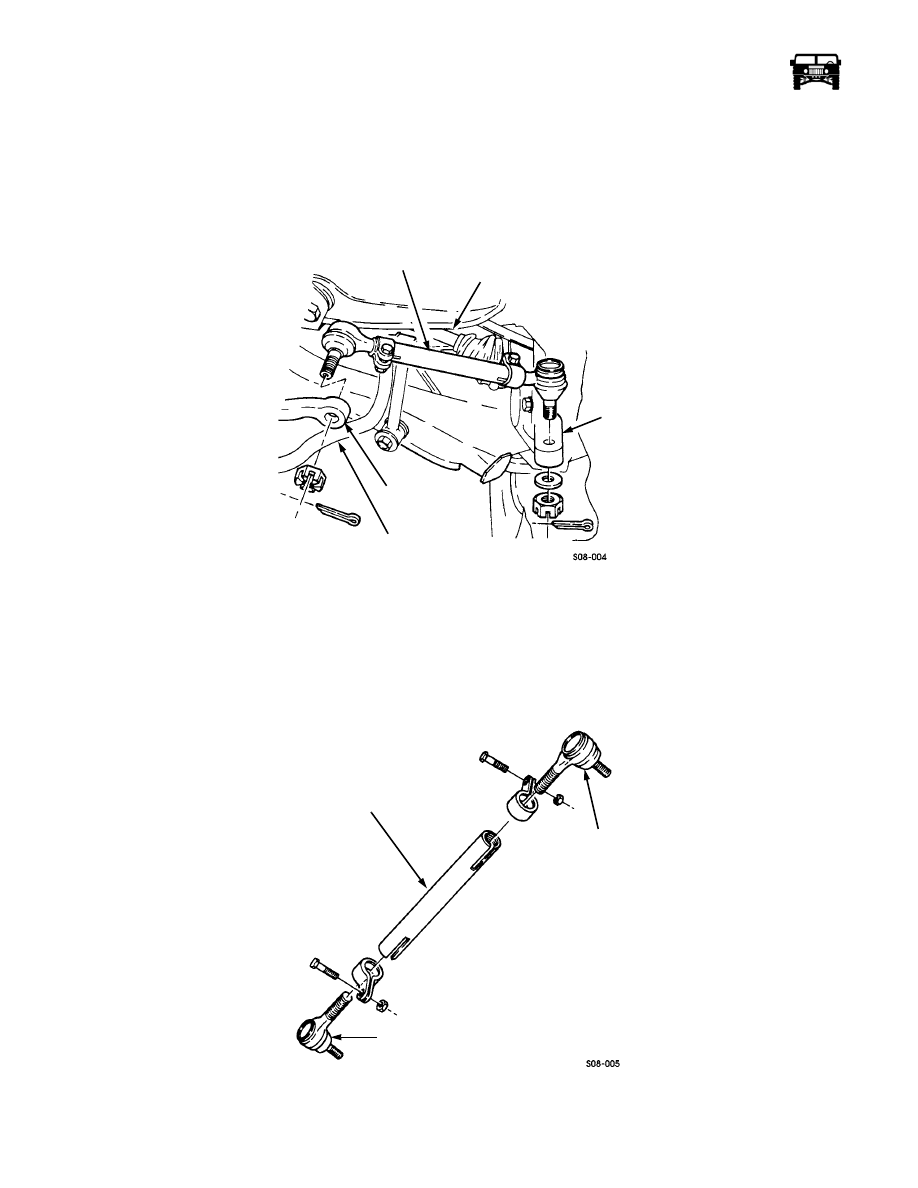

Figure 8-8:   Tie Rod Removal

Disassembly

1.

Loosen the two locknuts and clamps securing the tie rod ends to the adjusting sleeve (Figure  8-9).

NOTE: Note: Count the number of turns required to remove each tie rod end from the adjusting sleeve.

2.

Remove both tie rod ends from the adjusting sleeve.

Figure 8-9:   Tie Rod Component Parts

TIE ROD

HALFSHAFT

GEARED

CENTER LINK

STABILIZER BAR

HUB

ASSEMBLY

TIE ROD END

ADJUSTING SLEEVE

TIE ROD END

6-1-05

_____________________________________________________________

 Steering System  8-9

5745804

Assembly

1.

Apply anti-seize compound to the threads in the adjusting sleeve.

2.

Thread the two tie rod ends into the adjusting sleeve, turning them the same number of revolutions that were required for
removal.

Installation

1.

Secure the tie rod to the center link with the slotted nut and tighten to 63-77 lb-ft (85-104 N•m).

2.

Secure the tie rod to the geared hub with the washer and slotted nut. Tighten the slotted nut to 63-77 lb-ft (85-104 N•m).

3.

Install a cotter pin in each slotted nut. If necessary, tighten the slotted nuts to align the holes for cotter pin insertion. DO NOT
back off the slotted nuts to align the cotter pin holes.

CAUTION:  Ensure that the outboard clamp faces the halfshaft and the inboard clamp faces away from the stabilizer bar (front
only) or damage to equipment may result.

4.

Before final tightening of the sleeve clamp hardware, center both tie rod end studs in their sockets(Figure  8-7).

CAUTION: If the stud and socket are not properly aligned, a partial or complete lockout of stud swing could result. Limiting stud
swing can increase component wear and a complete lockout can cause component damage.

5.

Lubricate the tie rod ends.

6.

Lower the vehicle and align the toe-in.

CAUTION: The sleeve clamps must be positioned between 3/16" and 5/16" from the end of the sleeve and the bolt and nut tight-
ened to 30 lb-ft (41 N•m).

7.

Align the sleeve clamps and tighten the bolt and nut assemblies to 30 lb-ft (41 N•m)(Figure  8-10).

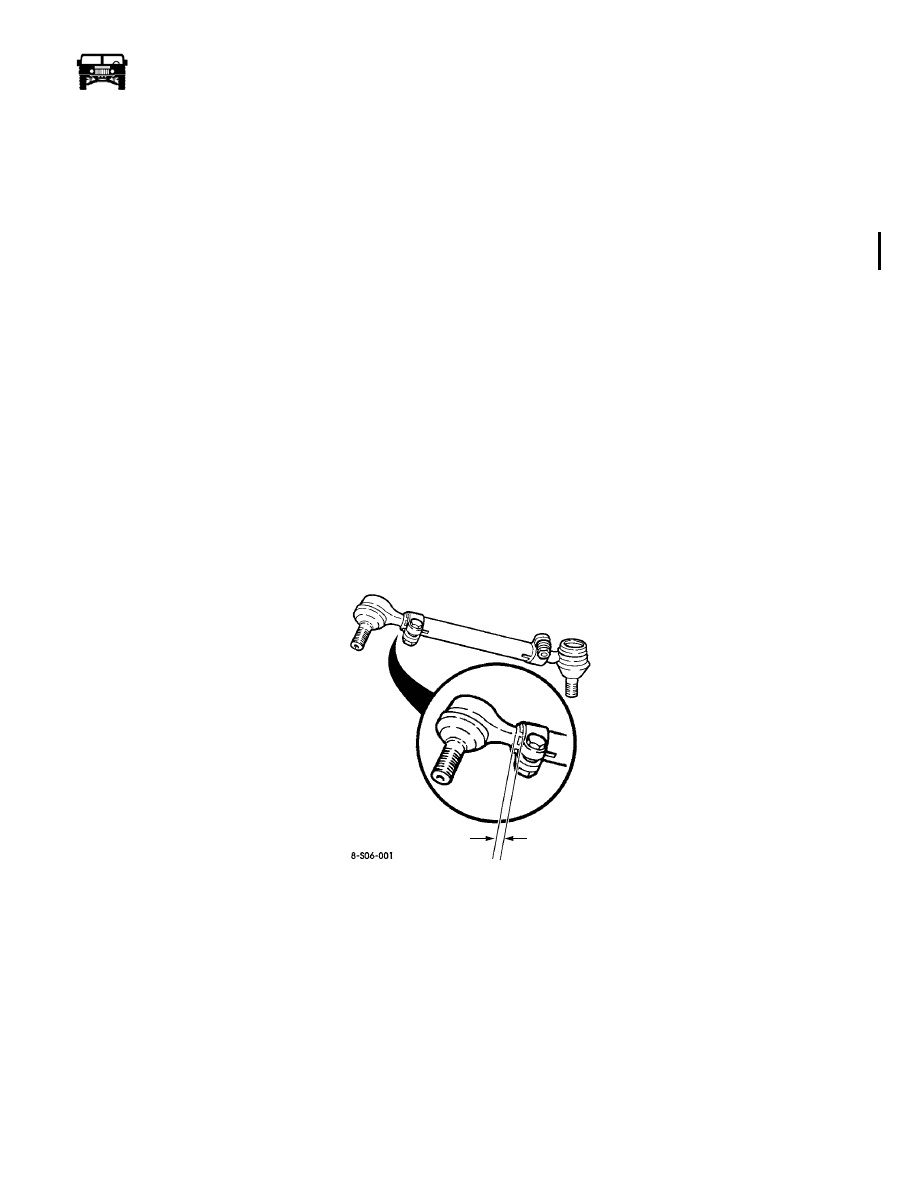

Figure 8-10:   Tie Rod Sleeve Clamp Position

IDLER ARM REPLACEMENT

Removal

1.

Raise and support the front of the vehicle.

2.

Remove the cotter pin and the slotted nut securing the idler arm to the center link(Figure  8-11).

3.

Using puller CH-47975 disconnect the idler arm from the center link.

4.

Remove the bolts, washers and locknuts securing the idler arm to the frame and remove the idler arm.

3/16"-5/16"

6-1-05

8-10

Steering System

_____________________________________________________________

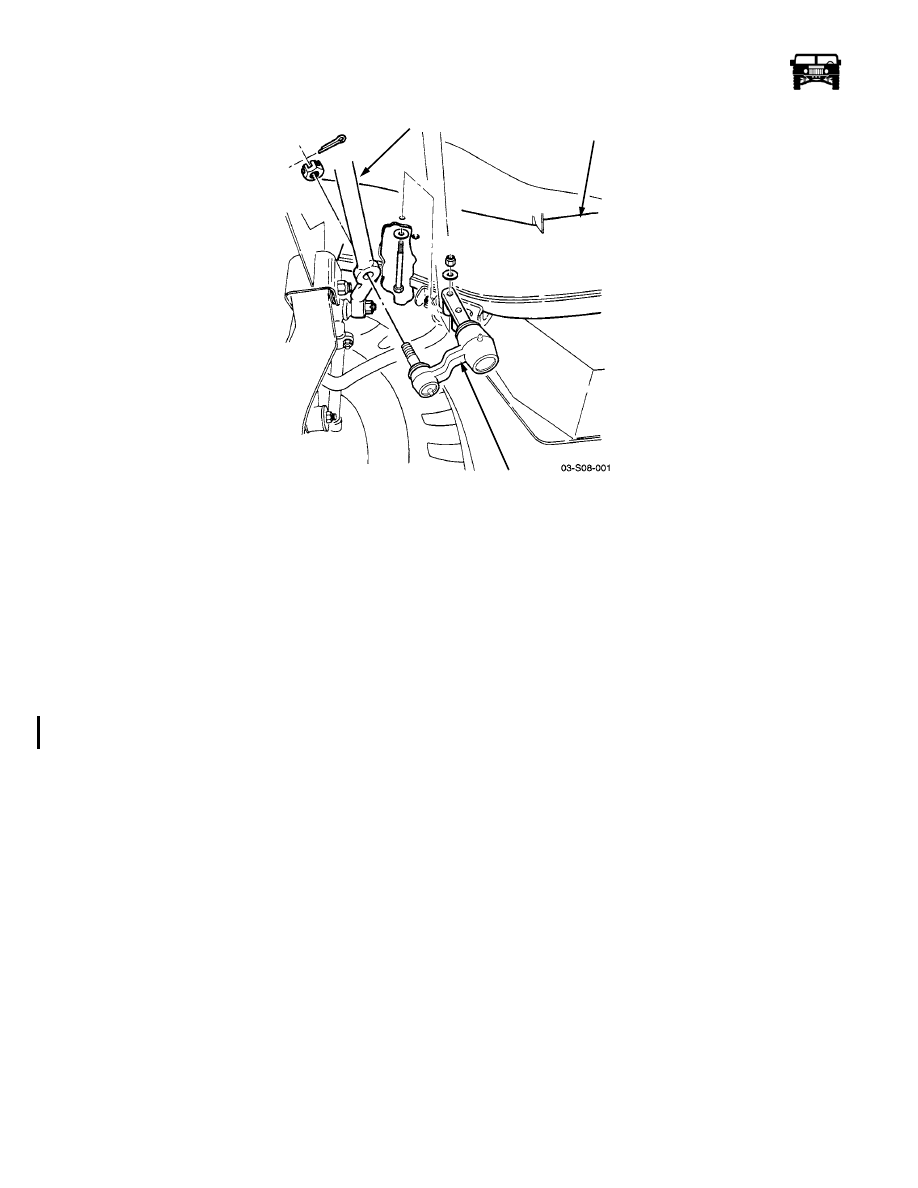

Figure 8-11:   Idler Arm Removal

Installation

1.

Position the idler arm in the center link and loosely install the bolts, washers and nuts through the frame and idler arm. The
head of the bolts should be on the frame side and the nuts on the idler arm side.

NOTE: Refer to torque adapter in section 8 for proper use of tool J-45764-2.

2.

Secure the idler arm to the center link with the slotted nut and tighten to 110-130 lb-ft (149-176 N•m) using torque adapter J-
45764-2 and an extension (Figure  8-5).

3.

Install the cotter pin through the slotted nut. If necessary, tighten the slotted nut to align the holes for cotter pin insertion. DO
NOT back off the slotted nut to align the holes.

4.

Place the front wheels in the straight ahead position and tighten the idler arm to frame bolts and locknuts to 90-100 lb-ft (122-
136 N•m).

5.

Lubricate the idler arm and lower the vehicle.

STEERING WHEEL REPLACEMENT

NOTE:  Ensure the front wheels are in the straight ahead position.

Removal

1.

Remove the horn button by pulling it out of the wheel with your fingers.

2.

Disconnect both wire leads to the horn button, and set aside.

3.

Remove the five allen screws securing the wheel to the collar, remove the wheel and the collar.

4.

Remove the main shaft nut.

Installation

1.

Align the splines on the steering wheel with the splines on the shaft.

2.

Secure the steering wheel to the shaft with the nut. Tighten nut to 35 lb-ft (47 N•m).

3.

Position the horn button retainer ring and wheel onto the collar secure with the five allen screws, tighten to 12-15 in./lb.

4.

Connect the wire leads to the terminals on the back of the horn button and reinstall the button into the center of the wheel. test
the horn for proper operation.

CENTER LINK

FRAME

IDLER ARM

6-1-05

____________________________________________________________

 Steering System  8-11

5745804

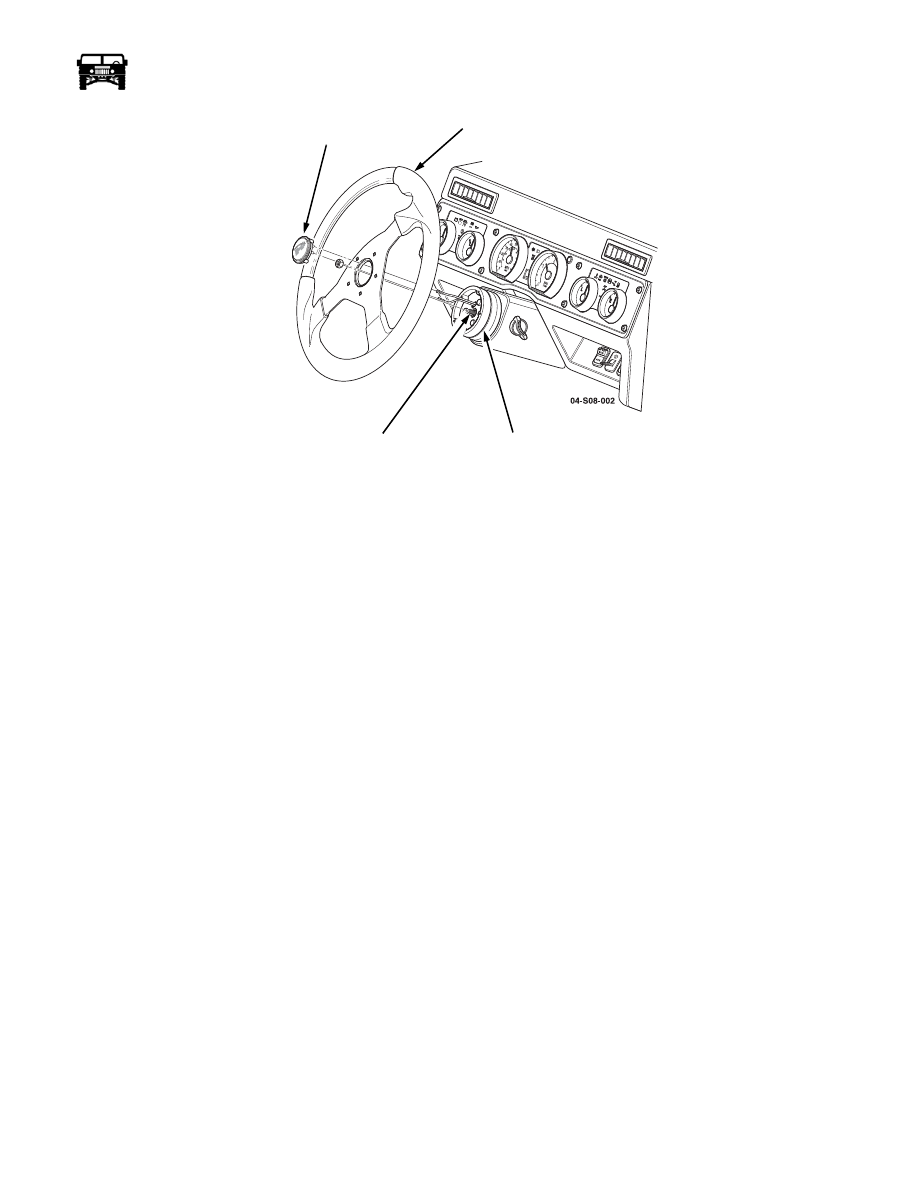

Figure 8-12:   Steering Wheel Removal

STEERING COLUMN REPLACEMENT

Removal

NOTE: Before removing the steering wheel, turn the steering column to gain access to the intermediate shaft mounting hardware.

1.

Remove the steering wheel.

2.

Remove the close-out panel.

3.

Remove the locknut, lockwasher, three washers, and the thru-bolt from the mounting bracket and loosen the pivot bolts. The
column will drop down as it pivots in the bracket (Figure  8-13).

NOTE: Before performing step 4, be certain to put scribe marks that indicate the position of the intermediate shaft yoke relative to
the splines.

4.

Remove the bolt on the intermediate shaft yoke and pull the yoke from the splines (Figure  8-13).

5.

Remove the five screws and shroud (two halves) from the steering column.

6.

Disconnect the ground wires from the steering column.

7.

Disconnect the two multi-switch connectors from the multi-switch.

8.

Disconnect the two ignition switch connectors from the ignition switch.

9.

Remove the screw attaching the interlock cable to the ignition switch, move the interlock cable out of the way.

10. Remove the multi-switch and the ignition switch from the steering column.

11. Remove the two locknuts, washers, pivot bolts, and steering column from the mounting bracket.

Installation

1.

Hang the steering column from the mounting bracket with the two pivot bolts, washers, and the locknuts. Finger tighten the
locknuts.

2.

Install the ignition switch and the multi-switch on the steering column (Figure  8-13).

3.

Install the interlock cable and tighten the screw.

4.

Connect the two ignition switch connectors to the ignition switch.

5.

Connect the two multi-switch connectors to the multi-switch.

6.

Secure the shrouds to the steering column with the five screws.

7.

Secure the ground wires to the steering column with the bolt and the nut/lockwasher assembly.

SHAFT

STEERING WHEEL

COLLAR

HORN BUTTON
